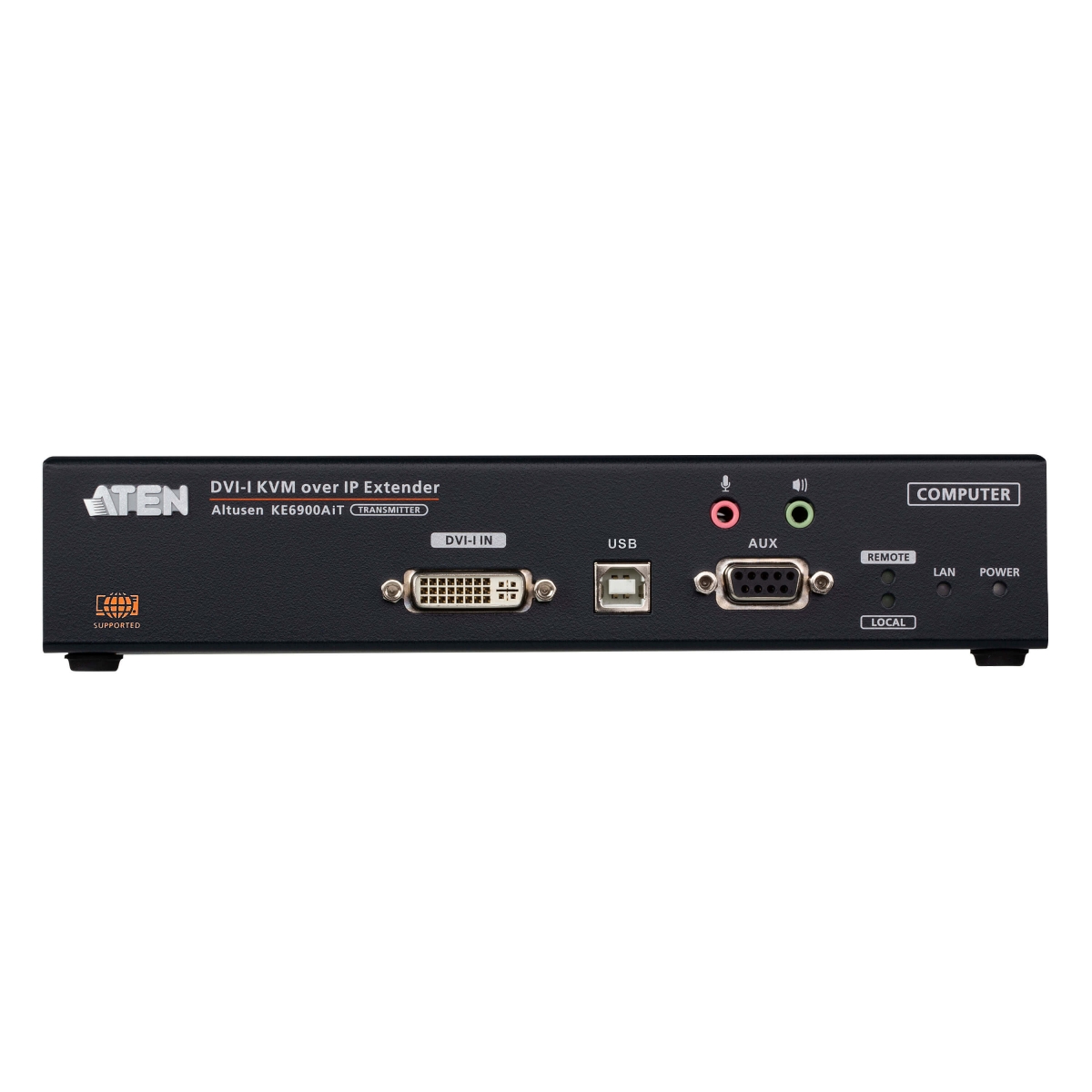

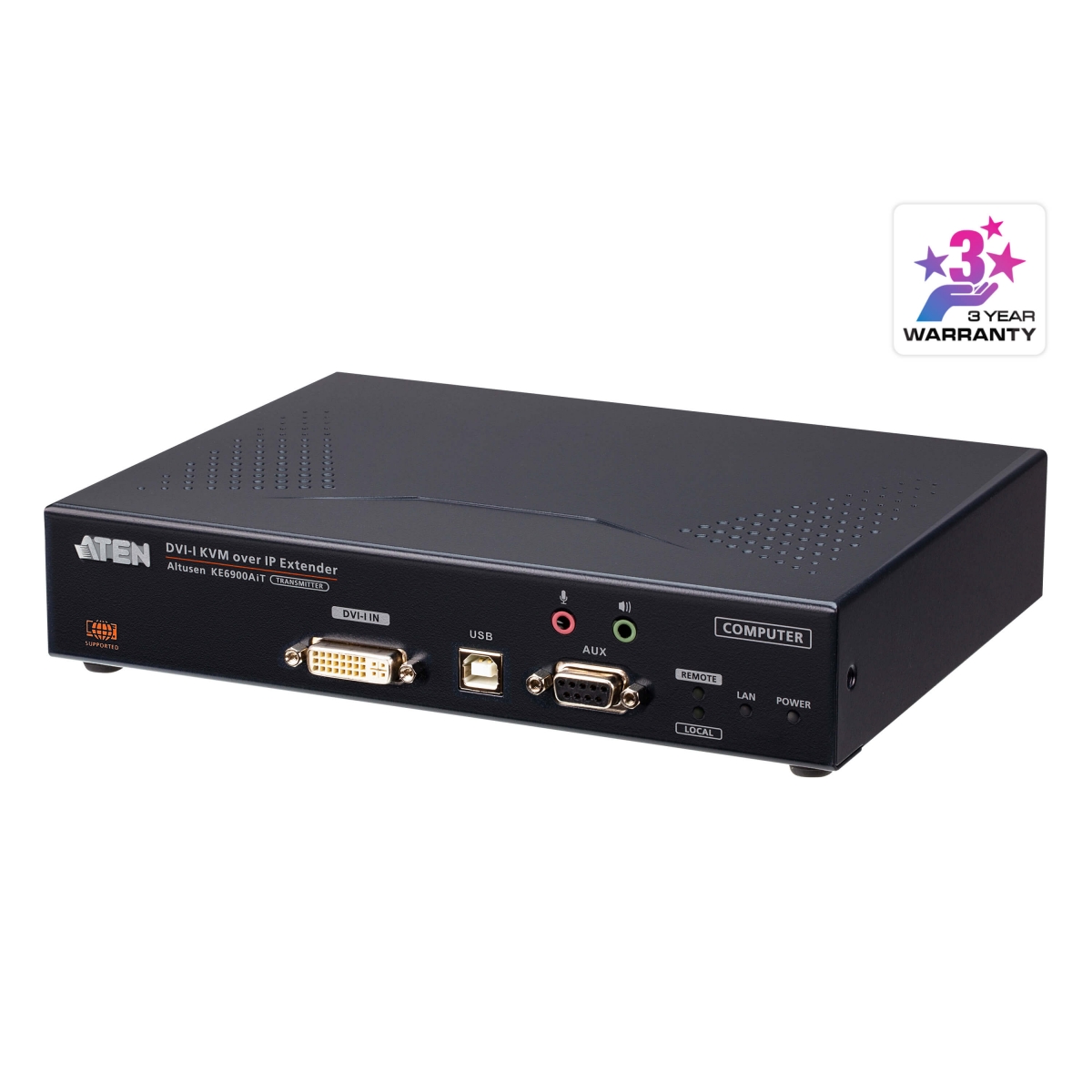

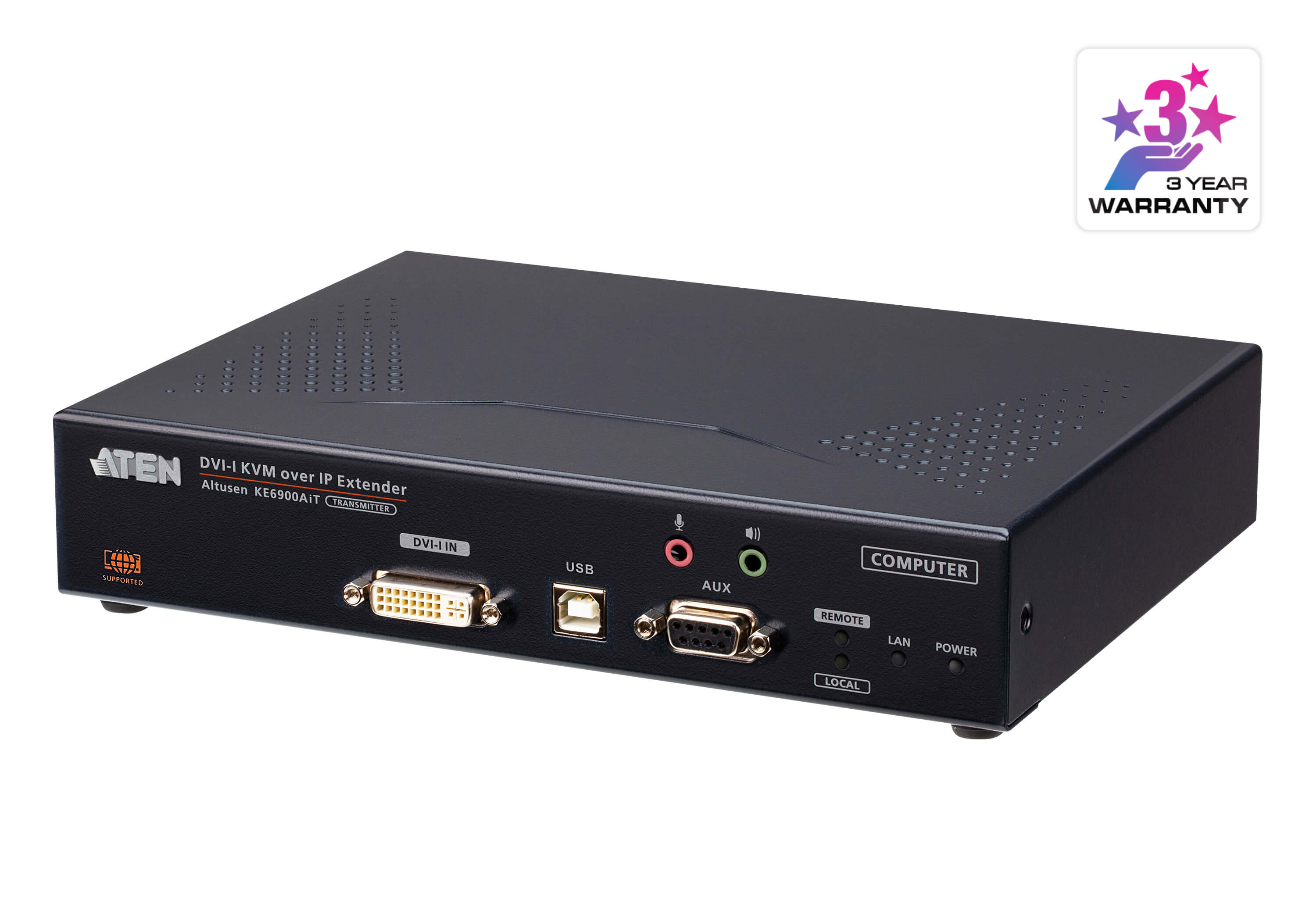

DVI-I Single Display KVM over IP Transmitter with Internet Access
KE6900AIT
- Supports recording of remotely-accessed computer operations using CCVSR
- Supports power/network failover – dual DC jacks for power redundancy and 1 RJ45 & 1 SFP fiber ports for network failover to ensure constant availability for mission-critical applications
- Superior video quality – up to 1920 x 1200 @ 60 Hz; 24-bit color depth
- Supports digital (DVI) or analog (VGA) video output
รับประกัน 3 ปีเต็ม
Spec sheetDVI-I Single Display KVM over IP Transmitter with Internet Access
The KE6900AiT DVI-I Single Display KVM over IP Extender supports one DVI display at each end and provide lossless and low latency video transmissions up to 1920 x 1200 @ 60Hz.
The transmitters support connections via an RJ-45 port or a SFP slot. The transmitter can be connected to a receiver either directly to each other, or via a high-speed network over a copper-based or fiber-based LAN. Connecting via the SFP slot with 1Gbps SFP fiber module* expansions on fiber optic network, you can extend transmission distances up to 10km. The KE6900AiT also features dual power supplies for redundancy to ensure dependable services.
As an IP-based matrix extender, the KE6900AiT can be used as a point-to-point / point-to-multipoint / multipoint-to-point extender, or integrated into a KVM over IP Matrix System (multipoint-to-multipoint) when combined with the KVM over IP Matrix Manager (CCKM), providing more flexible applications in different working environments.
Features
Advanced Features*
- KE Link app – allows you instant link transmitters and receivers, and perform real-time port and profile switching on an iPad.
- Supports recording of remotely-accessed computer operations using CCVSR
- Boundless Switching – simply move the mouse cursor across screen boundaries to switch between different receivers (Rx)
- “Push”and“Pull” – shares content instantly to/from a single Rx or video wall by just one click
- Video Walls – create multiple video walls with up to 12 x 12 (144 displays max.) in each layout
- Advanced Scheduling – improves efficiency and saves costs by allowing connections to be set based on time and date
- Virtual Transmitter – independently streams video, audio, USB, and serial sources from different Tx
- Internal and external authentication support – supports LDAP, Active Directory, RADIUS and TACACS+ external authentications
- Configurable user and group permissions for access and control of KVM over IP extenders
- Rx access control – users at the Tx local console can enable / disable Rx access by simply pressing a control button**
*These advanced functions are supported when the KE transmitters are paired with KE receivers and managed by CCKM.
**The KVM over IP Access Control Box (2XRT-0015G) is sold separately. Contact your ATEN dealer for product information.
Hardware
- Supports power/network failover – dual DC jacks for power redundancy and 1 RJ45 & 1 SFP fiber ports for network failover to ensure constant availability for mission-critical applications
- Supports 1Gbps SFP fiber module expansions*** up to 10 km
- Advance processor provides lossless and low latency video transmissions up to 1920 x 1200 @ 60Hz
- Supports digital (DVI) or analog (VGA) video output****
- Audio Enabled – supports stereo speakers and microphone
- High speed USB Storage Transmission support
- Auto-MDIX – automatically detects cable type
- Built-in 8KV/15KV ESD protection and 2KV surge protection
- Fanless design for silent operations that are energy efficient
- Mounting options:
• 2X-021G Dual Rack Mount Kit
• 2X-031G Single Rack Mount Kit - Includes an industrial-grade power adapter– supports operating temperature of 0-50°C to ensure durability and adaptability under harsh environmental conditions
***The SFP module (2A-136G / 2A-137G) is sold separately. Contact your ATEN dealer for product information.
****To convert a DVI to VGA signal, a DVI-I to VGA converter is required.
Management
- Integration with ATEN CCVSR Video Session Recording Software
- Local console – flexible local or over IP console access
- EDID Expert™ – selects optimum EDID settings for smooth power-up and highest quality display
- Four selectable access modes for multiple simultaneous access (Exclusive/Occupy/Share/ View only mode) – administrators can select access modes of permissions on Tx devices to boost collaboration or to avoid interference among users
- On-screen Preview – allows users to view the video of up to 36 displays on one screen
- Fast Switching – switches between different remote video resolutions on a local display within 0.3 seconds
- Command Line Interface – administrators can control all KVM over IP extenders via RS-232 or TCP/IP using a CLI or 3rd party application
- Supports Hotkey Commands
- Flashing LED and beeping feature help locate and identify devices
- KVM over IP extenders can “Push” and “Pull”to share content Security
Security
- Dedicated LAN port for KE direct connections – can be isolated from the corporate network
- Secure data transmission – AES 128-bit encryption to secure all data before transmitted over a network and decrypts the data on the receiver
- Supports industry standard Transport Layer Security (TLS) protocol
Virtual Media
- USB Storage Transmission mode enhances data transmission performance, ideally for file transfers, OS patching, software installations and diagnostic testing
- Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
- Supports Smart Card/CAC Reader

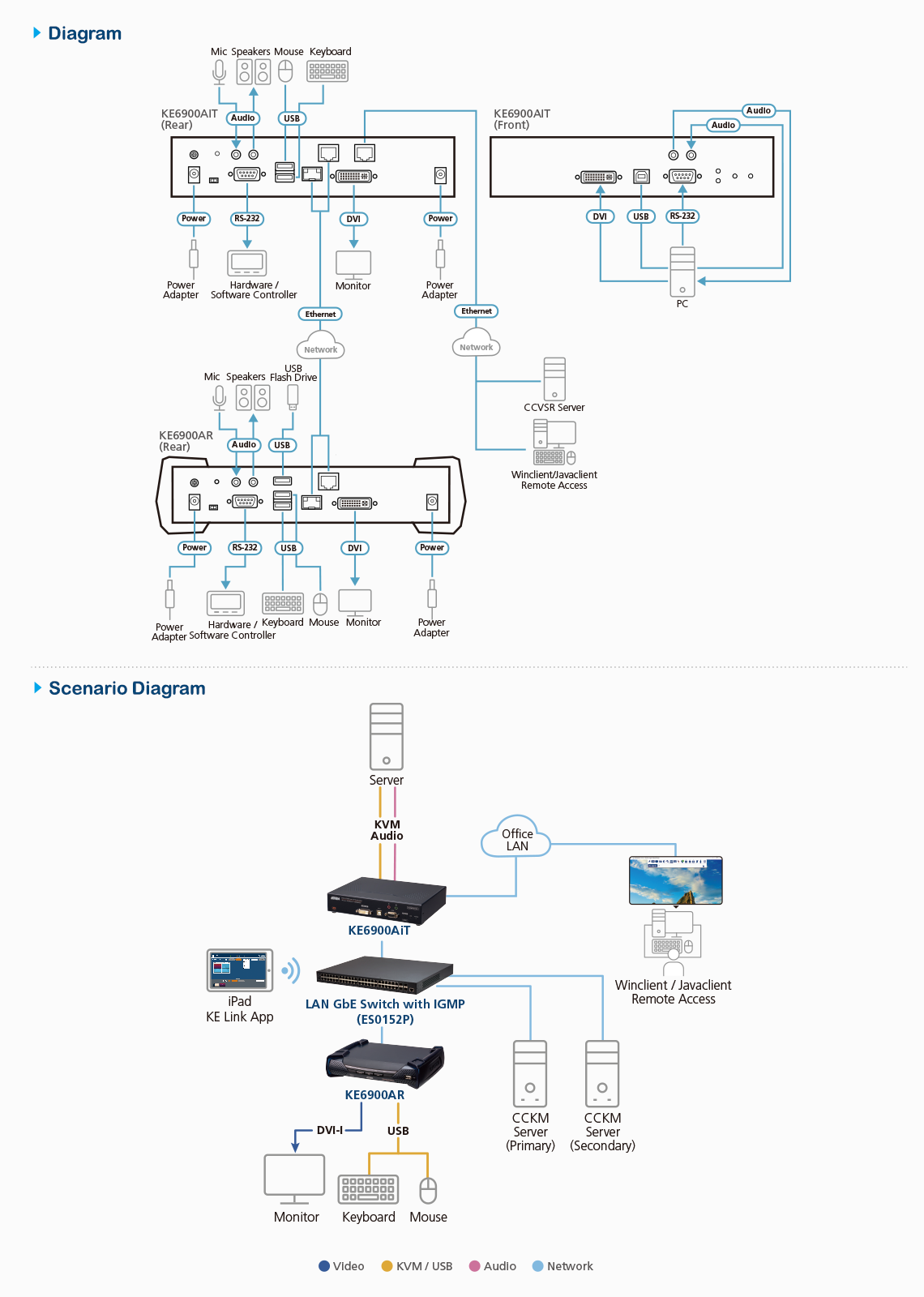

Diagram
Specification

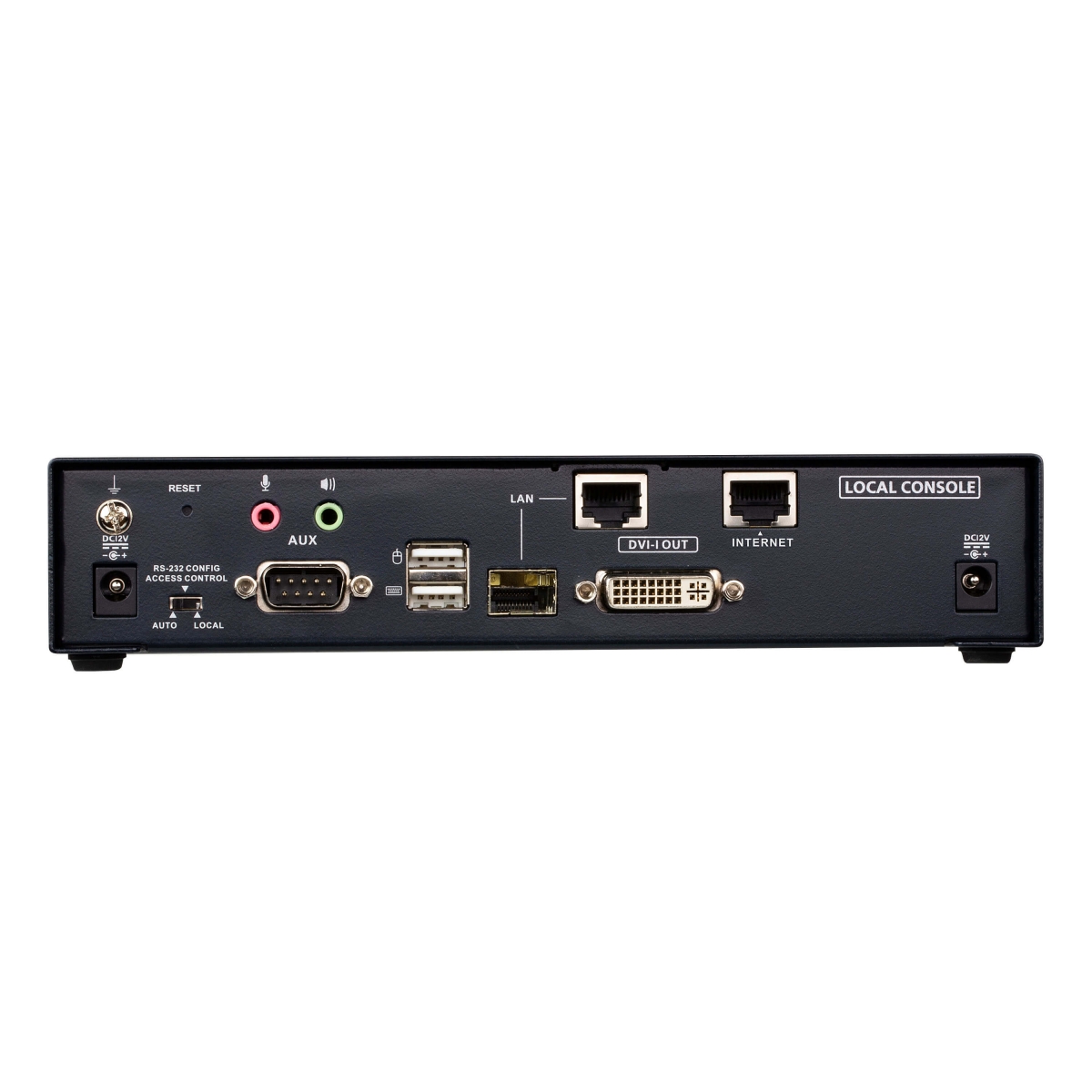

| Connectors | |
| Console Ports | 2 x USB Type A Female (White) |
| 1 x DVI-I Female (White) | |
| 1 x Mini Stereo Jack (Green) | |
| 1 x Mini Stereo Jack (Pink) | |
| 1 x DB-9 Male (Black) | |
| KVM Ports | 1 x USB Type B Female (White) |
| 1 x DVI-I Female (White) | |
| 1 x Mini Stereo Jack (Green) | |
| 1 x Mini Stereo Jack (Pink) | |
| 1 x DB-9 Female (Black) | |
| Power | 2 x DC Jack (Black) |
| LAN Ports | 1 x RJ-45 (Black) |
| 1 x SFP Slot | |
| Internet Ports | 1 x RJ-45 (Black) |
| USB Port | N/A |
| Switches | |
| OSD | N/A |
| Video | N/A |
| Graphics | N/A |
| Reset | 1 x Semi-recessed Pushbutton |
| Mode Selection | 1 x Slide Switch (Auto, RS-232 Config/Access Control, Local) |
| LEDs | |
| 10/100/1000 Mbps | 1 (10: Orange / 100: Orange & Green / 1000: Green) |
| Power | 1 (Blue) |
| Local | 1 (Green) |
| Remote | 1 (Green) |
| Emulation | |
| Keyboard / Mouse | USB |
| Power Consumption | DC12V:12W:60BTU |
| Video Resolution | Up to 1920 x 1200 @ 60Hz |
| Environmental | |
| Operating Temperature | 0–50°C |
| Storage Temperature | -20–60°C |
| Humidity | 0–95% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 1.16 kg ( 2.56 lb ) |
| Dimensions (L x W x H) | 21.50 x 16.33 x 4.18 cm |
| (8.46 x 6.43 x 1.65 in.) | |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Package Contents
1x KE6900AiT DVI-I Single Display KVM over IP Transmitter with Internet Access
1x Power Adapter & Power Cord
1x KVM Cable (DVI-D, USB, Audio; 1.8m/6ft)
1x Foot Pad Set (4 pcs.)
1x Mounting Kit
1x User Instructions
