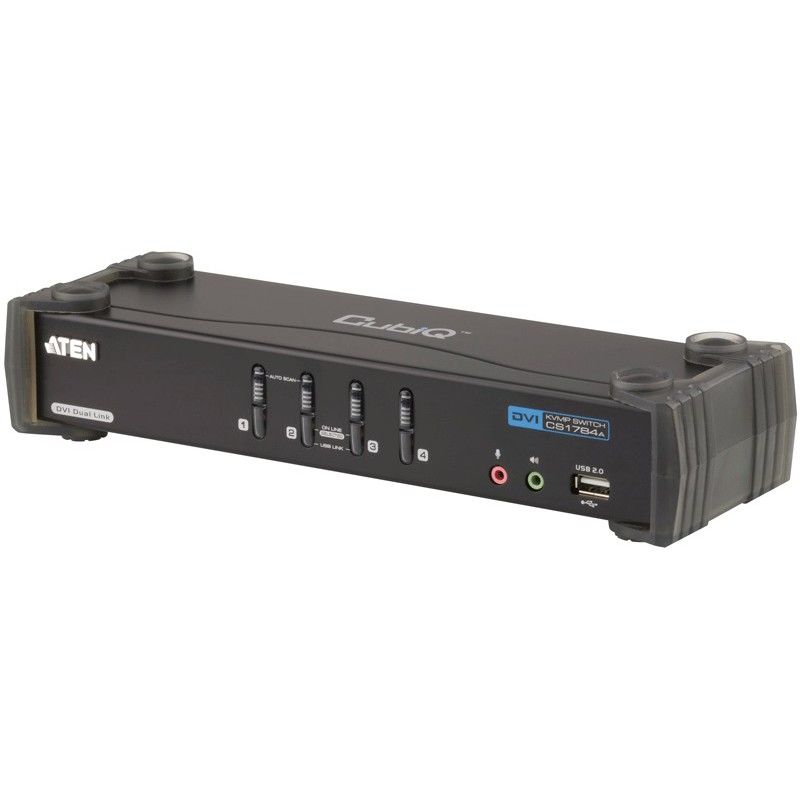

4-Port USB DVI Dual Link KVMP™ Switch
CS1784A
4-Port USB DVI Dual Link KVMP™ Switch, 4-port USB 2.0 hub built in, Supports widescreen resolutions 1920 x 1200(DVI) and support 3D
รับประกัน 3 ปีเต็ม
4-Port USB DVI Dual Link KVMP™ Switch
The CS1784A USB DVI Dual Link KVMP™ Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 4-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.
คุณสมบัติ
- 4-port DVI KVMP Switch with USB 2.0 and 2.1 Surround Sound Audio
- One USB console controls four computers and two additional USB devices
- 2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification
- Full bass response for high quality 2.1 channel surround sound systems
- Computer selection via front panel pushbuttons, hotkeys, and mouse NEW!
- Multiplatform support – Windows, Linux, Mac, and Sun*
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support – fully compliant with the DVI specifications
- Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link): Works with cutting edge 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080 for your ideal workspace and entertainment
- HDCP compatible
- Support widescreen resolutions
- Video DynaSync™ – Exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between ports
- Power on detection – if one of the computers is powered off, the switch will automatically switch to the next powered-on computer NEW!
- Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice
- Console keyboard emulation/bypass feature that supports most gaming / multimedia keyboards NEW!
- Complete keyboard emulation for error-free booting
- Mac/Sun keyboard support and emulation*
- Multilingual keyboard mapping – supports English, Japanese, and French keyboards
- Auto Scan Mode for monitoring all computers
- Firmware upgradable
* PC keyboard combinations emulate Mac/Sun keyboards
Mac/Sun keyboard work only with their own

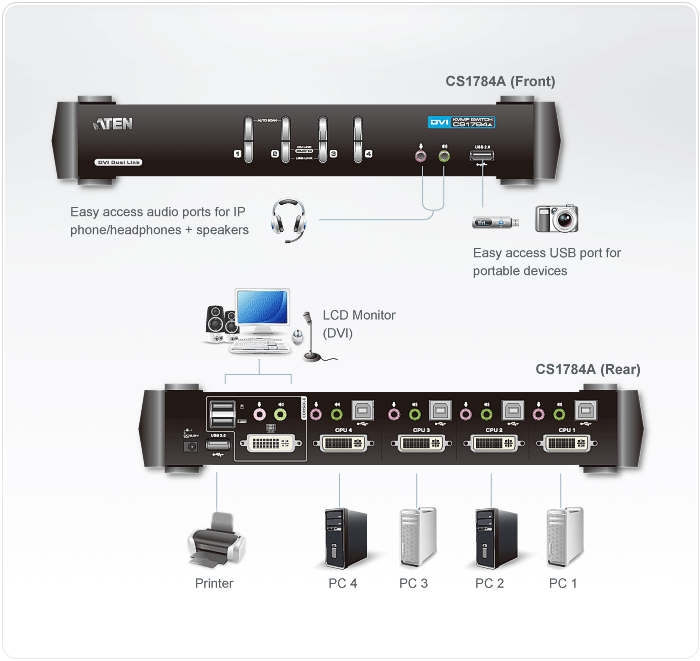

ผังการต่อ
ข้อมูลจำเพาะ
| Computer Connections | 4 | |||
| Port Selection | Front Panel Pushbuttons, Hotkeys, Mouse | |||
| Connectors | Console Ports | Keyboard | 1 x USB Type A Female (Black; rear panel) | |
| Video | 1 x DVI-I Female (White) | |||
| Mouse | 1 x USB Type A Female (Black; rear panel) | |||
| Audio | Line Out | 2 x Mini Stereo Jack Female (Green; 1 x front panel, 1 x rear panel) |
||
| Microphone | 2 x Mini Stereo Jack Female (Pink; 1 x front panel, 1 x rear panel) |
|||
| KVM Ports |
Keyboard / Mouse | 4 x USB Type B Female (White) |
||
| Video | 4 x DVI-I Female (White) |
|||
| Audio | Line Out | 4 x Mini Stereo Jack Female (Green) |
||
| Microphone | 4 x Mini Stereo Jack Female (Pink) |
|||
| Power | 1 x DC Jack | |||
| USB 2.0 Hub | 2 x USB Type A Female (White; 1 x front panel, 1 x rear panel) |
|||
| Switches | Power Selected | 4 x Pushbutton | ||
| LEDs | On Line / Selected | 4 (Orange) | ||
| USB Link | 4 (Green) | |||
| Emulation | Keyboard / Mouse | USB | ||
| Video | DVI Dual Link: 2560x1600 DVI Single Link: 1920 x 1200 |
|||
| Scan Interval | 1–99 secs. (5 secs. default) | |||
| Power Consumption | DC 5.3V, 10 W | |||
| Environment | Operating Temp. | 0 -50°C | ||
| Storage Temp. | -20-60°C | |||
| Humidity | 0–80% RH, Non-condensing | |||
| Physical Properties | Housing | Metal | ||
| Weight | 0.93 kg | |||
| Dimensions ( L x W x H ) |
27.00 x 8.70 x 5.50 cm | |||
อุปกรณ์ในกล่อง
- 1x CS1784A USB DVI Dual Link KVMP™ Switch
- 4x Custom DVI-D KVM Cable Sets
- 1x Power Adapter
- 1x User Manual
- 1x Quick Start Guide
