2-Port USB DVI KVM Cable
CS22D

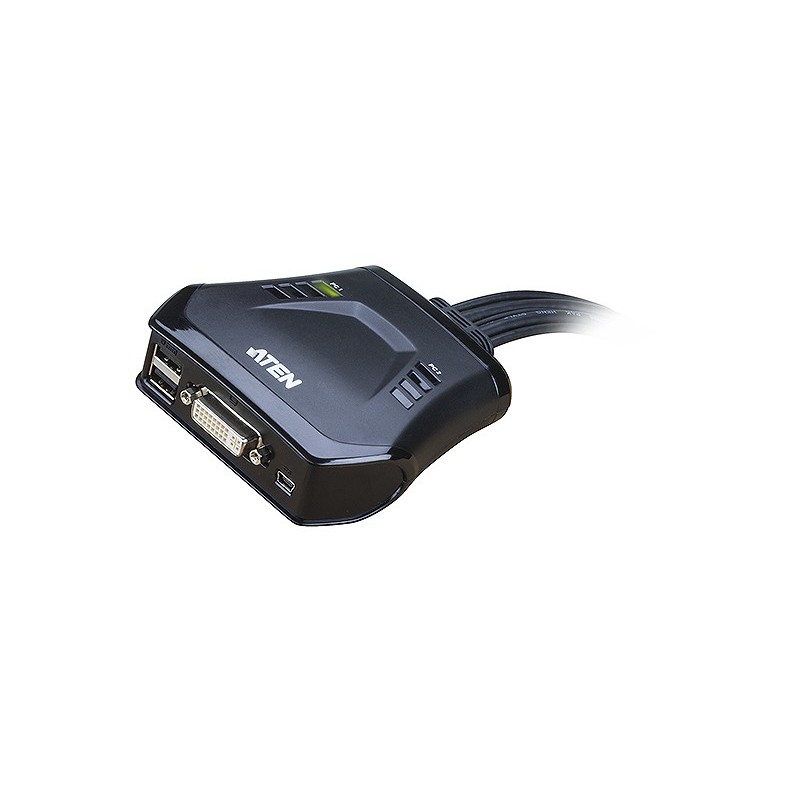

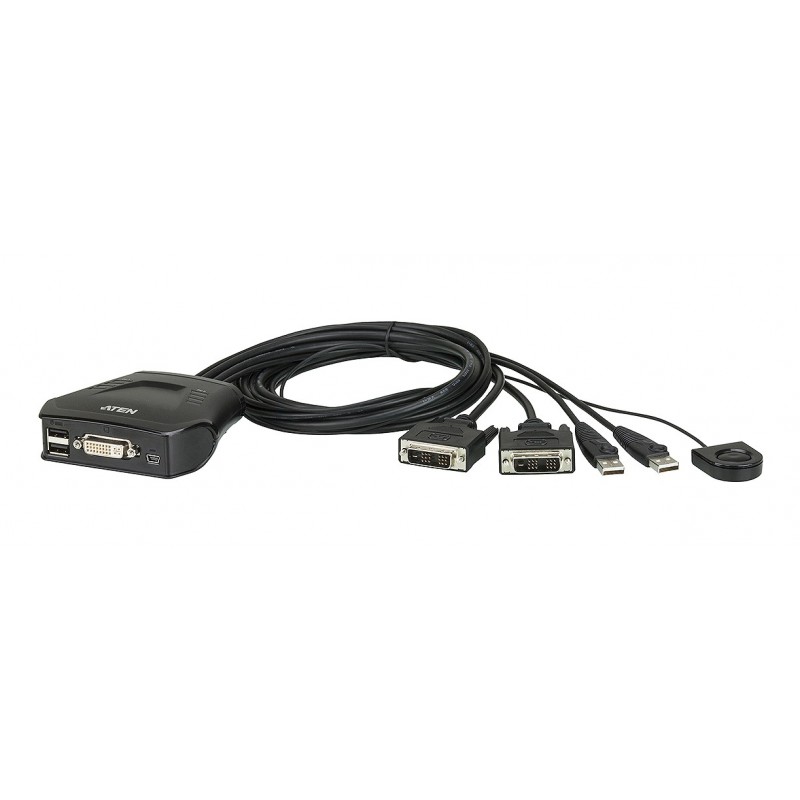

The CS22D 2-Port USB DVI KVM Switch is a control unit that allows access to two computers from a single USB and DVI console
รับประกัน 3 ปีเต็ม
Spec SheetThe CS22D 2-Port USB DVI KVM Switch is a control unit that allows access to two computers from a single USB and DVI console (keyboard, video and mouse). With the CS22D, you can access the computers conveniently via a Remote Port Selector.
The CS22D´s compact all-in-one design makes it ideal for multiplatform desktop applications.
Features
- One DVI-D video console controls two DVI-D USB interface computers
- Computer Selection via Remote Port Selector
- OS Support: Windows 2000, Windows XP, Windows Vista, 7, Mac, Sun and Linux
- Superior video quality- up to 1920 x 1200@60Hz
- Supports USB hot-plugging
- Non-powered
- Supports USB 2.0 device
Diagram
Specification
| Computer Connections | 2 | ||
| Port Selection | Remote Port Selector | ||
| Connectors | Console | Keyboard | 1 x USB Type A Female (Black) |
| Mouse | 1 x USB Type A Female (Black) | ||
| Video | 1 x DVI-I Female (Black) | ||
| Power | 1 x mini USB Type B Female (Black, Optional) | ||
| Computer ports | KB/MS | 2 x USB Type A Male (Black) | |
| Video | 2 x DVI-D Male (Black) | ||
| LEDs | Selected | 2 (Green) | |
| Resolution | DVI-D: 1920 x 1200 @ 60 Hz | ||
| Power Consumption | 5V, 2.5W | ||
| Environment | Operation Temperature | 0 - 50˚C | |
| Storage Temperature | -20 - 60˚C | ||
| Humidity | 0 - 80% RH, Non-condensing | ||
| Physical Properties | Housing | Plastic | |
| Weight | 0.33 kg | ||
| Dimensions ( L x W x H ) |
9.95 x 9.36 x 3.01 cm | ||
Package Contents
- 1x CS22D 2-Port USB DVI KVM Switch
- 1x User Instructions
