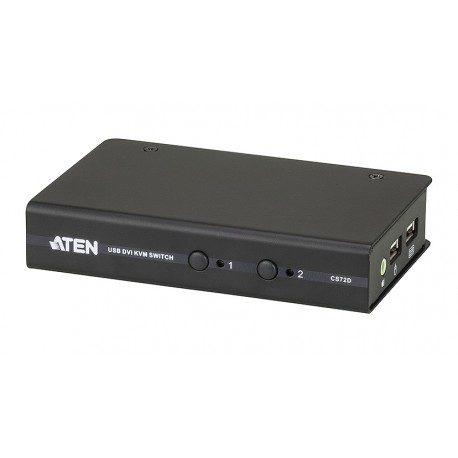

2-Port USB DVI KVM Switch
CS72D
The CS72D 2-Port USB DVI KVM Switch allows you to control two computers using one USB mouse, USB keyboard and Digital Visual Interface (DVI) monitor console. It supports digital video devices, such as fl at panel displays, data projectors, plasma displays and digital TVs.
รับประกัน 3 ปีเต็ม
Spec SheetThe CS72D 2-Port USB DVI KVM Switch allows you to control two computers using one USB mouse, USB keyboard and Digital Visual Interface (DVI) monitor console. It supports digital video devices, such as fl at panel displays, data projectors, plasma displays and digital TVs.
The CS72D comes with ATEN’s Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution; it carries several convenient features, such as Power On Detection, 2.1 channel audio capability and USB2.0 peripheral sharing, as well as provides quick and easy methods to access computers.
Features
- Fully compliant with DVI specifi cation (Digital only)
- Supports multi-function and wireless mouse/keyboard
- Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
- Superior video quality – 1920 x 1200@60Hz
- Multiplatform support – Windows, Linux, Mac, FreeBSD and Sun
- HDCP compliant
- Power on detection – if one computer is powered off, the switch will automatically switch to the next powered-on computer
- Video DynaSync™ – exclusive ATEN technology optimizes display resolution and eliminates boot-up display problems
- Computer selection via front panel pushbuttons, hotkeys, and mouse switching function*
- USB 2.0 mouse port can be used for USB hub and USB peripheral sharing
- Complete keyboard emulation for error-free booting
- Firmware upgradeable
- Non-powered
- Mac/Sun keyboard support and emulation**
* Mouse port switching is only functional under mouse emulation mode and USB 3-key wheel mouse
** PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboard work only with their own computers

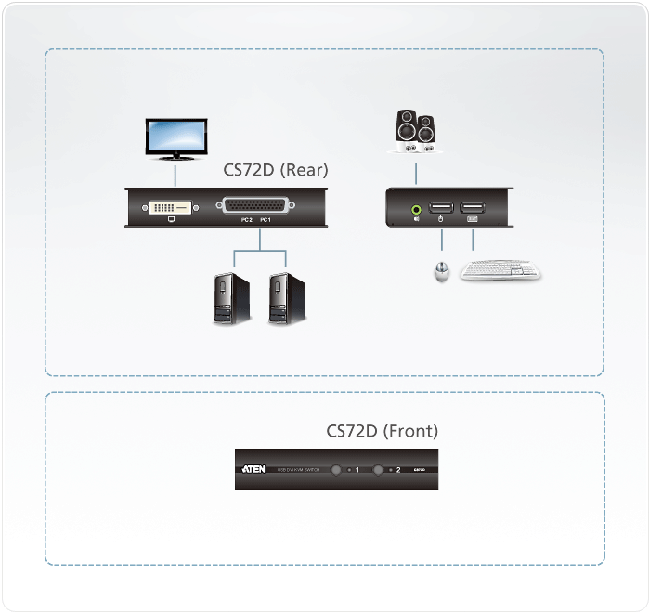

Diagram
Specifications
| Computer Connections | 2 | ||
| Console Connections | 1 | ||
| Port Selection | Hotkey, Mouse switch, Pushbutton | ||
| Connectors | Console ports | Keyboard | 1 x USB Type A Female (Iron) |

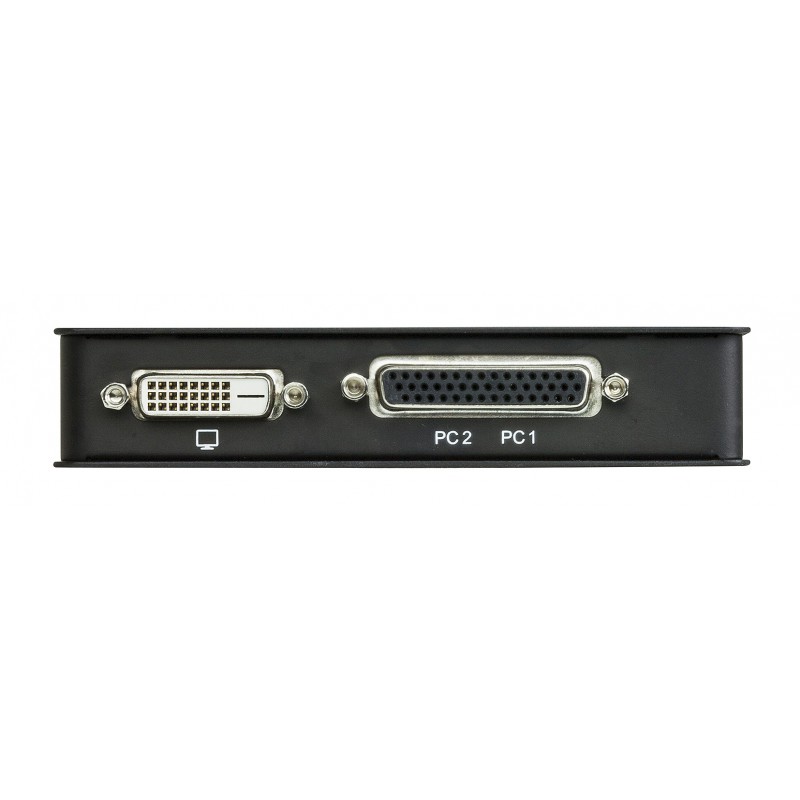

| Video | 1 x DVI-D Female (White) | ||
| Mouse | 1 x USB Type A Female (Iron) | ||

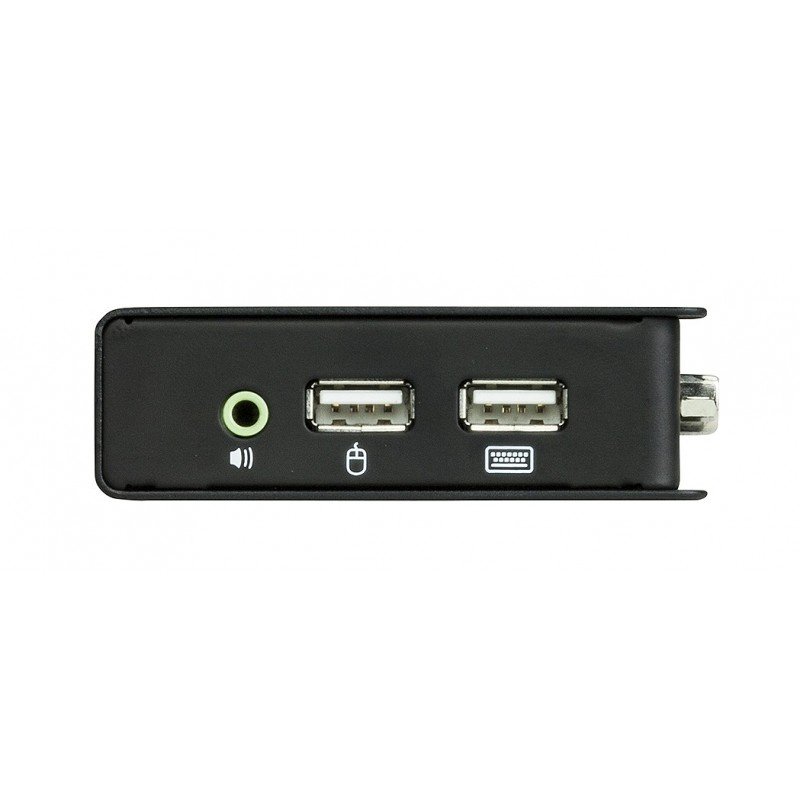

| Speakers | 1 x Mini Stereo Jack Female (Green) | ||
| Computer Port 1 | KB / Mouse / Video / Speakers | 1 x 44-pin Connector Female | |
| Computer Port 2 | KB / Mouse / Video / Speakers | N/A | |
| Power | N/A | ||
| LEDs | Selected | 2 (Green) | |

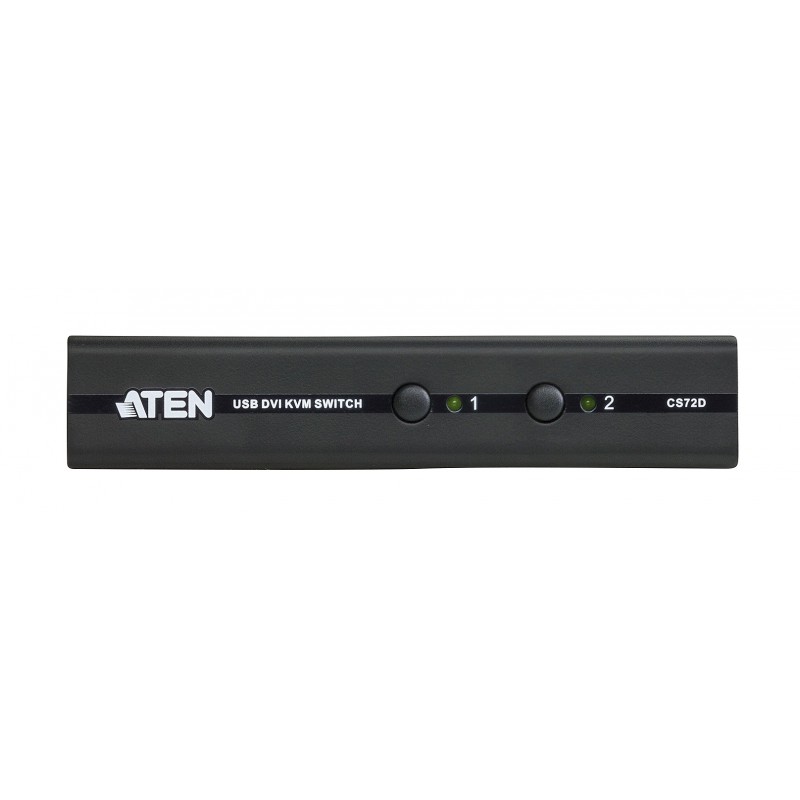

| Pushbuttons | 2 | ||
| Cable Length | 1.2 m x 1 (44 pin) | ||
| Power Consumption | DC 5.0V, 5.0W | ||
| Emulation | KB / Mouse | USB | |
| Video | 1920 x 1200 @60Hz; 1920 x 1080 Full HD | ||
| Scan Interval | 3, 5, 10, 20 seconds (5 secs. default) | ||
| Environment | Operation Temperature | 0 - 50˚C | |
| Storage Temperature | -20 - 60˚C | ||
| Humidity | 0 - 80% RH, Non-condensing | ||
| Physical Properties | Housing | Metal | |
| Weight | 0.33 kg | ||
| Dimensions ( L x W x H ) | 12.30 x 7.54 x 2.28 cm | ||
* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
Package Content
- 1x CS72D 2-Port USB DVI KVM Switch
- 1x 1.2 m 44-pin Custom KVM Cable Set
- 1x User Instructions
