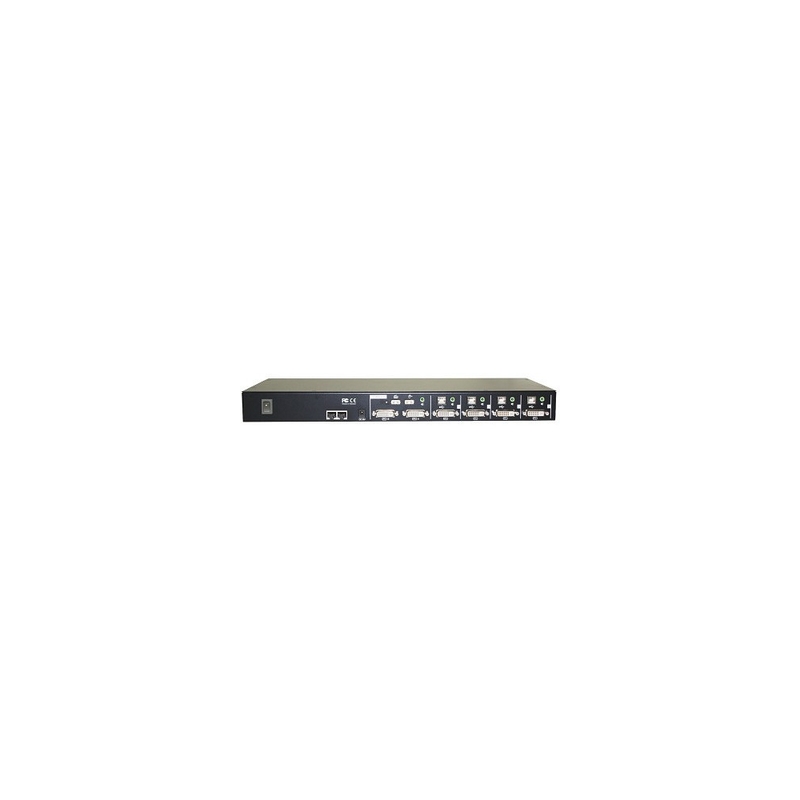

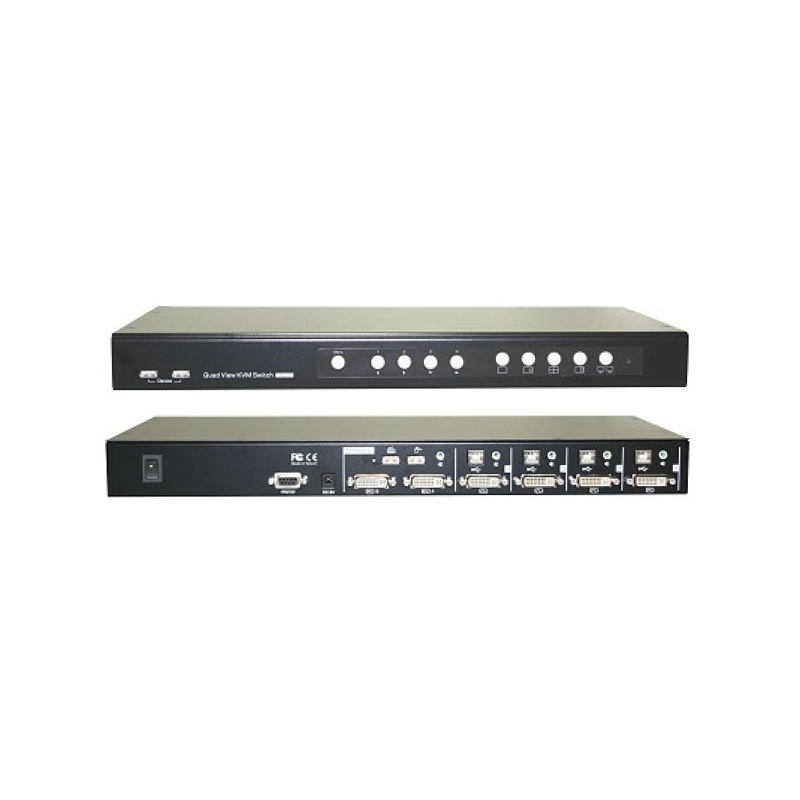

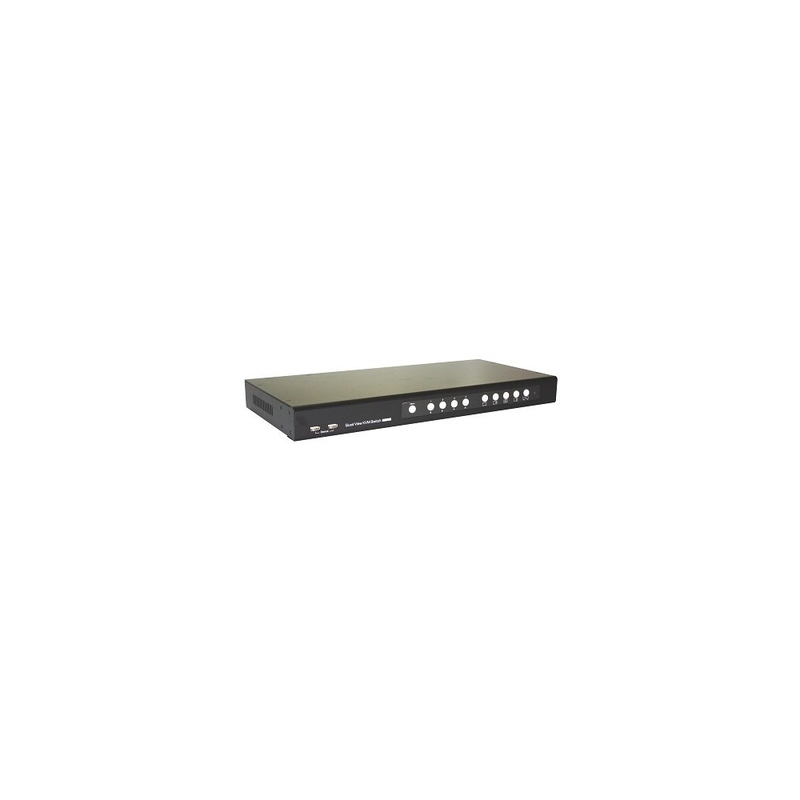

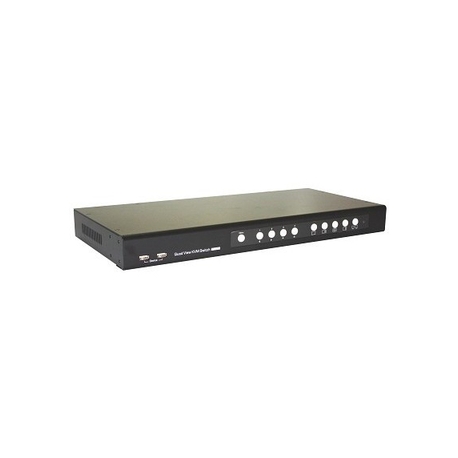

4 port Quad Screen DVI USB KVM switch
RD1041K
A new generation multi viewer KVM switch that simultaneously displays images of up to four computers on one monitor screen and enables operation of connected computers with one set of keyboard and mouse.
Features
- Control 4 USB computers that make up a set of keyboard · mouse · DVI monitor
- 4-in-1 display, which makes it easy and immediate to manage multiple computers
- Rich display mode: full screen, dual, 3-in-1 picture-in-picture, 4-in-1 quad view
- Intuitive selection mode: Hot key, OSD, front panel · push button
- Stereo sound quality on both sides of computer and console
- Resolution capable of sharp and sharp video output 1920 x 1200
- 1U rack mountable design
Specification
| Model number | RD1041K |
| DVI video output | Local: 1+ extender: 1 |
| Console keyboard / mouse connection | 2 x USB type A female |
| USB 2.0 Hub Port | 2 x USB type A female |
| Console video connection | 2 x DVI-I female |
| Audio connection | 1 x 3.5 mm audio jack |
| PC keyboard / mouse connection | 4 x USB type B female |
| PC video connection | 4 x DVI-I female |
| Cat 5 extender port | RJ 45 female |
| PC audio connection | 4 x 3.5 mm audio jack |
| PC selection | Hot key / OSD / push button |
| PC audio connection | 4 x 3.5 mm audio jack |
| Display analog resolution | 2048 x 1536 |
| Display digital resolution | 1920 x 1200 |
| Operating temperature | 0 ° C to 40 ° C |
| storage temperature | -20 ° C to 60 ° C |
| Humidity limit | 0 to 90% RH (without condensation) |
| Power type | 2.1 mm power jack |
| Power adapter | DC 9V |
| Safety standard | CE, FCC |
