CS1142D
ATEN PSS PP v3.0 Secure KVM Switches inoperable when physical tampering is detected. Configurable Device Filtering – USB CAC Port can be configured to allow/reject whitelisted / blacklisted devices via Admin logon function or Windows-based application. Superior video quality – up to 4K (3840 x 2160 @ 30 Hz), 2560 x 1600 (DVI Dual Link), 1920 x 1200 (DVI Single Link), and 2048 x 1536 (DVI-A)
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:

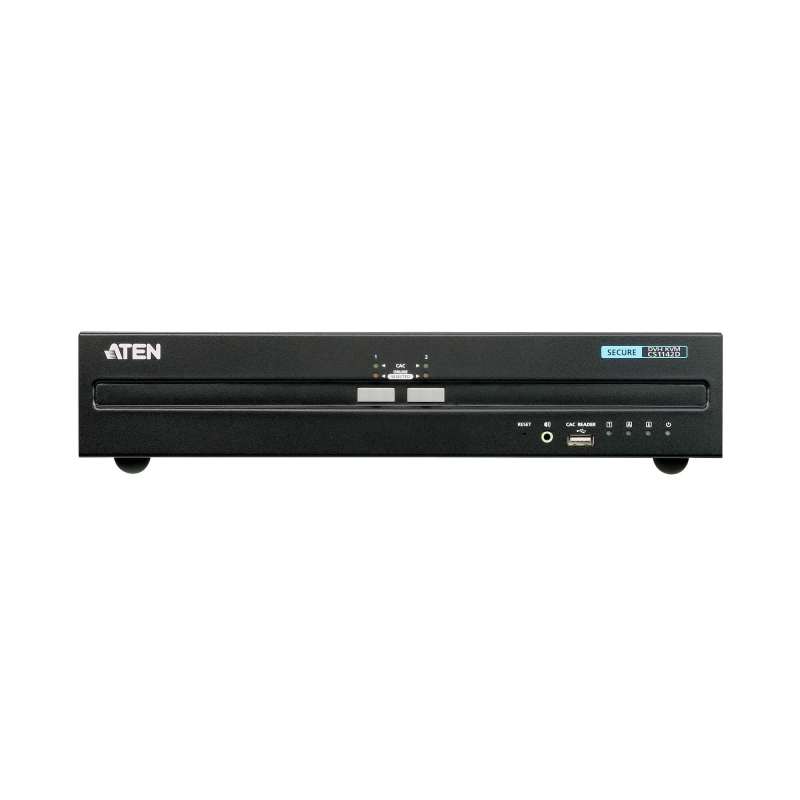

2-Port USB DVI Dual Display Secure KVM Switch (PSS PP v3.0 Compliant)
ATEN PSS PP v3.0 Secure KVM Switches inoperable when physical tampering is detected. Configurable Device Filtering – USB CAC Port can be configured to allow/reject whitelisted / blacklisted devices via Admin logon function or Windows-based application. Superior video quality – up to 4K (3840 x 2160 @ 30 Hz), 2560 x 1600 (DVI Dual Link), 1920 x 1200 (DVI Single Link), and 2048 x 1536 (DVI-A)
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก
ATEN PSS PP v3.0 Secure KVM Switch (CS1142D) is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSS PP v3.0 Secure KVM Switch (CS1142D) is compliant with PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0) standard certified by the National Information Assurance Partnership (NIAP).
ATEN PSS PP v3.0 Secure KVM Switch (CS1142D) provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader between connected computers of various security classifications. Compliance with PSS PP v3.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtering and management, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.
With multi-layered security, ATEN PSS PP v3.0 Secure KVM Switch (CS1142D) ensures high-level desktop security and data safekeeping for applications such as government agencies, finance, and other organizations that often handle sensitive or confidential data on separate networks.
NIAP Common Criteria Compliant
Multi-Layered Security
Data Channel Isolation and Unidirectional Data Flow
User Data Protection
Security Management
Superior Video Quality
Computer Connections | 2 |
Port Selection | Pushbutton |
Connectors | |
Console Ports | 2 x USB Type-A Female (Black) 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) 2 x DVI-I Dual Link Female (White) 1 x Mini Stereo Jack Female (Green; front panel) |
KVM Ports | 4 x USB Type-B Female (White) 4 x DVI-I Dual Link Female (White) 2 x Mini Stereo Jack Female (Green) |
Power | 1 x 3-prong AC Socket |
USB CAC Port | 1 x USB Type-A Female (White; front panel) |
Switches | |
Port Selection | 2 x Pushbuttons |
Reset | 1 x Semi-recessed Pushbutton |
Power | 1 x Rocker |
LEDs | |
Power | 1 (Blue) |
On Line/Selected (KVM Port) | 2 (Orange) |
Online / Selected (CAC Port) | 2 (Green) |
Video | 2 (Green) |
Key Lock | 3 (Green) |
Emulation | |
Keyboard / Mouse | USB |
Video | 3840x2160@30Hz*; DVI Dual Link: 2560x1600; DVI Single Link: 1920x1200 DVI-A: 2048x1536 |
Maximum Input Power Rating | 100–240V~; 50-60 Hz; 1A |
Power Consumption | AC110V:5.8W:46BTU AC220V:5.6W:45BTU |
Environmental | |
Operating Temperature | 0-50°C |
Storage Temperature | -20-60°C |
Humidity | 0 - 80% RH, Non-condensing |
Physical Properties | |
Housing | Metal |
Weight | 2.14 kg ( 4.71 lb ) |
Dimensions (L x W x H) | 33.50 x 16.39 x 6.55 cm (13.19 x 6.45 x 2.58 in.) |
