DVI Optical KVM Extender up to 20km.
CE690
The CE690 is a DVI Optical KVM Extender up to 20km. that overcomes the length restriction of standard DVI cables by using optical fiber to send high definition audio, video and control signals over long distance
รับประกัน 3 ปีเต็ม
Spec SheetThe CE690 is a DVI Optical KVM Extender that overcomes the length restriction of standard DVI cables by using optical fiber to send high definition audio, video and control signals over long distance. It accepts audio-video stream from a local source and serializes the data to pass over a single 3.125 Gbps optical link (for resolutions up to 1920x1200@60Hz, 24-bits).
It can also extend the keyboard/mouse remote control signals, as well as transfer RS-232 signals (up to 115kbps) in both directions, allowing you to connect serial devices, such as barcode scanners. A USB port on the local and remote unit’s rear panel lets you connect a USB touchscreen panel device, which can access to a computer connected at the local site.
The CE690 allows access to a computer system from both local and remote consoles (USB keyboard, monitor, and mouse). Furthermore, the CE690 takes advantage of fiber optic cable technology for connecting the local and remote units, providing easy and quick installation and long-range extension of DVI signals.
Features
- Allows access to a computer or KVM installation from a local / remote console
- Supports DVI-D interface and allows transmission of DVI single-link signals
- Superior video quality of up to 1920 x 1200 @60 Hz (24-bits) –get an excellent, crisp image on your screen over long distance transmissions up to 20 km.
- Touchscreen support - connect a generic touchscreen, including devices up to 10-point multi-touch, to accommodate highly interactive applications (no extra drivers needed)
- Dual console operation–control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- Uses one fi ber optic cable to connect the local and remote units
- HDCP compatible
- RS-232 serial port–connect to a serial terminal, or serial devices such as barcode scanners (Baud Rate 115200 bps)
- PC Wakeup support–use a pushbutton on a Remote Unit to wake a PC at the local site via RS-232
- Audio Enabled–supports stereo speakers and microphone
- Rack mountable
Diagram
Specifications
| Function | CE690L | CE690R | ||
| Connector | KVM Ports | Video | 1 x DVI-D Female (White) |
N/A |
| Speaker | 1 x Mini Stereo JackFemale (Green) |
N/A | ||
| Mic. | 1 x Mini Stereo JackFemale (Pink) |
N/A | ||
| USB (KB /Mouse) |
1 x USB Type B Female (White) |
N/A | ||
| USB (TouchPanel) |
1 x USB Type B Female (White) |
N/A | ||

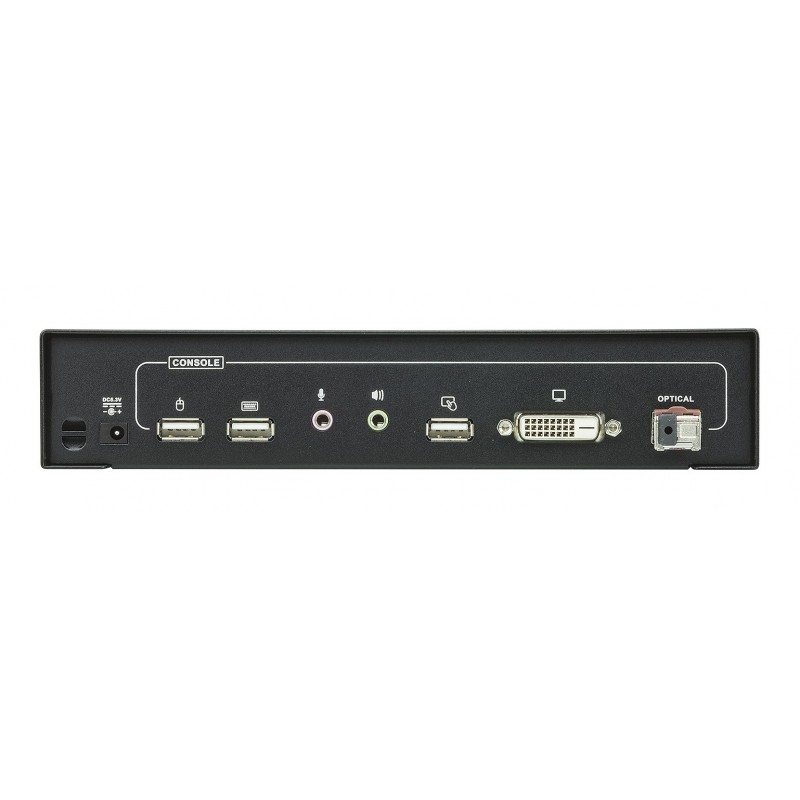

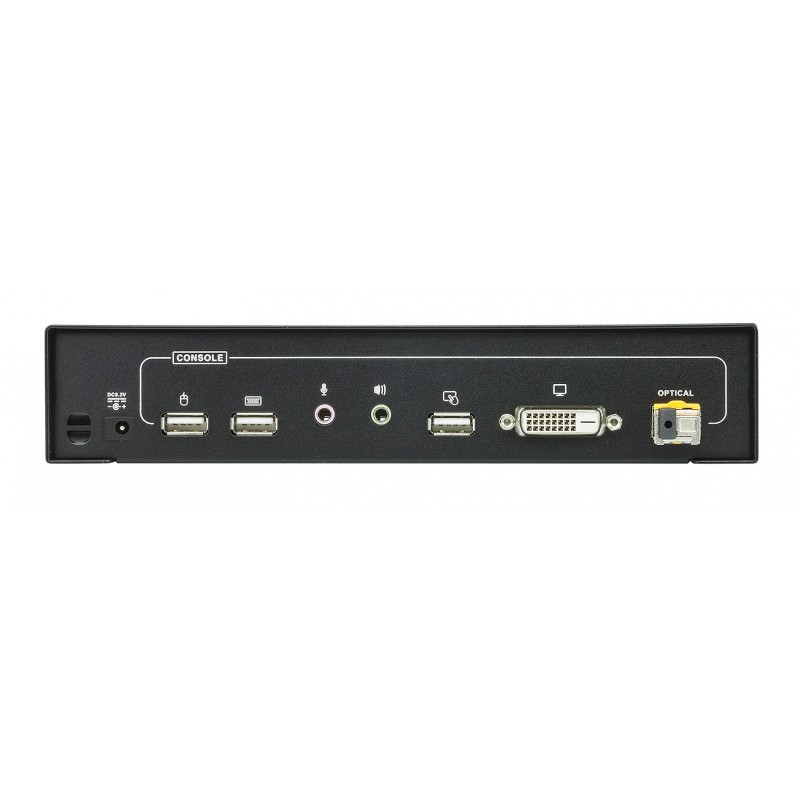

| Console Port | Keyboard | 1 x USB Type A Female (White) | ||
| Video | 1 x DVI-D Female (White) | |||
| Mouse | 1 x USB Type A Female (White) | |||
| Speaker | 1 x Mini Stereo Jack Female (Green) | |||
| Mic. | 1 x Mini Stereo Jack Female (Pink) | |||
| USB (Touch Panel) |
1 x USB Type A Female (White) | |||
| RS-232 | 1 x DB-9 Female (Black) | 1 x DB-9 Male (Black) | ||
| Power | 1 x DC Jack (Black) | |||
| Optical In/Out | 1 x bi-directional SFP (LC) | |||
| LEDs | Local | 1 (Green) | N/A | |
| Remote | 1 (Green) | 1 (Green) | ||
| Link | N/A | 1 (Green) | ||
| Switches | Operation Mode Selection | 1 x Pushbutton | ||
| Wakeup PC | N/A | 1 x Pushbutton | ||
| Fiber Optics | Operating Distance* | 20km with (SM) fiber | ||
| Wavelength | 1310/1550 nm for SM | |||
| Data rate | Single fiber: 3.125G bps | |||
| Power Consumption | DC5.3V, 10.2W | DC5.3V, 9.0W | ||
| Environment | Operating Temperature | 0–50ºC | ||
| Storage Temperature | -20–60ºC | |||
| Humidity | 0-80% RH, Non-condensing | |||
| Physical Properties | Housing | Metal | ||
| Weight | 1.10 kg | 1.08 kg | ||
| Dimensions (L×W×H) | 21.50 x 17.75 x 4.18 cm | 21.50 x 17.71 x 4.18 cm | ||
* Note: Operating distance is approximate. These are typical maximum distance that may vary depending on factors such as fiber type, fiber bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.
Package Contents

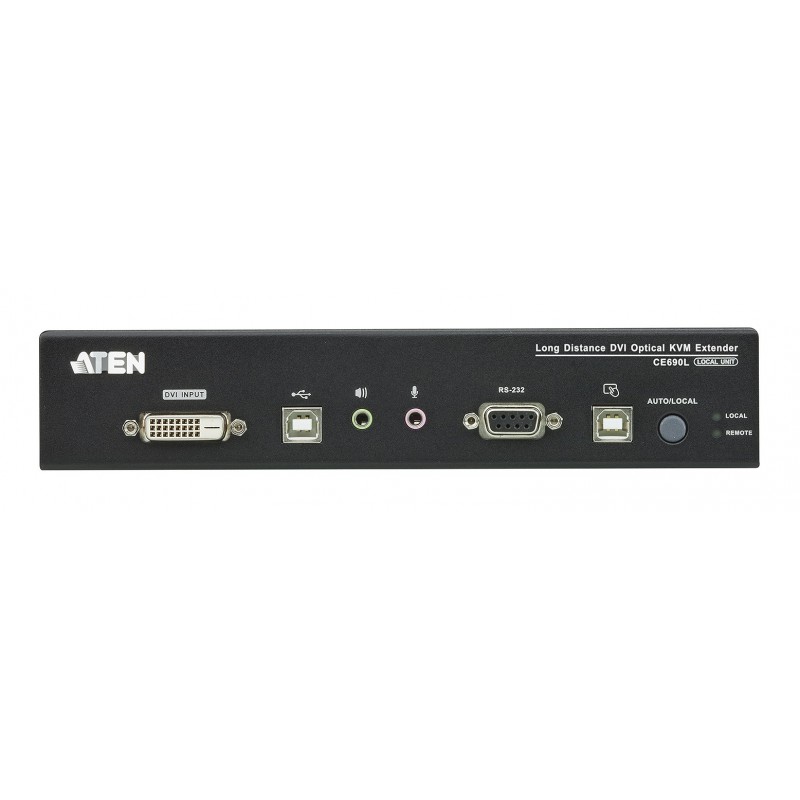

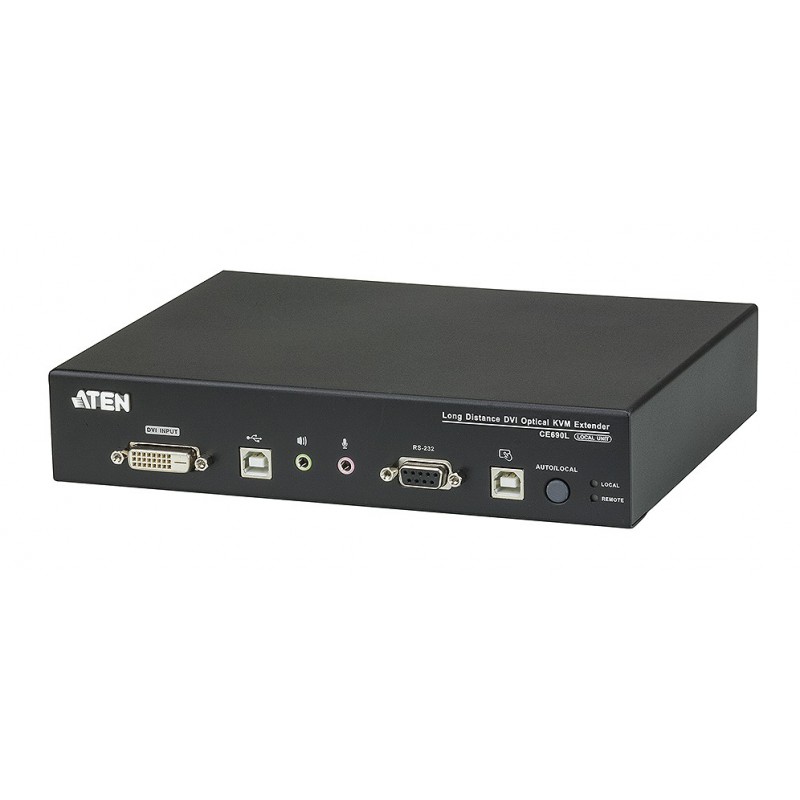

- 1x CE690L DVI Optical KVM Extender (Local Unit)

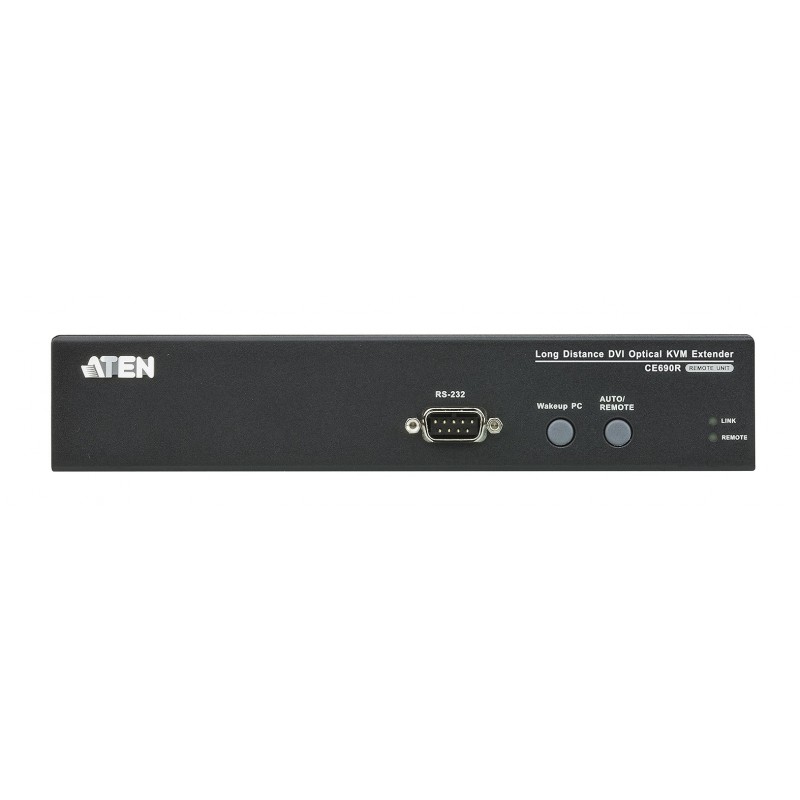

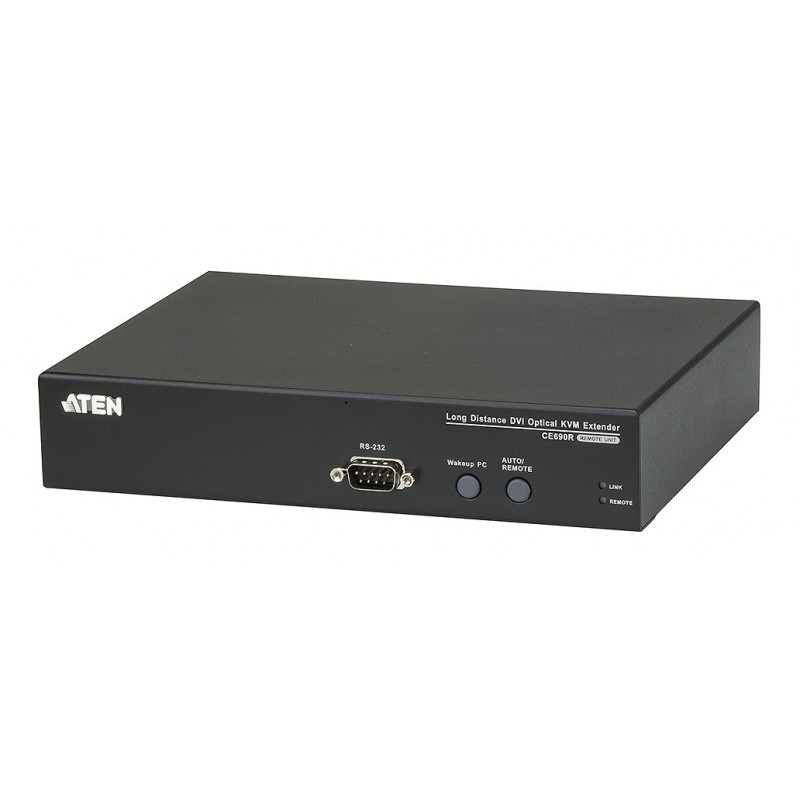

- 1x CE690R DVI Optical KVM Extender (Remote Unit)
- 1x Custom KVM Cable Set (1.8m)
- 1x USB Cable (1.8m)
- 2x Power Adapters
- 1x Mounting Kit
- 1x User Instructions
