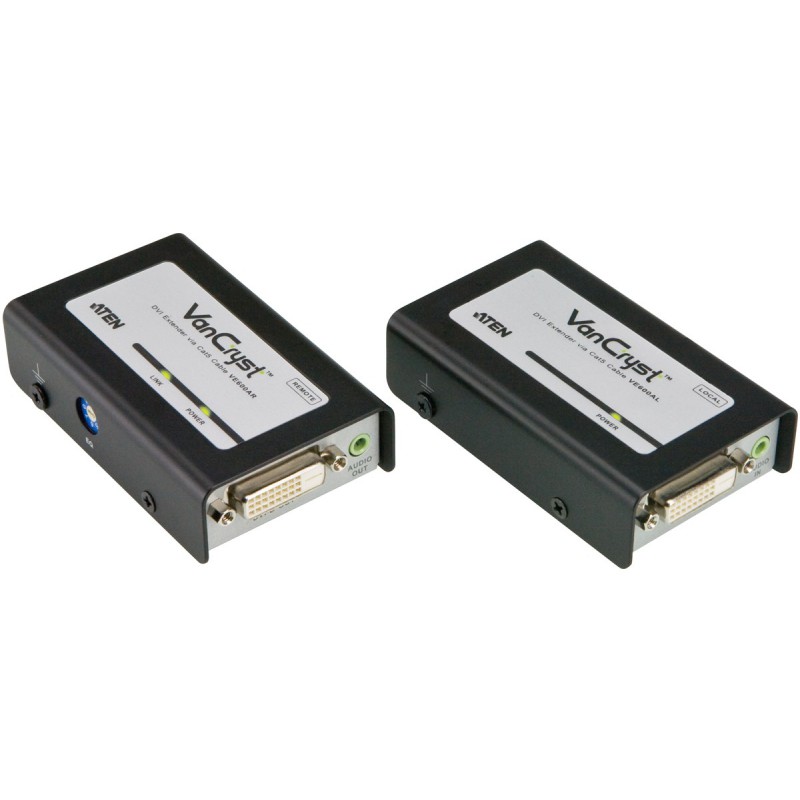

DVI Extender with Audio
VE600A
VE600A DVI Extender อุปกรณ์ช่วยขยายสัญญาณ DVI + Audio ได้ไกลถึง 60 เมตร แบบ CAT5e รองรับความละเอียดสูงสุด 1920x1200 (40 m); 1080p (40 m) ; 1080i (60 m) มี EDID
รับประกัน 3 ปีเต็ม
คุณสมบัติ ผังการต่อ ข้อมูลจำเพาะ อุปกรณ์ในกล่อง ผู้ใช้อ้างอิง
The VE600A DVI Extender with Audio extends your DVI display up to 60 m away from your DVI source using Cat 5e cables. The use of Cat 5e cables provides a simple and reliable connection method that takes advantage of the wiring system in most modern office buildings. The VE600A incorporates ATEN’s technology that allows the A/V signal to be transmitted over one Cat 5e cable. If the real EDID is required, simply use a second Cat 5e cable. With stereo audio support and support for popular widescreen formats, the VE600A provides crystal-clear image and sound quality in all installations where remote DVI video displays are required.
คุณสมบัติ
- Extends the distance between DVI source and DVI display device
- Long distance transmission – up to 60 m
- Uses Cat 5e cable to connect the local and remote units
- Features ATEN EDID technology that allows transmission over one Cat 5e cable
- Superior video quality – up to 1920x1200 (40 m); 1080p (40 m) ; 1080i (60 m)
- Audio enabled
- Adjustable EQ compensation control
- Supports widescreen formats
- Rack mountable
- HDCP Compatible
ผังการต่อ
ข้อมูลจำเพาะ
| Function | VE600AL | VE600AR | |

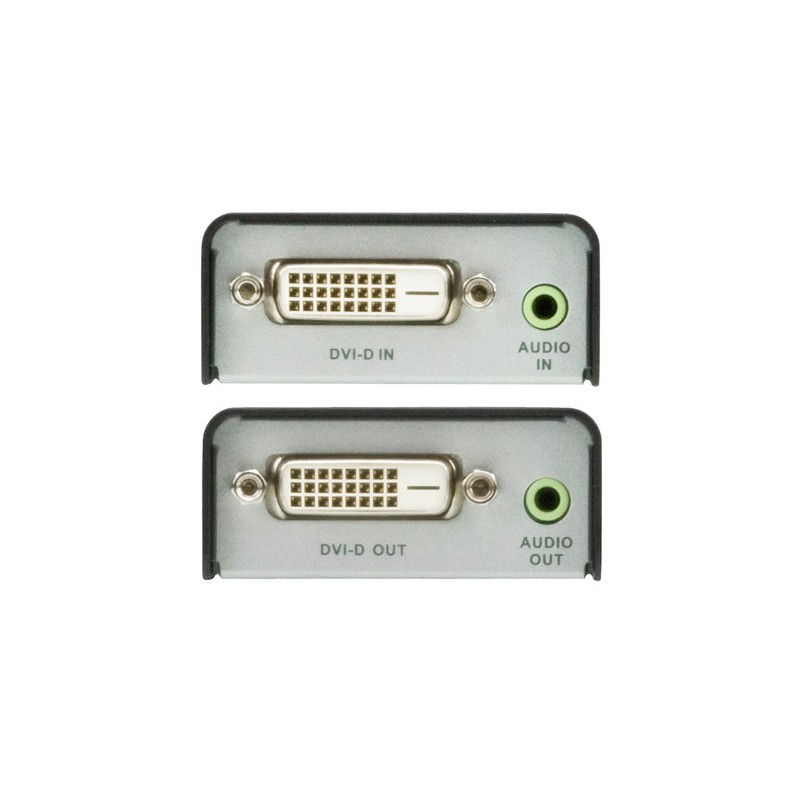

| Connectors | Video In | 1 x DVI-D Female (White) |
N/A |
| Video Out | N/A | 1 x DVI-D Female (White) |
|
| Audio In | 1 x mini stereo jack (Green) |
N/A | |
| Audio Out | N/A | 1 x mini stereo jack (Green) |
|

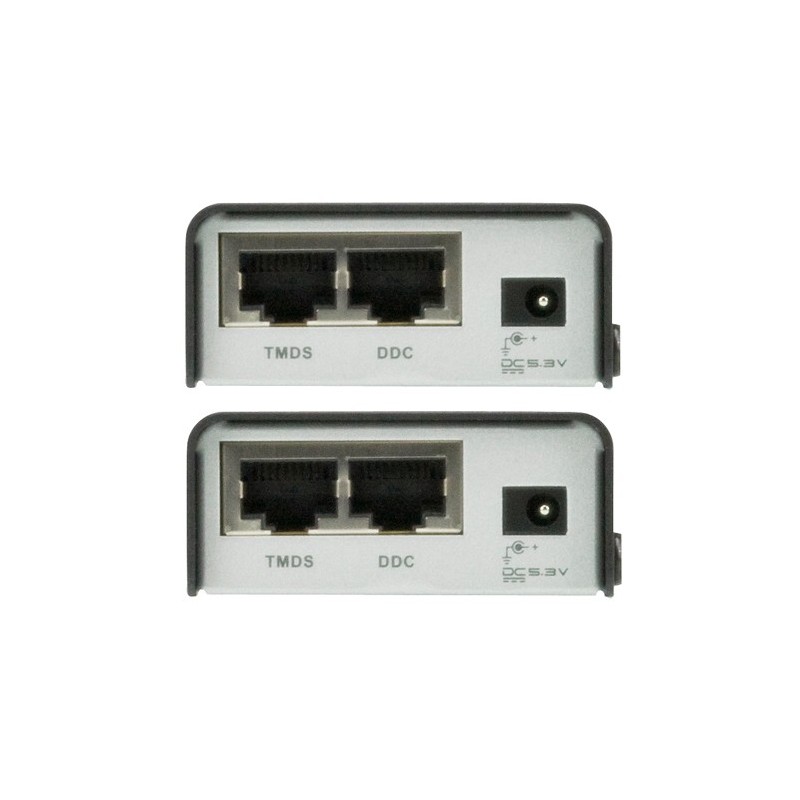

| Power | 1 x DC Jack | ||
| Unit to Unit | 2 x RJ-45 Female (Silver) | ||
| Switch | EQ Switch | N/A | 1 x 8-position switch |
| LEDs | Power | 1 (Green) | |
| Link | N/A | 1 (Green) | |
| Video | 1080i @ 60 m; 1080p @ 40 m; VGA, SVGA, SXGA, UXGA, WUXGA (1920x1200) | ||
| Power Consumption | DC5.3V, 2.05W | DC5.3V, 1.45W | |
| Environment | Operating Temp. | 0–50°C | |
| Storage Temp. | -20–60°C | ||
| Humidity | 0–80% RH, Non-condensing | ||
| Physical Properties | Housing | Metal | |
| Weight | 0.35 kg | ||
| Dimensions (L x W x H) |
9.13 x 5.60 x 2.40 cm | ||
- * The specification and pictures are subject to change without notice.
- * All trademarks and logos are the properties of their respective holders.
อุปกรณ์ในกล่อง
- 1x VE600A DVI Extender with Audio Local Unit
- 1x VE600A DVI Extender with Audio Remote Unit
- 2x Power Adapters
- 1x Wall Mount Kit
- 2x Grounding Wire
- 1x User Guide
