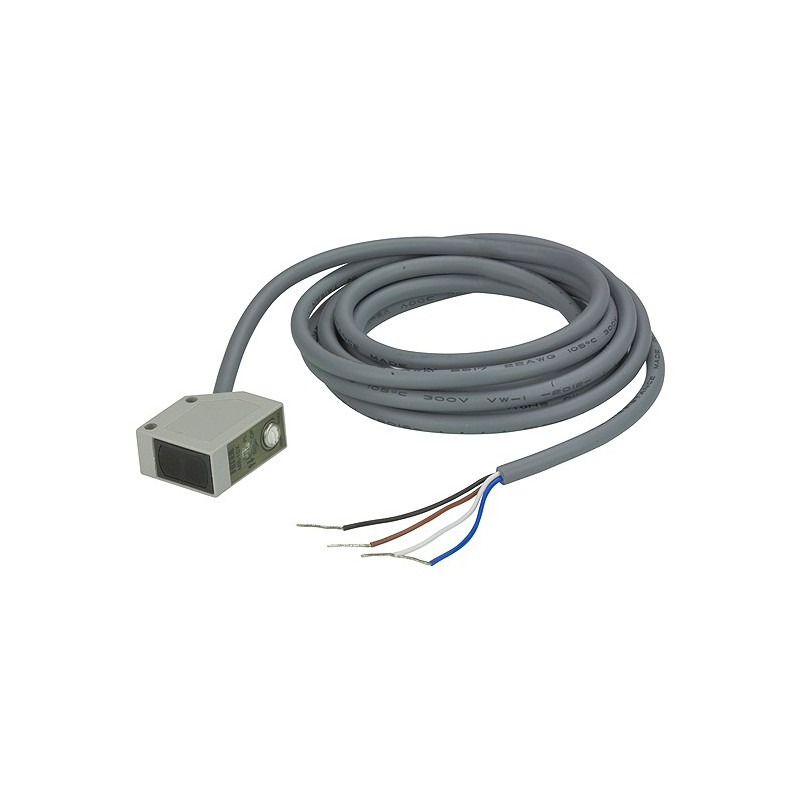

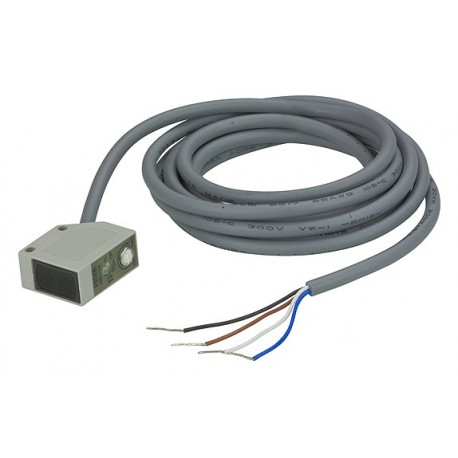

Photo Door Sensor
EA1440
The Photo Door Sensor allows the monitoring of a rack mounted enclosure´s door access – notifying users when a door has been opened
**Support model : EC2004, PE7216, PE7324, PE7328, PE8216, PE8324, PE9216, PE9324, PE9330
รับประกัน 3 ปีเต็ม
The Photo Door Sensor allows the monitoring of a rack mounted enclosure´s door access – notifying users when a door has been opened
For the security of your data center, ATEN provides Photo Door sensor probes that work in tandem with the Power Distribution Units, which allows the monitoring of a rack mounted enclosure´s door access, notifying users when a door has been opened. Various conditions can be monitored with alarms according to customizable minimum/maximum settings.
* The Sensor is an optional accessory and you can use the ATEN PDU without the door sensors. However, if you want to have complete security management of your data center with the full use of ATEN solutions, a sensor installation is required.
**Support model : EC2004, PE7216, PE7324, PE7328, PE8216, PE8324, PE9216, PE9324, PE9330
Features
- The Photo Door Sensor allows the monitoring of a rack mounted enclosure´s door access – notifying users when a door has been opened
- High sensitivity
- Easy operation
Diagram
Specification
| Sensing distance | 10CM |
| Operating voltage | 10 - 30 VDC ;Ripple<20% Peak to Peak |
| Current consumption | 30 mA max. |
| Output method | NPN & PNP Two Output |
| Output status | Normal open NO type |
| Output current | 150 mA Max. |
| Leakage current | 0.8mA Max. |
| Residual voltage | 0.6V Max. |
| Protection circuit | Short Circuit & Polarity Protection |
| Response time | 1ms Max. |
| Sensitivity adjuster | 270° Trimmer |
| Hysteresis | 10% of Sensing Distance Max. |
| Emitter | Infrared LED |
| Illumination | Sunlight <10,000Lux. ; Lamplight < 5,000Lux. |
| Housing | Plastic |
Package Contents
- 1x Photo Door Sensor
- 1x Adjustment Tool
- 2x Screw
- 1x Bracket
- 1x Velcro
