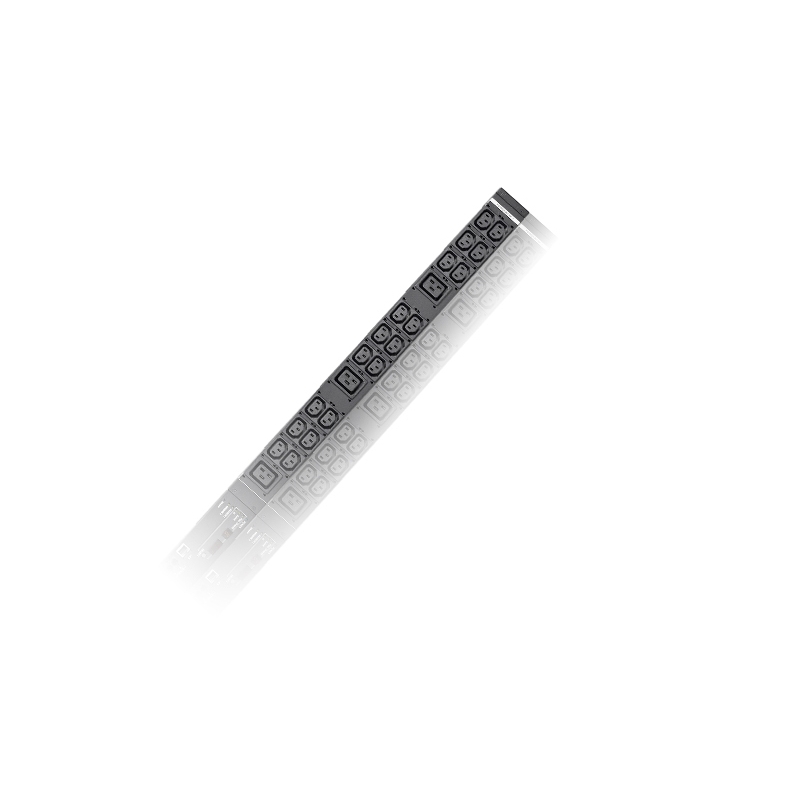

30A 42-Outlet Metered Thin Form Factor eco PDU
PE5342TB
PE5342TB eco PDU is thin form factor intelligent PDU that contain 42 IEC outlets. The lightweight thin form factor PDUs' 5.6 cm width fits tight into server racks, providing more space in the rack to increase air flow and cooling efficiency. This also means faster maintenance thanks to easier access to equipment installed behind PDUs.
รับประกัน 3 ปีเต็ม
The ATEN NRGence™ PE5342TB eco PDU is thin form factor intelligent PDU that contain 42 IEC outlets. The lightweight thin form factor PDUs' 5.6 cm width fits tight into server racks, providing more space in the rack to increase air flow and cooling efficiency. This also means faster maintenance thanks to easier access to equipment installed behind PDUs.
NRGence™eco PDUs offers real-time power measurement–allowing you to monitor the power status of devices attached to the PDUs, at the PDU and Bank level, from practically any location via a TCP/IP connection.
With the combination of ATEN eco PDUs and eco DC, an administrator’s data center is equipped with real time monitoring, measurements and analysis that can produce reports of power usage, PUE, RCI and RTI to meet the ISO 50001 requirements. With these critical indexes, you can generate customized reports about your data center that include energy saving suggestions. Following these suggestions allows you to optimize energy usage to save energy without harming your IT equipment’s reliability. eco DC provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it.
Features
- Thin form factor design with 56 mm width
- Built-in 10/100 Mbps Ethernet port
- Supports TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, Telnet, and SNMP V1,V2&V3
- 2-level account and password security, IP/MAC filters, SSL 128-bit data encryption, RADIUS
- Supports eco DC software and browser access via IE, Firefox, Chrome, Safari and more
- Bank level power metering and monitoring
- Environment monitoring via external sensors for rack temperature and humidity readings and alerts
- Real-time aggregate current, voltage and power and power dissipation displayed in a browser-based UI
- Space saving 0U rack mount design with rear mounting
- Lok-U-Plug & EZ-Lok – easily secures power cable to PDU
eco DC Energy Management Software *
- Automatic discovery of all PE devices within the same intranet
- Remote real-time power measurement and monitoring
- Real-time environment sensor monitoring
- Plotting/monitoring of all PE devices
- Exceed threshold alert through SMTP and System log
- Power analysis report
* eco DC is designed to work with NRGence™ eco PDUs, and is bundled with all PE series packages.

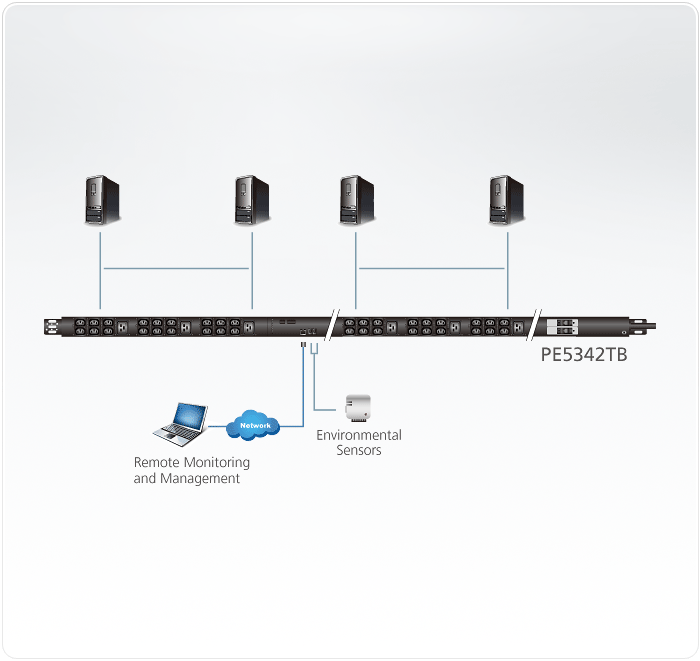

Diagram
Specification
| Electrical | |
| Nominal Input Voltage | 100 – 240 VAC |
| Maximum Input Current | 30A(Max) |
| Input Frequency | 50-60 Hz |
| Input Connection | NEMA L6-30P |
| Input Power | 6240 VA(Max) |
| Outlet Type | Total: 36 x IEC320 C13 + 6 x IEC320 C19 Bank1: Outlet 1 – 21; 18 x C13 + 3 x C19 Bank2: Outlet 22 – 42; 18 x C13 + 3 x C19 |
| Nominal Output Voltage | 100 – 240 VAC |
| Maximum Output Current (Outlet) | C13: 15A(Max) C19: 15A(Max) |
| Maximum Output Current (Bank) | 15A(Max) |
| Maximum Output Current (Total) | 30A(Max) |
| Breakers | 2 x 16A Slim Breaker |
| Metering | Bank Level Current, Voltage, VA , PF and kWh Monitoring |
| Outlet Switching | None |
| Environment Sensor Ports | 2 |
| Metering Accuracy | Voltage Range: 100VAC ~ 250VAC +/-1% Power Range: 100W ~ Maximum Capacity +/- 2% Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1% |
| Physical Properties | |
| Dimensions (L x W x H) | 177.50 x 5.60 x 4.80 cm (69.88 x 2.2 x 1.89 in.) |
| Weight | 6.01 kg ( 13.24 lb ) |
| Power Cord Length | 3 m |
| Environmental | |
| Temperature (Operating / Storage) | 0–50°C / -20–60°C |
| Humidity (Operating & Storage) | 0–80% RH, Non-Condensing |
| Compliance | |
| EMC Verification | FCC, J55022, Others by Request |
| Safety Verification | PSE, Others by Request |
