Transmission of USB signals over CAT or fibre
Transmission of USB signals over CAT or fibre

Transmission of USB signals over CAT or fibre

USB extenders

A system consists of a computer module (transmitter) and a user module (receiver) and uses CAT-x cables or optical fibres to transmit USB signals up to 500 m or 10,000 m. USB 3.0 signals are transmitted via optical fibre only.

รายละเอียดเพิ่มเติม

รับประกัน 3 ปีเต็ม


Spec


รับประกัน 3 ปี

USB Ranger signal extender systems extend USB signals up to USB 3.0.

A system consists of a computer module (transmitter) and a user module (receiver) and uses CAT-x cables or optical fibres to transmit USB signals up to 500 m or 10,000 m. USB 3.0 signals are transmitted via optical fibre only.

Detail

Transmission

  • Distances up to 10,000 m for USB 2.0 (2 × singlemode 9/125µm fiber optics)
  • Distances up to 500 m for USB 2.0 (2 × multimode 50/125µm fiber optics)
  • Distances up to 275 m for USB 2.0 (2 × multimode 62.5/125µm fiber optics)
  • Distances up to 100 m for USB 2.0 (CAT-x cable; x = 5, 6, 7)
  • Distances up to 50 m for USB 3.0 (2 × multimode 50/125µm fiber optics)
  • Distances up to 15 m only for USB 3.0 (active copper cable)
  • Transparent transmission of USB 1.1 up to USB 3.0

Device

  • In parts with 4-port USB hub at receiver
  • LEDs show operating state
  • External power supply or supply over computer's USB interface
  • Available module and desktop version

Variants

USB Ranger 2201-Set

  • Transmision of USB up to 2.0
  • Transmission medium: 1 × CAT-x cable
  • Transmission distance: 100 m
  • Interfaces at receiver: 1 × USB-A

USB Ranger 2204-Set

  • Transmision of USB up to 2.0
  • Transmission medium: 1 × CAT-x cable
  • Transmission distance: 100 m
  • Interfaces at receiver: 4 × USB-A

USB Ranger 2211-Set

  • Transmision of USB up to 2.0
  • Transmission medium: 1 × CAT-x cable
  • Transmission distance: 100 m
  • Interfaces at receiver: 1 × USB-A

USB Ranger 2212-Set

  • Transmision of USB up to 2.0
  • Transmission medium: 1 × CAT-x cable
  • Transmission distance: 100 m
  • Interfaces at receiver: 2 × USB-A

USB Ranger 2224-Set

  • Transmision of USB up to 2.0
  • Transmission medium: 2 × multimode fiber optics
  • Transmission distance: 500 m (50/125 µ)
  • Transmission distance: 275 m (62,5/125 µ)
  • Interfaces at receiver 4 × USB-A

USB Ranger 2244-Set

  • Transmision of USB up to 2.0
  • Transmission medium: 2 × singlemode 9/125 µ fiber optics
  • Transmission distance: 10,000 m
  • Interfaces at receiver: 4 × USB-A

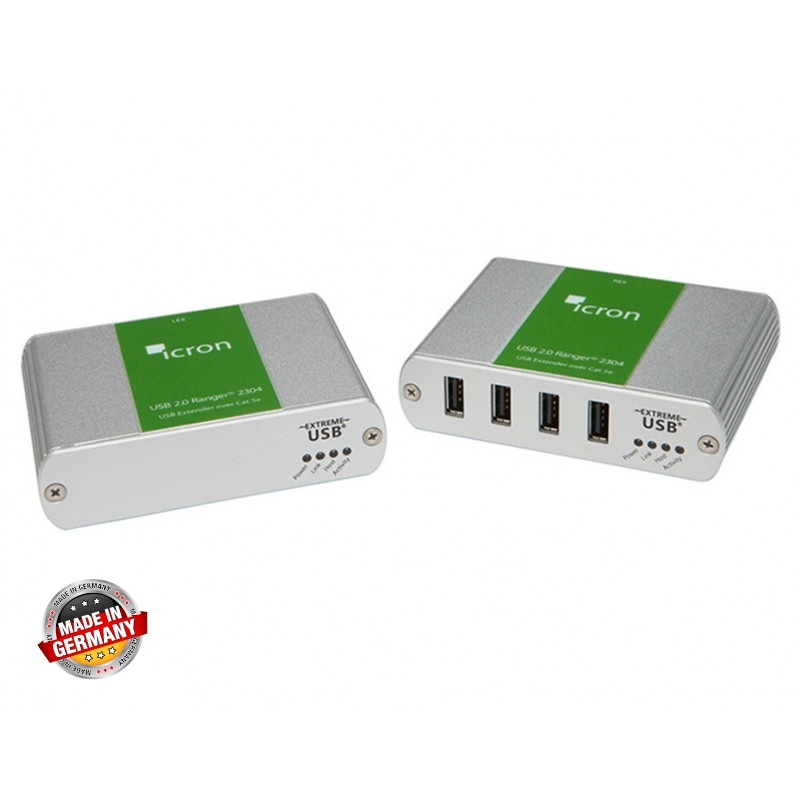

USB Ranger 2304-Set

  • Transmision of USB up to 2.0
  • Transmission medium: 1 × CAT-x cable
  • Transmission distance: 100 m
  • Interfaces at receiver: 4 × USB-A

USB Ranger 2304-LAN

  • Transmision of USB up to 2.0
  • Transmission medium: LAN
  • Transmission distance: up to 100 m between network devices
  • Interfaces at receiver: 4 × USB-A

USB Spectra 3001-15

  • Transmision of USB 3.0 (not backward compatible with USB 2.0/1.1)
  • Transmission medium: Active copper cable
  • Transmission distance: up to 15 m
  • Interfaces at receiver: 1 x USB-A

USB Spectra 3022

  • Transmision of USB 3.0 (not backward compatible with USB 2.0/1.1)
  • Transmission medium: 2 × multimode 50/125 µ fiber optics
  • Transmission distance: up to 50 m
  • Interfaces at receiver 2 × USB-A

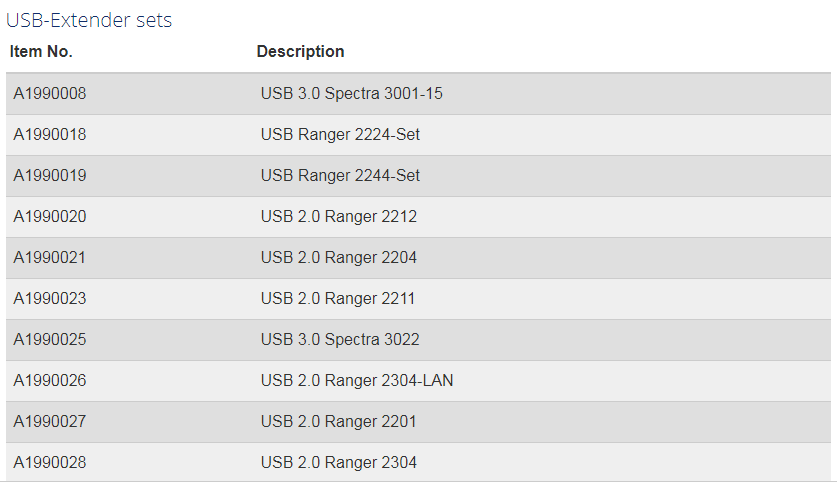

List of Item Numbers
