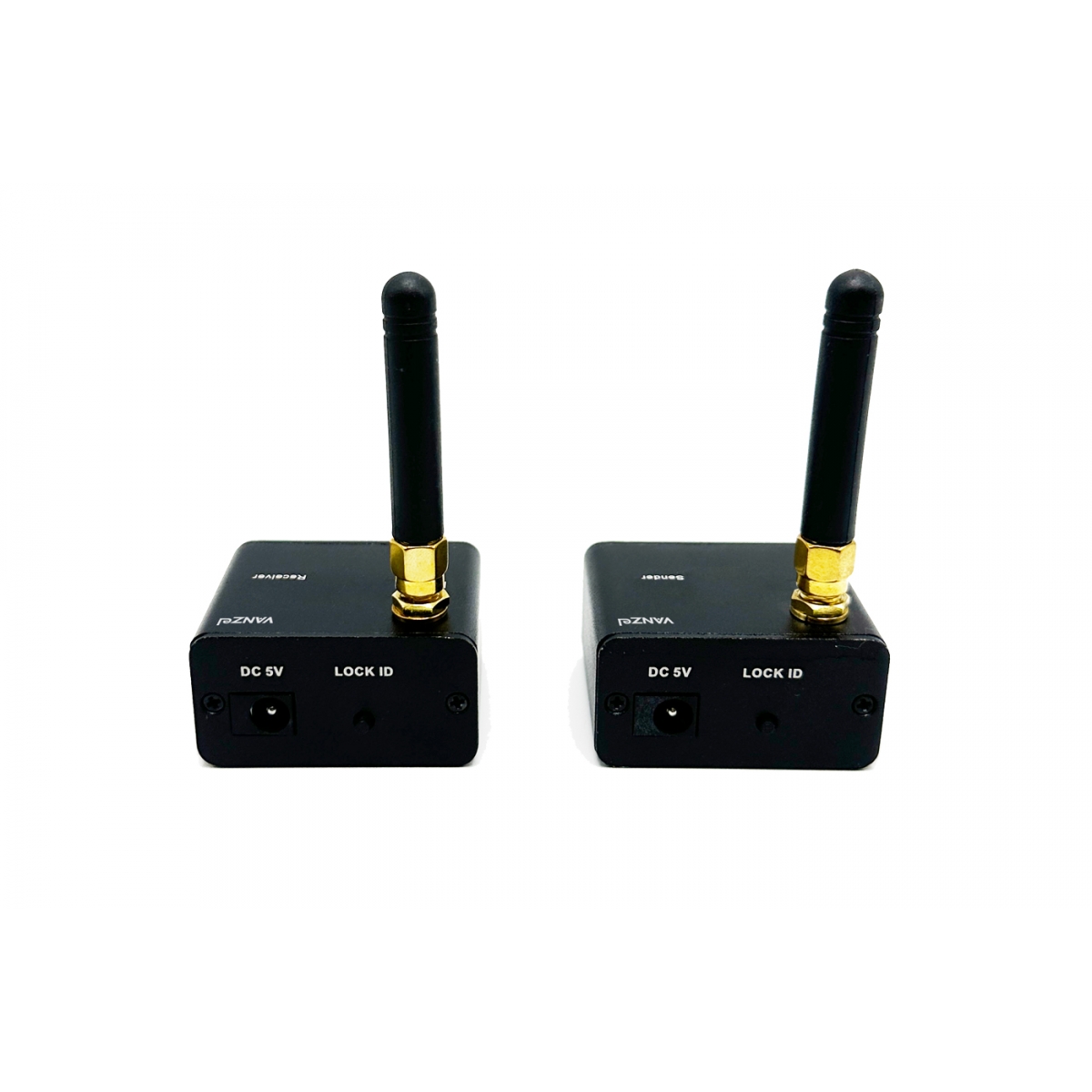

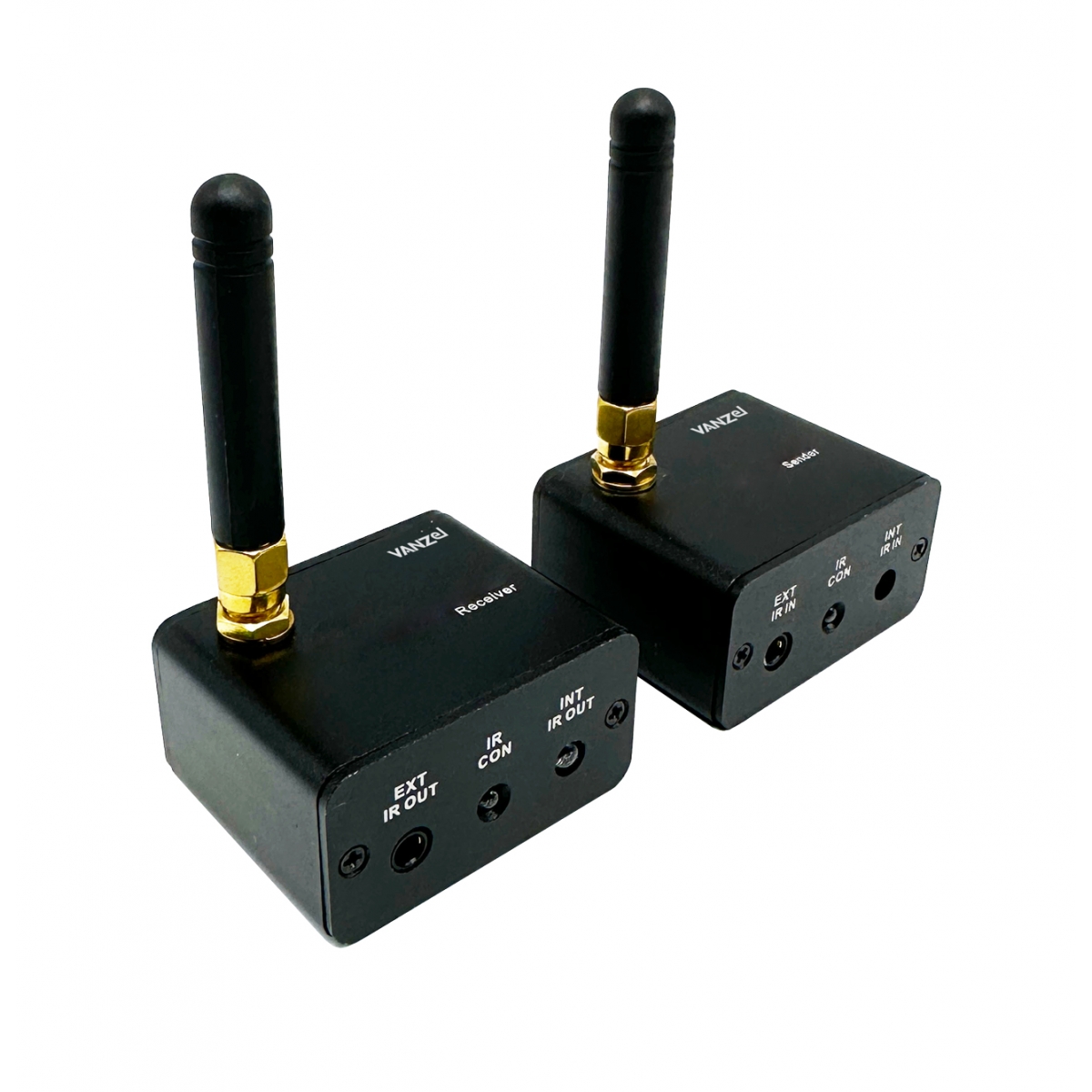

Wireless IR Extender up to 200m
LIR-W200
IR signal wireless extender includes IR transmitter unit and IR receiver unit, is designed to get your remote control's signal to where it needs to go, there is no need to run a wire from the IR receiver end of your setup to where the devices are located
รับประกัน 1 ปีเต็ม

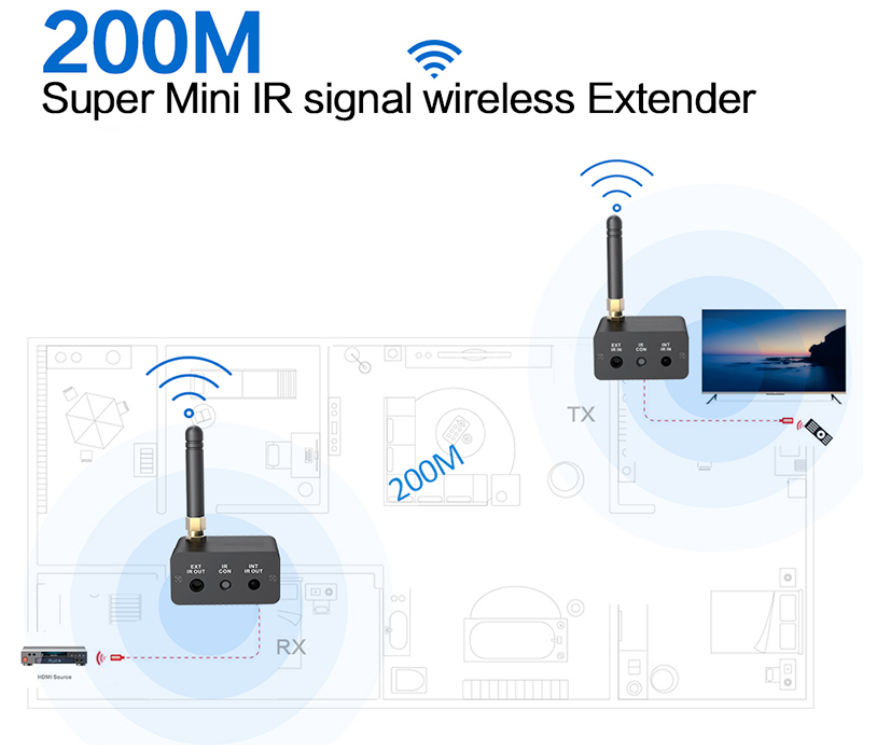

This IR signal wireless extender includes IR transmitter unit and IR receiver unit, is designed to get your remote control's signal to where it needs to go, there is no need to run a wire from the IR receiver end of your setup to where the devices are located. Since IR signals need line-of-sight to work, you will need this extender if the equipment you're trying to control is not in sight. You'll need to extend your IR signals, especially if your TV is wall-mounted.
Features
- Portable size design
- Low power consumption
- Metal casing, stable and durable
- Extend Remote Control Signals Wirelessly
- Include a IR transmitter and a IR receiver, working as a pair
- Long wireless distance is up to 200m , distance may vary due to obstacles
- Wide IR frequency 20 to 60 KHz, compatible with any IR equipped device

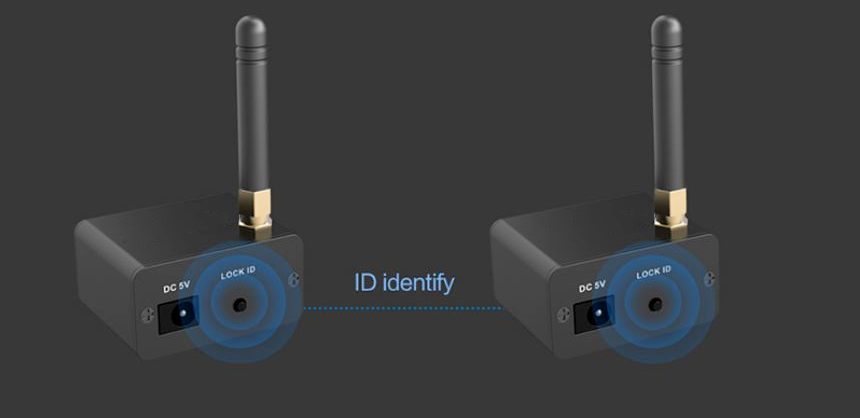

ID identify
Transmitter and receiver get paired with each other by ID lock button, then they can work with each other, safely and interferece-free.

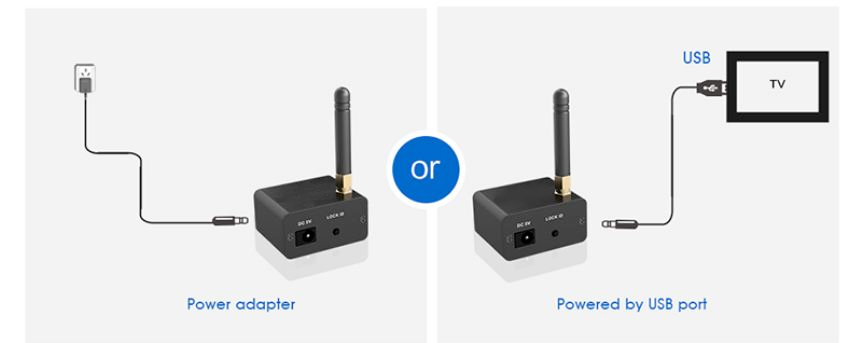

Powered by USB Port or adapter
This product designed with 5VDC 2.1 jack for power, and one 5V adapter can make it work; also. the package with one USB to DC2.1 cable for power. can connect directly to USB port on TV/STB, power flexibly and intelligently.

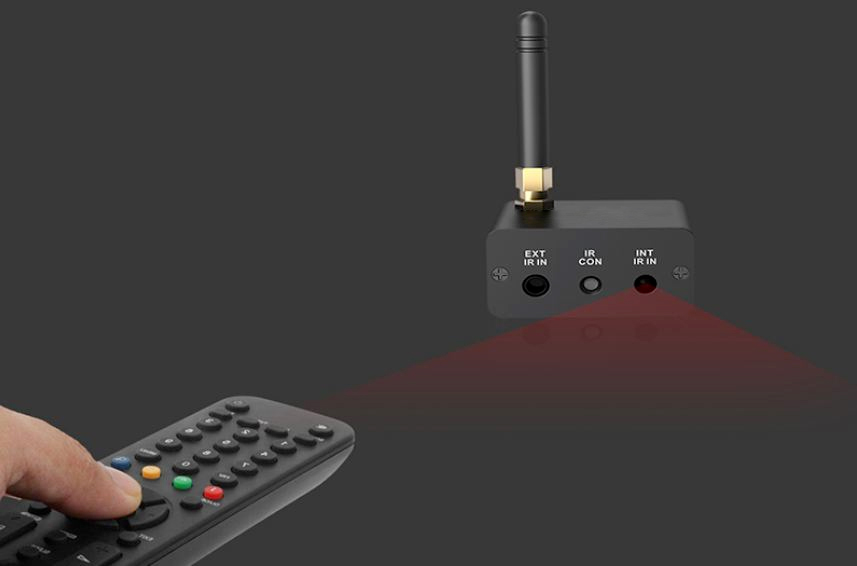

High sensitivity
This kit can be controlled with 90º+ receiving angle range, control sensitively and freely
Specification
| Items | Specification |
| Material | aluminum |
| Transmission Frequency | 915M |
| IR frequency | 20-60KHz |
| Power Gain | 10dBm |
| Transmission distance | 200m |
| Power supply | No power supply attached, use micro usb cable. |
| Power consumption | TX: ＜300MW; RX: ＜300MW |
| Dimension | 95(W) x 120.58(D) x 20.1(H)mm |
| Weight | TX：40g，RX：40g |
| Working temperature | 0～40℃ |
| Storage temperature | -20～60℃ |
| Operating Humidity | 10~90%（non-condensing） |
