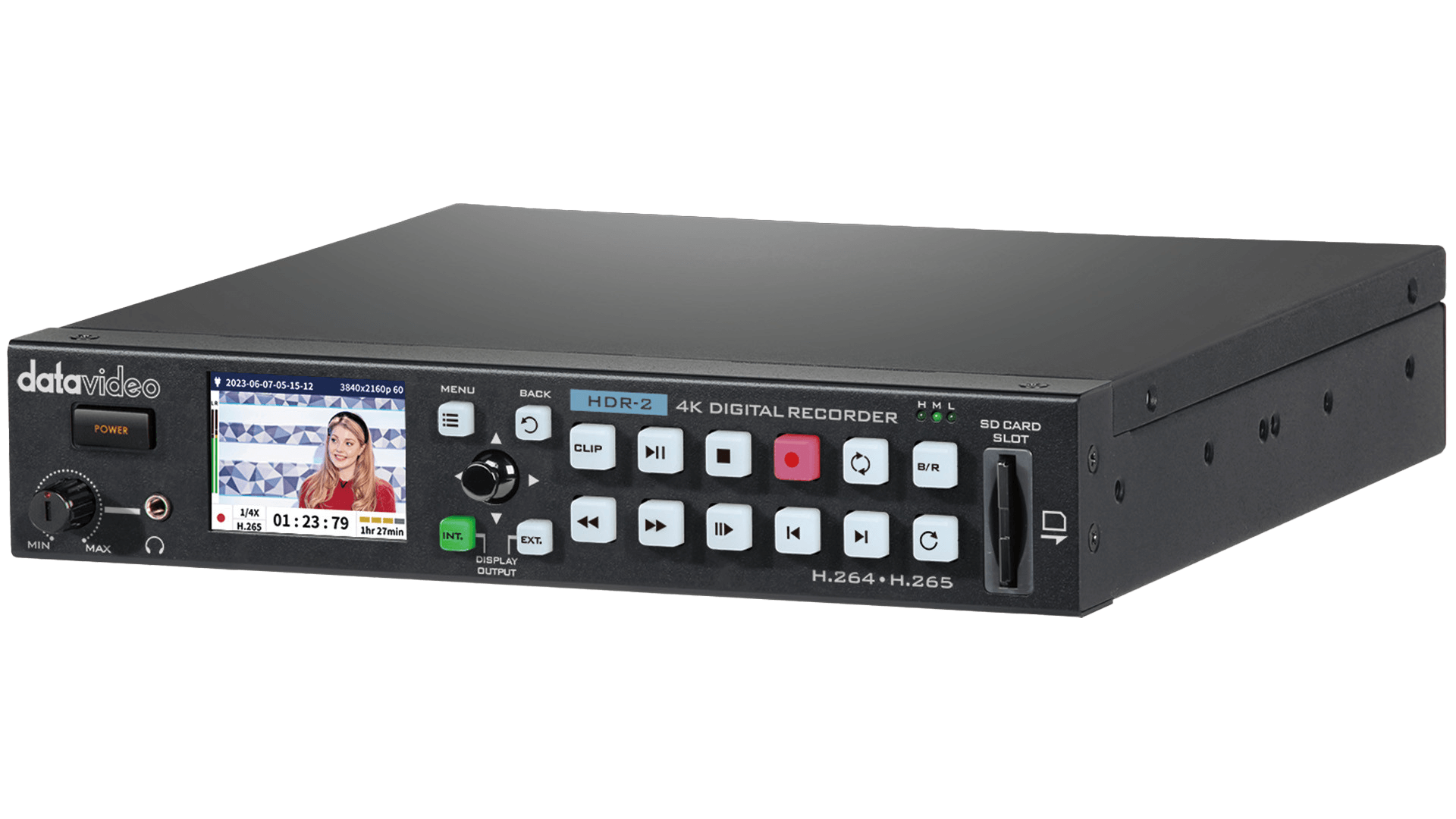

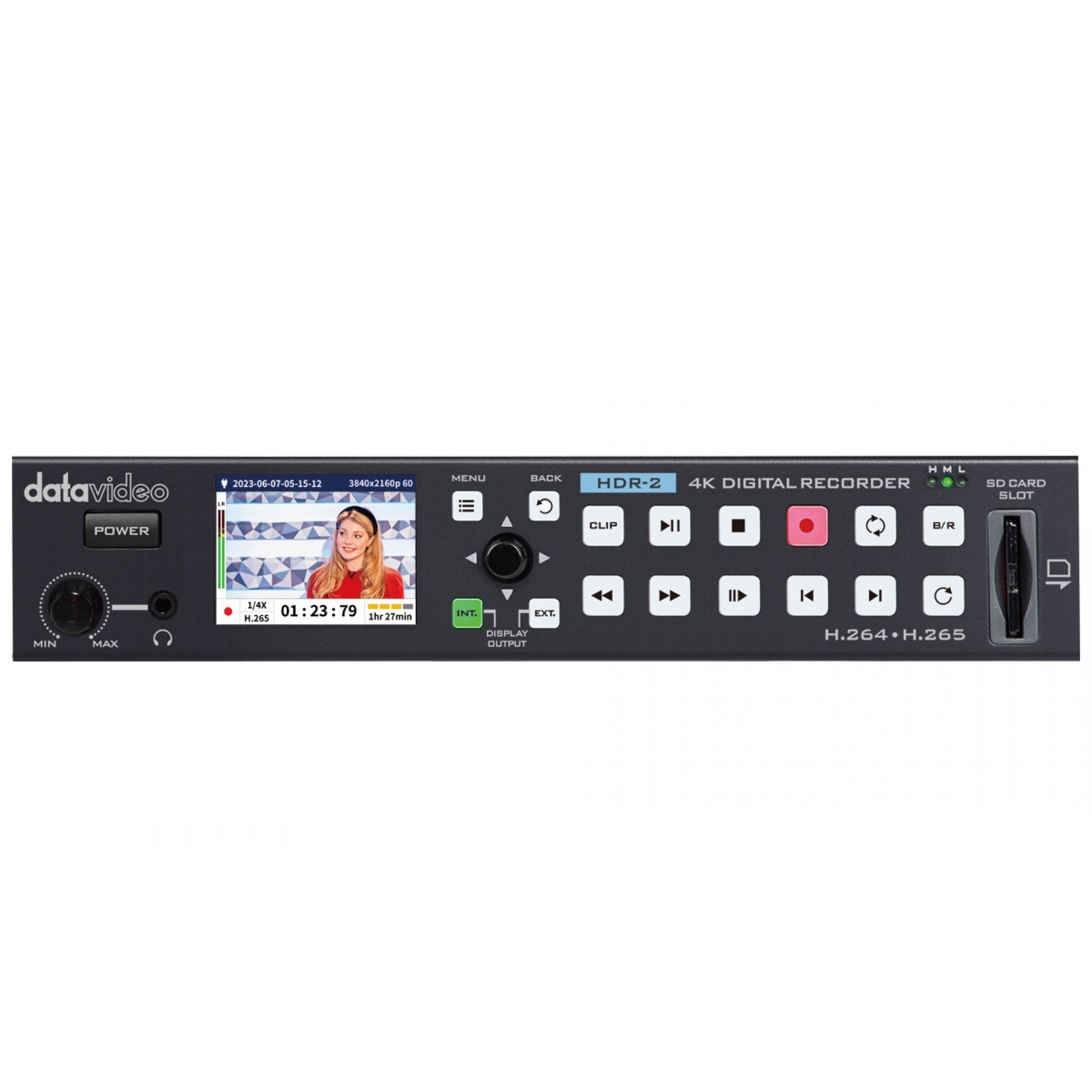

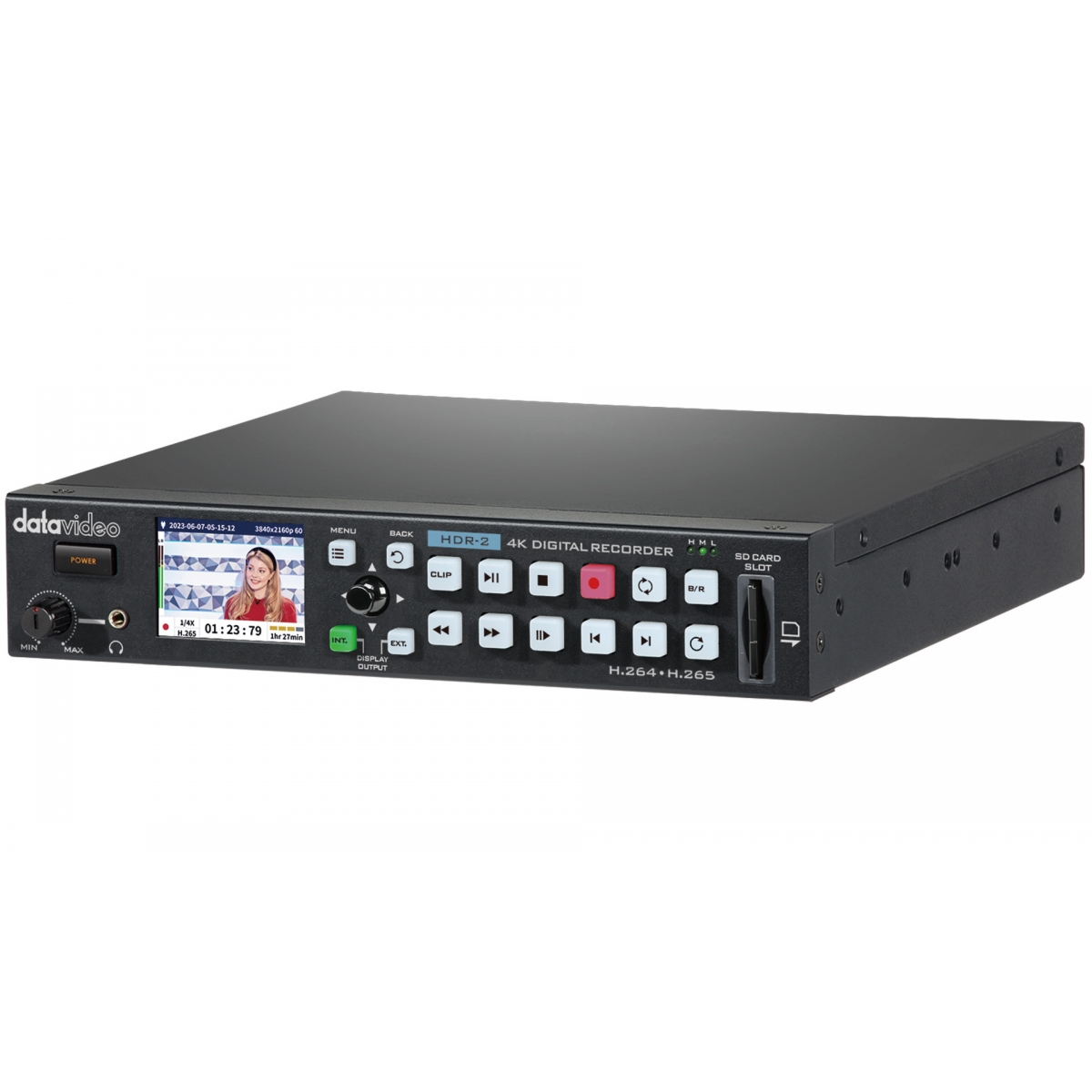

4K Digital Recorder
HDR-2
- เครื่องบันทึกวิดีโอระดับ 4K60p ลง SD Card
- รองรับ H.265/H.264
- มีจอ LCD 2" ในตัว
- มีช่องต่อ Power bank ช่วยให้พกพาไปใช้นอกสถานที่ได้
- ควบคุมได้จาก DVIP, RS-422/RS-232, GPI
- มี 2 Mic In, 1 RCA (L/R)
Spec sheet
Capture, Create, and Elevate with HDR-2: Your Ultimate 4K Recording Solution
HDR-2 is a 4K50/60P SD card recorder with H.265/ H.264 encoding capabilities, allowing users to set different video formats and bitrates according to various application scenarios.
It enables the recording and playback of 4K videos without a computer, making it convenient for using as a recording device in on a live production site.
UHD 4K Resolution (3840 x 2160)
Immerse your audience in breathtaking clarity with HDR-2's support for ultra-high-definition 4K resolution, ensuring every detail is captured with stunning realism and precision.

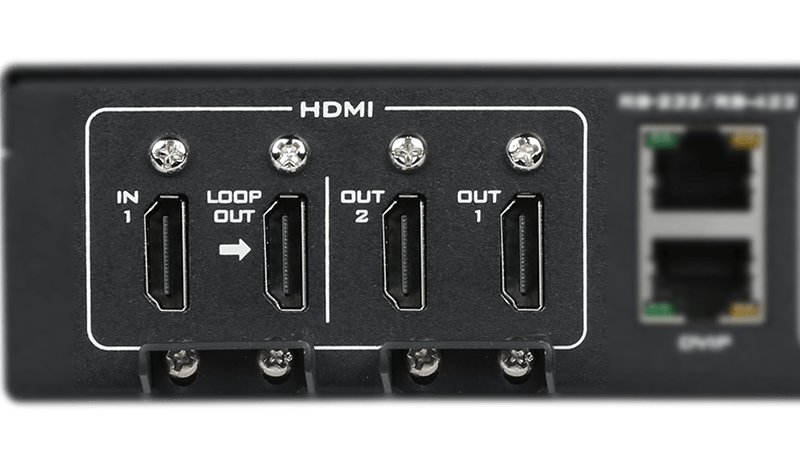

HDMI 2.0 Connectivity
Seamlessly integrate your equipment with HDR-2's HDMI 2.0 input, output, and loop-through features, ensuring compatibility with a wide range of devices for fluid video transfer and monitoring.

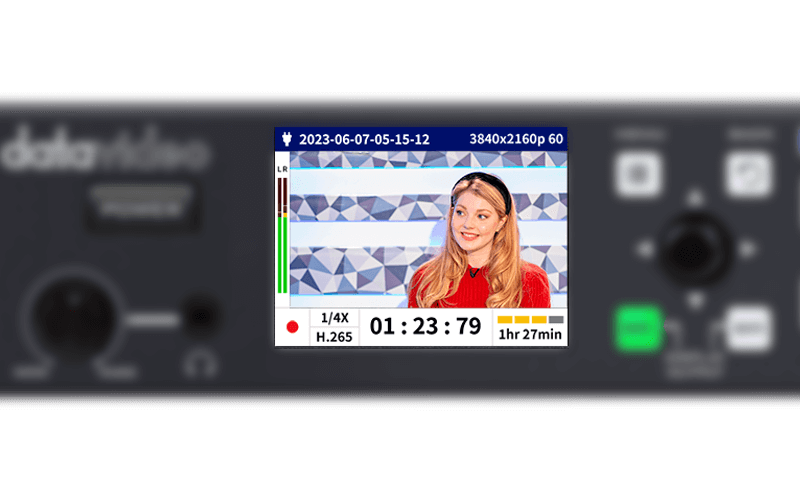

2" LCD Monitor
Stay in control of your production with the built-in 2" LCD screen, offering real-time visual feedback and vital information at your fingertips, enhancing your recording precision.
Advanced Encoding Capabilities (H.265/H.264)
Elevate your video quality and efficiency with H.265 and H.264 encoding, enabling you to capture stunning visuals while optimizing storage space for extended recording sessions.

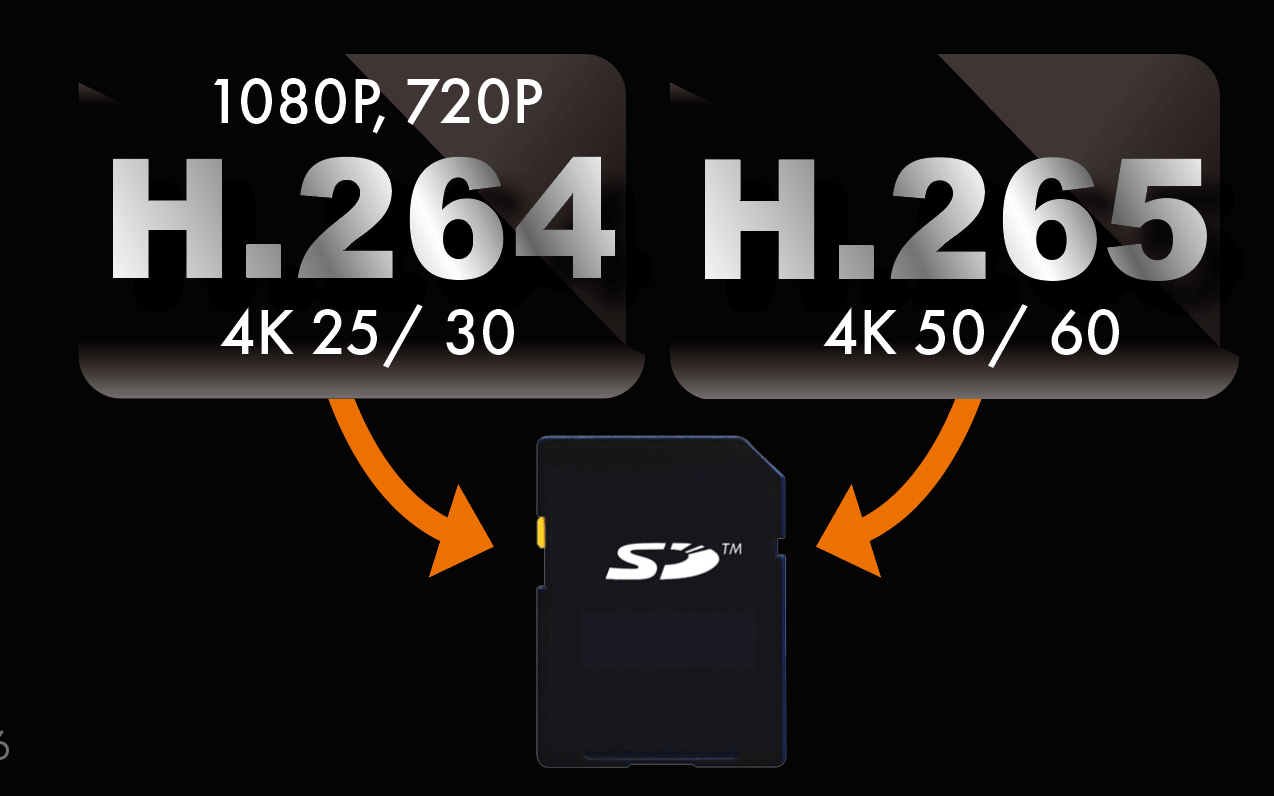

Convenient SD Card Recording
Free yourself from the constraints of a computer setup with the HDR-2's autonomous SD card recording, allowing you to effortlessly capture 4K content on the go, whether on location or during live events.

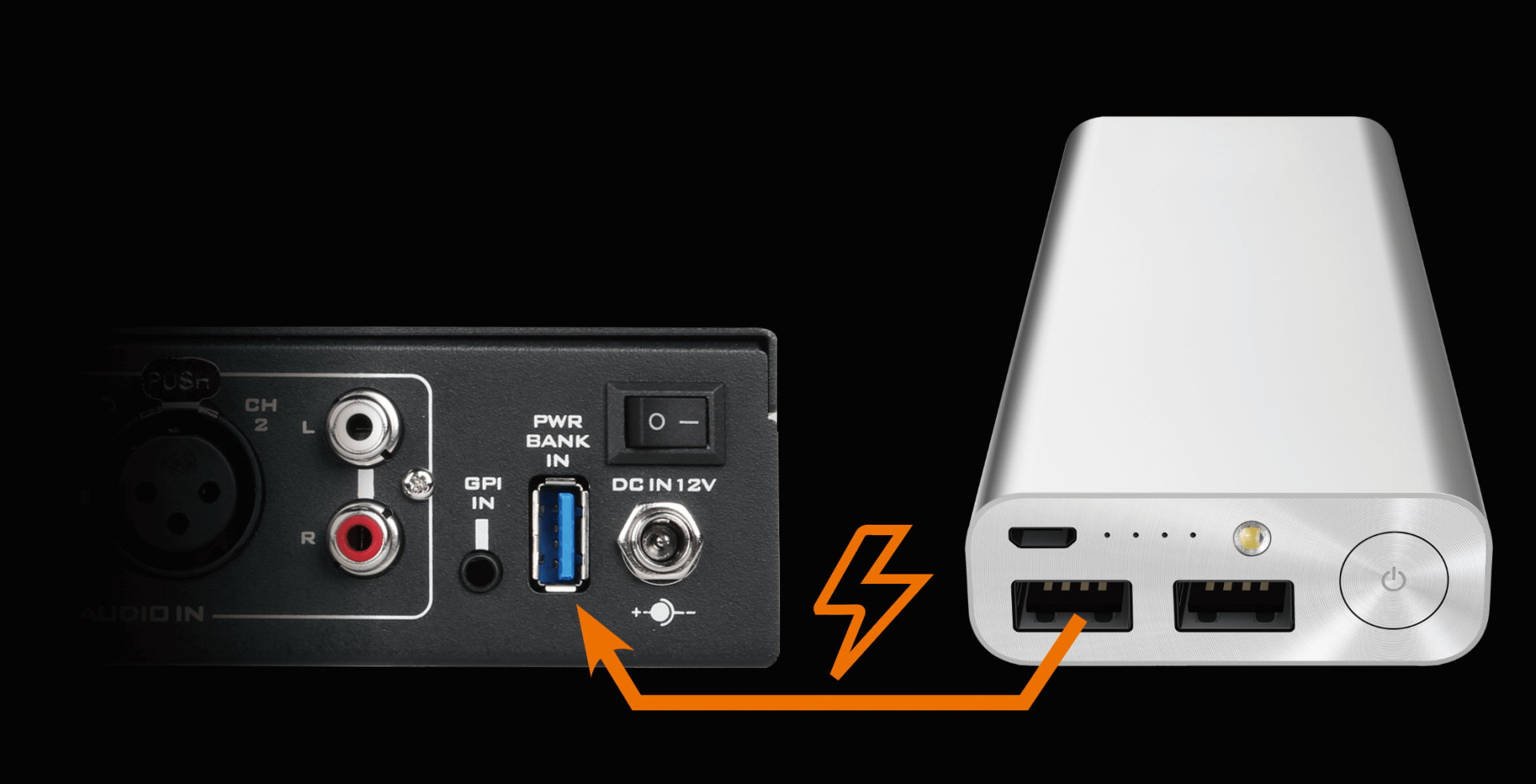

Mobile Power Supply Compatibility
Harness the flexibility of the HDR-2 by powering it through a mobile power supply via the USB interface, granting you mobility and freedom to record virtually anywhere without compromise.

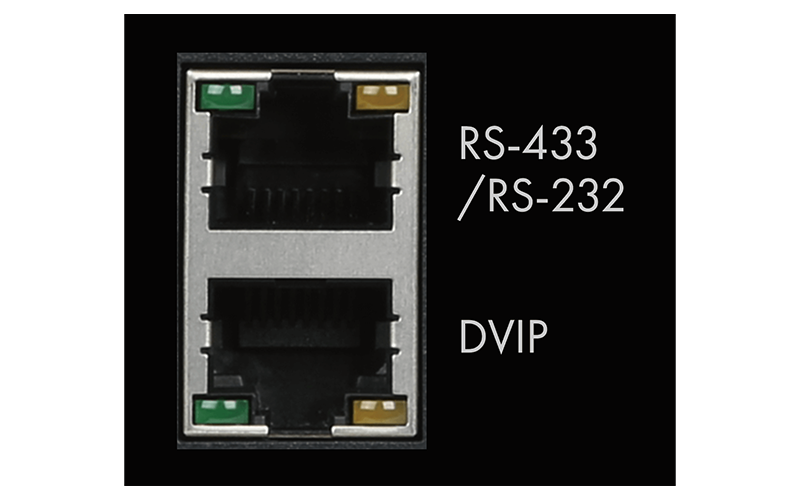

Versatile Remote Control Options (DVIP, RS-422/RS-232, GPI)
Take command of your recording experience with a variety of remote control options, including DVIP, RS-422/RS-232, and GPI, ensuring precision and ease of use during demanding productions.

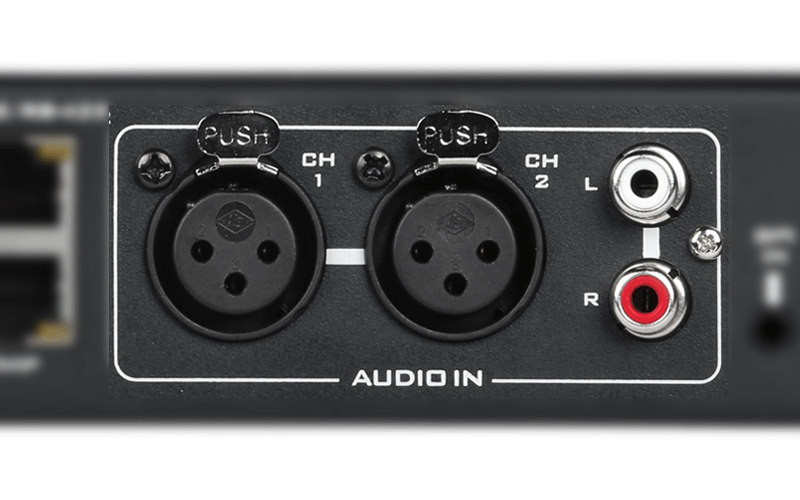

Audio Source Flexibility
Craft an immersive audio experience by selecting your preferred audio source, whether it's embedded HDMI audio, XLR microphones, RCA external audio, or a seamless blend of all sound sources, giving you complete control over the auditory dimension of your content.
Specifications
| Video Standard | 4K & HD |
| Video Format | 3840x2160p: 60/59.94/50 (H.265 Only) 3840x2160p: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 720p: 60/59.94/50 |
| Supported Video Input Signal |
1 x HDMI 2.0 Type A |

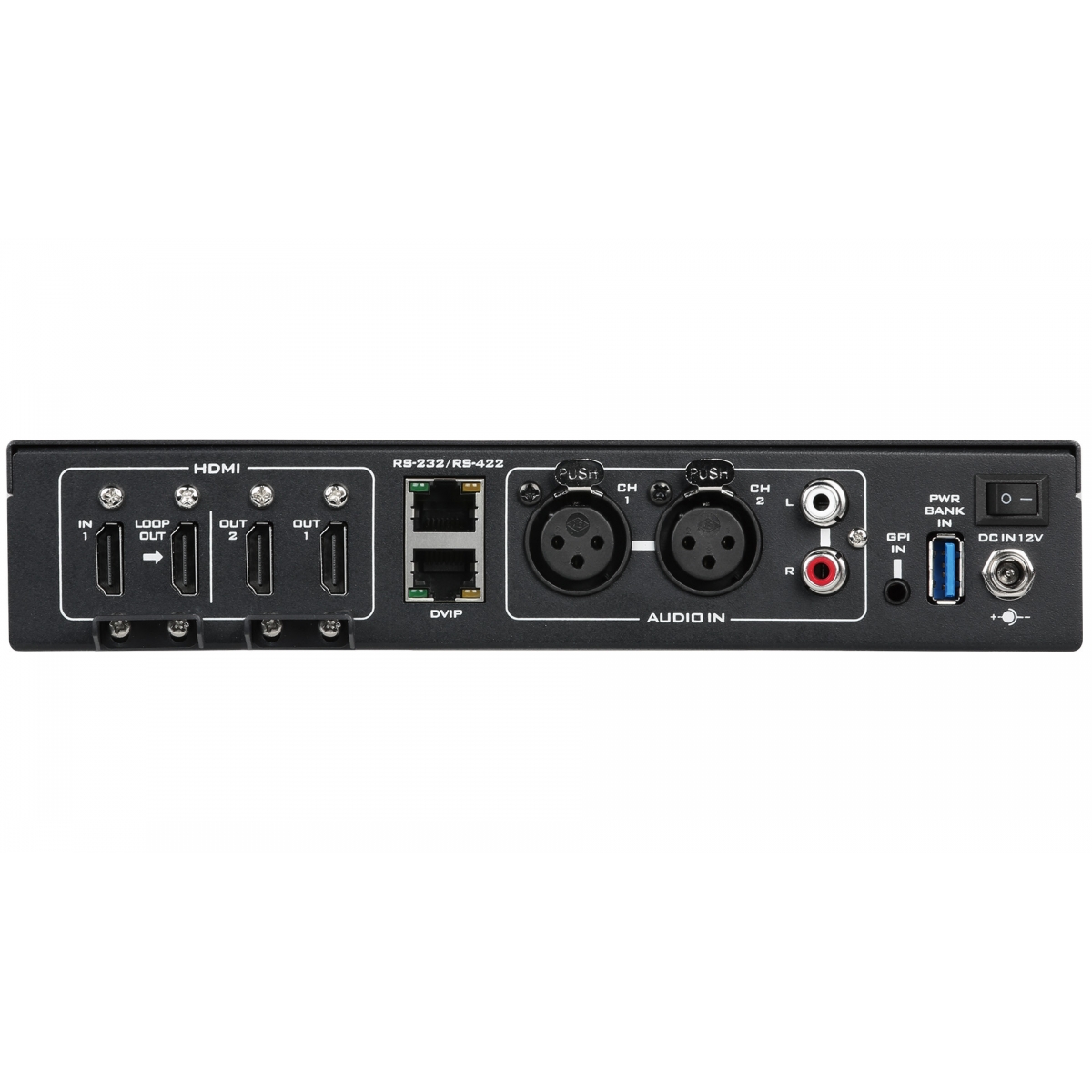

| Video Output | 2 x HDMI 2.0 Type A 1 x HDMI 2.0 Type A Loop out |
| Analog Audio Input | 2 x 3 Pin XLR Socket 1 x Stereo RCA set (L/R) |
| Analog Audio Output | 3.5mm earphone jack |
| Embedded Audio | De-embedded Digital Audio (2 CH) Input Embedded Digital Audio (2 CH) Output |
| Storage Medium | SD Card Slot x 1 Supports SD, SDHC and SDXC card (UHS-I) (Class 10 above) Max.: 128GB |
| Multi-channel Recording | 1-CH 4K only |
| Estimated Record Time (min per 10GB) |
HD 32GB: 56Hr (1Mbps)~ 7Hr (8Mbps) FHD 32GB: 28Hr (2Mbps)~ 3.5Hr (16Mbps) UHD 32GB: 7Hr (8Mbps)~ 1.7Hr (32Mbps) |
| Recording Media | 1 x SD Card |
| Storage File System | exFAT |
| Recorded File Format | MP4(H.265+ AAC) or (H.264+ AAC) |
| Video Recording Bit Rate / Color Sampling |
YUV 4:2:0 / 8bit bitrate:1Mbps~120Mbps |
| Audio Recording Format | AAC 2CH, 16bit 48KHz 192Kbps |
| Preview Display | 2” LCD (MENU) |
| Time Code In / Out | ---- |
| External Sync / Genlock | ---- |
| External Control | DVIP, RS-422/ RS-232 GPI Input: 3.5Ø phone jack (Pulse trigger: Record Start/Stop) Front Key Buttons |
| Power Failure Protection | Redundant USB power supply (not included) |
| Chassis | 1RU, Half-rack Width |
| Dimension (LxWxH) | 220 x 237 x 47 mm |
| Weight | 1.4 kg |
| Operating Temp. Range | 0~40 °C |
| Power | DC 12V, 2A |
| What's in the Box | 1 x HDR-2 product 1 x AD Switch DC 12V |
