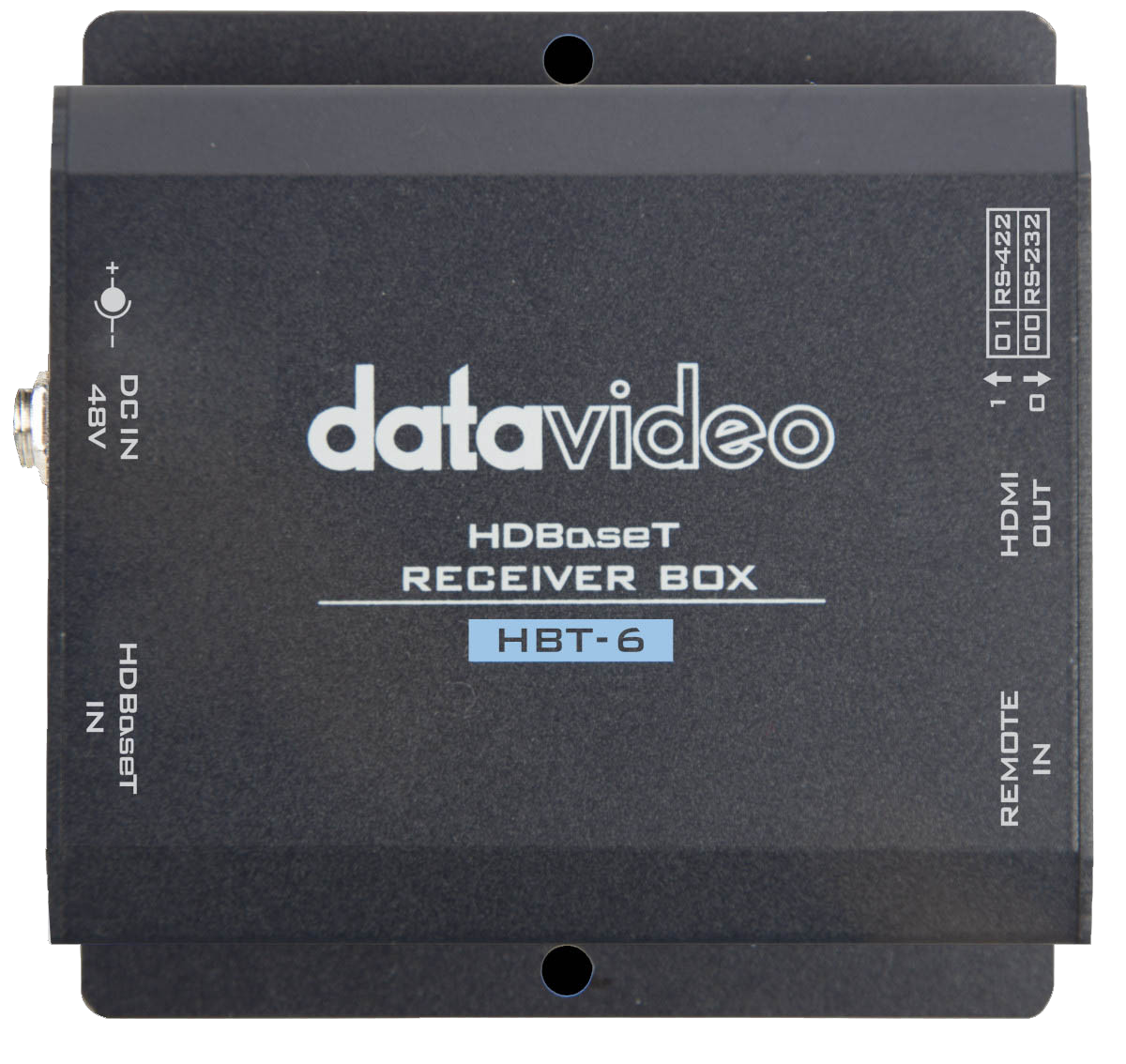

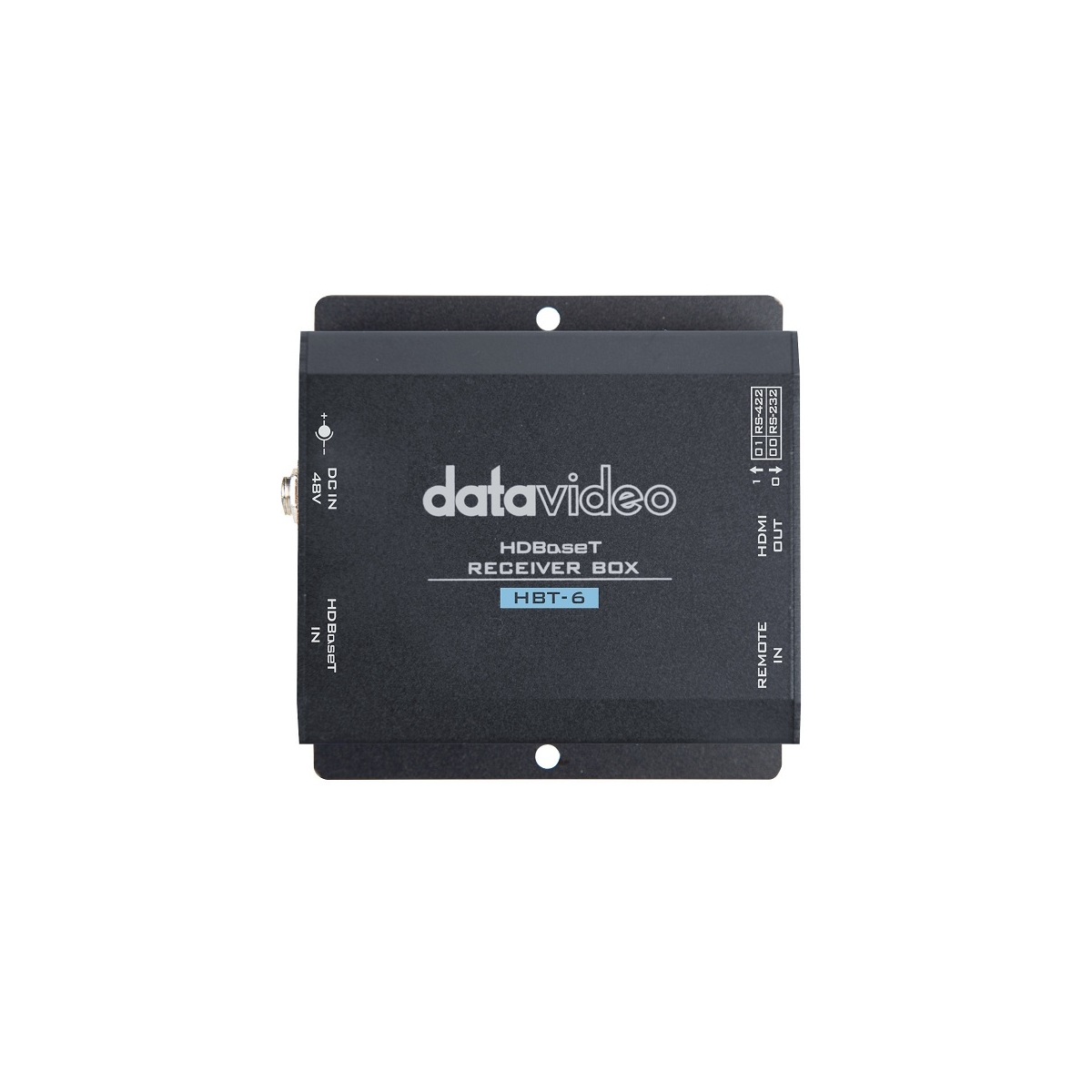

HDBaseT Receiver Box
HDBaseT Receiver Box HDBaseT Receiver Box HDBaseT Receiver Box HDBaseT Receiver Box

HDBaseT Receiver Box

HBT-6

อุปกรณ์รับสัญญาณภาพแบบ HDBaseT ใช้งานร่วมกันอุปกรณ์รุ่น PTC-150TL, PTC-140T

รายละเอียดเพิ่มเติม


 Manual


Supports HDMI Deep Color & full 3D & 4K@30 (HDBaseT technology)

HDMI Deep Color supports better color depths. To giving your display device a great image.

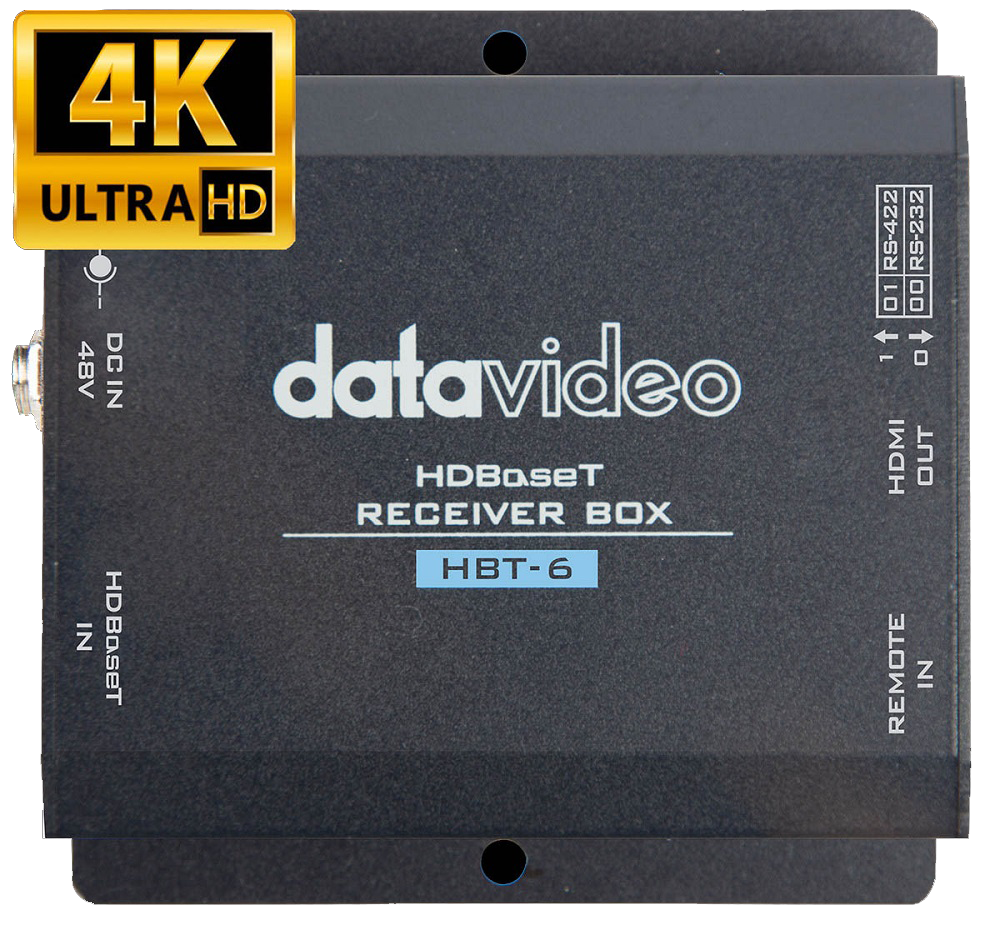

The extender supports Ultra HD and Full HD resolution

Transmits HDMI signals up to 60m at 1080p and 35m at 4K@30 using Cat 6 cable. The extender supports Ultra HD and Full HD resolution and the accompanying digital audio.


Receiver can be powered directly by a power supply, or by Power over Ethernet from the transmitter

HBT-6 receiver can be powered by the same single power source using Power-over-Ethernet (PoE), easy to install for various applications. Support 12V power out for remotely located equipment.


HDCP compliant

Can perfectly display the video source with HDCP in high clarity with zero interruption.


Supports control over RS-232/ RS-422

HBT-6 offers RS-232/RS-422 control signals, which allow to control the source device from the display location.


Supports default EDID and EDID learning from the display

EDID pass-through passes signal between the source and display

Dolby TrueHD & DTS Master audio support

Supports Dolby Digital, DTS-HD and Dolby TrueHD audio

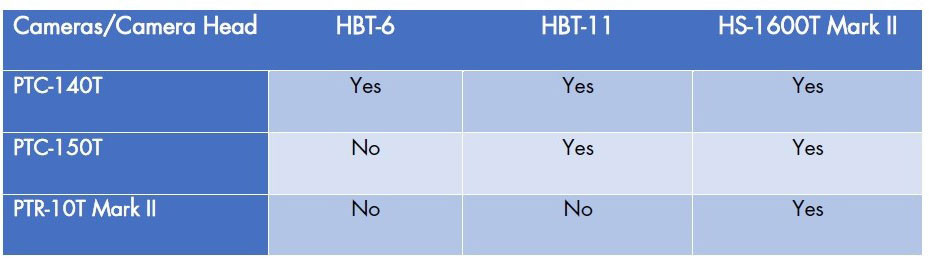

PoE Compatibility List

The chart above shows the product's direct compatibility with other HDBaseT products.

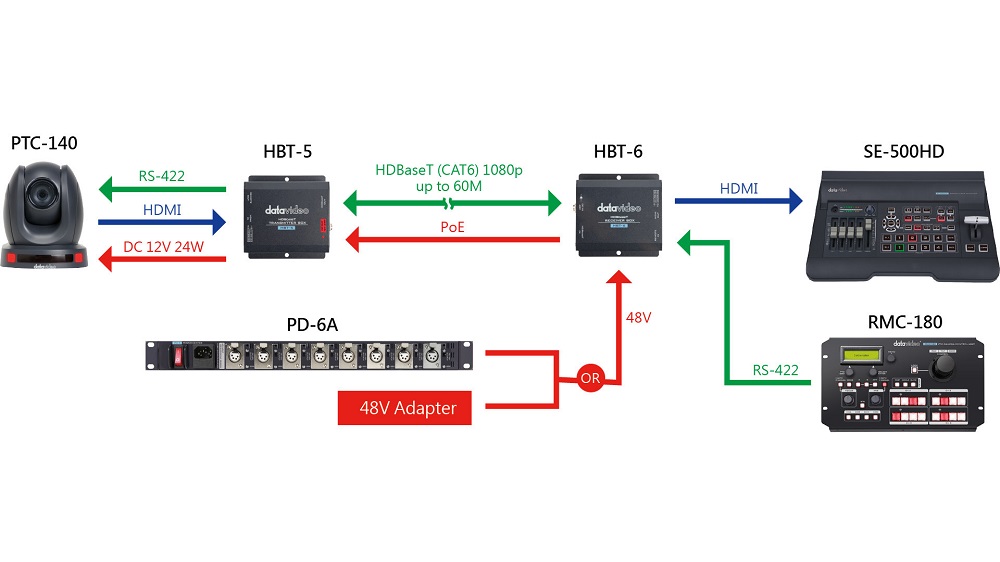

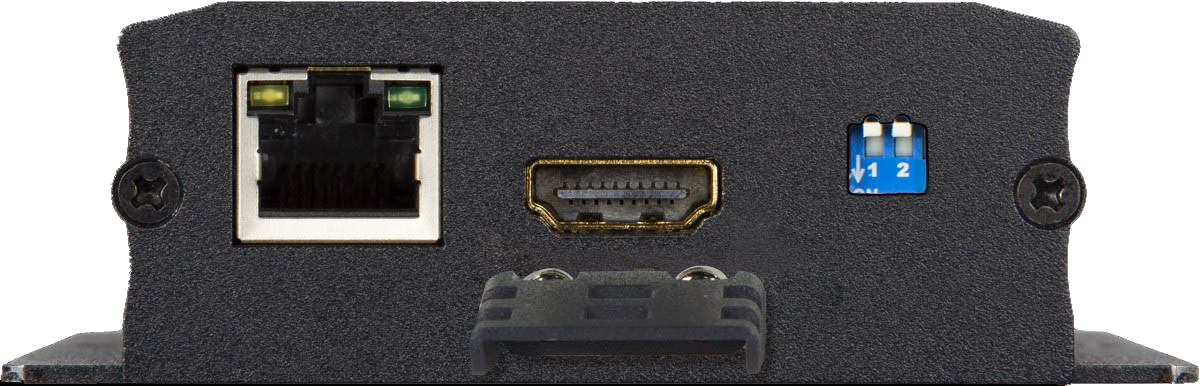

Connections

Specifications

Video/Audio Input HDBaseT RJ-45 x1
Video/Audio Output HDMI x1
Supported Video Format 3840x2160p: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50, 720p: 60/59.94/50
525i59.94 NTSC, 625i50 PAL
Video Process 4K2K30 4:4:4 8bit
4K2K60 4:2:0 8bit
Video bandwidth Single-link 340MHz [10.2Gbps]
DVIP -
RS-422/ RS-232 YES
Power DC 48V
HDBaseT Distance 1080p@60 60m (198ft) by CAT6 cable
4K2K@30 35m (114ft) by CAT6 cable
HDMI compliance HDMI Deep Color, full 3D & 4K2K@30
HDCP compliance HDCP 2.2/1.4
Audio support Surround sound [up to 7.1ch) or
stereo digital audio
Dimension (LxWxH) 88 x 76 x 30 mm
Weight 154 g
Operating Temp. Range 0~40 °C
What's in the Box 1 x HBT-6 main unit
1 x DC 48V power adaptor
