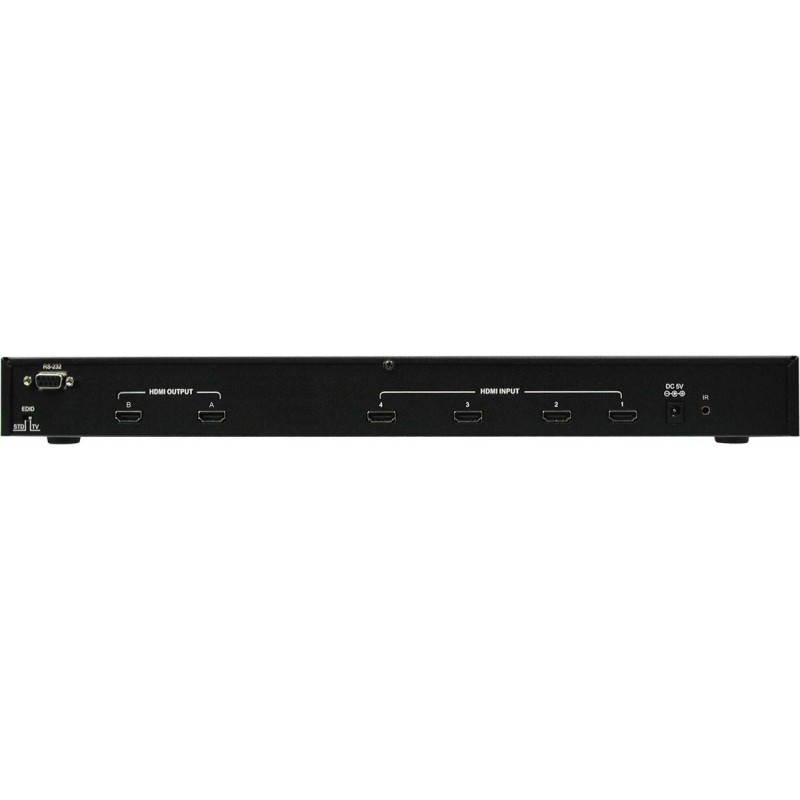

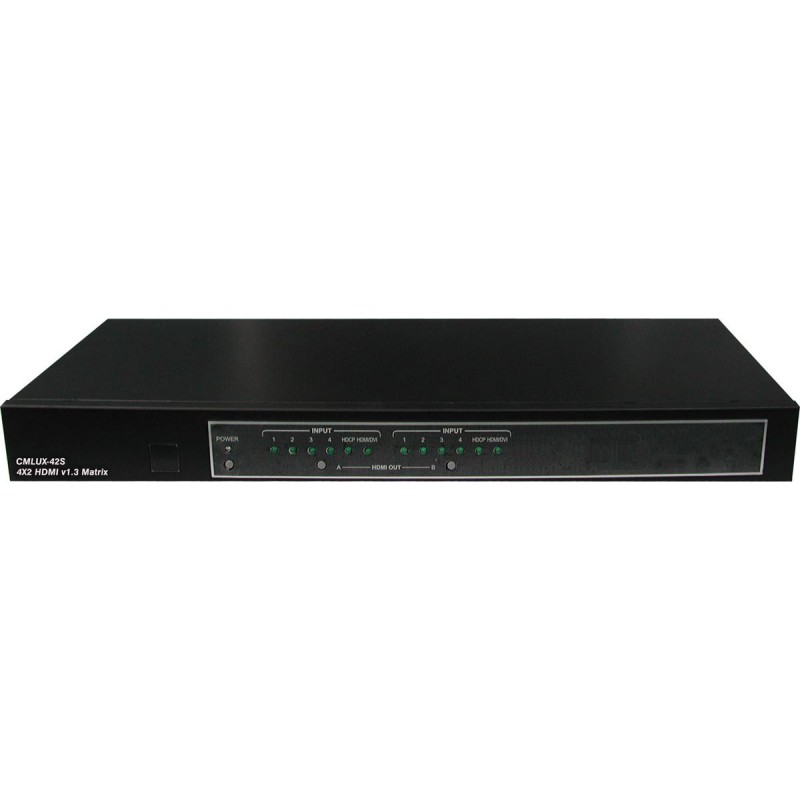

4×2 HDMI Matrix
CMLUX-42S
The HDMI V1.3 Matrix is the ideal solution for connecting all your HDMI devices, and thanks to the included remote this system gives you complete control over your media environment.
ManualThe HDMI V1.3 Matrix is the ideal solution for connecting all your HDMI devices, and thanks to the included remote this system gives you complete control over your media environment. Furthermore, the HDMI V1.3 Matrix can transfer Deep Color video and bit stream digital audio with maximum performance and supports HDMI 1.3, HDCP 1.1 and DVI 1.0. Please follow this manual to begin enjoying the benefits of your HDMI 1.3 Matrix. We suggest keeping it in a safe place for future reference.

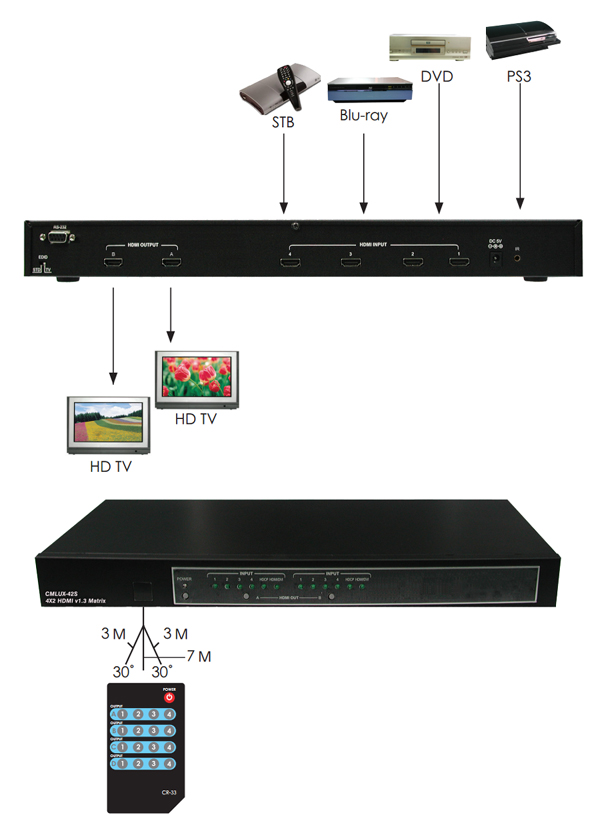

- High performance HDMI 1.3 Matrix of 4 (four) input and 2 (two) output with a remote control for you to link your favorite HDMI devices allowing you to enjoy movies, music, or games whenever you want to
- When an HDMI signal goes through the system, it is re-timed, and level-compensated
- The LED light will turn on to define what the input sources format is either HDCP, HDMI or DVI
FEATURES
- HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant
- Supports digital video formats in Deep Color 12bit and a new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio
- The HDMI input is compensated, clock/phase adjusted, and jitter free so the output is a high quality HDMI signal
- Has input source LED indicators for each output option
- Compatible with all HDMI sources and displays
- Has a wide range of PC and HDTV resolutions from VGA to UXGA and 480i to 1080p
- Supports RS-232 control
- Supports IR remote control and IR extender
- Dolby Digital, DTS digital audio transmission (32-192 kHz Fs sample rate)
- Supports LPCM 7.1 channels output from each independent HDMI ports
- The HDMI cable distance test showed that with 1080p/8bits resolution, the Input/Output source(s) can run up to 10/10 meters away. With 1080p/12bit the Input/Output source can run up to 10/6 meters
