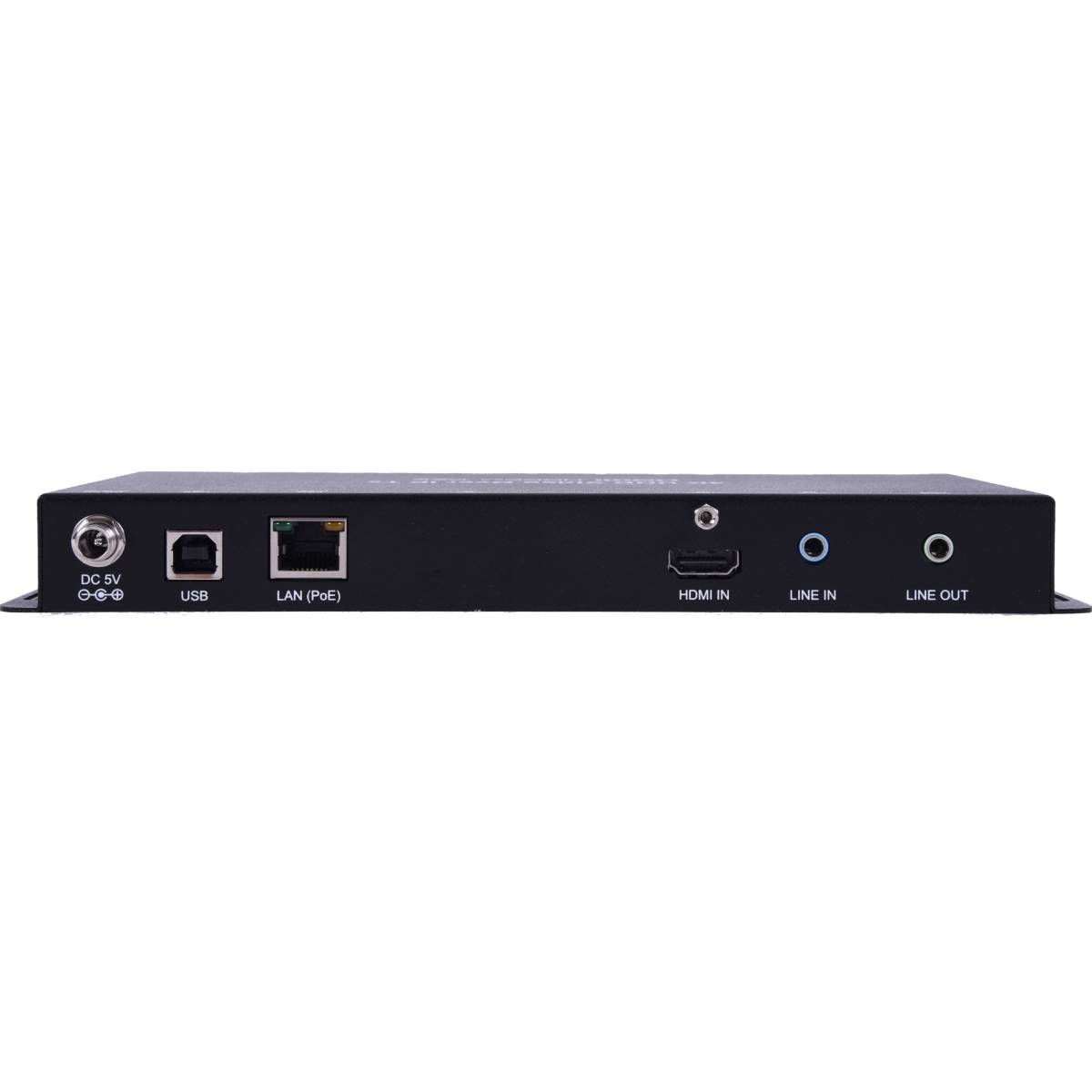

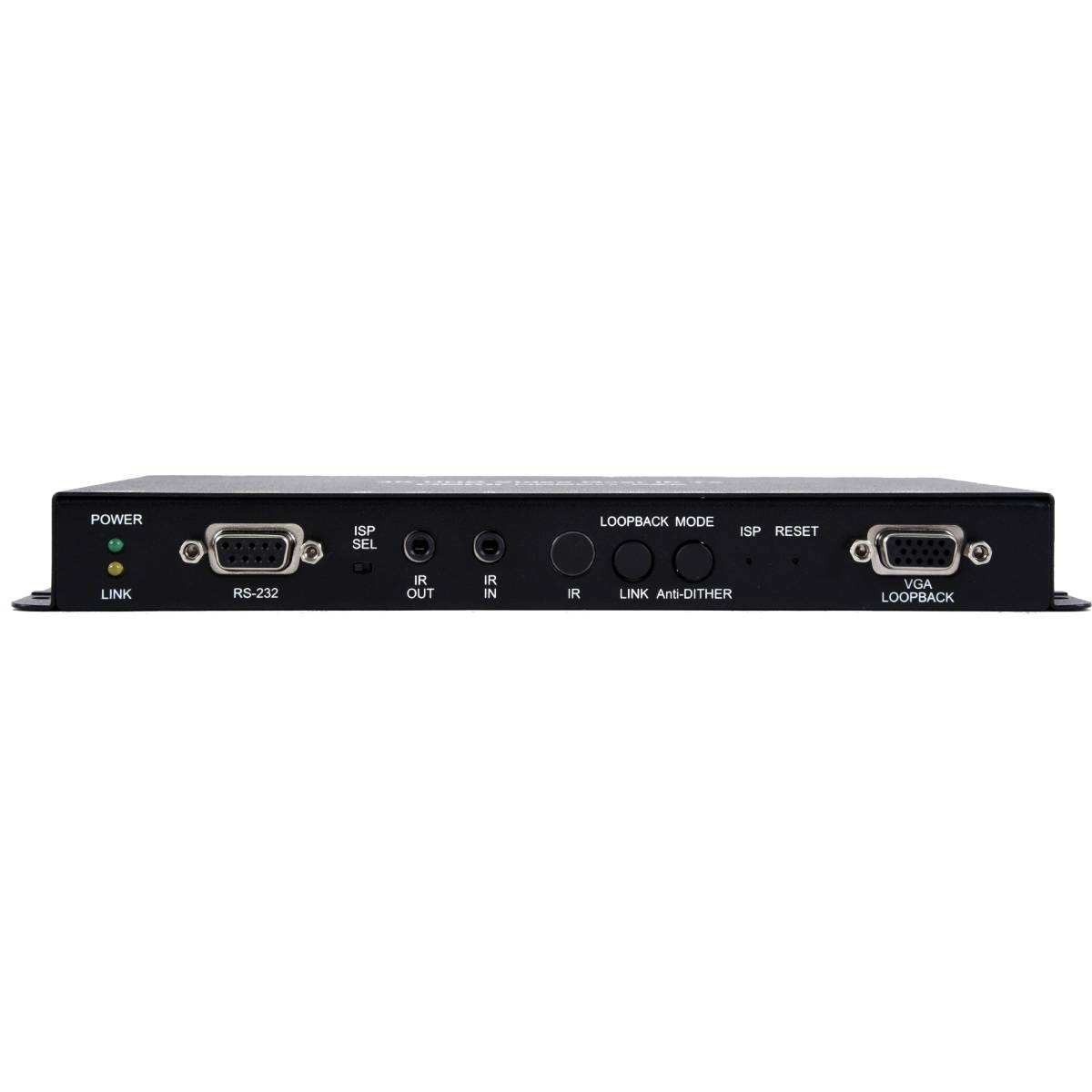

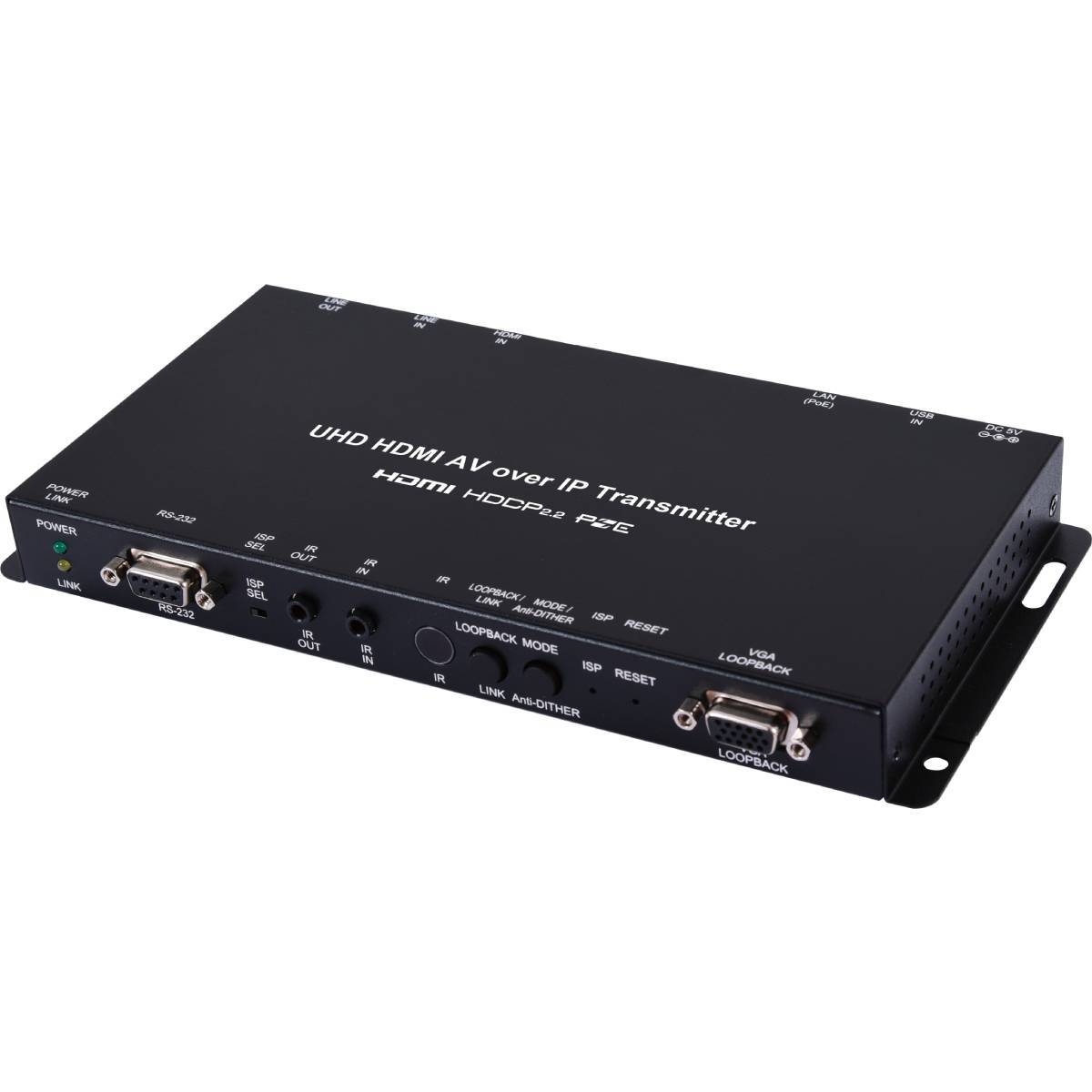

HDMI over IP Transmitter with USB/KVM Extension
KT58100XT
อุปกรณ์ตัวส่งขยายสัญญาณ KVM ผ่าน TCP/IP in Unicast (point-to-point) หรือ Multicast ความละเอียด UHD 4K มีช่อง output HDMI
รับประกัน 1 ปีเต็ม
This unit is part of a 4K UHD Multi-Function Extension system that allows you to extend HDMI signal along with KVM using the TCP/ IP protocol over regular Cat.5e/6/7 network cable. This extender supports the transmission of Ultra High-Definition signals (up to 4K@30Hz YUV 4:4:4 or 4K@60Hz YUV 4:2:0) with audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, It is also possible to have the extension system’s Transmitter operate in multicast mode, allowing you to send a single AV signal to a large number of Receivers within the same local network. It is useful for user to create large multi-display video walls with amazing simplicity
Features
- Video, audio and control transmission over TCP/IP in Unicast (point-to-point) or Multicast (single-to-many) modes
- Support with 0°, 180°, 270° increments rotation
- The analog Line In on the Transmitter sends audio directly to the analog Line Out and is inserted into the HDMI output on connected Receivers
- The Mic In on the Receiver sends audio directly to the analog Line Out on the Transmitter
- Both Tx and Rx may powered directly by PoE when connected to a Gigabit Ethernet switch that provides PoE (802.3af)
- Supports USB keyboard, mouse and storage extension and IR ,RS-232 bypass
- Unit can be controlled via WebGUI, Telnet, and front panel controls
Connection Diagram
Specification
| Interfaces | |
|---|---|
| Input Port |
|
| Output Port |
|
| Control I/O |
|
| Video | |||
|---|---|---|---|
| HDMI Compliance |
|
||
| HDCP Compliance |
|
||
| Input Signal Types |
|
||
| Output Signal Types |
|
||
| Resolutions | |||
|---|---|---|---|
| Maximum Input |
HDMI |
|
|
| Maximum Output | Cat.5e/6/7 |
|
|
| Audio | |
|---|---|
| Input Signal Types |
|
| Output Signal Types |
|
| Digital Formats |
|
| Power | |
|---|---|
| Power Supply |
|
| Power Consumption |
|
| Enclosure | |
|---|---|
| Chassis Material |
|
| Chassis Color |
|
| Dimensions (W×H×D) |
|
| Weight |
|
| Field Firmware Update | |
|---|---|
| Interface |
|
