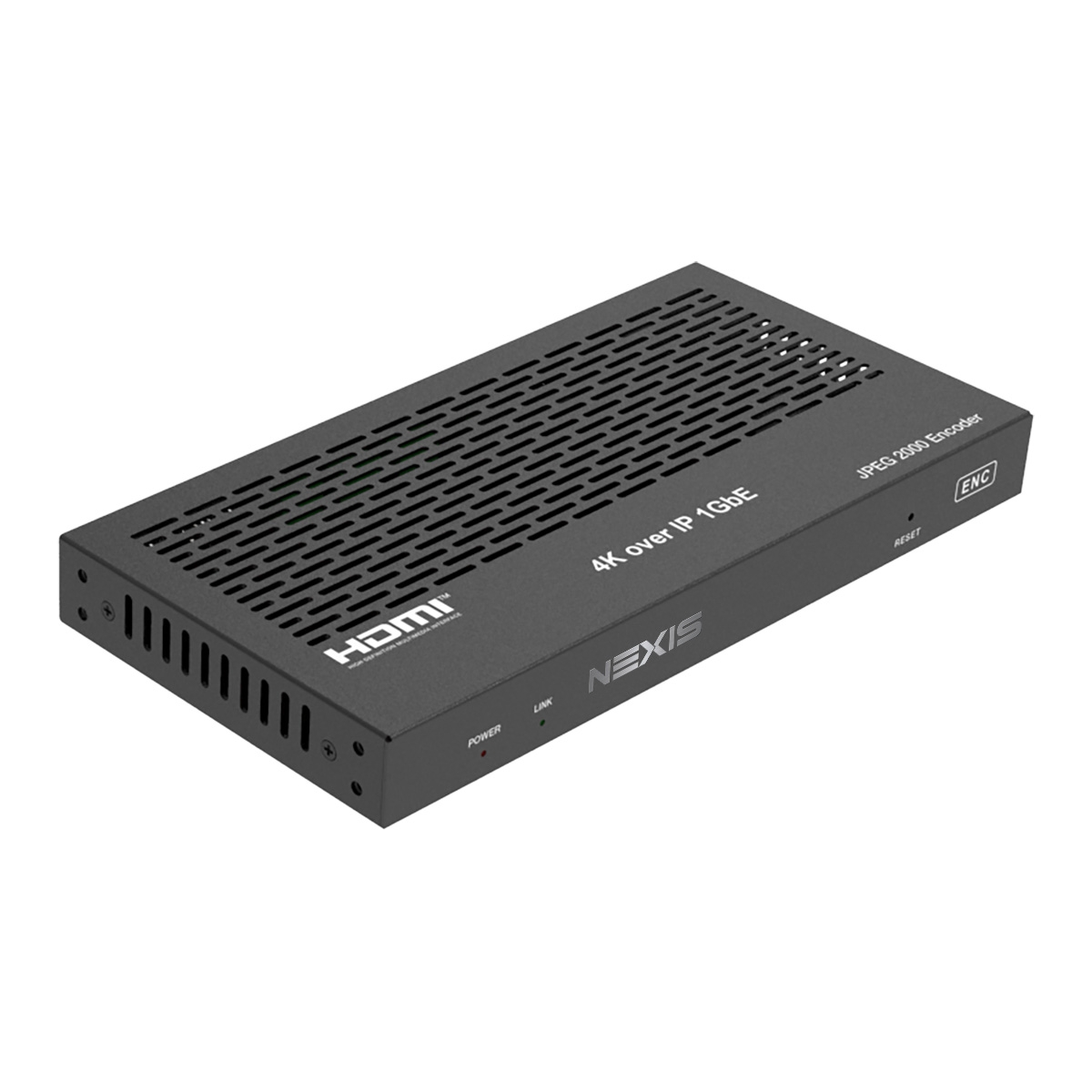

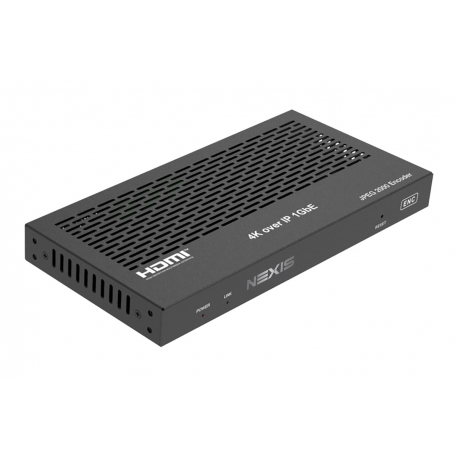

4K HDMI/USB over IP Extender [TX Unit] with Video Wall Processing
HK100PT
- ขยายสัญญาณ HDMI/USB, RS232, IR, Audio ผ่านระบบ LAN
- รองรับความละเอียด Input 4K60p และ output ที่ 4K30p
- รองรับการทำ video wall สูงสุด 9x9 จอ
- รองรับ PoE ใช้ไฟเลี้ยงผ่าน Network Switch
รับประกัน 2 ปีเต็ม
![4K HDMI/USB over IP Extender [TX Unit] with Video Wall Processing](https://www.mc.co.th/eshop/11758-home_default/4k-hdmiusb-over-ip-extender-tx-unit-with-video-wall-processing.jpg)
ManaulThis product is based on JPEG2000 technology. Encoder input supports up to 4K60, audio embedding or audio out. Decoder output supports up to 4K30, audio extracting or audio in transmitted to Encoder audio out. The product supports USB2.0/KVM, 1G Ethernet, bidirectional RS-232, two-way IR control and POE function. Guest mode control of RS-232, IR, CEC supported. Built-in secondary H.265 stream which supports plenty API commands to achieve flexible configurations is useful for 3rd party control Apps to preview video content. As the H.265 stream can be accessed in a different domain from JPEG2000 main stream via tagged its LAN ID, this makes it possible to isolate the network systems of main stream which works in Video LAN and secondary stream which works in Control LAN. The system is based on Linux for software development, provides flexible control methods, that are based on the intelligent networking of 1G Ethernet Switch.
Features
- HDMI 2.0b, HDCP 2.2 compliant
- Support 18Gbps video bandwidth
- Input supports up to 4K60 4:4:4, output supports 4K30 4:4:4
- Transmit video, audio, IR , RS-232, CEC and USB signals over Ethernet

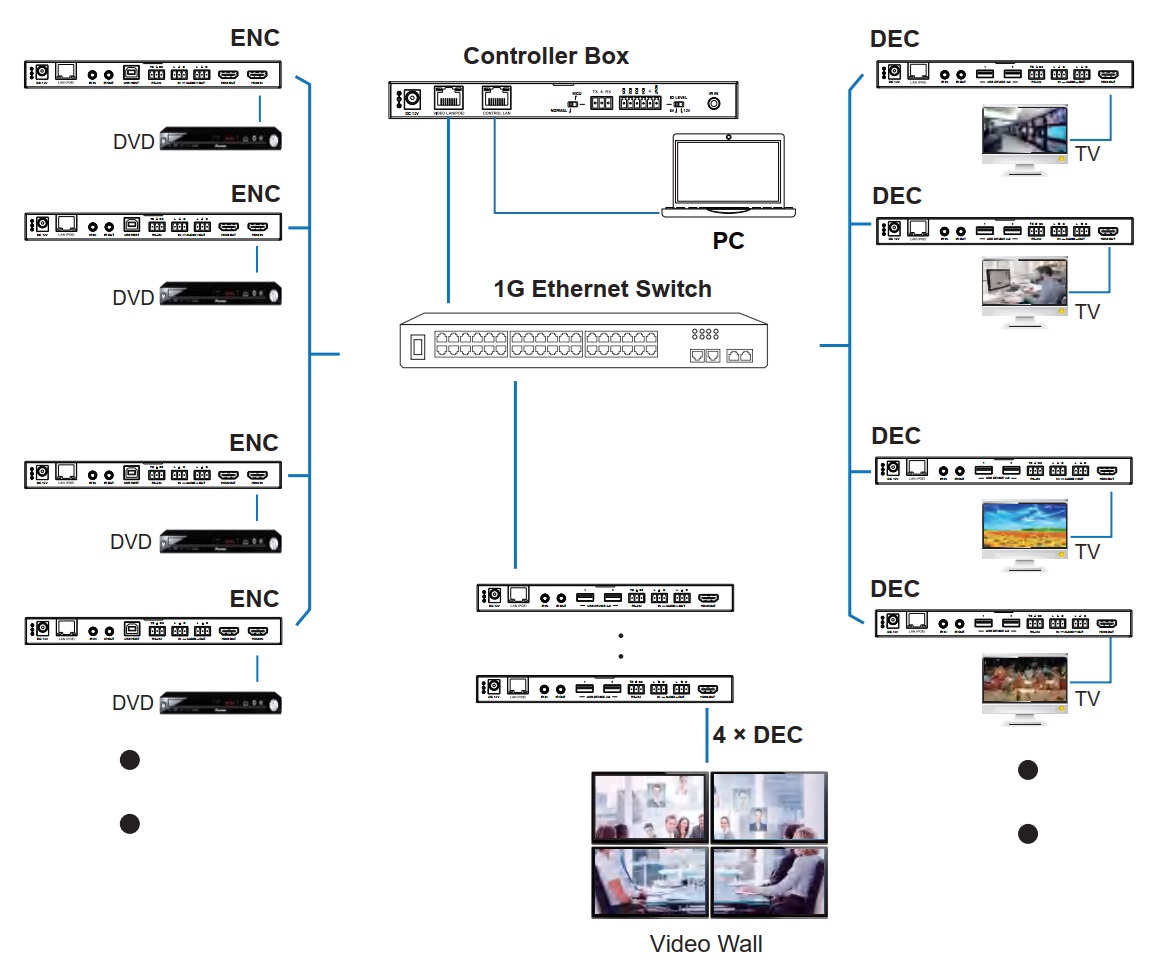

- Support unicast and multicast functions ☆ Support point-to-point, video matrix and video wall functions (video wall supports up to 9x9)
- Intelligent video wall class management makes it achievable of wall-in-wall or novel layout of wall configurations
- JPEG2000 Main Stream and standard H.265 codec Secondary Stream (SS)
- Support Secondary Stream VLAN tagging and parameters configuration
- Support 1G Ethernet Switch, router and hub device transmission
- Support POE function
- Flexible control through Web GUI/TCP/RS-232/IR and third-party controller
- HDMI audio formats: LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master, DTS:X
- Smart networking design for easy and flexible installation.
- CE, FCC, RoHS Certificate

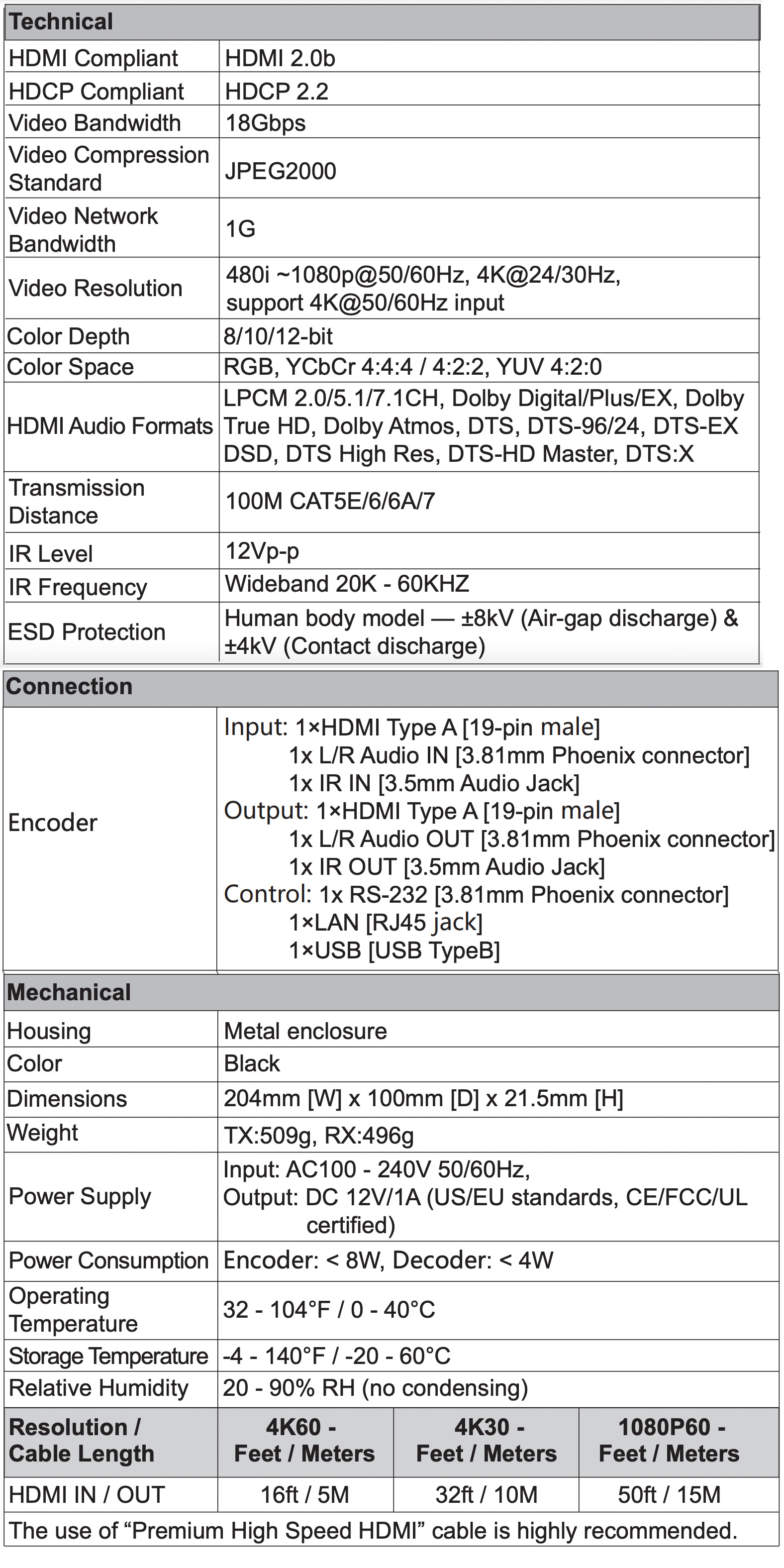

Specification
Network Switch Requirement
A Network Switch used to set up the system should support below features:
1. Type of layer 3/managed network Switch.
2. Gigabit bandwidth.
3. 8KB jumbo frame capability.
4. IGMP snooping.
The following Switch models are highly recommended.
- Cisco SG500
- Cisco Catalyst series
- Huawei S5720S-28X-PWR-LI-AC
Package Content
- 4K over IP 1GbE Encoder (TX Unit)
- IR Receiver cable (1.5 meters)
- IR Blaster cable (1.5 meters)
- 3-pin 3.81mm Phoenix connectors
- 12V/1A Locking Power adapter
- Mounting ears
- Machine screws (KM3*4)
- User Manual
