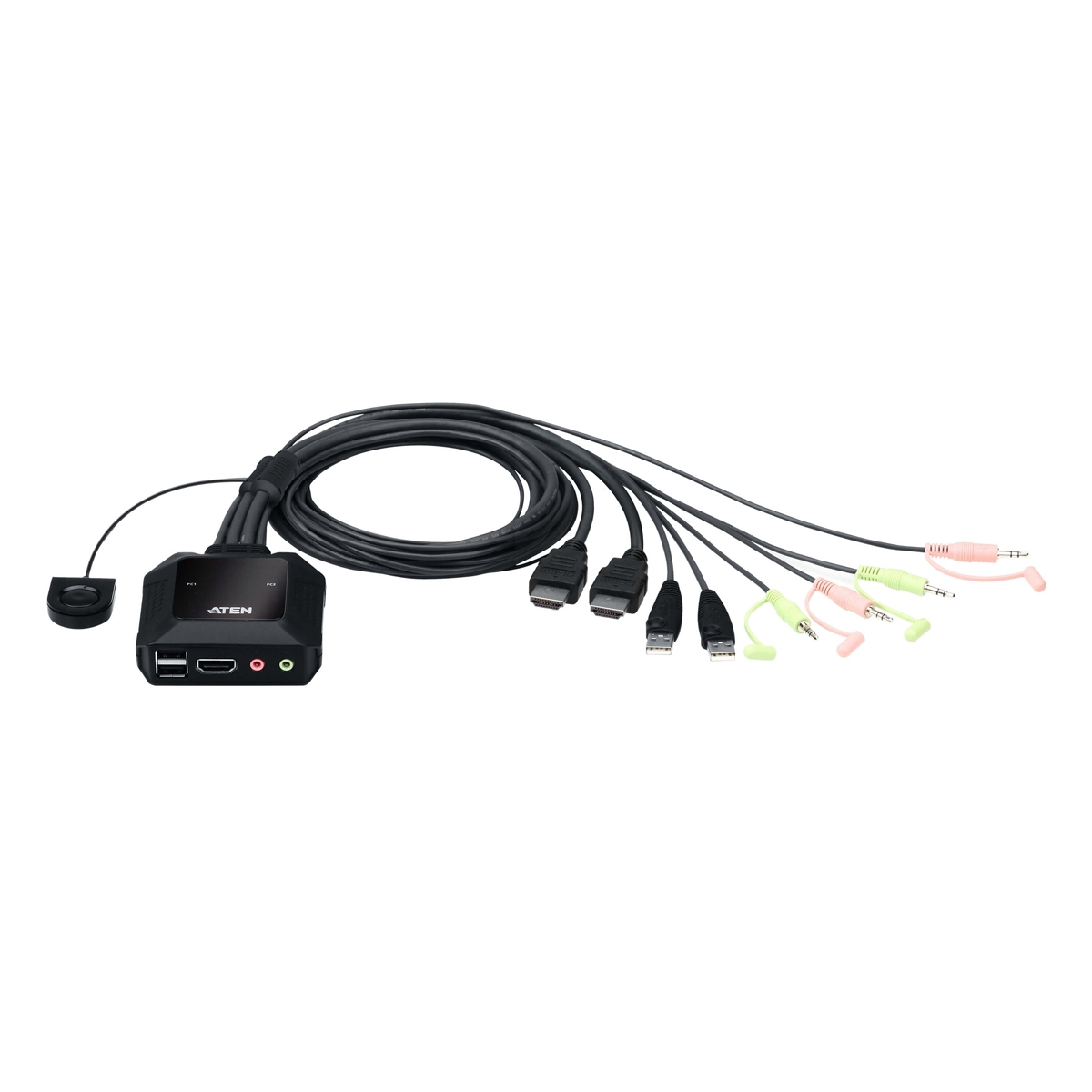

2 Port 4K HDMI/USB Cable KVM Switch with Remote Selector
CS22H
- สลับควบคุมคอมฯ HDMI/USB 2 เครื่อง ด้วยจอ,คีย์บอร์ด, เมาส์ชุดเดียว
- รองรับความละเอียดถึง 4096 x 2160 @ 60 Hz
- ออกแบบมาให้มีที่แขวนช่วยให้ประหยัดพื้นที่ทำงาน
รับประกัน 3 ปีเต็ม
สะดวกสั่งซื้อผ่าน Online คลิกที่นี่
Spec Sheet

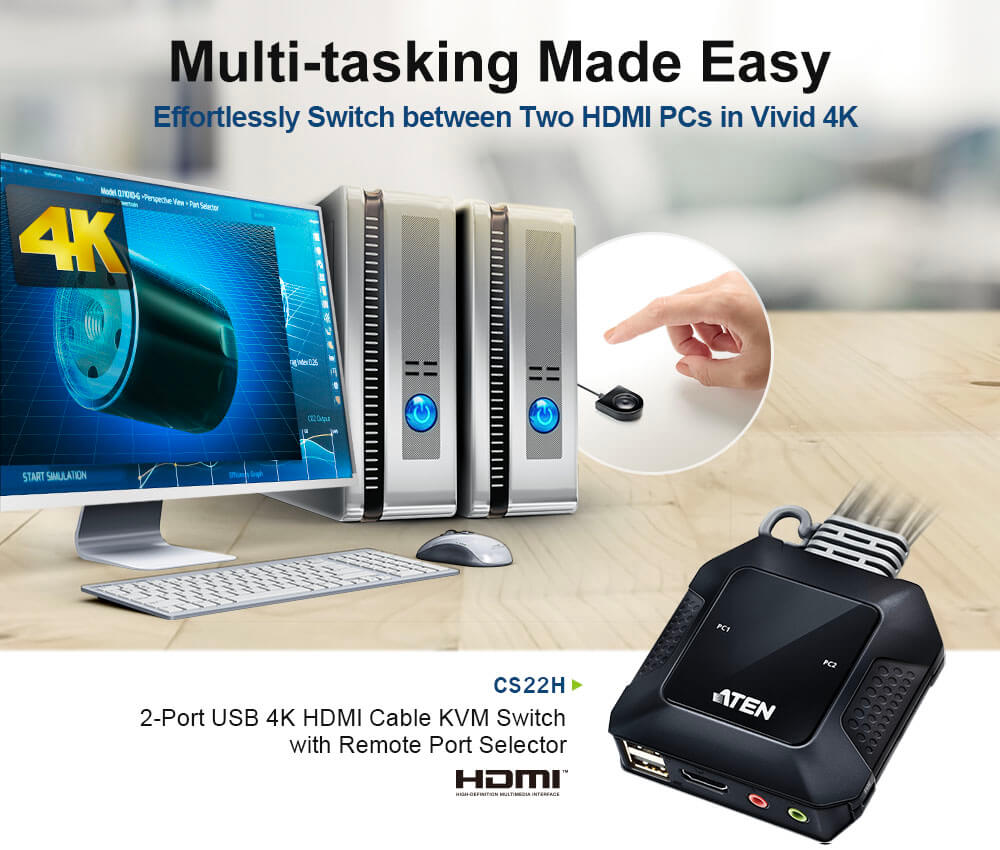

Switching between two computers can be as easy as the push of a button. Refresh your workspace with the CS22H by setting up a desktop console with one set of keyboard/mouse/display for control over two computers via USB and HDMI connections, and you’re all set. The compact CS22H helps create an organized desktop with reduced cable clutter, and brings in vivid 4K viewing quality to lift up work performance.
Superior AV Performance in Vivid 4K
The CS22H empowers your desktop operations with audiovisual enhancement with 4K DCI compliance and audio connectivity.

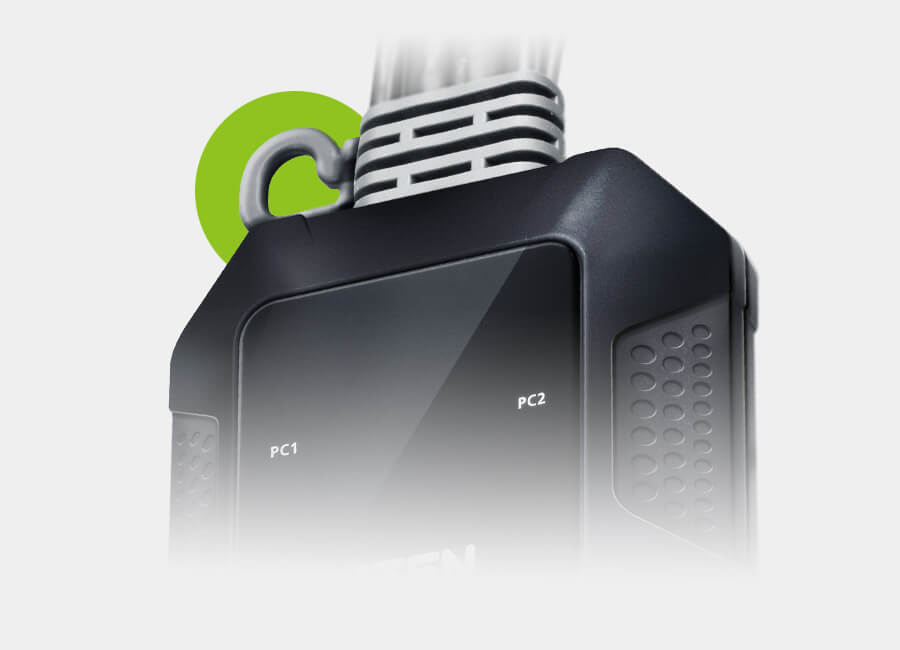

Space Efficient Desktop Setup
The compact and easy-hook design is helpful to expanding desktop workspace in an orderly fashion for improved work productivity.
Smooth Cross-Platform Integration
The CS22H enables the integration of different computer systems (Windows, Mac and Linux) that are accessible over one KVM console.
Flexible USB Peripheral Sharing

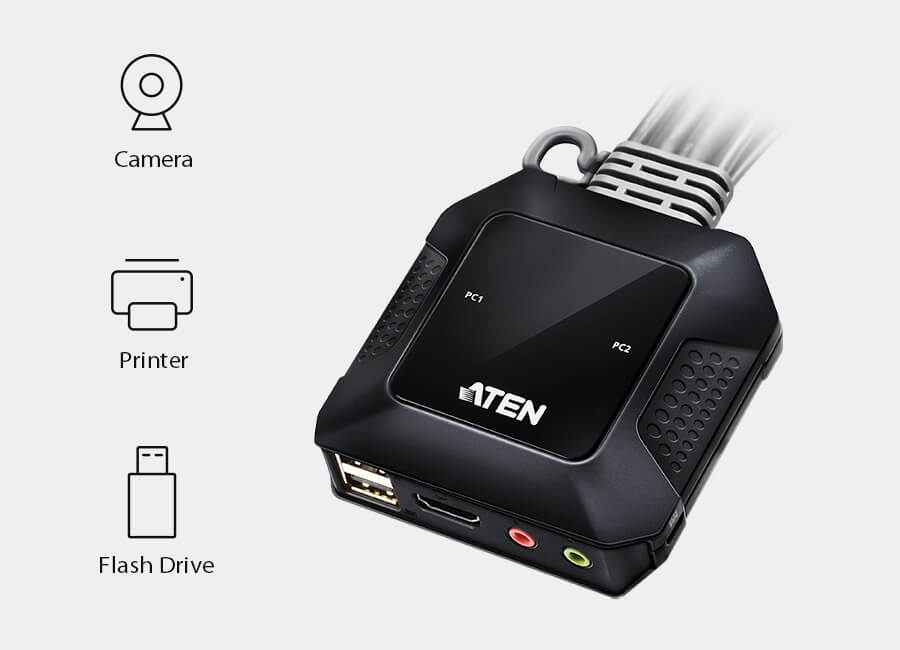

The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirement.

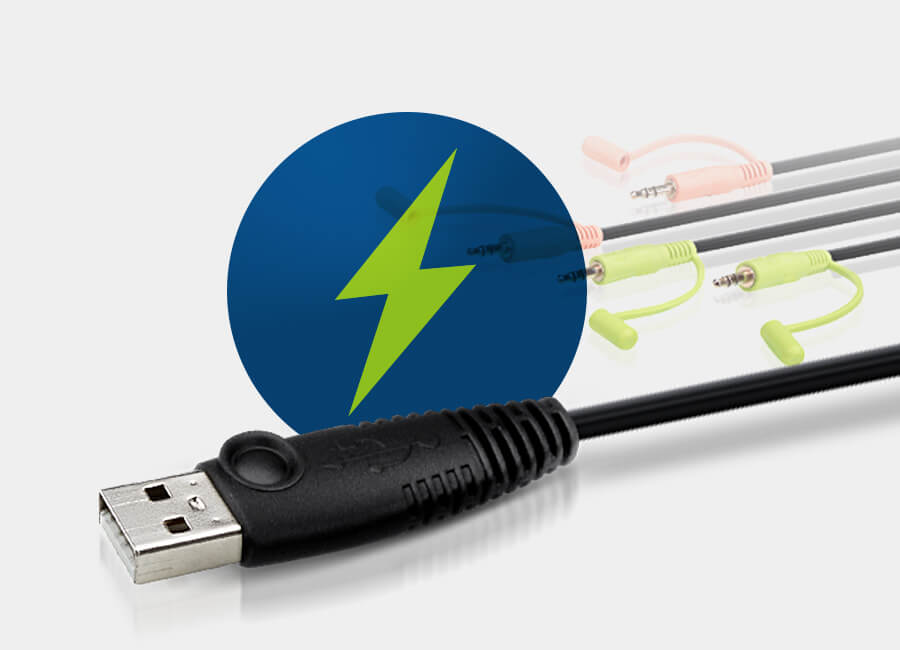

Plug in. Power on
The CS22H supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.
Features
For a smart-looking, neat and tidy work environment, ATEN’s patented all-in-one design Cable KVM Switches eliminate the bother of connecting multiple cables by consolidating keyboard, video and mouse cables into one, and building that cable right into switch.
The ATEN CS22H Cable KVM Switch can instantly access two computers with a USB and HDMI console while offering superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), bringing users maximum convenience and optimum visuals.
When users want to switch between the computers, simply press the built-in remote port selector to enjoy intuitive operations. Moreover, the CS22H supports USB peripheral sharing, easily integrating data and ensuring uninterrupted data transmission.
Its compact and bus-powered design provides an efficient installation without bulky cable setups, and the newly-designed hook allows users to place the CS22H wherever they want to keep desktop tidy and well-organized. This plug and play switch is ideal for people who need quick control to multitask between two computers at the desktop in any environment.
- One USB keyboard, mouse and one HDMI monitor control two HDMI computers
- Superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
- Computer selection via remote port selector
- HDMI compliant; HDCP 2.2 compliant
- Supports USB hot-plugging
- The console USB ports can be used for USB peripheral sharing*
- Multiplatform support – Windows, Mac and Linux
- Hook design for space-saving and organized workstation
- Plug and play
- Bus-powered – no external power adapter required
Note: * The CS22H may require an external power supply via a micro USB port.

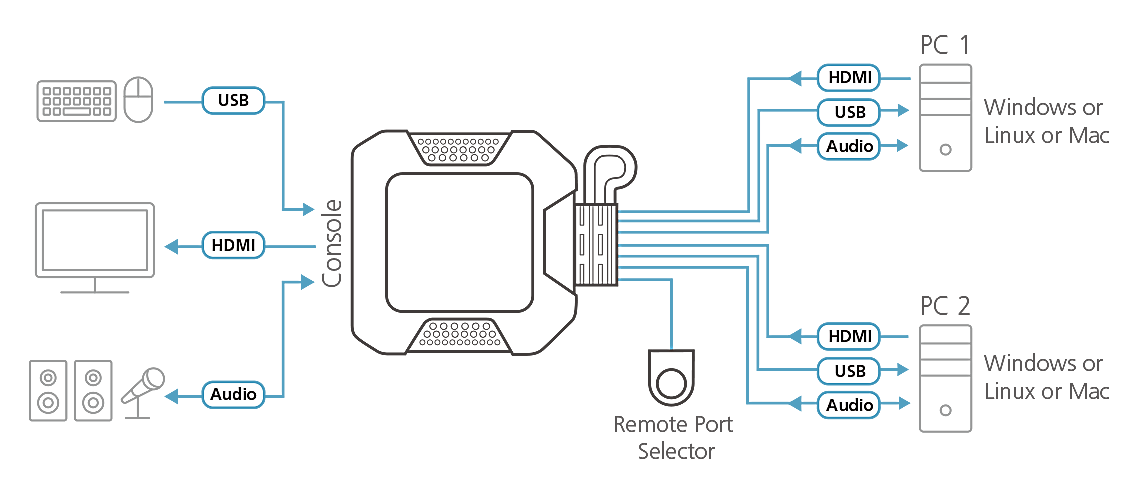

Diagram
Specification
| Computer Connections | 2 |
| Port Selection | Remote Port Selector |
| Connectors | |

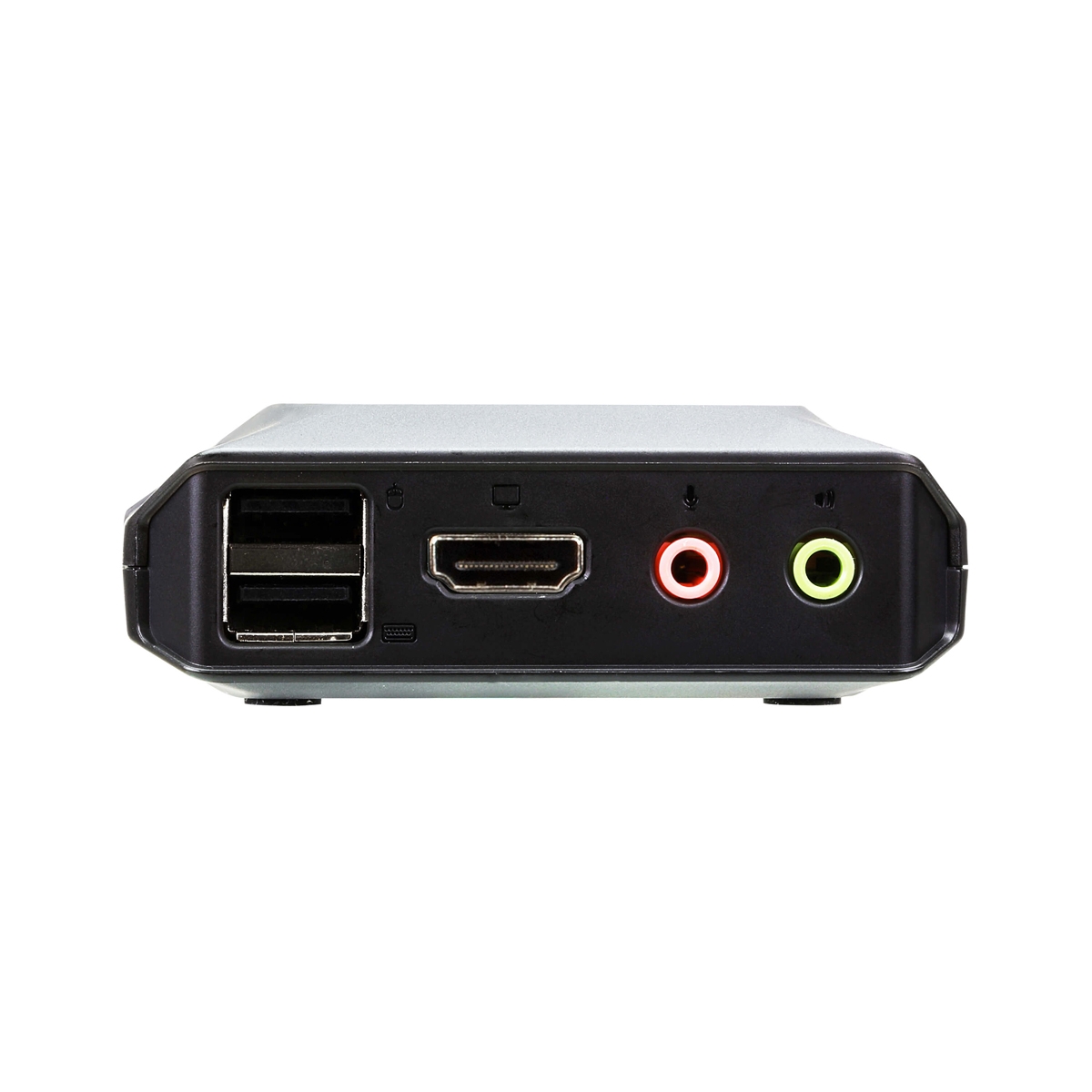

| Console Ports | 1 x HDMI Female 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink) |

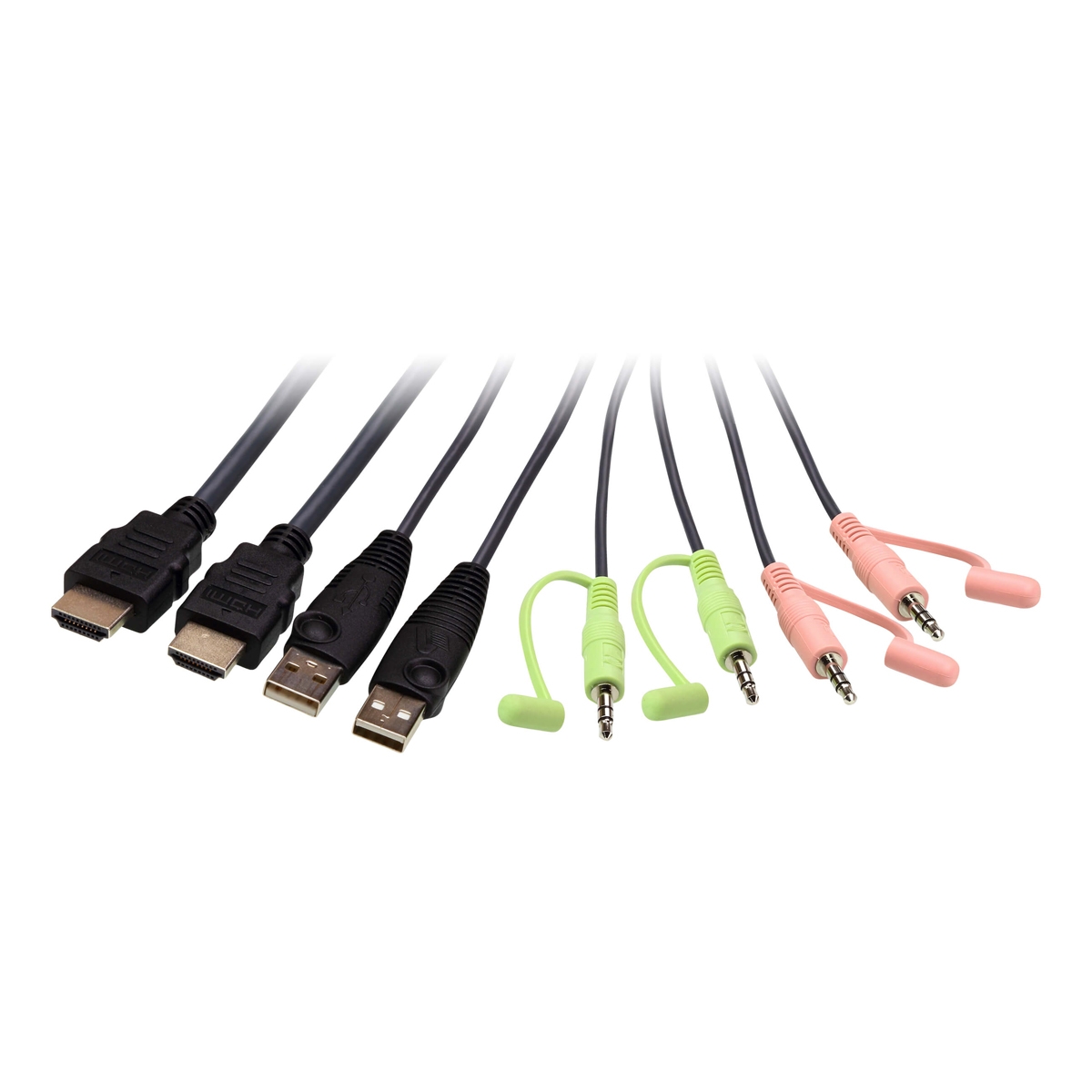

| KVM (Computer) Ports | 2 x HDMI Male 2 x USB Type A Male 2 x 3.5mm Audio Jack Male (Green) 2 x 3.5mm Audio Jack Male (Pink) |

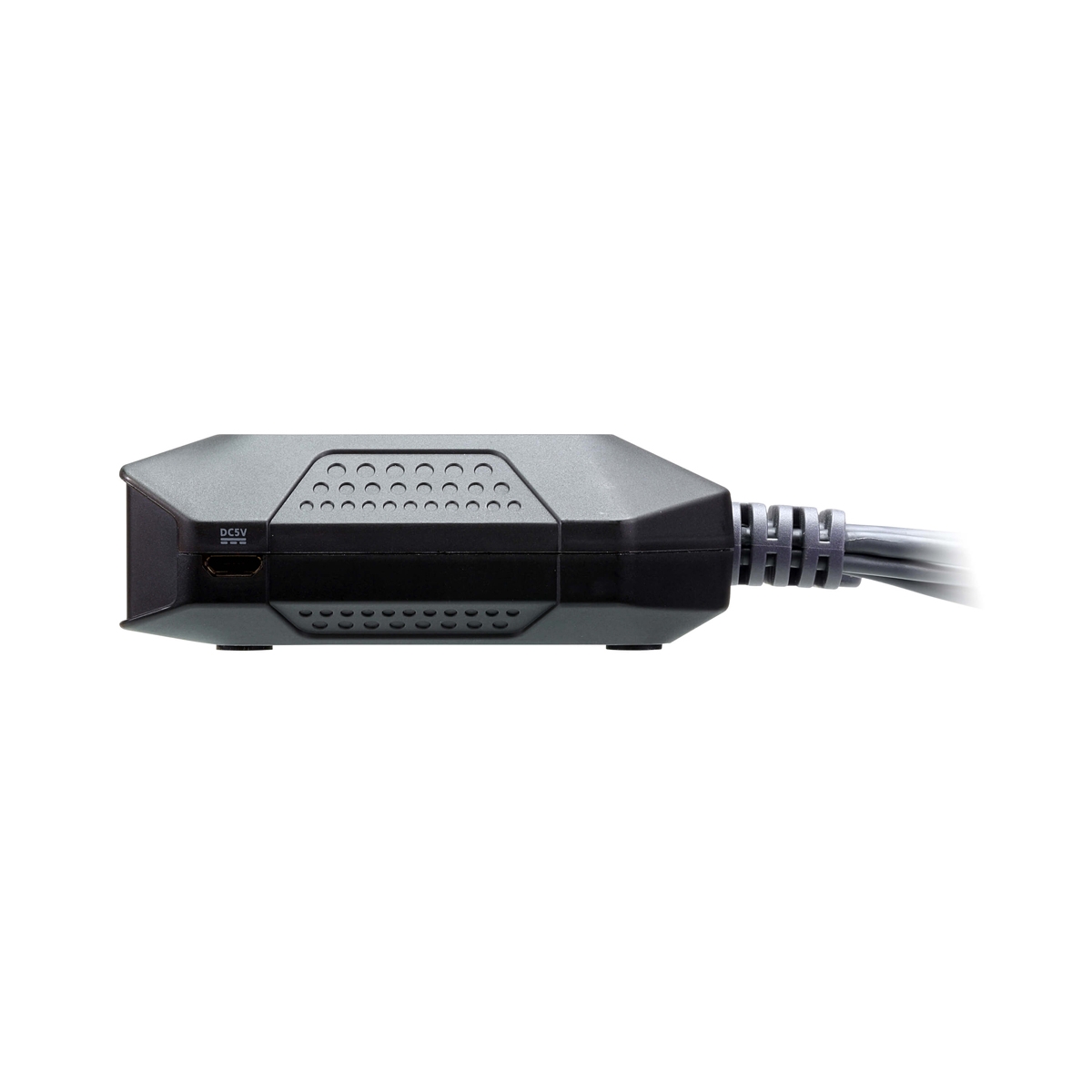

| Power (Optional) | 1 x USB Micro Type B Female |
| LEDs | |
| KVM Port (On Line /Selected) | 2 (White) |
| Cable Length | |
| KVM | 2 x 1.2 m |
| Remote Port Selector | 1.8 m |
| Emulation | |
| Keyboard / Mouse | N/A |
| Video | 4096 x 2160 @ 60Hz |
| Power Consumption | DC5V:3.47W:29BTU |
| Environmental | |
| Operating Temperature | 0 - 50°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.34 kg ( 0.75 lb ) |
| Dimensions (L x W x H) | 8.34 x 8.42 x 3.04 cm (3.28 x 3.31 x 1.2 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Package Content
- 1x CS22H 2-Port USB 4K HDMI Cable KVM Switch
- 1x User Instructions
Product Comparison
| Option |
2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector
|
2-Port USB DisplayPort Cable KVM Switch with Remote Port Selector
|
2-Port USB DVI Cable KVM Switch with Remote Port Selector
|
2-Port USB VGA Cable KVM Switch with Remote Port Selector
|
|---|---|---|---|---|
| Number of Computers |
2
|
2
|
2
|
2
|
| Console Interface |
USB
HDMI
|
USB
DisplayPort
|
USB
DVI-D
|
USB
VGA
|
| Computer Interface |
USB
HDMI
|
USB
DisplayPort
|
USB
DVI-D
|
USB
VGA
|
| USB Peripheral | ✔ | ✔ | ✔ | ✔ |
| Audio Enable | ✔ | ✔ |
N/A
|
N/A
|
| USB 2.0 | ✔ | ✔ | ✔ |
N/A
|
| Hot-pluggable | ✔ | ✔ | ✔ |
N/A
|
| Bus - Powered | ✔ | ✔ | ✔ | ✔ |
| Audio |
Speaker
Microphone
|
Speaker
Microphone
|
N/A
|
N/A
|
| Multi-Platform Support |
Windows
Mac
Linux
|
Windows
Mac
Linux
|
Windows
Mac
Sun
Linux
|
Windows
Mac
Sun
Linux
|
| Cable Length |
1.2 m
|
1.2 m
|
1.2 m
|
0.9 m
|
| Max. Resolution |
4096 x 2160 @ 60Hz (4:4:4)
|
4096 x 2160 @ 30Hz (4:4:4)
|
1920 x 1200
|
2048 x 1536
|
