HW070C
หมายเหตุ ช่อง USB-C ของ Laptop / PC ต้องรองรับ DP Alt mode จึงจะสามารถแสดงผลออกจอภาพได้ กรุณาตรวจสอบจากสัญลักษณ์ DP หรือ Thunderbolt ข้างพอร์ต USB-C หรือดูได้จากคู่มือของ Laptop นั้น ๆ
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:
HDBaseT 70M with USB-C/HDMI & KVM Function Wall Plate Transmitter
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก
Technical | |
HDMI Compliance | HDMI 2.0b, DisplayPort 1.2a |
HDCP Compliance | HDCP 2.2 |
Video Bandwidth | 18 Gbps |
Video Resolution |
4096×2160@24/25/30/50/60Hz, |
Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0 |
Color Depth |
8/10/12-bit |
HDR | HDR10, HDR10+ |
HDMI Audio Formats | Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; PCM 2-8Ch |
Transmission Distance | Max distance (1080p) : 230ft / 70m over CAT6/6a/7 Max distance (4K): 131ft / 40m over CAT6/6a/7 |
ESD Protection | Human body model — ±8kV (Air-gap discharge) & ESD Protection ±4kV (Contact discharge) |
Connection | |

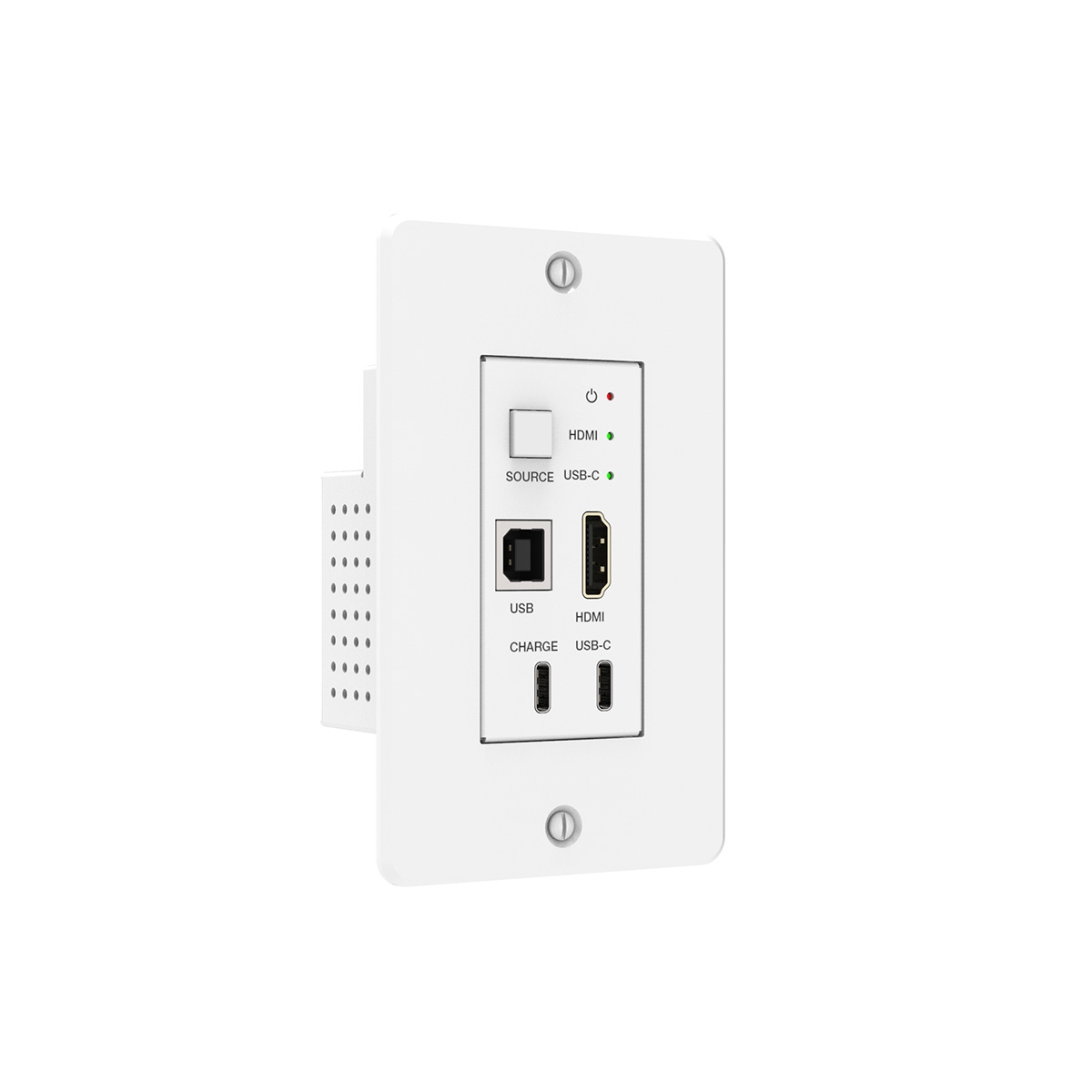

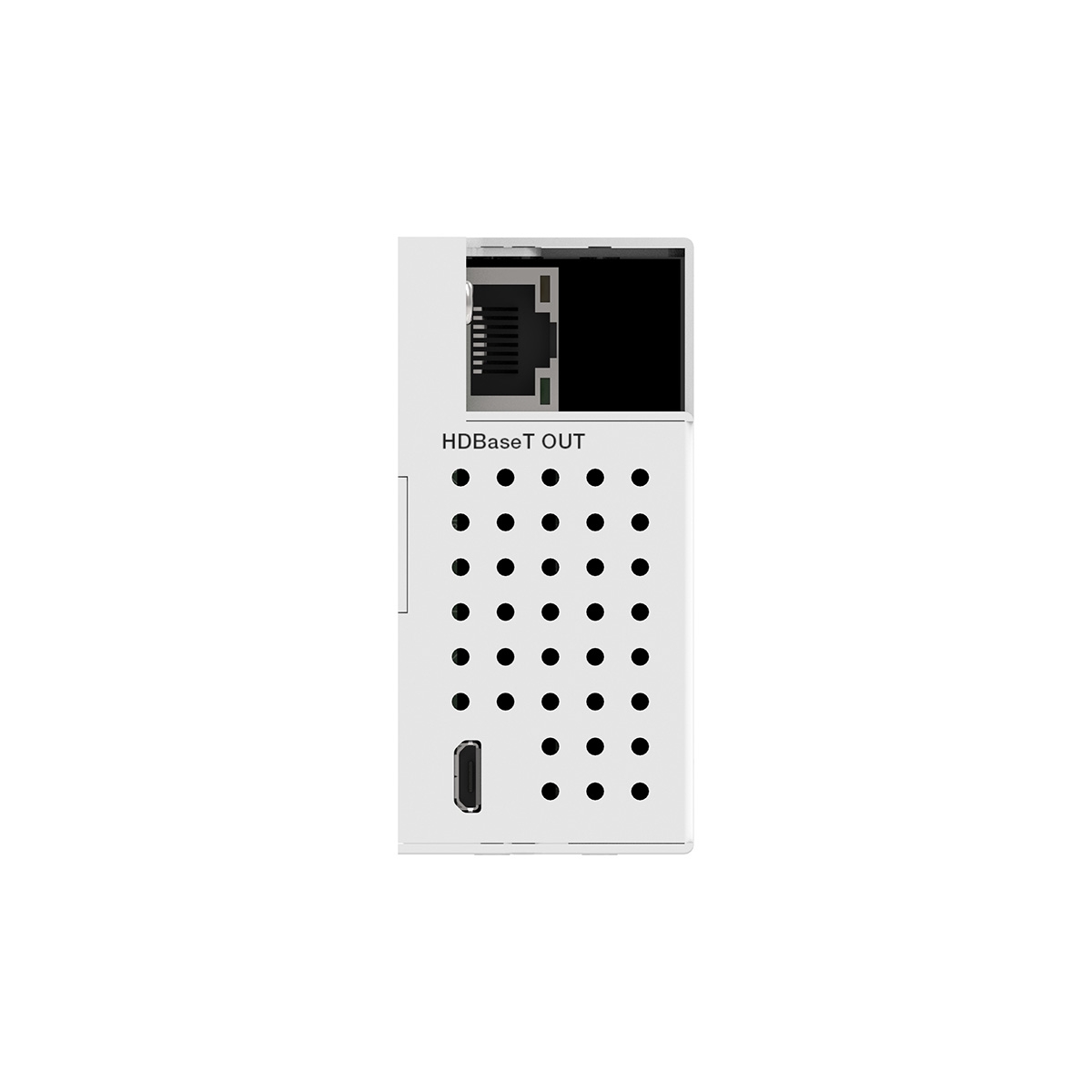

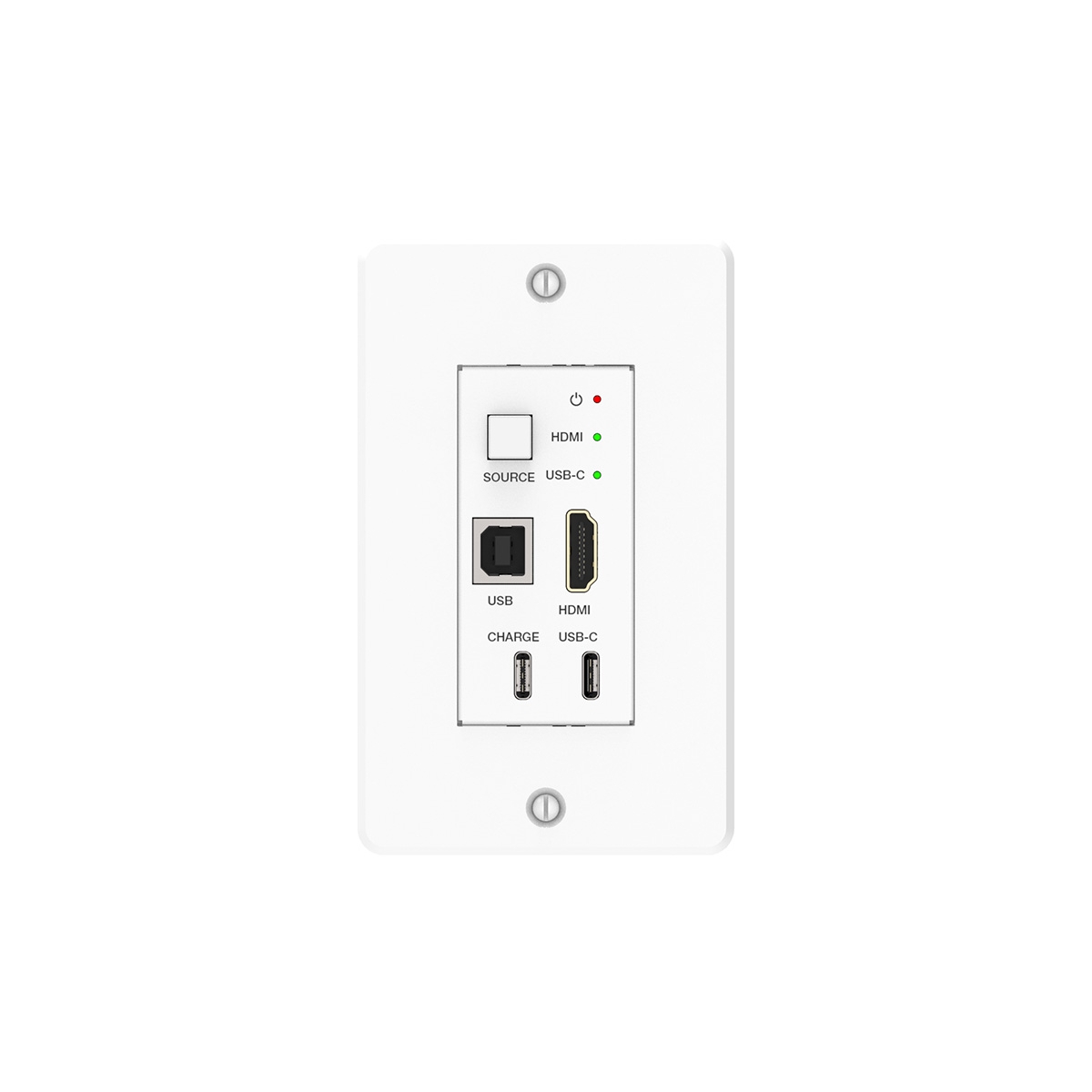

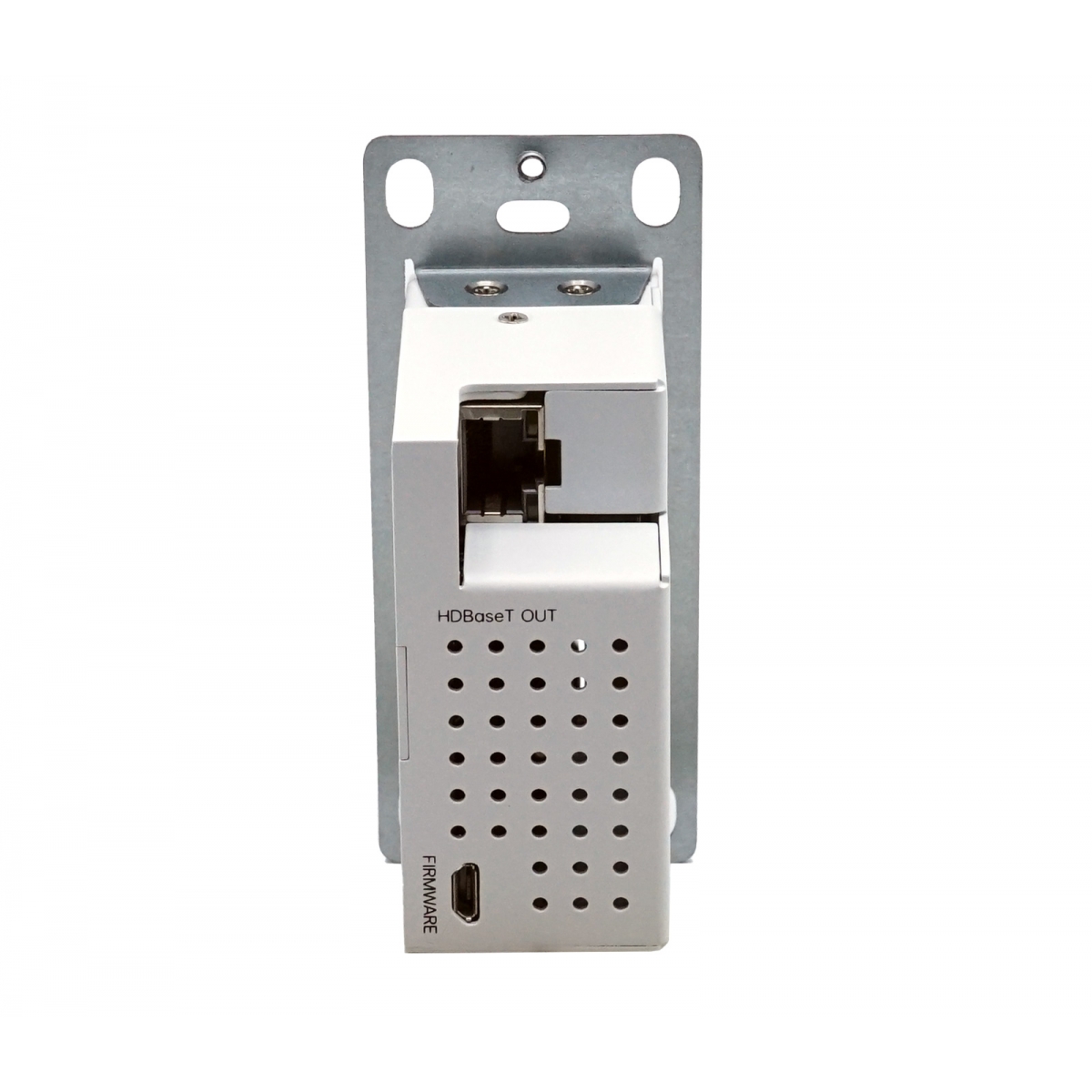

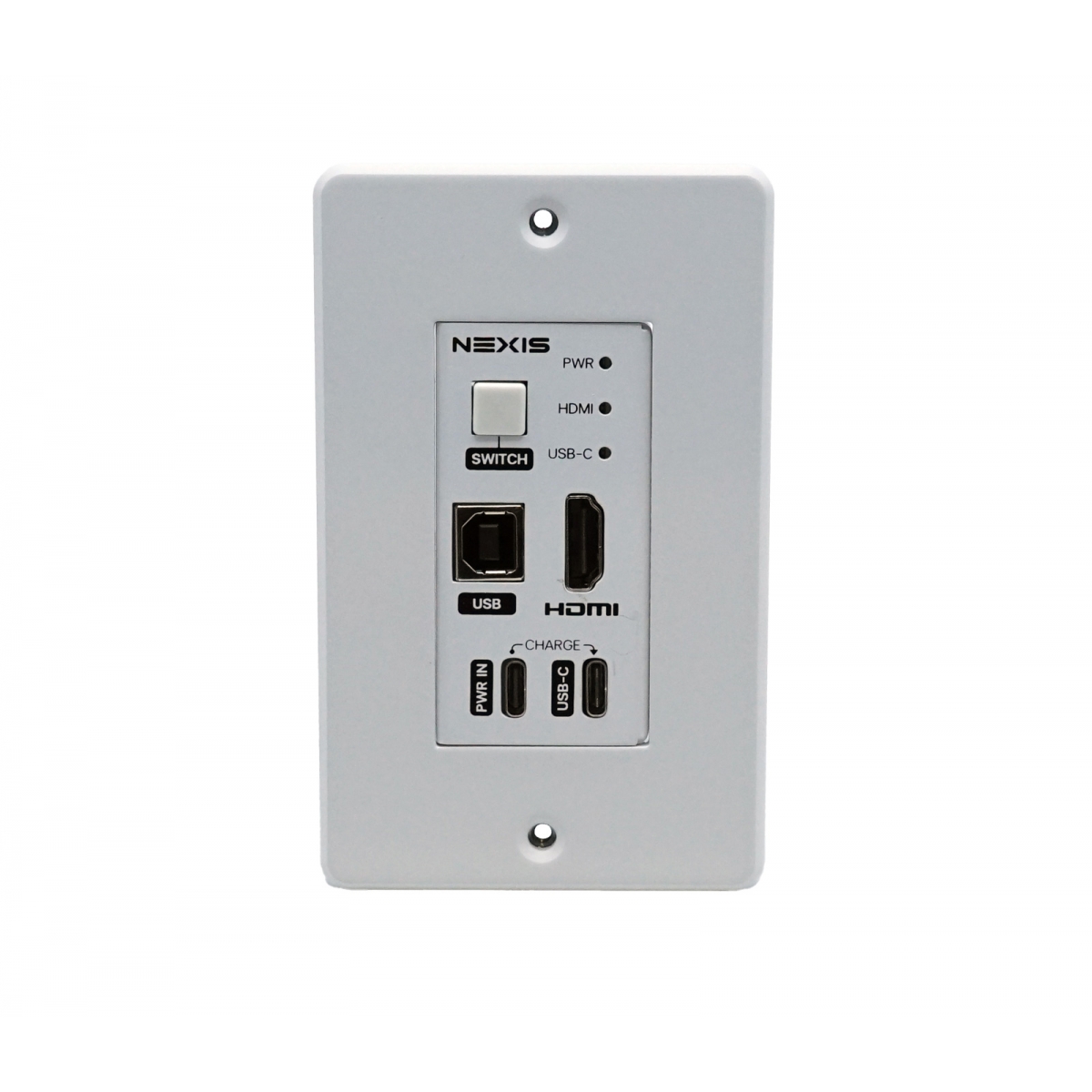

Transmitter | Inputs: 1x HDMI Type A [19-pin female] 1x USB-C Outputs: 1x HDBaseT Out [RJ45, 8-pin female] 1x USB-C (only for charging) Control: 1x USB-B [Micro USB, Update port] |

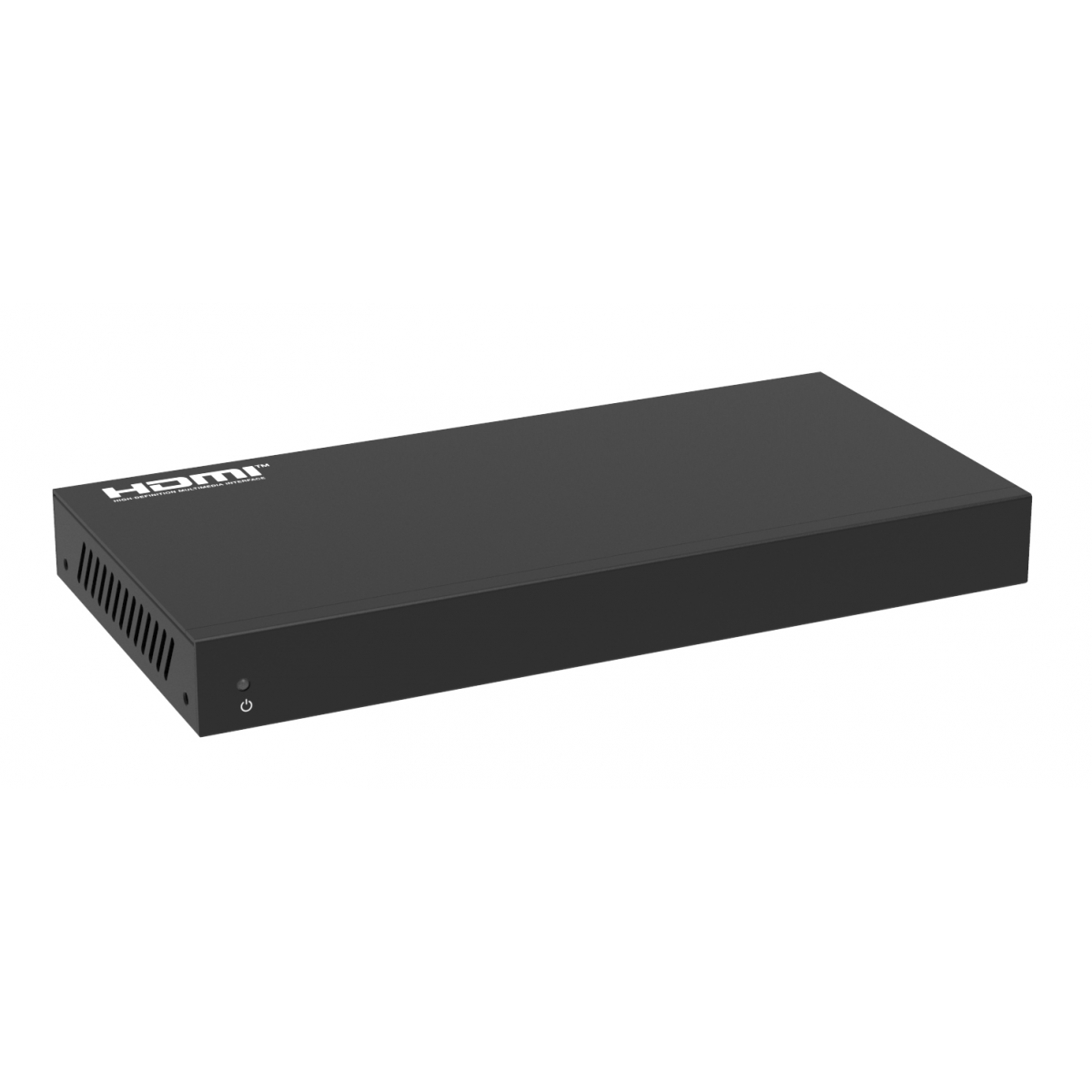

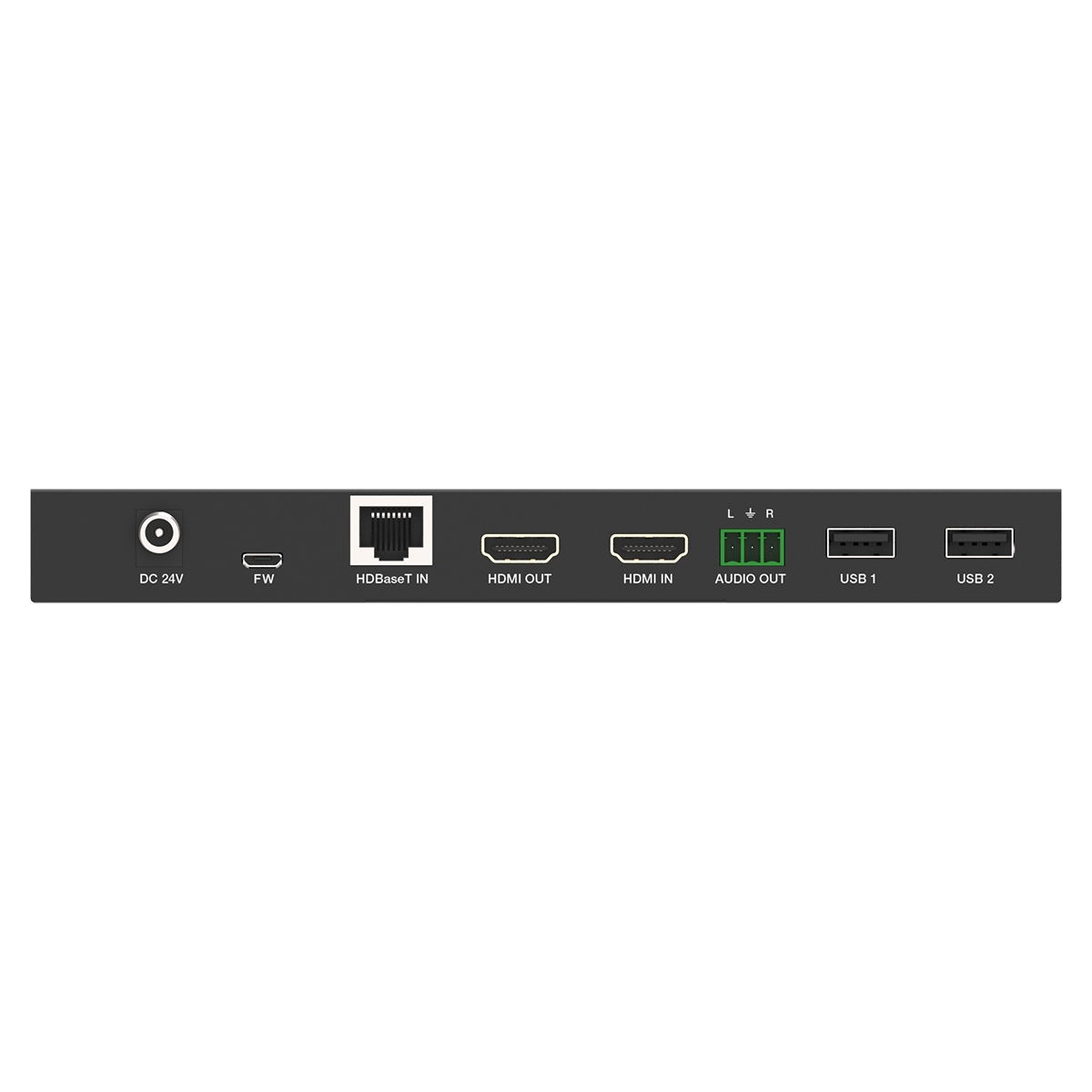

Receiver | Inputs: 1x HDMI IN [Type A, 19-pin female] 1x HDBaseT IN [RJ45, 8-pin female] Outputs: 1x HDMI OUT [Type A, 19-pin female] 1x AUDIO OUT [Phoenix jack] Control: 2x USB [USB A TYPE] 1x FW [Micro USB, Update port] |
Mechanical | |
Housing | Metal Enclosure |
Color | White / Black |
Dimensions | Wall plate: 33.3mm [W] x 65.7mm [D] x 68.7mm [H] Faceplate: 69.9mm [W] x 3mm [D] x 114.3mm [H] Receiver: 200mm [W] x 98mm [D] x 23mm [H] |
Weight | Wall plate: 196g, Receiver: 511g |
Power Supply | POE (only from Receiver to Transmitter) |
Power Consumption | Wall plate: 9W (Max), Receiver: 11W (Max) |
Operating Temperature | 32 - 104°F / 0 - 40°C |
Storage Temperature | -4 - 140°F / -20 - 60°C |
Relative Humidity | 20 - 90% RH (no condensation) |
