LE-U70E
ควรใช้สาย CAT6 600MHz ขึ้นไป ไม่รองรับการใช้ร่วมกับสาย CAT5/CAT5e
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:

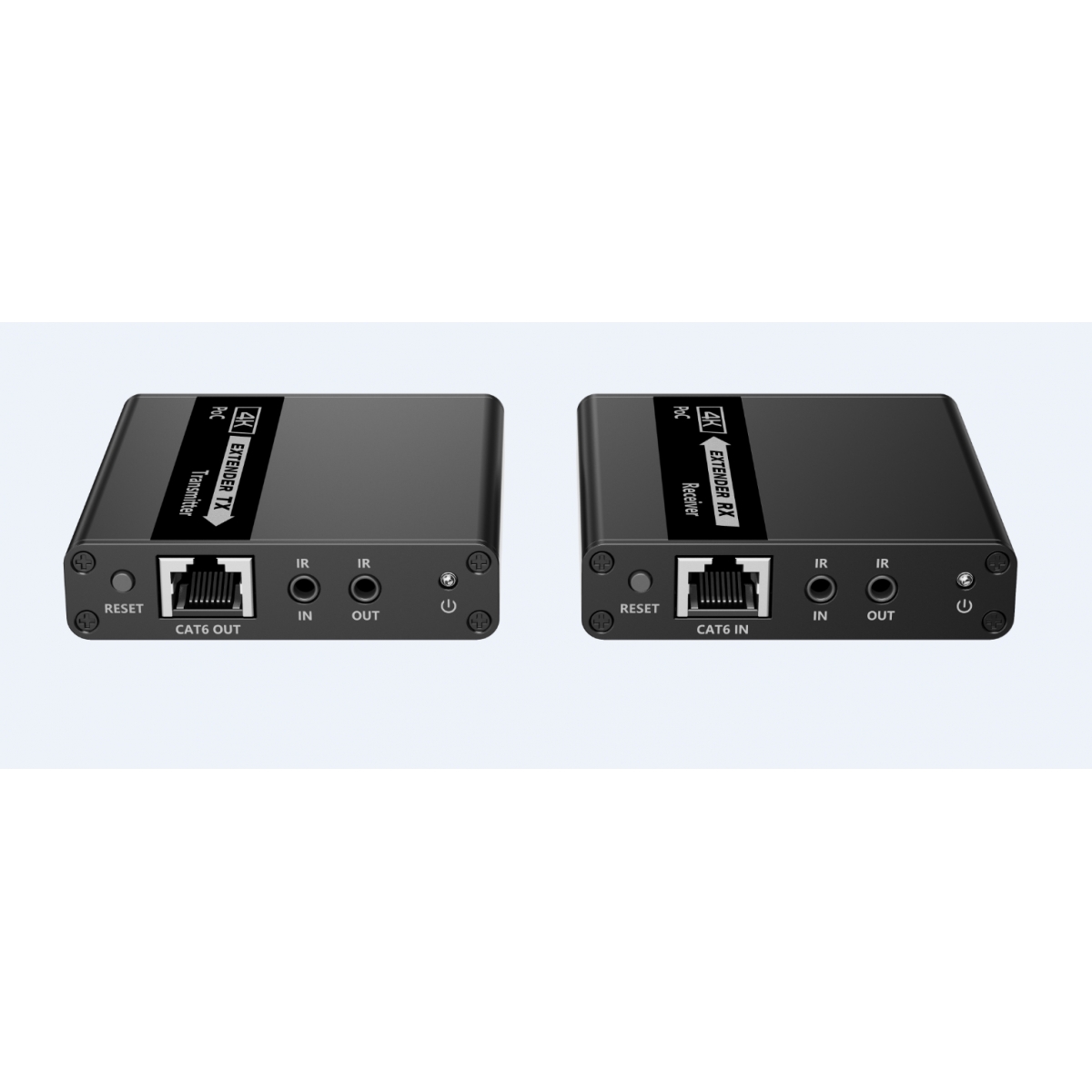

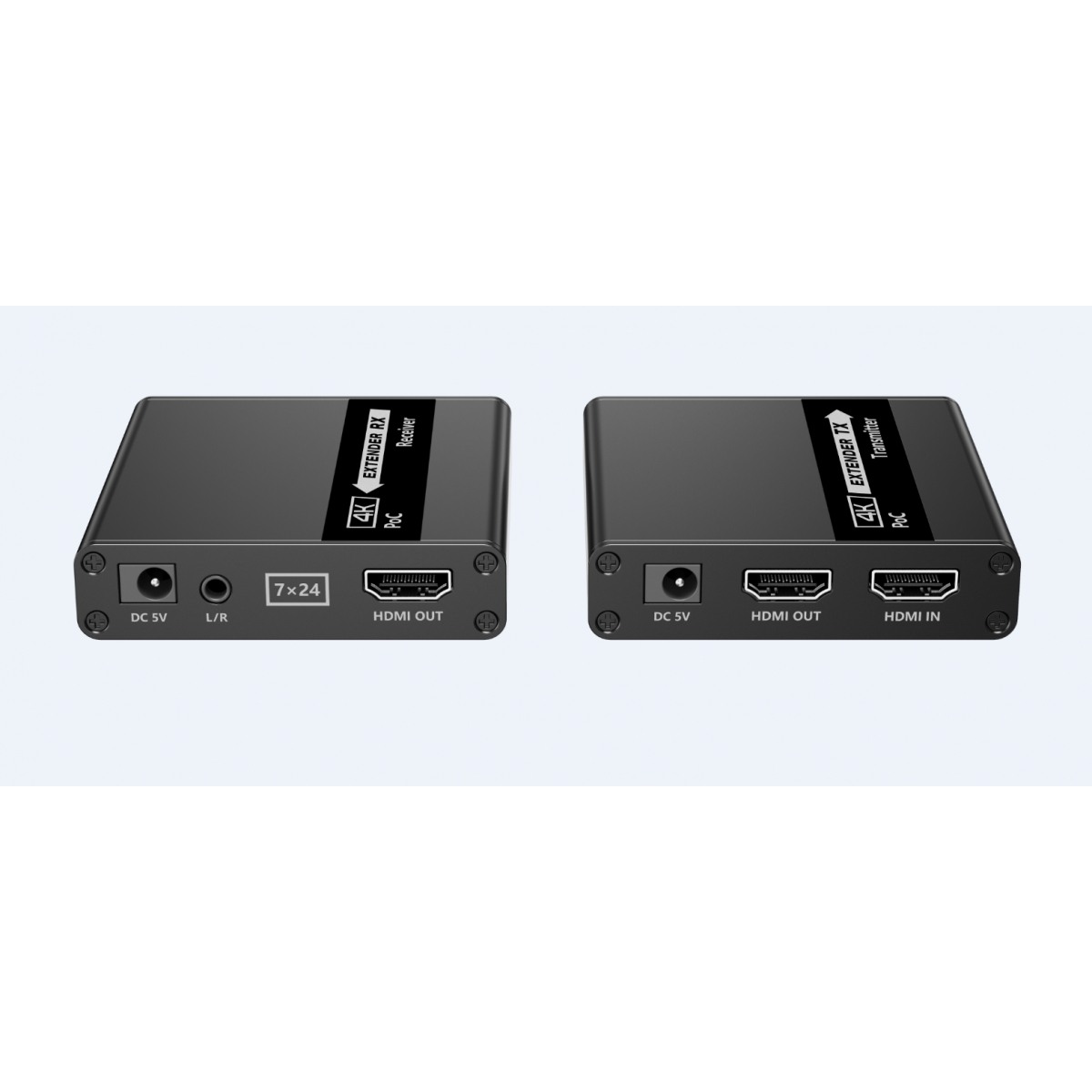

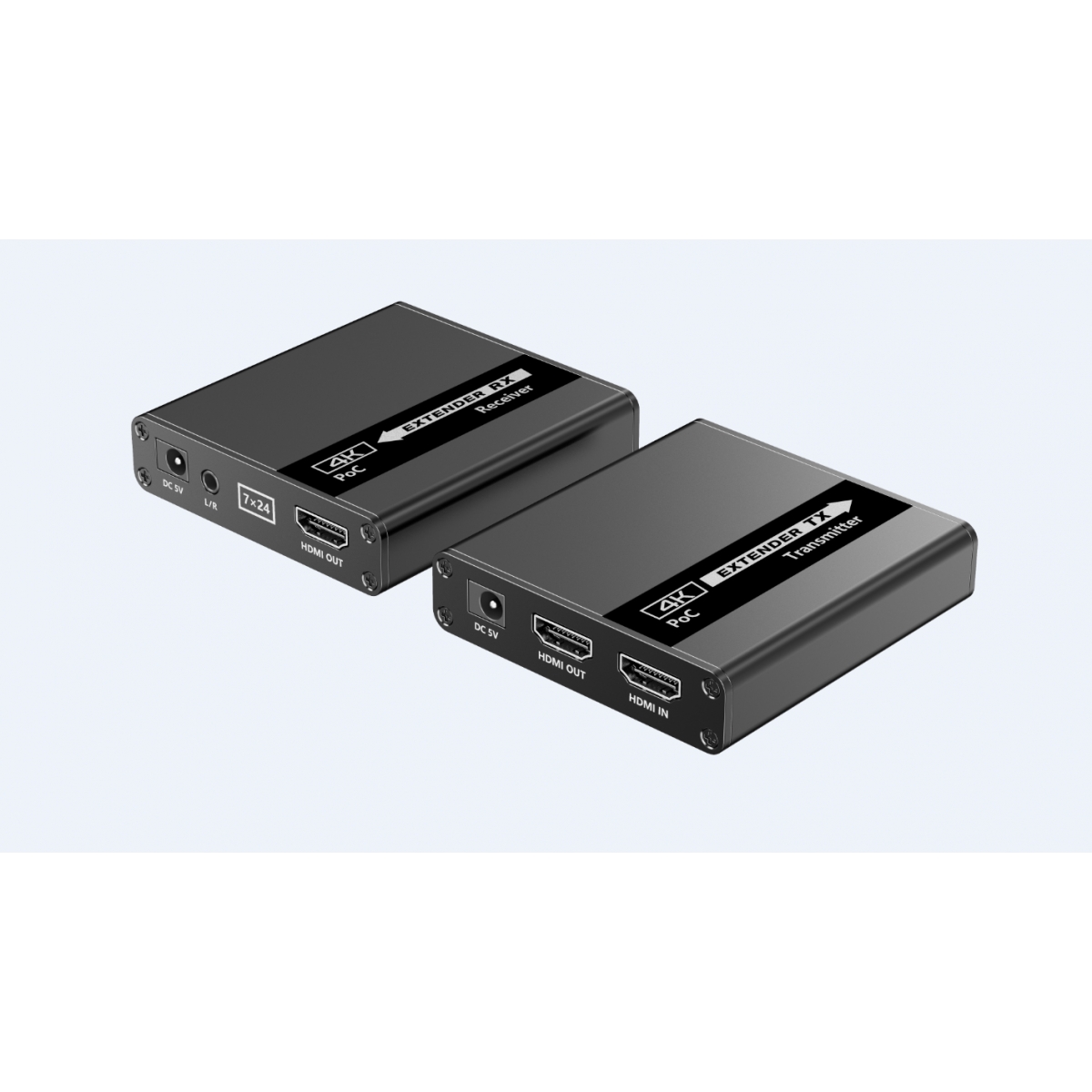

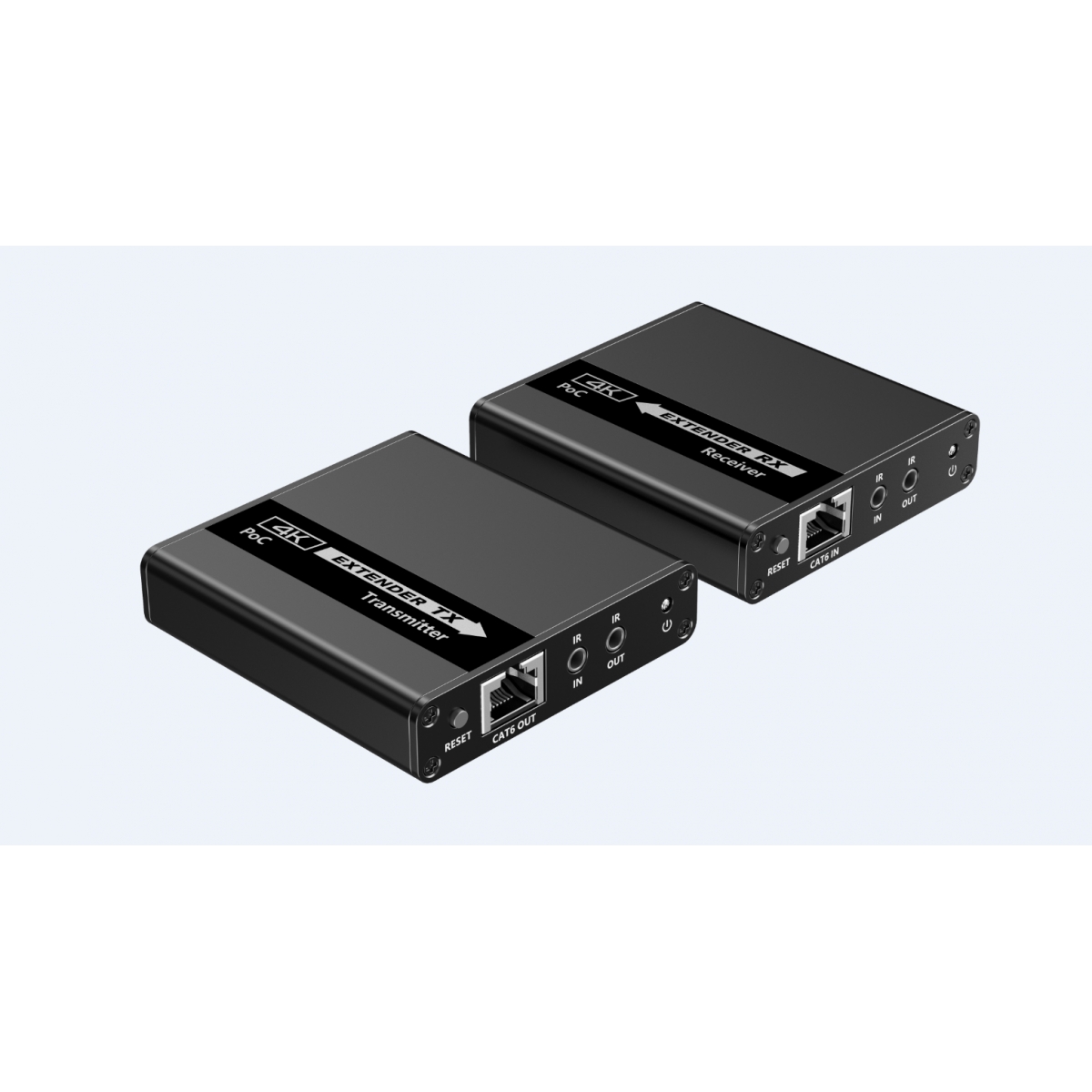

4K@40m/1080P@70m HDMI Extender Over CAT6 support HDR10 with POC
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก
Power Supply | Voltage/Current | DC5V/2A |
Power consumption | TX<4W RX<4W | |
HDMI Performance And Interface |
HDMI compliance | HDMI1.4 |
HDCP compliance | HDCP1.4 | |
HDMI resolution | 800x600, 1024x768, 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050,1920x1080,480i@60Hz, 480p@60Hz,576i@50Hz, 576p@50Hz,720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz, 3840x2160@24/25/30Hz |
|
Supports audio formats | PCM, LPCM, DTS HD, DTS Audio | |
Input and output TMDS signal | 0.7~1.2Vp-p(TMDS) | |
Input and output DDC signal | 5Vp-p(TTL) | |
Input cable length | <8m (AWG24) | |
Output cable length | <8m (AWG24) | |
Transmisson Distance | Cat6/6A/7 | 1080p@60Hz transmission distance is upto 70 meters, 4K30Hz transmission distance is up to 40 meters. |
Protection Level |
Electrostatic protection of the whole machine | Implementation of the standard:IEC61000-4-2 1aContact discharge Level2(±4KV)1bAir discharge Level3(±8KV) |
Operating Environment | Working temperature | -20~60°C |
Storage temperature | -30~70°C | |
Humidity (no condensation) | 0~90%RH | |
Body Properties | Dimension | 75.0(L) x 80.0(W) x 18.0(H)mm |
Material | Aluminum alloy material + crystal panel | |
Treatment Process | Grit blast | |
Color | Black | |
Weight | TX:160g RX:160g |
