CH-513TXL
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:

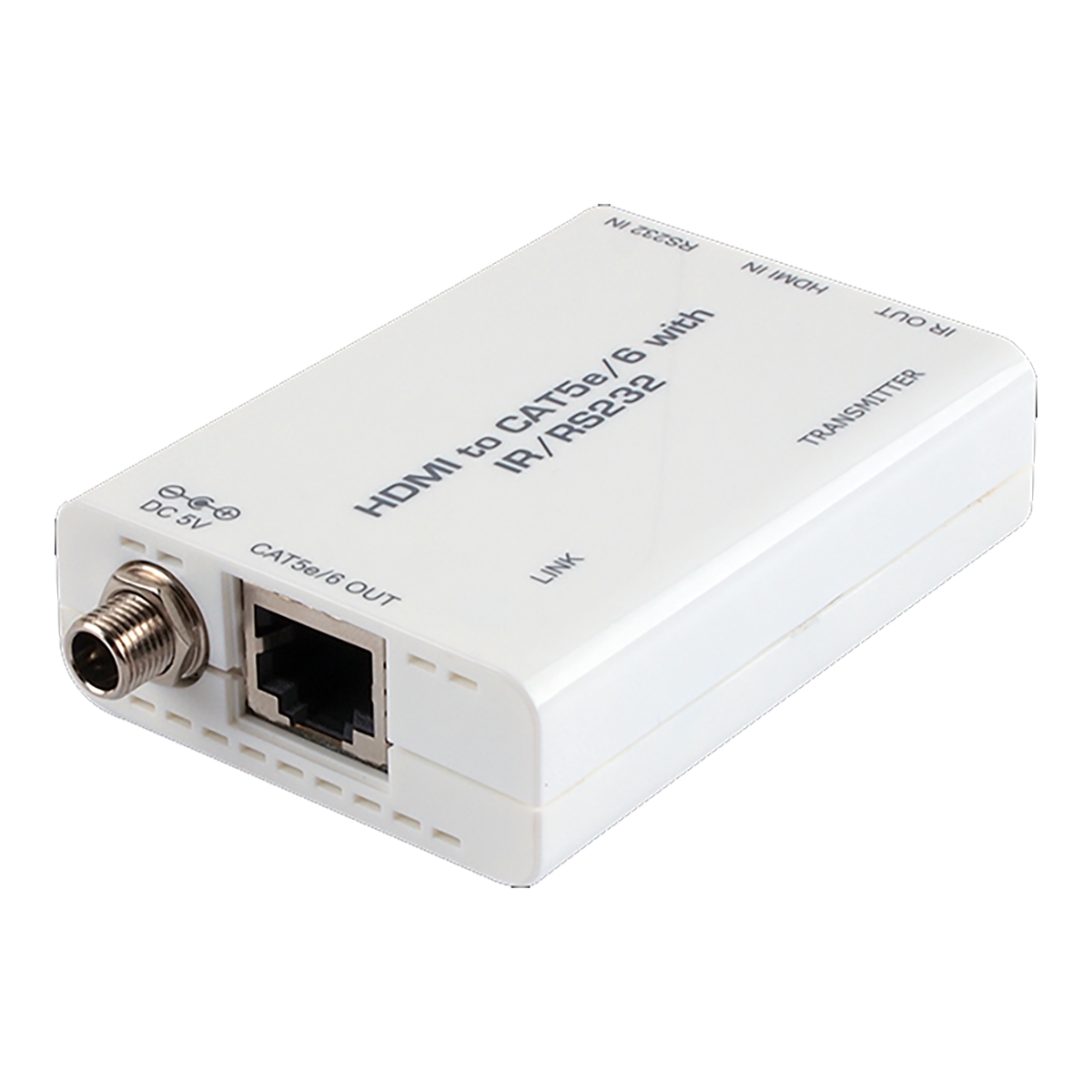

HDMI to CAT5e/6 with IR/RS232 (4K@60 4:2:0 up to 40M) Transmitter
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก
The HDMI Extender over single CAT5e/6/7 incorporating IR and RS-232 signal transfer allows for a more efficient system setup and is easy to install.
Uncompressed video and audio can be transmitted to distances of up to 70 meters (1080p) and supports High Definition Audio and 3D signals.

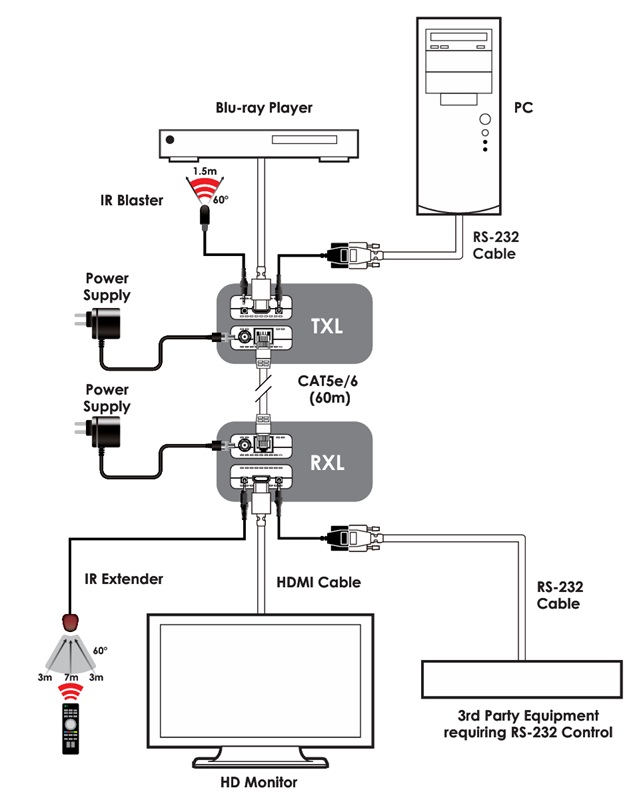

Designed with HDBaseT technology for greater flexibility in custom installations with full HDMI and control signal transfer over a single CAT5e/6/7 cable.
Interfaces |
|
Input Port |

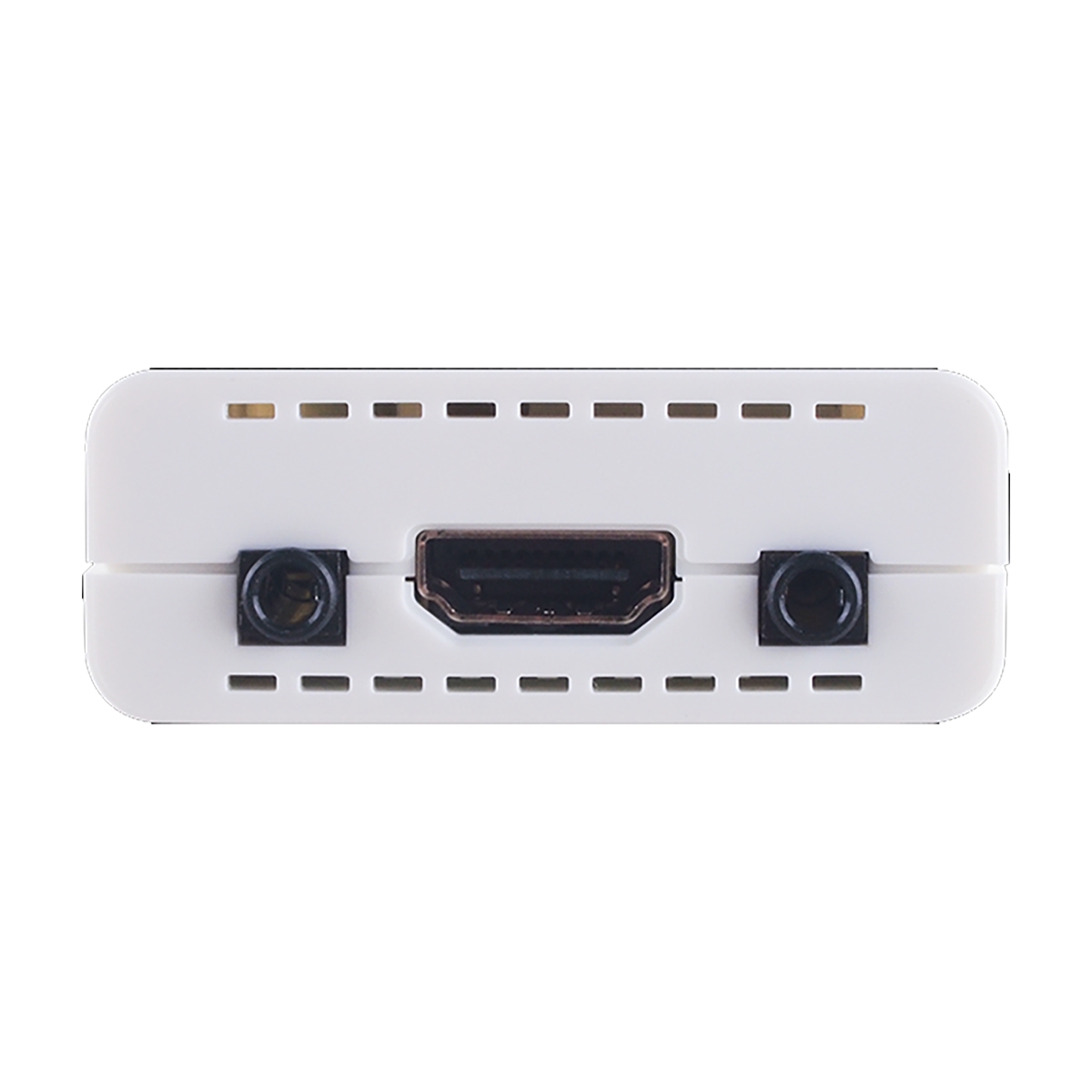

HDMI(Type-A) RS-232(3.5mm) |
Output Port |

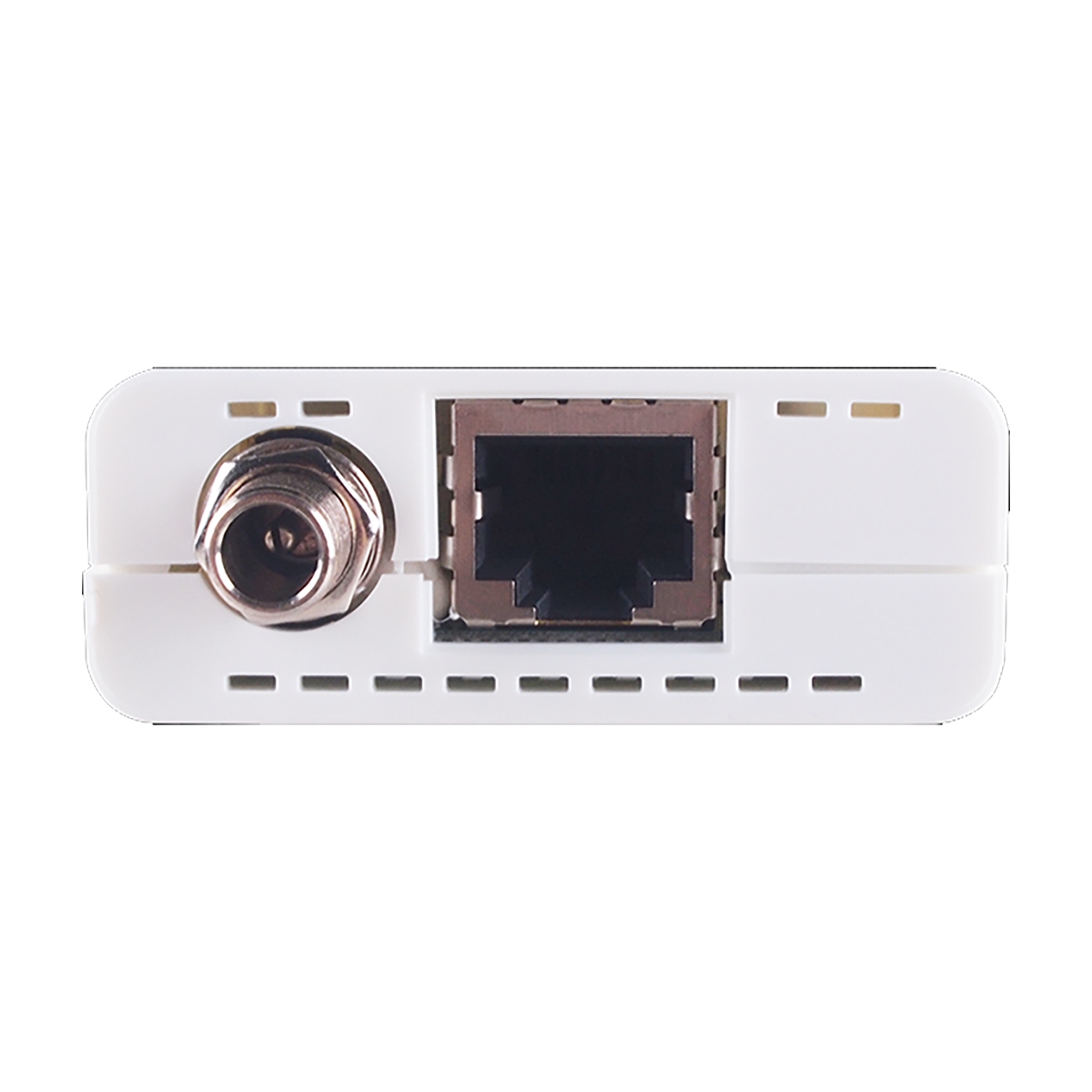

HDBaseT (RJ-45) IR Blaster(3.5mm) |
Video |
||
HDMI Compliance |
HDMI 2.0 (DVI 1.0) |
|
HDCP Compliance |
HDCP2.X |
|
Input Signal Type |
4K@60 YUV 4:2:0 |
|
Output Signal Type |
4K@60 YUV 4:2:0 |
|
Resolutions |
||
Maximum Input |
HDMI |
4096×2160p@60 YUV 4:2:0 |
Maximum Output |
HDBaseT |
4096×2160p@60 YUV 4:2:0 |
Power |
|
Power Supply |
5 V/2.6 A DC (US/EU standards, CE/ FCC/UL certified) |
Power Consumption |
3 W |
Enclosure |
|
Chassis Material |
Plastic |
Chassis Color |
White |
Dimensions (W×H×D) |
55 mm × 22.5 mm × 82 mm |
Weight |
56g |
Field Firmware Update |
PCB on board, uses RS232 |
ORDERING INFORMATION |
Model No. |
Product Description |
CH-513TXL |
HDMI to CAT5e/6/7 with IR/RS232 |
CH-513RXL |
CAT5e/6/7 to HDMI with IR/RS232 |
Supports distance up to 70m/229ft at 1080p and 40m/131ft at 4K HDBaseT feature support: HD Video, Audio, and IR/RS-232 Control pass-through Supports HDCP repeater and CEC bypass Input/output resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) or 4K@30Hz(YUV 4:4:4, 8-bit)
