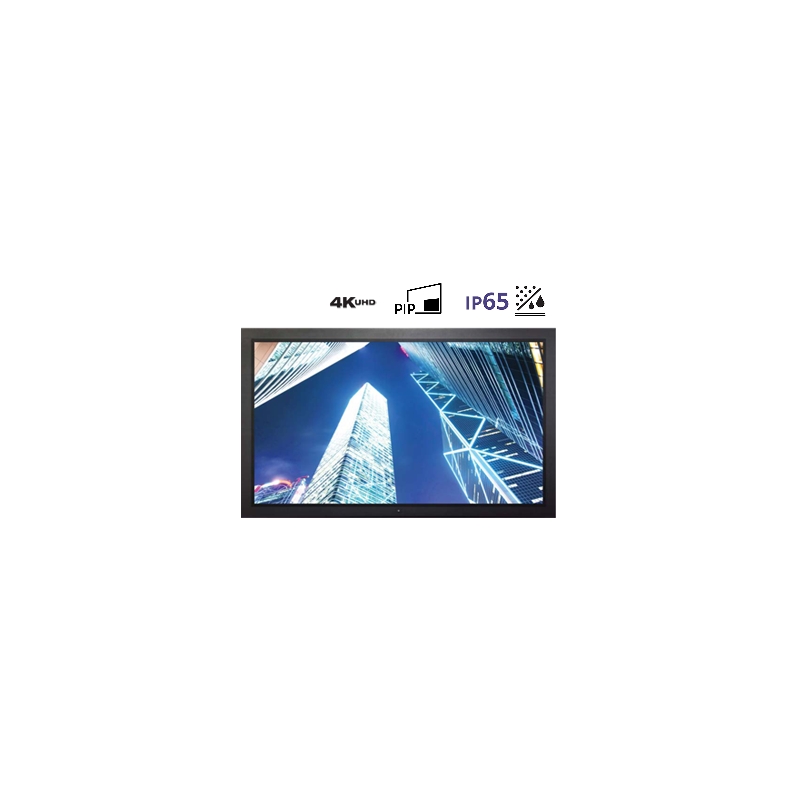

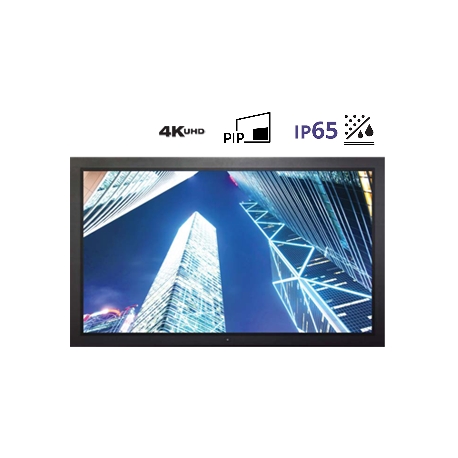

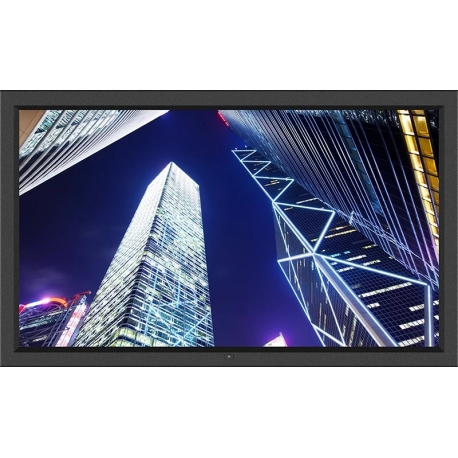

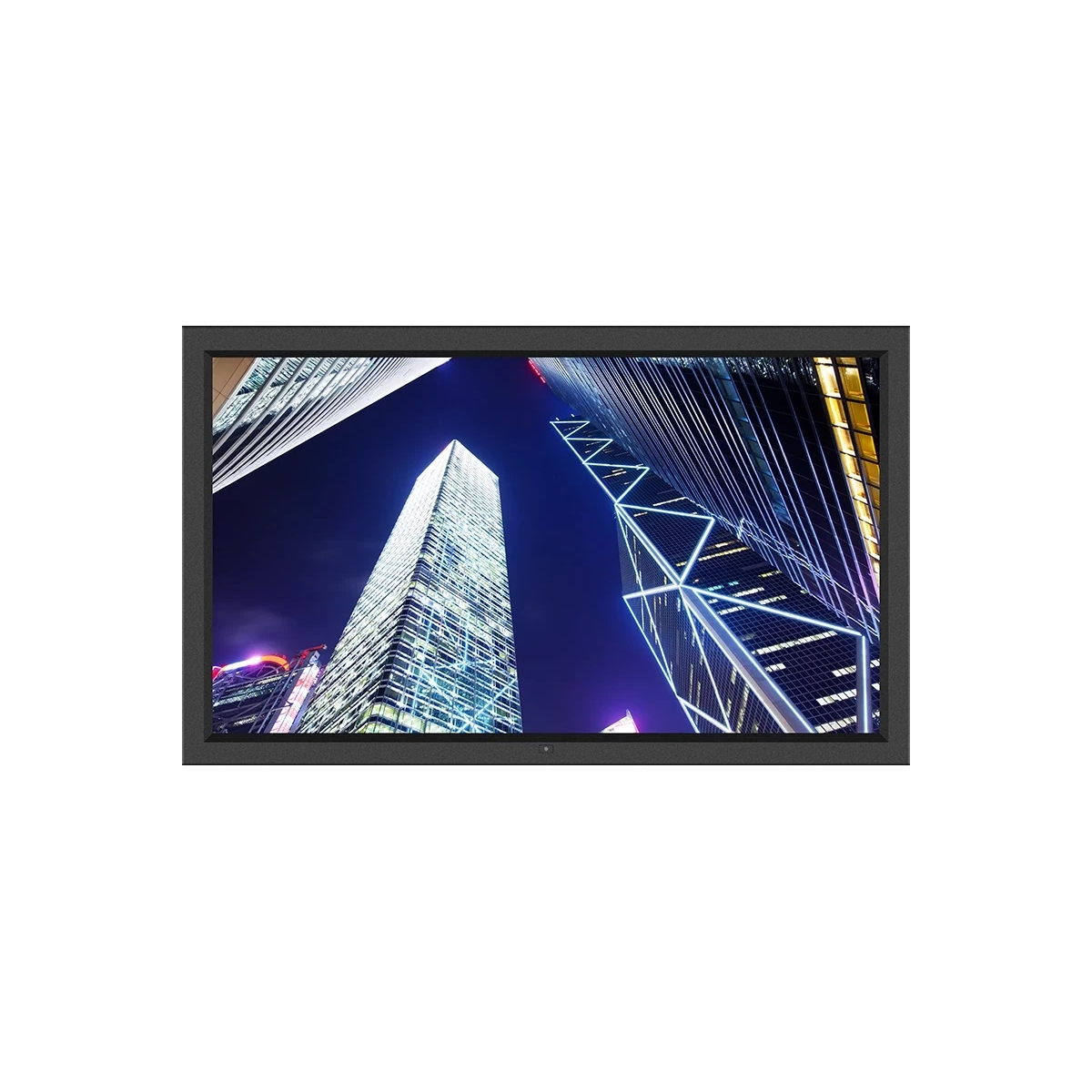

Professional and Versatile 16:9 (4K / FHD) 43" LED Monitor
K43
UltraView K43 series 43" 4K UHD LED monitor supports 3840 x 2160 resolution, 4 times the resolution of FHD. True 10-bit input enables 1.07 billion colors to be presented, achieving ultimate picture quality.
Key Benefits
- 43" LED, 3840 x 2160 native UHD resolution
- 1920 x 1080 & 1920 x 1200 resolution support
- 1.07 billion colors ( 10-bit ) / 350 cd/m² brightness
- PIP Sub-screen & PBP Dual-screen viewing efficiency
- Display port 1.2 + HDMI 1.4 + HDMI 2.0 video input
- Video decoding capability up to 1080p ( option )
- Rugged structure ensures high mobility
- IP65 front protection ( NAP series )
- 1,500 cd/m² sunlight readable panel available
- Professional-use durability & around-the-clock operation
- 2-year standard warranty ( upgradable up to 5 years )
UltraView K43 series 43" 4K UHD LED monitor supports 3840 x 2160 resolution, 4 times the resolution of FHD. True 10-bit input enables 1.07 billion colors to be presented, achieving ultimate picture quality. Improved energy efficiency and fan-less architecture provides professional-use durability and around-the-clock operation.
K43 is more than just a standalone monitor. UltraView has a variety of embedded modules including HDMI Decoder, HDMI Extender, HDMI Quad display Extender, Multi-Monitor OSD Controller, SDI Input and Portrait Mode Kit. The embedded modules give you the ability of video remote management and transmission for multiple monitors over network.
As a versatile 4K monitor, K43 is meticulously designed to meet professional and environmental demands including Sunlight readable brightness, IP54 Front protection, Multi-touch, Anti-reflective/Vandal proof glass, DC power input, Brightness dimming and Mounting kit for Overhead tilted wall-mount, Panel-mount, VESA-mount, Universal-mount and Desktop stand.
With over 22 years' production experience, the K43 structure is well-engineered and manufactured by our own CNC facilities and team of experts to ensure its ruggedness, mobility and quality, as well as being suitable for harsh environment applications. The structure can be customized if required to facilitate monitor installation. Our knowledgeable engineers are able to provide frame customization for specific dimensions, color, metal treatment, screen printing, bezel and mounting.

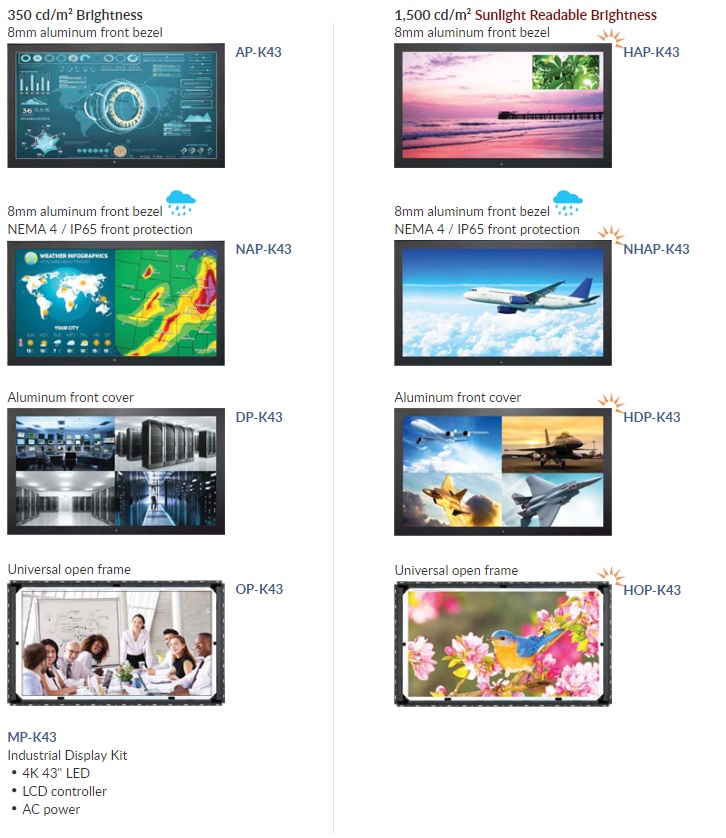

Model
Options
Video Management & Transmission over Network
- Embedded HDMI Decoder Module 1080p over IP
- Embedded HDMI Extender Module 1080p over network
- Embedded HDMI Quad Display Module 1080p over network
- Embedded HDMI Quad Display Extension Module
- Embedded Multi Monitor OSD Control Module over serial
- Embedded 3G / HD / SD-SDI Input Module
- Embedded Portrait Mode Module
- Embedded Brightness Dimming Module
Bezel & Frame Customization
- Dimension
- Color & Treatment
- Screen Printing
- Stainless Steel Bezel
Touchscreen & Glass Protection
- Infrared 10-point Touch
- Anti-reflective Glass
- Vandal Proof Glass
DC Power
- 24V / 48V / 125V DC ( 150 Watt )
Mounting
- VESA mount, 600 x 400mm ( bundled )
- Universal mount ( bundled )
- Overhead tilted wall-mount ( option )
- Desktop stand ( option )
- Wall mount ( bundled )
Specification
| LCD Panel | Standard | Sunlight Readable | ||
| Brightness (cd/m²) | 350 | 1,500 | ||
| Contrast ratio (typ.) | 1000 : 1 | 1100 : 1 | ||
| MTBF (hrs) | 30,000 | 50,000 | ||
| Panel size (diagonal) | 43-inch widescreen TFT color LCD | |||
| Native resolution | 3840 x 2160 | |||
| Colors | 1.07 Billion, 10-bit | |||
| Viewing angle (L/R/U/D) | 89/89/89/89 | |||
| Response time (ms) | 12 | |||
| Dot pitch (mm) | 0.2451 | |||
| Display area (mm) | 941.184H x 529.416V | |||
| Surface treatment | Anti-glare | |||
| Surface hardness | 2H | |||
| Backlight type | LED | |||
| Video | ||||
| Digital: Display port HDMI |
DP 1.2 / HDCP 1.3 HDMI 2.0 / HDCP 2.2 HDMI 1.4 / HDCP 1.4 |
|||
| Audio | ||||
| Audio input: | ||||
| Connector Impedance / Power level |
3.5mm stereo jack 30kΩ / 750mV |
|||
| Audio output : | ||||
| Connector Resistance / Power level |
3.5mm stereo jack 30kΩ / 2.8V |
|||
| SpeakerDual stereo speaker | 10W x 2 | |||
| *When the audio output is connected, speaker output is OFF | ||||
| Power | ||||
| Input | Auto-sensing 100 to 240VAC, 50 / 60Hz | |||
| Consumption | ||||
| Screen on Power saving mode Power button on |
Max. 68W Max. 9W Max. 2W |
Max. 220W Max. 9W Max. 2W |
||
| Environment | ||||
| Operating temp. | 0 to 55°C | |||
| Storage temp. | -20 to 60°C | |||
| Operating humidity | 20~90%, non-condensing | |||
| Storage humidity | 5 ~90%, non-condensing | |||
| Operating altitude | 16,000 ft | |||
| Non-operating altitude | 40,000 ft | |||
| Shock | 10G acceleration ( 11ms duration ) | |||
| Vibration | 10~300Hz 0.5G RMS random vibration | |||
| Design | AP-K43 | NAP-K43 | DP-K43 | OP-K43 |
| Protection | 8mm front bezel | NEMA 4 / IP65 | front cover | open frame |
| Front panel | Black, RAL 9005 | - | ||
| Rear casing | Black, RAL 9005 | |||
| Mounting | AP-K43 / NAP-K43 | DP-K43 | OP-K43 | |
| VESA mount | 600 x 400 mm | 600 x 400 mm | 600 x 400 mm | |
| Universal mount | - | - | bundled | |
| Overhead tilted | option | option | - | |
| wall mount | ||||
| Desktop stand | option | option | - | |
| Wall mount | bundled | bundled | - | |
| Physical | AP-K43 / NAP-K43 | DP-K43 | OP-K43 | |
| Product (W x D x H) : | 1025 x 82.8 x 619 | 999 x 76.8 x 593 | 1322 x 74.8 x 616 | |
| mm | ||||
| inch | 40.4 x 3.1 x 24.4 | 39.3 x 3 x 23.3 | 40.2 x 2.9 x 24.3 | |
| Packing (W x D x H) : | 1122 x 199 x 712 | 1122 x 199 x 712 | 1122 x 199 x 712 | |
| mm | ||||
| inch | 44.2 x 7.8 x 28 | 44.2 x 7.8 x 28 | 44.2 x 7.8 x 28 | |
| Net weight | 31.7 kg / 69.7 lb | 35.7 kg / 78.5 lb | 29.0 kg / 63.8 lb | 26.2 kg / 57.6 lb |
| Gross weight | 37.5 kg / 82.5 lb | 41.5 kg / 91.3 lb | 34.8 kg / 76.6 lb | 32.0 kg / 70.4 lb |
| Chassis color | dark | |||
| Chassis materials | Aluminum | |||
| Compliance | ||||
| EMC | FCC & CE certified | |||
| Safety | CE / LVD certified | |||
| Environment | RoHS2 & REACH compliant | |||
| Applicable Format | ||||
| Display port input | PC signal | 3840 x 2160 x 60Hz | ||
| 1920 x 1080 x 60Hz | ||||
| 1600 x 1200 x 60Hz | ||||
| 1360 x 768 x 60Hz | ||||
| 1280 x 1024 x 60 / 75Hz | ||||
| 1280 x 768 x 60Hz | ||||
| 1024 x 768 x 60 / 70 / 75Hz | ||||
| 800 x 600 x 60 / 72 / 75Hz | ||||
| 720 x 400 x 70Hz | ||||
| 640 x 480 x 60 / 72 / 75Hz | ||||
| Audio signal | 2ch Linear PCM | |||
| HDMI input | HDMI 2.0 | 3840 x 2160 x 60Hz | ||
| HDMI 2.0 / 1.4 | 3840 x 2160 x 30Hz | |||
| 1920 x 1080 x 50 / 60Hz ( 1080p ) | ||||
| 1920 x 1080 x 25 / 30Hz ( 1080i ) | ||||
| 1280 x 720 x 50 / 60Hz ( 720p ) | ||||
| 720 x 480 x 50 / 60Hz ( 576p / 480p ) | ||||
| Audio signal | 2ch Linear PCM | |||
