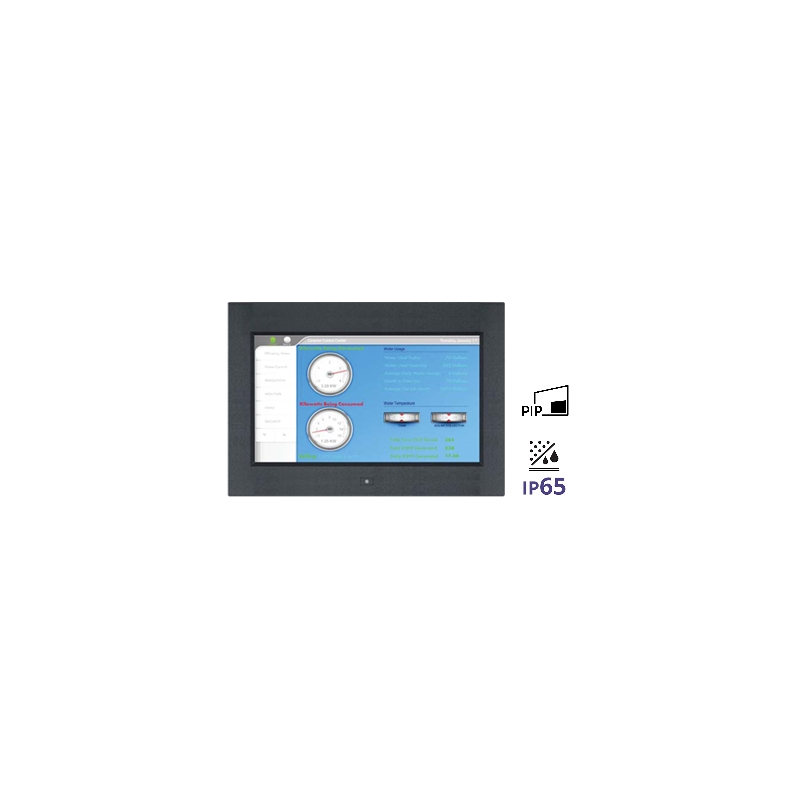

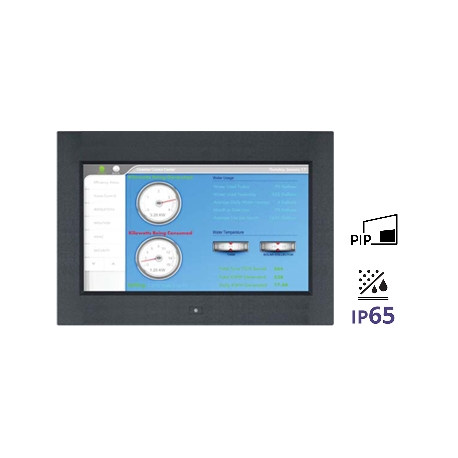

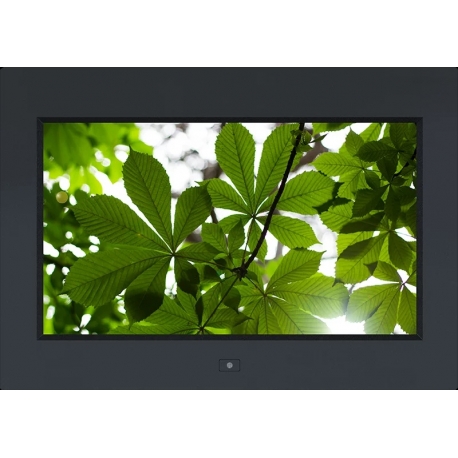

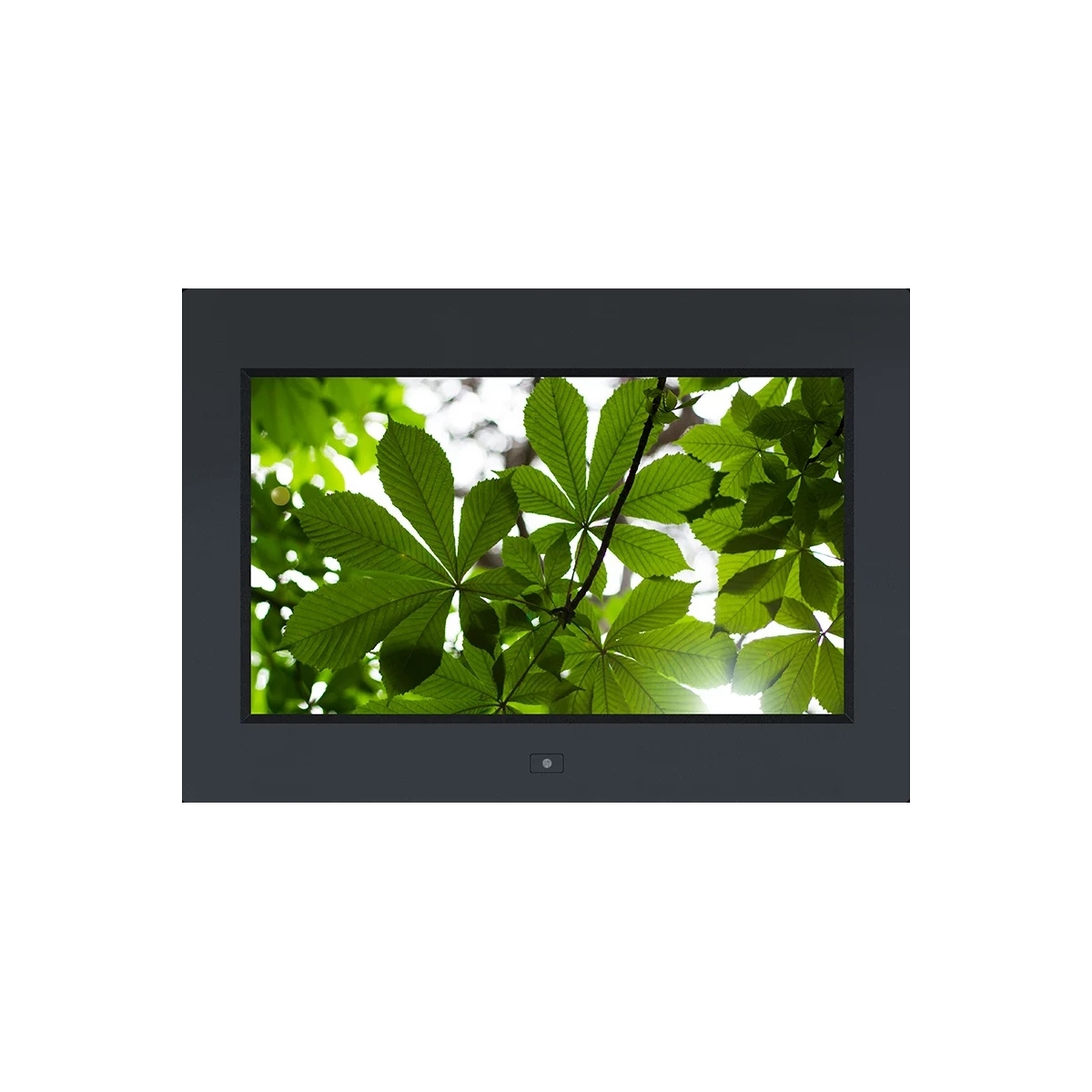

16:9 (FHD) Professional and Versatile 17" LED Monitor
F17
UltraView F17 series 17″ FHD LED monitor supports 1920 x 1080 resolution. 16.7 million colors achieve optimal picture quality. Improved energy efficiency and fan-less architecture provides professional-use durability and around-the-clock operation.
Manual
Key Benefits
- 17″ LED, 1920 x 1080 native FHD resolution
- 16.7 M colors / 400 cd/m² brightness
- PIP Sub-screen & PBP Dual-screen viewing efficiency
- DVI-D + VGA video input
- Video decoding capability up to 1080p ( option )
- Rugged structure ensures high mobility
- IP65 front protection ( NAP series )
- 1,000 cd/m² sunlight readable panel available
- Professional-use durability & around-the-clock operation
- 2-year standard warranty ( upgradable up to 5 years )
UltraView F17 series 17″ FHD LED monitor supports 1920 x 1080 resolution. 16.7 million colors achieve optimal picture quality. Improved energy efficiency and fan-less architecture provides professional-use durability and around-the-clock operation.
F17 is more than just a standalone monitor. UltraView has a variety of embedded modules including HDMI Decoder, HDMI Extender, HDMI Quad display Extender, Multi-Monitor OSD Controller and SDI Input. The embedded modules give you the ability of video remote management and transmission for multiple monitors over network.
As a versatile 1080p monitor, F17 is meticulously designed to meet professional and environmental demands including Sunlight readable brightness, IP54 Front protection, Multi-touch, Anti-reflective/Vandal proof glass, DC power input, Brightness dimming and Mounting kit for Panel-mount, VESA-mount, Universal-mount and Desktop stand.
With over 22 years' production experience, the F17 structure is well-engineered and manufactured by our own CNC facilities and team of experts to ensure its ruggedness, mobility and quality, as well as being suitable for harsh environment applications. The structure can be customized if required to facilitate monitor installation. Our knowledgeable engineers are able to provide frame customization for specific dimensions, color, metal treatment, screen printing, bezel and mounting.

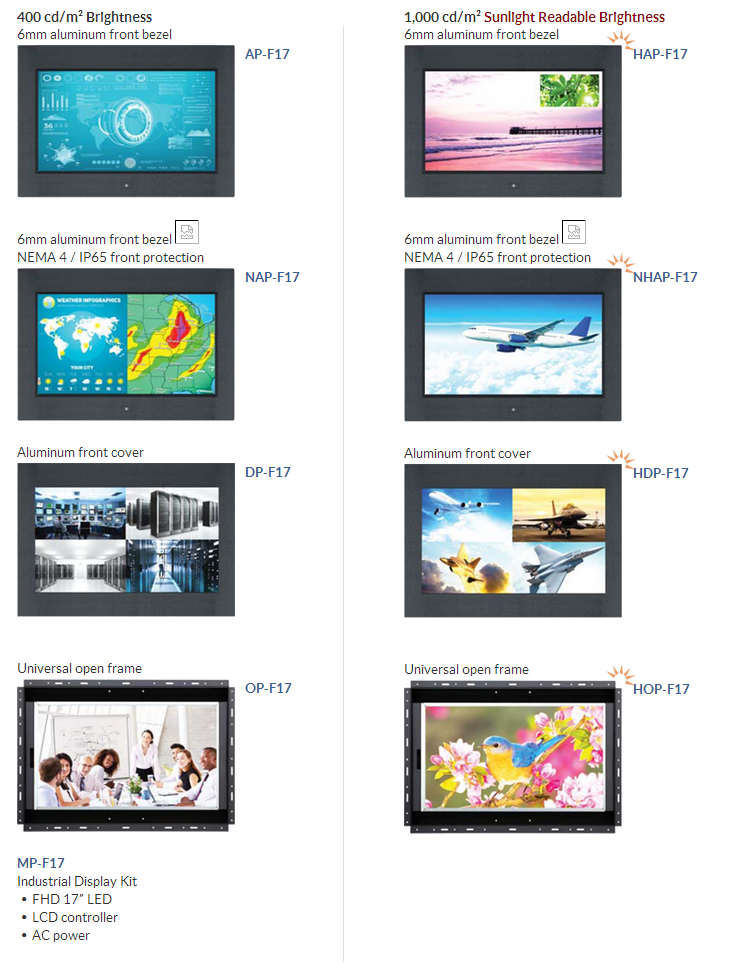

Model
Options
Video Management & Transmission over Network
- Embedded HDMI Decoder Module 1080p over IP
- Embedded HDMI Extender Module 1080p over network
- Embedded Multi Monitor OSD Control Module over serial
- Embedded 3G / HD / SD-SDI Input Module
- Embedded Brightness Dimming Module
- HDMI 1.3 / S-Video + BNC
Bezel & Frame Customization
- Dimension
- Color & Treatment
- Screen Printing
- Stainless Steel Bezel
Touchscreen & Glass Protection
- Projected Capacitive 10-point Touch
- 5-Wire Resistive 1-point Touch
- Anti-reflective Glass
- Vandal Proof Glass
DC Power
- 12V / 24V / 48V / 125V DC ( 50 Watt )
Mounting
- VESA mount, 100 x 100mm ( bundled )
- Universal mount ( bundled )
- Desktop stand ( option )
- Panel mount ( bundled )
Specification
| LCD Panel | Standard | Sunlight Readable | ||
| Brightness (cd/m²) | 400 | 1000 | ||
| Colors | 16.7 M, 8-bit | 16.7 M | ||
| Panel size (diagonal) | 17.3-inch widescreen TFT color LCD | |||
| Native resolution | 1920 x 1080 | |||
| Contrast ratio (typ.) | 600:1 | |||
| Response time (ms) | 40 | |||
| Viewing angle (L/R/U/D) | 89/89/89/89 | |||
| Dot pitch (mm) | 0.1989 | |||
| Display area (mm) | 381.888H x 214.812V | |||
| Surface treatment | Anti-glare, Hard-coating | |||
| Surface hardness | 3H | |||
| Backlight type | LED | |||
| MTBF (hrs) | 50,000 | |||
| Video | ||||
| VGA | Analog 0.7Vp-p | |||
| DVI | DVI-D single link | |||
| Video Option | ||||
| HDMI | HDMI 1.3 / HDCP 1.3 | |||
| Composite ( BNC ) | NTSC & PAL | |||
| S-Video ( 4-pin ) | NTSC & PAL | |||
| Audio | ||||
| Audio input: Connector Impedance / Power level |
3.5mm stereo jack 30kΩ / 750mV |
|||
| Audio output : Connector Resistance / Power level |
3.5mm stereo jack 30kΩ / 2.8V |
|||
| SpeakerDual stereo speaker | 2W x 2 | |||
| *When the audio output is connected, speaker output is OFF | ||||
| Power | ||||
| Input | Auto-sensing 100 to 240VAC, 50 / 60Hz | |||
| Consumption Screen on Power saving mode Power button on |
Max. 25W Max. 4W Max. 1W |
Max. 65W Max.6W Max. 2W |
||
| Environment | ||||
| Operating temp. | 0 to 55°C | |||
| Storage temp. | -20 to 60°C | |||
| Operating humidity | 20~90%, non-condensing | |||
| Storage humidity | 5 ~90%, non-condensing | |||
| Operating altitude | 16,000 ft | |||
| Non-operating altitude | 40,000 ft | |||
| Shock | 10G acceleration ( 11ms duration ) | |||
| Vibration | 10~300Hz 0.5G RMS random vibration | |||
| Design | AP-F17 | NAP-F17 | DP-F17 | OP-F17 |
| Protection | 6mm front bezel | NEMA 4 / IP65 | front cover | open frame |
| Front panel | Black, RAL 9005 | - | ||
| Rear casing | Black, RAL 9005 | |||
| Mounting | AP-F17 / NAP-F17 | DP-F17 | OP-F17 | |
| VESA mount | 100 x 100 mm | 100 x 100 mm | 100 x 100 mm | |
| Universal mount | - | - | bundled | |
| Desktop stand | option | option | - | |
| Panel mount | bundled | bundled | - | |
| Physical | AP-F17 / NAP-F17 | DP-F17 | OP-F17 | |
| Product (W x D x H) : | 468.5 x 57.1 x 331 | 437.5 x 51.9 x 300 | 465.5 x 50.6 x 328 | |
| mm | ||||
| inch | 18.4 x 2.2 x 13 | 17.2 x 2 x 11.8 | 18.3 x 2 x 12.9 | |
| Packing (W x D x H) : | 615 x 113 x 523 | 615 x 113 x 523 | 615 x 113 x 523 | |
| mm | ||||
| inch | 24.2 x 4.4 x 20.6 | 24.2 x 4.4 x 20.6 | 24.2 x 4.4 x 20.6 | |
| Net weight | 5.2 kg / 11.4 lb | 5.2 kg / 11.4 lb | 4.3 kg / 9.5 lb | 3.4 kg / 7.5 lb |
| Gross weight | 8 kg / 17.6 lb | 8 kg / 17.6 lb | 7.1 kg / 15.6 lb | 6.2 kg / 13.6 lb |
| Chassis color | dark | |||
| Chassis materials | Aluminum | |||
| Compliance | ||||
| EMC | FCC & CE certified | |||
| Safety | CE / LVD certified | |||
| Environment | RoHS2 & REACH compliant | |||
| Applicable Format | ||||
| Display port input | PC signal | 1920 x 1080 x 60Hz | ||
| 1360 x 768 x 60Hz | ||||
| 1280 x 1024 x 60 / 75Hz | ||||
| 1280 x 960 x 60Hz | ||||
| 1280 x 768 x 60Hz | ||||
| 1152 x 864 x 75Hz | ||||
| 1024 x 768 x 60 / 70 / 75Hz | ||||
| 848 x 480 x 60Hz | ||||
| 800 x 600 x 60 / 72 / 75Hz | ||||
| 720 x 400 x 70Hz | ||||
| 640 x 480 x 60 / 72 / 75Hz | ||||
| 640 x 400 x 70Hz | ||||
| 640 x 350 x 70Hz | ||||
| Audio signal | 2ch Linear PCM | |||
| HDMI input | PC signal | Same as VGA | ||
| HDMI 1.3 | 1920 x 1080 x 50 / 60Hz ( 1080p ) | |||
| 1920 x 1080 x 25 / 30Hz ( 1080i ) | ||||
| 1280 x 720 x 50 / 60Hz ( 720p ) | ||||
| 720 x 480 x 50 / 60Hz ( 576p / 480p ) | ||||
| Audio signal | 2ch Linear PCM | |||
