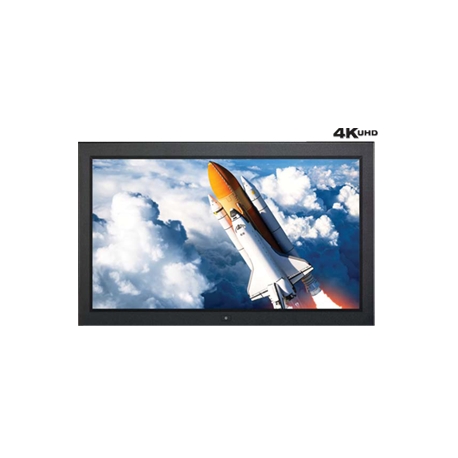

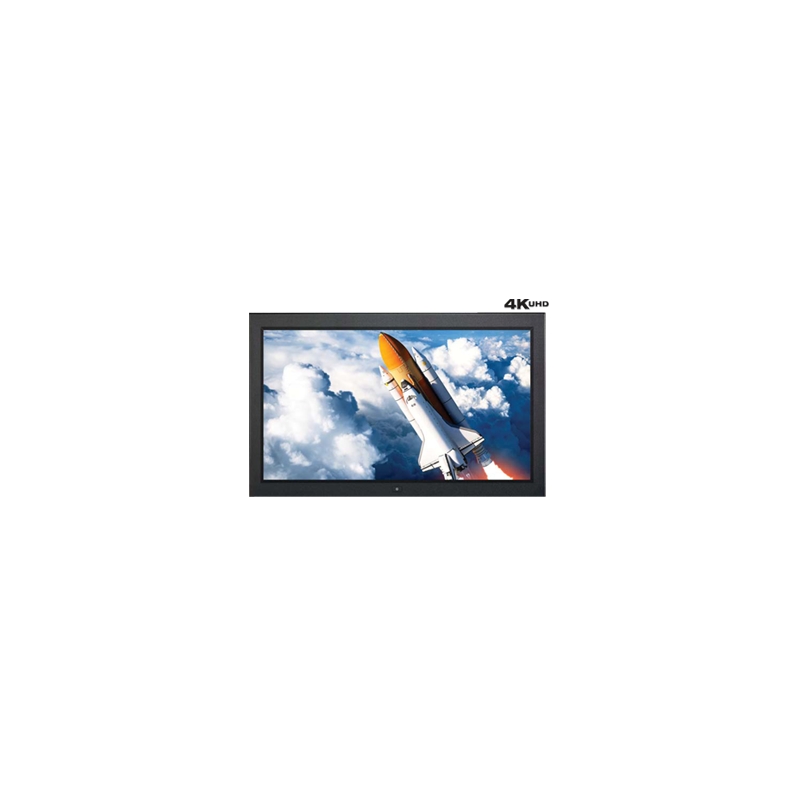

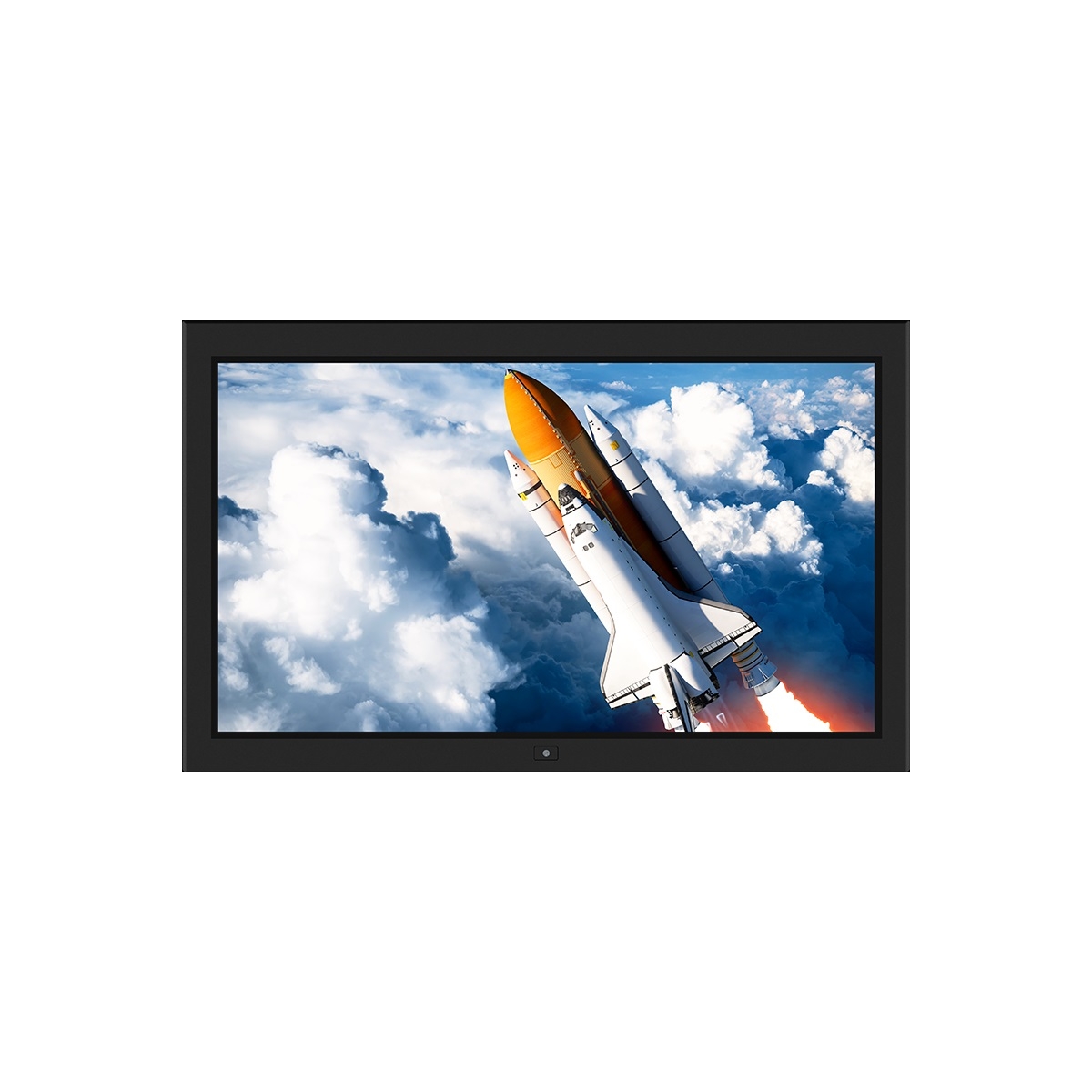

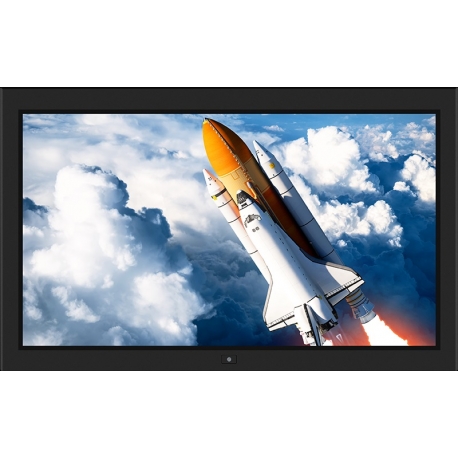

Professional and Versatile 16:9 (4K / FHD) 28" LED Monitor
K23
UltraView K23 series 23″ 4K UHD LED monitor supports 3840 x 2160 resolution, 4 times the resolution of FHD. True 10-bit input enables 1.07 billion colors to be presented, achieving ultimate picture quality. Improved energy efficiency and fan-less architecture provides professional-use durability and around-the-clock operation.
Key Benefits
- 23″ LED, 3840 x 2160 native UHD resolution
- 1920 x 1080 & 1920 x 1200 resolution support
- 1.07 billion colors ( 10-bit ) / 310 cd/m² brightness
- PIP Sub-screen & PBP Dual-screen viewing efficiency
- Display port 1.2 + HDMI 1.4 + HDMI 2.0 video input
- Video decoding capability up to 1080p ( option )
- Rugged structure ensures high mobility
- IP65 front protection ( NAP series )
- Professional-use durability & around-the-clock operation
- 2-year standard warranty ( upgradable up to 5 years )
K23 is more than just a standalone monitor. UltraView has a variety of embedded modules including HDMI Decoder, HDMI Extender, HDMI Quad display Extender, Multi-Monitor OSD Controller, SDI Input and Portrait Mode Kit. The embedded modules give you the ability of video remote management and transmission for multiple monitors over network.
As a versatile 4K monitor, K23 is meticulously designed to meet professional and environmental demands including IP54 Front protection, Multi-touch, Anti-reflective/Vandal proof glass, DC power input, Brightness dimming and Mounting kit for Panel-mount, VESA-mount, Universal-mount and Desktop stand.
With over 22 years' production experience, the K23 structure is well-engineered and manufactured by our own CNC facilities and team of experts to ensure its ruggedness, mobility and quality, as well as being suitable for harsh environment applications. The structure can be customized if required to facilitate monitor installation. Our knowledgeable engineers are able to provide frame customization for specific dimensions, color, metal treatment, screen printing, bezel and mounting.
Model
Options
Video Management & Transmission over Network
- Embedded HDMI Decoder Module 1080p over IP
- Embedded HDMI Extender Module 1080p over network
- Embedded HDMI Quad Display Module 1080p over network
- Embedded HDMI Quad Display Extension Module
- Embedded Multi Monitor OSD Control Module over serial
- Embedded 3G / HD / SD-SDI Input Module
- Embedded Portrait Mode Module
- Embedded Brightness Dimming Module
Bezel & Frame Customization
- Dimension
- Color & Treatment
- Screen Printing
- Stainless Steel Bezel
Touchscreen & Glass Protection
- Projected Capacitive 10-point Touch
- Infrared 6-point Touch
- 5-Wire Resistive 1-point Touch
- Anti-reflective Glass
- Vandal Proof Glass
DC Power
- 24V / 48V / 125V DC ( 100 Watt )
Mounting
- VESA mount, 100 x 100mm ( bundled )
- Universal mount ( bundled )
- Desktop stand ( option )
- Panel mount ( bundled )
Specification
| LCD Panel | ||||
| Panel size (diagonal) | 23-inch widescreen TFT color LCD | |||
| Native resolution | 3840 x 2160 | |||
| Brightness (cd/m²) | 310 | |||
| Contrast ratio (typ.) | 1000:1 | |||
| Colors | 1.07 Billion, 10-bit | |||
| Response time (ms) | 25 | |||
| Viewing angle (L/R/U/D) | 89/89/89/89 | |||
| Dot pitch (mm) | 0.13725 | |||
| Display area (mm) | 527.04H x 296.46V | |||
| Surface treatment | Anti-glare | |||
| Surface hardness | 3H | |||
| Backlight type | LED | |||
| MTBF (hrs) | 30,000 | |||
| Video | ||||
| Display port | DP 1.2 / HDCP 1.3 | |||
| HDMI | HDMI 2.0 / HDCP 2.2 HDMI 1.4 / HDCP 1.4 |
|||
| Audio | ||||
| Audio input: Connector Impedance / Power level |
3.5mm stereo jack 30kΩ / 750mV |
|||
| Audio output : Connector Resistance / Power level |
3.5mm stereo jack 30kΩ / 2.8V |
|||
| SpeakerDual stereo speaker | 10W x 2 | |||
| *When the audio output is connected, speaker output is OFF | ||||
| Power | ||||
| Input | Auto-sensing 100 to 240VAC, 50 / 60Hz | |||
| Consumption Screen on Power saving mode Power button on |
Max. 45W Max. 9W Max. 2W |
|||
| Environment | ||||
| Operating temp. | 0 to 55°C | |||
| Storage temp. | -20 to 60°C | |||
| Operating humidity | 20~90%, non-condensing | |||
| Storage humidity | 5 ~90%, non-condensing | |||
| Operating altitude | 16,000 ft | |||
| Non-operating altitude | 40,000 ft | |||
| Shock | 10G acceleration ( 11ms duration ) | |||
| Vibration | 10~300Hz 0.5G RMS random vibration | |||

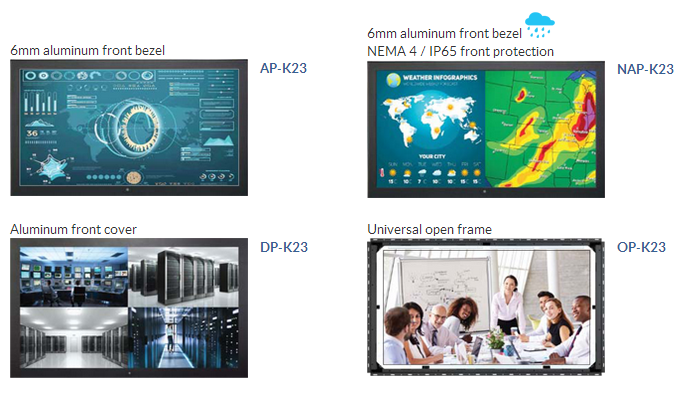

| Design | AP-K23 | NAP-K23 | DP-K23 | OP-K23 |
| Protection | 6mm front bezel | NEMA 4 / IP65 | front cover | open frame |
| Front panel | Black, RAL 9005 | - | ||
| Rear casing | Black, RAL 9005 | |||
| Mounting | AP-K23 / NAP-K23 | DP-K23 | OP-K23 | |
| VESA mount | 100 x 100 mm | 100 x 100 mm | 100 x 100 mm | |
| Universal mount | - | - | bundled | |
| Desktop stand | option | option | - | |
| Panel mount | bundled | bundled | - | |
| Physical | AP-K23 / NAP-K23 | DP-K23 | OP-K23 | |
| Product (W x D x H) : | 584.2 x 63.6 x 363.6 | 562.4 x 59.6 x 341.6 | 581.4 x 57.6 x 360.6 | |
| mm | ||||
| inch | 23 x 2.5 x 14.3 | 22.1 x 2.3 x 13.4 | 22.9 x 2.3 x 14.2 | |
| Packing (W x D x H) : | 659 x 117 x 640 | 659 x 117 x 640 | 659 x 117 x 640 | |
| mm | ||||
| inch | 12.7 kg / 27.9 lb | 25.9 x 4.6 x 25.2 | 25.9 x 4.6 x 25.2 | |
| Net weight | 9 kg / 19.8 lb | 9 kg / 19.8 lb | 7.9 kg / 17.4 lb | 6.7 kg / 14.7 lb |
| Gross weight | 8 kg / 17.6 lb | 12.7 kg / 27.9 lb | 11.6 kg / 25.5 lb | 10.4 kg / 22.9 lb |
| Chassis color | dark | |||
| Chassis materials | Aluminum | |||
| Compliance | ||||
| EMC | FCC & CE certified | |||
| Safety | CE / LVD certified | |||
| Environment | RoHS2 & REACH compliant | |||
| Applicable Format | ||||
| Display port input | PC signal | 3840 x 2160 x 60Hz | ||
| 1920 x 1080 x 60Hz | ||||
| 1600 x 1200 x 60Hz | ||||
| 1360 x 768 x 60Hz | ||||
| 1280 x 1024 x 60 / 75Hz | ||||
| 1280 x 768 x 60Hz | ||||
| 1024 x 768 x 60 / 70 / 75Hz | ||||
| 800 x 600 x 60 / 72 / 75Hz | ||||
| 720 x 400 x 70Hz | ||||
| 640 x 480 x 60 / 72 / 75Hz | ||||
| Audio signal | 2ch Linear PCM | |||
| HDMI input | HDMI 2.0 | 3840 x 2160 x 30Hz | ||
| HDMI 2.0 / 1.4 | 1920 x 1080 x 50 / 60Hz ( 1080p ) | |||
| 1920 x 1080 x 25 / 30Hz ( 1080i ) | ||||
| 1280 x 720 x 50 / 60Hz ( 720p ) | ||||
| 720 x 480 x 50 / 60Hz ( 576p / 480p ) | ||||
| Audio signal | 2ch Linear PCM | |||
