Digital Intercom System
ITC-300
ITC-300 is a single wired communication system, featuring power over Ethernet to 8 belt packs.
Intercom system evolution and innovation
Single CAT cable for everything
The ITC-300 is a single wired communication system, featuring power over Ethernet to 8 belt packs.
Rackmountable 8 channels Intercom System
The ITC-300 provides 8-Way talkback and bi-colour tally indicators.
Long distance transmission up to 200 meters

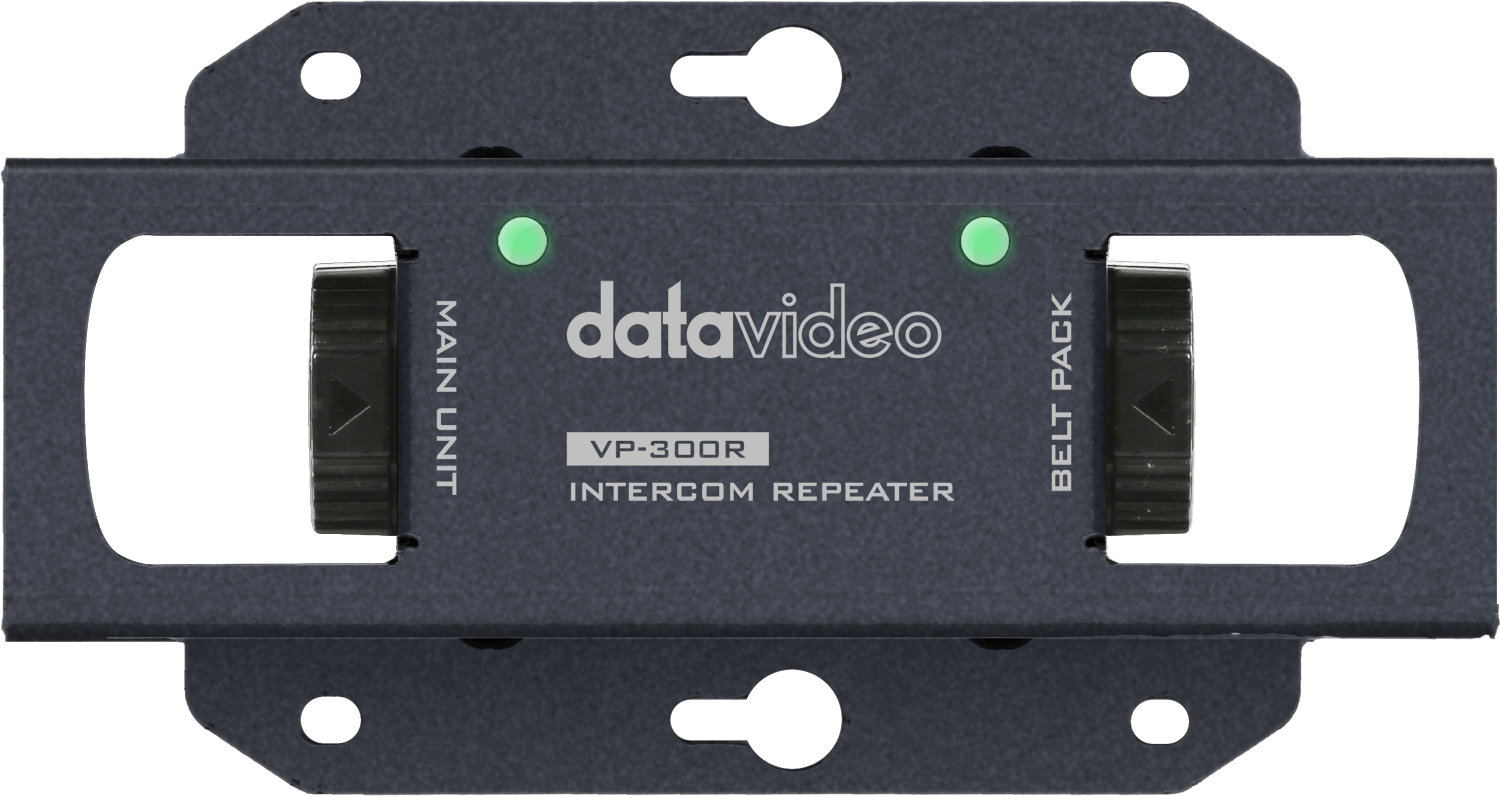

Communication distance up to 100 meters or using VP-300R can connect up to 200 meters.

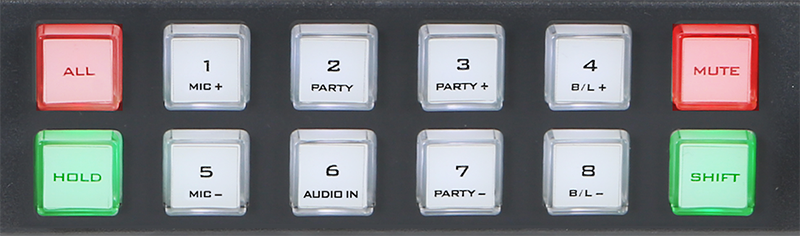

Selectable channel talk, broadcast to all or mute
The director can select to talk to an individual channel or to all channels simultaneously.

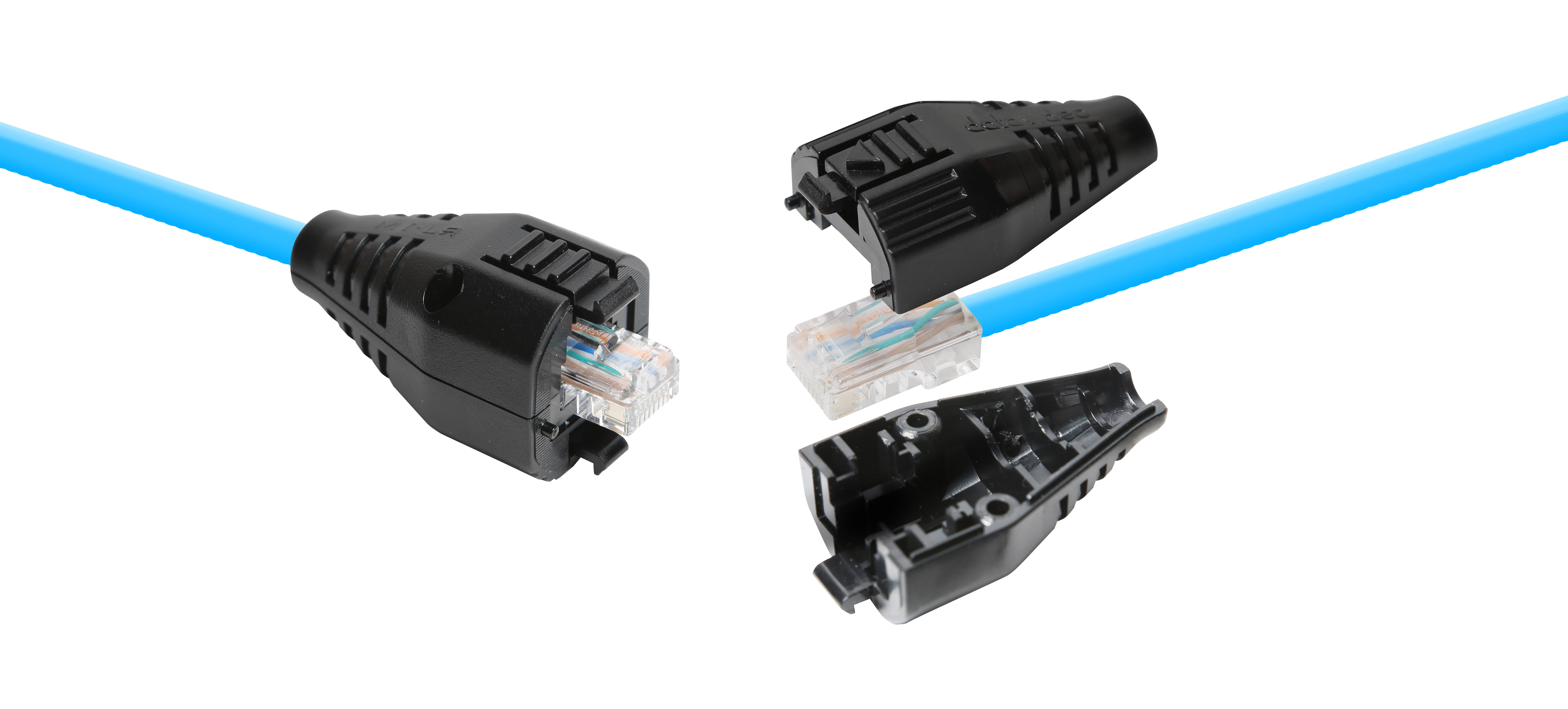

Special design for your RJ-45 connector
The ITC-300SL has a special CAT-6 connector shield to prevent the cable lost when used.

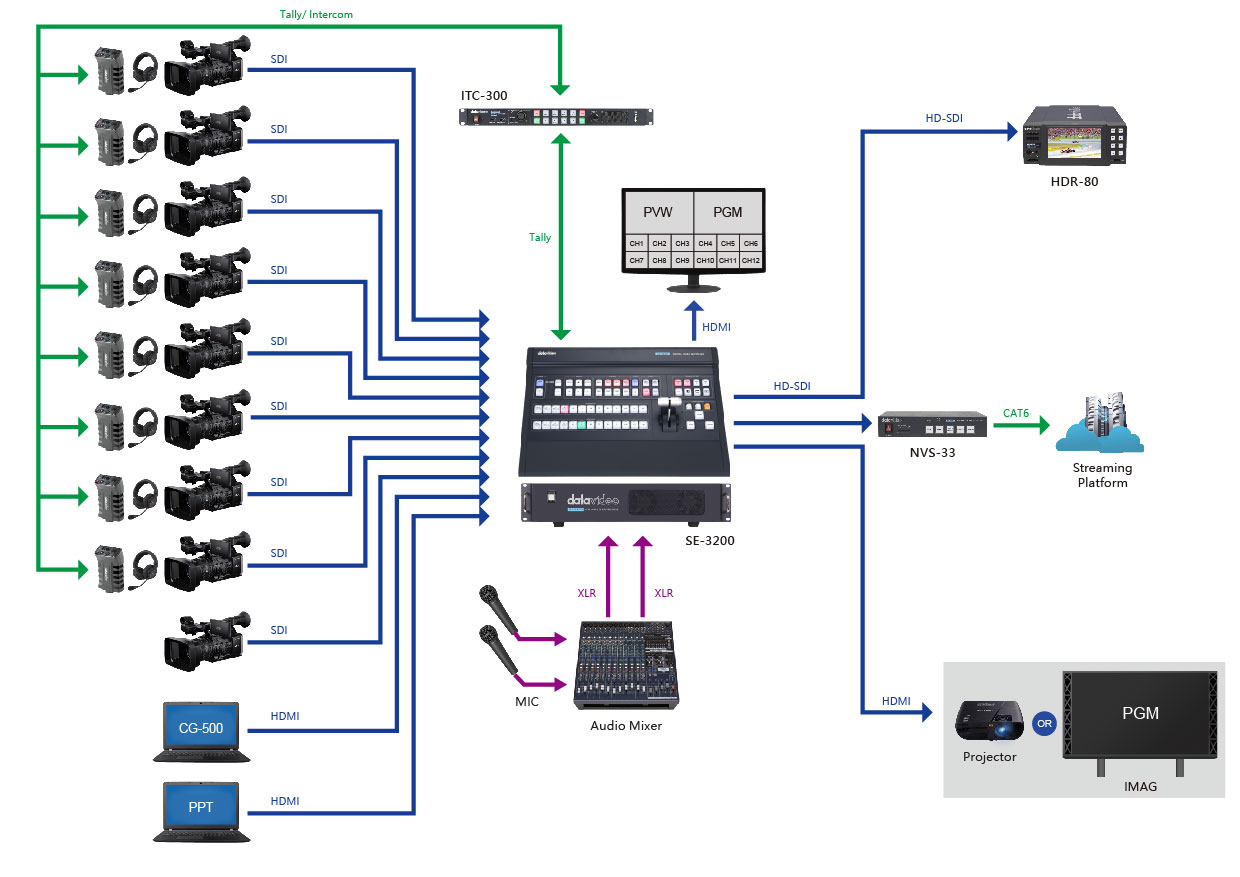

Diagram
Specifications
| ITC-300 Digital Intercom System | |
|---|---|
| Power |
DC 12V, 3A |
| Tally |
2 x 15 Pin D-Sub Female Sockets |
| MIC / Headset |
1 x 3.5mm Stereo Jack Socket |
| Headphone |
1 x 1/4" (6.3mm) Stereo Headphone Socket |
| Light Socket (DC 12 V) |
Light Power Consumption: +5 V / 500 mA |
| Microphone |
3 Pin XLR / 1/4” (6.3mm) Socket x 1 |
| Frequency Response |
300 Hz-7 KHz, < +/-3dB |
| THD |
< 0.1% @1KHz |
| S/N |
>70dB |
| Built-in Speaker |
3W |
| Operating Range |
Up to 100m between Base Station and Slave |
| Operating Temp. Range |
0~40 °C |
| Dimension (LxWxH) |
440 x 126 x 44mm |
| Weight |
1.9 kg |
| What's in the Box |
1 x ITC-300 Base Unit |
ITC-300SL Belt Packs included
- TD-3 - Camera Tally Light
- MC-1 - Headset / Microphone
- 1 x GPI Cable
- 1 x Ethernet Cable
- 1 x Earphone Cable
- 1 x Black Velcro
- 1 x Velcro
- 4 x Ethernet Cable Connector Set
