CE775
ATEN CE775 Dual View KVM Extenders (with Deskew function for CE775) allows access to a computer system froma remote Dual View console up to 300 m away.
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:

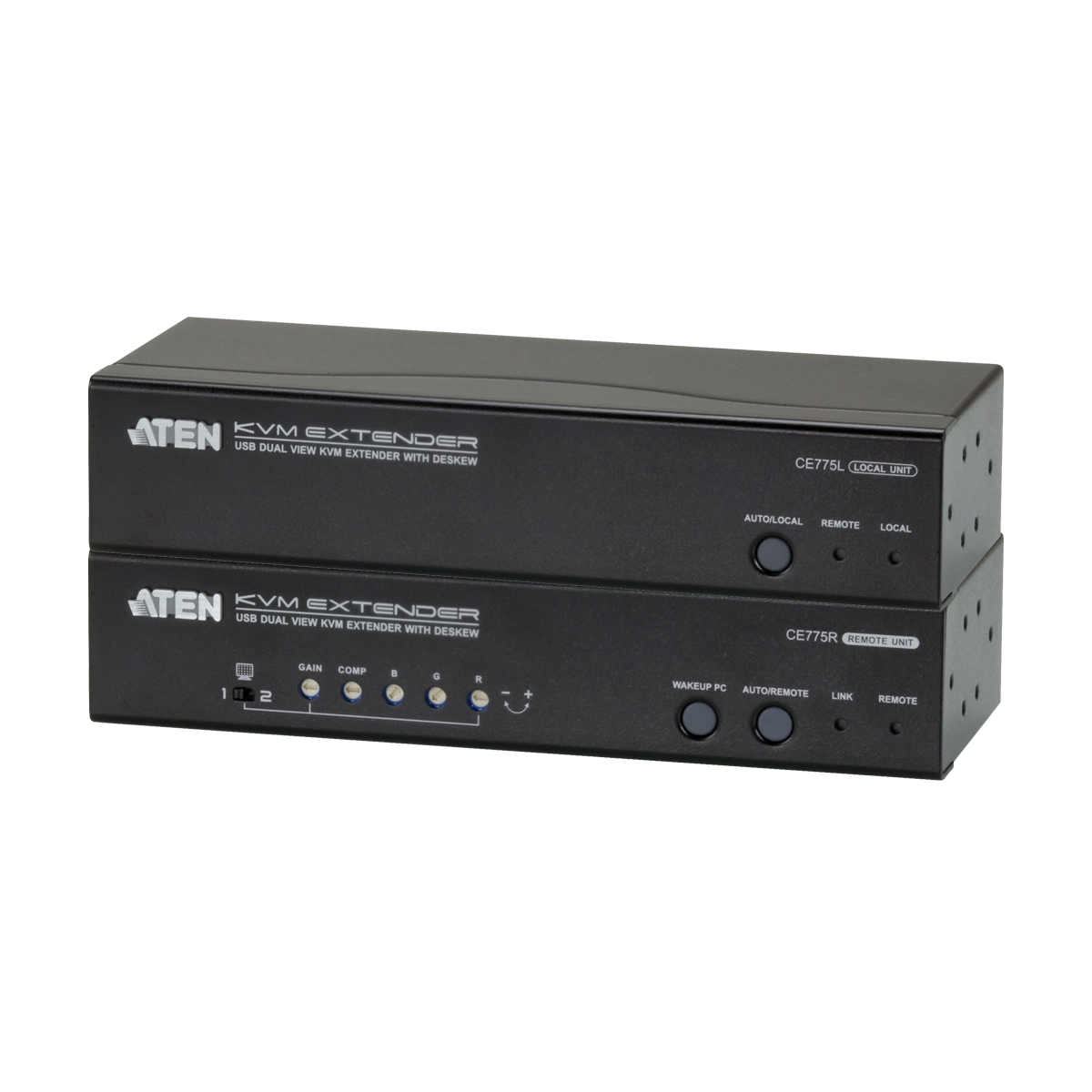

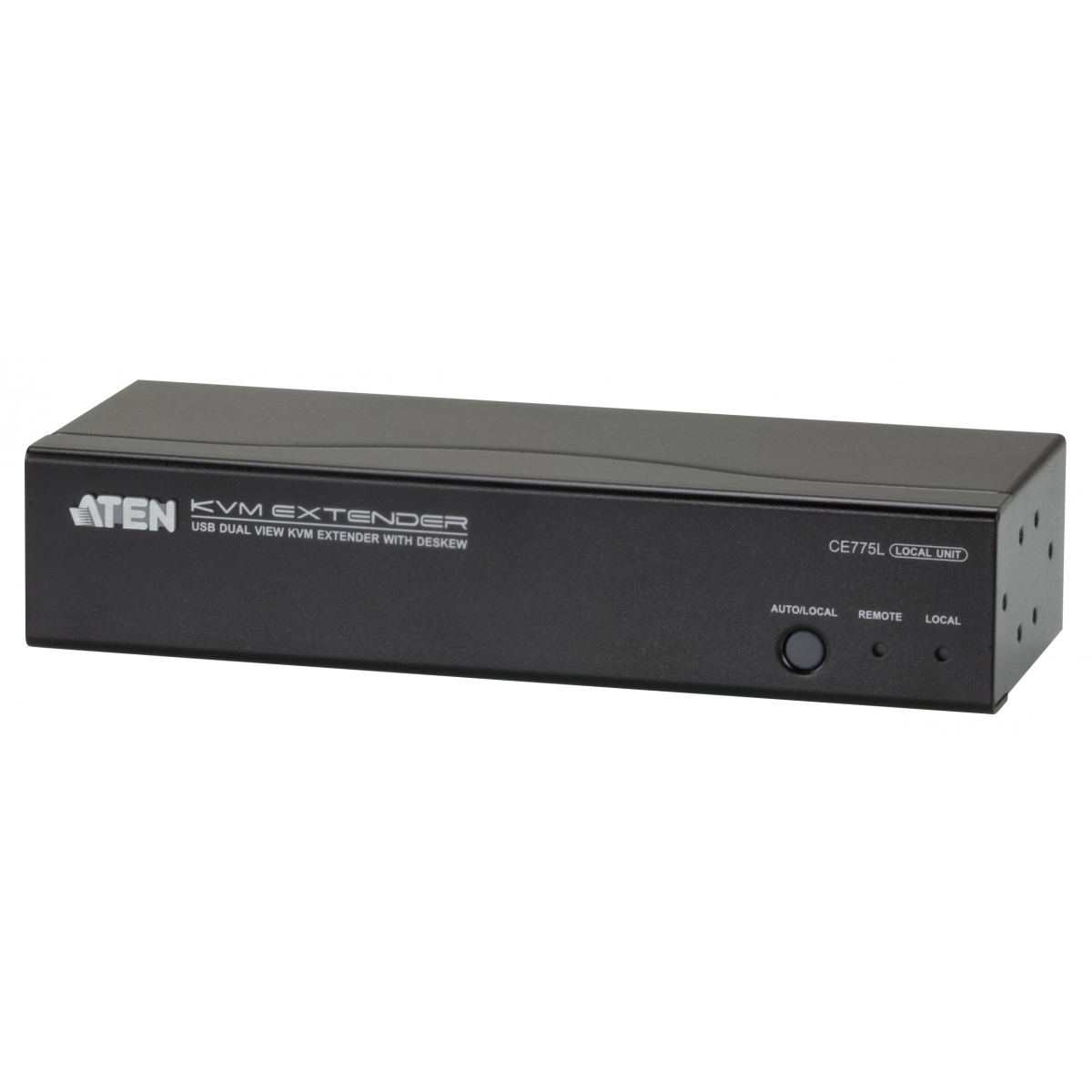

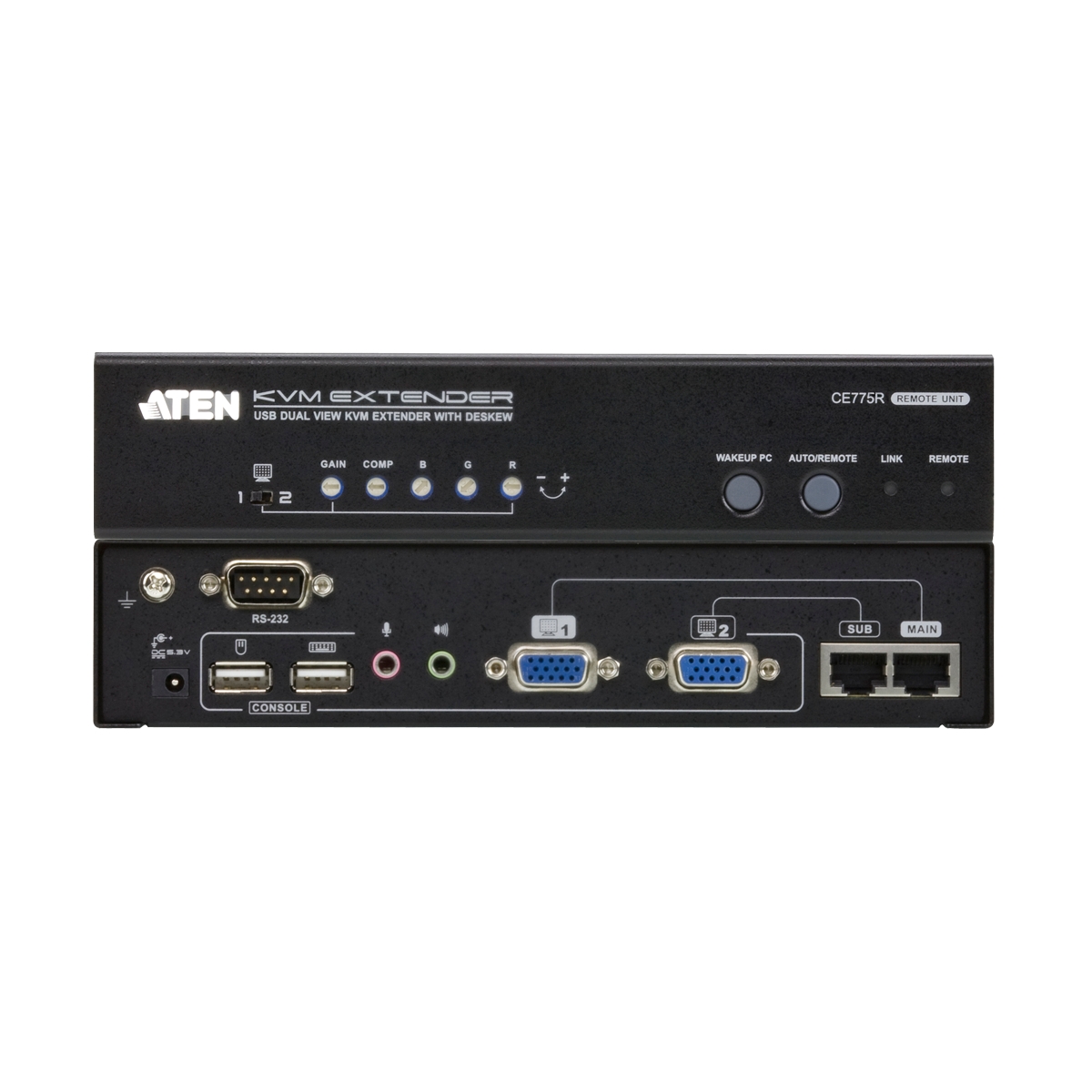

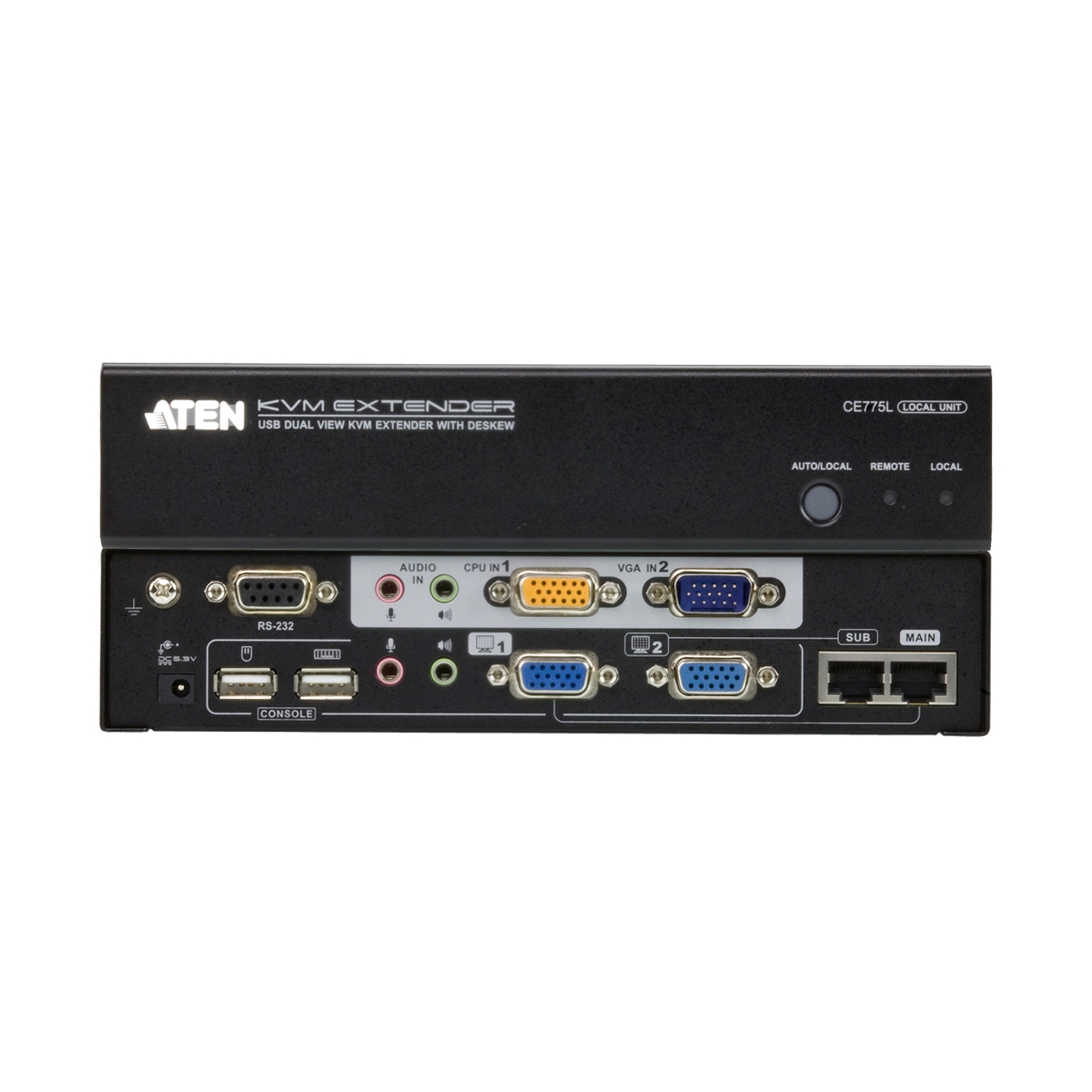

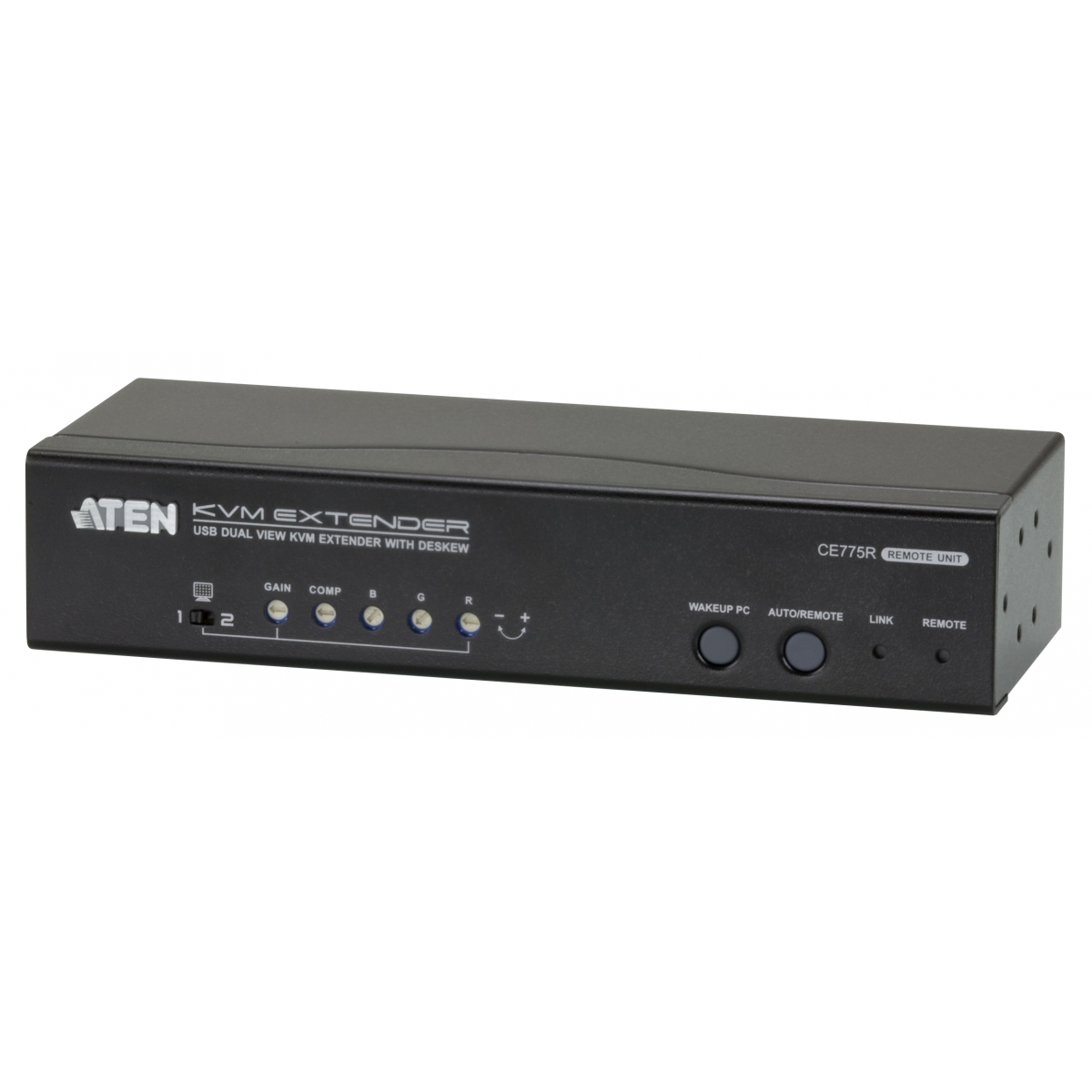

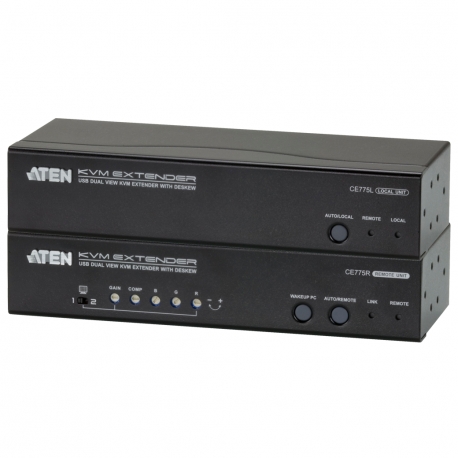

USB Dual View KVM Extender with Deskew
ATEN CE775 Dual View KVM Extenders (with Deskew function for CE775) allows access to a computer system froma remote Dual View console up to 300 m away.
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก
ATEN CE775 Dual View KVM Extenders (with Deskew function for CE775) allows access to a computer system froma remote Dual View console up to 300m away. The dual view function provides support for two displays, allowing the video output to seamlessly display on two monitors. Its advanced PC Wake-Up feature that allows you simply uses a pushbutton from the remote dual view console to wake a PC at the local site via RS-232, no need to go to the local site to wake up the PC. It eliminates the need for traveling back and forth between the local computer and remote console, efficient and flexible.
Use the improved built-in front panel tuners to easily adjust the picture quality. In addition, you can automatically synchronize the time delay of RGB signals in order to compensate for distance (CE775), easy and fast than ever.
Function | CE775L | CE775R | ||

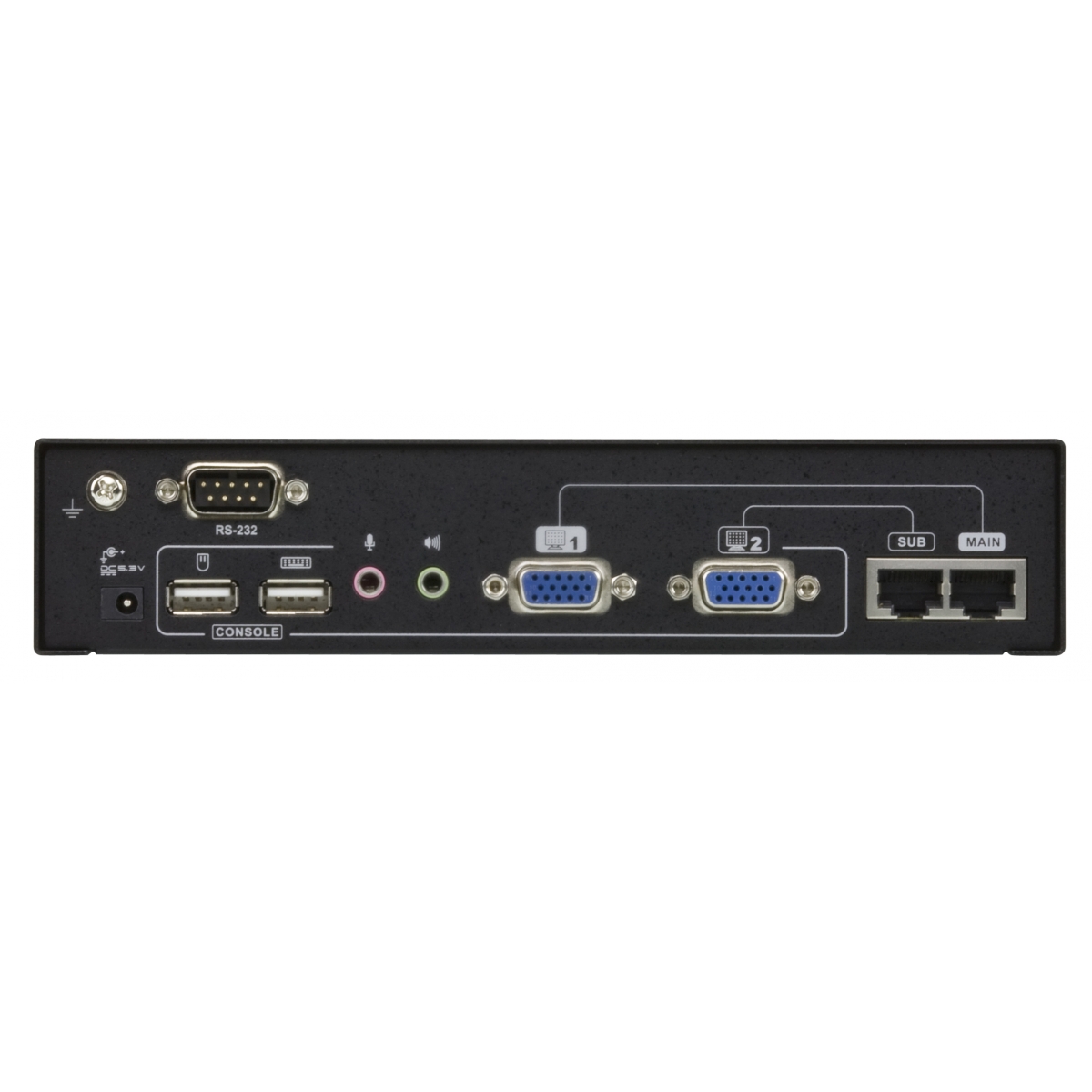

Connectors | Console Ports | Keyboard | 1 x USB Type A Female (White) | |
Video | 2 x HDB-15 Female (Blue) | |||
Mouse | 1 x USB Type A Female (White) | |||
Speakers | 1 x Mini Stereo Jack Female (Green) | |||
Mic. | 1 x Mini Stereo Jack Female (Pink) | |||
Mian | 1 x RJ-45 Female (Black) | |||
Sub | 1 x RJ-45 Female (Black) | |||
KVM Port | Keyboard / Video / Mouse | 1 x SPHD-17 Female (Yellow) |
N/A | |
Speakers | 1 x Mini Stereo Jack (Green) |
|||
Mic. | 1 x Mini Stereo Jack (Pink) |
|||
VGA Input | 1 x HDB-15 Male (Blue) | |||
RS-232 | 1 x DB-9 Female (Black) | 1 x DB-9 Male (Black) | ||
Power | 1 x DC Jack (Black) | |||
Switch | Operating Mode Selection | 1 x Pushbutton | ||
Wakeup PC | N/A | 1 x Pushbutton | ||
Video Output Port Selection | N/A | 1 x Slide Switch | ||
Video Gain Tuner | N/A | 1 x Knob | ||
Video Compensation Tuner | N/A | 1 x Knob | ||
RGB Tuner | N/A | 3 x Knob | ||
LEDs | Local | 1 (Green) | N/A | |
Remote | 1 (Green) | |||
Link | N/A | 1 (Green) | ||
Emulation | Keyboard / Mouse | USB | ||
Video | 1920 x 1200 @ 60Hz (150 m); 1280 x 1024 @ 60Hz (300 m) |
|||
Power Consumption | DC5.3V/4.38 W | DC5.3V/10.27 W | ||
Environment | Operating Temp. | 0–50ºC | ||
Storage Temp. | -20–60ºC | |||
Humidity | 0–80% RH, Non-condensing | |||
Physical Properties | Housing | Metal | ||
Weight | 0.69 kg | |||
Dimensions (L x W x H) | 20.00 x 7.58 x 4.20 cm |
