CE924
The ATEN CE924 USB DisplayPort Dual View HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB, and RS-232 signals
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:

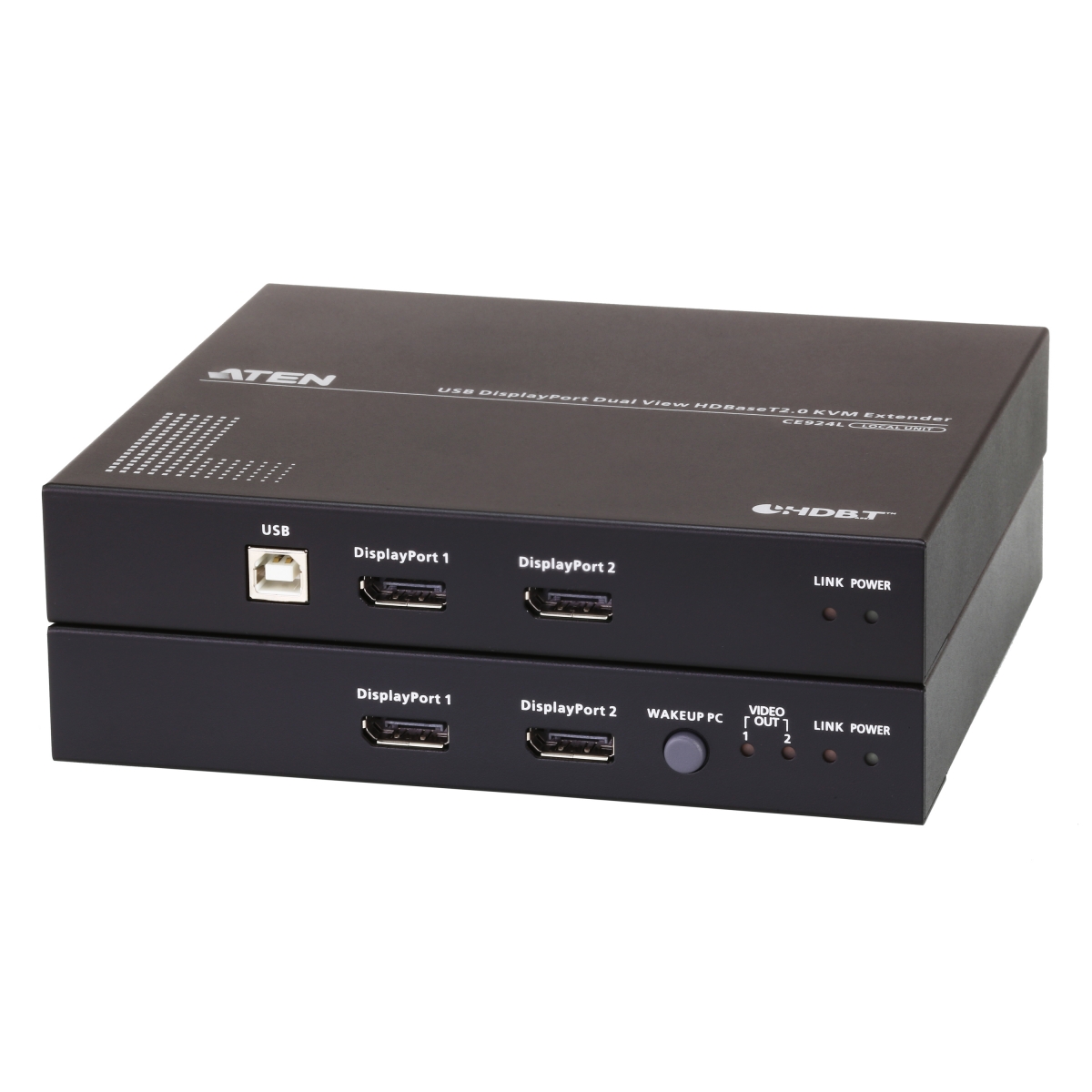

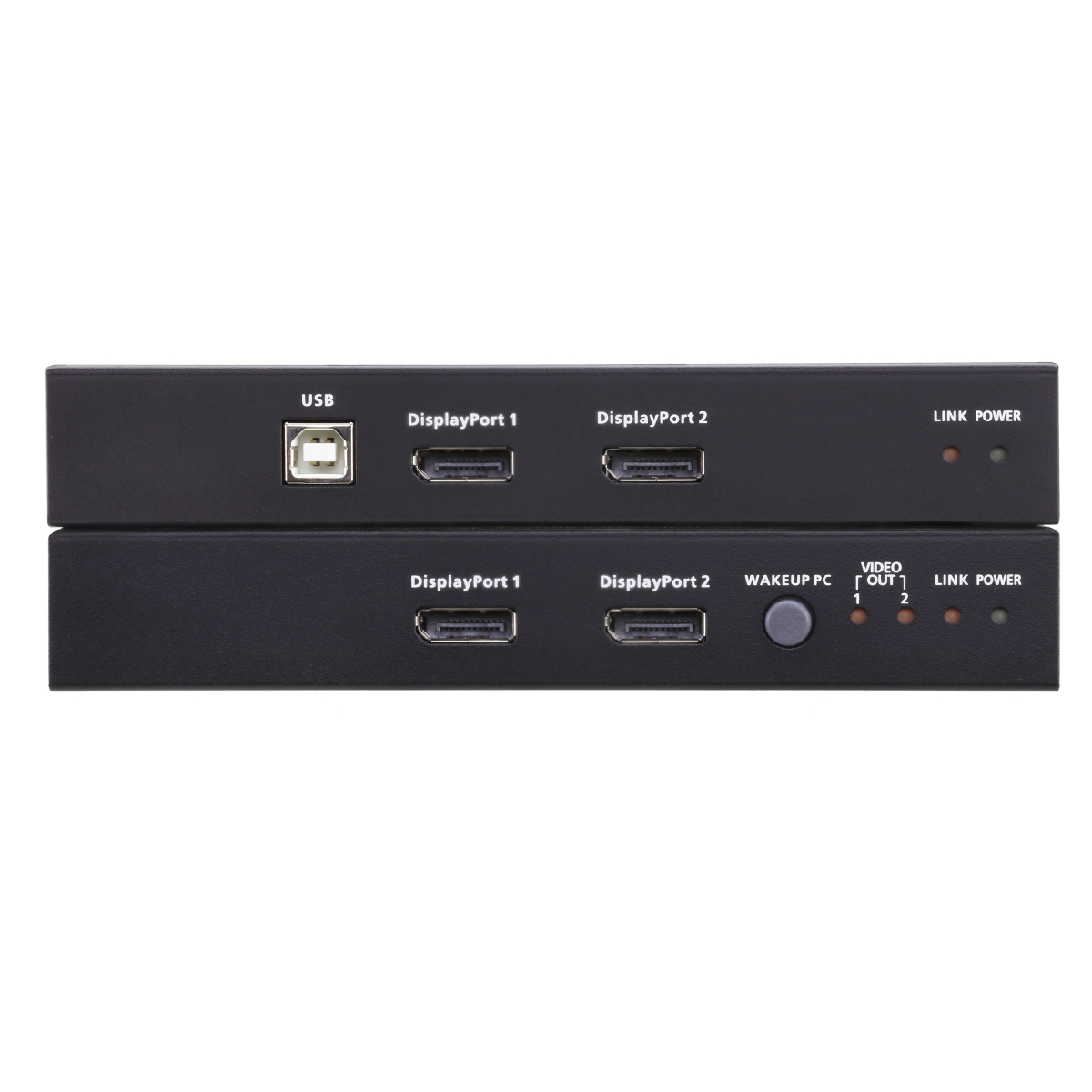

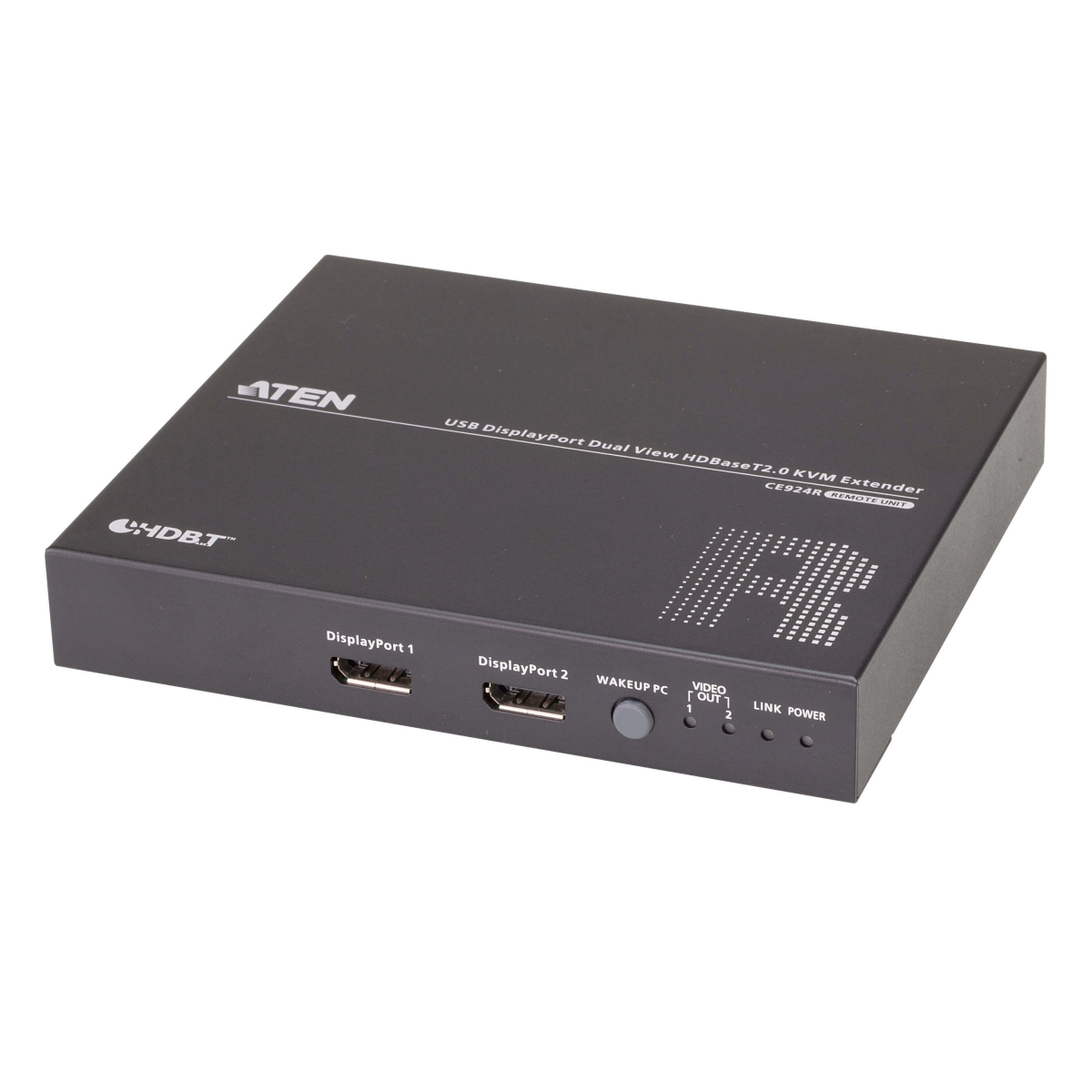

USB DisplayPort Dual View HDBaseT™ 2.0 KVM Extender (4K@100m for Single View)
The ATEN CE924 USB DisplayPort Dual View HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB, and RS-232 signals
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก
Function | CE924L | CE924R |
Connectors | ||

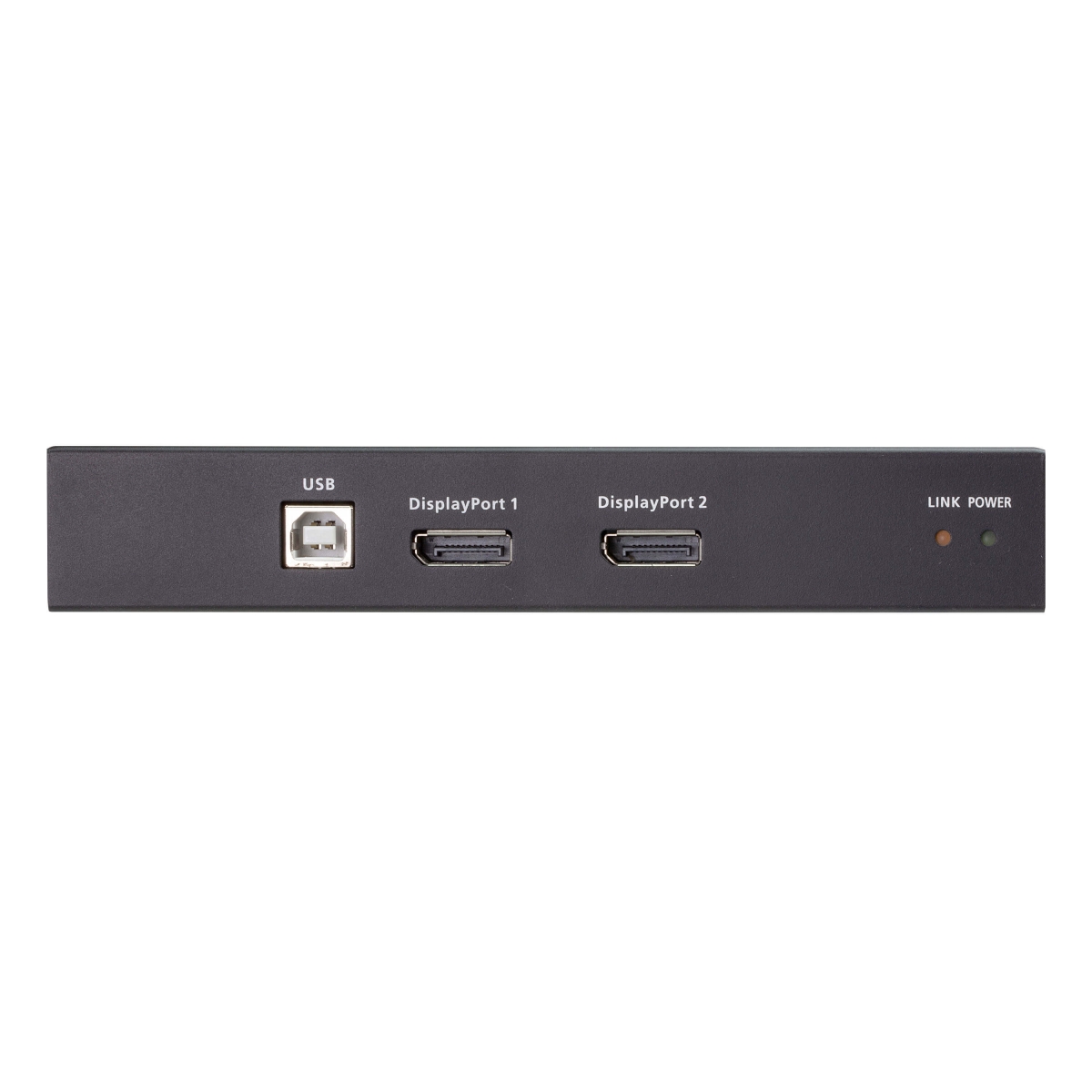

KVM Ports | 2 xDisplayPort Female (Black) 1 x USB Type B Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) |
N/A |

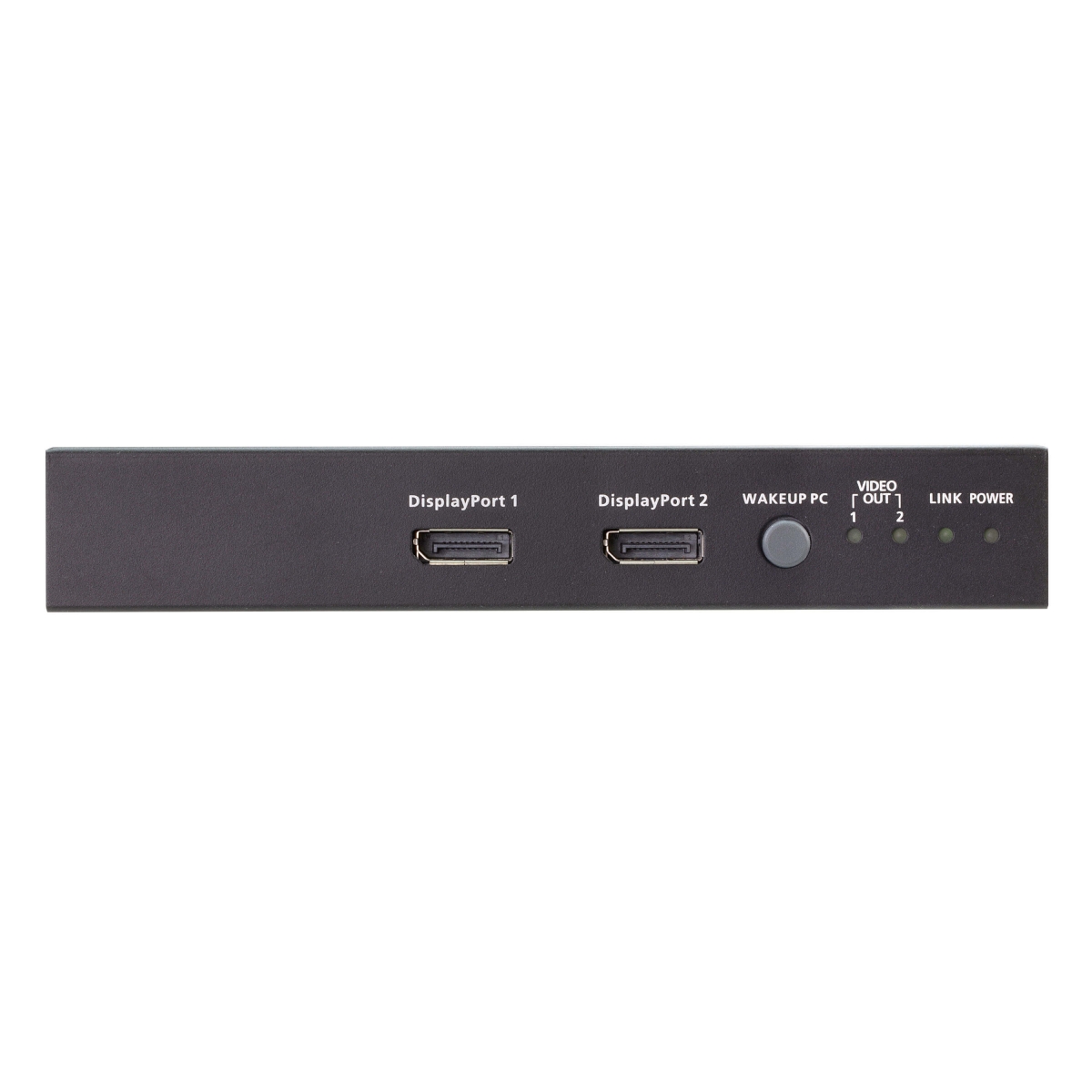

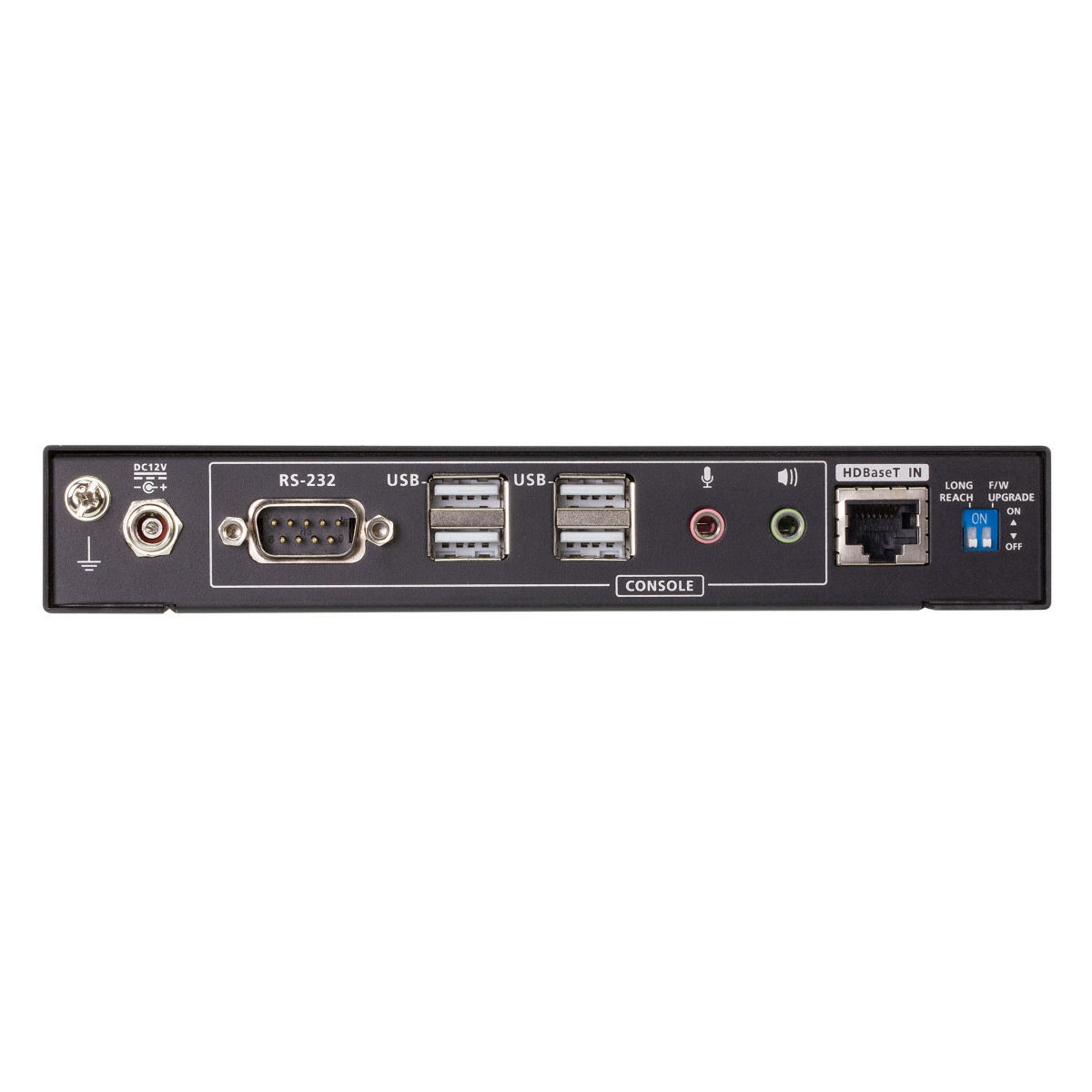

Console Ports | N/A | 2 x DisplayPort Female (Black) 4 x USB Type A Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) |

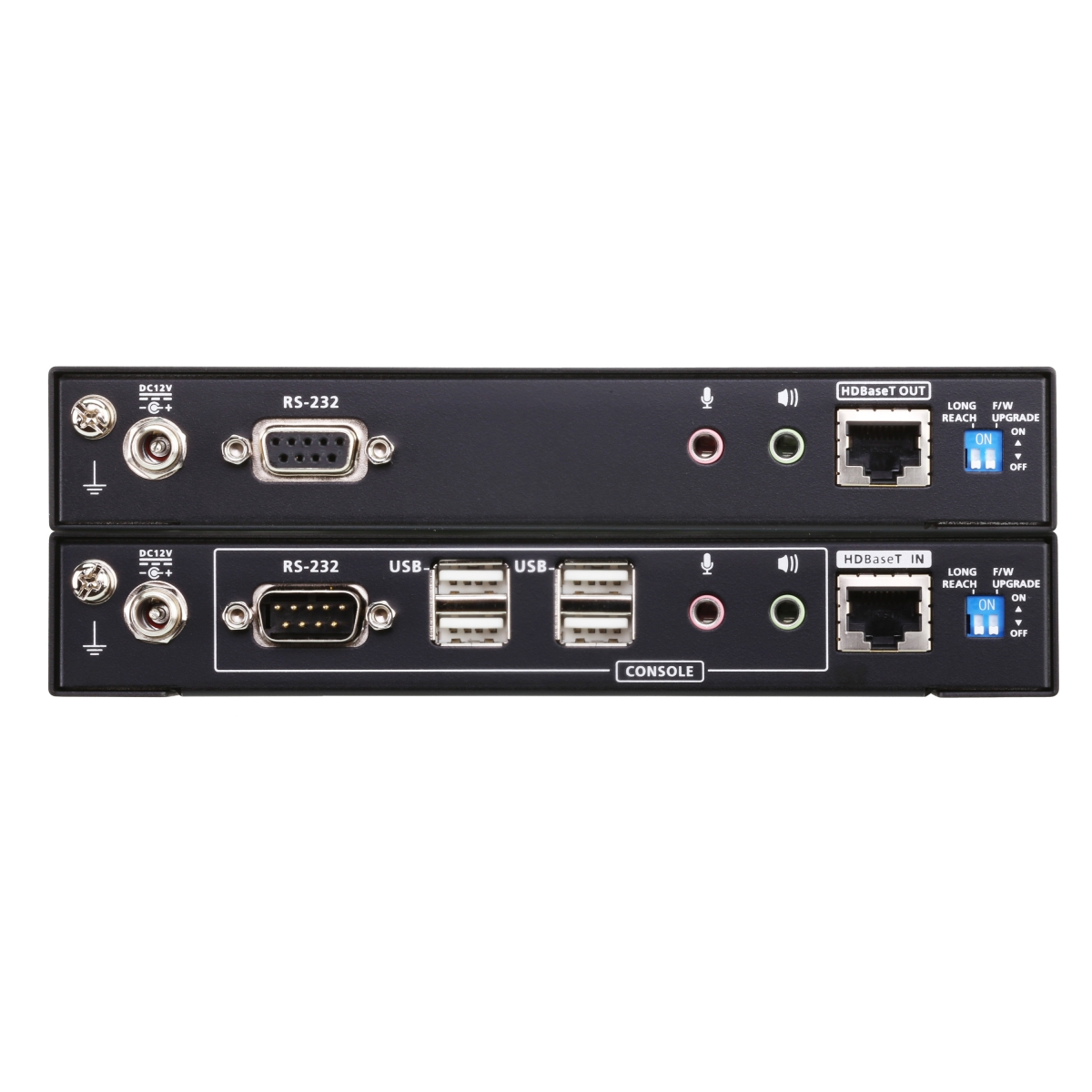

RS-232 | 1 x DB-9 Female (Black) | 1 x DB-9 Male (Black) |
Power | 1 x DC Jack with locking | 1 x DC Jack with locking |
Unit To Unit | 1 x RJ-45 Female (Black) | 1 x RJ-45 Female (Black) |
LEDs | ||
Power | 1 (Green) | 1 (Green) |
Link | 1 (Orange) | 1 (Orange) |
Video Output | N/A | 2 (Orange) |
Switches | ||
Long Reach Mode Switch | 1 x Slide Switch | 1 x Slide Switch |
Firmware Upgrade | 1 x Slide Switch | 1 x Slide Switch |
Pushbuttons | ||
Wakeup button | N/A | 1 x Push button |
Video | Single view: Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6) 1080P@100m (Cat 5e/6/6a/ATEN 2L-2910 Cat6) Dual-view: Up to 1080p@100m (Cat 6/6a/ATEN 2L-2910 Cat6) *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
Single view: Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6) 1080P@100m (Cat 5e/6/6a/ATEN 2L-2910 Cat6) Dual-view: Up to 1080p@100m (Cat 6/6a/ATEN 2L-2910 Cat6) *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
Power Consumption | DC12V:7.03W:33BTU | DC12V:9.92W:69BTU |
Environmental | ||
Operating Temperature | 0–40°C | 0–40°C |
Storage Temperature | -20–60°C | -20–60°C |
Humidity | 0–80% RH, Non-condensing | 0–80% RH, Non-condensing |
Physical Properties | ||
Housing | Metal | Metal |
Weight | 0.82 kg ( 1.81 lb ) | 0.85 kg ( 1.87 lb ) |
Dimensions (L x W x H) | 17.42 x 15.41 x 2.88 cm (6.86 x 6.07 x 1.13 in.) |
17.42 x 15.57 x 2.88 cm (6.86 x 6.13 x 1.13 in.) |
Note | DisplayPort support up to 4Kx2K @ 30Hz, not supports 4Kx2K @ 60Hz, 4:2:0; also not support MST mode. | DisplayPort support up to 4Kx2K @ 30Hz, not supports 4Kx2K @ 60Hz, 4:2:0; also not support MST mode. |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
