Features
- Hardware
- High port density – RJ-45 connectors for up to 8 ports in a 1U housing
- A dedicated USB port directly connects to a laptop for easy Console operation
- One bus for remote KVM over IP access
- Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
- Local console provides PS/2 and USB keyboard and mouse support
- Multiplatform support - Windows, Mac, Sun and Linux
- Superior Video Quality – supports input video resolutions up to 1920 x 1200 @ 60 Hz* up to 30 meters, 1600 x 1200 @ 60 Hz up to 40 meters, and 1280 x 1024 @ 75 Hz up to 50 meters
- Daisy-chain up to 15 additional units – control up to 128 computers from a single console
* With KVM Adapter Cable KA71xx or KA75xx series
Management
- Up to 64 user accounts
- Up to 32 concurrent logins
- End session feature – administrators can terminate running sessions
- Event logging and Windows-based Log Server support
- Local Log Event
- Adapter ID – stores port information allowing administrators to relocate the servers to different ports, without having to reconfigure the adapters and switch
- Port Share Mode allows multiple users to gain access to a server simultaneously
- Integration with ATEN CC2000 Management software
- Power Over the NET™ integration for remote power control
- Firmware upgradeable
- IPv6 capable
Easy-to-Use Interface
- Local Console, Browser, and AP GUIs offer a unified Multilanguage interface to minimize user training time and increase productivity
- Multiplatform client support (Windows, Mac OS X, Linux, Sun)
- Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
- Browser-based UI in Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
- Panel Array Mode™
- Keyboard broadcast – keyboard input can be duplicated on all the attached servers
Advanced Security
- Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
- Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users log in from browser
- Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse and video data encryption
- IP/MAC Filter for enhanced security protection
- Configurable user and group permissions for server access and control
Virtual Remote Desktop
- Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
- Full screen or scalable video display
- Message Board for communication among remote users
- Mouse DynaSync™ - automatically synchronizes the local and remote mouse movements
- On-screen keyboard with multilanguage support
- Exit Macros support
- BIOS-level access
**KVM Adapter Module (CPU โมดูล) อุปกรณ์ ประกอบ ที่ต้องใช้ร่วมกัน ตามประเภทของเซิร์ฟเวอร์ (ไม่รวมใน package)
KA7120 สำหรับเซิร์ฟเวอร์แบบ PS/2 เช่น Windows/Linux
KA7130 สำหรับเซิร์ฟเวอร์แบบ Sun Lagacy system (พอร์ต display แบบ 13w3)
KA7140 สำหรับเซิร์ฟเวอร์ หรือ อุปกรณ์ แบบ Serial RS232
KA7170 สำหรับเซิร์ฟเวอร์แบบ USB (รองรับทั้ง Windows, Linux, Mac, Sun)
KA7166 สำหรับเซิร์ฟเวอร์แบบ DVI และ USB สำหรับ Smart Card/CAC รองรับ PC, Mac, Sun
KA7168 สำหรับเซิร์ฟเวอร์แบบ HDMI และ USB สำหรับ Smart Card/CAC รองรับ PC, Mac, Sun
KA7169 สำหรับเซิร์ฟเวอร์แบบ DisplayPort และ USB สำหรับ Smart Card/CAC รองรับ PC, Mac, Sun
Diagram
Specifications
Computer Connections |
Direct |
8 |
Maximum |
128 (via Daisy-chain) |
Port Selection |
OSD; Hotkey; Pushbutton |

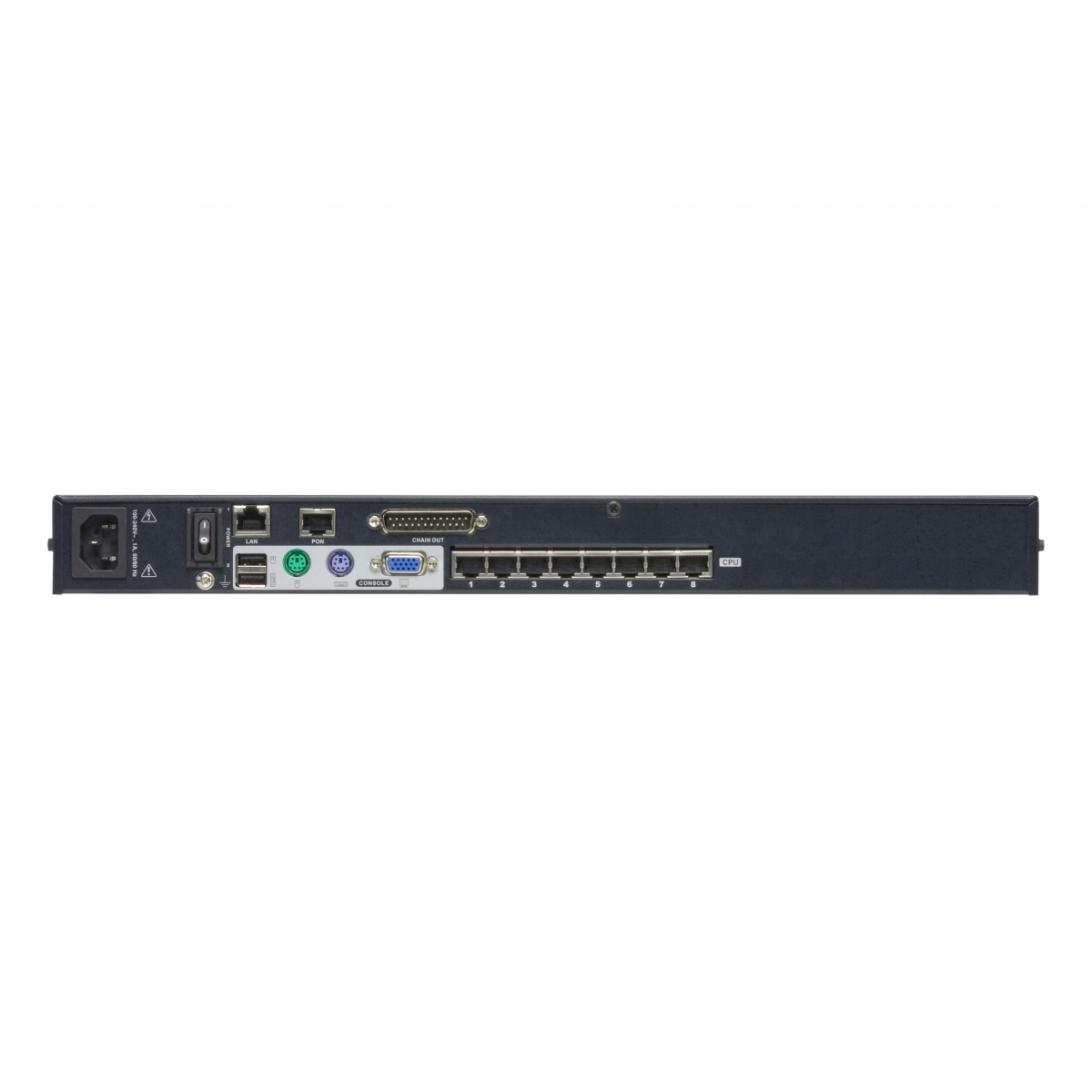

Connectors |
Console Ports |
2 x USB Type-A Female (White) 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) 1 x HDB-15 Female (Blue) |
KVM Ports |
8 x RJ-45 Female |
Daisy Chain Ports |
1 x DB-25 Male |
Power |
1 x IEC 60320/C14 |
LAN Ports |
1 x RJ-45 Female |
Firmware Upgrade |
1 x RJ-11 Female |
PON |
1 X RJ-45 Female |
Laptop USB Console (LUC) Port |
1 x USB Mini-B Female |
Switches |
Reset |
1 x Semi-recessed Pushbutton |
Power |
1 x Rocker |
Port Selection |
8 x Pushbutton |
LEDs |
Online |
8 (Green) |
Selected |
8 (Orange) |
Power |
1 (Blue) |
Station ID |
1 x 2-digit 7-segment (Orange) |
Link |
1 (Orange) |
10/100/1000 Mbps |
non-FHD:10/100 Mbps (Orange / Green) FHD:100/1000 Mbps (Orange / Green) |
Emulation |
Keyboard / Mouse |
PS/2; USB |
Video |
Local |
1600 x 1200 @ 60Hz (non-FHD version) 1920 x 1200 @ 60Hz (FHD version) |
Remote |
1600 x 1200 @ 60Hz (non-FHD version) 1920 x 1200 @ 60Hz (FHD version) |
Scan Interval |
1–255 secs |
Maximum Input Power Rating |
100–240 VAC; 50/60 Hz; 1A |
Power Consumption |
AC110V:8.7W:49BTU AC220V:8.7W:49BTU |
Environmental |
Operating Temperature |
0 - 40°C |
Storage Temperature |
-20 - 60°C |
Humidity |
0–80% RH; Non-condensing |
Physical Properties |
Housing |
Metal |
Weight |
2.68 kg ( 5.9 lb ) |
Dimensions (L x W x H) |
43.72 x 16.36 x 4.40 cm (17.21 x 6.44 x 1.73 in.) |
Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Package Contents

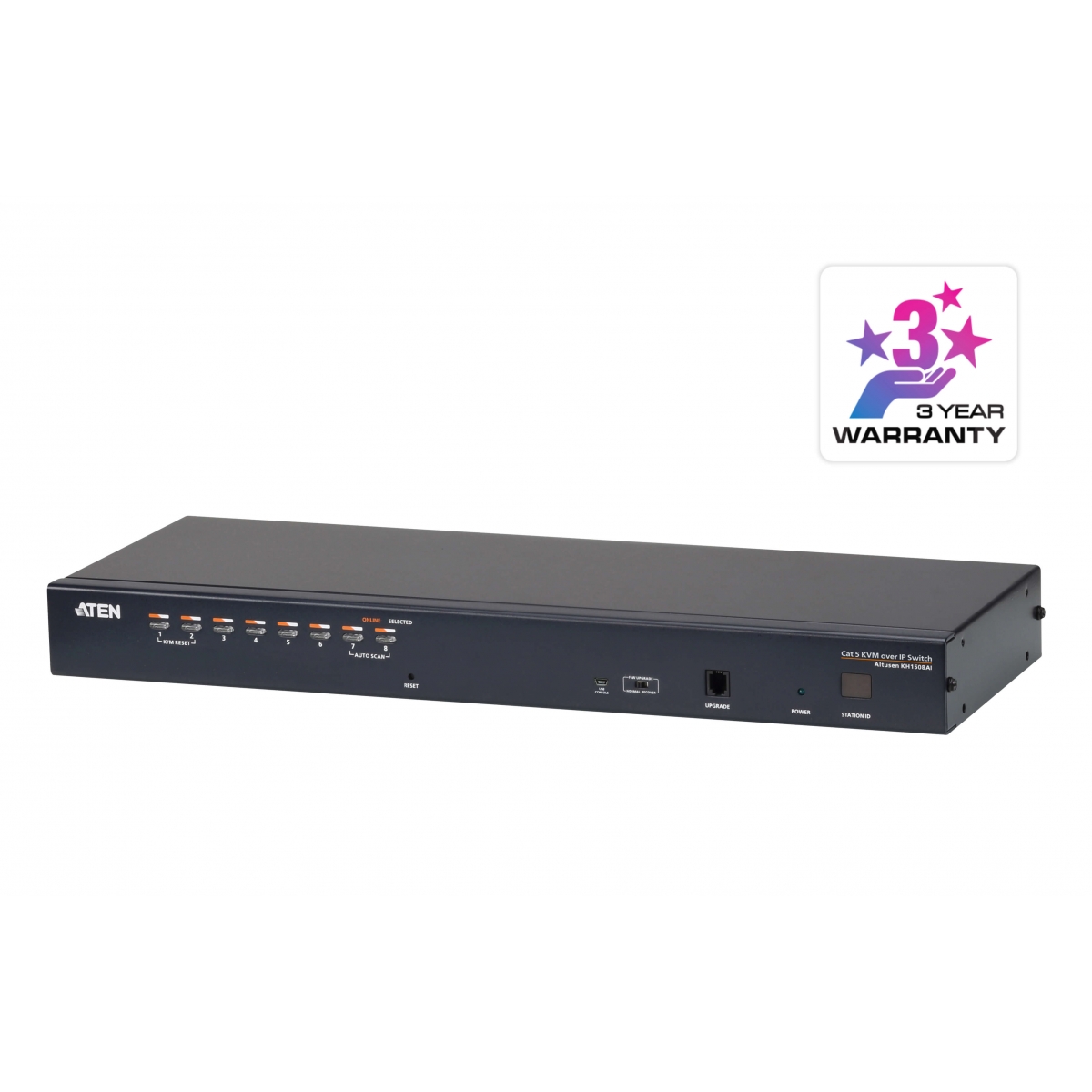

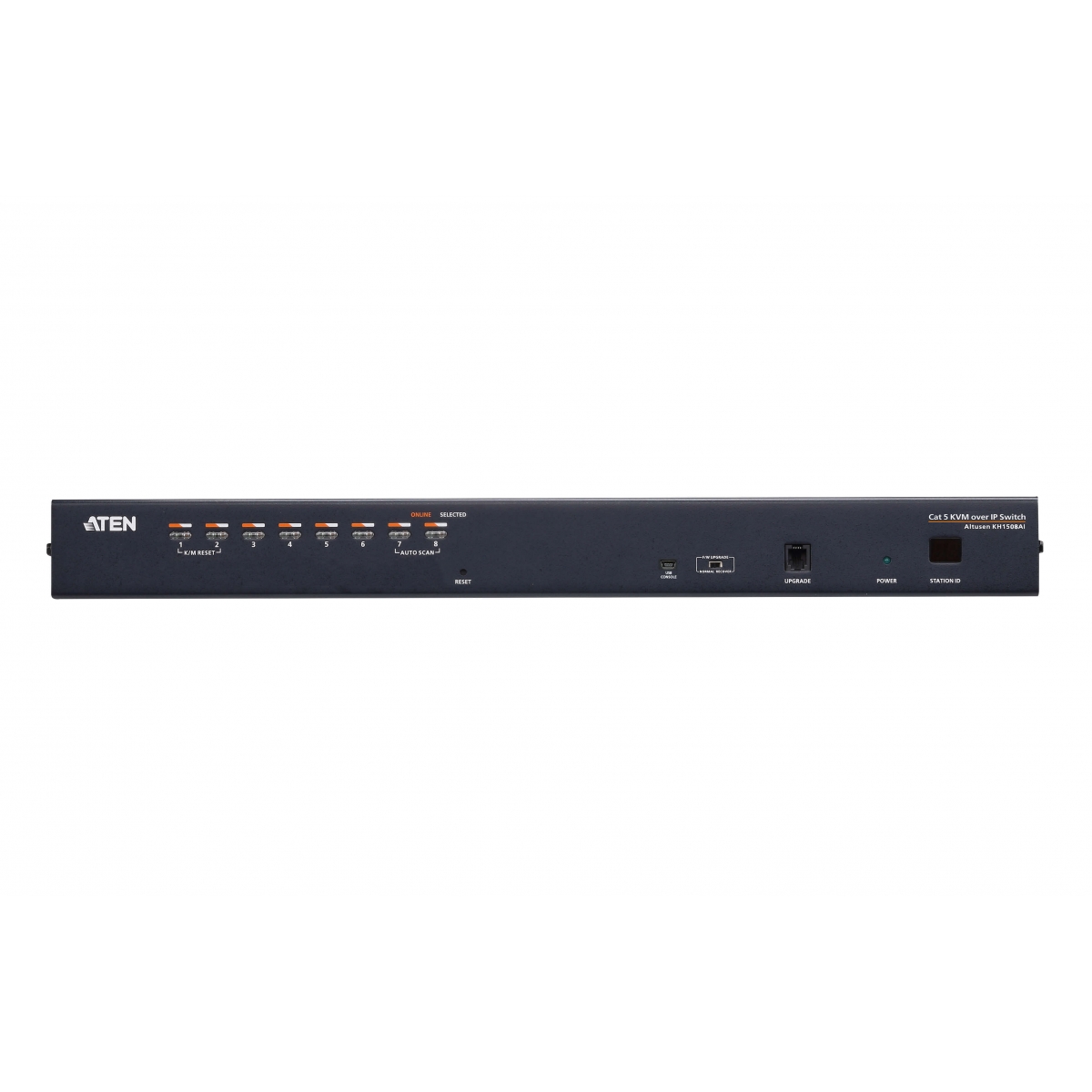

- 1x KH1508Ai Cat 5 High-Density KVM over IP Switch
- 1x Firmware Upgrade Cable
- 1x Laptop USB Console Cable
- 1x Power Cord
- 1x Rack Mount Kit
- 1x Foot Pad Set (4 pcs.)
- 1x User Instructions
