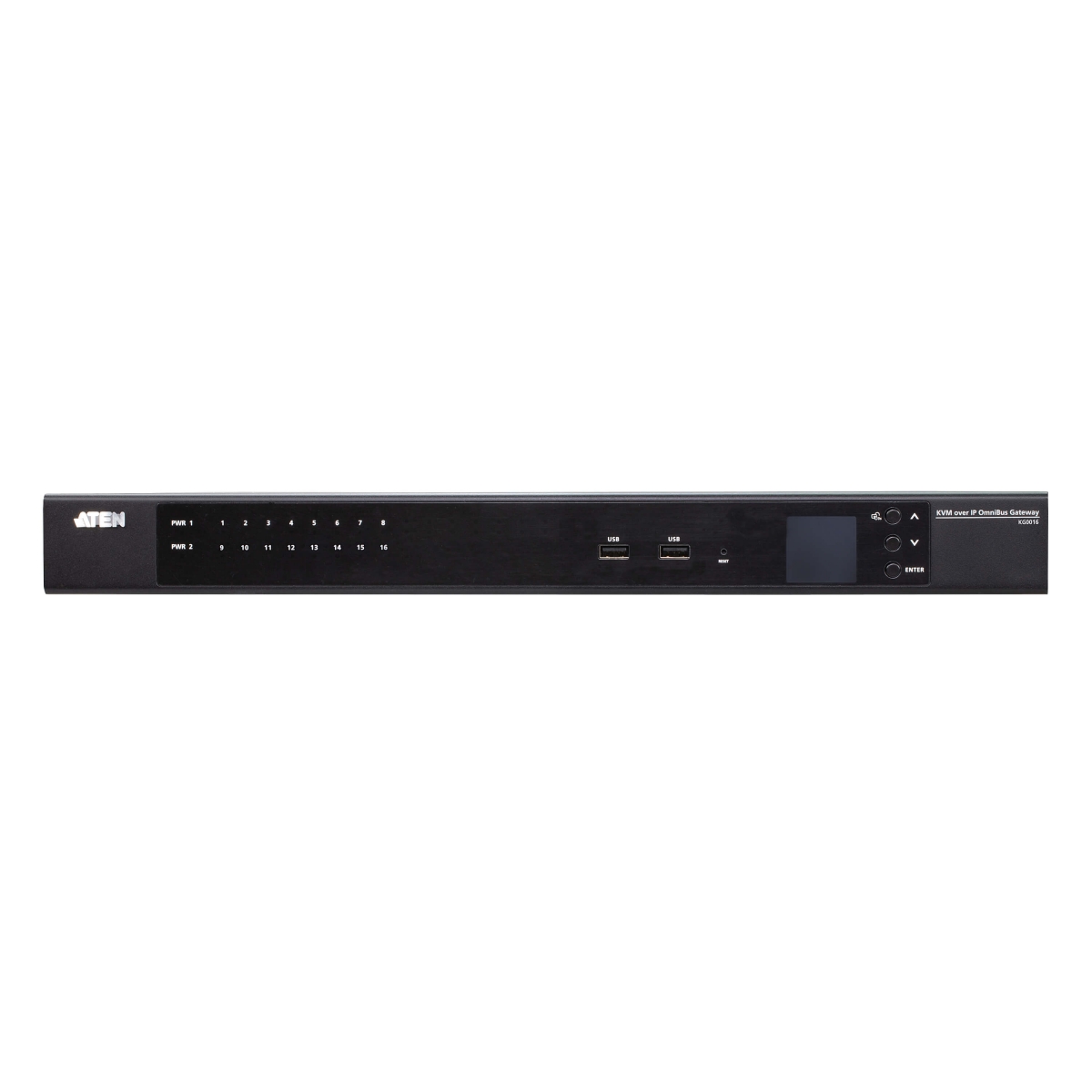

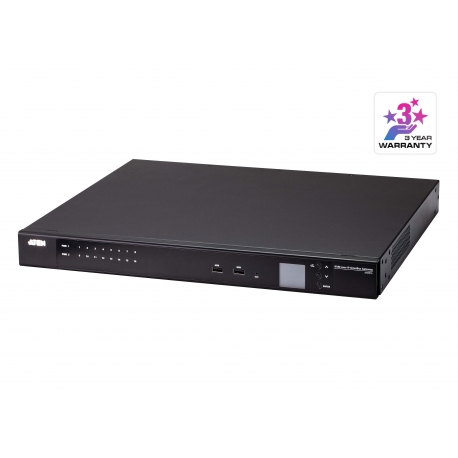

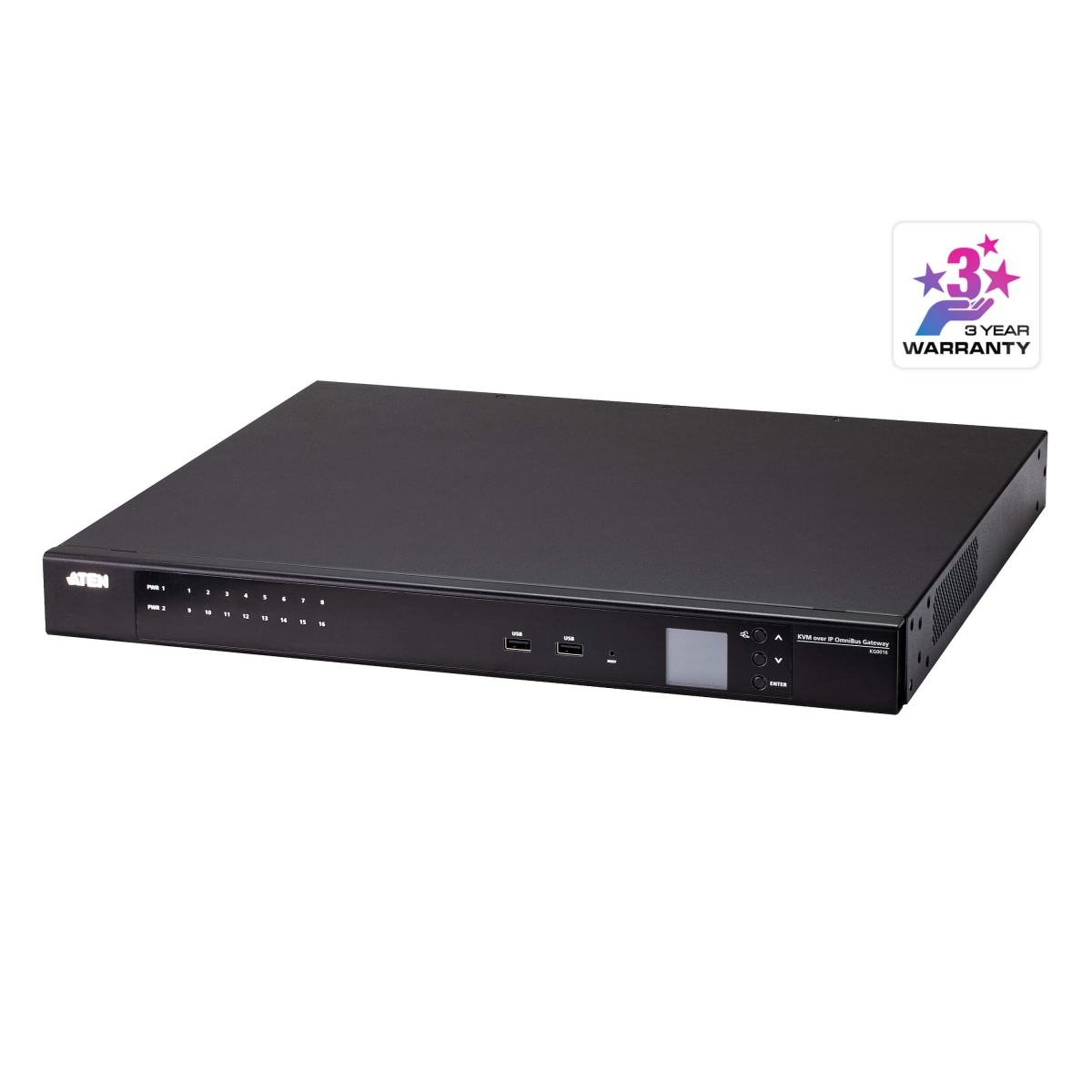

16-Port KVM over IP OmniBus Gateway
KG0016
- KVM Over IP ที่รีโมทเข้าใช้งานเซิร์ฟเวอร์ 16 เครื่องได้พร้อมกัน 16 คน
- Panel Array Mode™ Live+ ช่วยให้ monitor server ในรูปแบบ วิดีโอได้แบบ real-time ทุกพอร์ตพร้อมกันในจอเดียว และกำหนดจำนวนกรอบหน้าจอที่ต้องการให้แสดงได้
- ปลอดภัยสูงด้วย TLS 1.3 และ embedded FIPS 140-2 certified OpenSSL cryptographic module
- เดินสาย CAT5e/6 ไปยังเซิร์ฟเวอร์ได้ไกลถึง 100m
รับประกัน 3 ปีเต็ม
Spec sheet
Sustainability is pivotal in modern business, with IT/OT convergence at the forefront of innovation. This union not only heightens competitiveness but also enhances responsiveness to market demands, particularly concerning data security and network uptime. With the rise of digitalization in industry, cybersecurity's role in bolstering IT-OT synergy is crucial.
The DigiKVM™ – KG0016/KG0032 exemplifies this digital shift. This all-digital KVM over IP OmniBus Gateway champions digital transformation in spaces like server rooms and data centers. Through a secure portal, it offers centralized management and real-time remote server access. Regardless of the data signal type from the linked KVM DigiProcessor, all transmissions are digitized and protected, ensuring fast, clear video monitoring with remarkable visual accuracy.
The all-digital KVM over IP solution stands out for its robust security and versatile OS compatibility. It also presents a reliable way to manage remote IT access with out-of-band (OOBM) connection, especially when the in-band connectivity is compromised. For geographically spread businesses, it's a boon, enabling IT to quickly reinstate services and minimize business downtime.

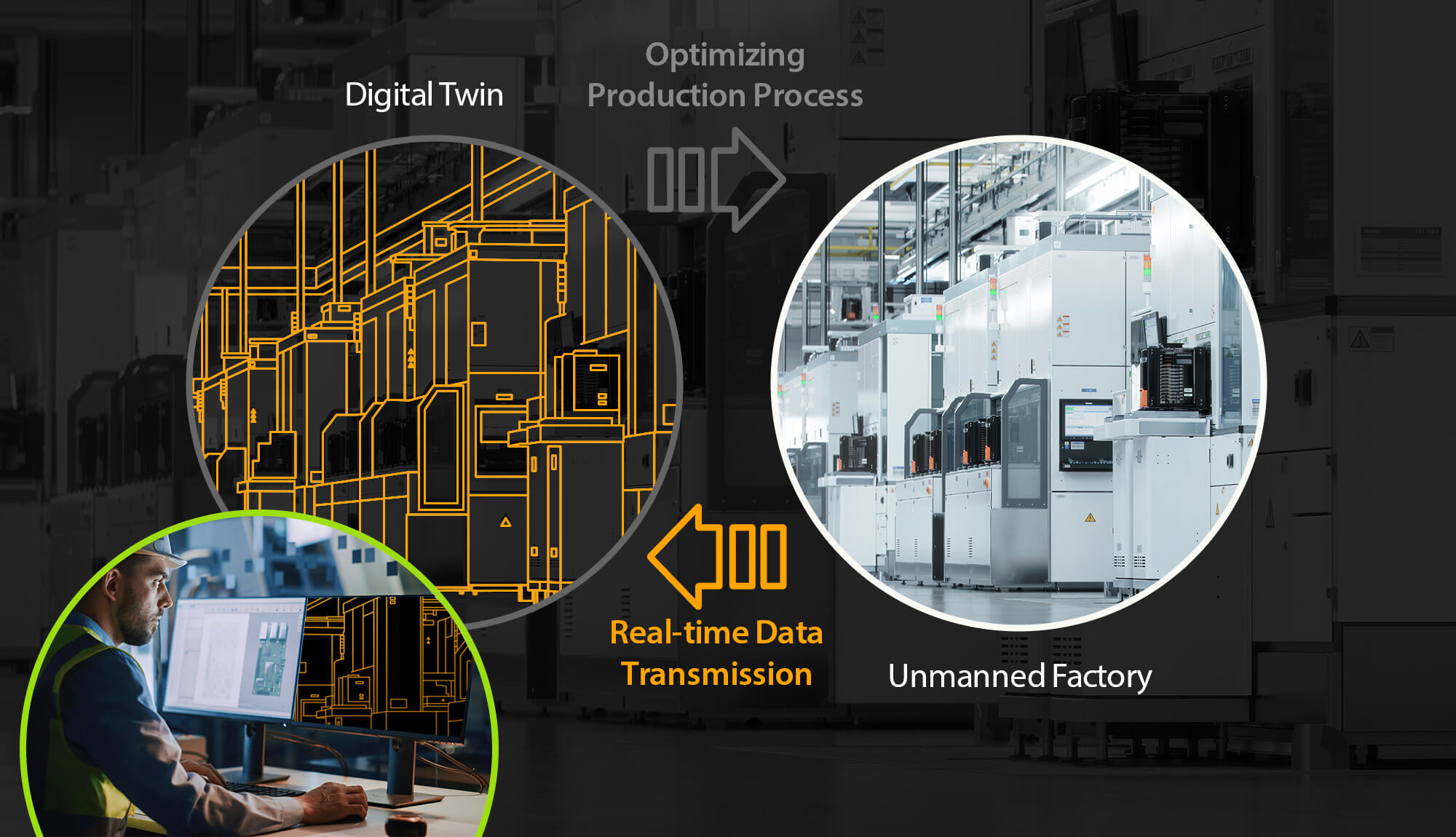

Accelerating Digitalization via Digital Twin Model
With the deployment of the KVM over IP OmniBus Gateway and the KVM DigiProcessor, equipment data collected in the production line can be monitored and processed in real time via a remote console, preventing the need to constantly enter the production line or clean room for operations. This approach facilitates manufacturing digitalization via setting up a digital twin model to streamline and optimize production line processes.

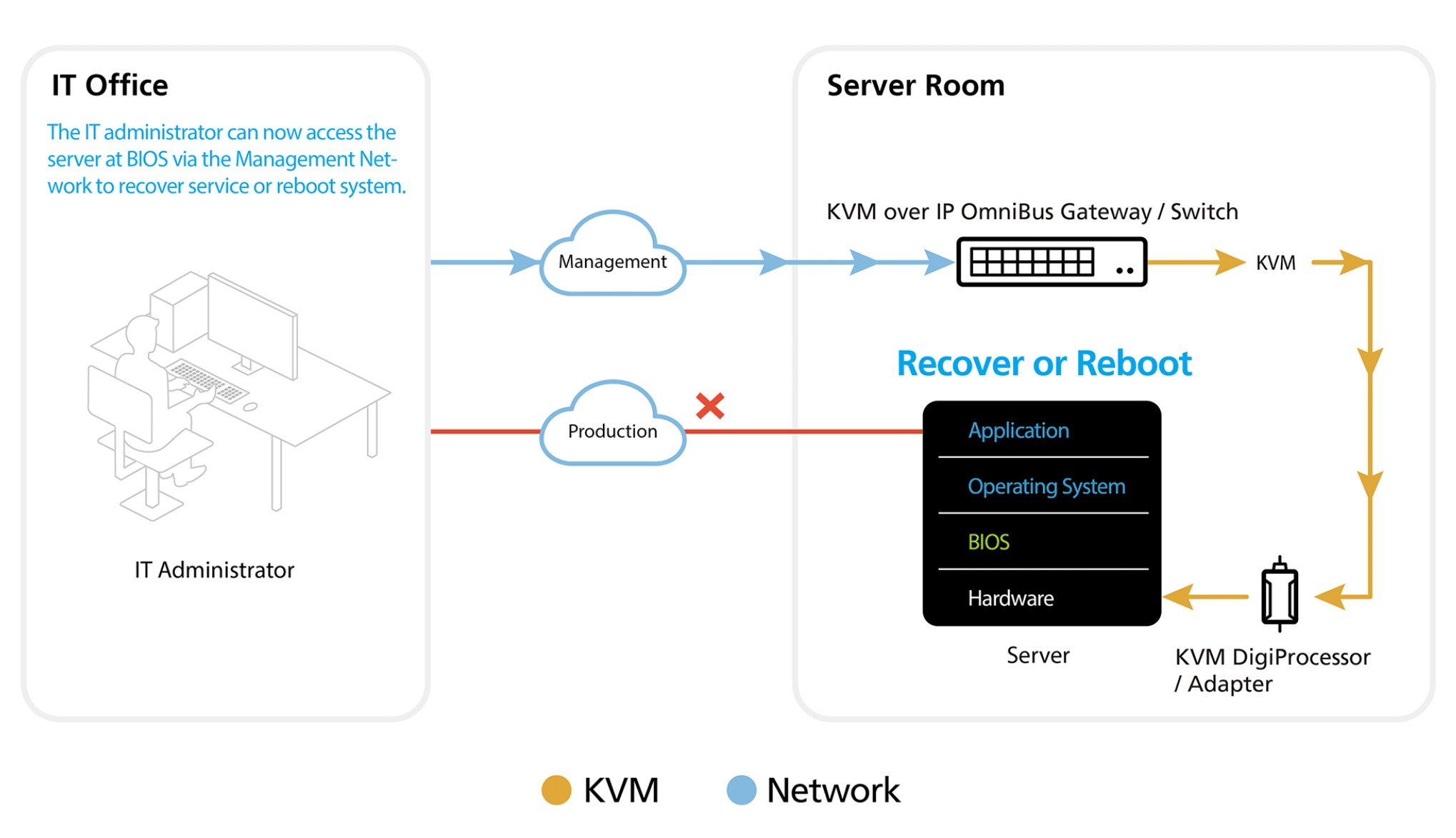

Out-of-Band Management for Any Contingency
With the management network and production network separated, the KVM over IP OmniBus Gateway connected to the management network allows the IT operator to perform timely troubleshooting (e.g. software patches, image updates, reboots, etc.) and system maintenance over the servers via BIOS during the downtime of the production network. This approach can serve as an emergency measure in contingencies while keeping data and workflow secure from end to end.

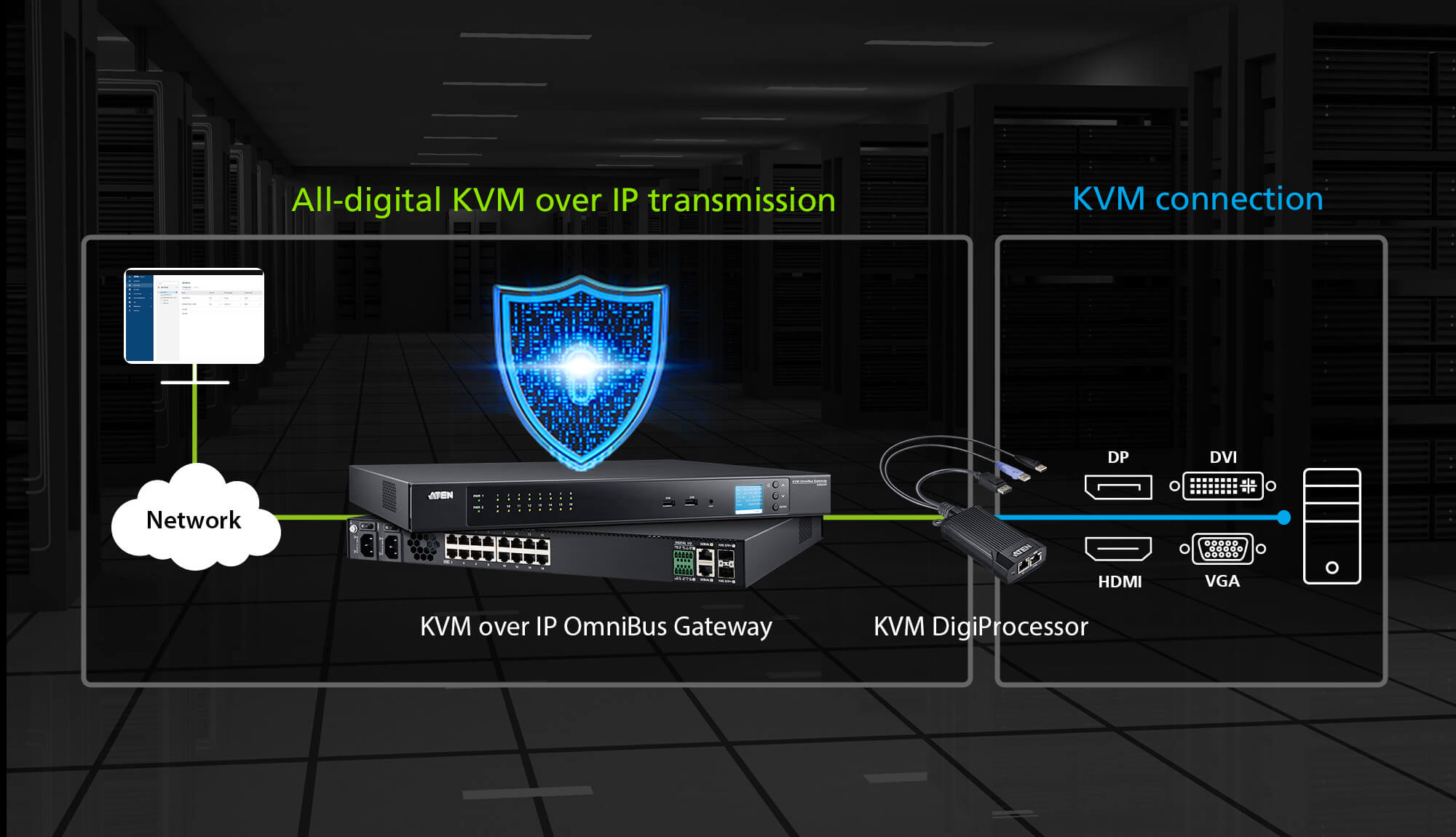

All-Digital KVM over IP Transmission Safeguarded with Robust Security
The KVM over IP OmniBus Gateway, equipped with a proprietary OS in a closed system, provides a single secure portal to centralize BIOS-level connections to PCs / servers without requiring any extra software installation or configuration. All servers are remotely accessible via a Java-Free HTML5 WebClient Viewer or an advanced WinClient Viewer, delivering all-digital KVM over IP data transmission safeguarded with TLS 1.3 and FIPS140-2 level-1 certified encryption.

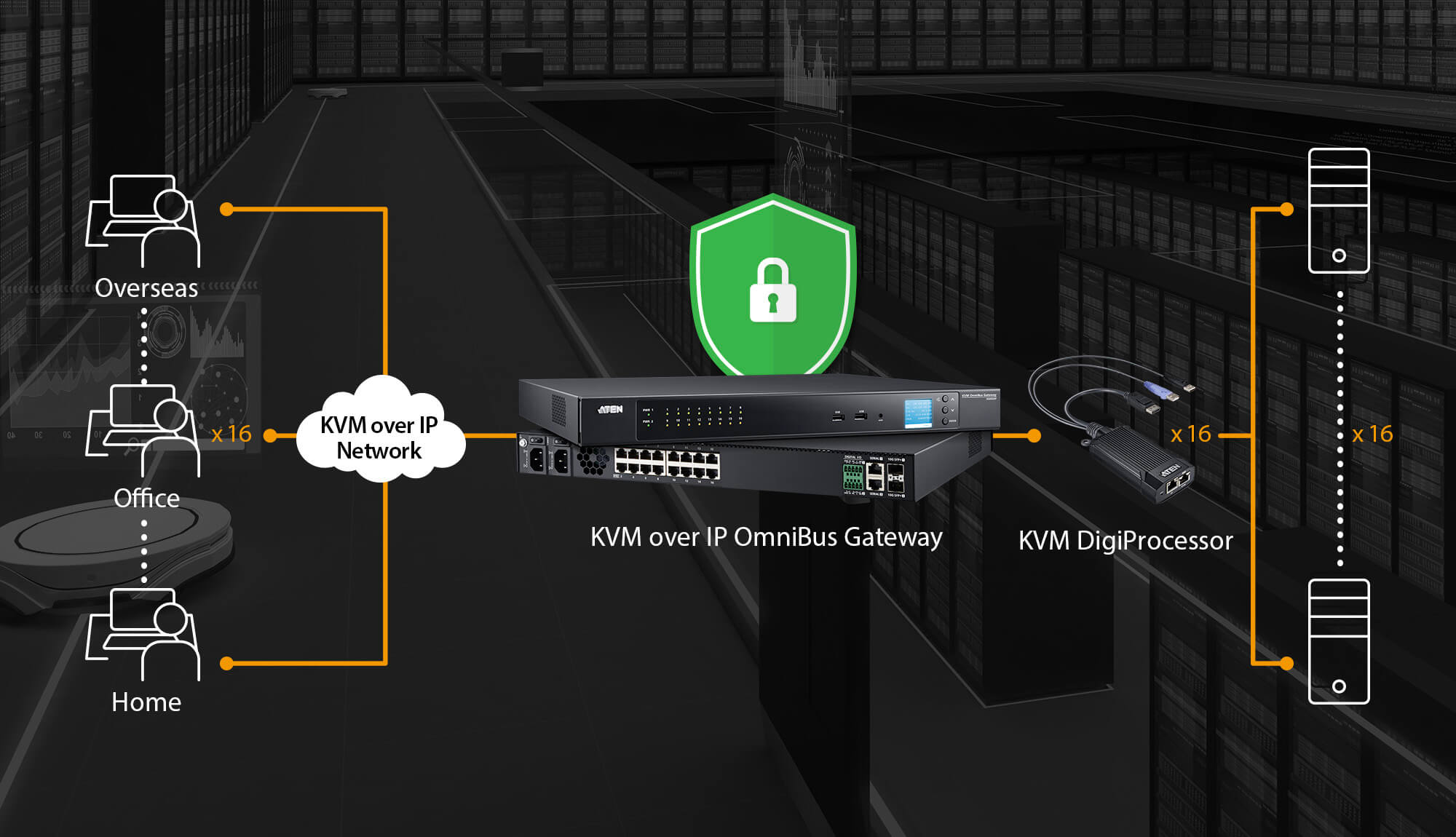

Real-time and Concurrent Remote Access, Anywhere and Anytime
The All-digital KVM over IP OmniBus Gateway allows real-time, up to 16 concurrent remote user access to any connected servers regardless where and when the login takes place. Server connection can be extended up to 100m away, delivering extraordinary FHD visual clarity and agile user experience with smooth keyboard-video-mouse synchronization.

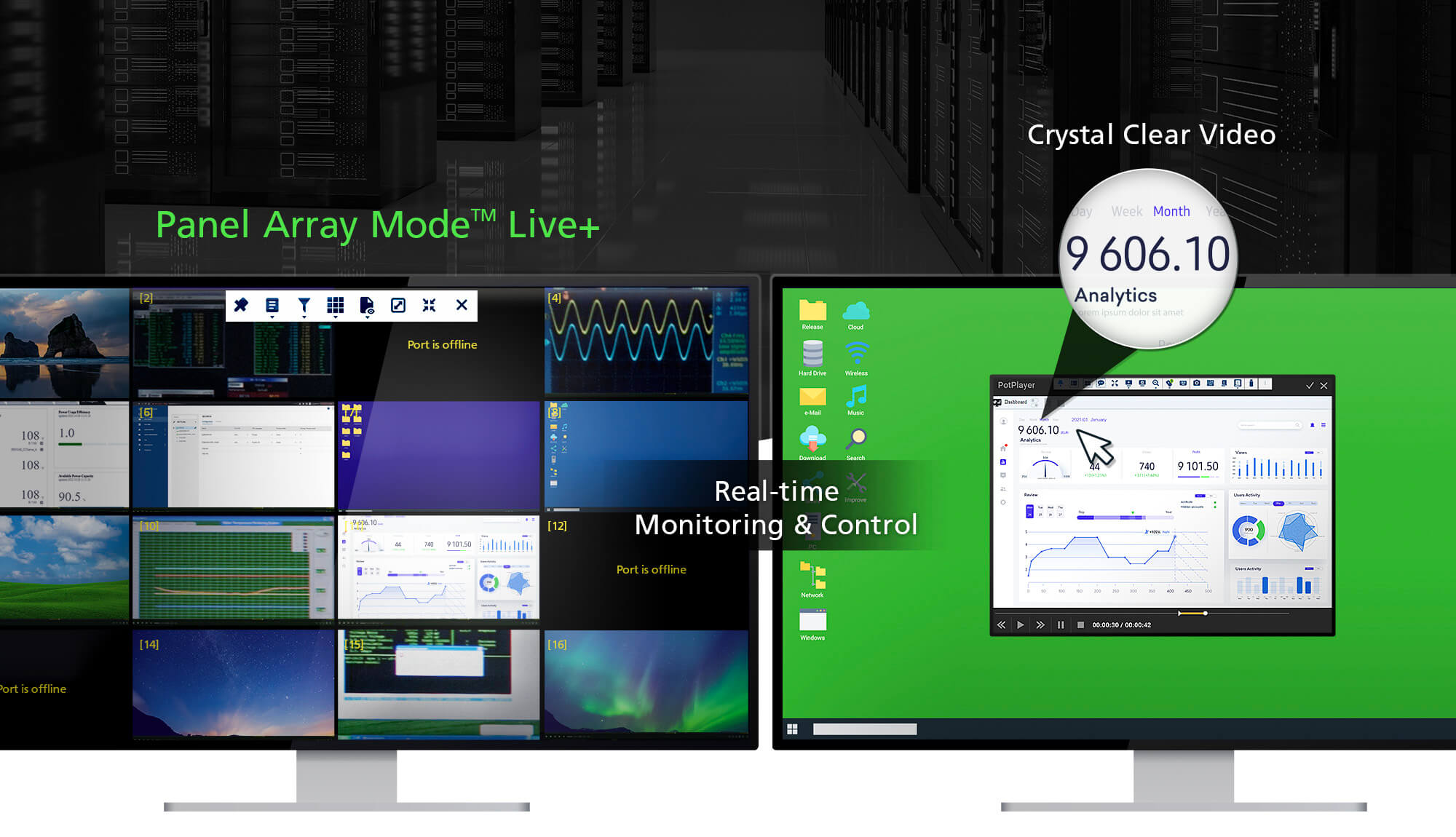

Panel Array Mode™ Live+ for Multi-View Monitoring in Clarity
Real-time monitoring is effortless with Panel Array Mode™ Live+ where content of a dedicated server is displayed in 24-bit true color and up to 1920 x 1200 @60Hz in a control-view window, while the video from all servers is presented in a multi-view grid layout which is variable as needed (up to 4x4 with KG0016 or 4x8 with KG0032). The video feed in both the control and array views is livestreamed in extraordinary smoothness for optimized situational awareness.

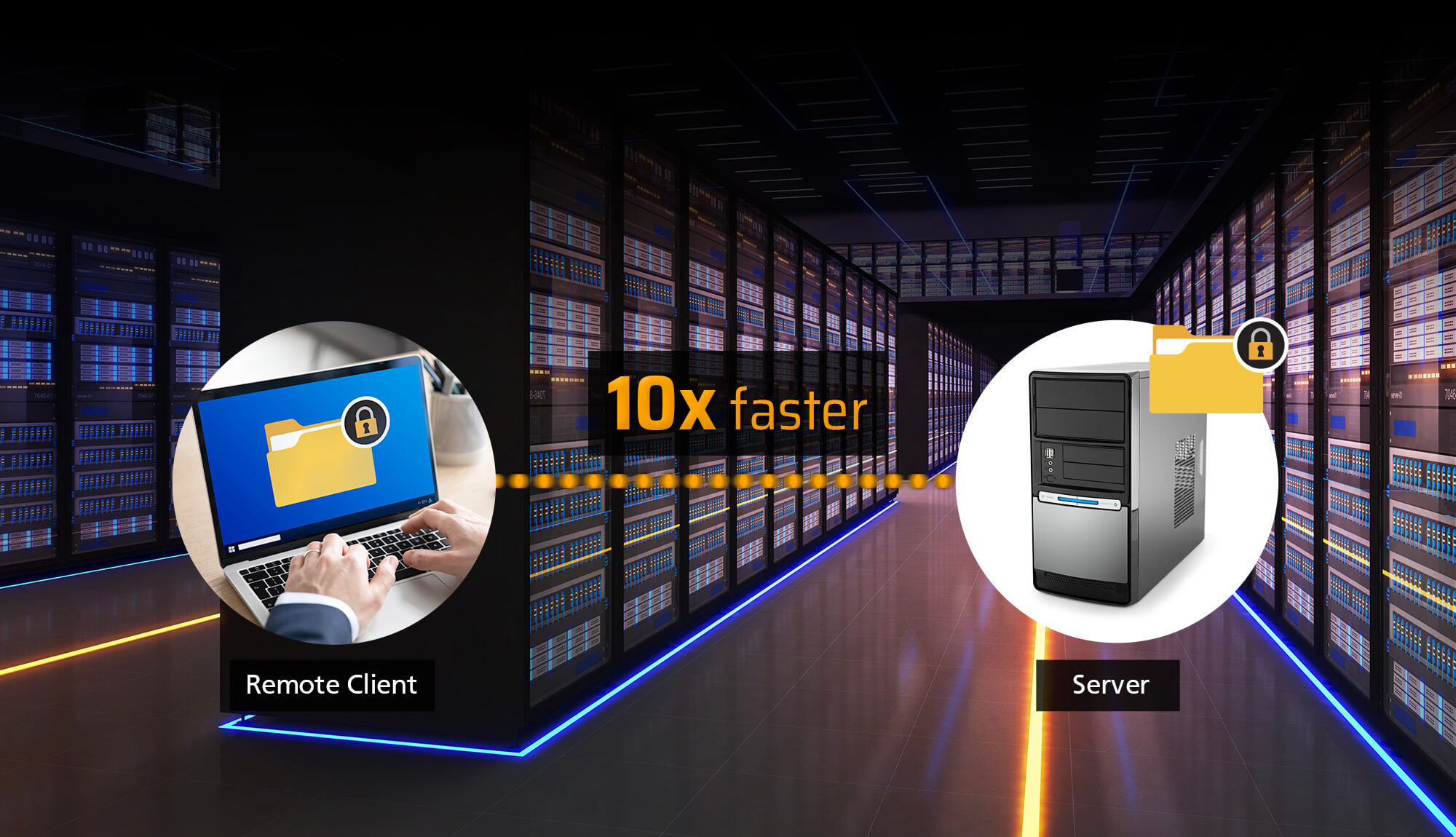

Virtual Media Support for Prompt Server Updates
Mapping media to a remote server as though it were saved locally does the trick for timely troubleshooting, reducing travel cost and minimizing MTTR (Mean Time to Repair). With a superb data transfer rate (i.e. Read: 265 Mbps, Write: 188 Mbps) proven to be 10 times faster than standard KVM over IP switches, performing firmware upgrades, diagnostic tests, file transfers, and installing software and application patches can all be accomplished smoothly and quickly from a single console located anywhere.

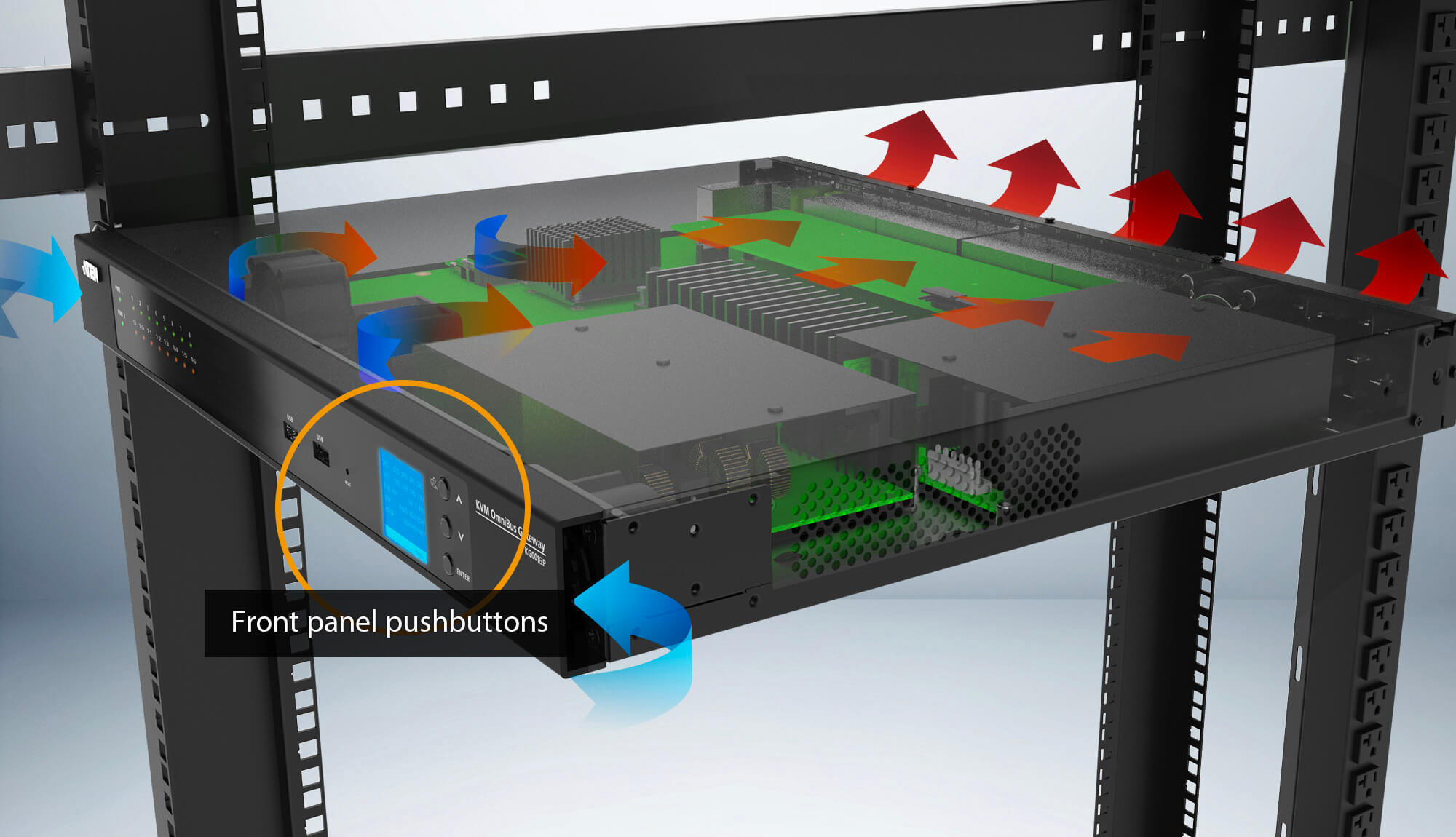

Superior Hardware Performance to Reinforce System Reliability and Usability
The KVM over IP OmniBus Gateway is built in with 4x server-grade smart fan modules, facilitating all-around airflow efficiency for strengthened system reliability. When the system is idle or under light workload, the fan then runs in a low hum under 40 dBA. In addition, the front panel pushbuttons can be used to perform timely troubleshooting with prompt device configuration and system reboot in contingencies, and also locked to secure system settings from unauthorized access.

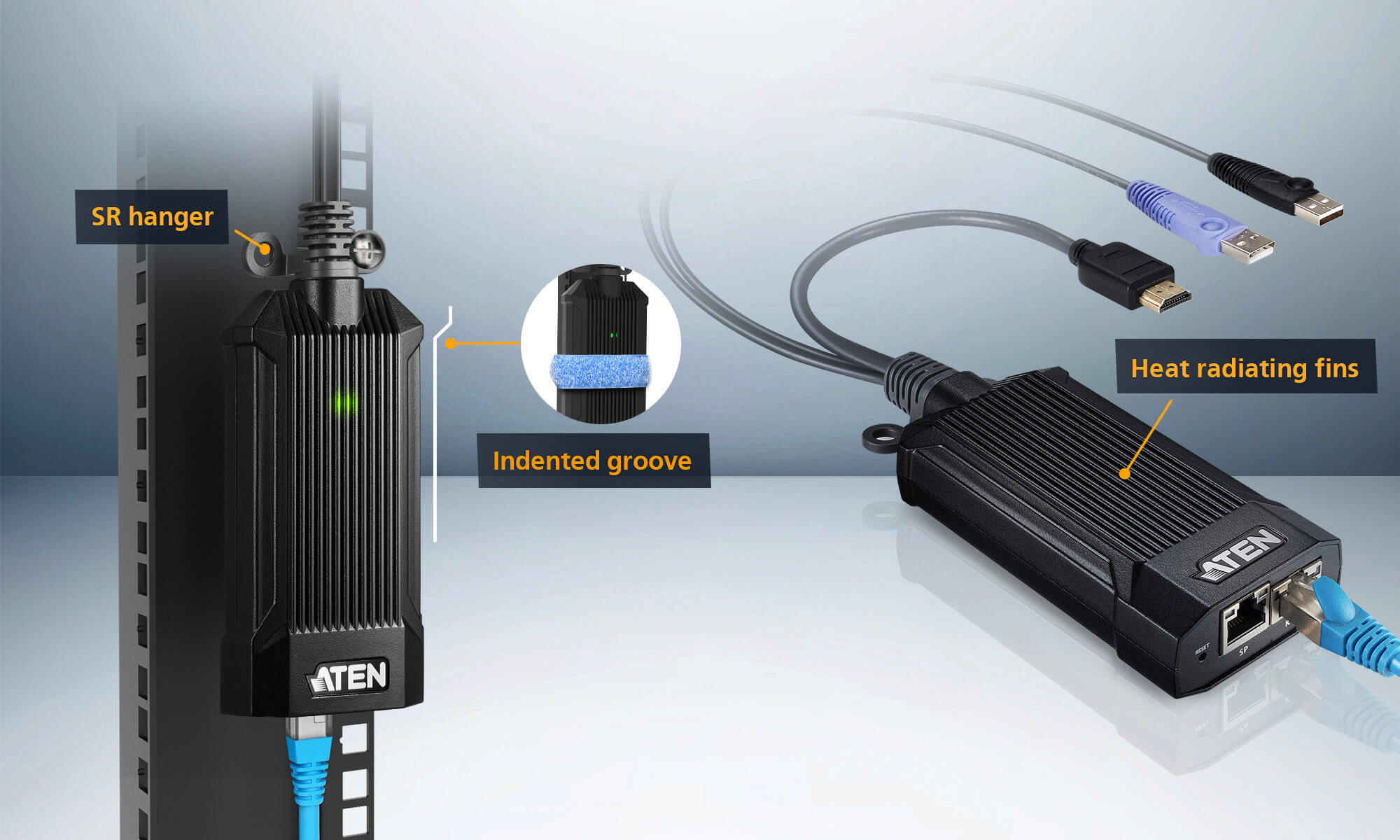

Industry's Most Compact KVM DigiProcessor to Maximize Rack Space Efficiency
The KVM DigiProcessor, available in VGA, DVI, HDMI and DisplayPort connectivity, is 25% lighter in weight and ¼ the size of comparable products for optimized in-rack server connections. The anti-bending SR hanger allows for flexible yet stable in-rack installation, while the indented groove on both sides is intended to prevent the device from falling loose when tied onto the rack. In addition, the heat radiating fins are purposed to boost airflow efficiency to ensure system reliability.
Applications
The All-Digital KVM over IP solution facilitates seamless IT/OT convergence with comprehensive server management, and is perfectly suited to various industrial applications that are accelerating towards digital transformation.
IT Infrastructure Management
- BIOS level access
- Superb Virtual Media read/write data transfer rate
- TLS 1.3 & FIPS140-2 encryption
Information Visualization
- Up to 16 concurrent remote user access to any connected server
- Real-time remote monitoring and control
- Panel Array Mode Live+ with livestreamed video feed
Production Automation
- Delay-free Remote Control
- Real-time remote monitoring and equipment access
- Panel Array Mode Live+ with livestreamed visuals from production line equipment
Remote Monitoring & Control
- Up to 16 concurrent remote user access to any connected server
- Panel Array Mode Live+ with livestreamed video feed
- Superb Virtual Media read/write data transfer rate
Features
- Hardware
- High port density – RJ-45 connectors and Cat 5e / 6 cable for up to 16 ports in 1U housing
- All-digital KVM over IP optimum transmission – offers reliable transmission over long distances with noise immunity, signal quality preservation, and efficient compression and storage
- Extends 1920 x 1200 @ 60 Hz resolutions up to 100m via Cat 5e/6 without signal interference and close-to-zero latency
- Up to 16 independent connections for remote KVM over IP access
- Dual 10G NICs for redundant LAN or two IP operation
- LCD display – provides real-time connection status, notifications, and system alert message
- LED indication of connection and hardware status
- Multi-platform server environments: Windows, Mac, and Linux
- All-around ventilation chassis design improves airflow efficiency – induces cold air suction on both sides at the front panel and dissipates heat via ventilation holes on the back panel
- Dual power supply with power redundancy
- Management
- Simultaneously shares 16 independent connections to the attached servers
- Out-of-Band access
- Green IT Fan – auto-fan-speed adjustment corresponding to temperature
- Event logging and Windows-based log server
- Event notification – supports notification of SMTP email, SNMP Trap, and SMS (with additional mobile devices)
- Event destination – event logs will be saved to Log server, Syslog server, and USB drive
- Firmware upgradeable
- Port share mode – allows multiple users to gain access to a server simultaneously
- Supports IPv4, IPv6
- Easy-to-Use Interface
- The intuitive WinClient AP's supports of an Array View and a Control View – enables users to monitor all servers and control a specific server concurrently
- Panel Array Mode™ Live+ – real-time monitoring of livestreamed video feeds from all ports in a configurable multiscreen layout
- Browser-based, and AP GUIs offer a unified multi-language interface to minimize user training time and increase productivity
- Multiplatform client support (Windows, Mac OS X, and Linux) via WebClient
- Multi-browser support – Edge, Chrome, Firefox, Safari, and Opera
- Supports web-friendly KVM-over-IP access with HTML5 WebClient viewer – users can remotely access all the connected servers and PCs without Java or browser plug-in installation
- Full-screen or sizable and scalable virtual remote desktop
- Keyboard / mouse broadcast – keyboard and mouse signals can be duplicated across all servers simultaneously
- Security
- High-grade security – supports an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #4282)
- Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
- Supports TLS 1.3 data encryption and RSA 2048-bit certificates to secure user logins in from browser
- Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, or random for video, and virtual media data encryption
- Support for IP / MAC filter
- Configurable user and group permissions for server access and control
- Automated CSR creation utility and third party CA certificate authentication
- Virtual Media
- Virtual media transmission rate is approximately 10 times faster than traditional KVM, ideally for file transfers, OS patching, software installation, and diagnostic testing
- Works with USB-enabled servers in operating system and at the BIOS level
- Supports USB2.0 DVD / CD drives, USB mass storage devices, PC hard drives, and ISO images
- Virtual Remote Desktop
- Video quality such as monochrome color depth and bandwidth’s increment / decrement can be adjusted for optimizing data transfer speed
- Mouse DynaSync™ – automatically synchronizes remote mouse movements
- On-screen keyboard with multi-language support
- BIOS-level access for troubleshooting
Diagram
Specifications
| Console Connections | |
| Local | N/A |
| Remote | 16 |
| Computer Connections | |
| Direct | 16 |
| Port Selection | GUI |

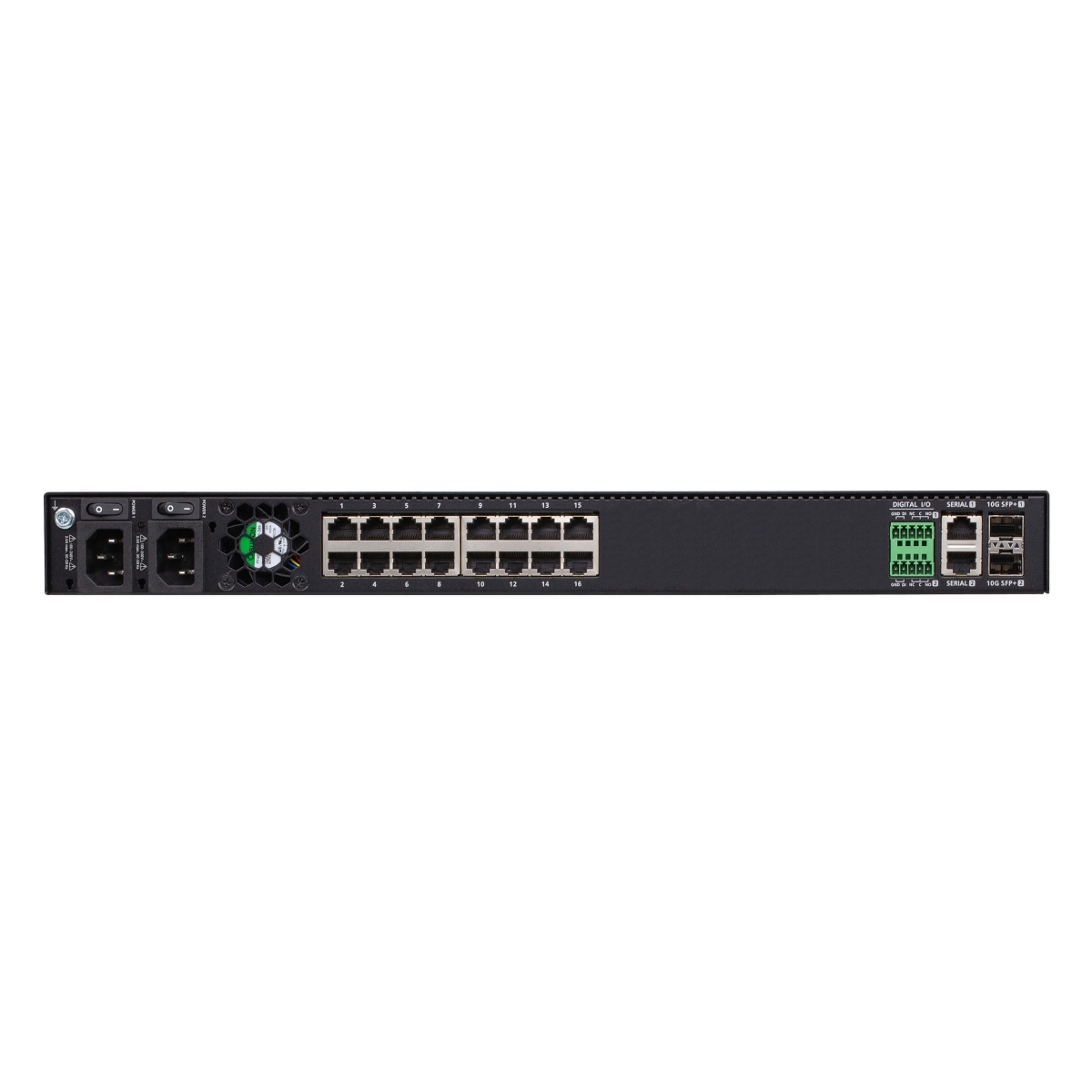

| Connectors | |
| USB Port | 2 x USB Type-A Female (Reserved for futuer expansion) |
| KVM Ports | 16 x RJ-45 Female |
| SFP+ Uplink Ports | 2 x SFP+ Slots |
| Serial | 2 x RJ-45 Female (Reserved for future expansion) |
| Power | 2 x IEC 60320/C14 |
| Input | 2 x 2-pin DI (Reserved for future expansion) |
| Relay | 2 x 3-pin Relay (Reserved for future expansion) |
| Switches | |
| Reset | 1 x Semi-recessed Pushbutton |
| Power | 2 x Rocker Switches |
| LEDs | |
| KVM Ports | 16 (Green) |
| Power | 2 (Green) |
| Panel Spec | |
| Size | 1.6" |
| Resolution | 128x64 |
| Pushbuttons | |
| Select | 3 x Pushbuttons (Up, Down, Enter) |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | |
| Remote | 1920 x 1200 @ 60Hz |
| Maximum Input Power Rating | 100–240V~ ; 50-60Hz; 1A |
| Power Consumption | AC110V:34.1W:117BTU AC220V:34.6W:118BTU |
| Environmental | |
| Operating Temperature | 0 - 40˚C |
| Storage Temperature | -20 - 60˚C |
| Humidity | 10 - 80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 6.43 kg ( 14.16 lb ) |
| Dimensions (L x W x H) | 43.36 x 37.90 x 4.40 cm (17.07 x 14.92 x 1.73 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Package Contents
- 1x KG0016 16-Port KVM over IP OmniBus Gateway
- 1x footpad set (4 pcs)
- 1x mounting kit
- 2x control terminal blocks
- 2x power cords
- 2x Lok-U-Plugs
- 1x Lok-U-Plug installation tool
- 1x user instructions
ขอบพระคุณทุกความไว้วางใจ
KVM Adapter ที่ใช้ร่วมกันได้
-
Model : KG1900T
USB VGA KVM DigiProcessor
USB VGA KVM DigiProcessor (KVM Adapter) สำหรับต่อจาก เซิร์ฟเวอร์ ไปยัง KG0016, KG0032 ด้วยสาย CAT5e/6 รองรับความละเอียดสูงสุด 1920x1200@60Hz ต่อสาย CAT5e/6 ได้ไกลถึง 100m รองรับ Virtual Media ความเร็วสูง
-
Model : KG6900T
USB DVI KVM DigiProcessor
USB DVI KVM DigiProcessor (KVM Adapter) สำหรับต่อจาก เซิร์ฟเวอร์ ไปยัง KG0016, KG0032 ด้วยสาย CAT5e/6 รองรับความละเอียดสูงสุด 1920x1200@60Hz ต่อสาย CAT5e/6 ได้ไกลถึง 100m รองรับ Virtual Media ความเร็วสูง
-
Model : KG8900T
USB HDMI KVM DigiProcessor
USB HDMI KVM DigiProcessor (KVM Adapter) สำหรับต่อจาก เซิร์ฟเวอร์ ไปยัง KG0016, KG0032 ด้วยสาย CAT5e/6 รองรับความละเอียดสูงสุด 1920x1200@60Hz ต่อสาย CAT5e/6 ได้ไกลถึง 100m รองรับ Virtual Media ความเร็วสูง
-
Model : KG9900T
USB DisplayPort KVM DigiProcessor
USB DisplayPort KVM DigiProcessor (KVM Adapter) สำหรับต่อจาก เซิร์ฟเวอร์ ไปยัง KG0016, KG0032 ด้วยสาย CAT5e/6 รองรับความละเอียดสูงสุด 1920x1200@60Hz ต่อสาย CAT5e/6 ได้ไกลถึง 100m รองรับ Virtual Media ความเร็วสูง
