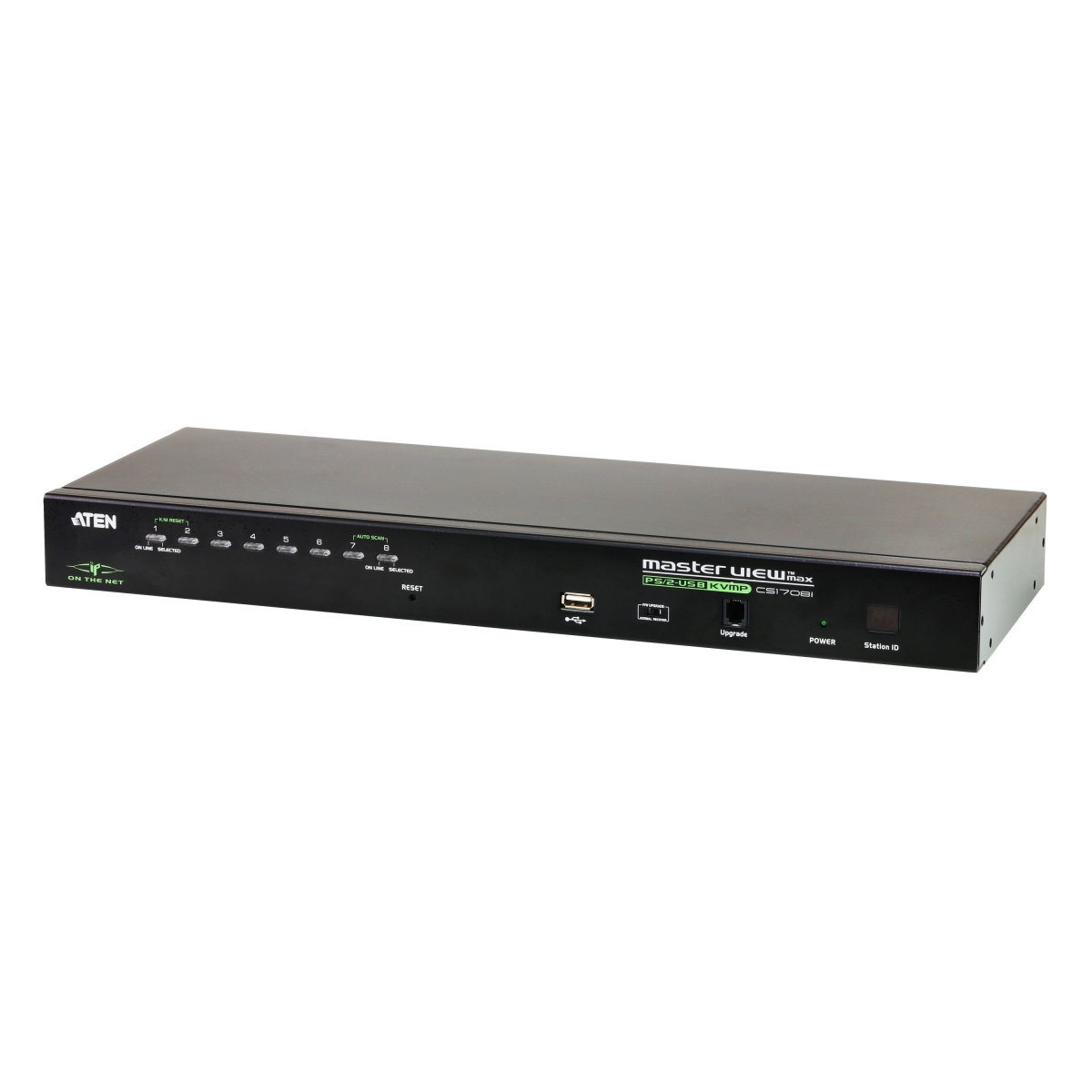

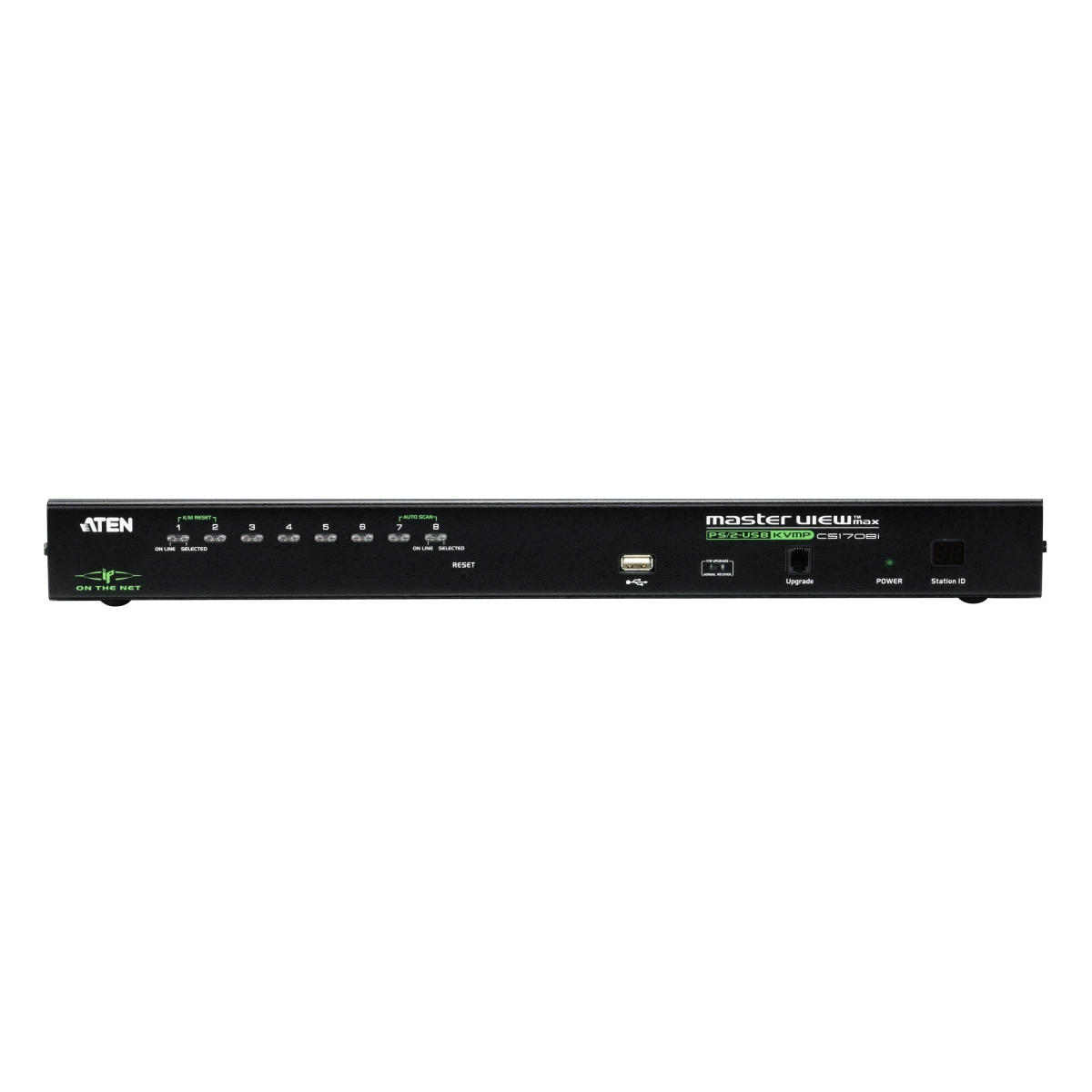

1-Local/Remote Share Access 8-Port PS/2-USB VGA KVM over IP Switch
CS1708i
The CS1708i KVM switches is an IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers.
รับประกัน 3 ปีเต็ม
Spec sheetFeatures
Management
- Up to 64 user accounts
- Convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
- Up to 32 concurrent logins
- Multilanguage web UI support featuring a tree-structured local and remote OSD
- Adjustable video quality for flexible adaptation to diverse network environments
- Auto Scan feature for monitoring user-selected computers
- Broadcast mode – operations from the keyboard can be simultaneously performed on all selected computers on the installation (software installation, system-wide shutdown, etc.)
- Firmware upgradable
- Backup and restore configuration and user account settings
- Event logging
- Enable/disable browser access
- IPv6 capable
Ease-to-Use Interface
- Browser-based and AP GUIs, together with a menu-driven OSD for the local console, provide a powerful, intuitive, user-friendly, multilanguage interface to minimize user training time and increase productivity
- Multiplatform client support (windows, Mac OS X, Linux, Sun)
- Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
- Port names automatically reconfigured when station sequence is changed
- Panel array mode enables user to monitor multiple servers from single screen at the same time - each selected server's video output appears in a separate panel - users can easily select the number of panels to view
- Windows client and Java client software support; Java client works with all operating systems
Advanced Security
- Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse and video data encryption
- Supports TLS 1.2 data encryption and RSA 2048 bit certificates for secure user logins from a browser
- External (Remote) authentication support: RADIUS, LDAP, LDAPS, MS Active Directory
- Support for IP/MAC Filter
- Local and remote access logged and authenticated
Virtual Remote Desktop
- Resizable remote desktop window
- Message board allows logged in users to communicate with each other, and allows a user to take exclusive control of the KVM functions
- Mouse DynaSync™
- On-screen keyboard with multilanguage support
- BIOS-level access
Hardware
- 8-port remote access KVM switch - monitor and control up to 8 computers from a single KVM console
- Daisy chain up to 15 additional units - control up to 128 computers from a single console*
- Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel LED indicates station's position
- Hot pluggable - add or remove computers without having to power down the switch
- Multiplatform support - Windows, Linux, Mac, and Sun
- Front panel USB hub allows connected computers to access USB peripherals
- Dual Interface - supports PS/2 or USB keyboard and mouse computer connections with automatic interface detection
- USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Supports USB keyboards for Windows, Mac and Sun
- Superior video quality - up to 2048 x 1536; DDC2B for the local console; up to 1920 x 1200 @ 60Hz** and 1600 x 1200 @ 60Hz / 24 bit color depth for remote sessions
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Rack mountable in a 1U system rack
* Compatible KVM Switches include the following: ACS1208A, ACS1216A, CS1708A, CS1716A, KH1508A, KH1516A
** The video quality of CS1708i has been enhanced to Full HD. To distinguish between the non-FHD and FHD versions, please refer to below link: FHD & Non-FHD Comparison Photo
Diagram
Specifications
| Computer Connections | |
| Direct | 8 |
| Maximum | 128 (via daisy chain) |
| Port Selection | OSD/GUI; Hotkey; Pushbutton |

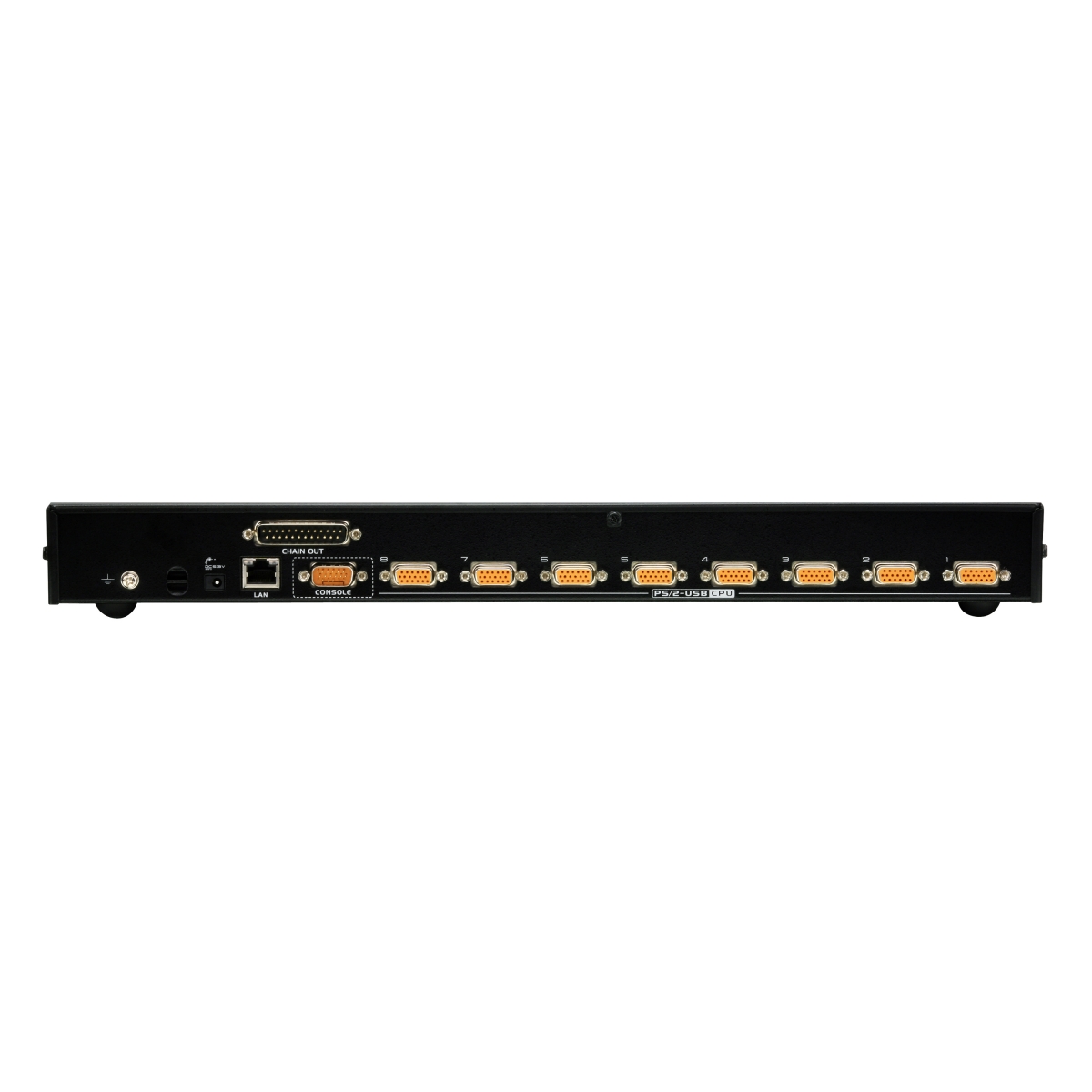

| Connectors | |
| Console Ports | 1 x SPHD Male (Yellow) |
| KVM Ports | 8 x SPHD Female (Yellow) |
| Daisy Chain Ports | 1 x DB-25 Male |
| Power | 1 x DC Jack |
| LAN Ports | 1 x RJ-45 Female |
| Firmware Upgrade | 1 x RJ-11 |
| USB Port | 1 x USB Type A Female |
| Switches | |
| Reset | 1 x Semi-recessed Pushbutton |
| Port Selection | 8 x Pushbutton |
| Firmware Upgrade Recovery | 1 x Slide |
| LEDs | |
| Online | 8 (Orange) |
| Selected | 8 (Green) |
| Station ID | 1 x 2-digit, 7-segment (Orange) |
| Power | 1 (Dark Green) |
| 10/100 Mbps | 1 (Orange/Green - at LAN port) |
| Emulation | |
| Keyboard / Mouse | PS/2, USB |
| Video | |
| Local | 2048 x 1536; DDC2B |
| Remote | FHD : 1920 x 1200 @ 60Hz Non-FHD : 1600 x 1200 @ 60Hz |
| Scan Interval | 1–255 sec. |
| Power Consumption | DC5.3V:7.67W:55BTU |
| Environmental | |
| Operating Temperature | 0–50°C |
| Storage Temperature | -20–60°C |
| Humidity | 0–80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 2.81 kg ( 6.19 lb ) |
| Dimensions (L x W x H) | 43.72 x 15.96 x 4.40 cm (17.21 x 6.28 x 1.73 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Package Contents
- 1x CS1708i KVM over IP Switch
- 1x Custom KVM Cable (VGA, USB; 1.8m/6ft)
- 1x Custom KVM Cable (VGA, PS/2; 1.8m/6ft)
- 1x Custom Console Cable (VGA, USB, PS/2; 27cm/0.88ft)
- 1x Firmware Upgrade Cable
- 1x Mounting Kit
- 1x Foot Pad Set (4 pcs)
- 1x Power Adapter
- 1x User Instructions
