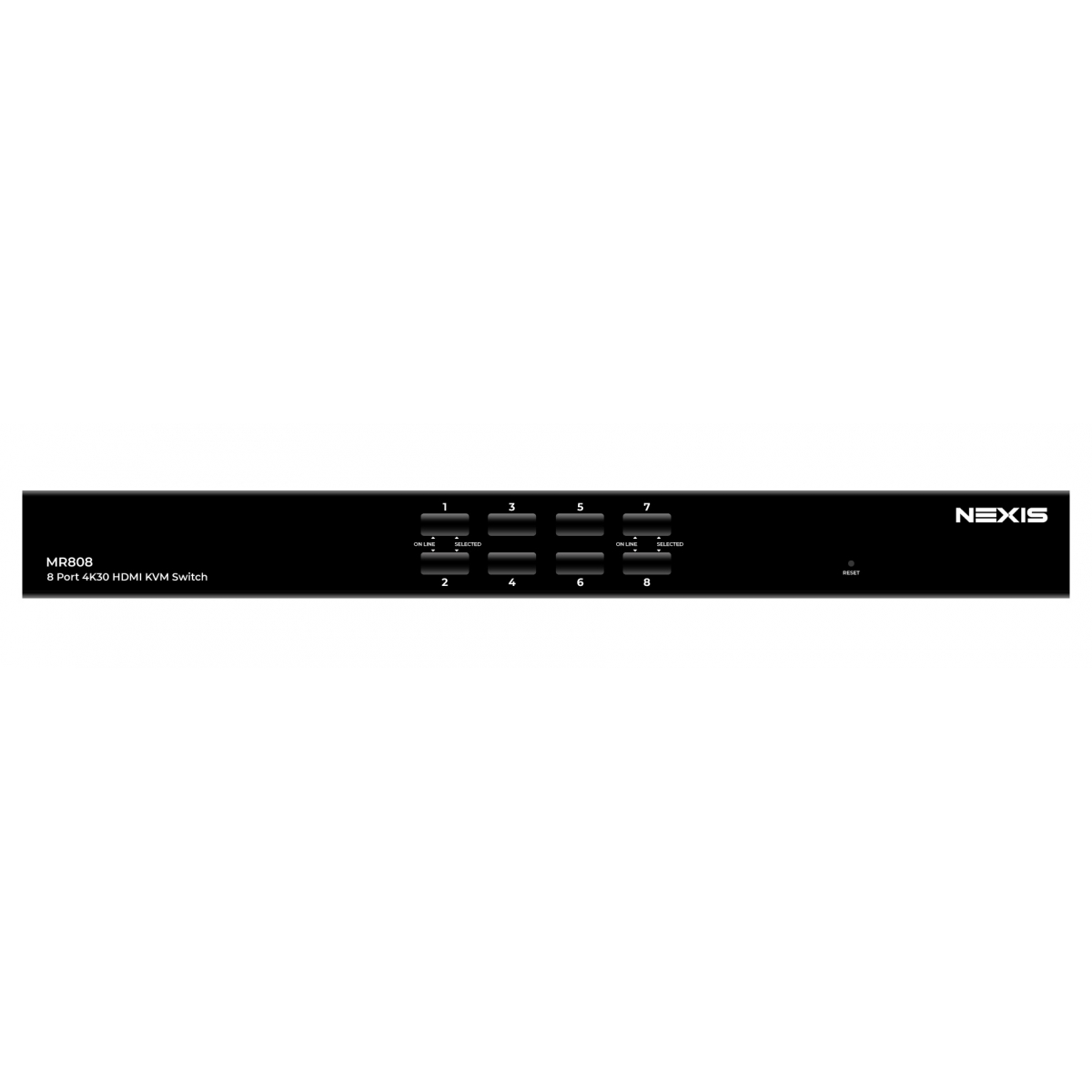

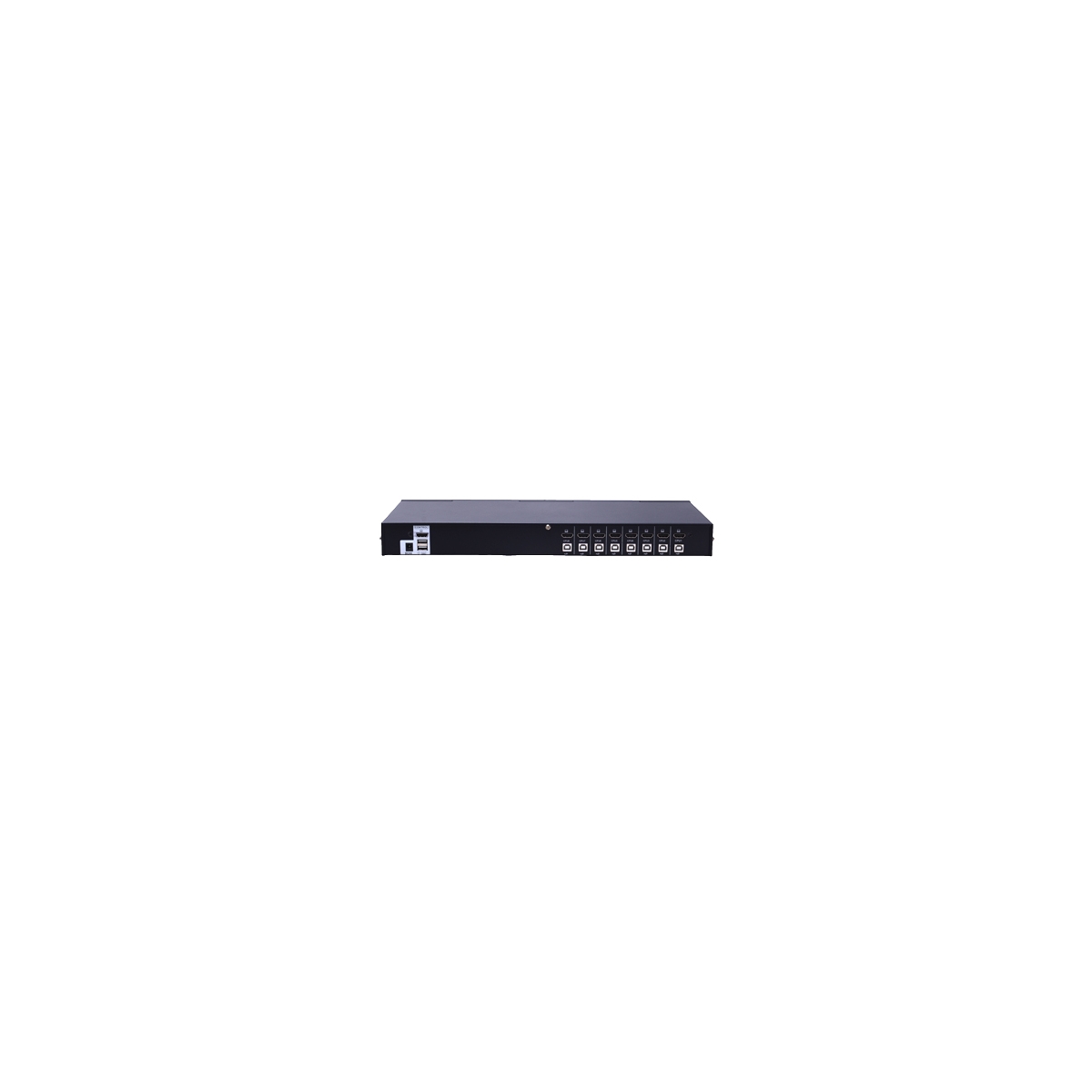

Rack-Mountable KVM Switch, HDMI 8 ports
MR808

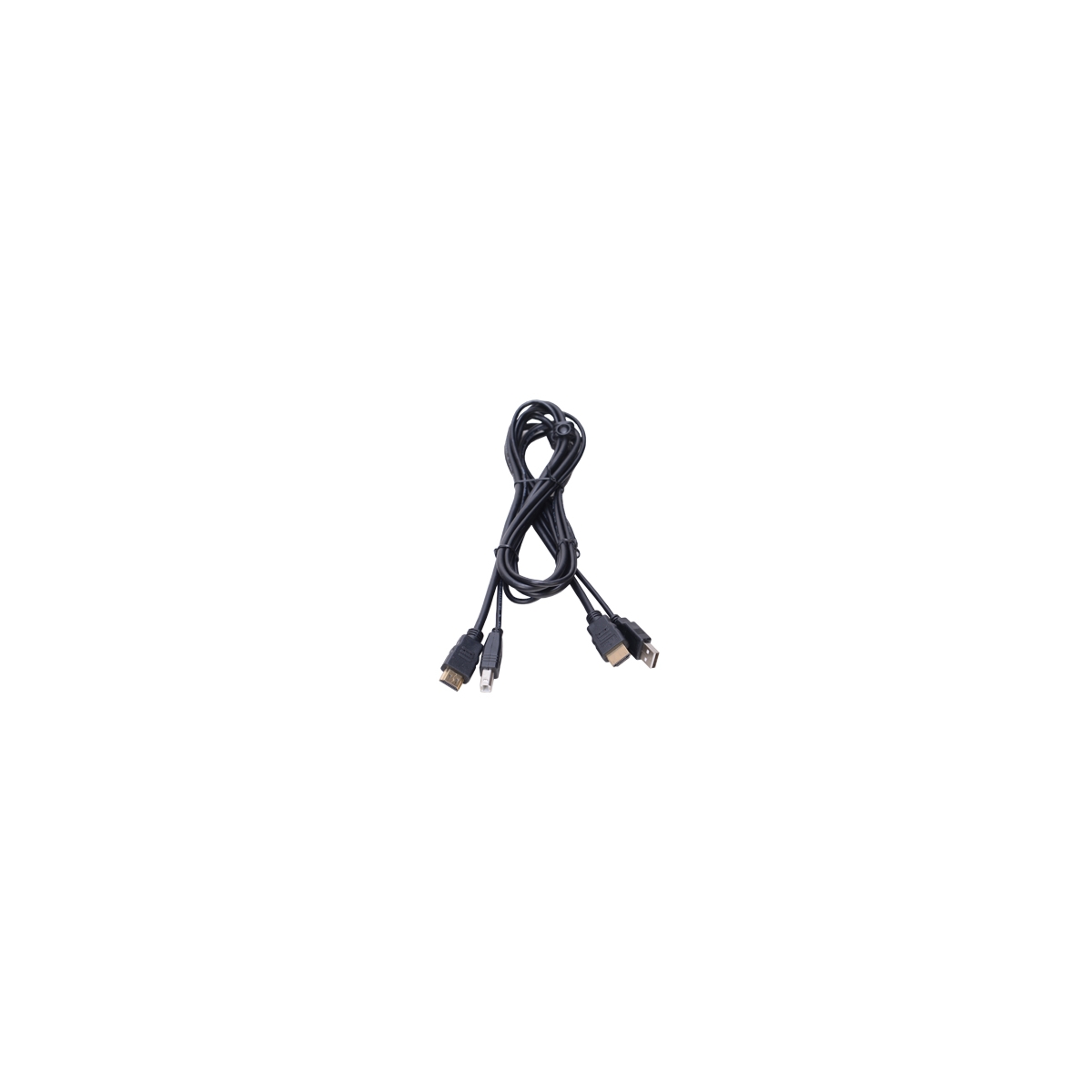

8-Port HDMI KVM Switch support resolutions 4K X 2K Ultra HD, including 1.8m KVM cables
รับประกัน 2 ปีเต็ม
User ManualFeatures
- Single USB console control 8 HDMI interface computer and two additional USB device
- Supports USB TYPE A interface type keyboard and mouse device
- HDMI LCD Console resolution in Max: 1920x1200@60Hz(1080P); HDMI standard alone KVM resolution in Max: 4K x 2K/60Hz
- Switch the computer through the front panel buttons, keyboard hotkeys and screen menu (OSD)
- Connect to the controlled device for BIOS-level access without worrying about the risk of viruses and Trojans
- The controlled computer does not need to install any software and drivers, and the controlled computer directly recognizes KVM.
- Upgrade remote network control mode by extending IP board
- Support OSD to set user login mode and increase KVM login security requirements
- Both local and remote IP modes support high video resolution - support for 480i, 480p, 720p, 1080i and 1080p (1920 × 1200), 4K X 2K Ultra HD resolution
- Support widescreen resolution
- Support DDC communication to adapt to different graphics devices
- Auto scan function monitors all computer operations
- Support for cross-platform operations - Windows, Linux, Mac*, and Sun*
The computer mouse and mouse connection port is controlled by Keep Online technology to simulate the mouse and keyboard. The device is safe and stable, and the switching is fast without delay.
Specifications
| Function | 8 port | ||
| Computer Connections | 8 | ||
| CPU Port Selection | OSD Menu, Front panel switches, Hot Key | ||
| Connector | Console Connectors |
Monitor | 1 x HDMI Female |
| Keyboard | 1 x USB Type A Female | ||
| Mouse | 1 x USB Type A Female | ||
| Computer Connectors | Keyboard/Mouse | 8 x USB Type B Female | |
| Monitor | 8 x HDMI Female | ||
| Power | 1 x DC | ||
| Toggle Switch | Connection Port Selection | 8 x keys | |
| KVM Reset | 1 x Semi-embedded keys | ||
| LEDs | Selected | 8 x Green | |
| Online | 8 x Red | ||
| Simulation Method | Keyboard, Mouse | USB | |
| Video resolution (Max) | 4K x 2K @ 60HZ Local | ||
| Scan time interval | 3, 5, 10, 15, 20, 30, 40, 60s (3s by default) | ||
| Operating Environment | Operating temperature | 0-50℃ | |
| Storage temperature | -20˚C~60˚C | ||
| Humidity | 0-80%RH, No Condensation | ||
| Physical Properties | Housing | Metal | |
| Size | 432 x 155 x 44 mm | ||
| Weight | 1.8KG | ||
