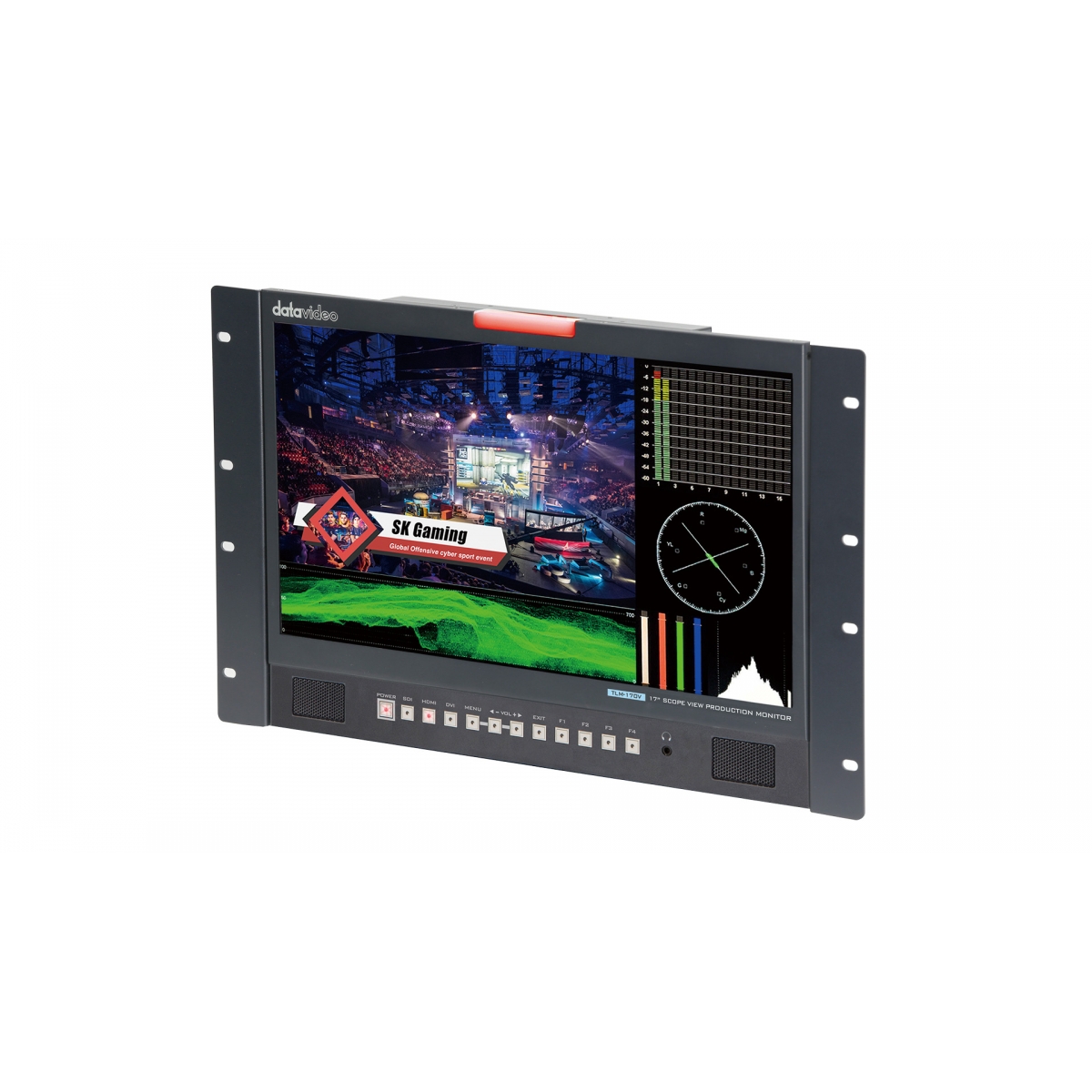

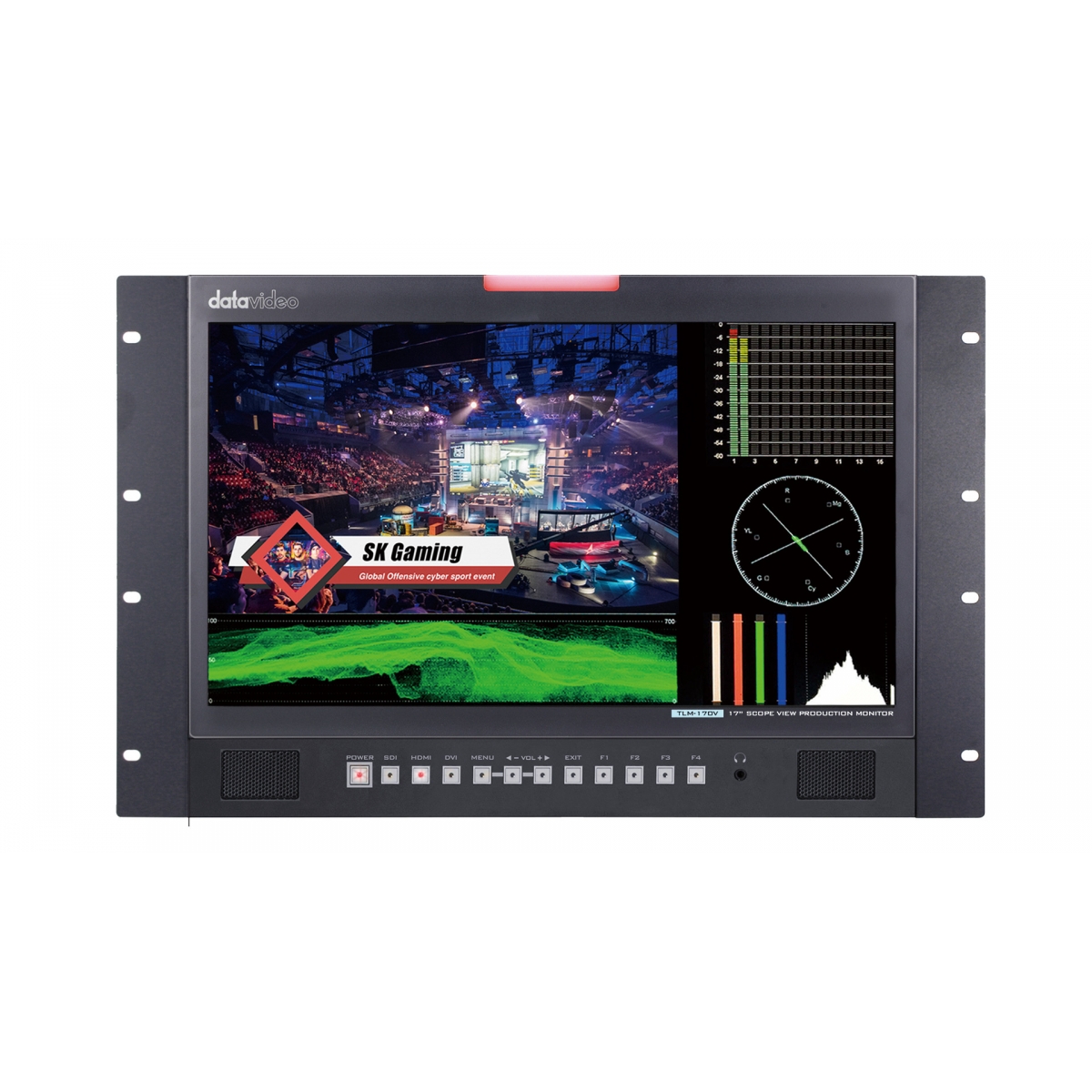

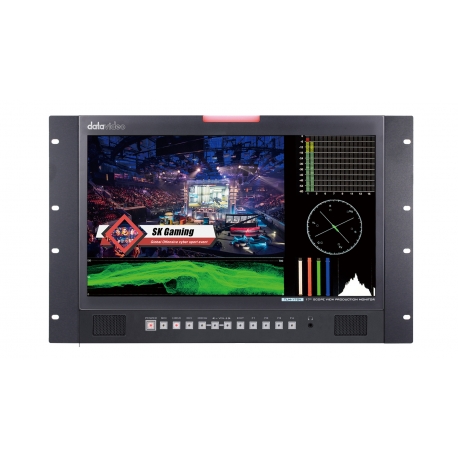

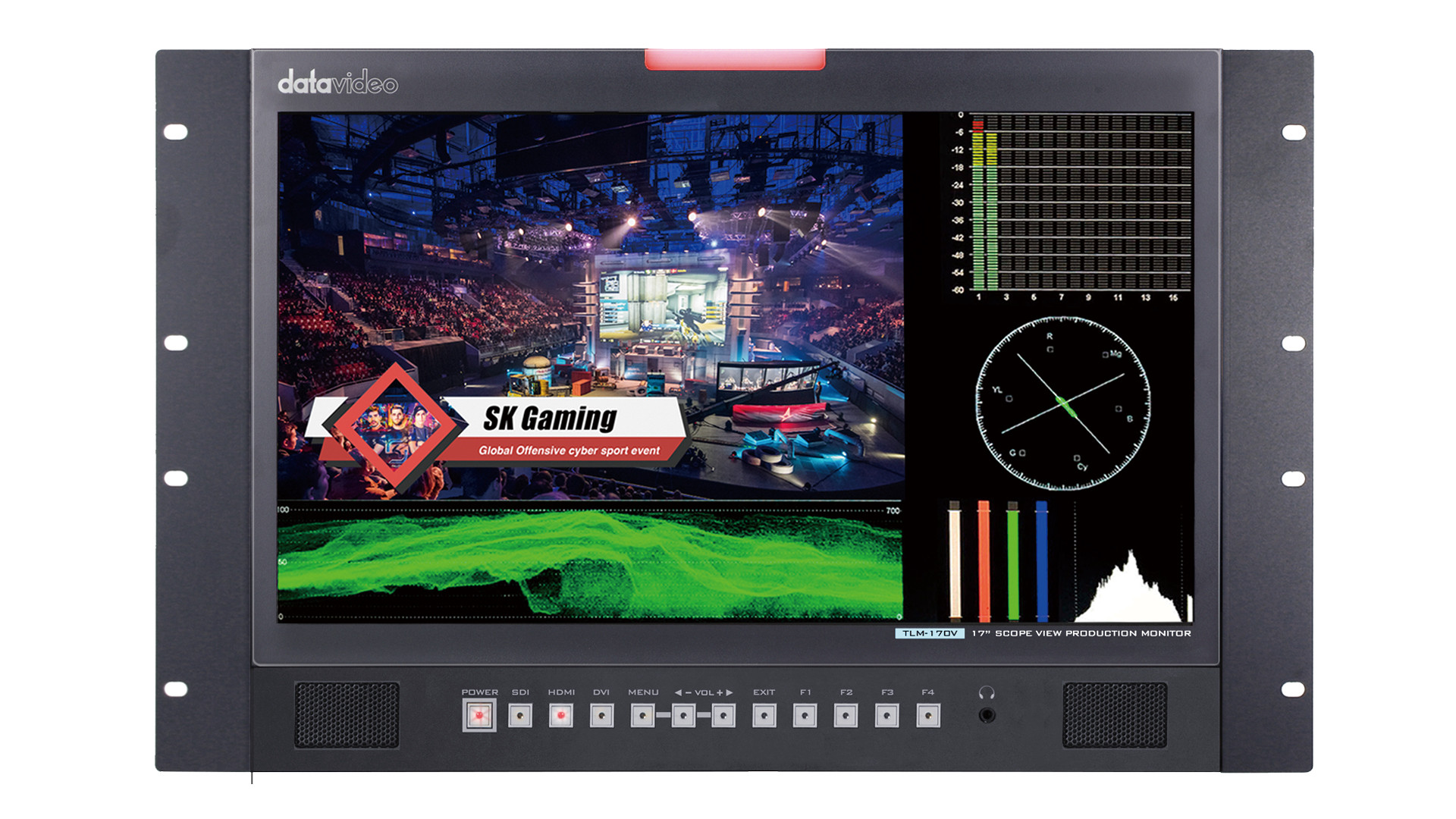

17" ScopeView Production Monitor-Rack Mount
TLM-170VR
- จอมอนิเตอร์สำหรับงานวิดีโอโปรดักชั่นขนาด 17.3 นิ้ว แบบติดตั้งเข้าตู้ Rack 7U
- มี 2 HDMI IN, 1 SDI IN, 1 HDMI OUT, 1 SDI OUT
- แปลง SDI / HDMI ไปกลับได้ในตัว
- รองรับ column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, check field ในตัว
- มี Tally light
Manual
17.3'' Full HD Rack Mount monitor
Supports 3G/HD/SD 1920x1080 panel resolution.
Supports multiple input and output configurations

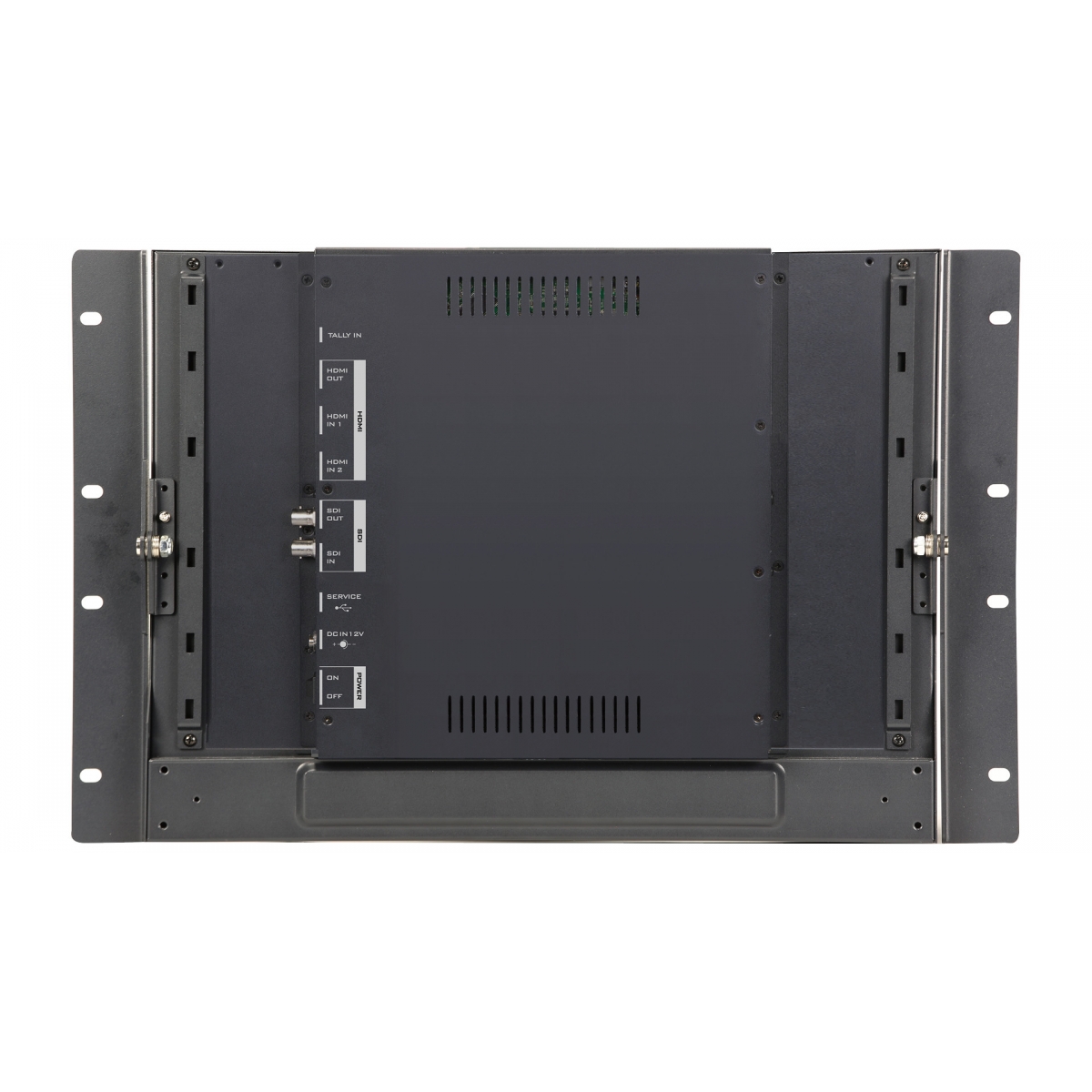

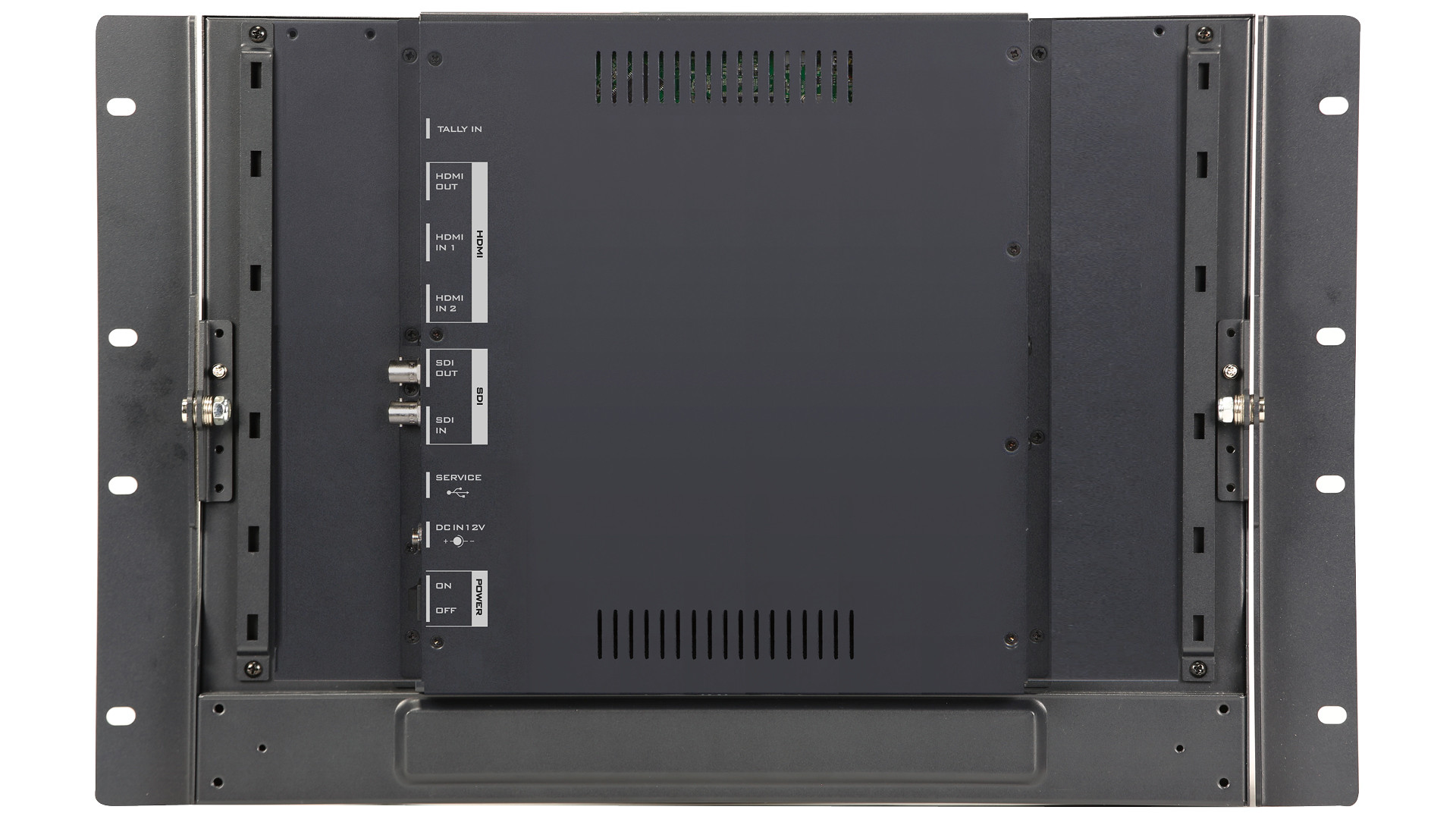

1 x 3G/HD/SD-SDI, 2 x HDMI inputs; 1 x 3G/HD/SD-SDI, 1 x HDMI loop through
SDI, HDMI cross conversion
The TLM-170VR can cross convert SDI, HDMI video signals, makes it a great fit to all the video production workflow.
Various built-in functions
Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, check field
Tally light
Tally light included. Best use for live production.
Features
- 1920 x 1080P IPS Panel Resolution
- 3G-SDI video input with loop-through output
- HDMI video input with loop-through output
- Built-in tally for live broadcast
- Supports Waveform, Vectorscope and Audio Level Meter, Peaking Focus Assist, Zoom IN/OUT, Pixel to Pixel, Underscan, Check Field and etc.
- SDI/HDMI cross format conversion
- Brightness, contrast, color saturation and LED backlight
- Selectable color temperatures
- Front panel headphone jack
- User-defined F1 / F2 / F3 / F4 shortcut keys
- USB Firmware Upgrade
Specifications
|
Screen |
17.3" LED Backlit |
|
Chassis |
7RU Rack Mount |
|
Resolution |
1920x1080 |
|
Viewing Angle |
(H) +89/-89° (V) +89/-89° |
|
Luminance/Contrast |
300cd/m² 700:1 |
|
Video Inputs |
1x 3G/HD/SD-SDI |
|
Loop Through |
1x 3G/HD/SD-SDI |
|
Supported Input Resolutions |
1080p(23.98/24/25/29.97/30/50/59.95/60Hz) |
|
Aspect Ratio |
16:9, 4:3 |
|
Aspect Marker |
YES |
|
Safty Marker |
YES |
|
Tally LED |
Live (Red) Cued (Green) |
|
Audio In/Out |
2x Speaker |
| Special Features |
SDI and HDMI cross conversion, |
|
Dimension (WxHxD) |
481.8 x 305 x 41 mm |
|
Weight |
4.1 kg |
|
Operating Temp. Range |
0~40 °C |
|
Power |
DC 12V, 21.9W |
|
What's in the Box |
1 x TLM-170V product |
