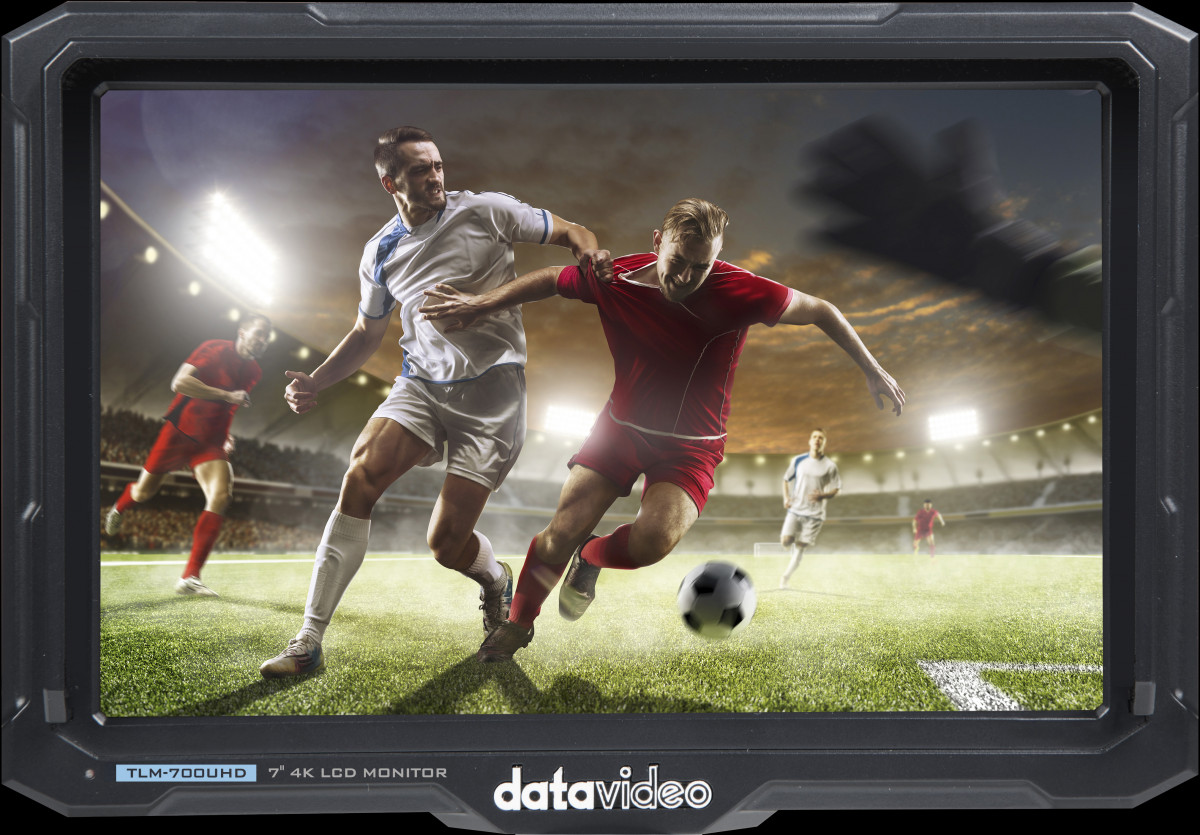

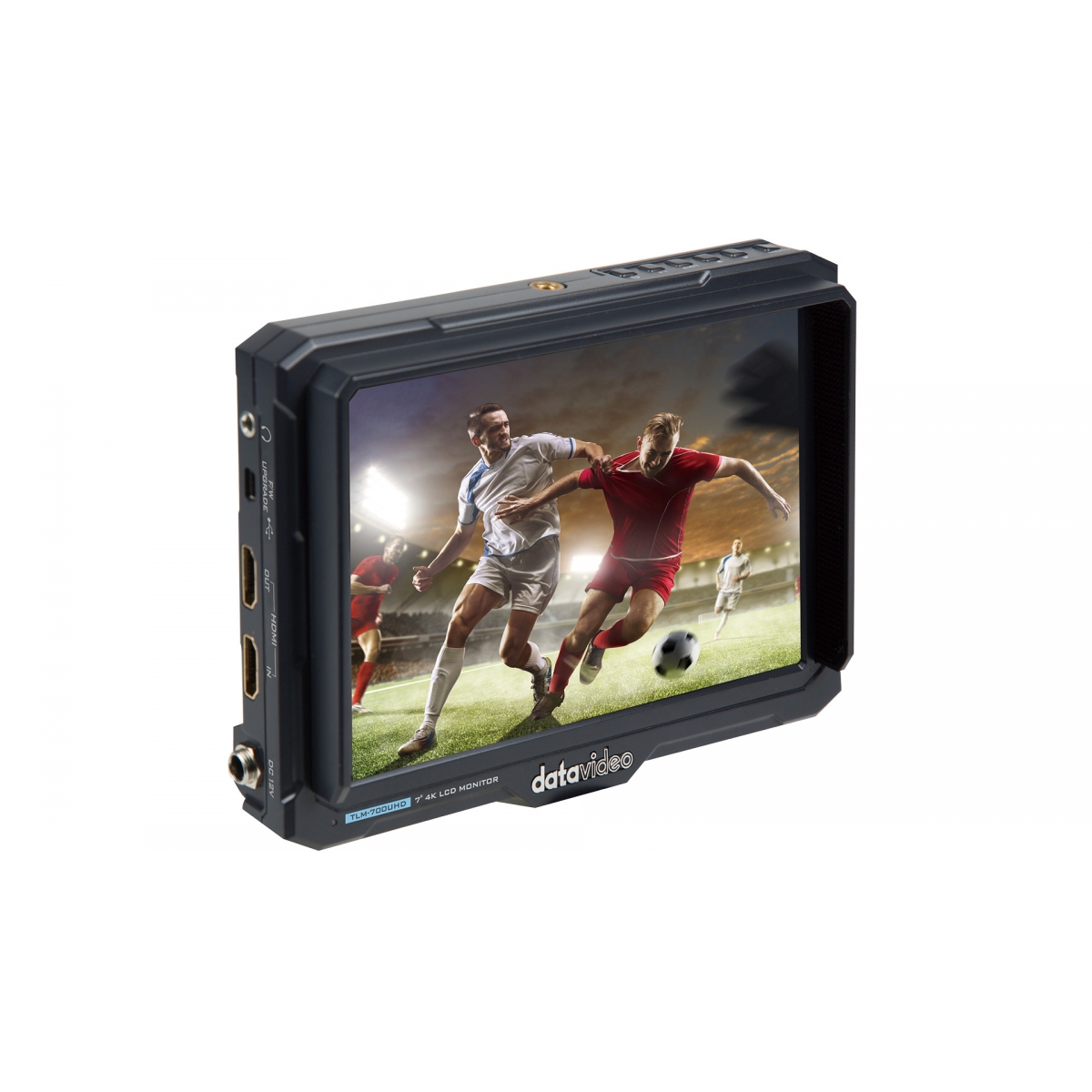

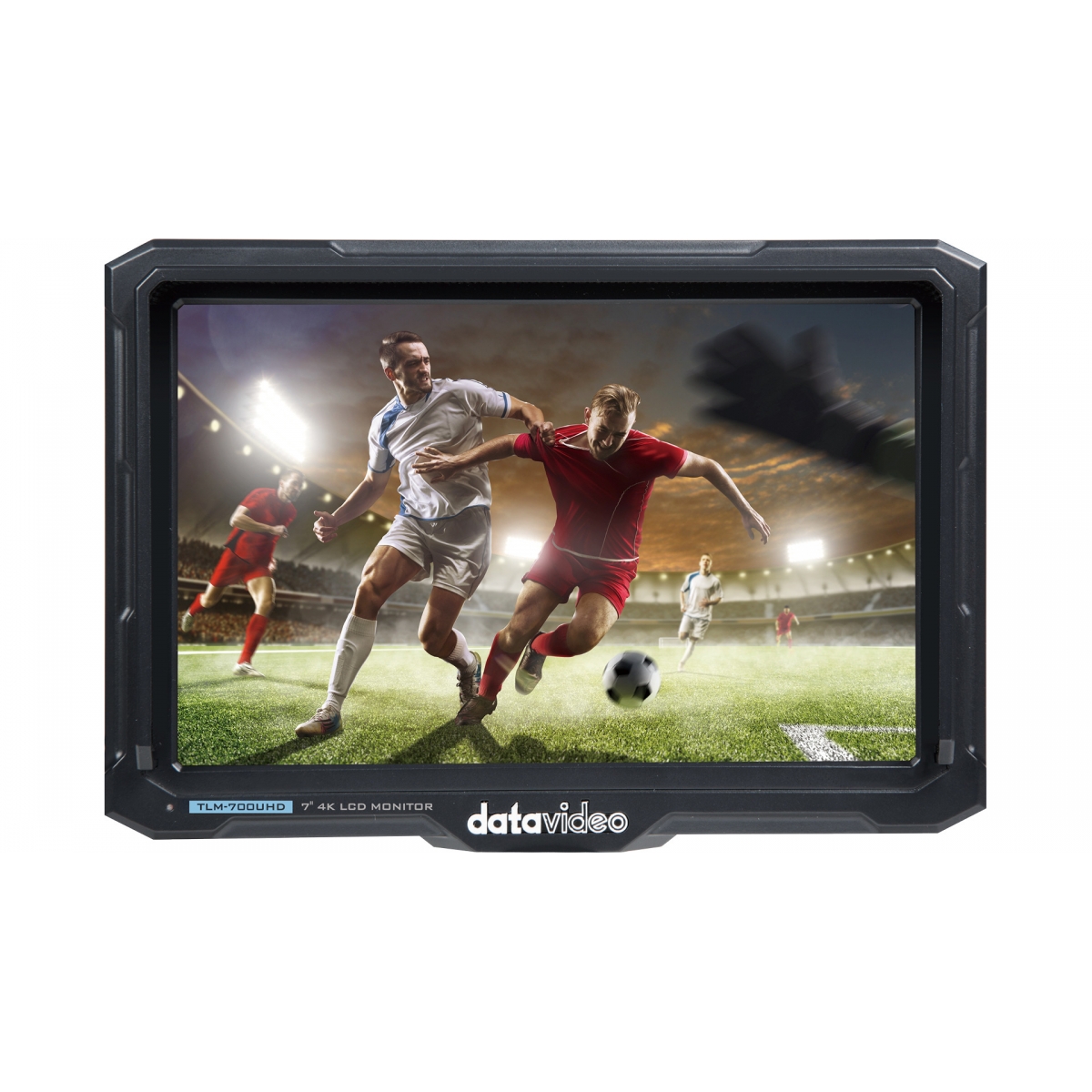

7" 4K LCD Monitor
TLM-700UHD
- จอมอนิเตอร์สำหรับงานวิดีโอโปรดักชั่นขนาด 7 นิ้ว แบบติดตั้งเข้ากับกล้องวิดีโอ
- มี 1 HDMI IN, 1 HDMI OUT
- รองรับความละเอียดขาเข้า 4K
- รองรับ Focus assist (peaking), False Color, Histogram, Exposure, Zoom, Pixel to Pixel, Underscan, Check Field (blue-only mode, monochrome mode)
Manual

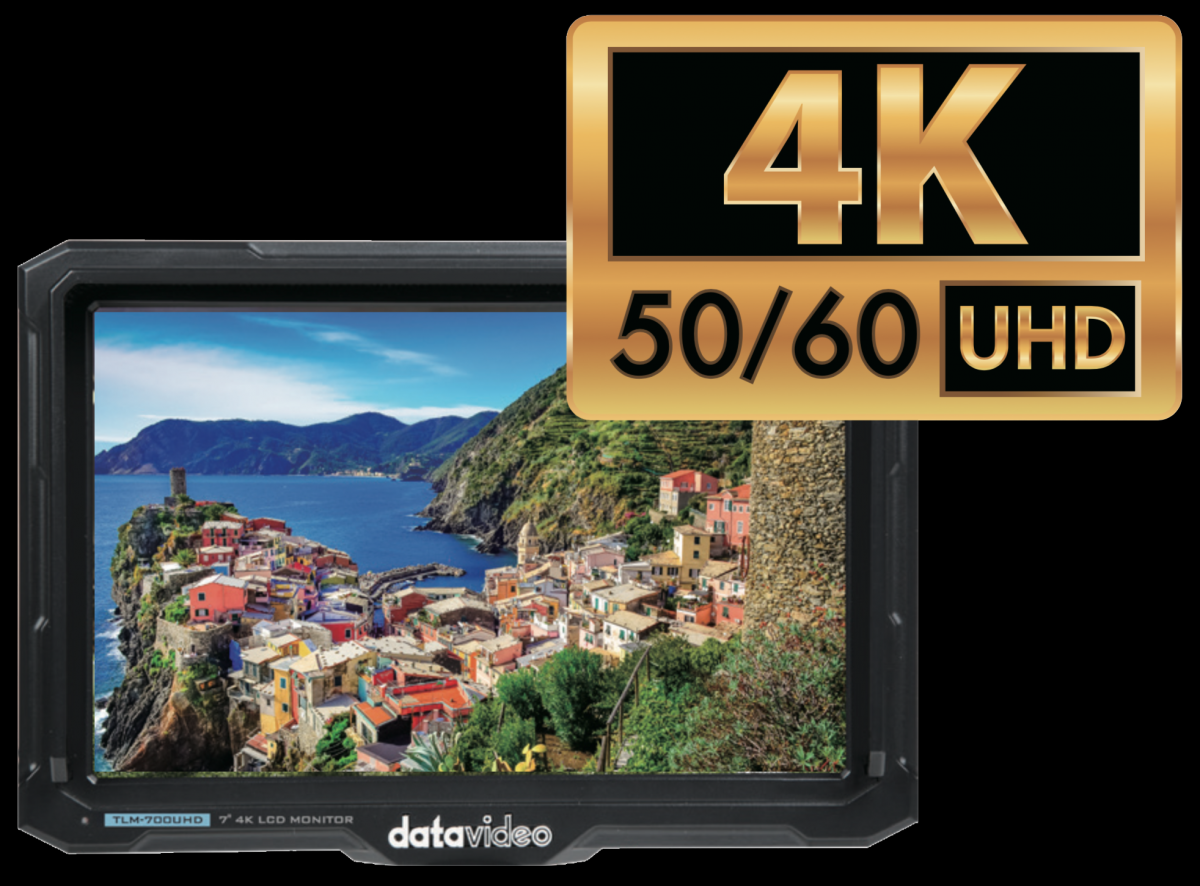

4K 50/60P Amazing Details
Datavideo's TLM-700UHD LCD Monitor accepts 4K 50/60p inputs and displays them on a 7” screen. The monitor is a 1920x1080 Full HD panel which provides 170° of viewing angle. The field monitor supports both DCI 4K and Ultra HD signal inputs and output
7'' 4K Look-Back Monitor
Supports 4K/3G/HD/SD 1920x1200 panel resolution.
Simple Input and Output Configuration

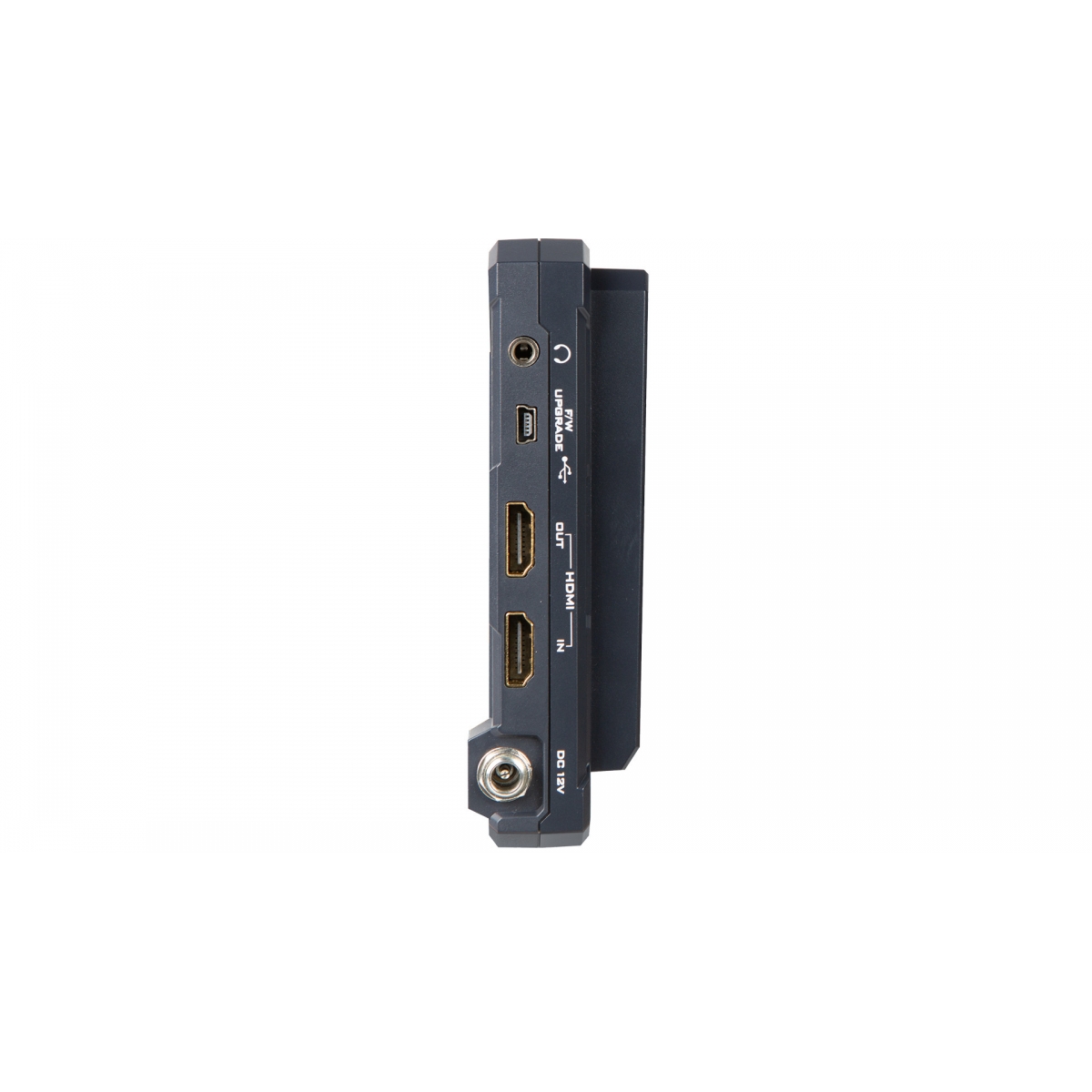

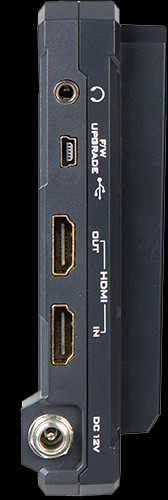

1x HDMI input and loop out

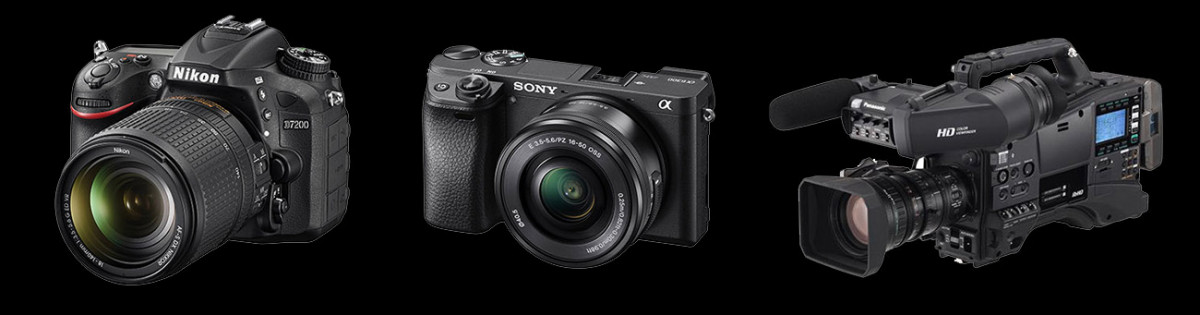

Compatible with Professional Cameras
Compatible with DSLRs, mirrorless cameras, and camcorders
Fast and Accurate Focus Peaking
The red/green/blue peaking profile helps users instantly determine proper focusing.
Peaking zones can be shown during shooting, recording, and playback.

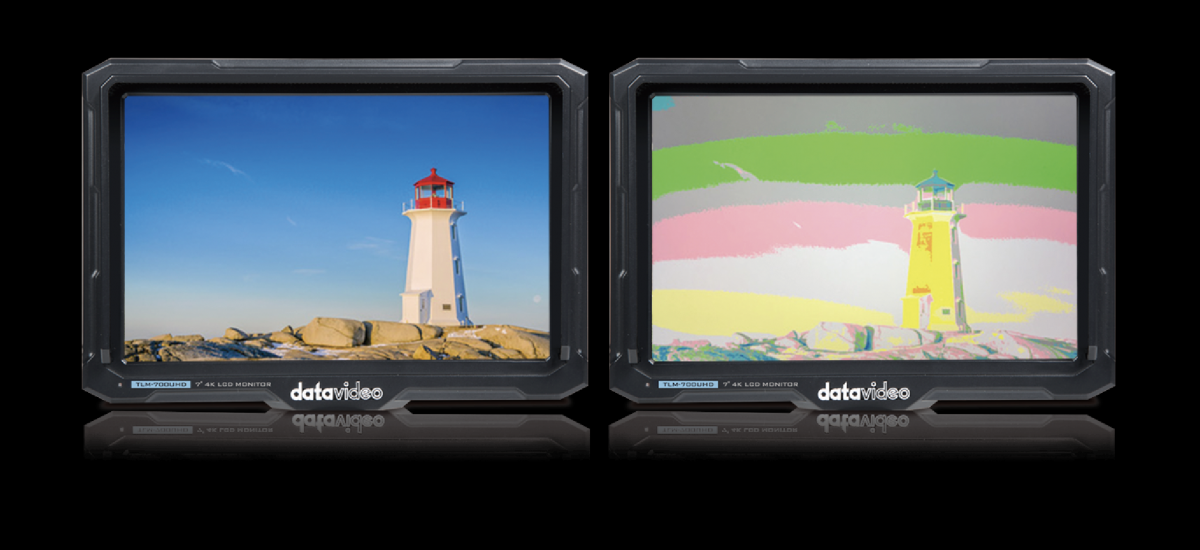

Over-Exposure Analysis
Exposure analysis lets users see if the brightness is too strong in certain regions of the video.

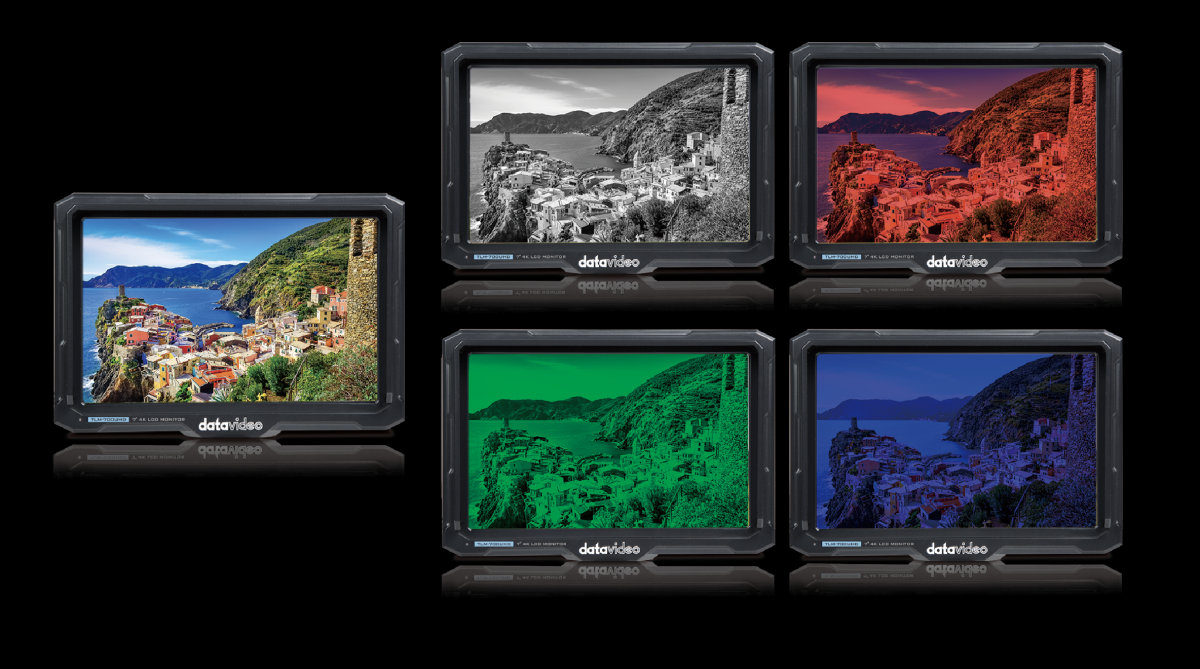

Color Field Checking
Provides monochrome, red, green and blue-only mode for easy color recognition and correction

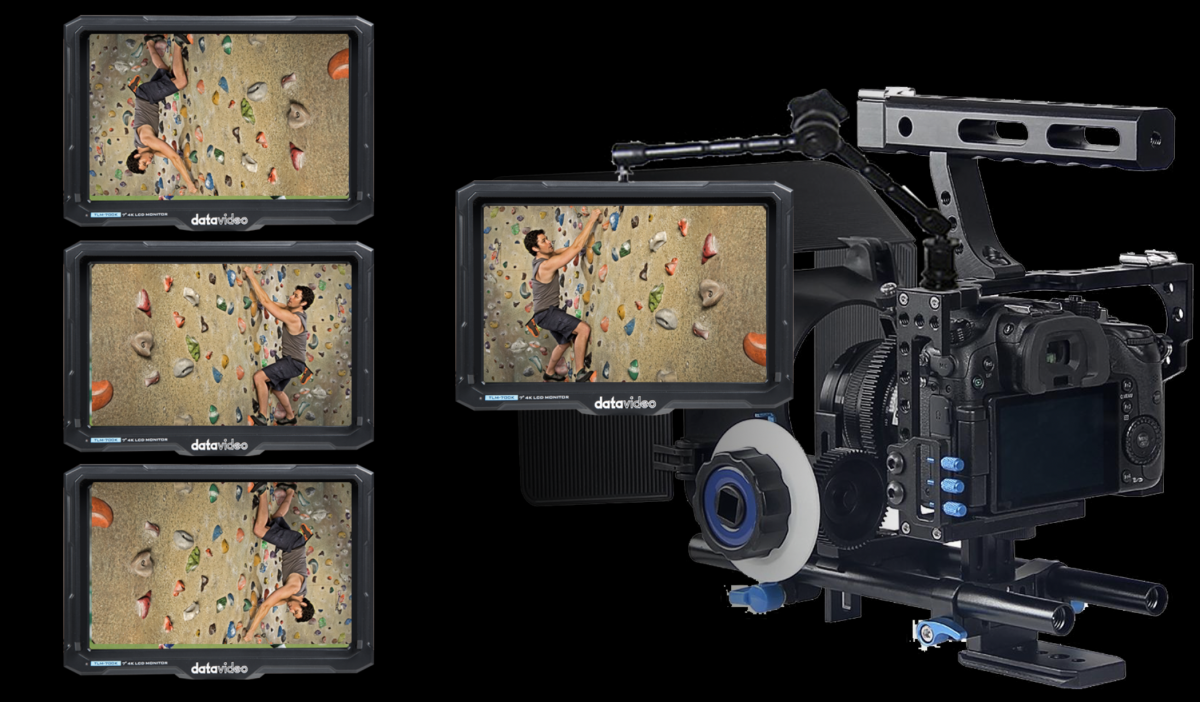

Screen Flip Function
Supports both vertical and horizontal rotation. Compatible with tripods, arms, and cages. Convenient for viewing from multiple angles.

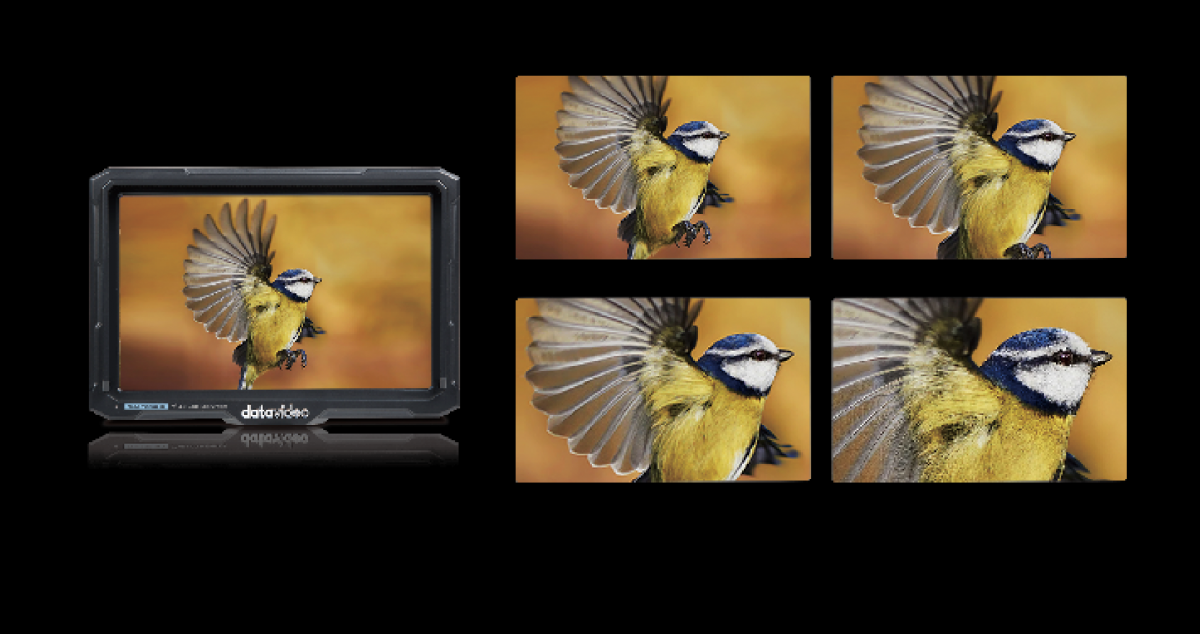

Zoom In
Zoom in 1.5X / 2X / 3X / 4X
Clearly view the details of image for instant adjustment

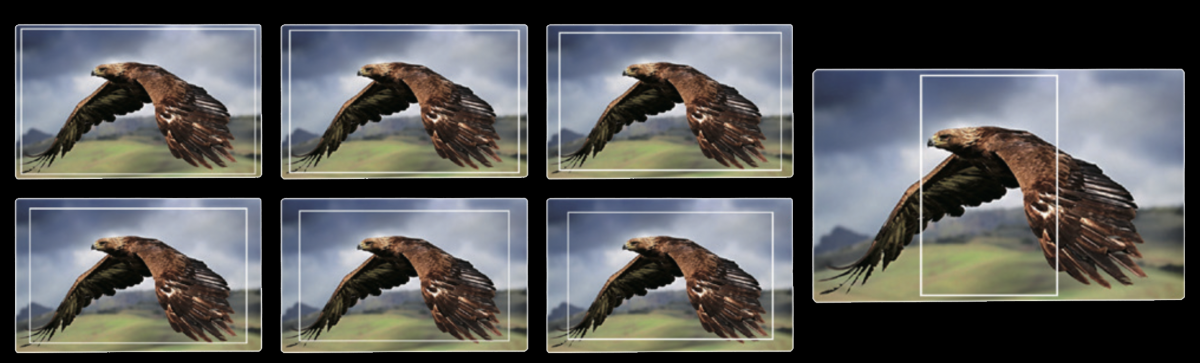

Safety Marker and Aspect Marker
Simulates the effect of cropping in post-production. Support vertical mode, too. Safety marker 95% / 93% / 90% / 88% / 85% / 80% and aspect maker 16:9 / 1.85:1 / 2.35:1 / 4: 3 / 3:2

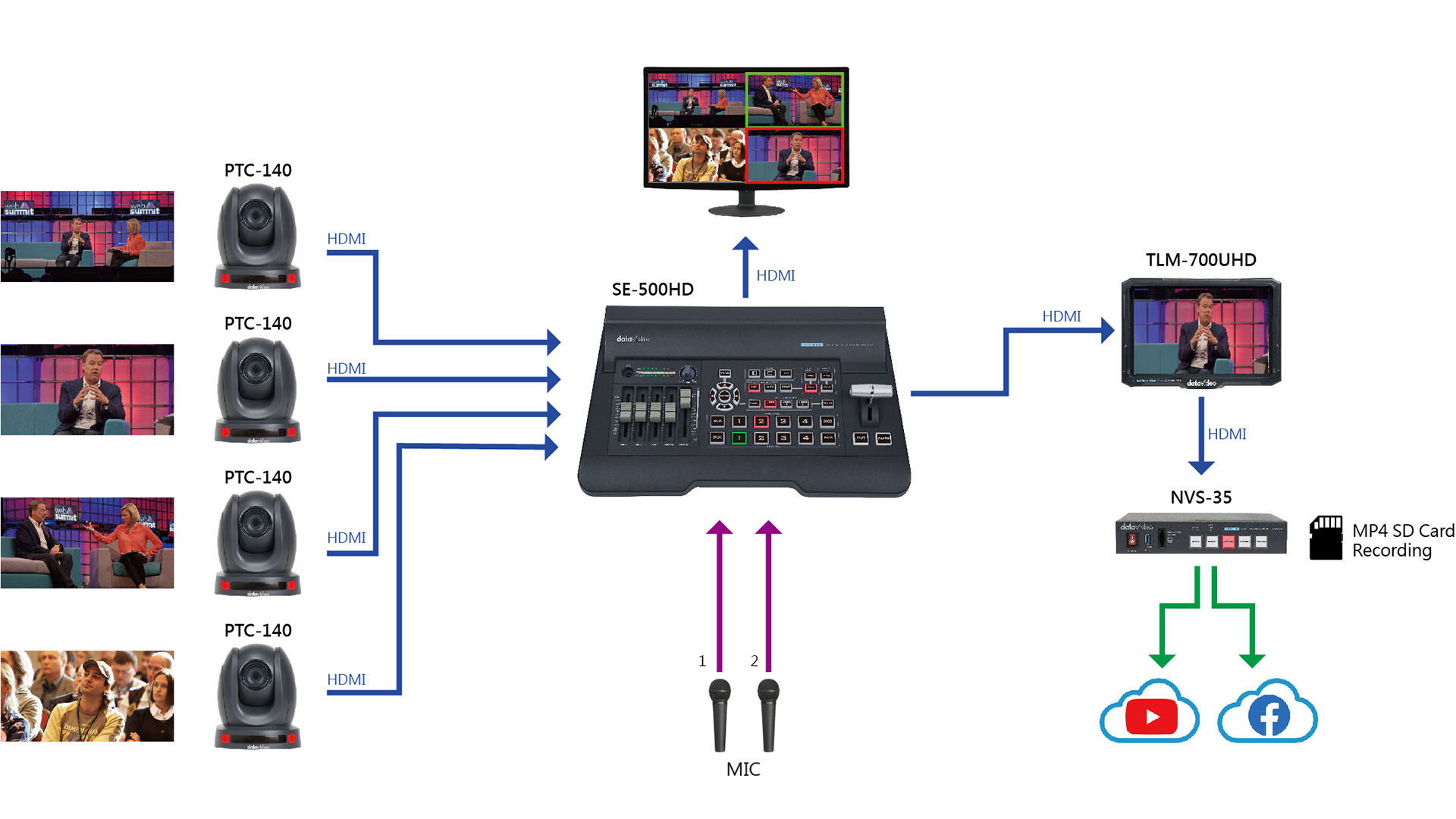

Diagram
Features
- 4K HDMI input with loop-through output

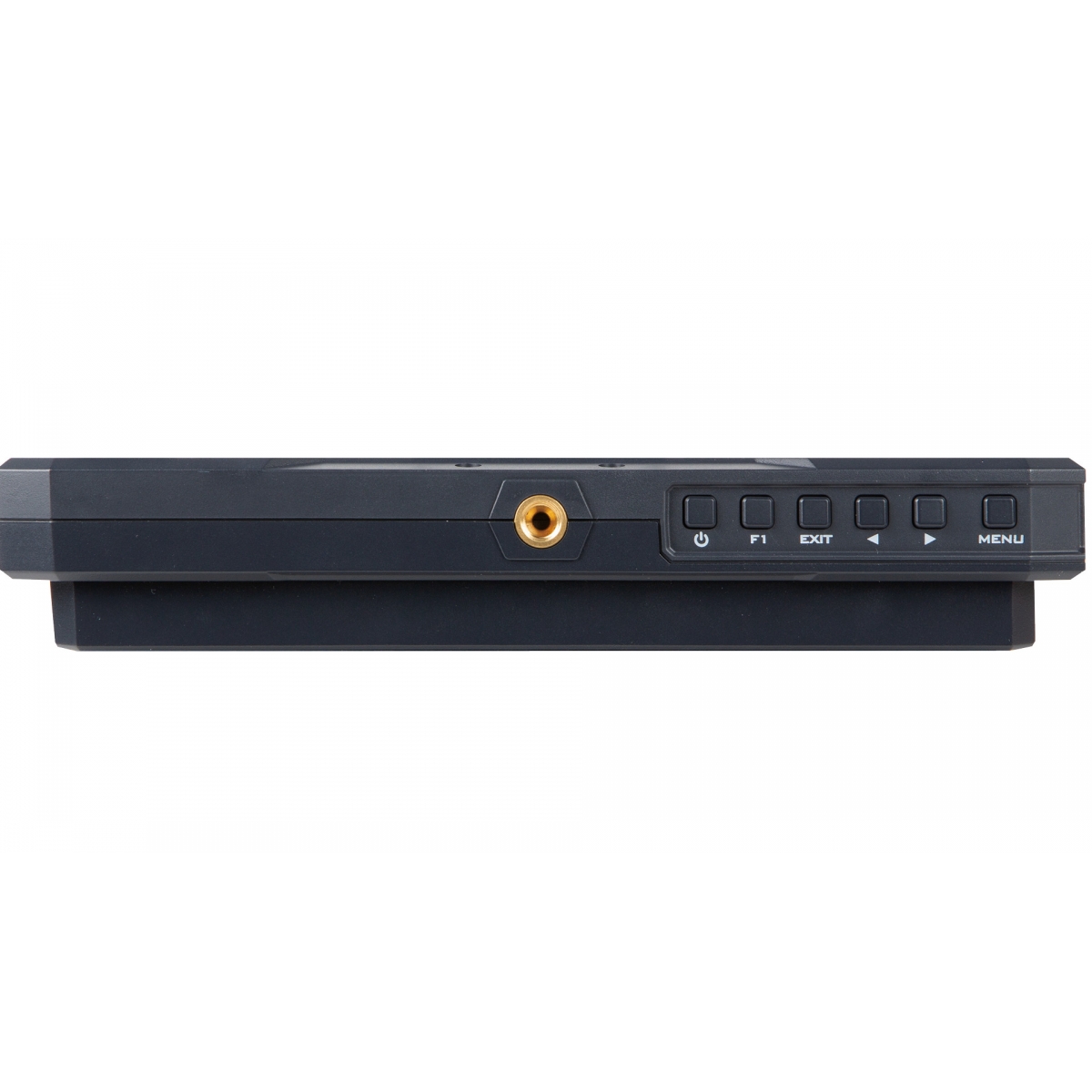

- F1 user-definable buttons to custom auxiliary functions as shortcut
- DSLR Scaling for Full Screen Viewing
- 170° Horizontal & Vertical wide viewing angle
- 7 inch,1920×1200 full HD resolution
- Portable, slim design
- Individual adjustments of Brightness, Contrast, Saturation, Sharpness
- Color Match Conversion with Color Temperature Adjustment
- Adjustable Screen Markers
- Support Focus assist (peaking), False Color, Histogram, Exposure, Zoom, Pixel to Pixel, Underscan, Check Field (blue-only mode, monochrome mode), etc.
- Multi-format compatibility accommodates virtually all video formats including NTSC/PAL, 480i/p, 720p, 1080i/p,2160p 8

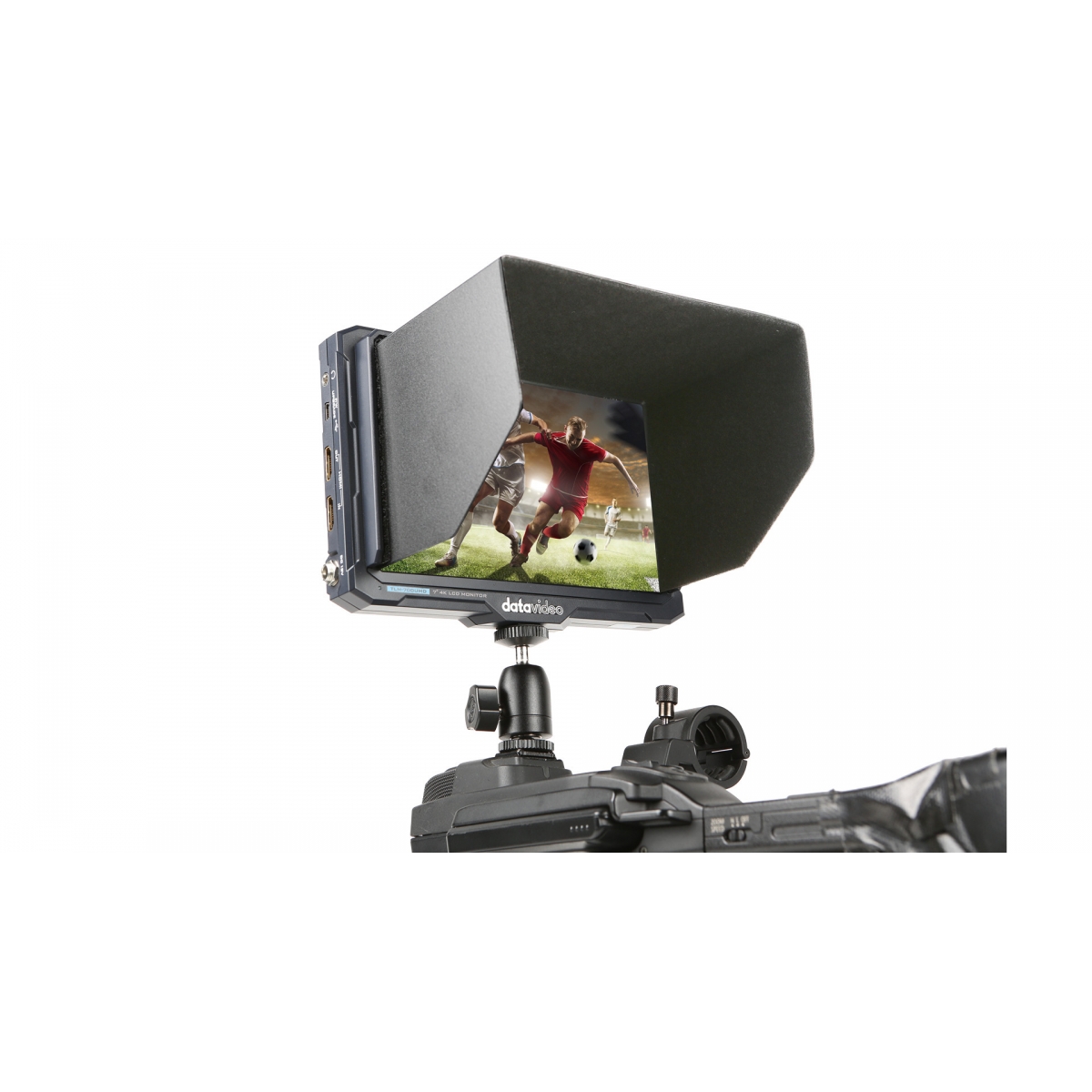

- 75mm VESA and hot shoe mounts for fixing on the top of camera or camcorder
Specifications
|
Model Name |
TLM-700UHD |
|
ProductName |
7"4K LCD Monitor |
|
Screen |
7" TFT LCD |
|
Chassis |
Camera Mount |
|
Resolution |
1920x1200 |
|
ViewingAngle |
(H) +85/-85°(V)+85/-85° |
|
Luminance/Contrast |
450cd/m² 1000:1 |
|
Video Inputs |
1x HDMI (2.0),HDCP 2.2 |
|
Loop Through |
1x HDMI (2.0) |
|
Supported Input Resolutions |
4096x2160p:23.98/24/25/29.97/30/50/59.94/60Hz 3840x2160p:23.98/24/25/29.97/30/50/59.94/60Hz 2048x1080p:50/59.94/60Hz 1080p:23.98/24/25/29.97/30/50/59.94/60Hz)50i/59.94i/60i
1080i:50/59.94/60Hz 720p: 23.98/24/25/29.97/30/50/59.94/60Hz 576i:50Hz,576p:50Hz, 480i: 59.94/60Hz), 480p:59.94/60Hz |
|
Aspect Ratio |
Full/16:9/1.85:1/2.35:1/4:3/3:2 |
|
Aspect Marker |
Off/16:9/1.85:1/2.35:1/4:3/3:2/9:16 |
|
Safety Marker |
Off/95%/93%/90%/88%/85%/80% |
|
Tally LED |
N/A |
|
Audio In/Out |
Embedded Audio (48KHz sampling) Analog Stereo (Phone Jack), Speakerx1 (2W) |
|
Special Features |
Focus assist (peaking), False Color, Histogram, Exposure, Pixel to Pixel Zoom, Under scan, Check Field(blue-only mode, mono chrome mode) |
|
Dimension(Lx W x H) |
182x129x37mm |
|
Weight |
0.3Kg |
|
Operation Temperature |
0°C~40°C(32℉~104℉) |
|
Power |
DC12V,12watts |
Accessories
|
Accessory |
Quantity |
|
|
1 |

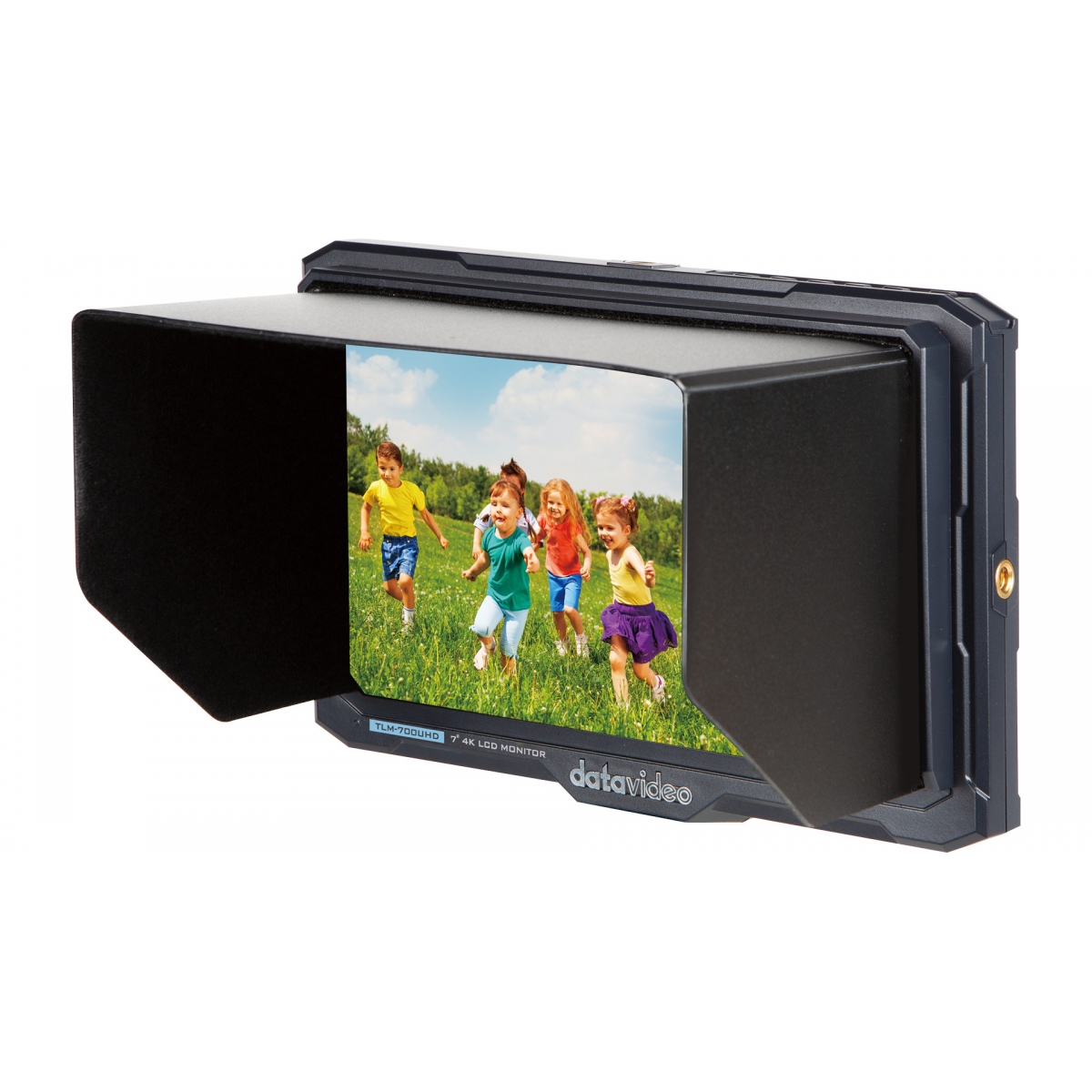

Folding sun shade cover |
1Piece |
|
2 |
HDMI A / C cable |
1Piece |
|
3 |
Battery plate (F970) |
1Piece |
|
4 |
Hot shoe mount |
1Piece |
|
5 |
12V adapter |
1Piece |
