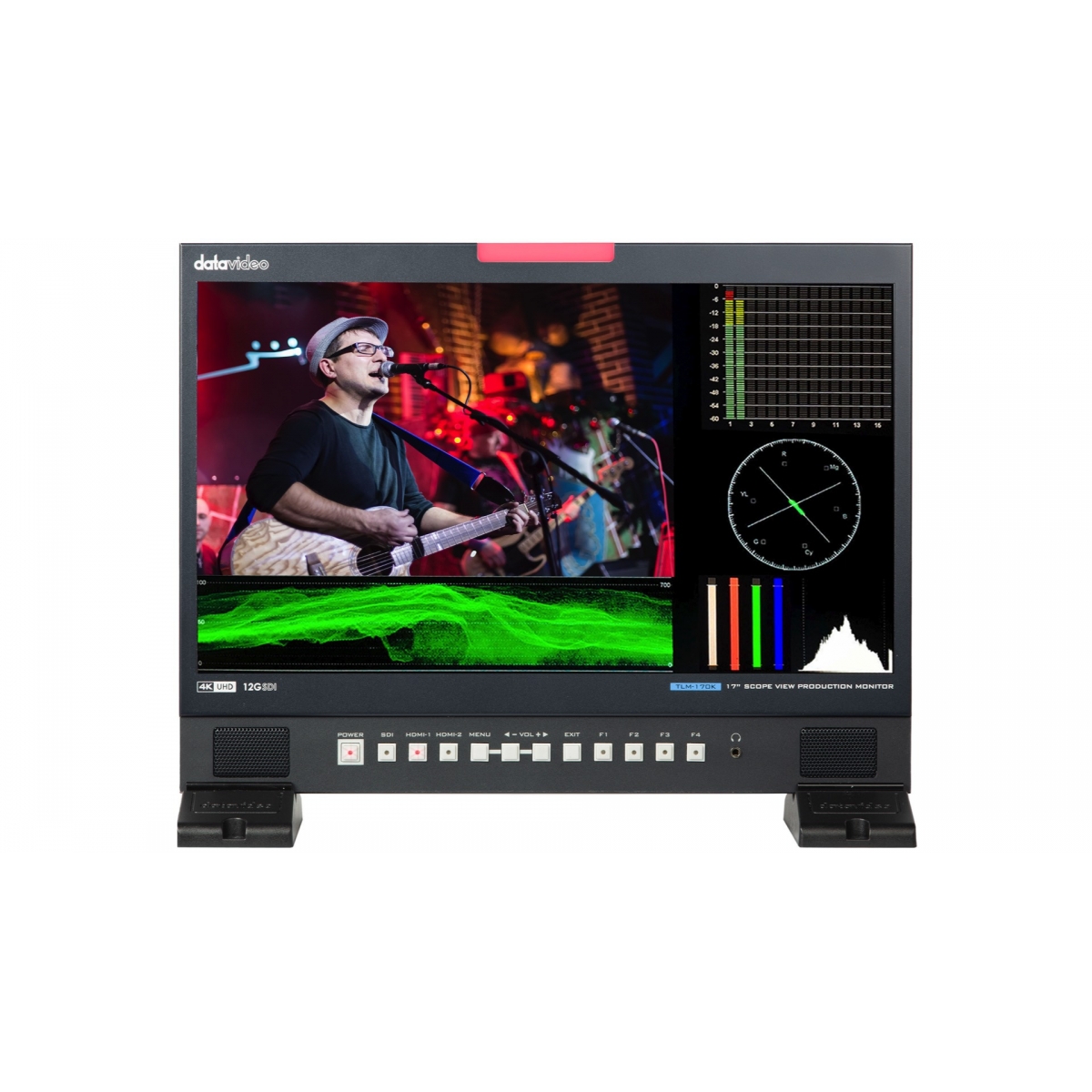

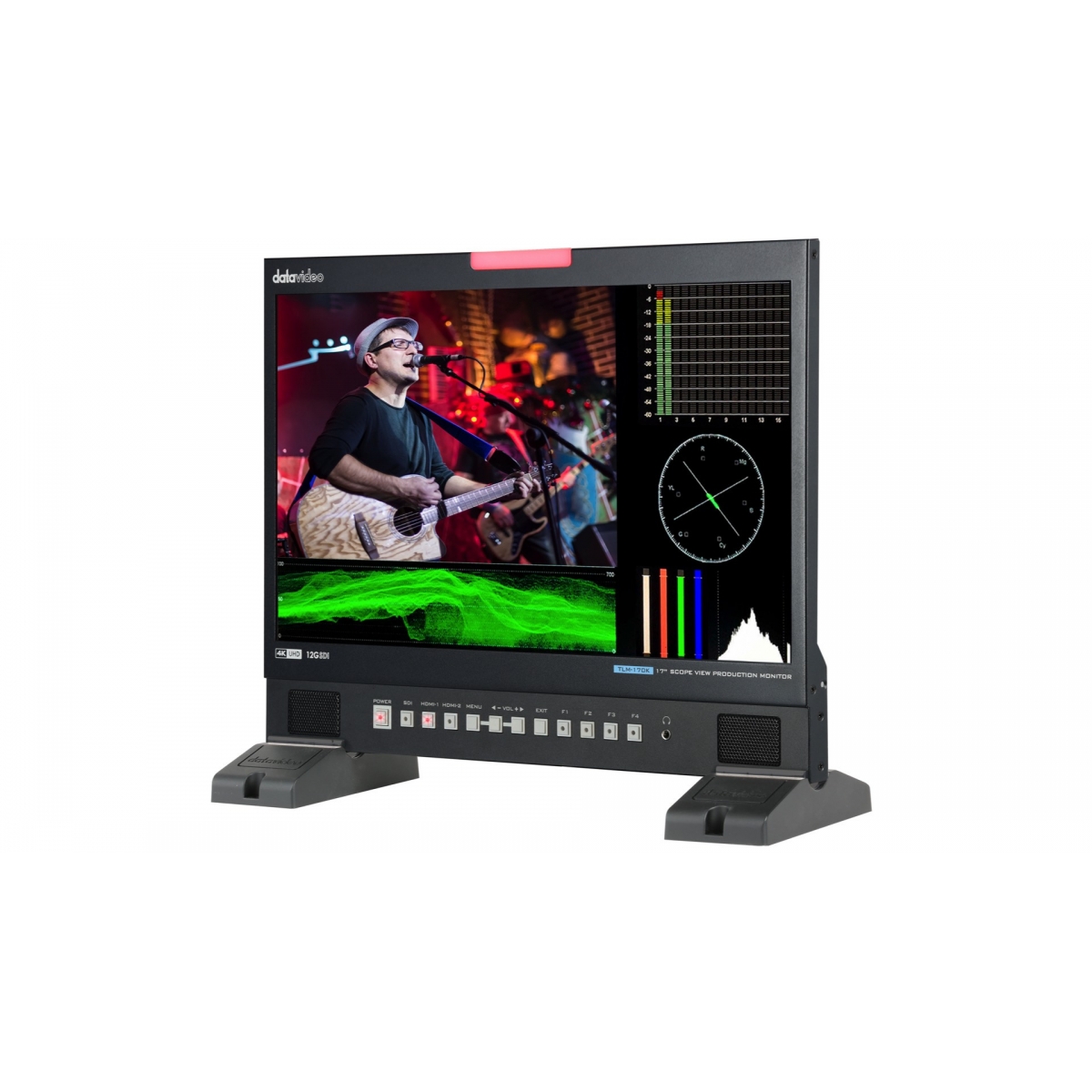

17.3'' 4K UHD Monitor-Desktop
TLM-170K
- จอมอนิเตอร์สำหรับงานวิดีโอโปรดักชั่นขนาด 17.3 นิ้ว แบบตั้งโต๊ะ
- มี 2 HDMI IN, 1 12G-SDI IN, 1 HDMI OUT, 1 12G-SDI OUT
- รองรับความละเอียด 4K
- มี Tally light
ManualTLM-170K 17” ScopeView Production Monitor-Desktop
The TLM-170K is a desktop 17-inch 4K UHD LCD monitor which comes with an UHD 3840 x 2160px IPS panel. The panel has a 178 degrees wide viewing angle and a brightness of 300 cd/m2 and 1000:1 contrast ratio. The field monitor features the 12G-SDI and HDMI 2.0 inputs with loop-through outputs, supporting up to DCI 4K and Ultra HD signals on both input and output.
The TLM-170K series have a variety of professional and helpful monitoring features, including waveform, vector scope, focus peaking, false color, histogram, peaking, zoom, screen markers, image flip, and more. Moreover, it also supports HDR for HLG and SMPTE 2084, and the presets of color space include Rec 709 and DCI P3. The TLM-170K series are ideal for broadcast and live production applications.

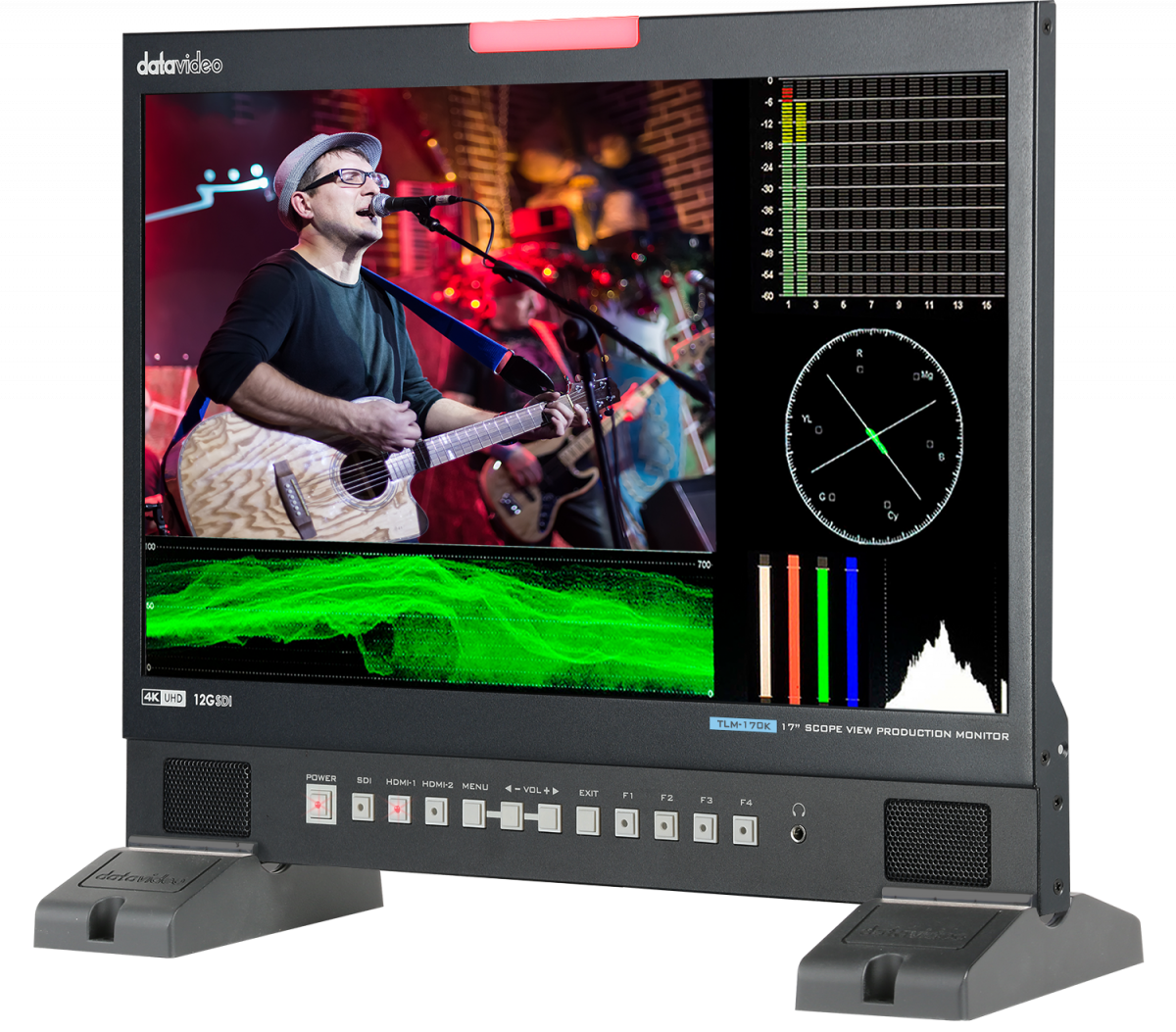

17.3'' 4K UHD Desktop Monitor
Supports DCI P3 color space 4K/60p and UHD 4K/60p video input and output

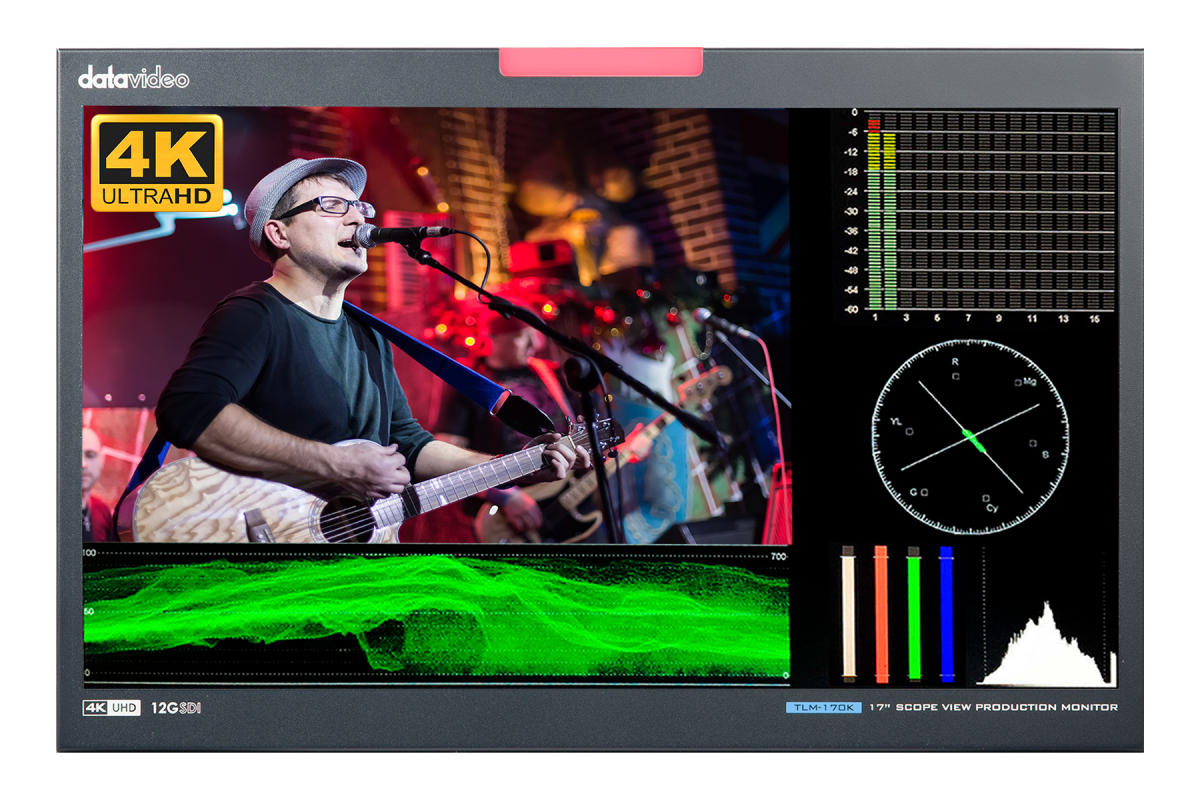

Spectacular 4K Resolution High Brightness and Contrast
The TLM-170K series apply superior Ultra HD 3840 x 2160px IPS panel. The high brightness and high contrast panel provides 8 million pixels resolution which is four times the details than Full HDpanel.

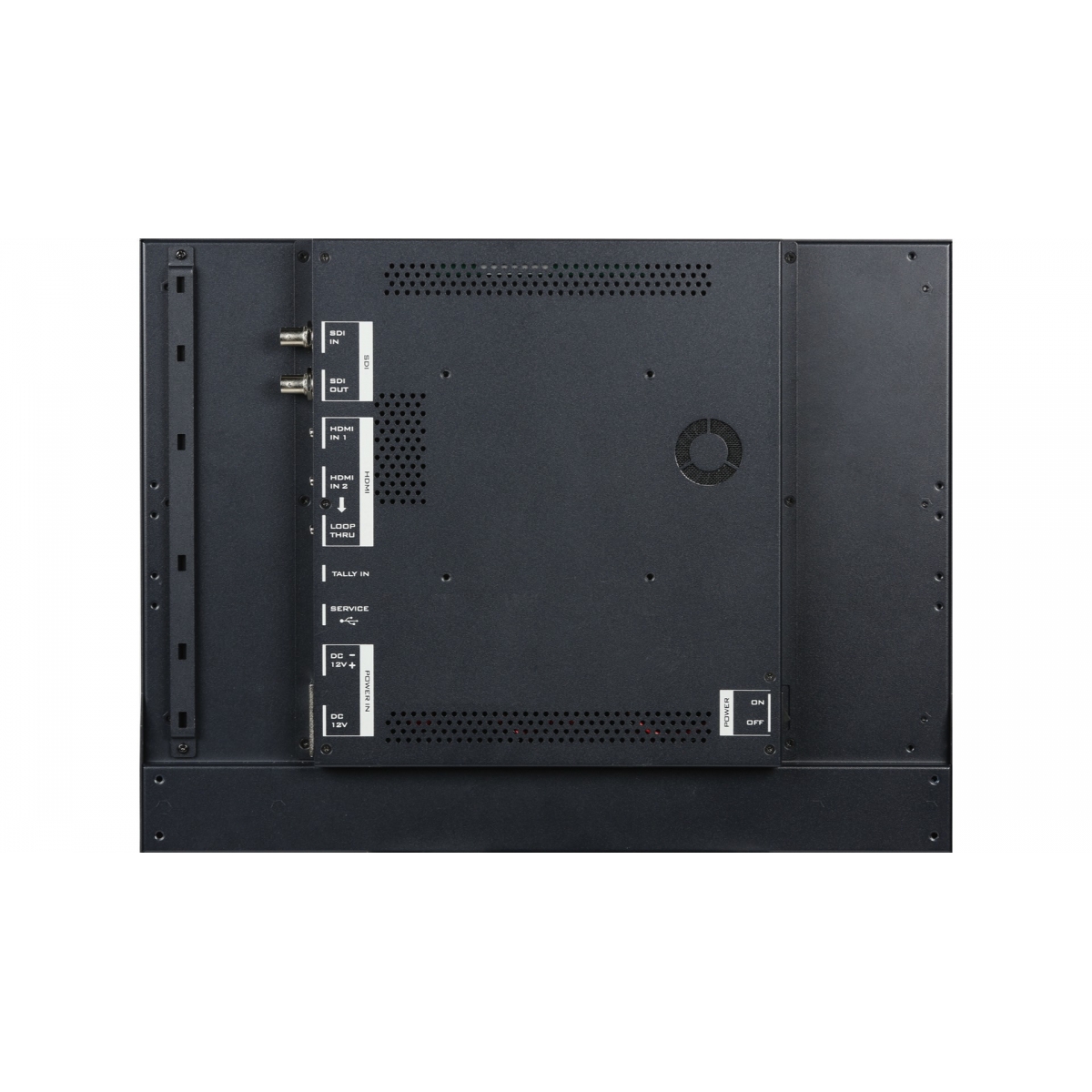

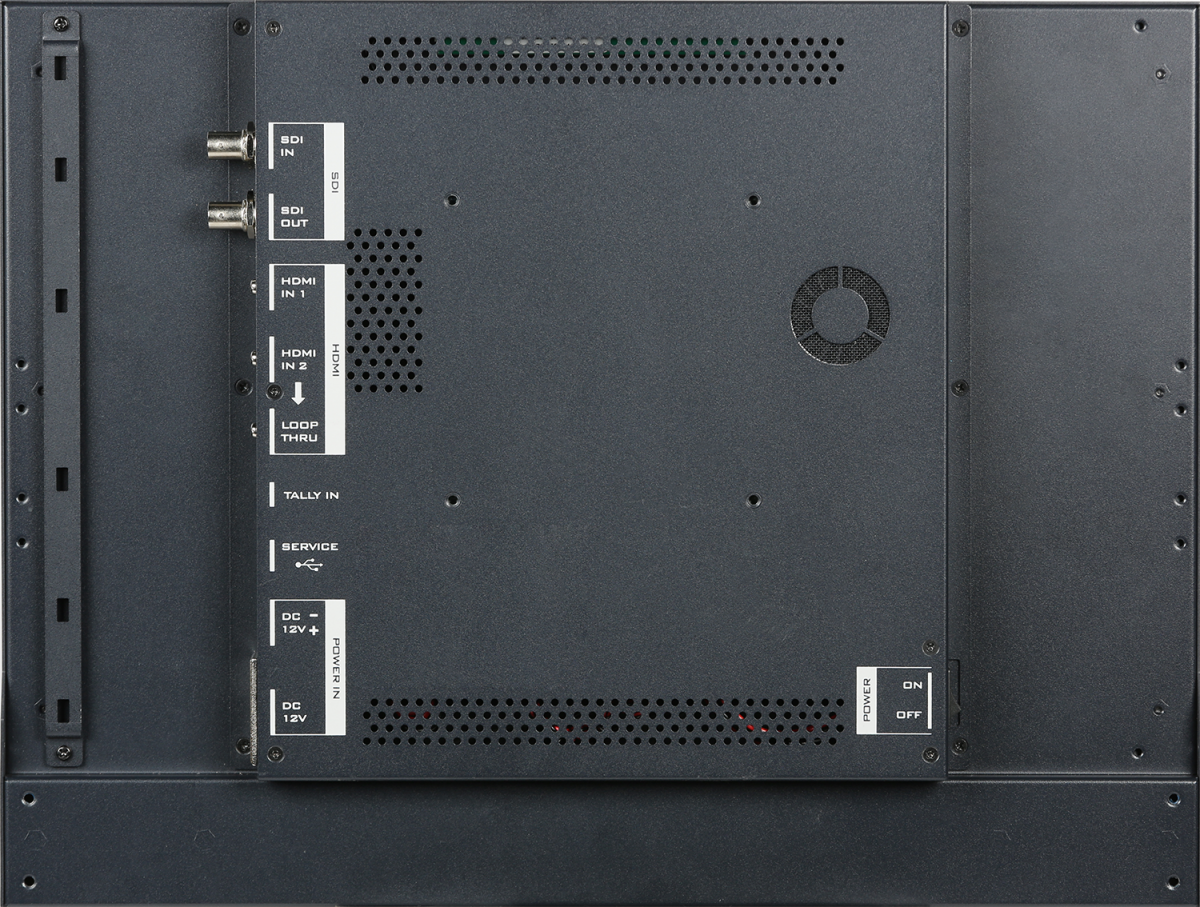

Supports multiple input and output configurations
1 x 12G-SDI, 2 x HDMI (HDMI 2.0) inputs;
1 x 12G-SDI loop-through, 1 x HDMI (HDMI 2.0) loop-through

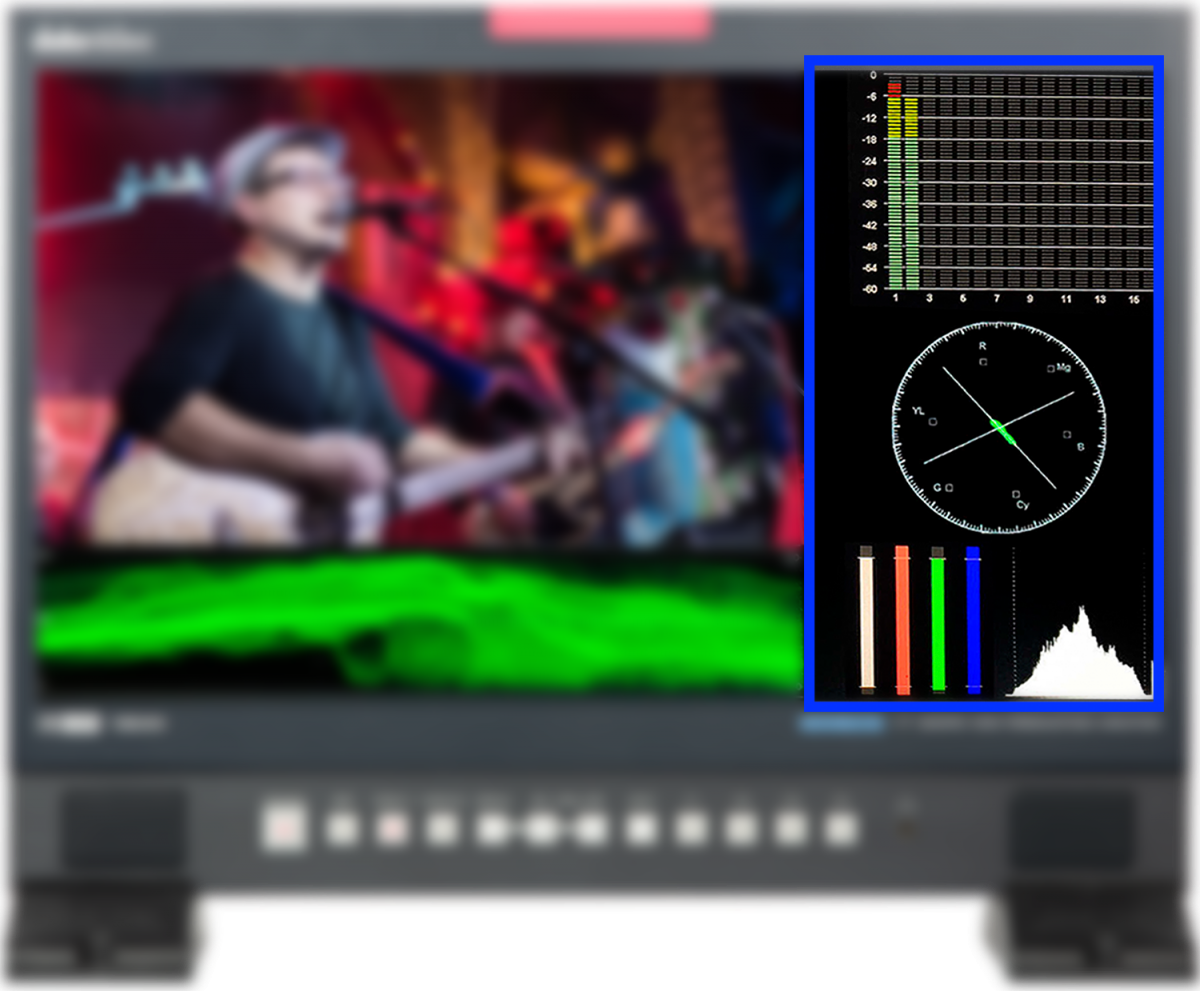

Various built-in functions
Support column (YRGB peak), time code, waveform, vector scope, audio vector, focus peaking, zoom, pixel to pixel, exposure, histogram, image flip, camera log, HDR / SDR, and more.
Tally light
Tally light included. Best use for live production.
Features
- DCI 4K/60p and UHD 4K/60p videos for both input and output
- 17” monitor with UHD 4K (3840 x 2160) LCD display
- Supports column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking filter, zoom, pix to pix, overscan, check field, etc
- 12G-SDI video input with loop-through output
- HDMI 4K input with loop-through output
- Time Code Display (LTC/VITC)
- Four user-assignable function keys (F1, F2, F3, and F4)
- Safety Marker and Aspect Marker
- 1000:1 contrast ratio, 300 cd/m² brightness
- 178° Horizontal & Vertical wide viewing angle
- Individual adjustments of Brightness, Contrast, and Saturation.
- Color Match Conversion with Color Temperature Adjustment
- Front panel Headphone Jacks
- Tally light included
Specifications
|
Screen |
17.3" LED Backlit |
|
Chassis |
Tabletop |
|
Resolution |
3840 × 2160 |
|
Viewing Angle |
(H) +89/-89° (V) +89/-89° |
|
Luminance/Contrast |
300cd/m² 1000:1 |
|
Video Inputs |
1x 12G-SDI |
|
Loop Through |
1x 12G-SDI |
|
Supported Input Resolutions |
SDI:
|
|
Aspect Ratio |
16:9, 4:3 |
|
Aspect Marker |
YES |
|
Safty Marker |
YES |
|
Tally LED |
Live (Red) Cued (Green) |
|
Audio In/Out |
Input: Embedded Audio (48KHz sampling) |
| Special Features |
waveform, |
|
Dimension (WxHxD) |
403 x 305 x 37 mm |
|
Weight |
5.2 kg |
|
Operating Temp. Range |
0~40 °C |
|
Power |
DC 12V, 40.1W |
|
What's in the Box |
1 x TLM-170K product |
