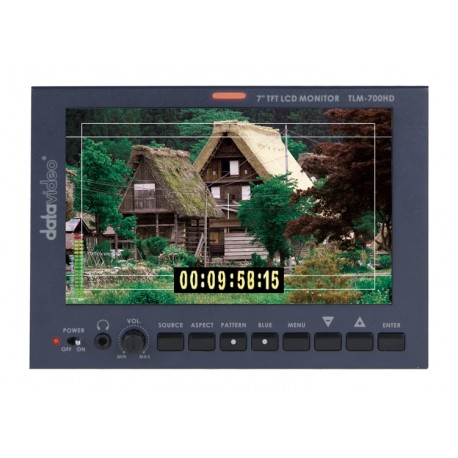

Datavideo TFT LCD Monitor
TLM-700HD

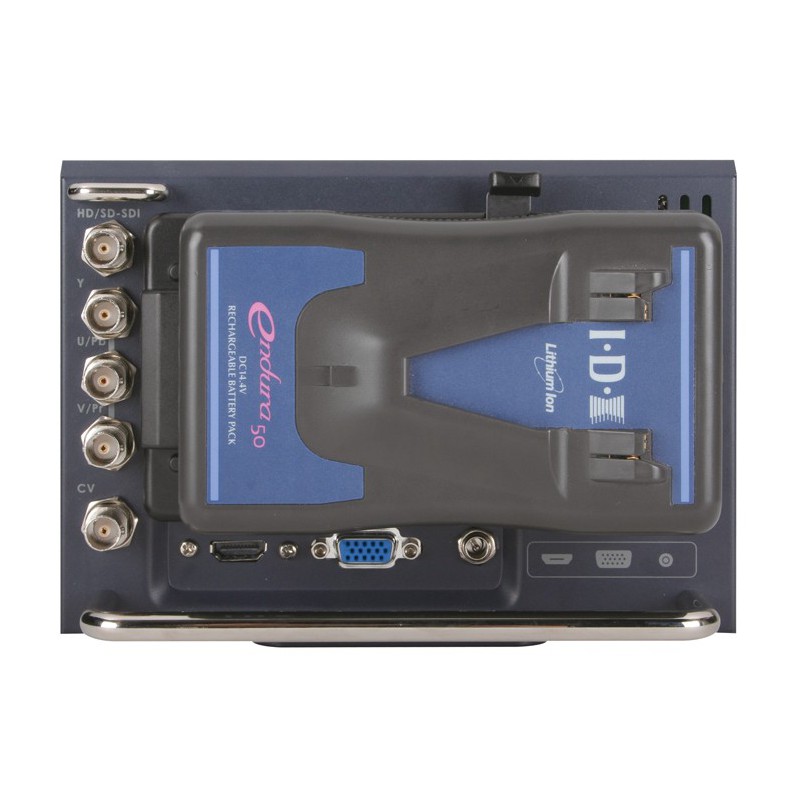

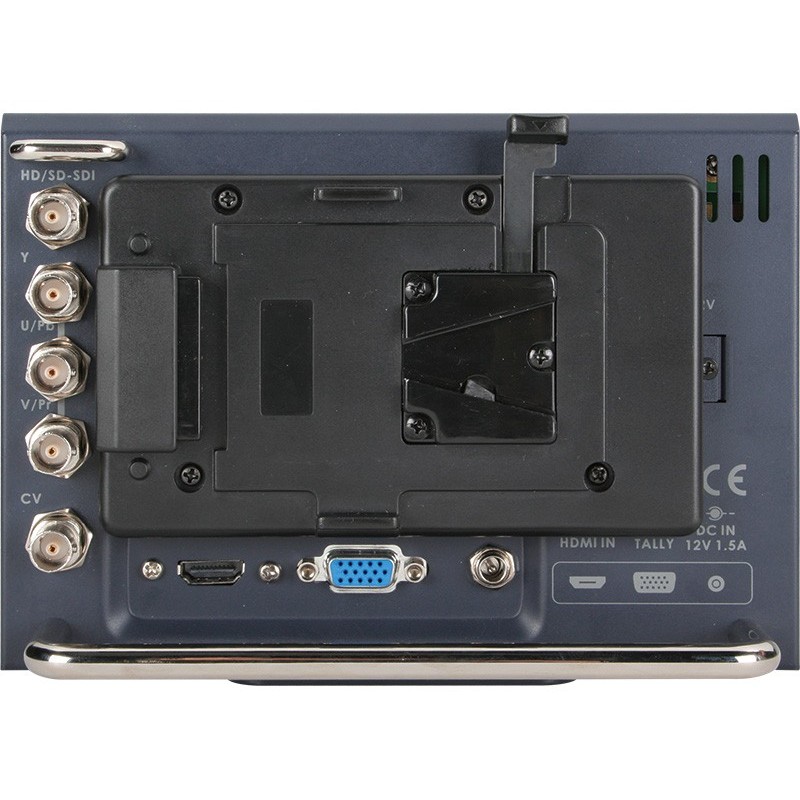

7" TFT LCD Monitor with Two CV input comes in V-Mount Battery Bracket designed (HD/SD, 800 x 480) * Battery NOT Included
Features:
- 7" 16:9 Wide Screen Panel
- Resolution: RGB 800 x 480 dots
- Brightness, Contrast, Colour, Tint Adjustable (Tint NTSC only)
- Flip/Mirror effect: YES
- NTSC/PAL Auto Switching
- Aspect ratio: 16:9 / 4:3 / 15:9 switchable
- OSD Menu Control
- Support Blue Only
- Support Embedded Audio & Time Code
- Viewing angle Minimum: Top 40 degree / Bottom 60 degree / Right 60 degree / Left 60 degree
- Viewing angle Typical: Top 50 degree / Bottom 70 degree / Right 70 degree / Left 70 degree
- LCD Brightness: Minimum 250/Typical 300 cd/m2
- LCD Contrast ratio: Minimum 400/Typical 500
- LED life time: 20,000 Hours
- LCD Backlight: LED
- Tally Light: YES Dual Colours
- Tally Connection: D-Sub 15-Pin
ข้อมูลจำเพาะ
| Interface | 1x HD/SD-SDI input (SMPTE 272M-C 1.5Gbps, 270Mbps with Embedded Audio) | |
| 1x Component Y.U.V Sony Betacam Spec | ||
| 1x CV input | ||
| 1x HDMI input | ||
| 1x D-Sub 15 Pin Plug (Tally Light Signal) | ||
|
HD/SD-SDISpec |
SDI/HD-SDI Specifications | Standard SMPTE 259M-C (270Mbps - 525/625 Component Video) and SMPTE 292M (1.485/1.001 Gbps)Connector BNC (IEC 169-8) |
| Impedance | 75 Ω | |
| Return Loss | HD > 15 dB (5 MHz to 750 MHz) > 10 dB (750 MHz to 1.5 GHz) | |
| SD > 15 dB (5 MHz to 270 MHz) | ||
| Equalization | 200 m Belden 8281 cable at 270 Mbps; | |
| 100 m (typical) of Belden 1694A at 1.485 Gbps | ||
| CV Spec | Bandwidth: > 5.0MHz | |
| Differential of Gain (DG) ＜3％ | ||
| Differential of Phase (DP) ＜3° | ||
| S/N: > 50 dB | ||
| YUV Spec | Bandwidth: > 5.2MHz | |
| Differential of Gain (DG) ＜3％ | ||
| S/N: > 50 dB | ||
| HDMI | Supports HDMI 1.1 | |
| Operating Temperature | 0°C to 40°C (32°F to 102°F) | |
| Humidity | 10% to 90% (non condensing) | |
| Firmware | SVN 1.6 | |
| Dimension & Weight | 187mm (W) x 132mm (H) x 72mm (D) / 1.2Kgs | |
| Power | DC 12V / 1.5A | |
อุปกรณ์ในกล่อง
| Description | Q’ty |
| TLM-700HD | 1 |
| Sunshield | 1 |
| Switching Adaptor DC 12V/1.5A | 1 |
| Instruction Manual | 1 |
ภาพตัวอย่างการติดตั้งใช้งานตามสถานที่ต่างๆ
 ใช้คู่กับกล้อง Canon |
