Computer modules for analogue KVM matrix systems

Computer modules for analogue KVM matrix systems

รุ่น Computer modules for AnalogueKVM

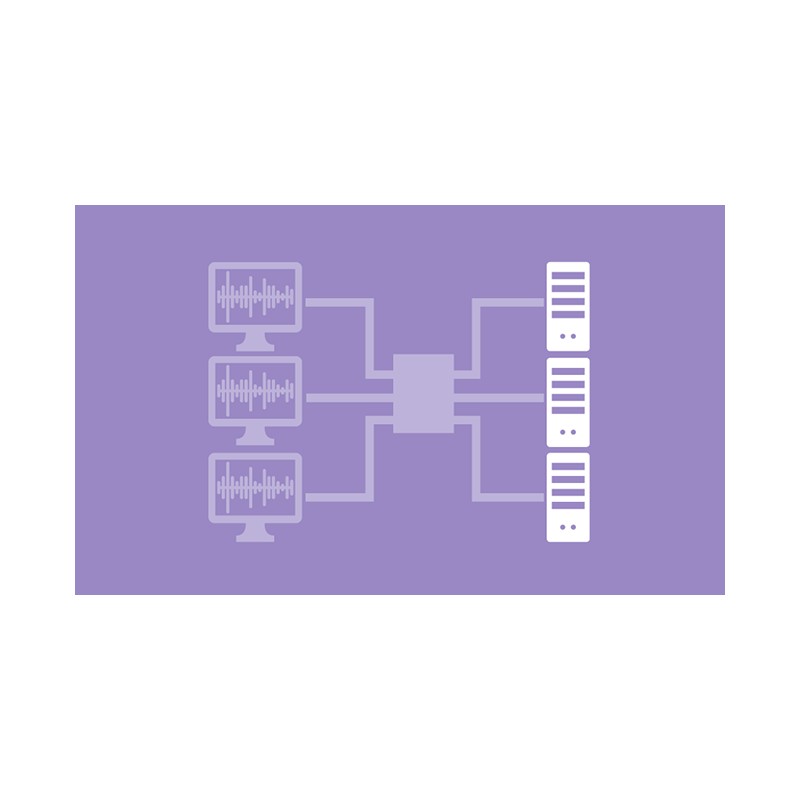

Computer modules connect the computer's external keyboard, video, mouse, and audio interfaces with the central modules. They combine signals, process them, and use CAT cables to transmit these signals to the KVM matrix switch.

รายละเอียดเพิ่มเติม

รับประกัน 3 ปีเต็ม

ส่งให้เพื่อน

ส่งให้เพื่อน

Computer modules for analogue KVM matrix systems

Computer modules connect the computer's external keyboard, video, mouse, and audio interfaces with the central modules. They combine signals, process them, and use CAT cables to transmit these signals to the KVM matrix switch.

ผู้รับ: :

ชื่อเต็มของเพื่อน ^* :

ที่อยู่อีเมลเพื่อนของคุณ ^* :

^* ฟิลด์ที่จำเป็น

หรือ ยกเลิก
พิมพ์

รับประกัน 3 ปี

Computer modules for analogue KVM matrix systems

Any computer module has a unique ID, which helps identify the device within a central module. We provide the following variants of computer modules.

Basic computer modules

The basic computer modules for the analogue KVM matrix system make it possible to configure your system to exactly fit your needs. They are divided by the transmitted video signal and are available in additional variants. These expansion stages and additional functions can be found below.

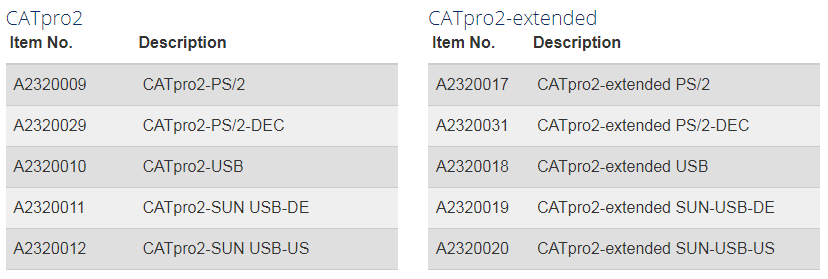

Standard

Standard variant

CATpro2 modules combine signals, process them, and use CAT cables to transmit said signals to the KVM matrix switch.

Available for the following signals:

VGA
Keyboard/ Mouse PS/2, PS/2-DEC, USB oder SUN-USB (DE/US)

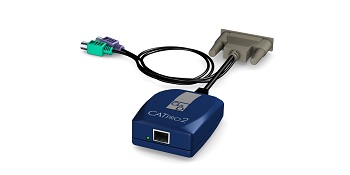

DVI-A

Standard variant for DVI-A

Standard variant available for the following signals:

DVI-A
Keyboard/Mouse PS/2, PS/2-DEC, USB

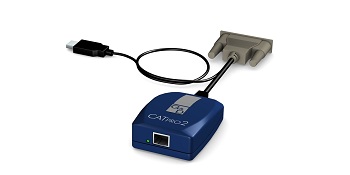

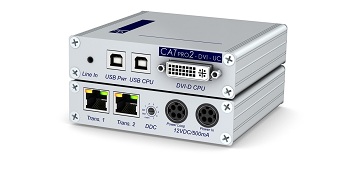

DVI-Audio-UC

Standard variant for single-link DVI

Variant for connecting computers with DVI single-link video at resolutions up to 1920 x 1200 @ 60 Hz. Converts DVI to VGA. Designed as dual module with audio support for the connection to two CATCenter clusters.

Transmits the following signals:

DVI single-link
Keyboard/mouse USB or SUN-USB (DE/US)
Audio (Line Out)

Audio is exclusively supported by CATCenter NEO.

Additional variants of computer modules

In addition to our basis modules we offer you functions and expansions such as integrated audio support, longer connection cables or the UserCenter to connect a computer to two CATCenter clusters.

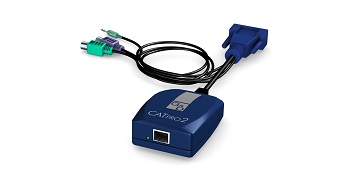

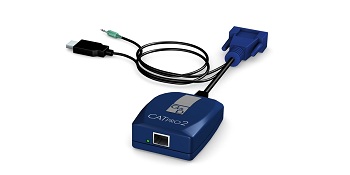

Audio

Connection for unidirectional audio signal

Available for the following signals:

VGA
Keyboard/ Mouse PS/2, PS/2-DEC, USB or SUN-USB (DE/US)
Audio (Line Out)

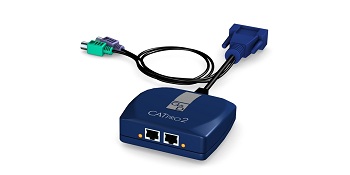

UC

UserCenter variants

UserCenter variant to connect a computer to two CATCenter clusters.

Available for the following signals:

VGA
Keyboard/Mouse PS/2, USB or SUN-USB (DE/US)

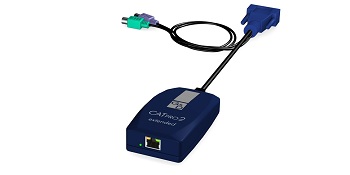

Extended

Extended connection cable

Standard variant with extended connection cable for installing telescopic rails in rack mounted servers (total length of housing and cable = 120 cm).

For the following signals:

VGA
Keyboard/Mouse PS/2, PS/2-DEC, USB or SUN-USB (DE/US)

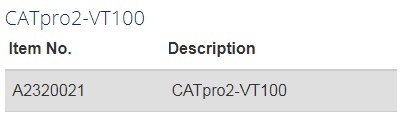

VT100

Converts the VT100 protocoll into VGA and PS/2

Variant for connecting serial servers or other components (e.g. network devices) without graphical interface via serial interface. Converts VT100 protocol to VGA and PS/2. The CATpro2-VT100 can be configured and operated over graphical user interface.

The modules are equipped with the following features:
