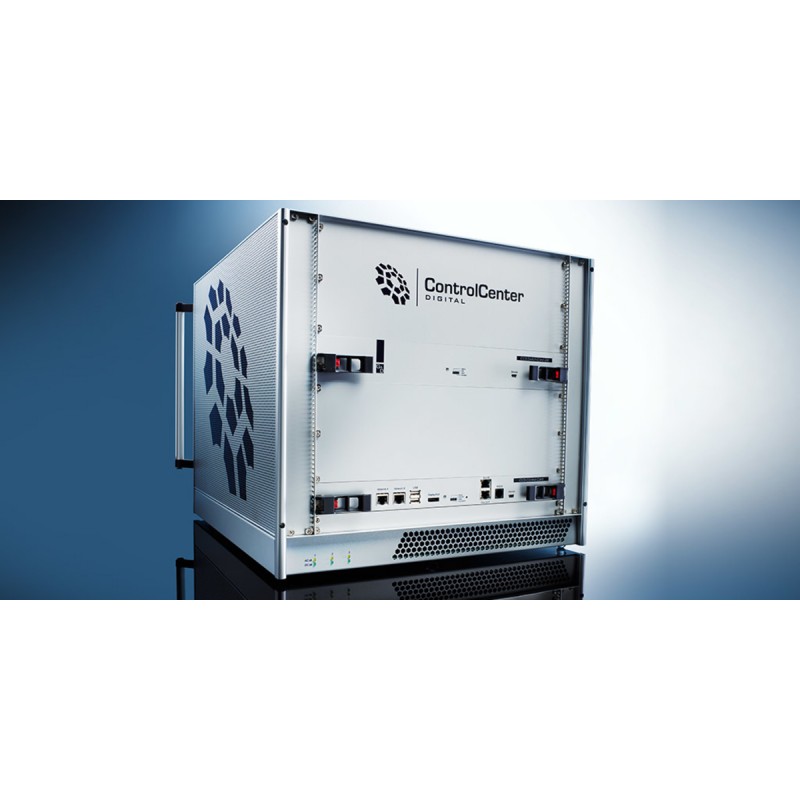

The new ControlCenter-Digital is a KVM matrix switch, which helps you operate multiple computers via multiple consoles. With its modular setup, the new ControlCenter-Digital is highly flexible and ready to  adapt to any surrounding conditions. The matrix switch enables the remote access of large, distributed IT installations in control rooms and is ready for any future IT requirements.

Depending on the chosen variation, the available 288, 160 or 80 dynamic ports can be connected either as computer or as user port. Which type of module is connected is automatically detected by the ControlCenter-Digital.

Variants of the ControlCenter-Digital

The following variants of the ControlCenter-Digital are available:

ControlCenter-Digital 288

288 dynamic ports for computer or user modules.
Optimal for big installations.

ControlCenter-Digital 160

160 dynamic ports for computer or user modules.
Optimal for mid-sized installations.

ControlCenter-Digital 80

80 dynamic ports for computer or user modules.
Optimal for smaller installations.

Product details

Modularity

Flexible thanks to modular design
The ControlCenter-Digital provides maximum flexibility. Thanks to its modular setup, all system components are precisely tailored to your requirements. Therefore, your individual ControlCenter-Digital is equipped with exactly the components you need – not more and not fewer.

The modular design consists of:

I/O cards

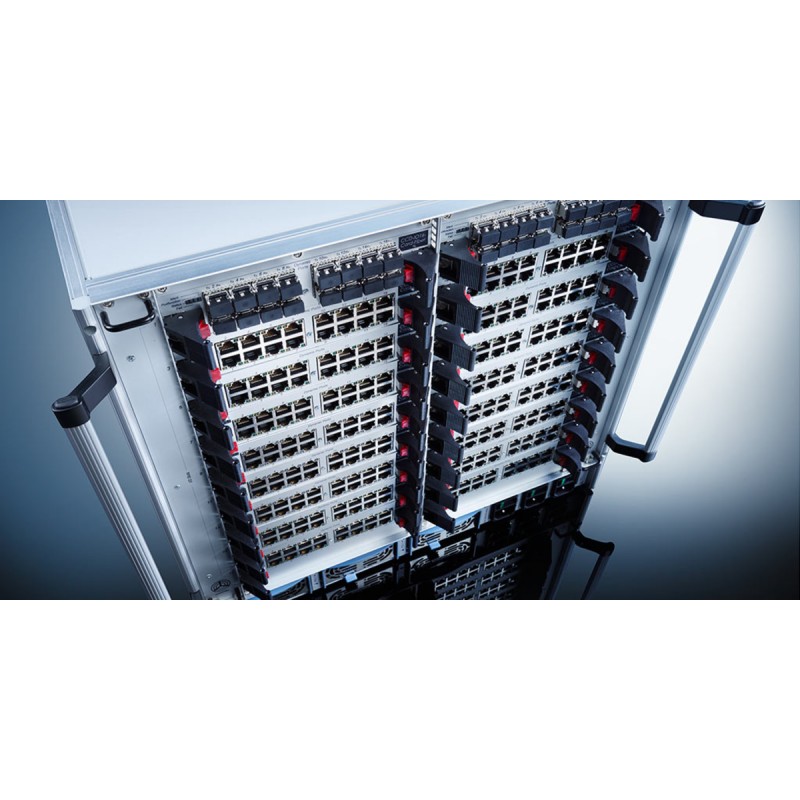

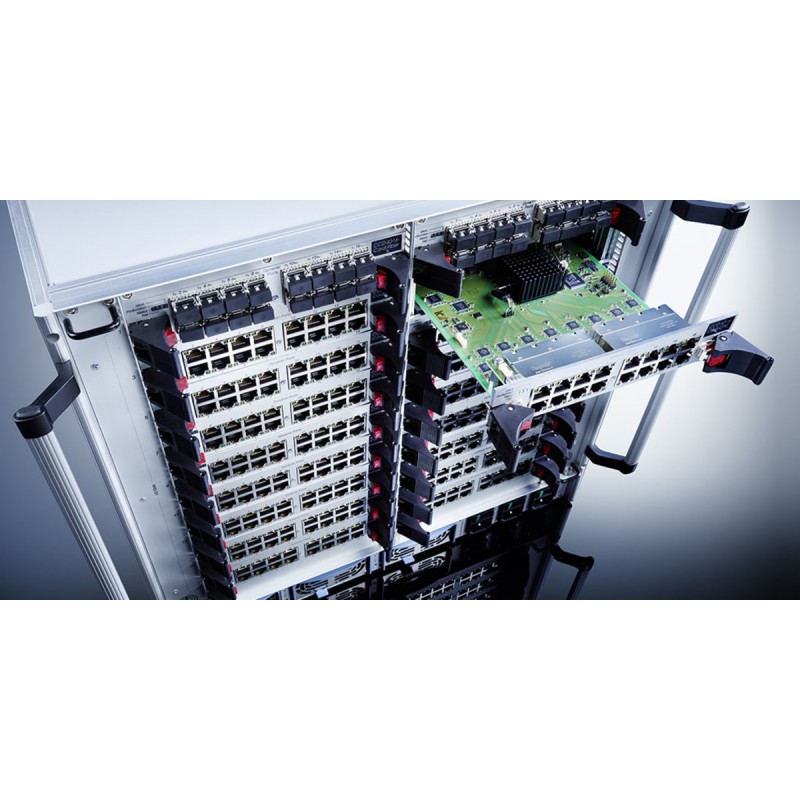

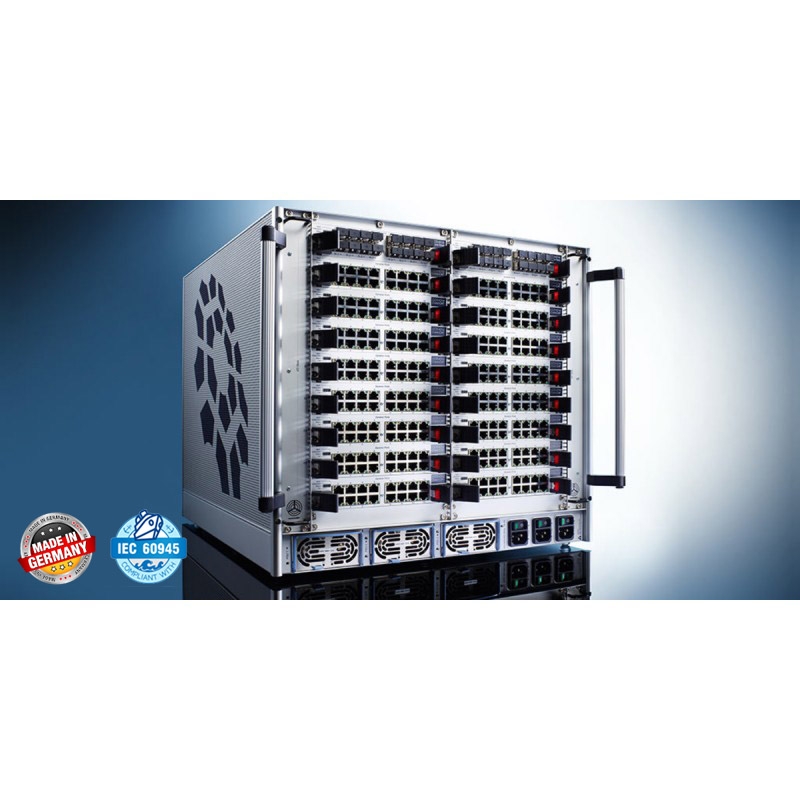

The input/output cards establish a connection between the ControlCenter-Digital and its computer modules and user modules. Each card provides 16 ports, which automatically detect the type of module connected to the matrix switch. The cards run independently from each other – even in mixed mode.

I/O-Card-CAT:
The I/O-Card-CAT offers you 16 RJ45 sockets to connect CAT-x cables. The distance between user modules and computer modules can be up to 140 m.

I/O-Card-Fiber:
Optical fibres are the ideal solution to bridge large distances. The transmission distance can be up to 10 km.

I/O-Card-Trunk4
The I/O Card Trunk4 with ethernet capability, can be placed in one of the I/O  slots of the ControlCenter-Digital matrix system. The I/O-Card-Trunk4 reduces the grid lines required for a matrix grid by combining 4 of the 16 channels on one line.

For transmission between two matrices, the four ports of an I/O-Card-Trunk4 can be configured independently for a 1:1 direct connection. Transmission between two I/O-Card-Trunk is carried by even more powerful components compared to the standard. These components let you use the fourfold of the bandwidth at the same time – thus saving you three quarters of the cabling effort.

I/O-Card-Multi
The I/O-Card-Multi lets you connect third-party devices to the matrix from where they can be switched, too. Some of the signals supported are SDI, HD-SDI, 3G-SDI, USB 3.0 Spectra or 1Gb Ethernet.

The following components are included in shipment:

Features

CrossDisplay-Switching

As a part of the expansion module "TS function", CrossDisplay-Switching enables users to switch between channels simply by moving the mouse. The mouse acts as if on a “virtual desktop” and can be moved seamlessly across the connected displays. Moving the cursor from the active to another display, the keyboardmouse focus automatically switches to the connected computer.

Now users can create an intuitive multi-monitor console and use the mouse to easily switch between channels.

Port grouping

In addition to combining multiple computers to a console, the ControlCenter-Digital also supports multi-monitor consoles for computers with several video outputs. Here, multiple channels can easily be combined as port groups.

As always, you can administrate all functions in theControlCenter-Digital web interface. In addition to multiple screens, you can include other signals in these groups. The system also transmits and switches transparent USB2.0 signals as well as RS232.

USB Pinning

If several ControlCenter-Digital ports are grouped as a multi-channel configuration,
the USB pinning function enables you to hold the USB transmission on the current computer even when switching to another channel. In this case USB transmission is not interrupted but put on hold.

Dynamic Ports

The dynamic ports of the ControlCenter-Digital are usable for computer or user modules. The ControlCenter-Digital identifies automatically if a computer module or console module is connected.

Monitoring | SNMP

The CCD-Monitoring feature enables you to detect the system status of G&D devices.
The web interface of the particular device provides information that can be sent (SNMP trap) or queried (SNMP GET).

Easier access with SNMP tool Zabbix

For customers who are not yet using extensive SNMP tools, G&D offer a simple way to use the functions included in the devices. Templates for the open source tool Zabbix are provided here. The program lets users monitor SNMP-capable devices in a network and, among other things, issues warning notifications about critical device states, which have been received via SNMP trap.

Details

Compatibility

• ControlCenter-Digital is compatible with all ControlCenter-Compact and DVICenter system components
• ControlCenter-Compact and DVICenter can be fully integrated into the system as a slave

Safety

• Boot loader, operating system and firmware  form a trusted computing platform to protect the system against third-party manipulations
• integrated Trusted Platform Module (TPM) protects any access and configuration data against exposure with  RSA encryption process
• configuration data is saved at two SSDs which are connected over a RAID1 system
• Failover connection (if the central module fails, you can establish a direct connection between user module and computer module and still operate the system). This feature is provided for distances up to 140m (over CAT-cable).
• Access protection and user administration (can be switched off)
• Redundant power supply system, three redundant power packs

Device

• Accesses only the computers' standard interfaces and requires no software installation
• The device contains four different types of cards: I/O CAT cards and I/O Fiber cards to connect the cabling at both the computer and the console side, the switch card with the central processor unit and the controller card that holds the logic.

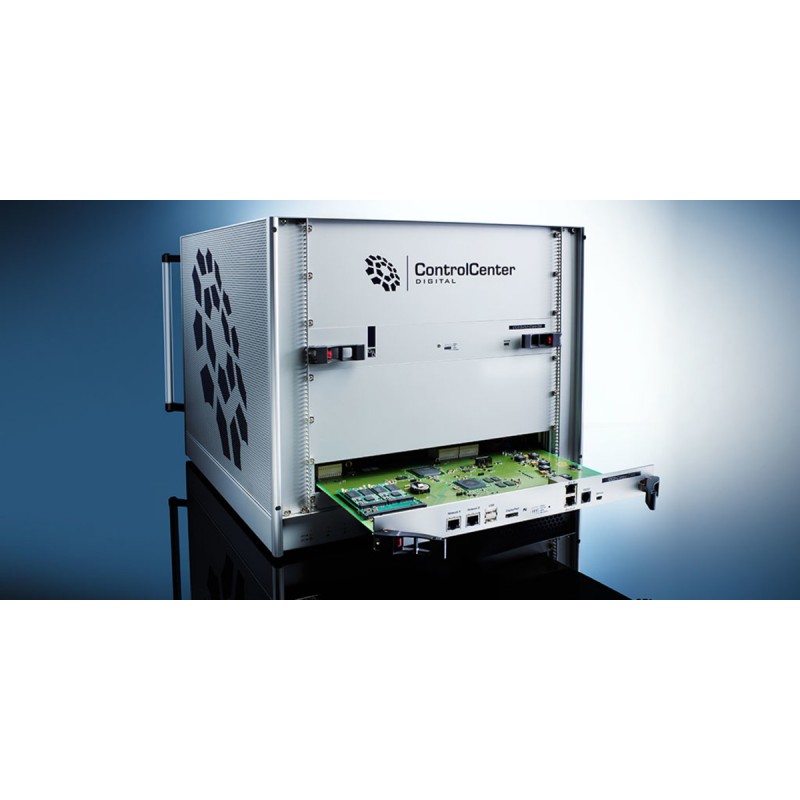

• Switch card and controller card are modular and can be replaced
• Three redundant power packs that can be replaced during operation
• I/O CAT cards, I/O Fibre cards, power supplies and fan boards are hot-pluggable and hot-swappable
• Device cascading enables even large installations with thousands of computers
• Shipped in an aluminium housing for best interference immunity

Network / Communication

• Auto-recognition and display of the system structure
• Two network ports
• Configuration over web interface
• Central update of all ControlCenter-Digital components over network
• Text based media control over TCP/IP e.g. AMX, Crestron, VSM as KSC-Commander
• Support of external authentication via LDAP, Active Directory, TACACS+, Radius

Expansion

• Expandable to up to 3,998 computers when connected to 50 workstations
• DVICenter can be integrated into the system as slave
• Cascadable to up to three levels
• Firmware expansion for multi-monitor consoles (TS function)
• Firmware expansion for moving/getting own or external screen contents (Push-Get function)
• Firmware expansion for preparing the switching over network (IP-Control-API)

Application

Application of the ControlCenter-Digital
The ControlCenter-Digital enables the flexible and decentralised operation of large and distributed IT installations.

With its modular setup, a broad range of supported signals and transmission media,
the ControlCenter-Digital can be applied in applications like control centres, OB vans or studios.
