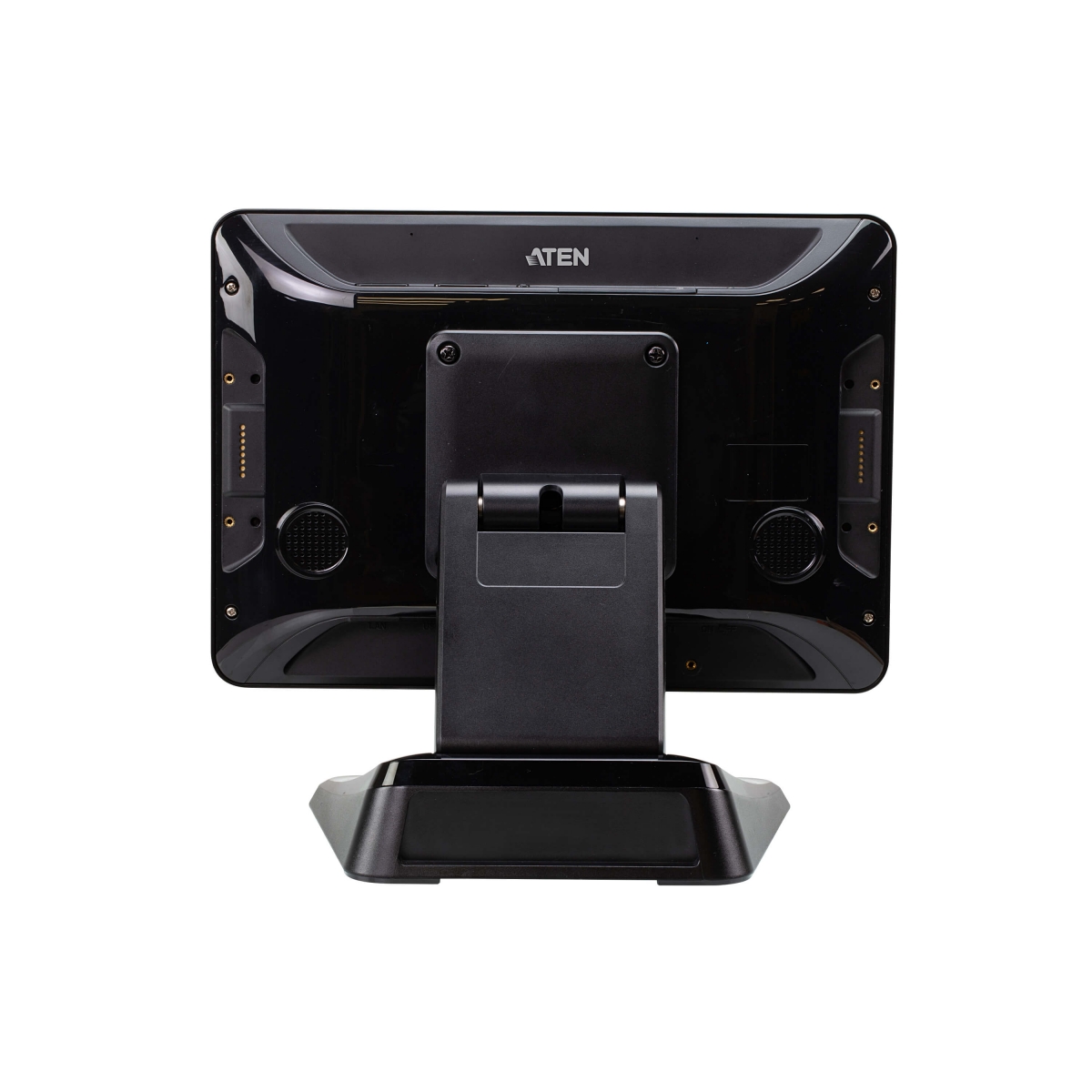

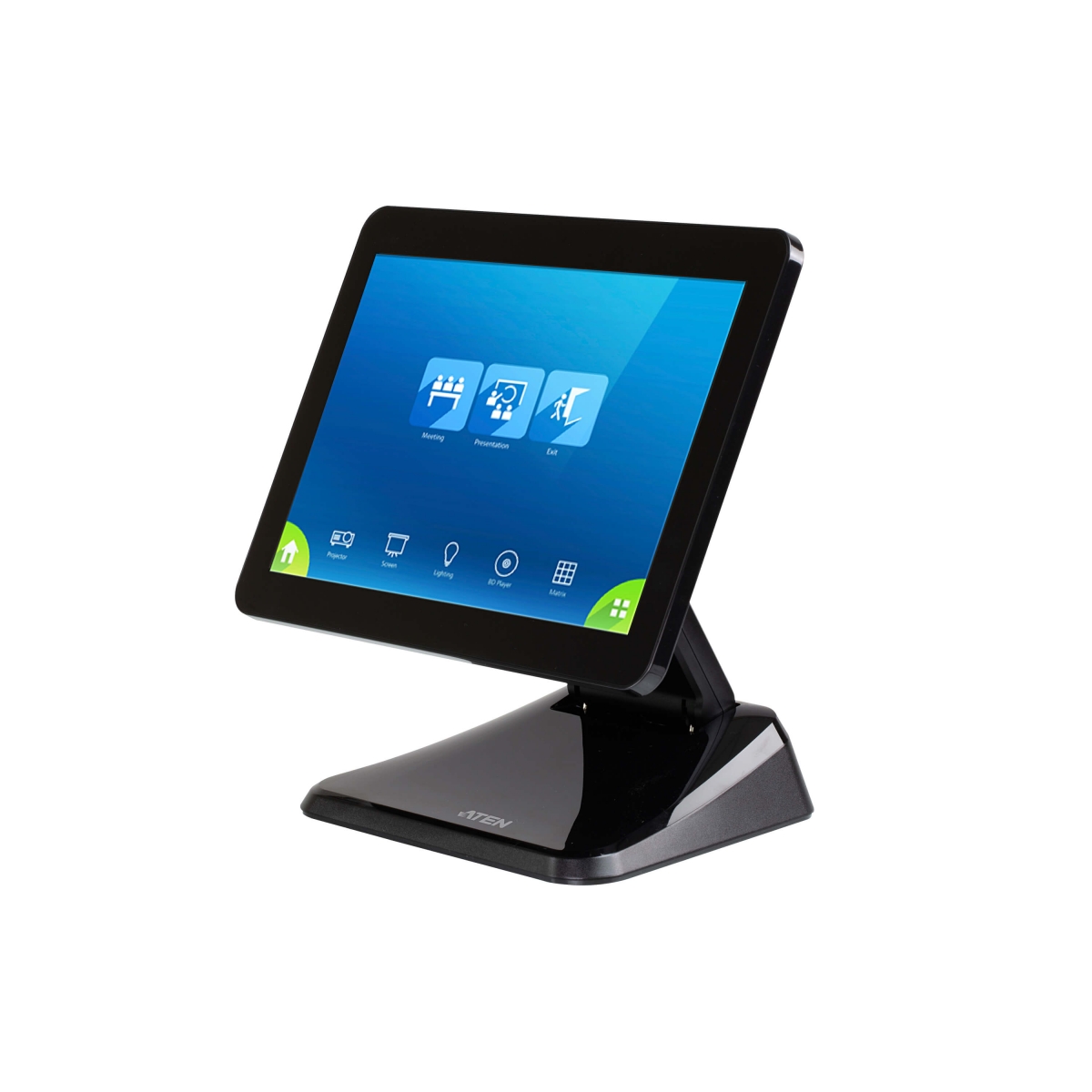

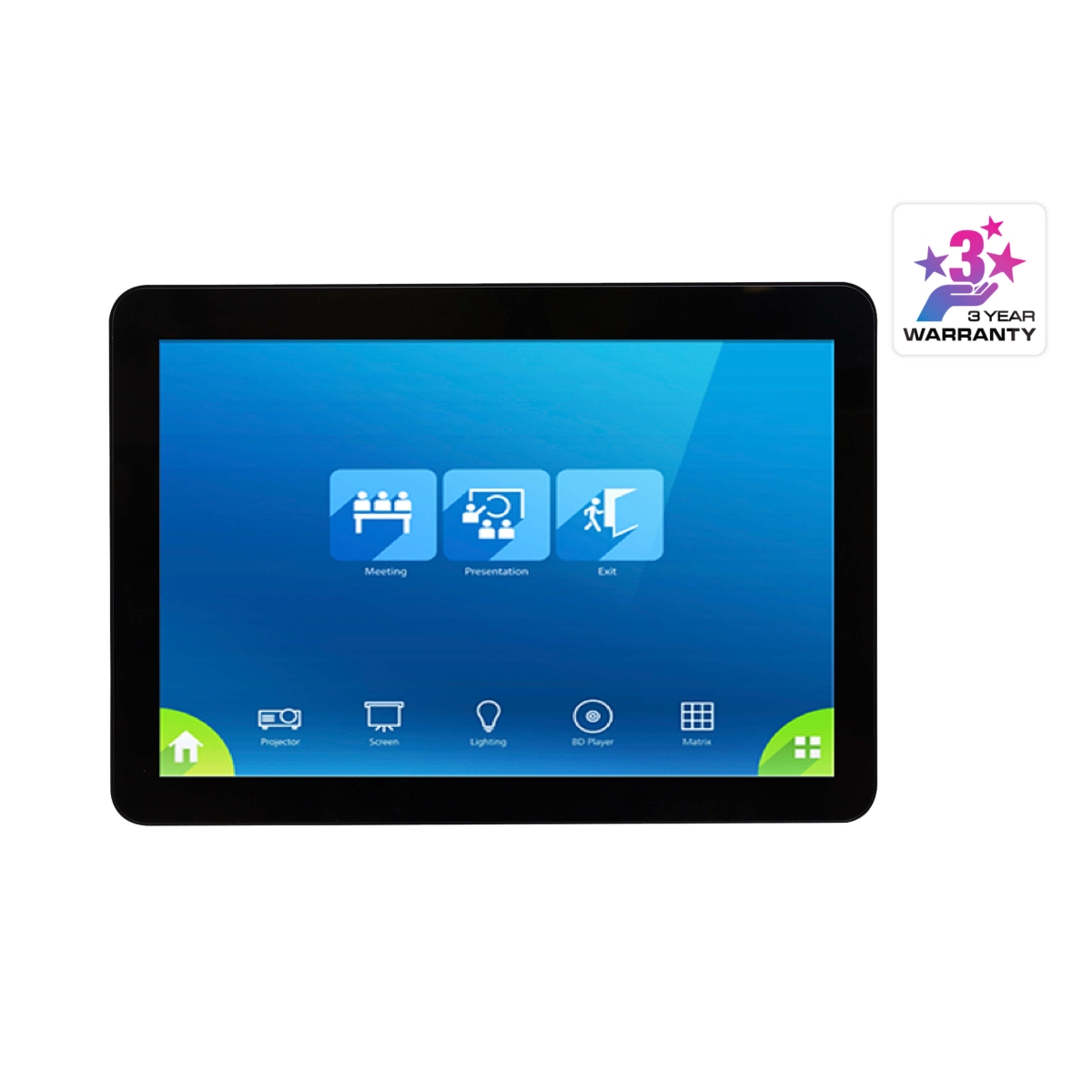

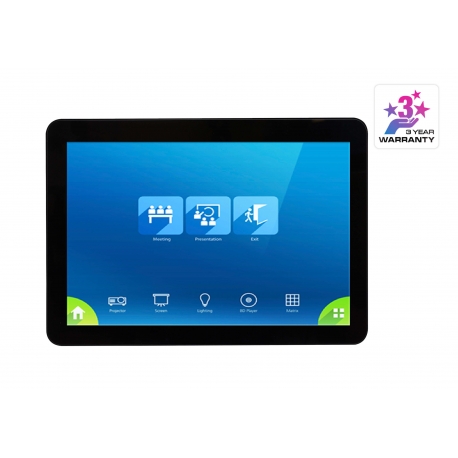

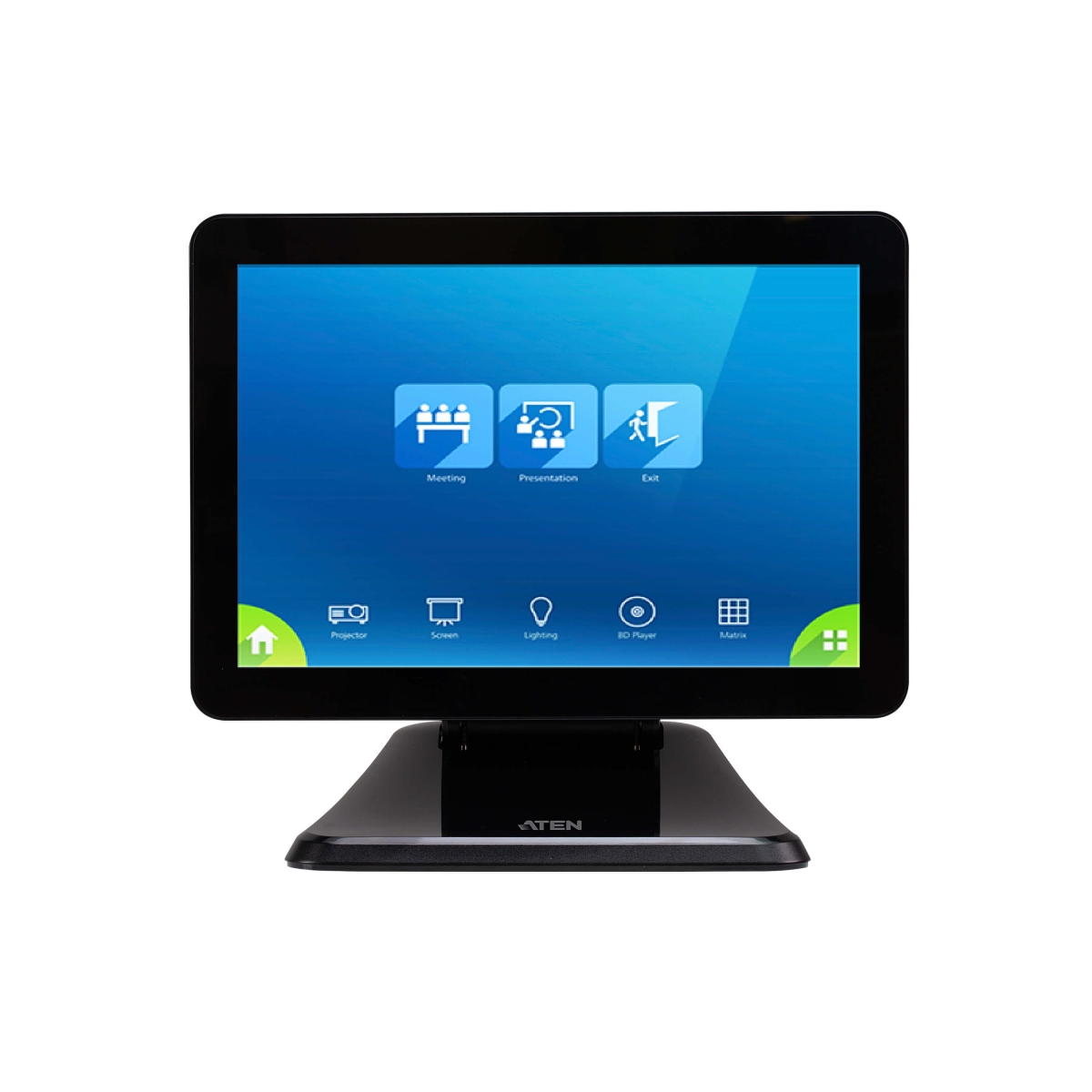

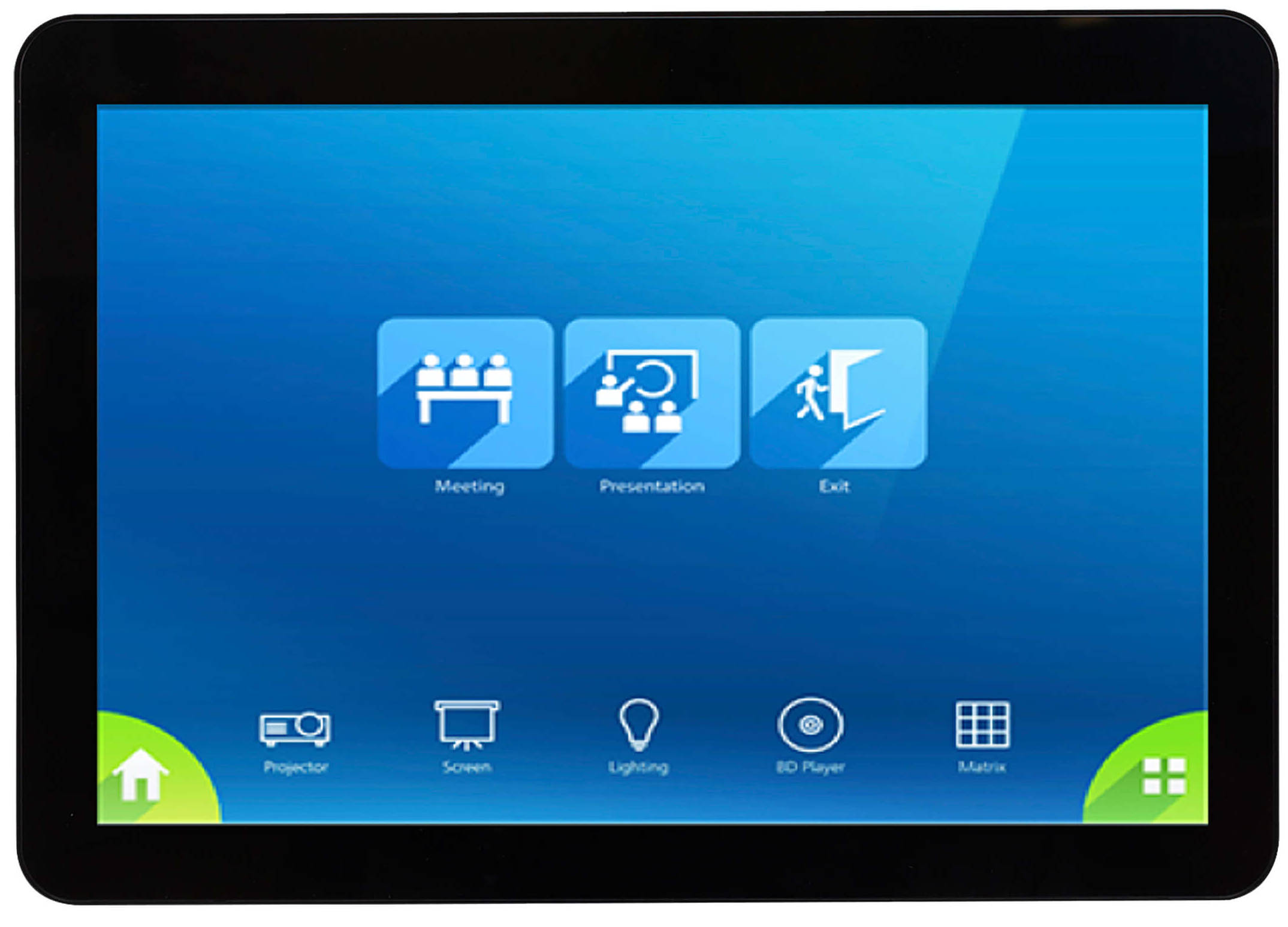

VK330
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:
10.1” Touch Panel
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก
หมายเหตุ

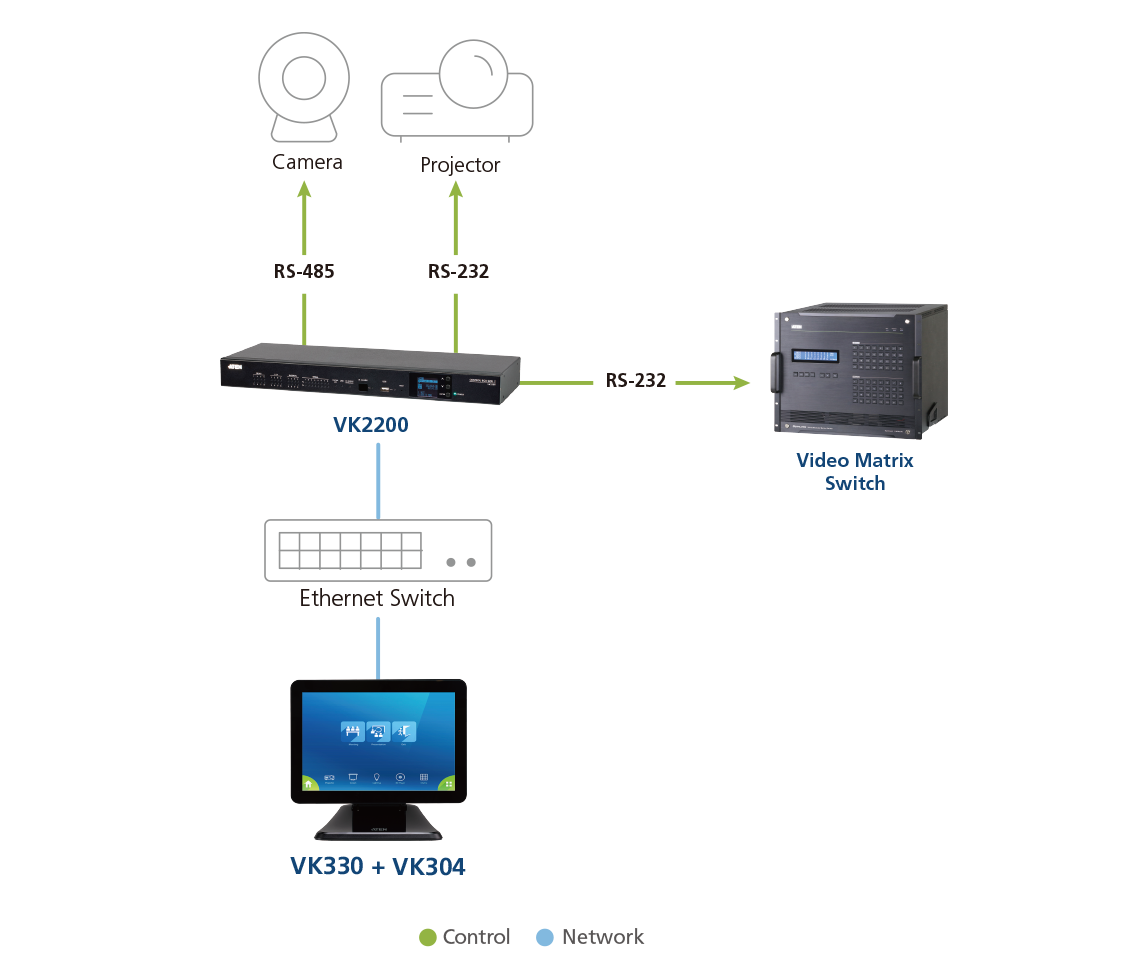

* เฉพาะเมื่อใช้ร่วมกับ VK1200, VK2200
** ต้องใช้ร่วมกับ ATEN Unizon
Panel Spec | |
Display Type | TFT-LCD |
Size | 10.1" |
Touch Screen | Capacitive |
Resolution | 1280 x 800 |
Aspect Ratio | 16 : 10 |
Color Depth | 8 bit |
Contrast Ratio | 800 : 1 |
Brightness | 500cd/m2 |
Backlight | LED |
Viewing Angle | ± 85° (H), ± 85° (V) |
CPU | Cortex-A17, Quad Core, up to 1.6 GHz |
RAM | 2GB DDR3 SDRAM |
Internal Storage Memory | 16GB eMMC |
OS | Android 8 |
Interfaces | |
Ethernet | 1 x RJ-45 Female, 10 / 100 / 1000 BaseT |
USB | 1 x USB Type A |
Power Inputs | |
Power over Ethernet (PoE) | 802.3 af PoE / 802.3 at PoE+ |
Power Consumption | DC48V:20WBTU |
Environmental | |
Operating Temperature | 0 – 40°C |
Storage Temperature | –10 – 55°C |
Humidity | 10 - 80% RH, Non-Condensing |
Physical Properties | |
Housing | Plastic |
Weight | 0.62 kg ( 1.37 lb ) |
Dimensions (L x W x H) | 25.20 x 17.78 x 2.45 cm (9.92 x 7 x 0.96 in.) |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
