VK430
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:

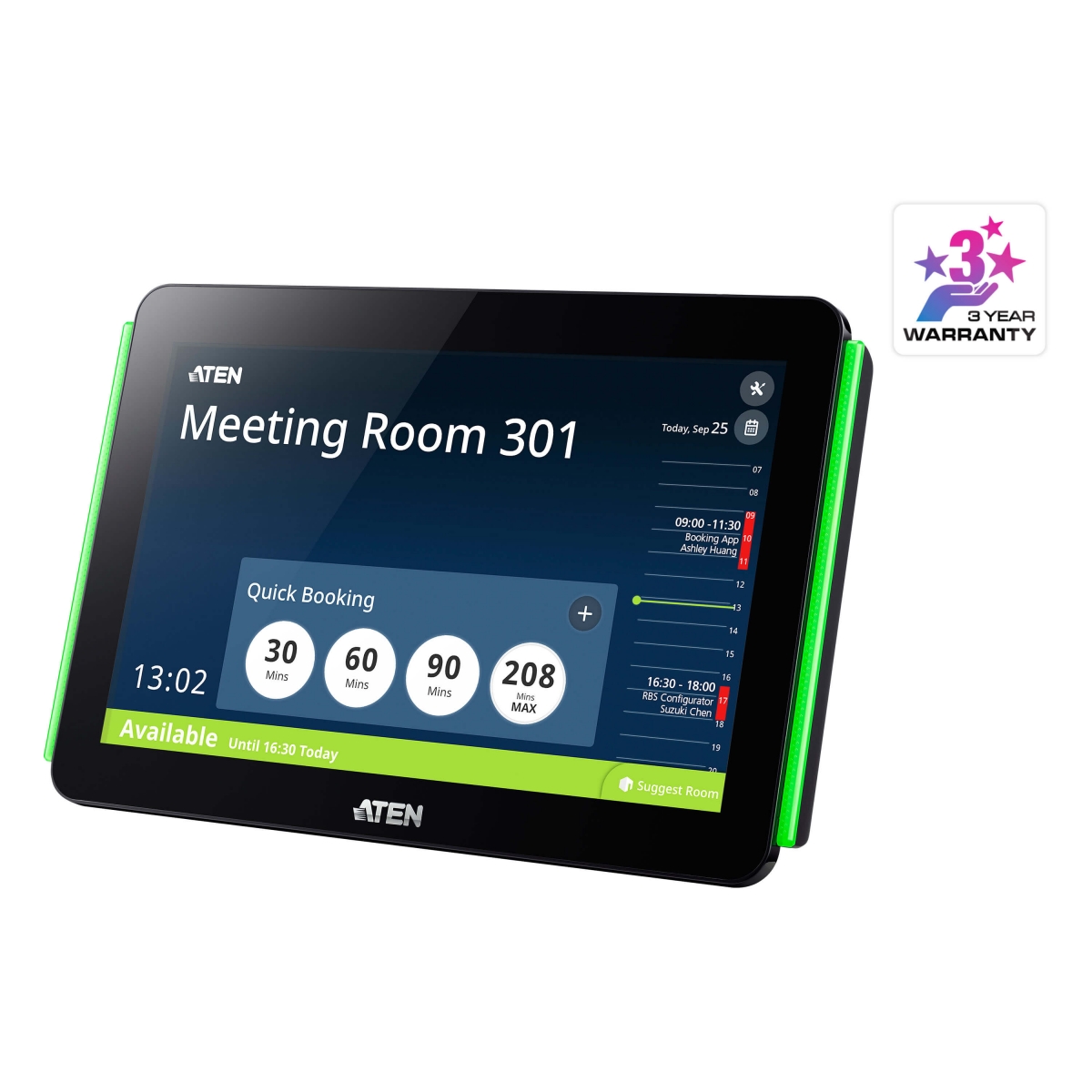

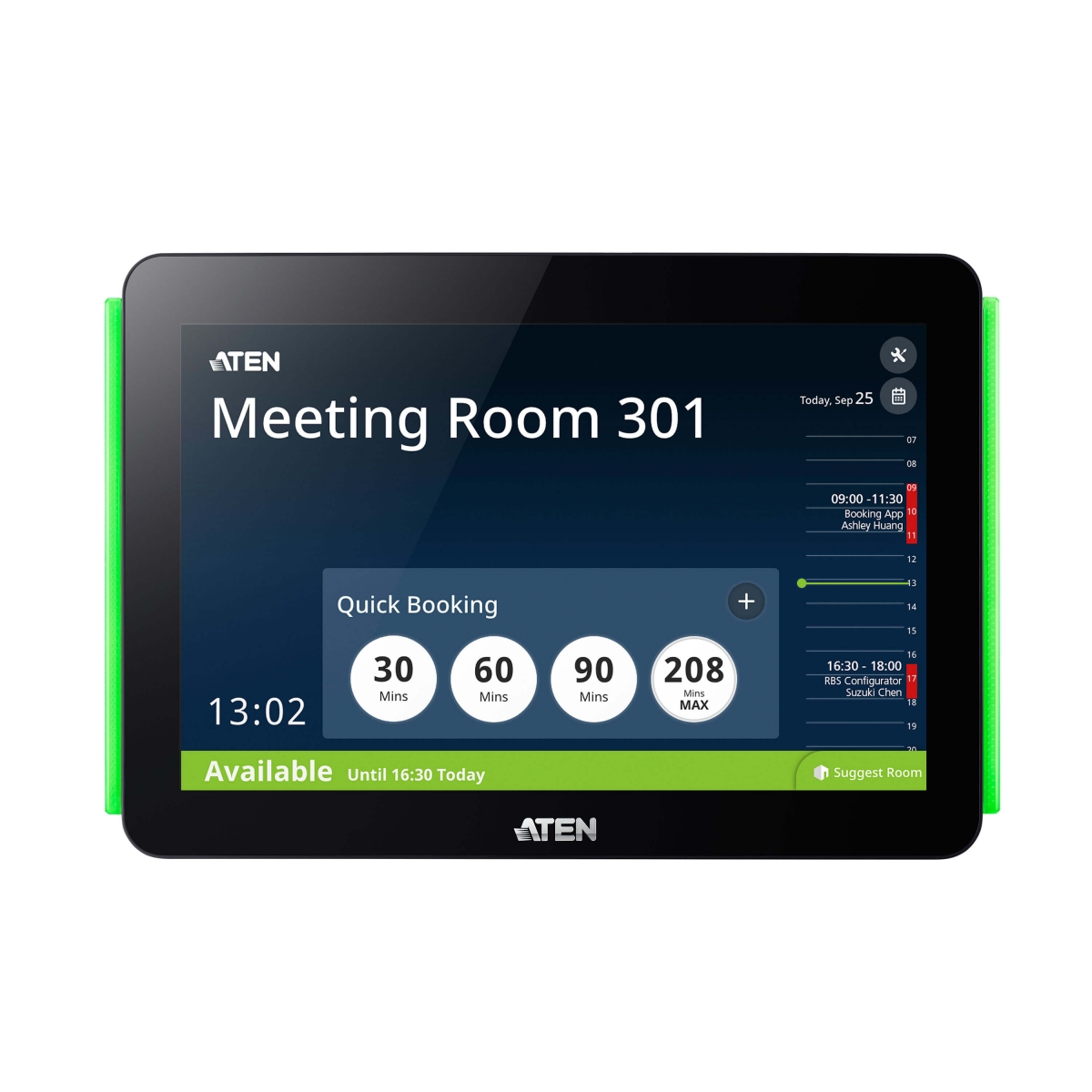

ระบบจองห้องประชุม Meeting Room Booking System - 10.1" RBS Panel
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก

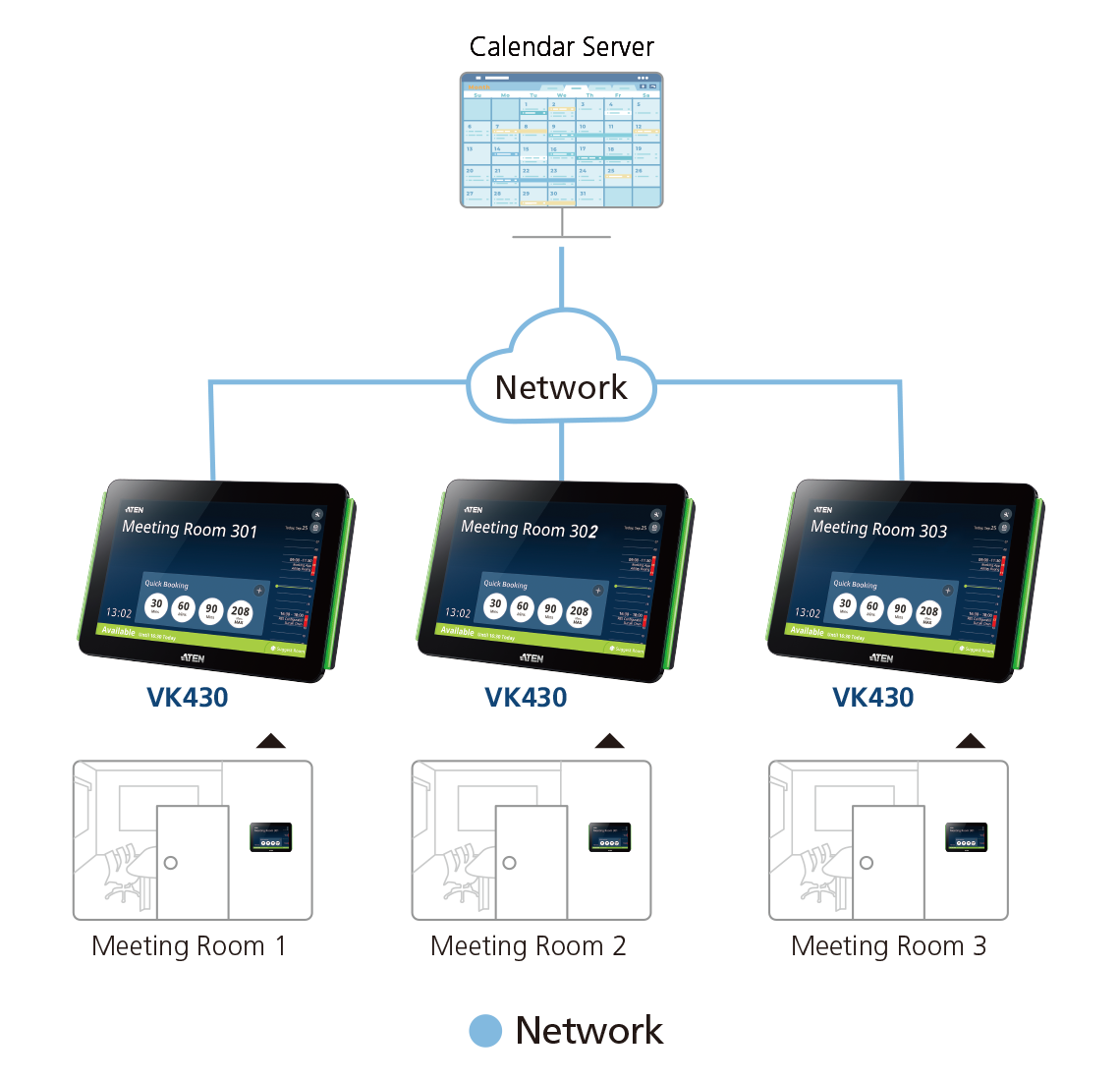

ระบบการจองห้องประชุมจาก ATEN ถูกออกแบบมาให้เหมาะสำหรับพื้นที่ทำงานโดยมี Room Booking Panel (VK430) ที่มาพร้อม app สำหรับ Panel ในตัว ที่ถูกพัฒนาขึ้นมาเองโดยเฉพาะ ไม่ได้ใช้ Microsoft Team Room จึงไม่ต้องเสียค่า Licenses รายเดือนให้แต่ละ Panel แค่มี Microsoft 365 Business/Enterprise 1 Admin Account เป็นอย่างน้อย ก็สร้าง Room Account (Rource Account) ตามจำนวนห้องได้ฟรี ไม่จำกัด จึงเสียค่ารายเดือนถูกมาก นอกจากรองรับการใช้ MS365 เป็น Calendar Server แล้ว ยังรองรับ Google Workspace หรือ MS Exchange สำหรับใช้งานแบบ Local Server ได้อีกด้วย เช็คสถานะห้องผ่านไฟ LED 3 สี ที่ปรับแต่งสีเองได้ มาพร้อม RBS Configurator สำหรับ ตั้งค่า Panel จากศูนย์กลางได้ เช่น เปลี่ยนชื่อห้อง, สี, ภาพพื้นหลัง, โลโก้องค์กร
Calendar Server | Microsoft 365 (Exchange Online) | Google Workplace | Microsoft Exchange |
---|---|---|---|
License/Edition/Version | Business Basic/Standard/Premium Enterprise E1/E3/E5 |
Business Starter/Standard/Plus Enterprise Standard/Plus |
2010/2013/2016/2019 |
ฟังก์ชั่นที่ต้องมี | กรุณาตรวจสอบให้แน่ใจว่า License สำหรับ all resource accounts และ บัญชีผู้ใช้ รองรับ online exchange ด้วย สำหรับ ความแตกต่างของแต่ละ Plan หรือ License สามารถคลิกดูได้ที่นี่ • Microsoft 365 for Business • Microsoft 365 for Enterprise |
Panel Spec | |
Display Type | TFT-LCD |
Size | 10.1" |
Touch Screen | Capacitive |
Resolution | 1280 x 800 |
Aspect Ratio | 16 : 10 |
Color Depth | 8 bit |
Contrast Ratio | 800 : 1 |
Brightness | 500 cd/m2 |
Backlight | LED |
Viewing Angle | ± 85° (H), ± 85° (V) |
Hardware Spec | |
CPU | Cortex-A17, Quad Core, up to 1.6 GHz |
RAM | 2GB DDR3 SDRAM |
Internal Storage | 16GB eMMC |
OS | Android 8 |
Interfaces | |
Ethernet | 1 x RJ-45 Female, 10 / 100 / 1000 BaseT |
USB | 1 x USB Type A |
Power Inputs | |
Power over Ethernet (PoE) | 802.3 at PoE+ |
Power Consumption | DC48V:20W:68.24BTU |
Environmental | |
Operating Temperature | 0 – 40°C |
Storage Temperature | –10 – 55°C |
Humidity | 10 - 80% RH, Non-Condensing |
Physical Properties | |
Housing | Plastic |
Weight | 0.90 kg ( 1.98 lb ) |
Dimensions (L x W x H) | 26.30 x 17.78 x 3.72 cm (10.35 x 7 x 1.46 in.) |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
