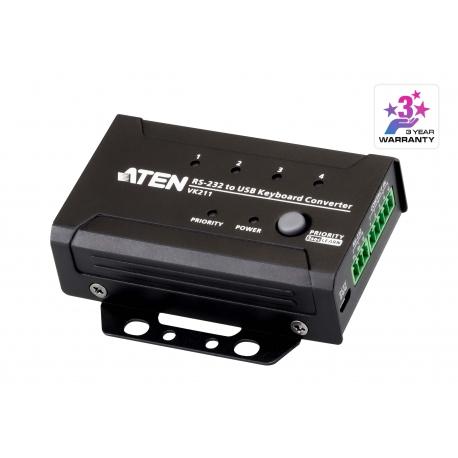

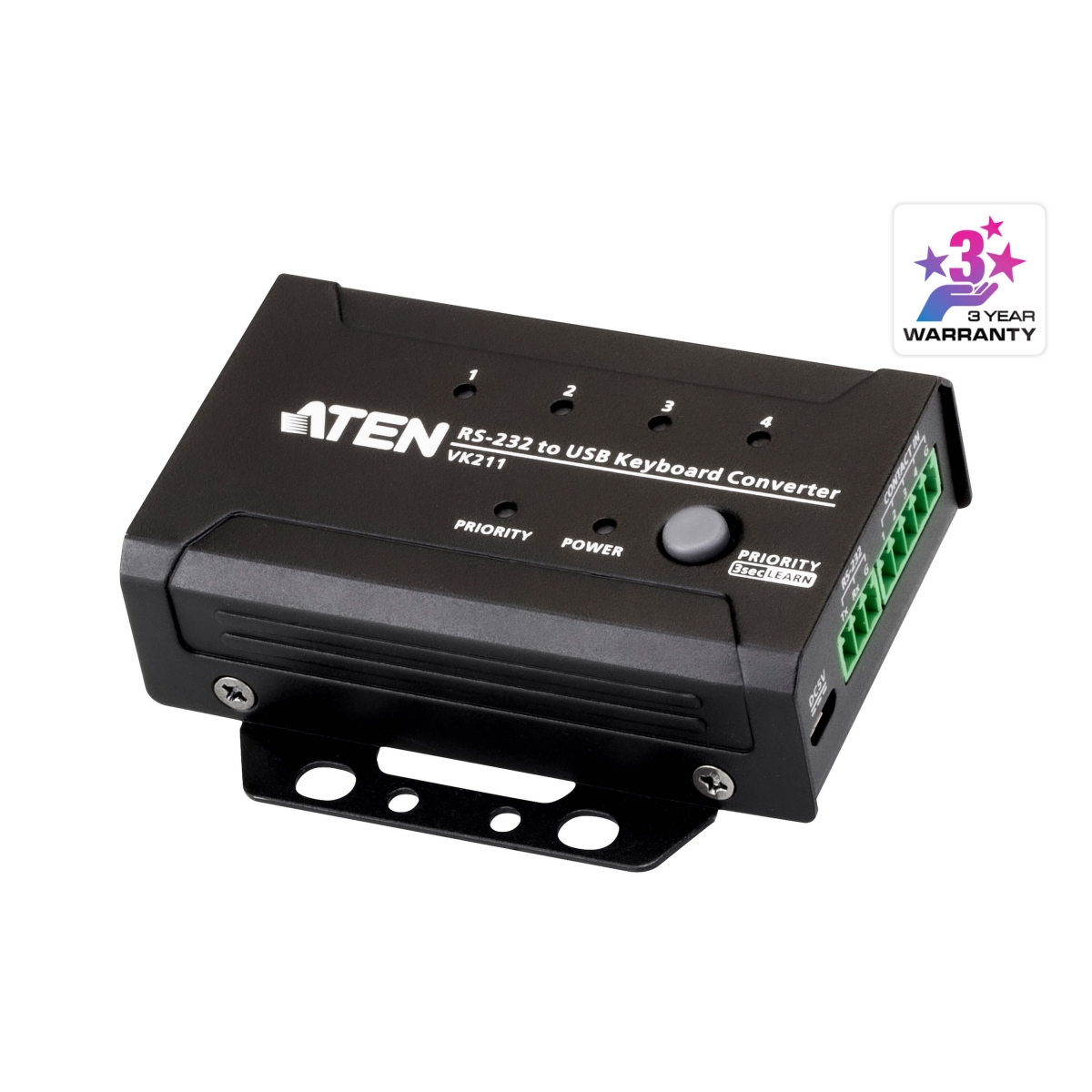

RS-232/Contact to USB Keyboard Converter
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก

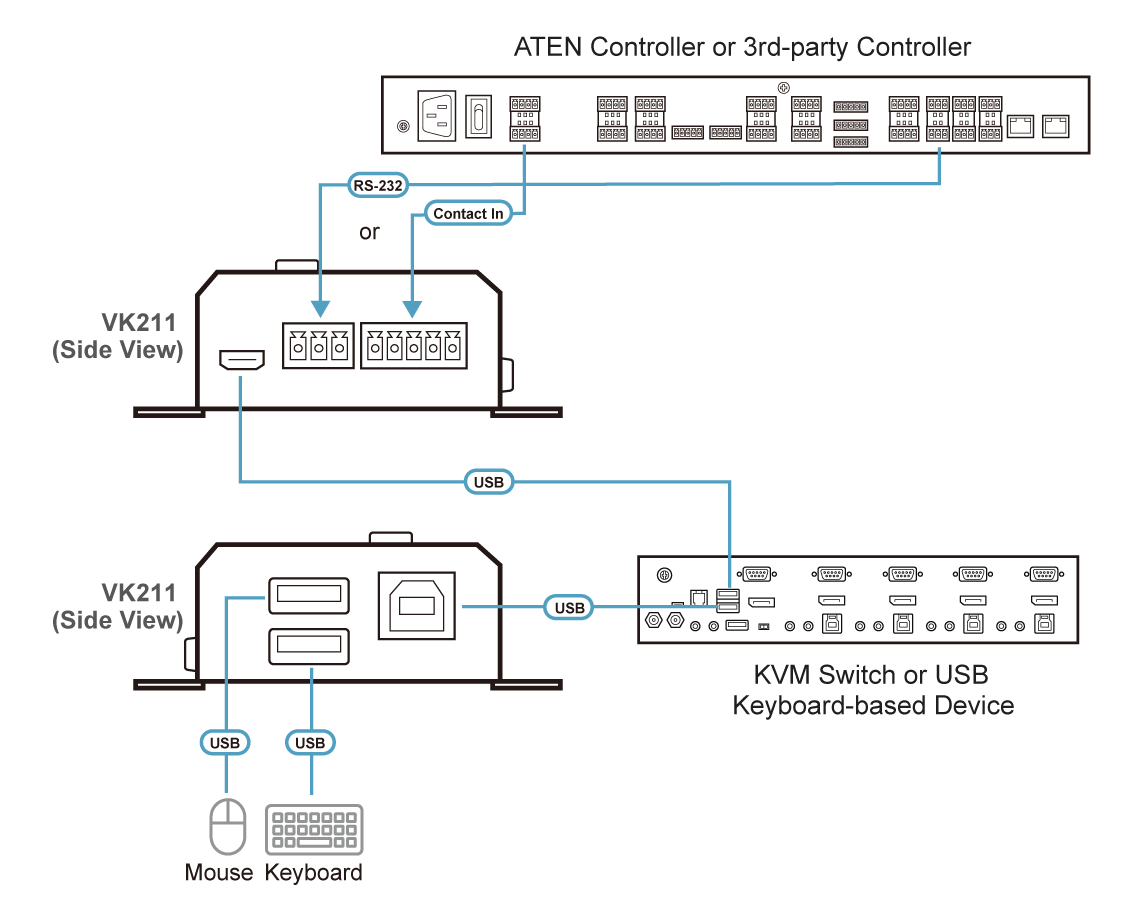

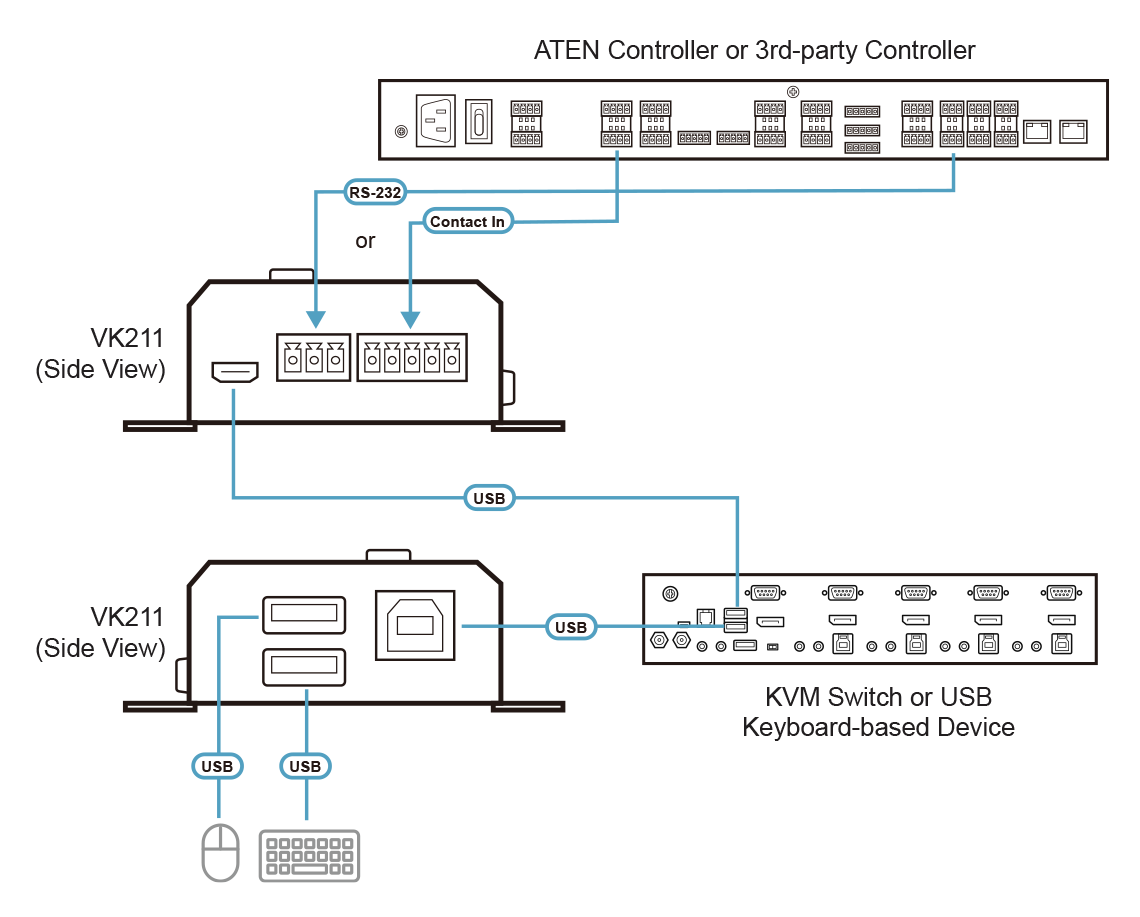

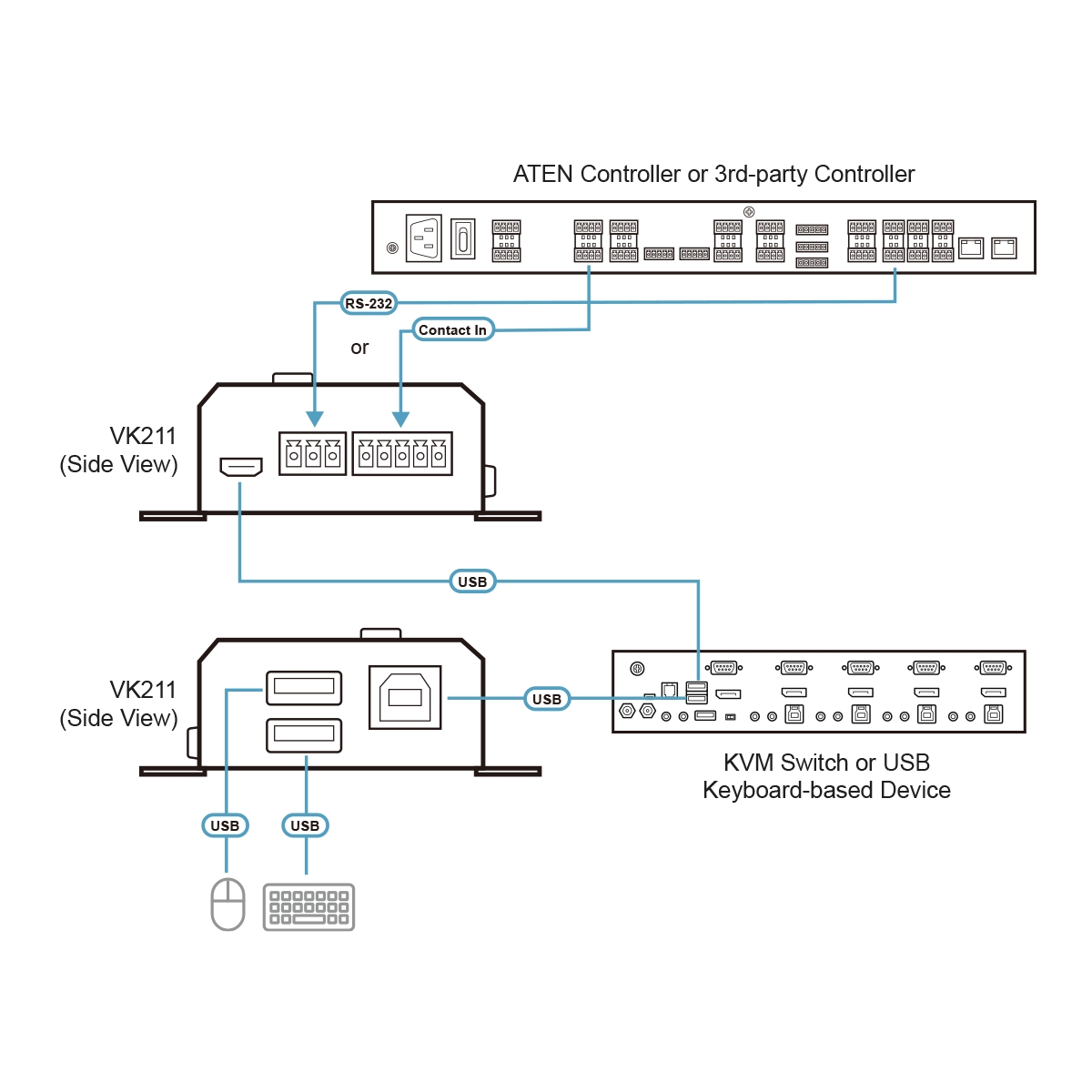

VK211 converts RS-232 commands to full-range USB keyboard signals for remote control over USB keyboard-based devices such as KVMs and PCs, broadening ATEN Control System / 3rd party controller applications. Besides, VK211 can recall the stored key codes and store up to 4 preset actions triggered via Contact In signals. The Learn function captures USB keyboard signals by pressing certain key combinations to ease the setup procedure and configurations.
A priority control push button is easy to spot on the panel for local operators to manage remote access, ensure operational accuracy, and handle emergencies. LEDs are built in to indicate the status of digital input signals, priority control, and power at a glance.

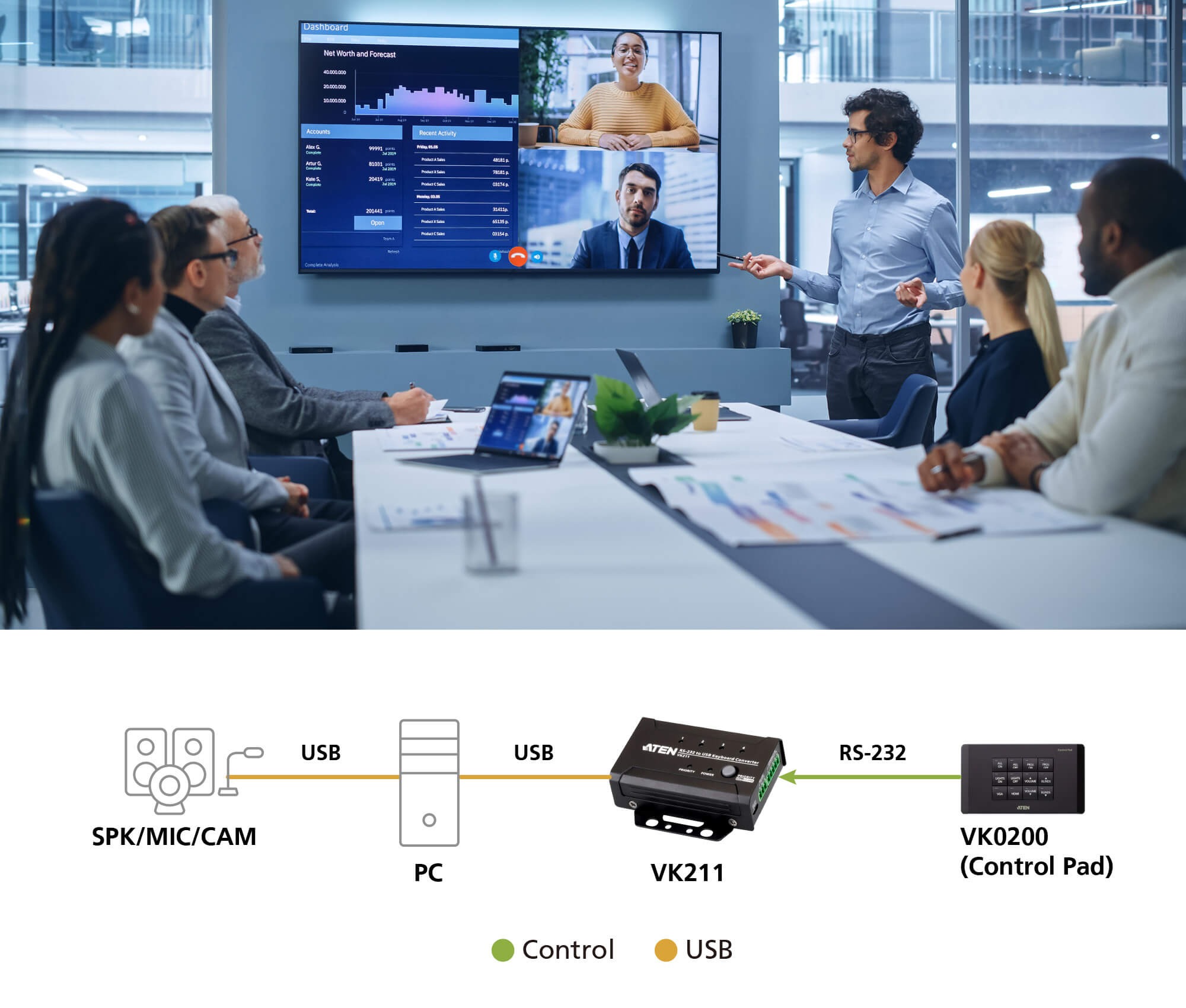

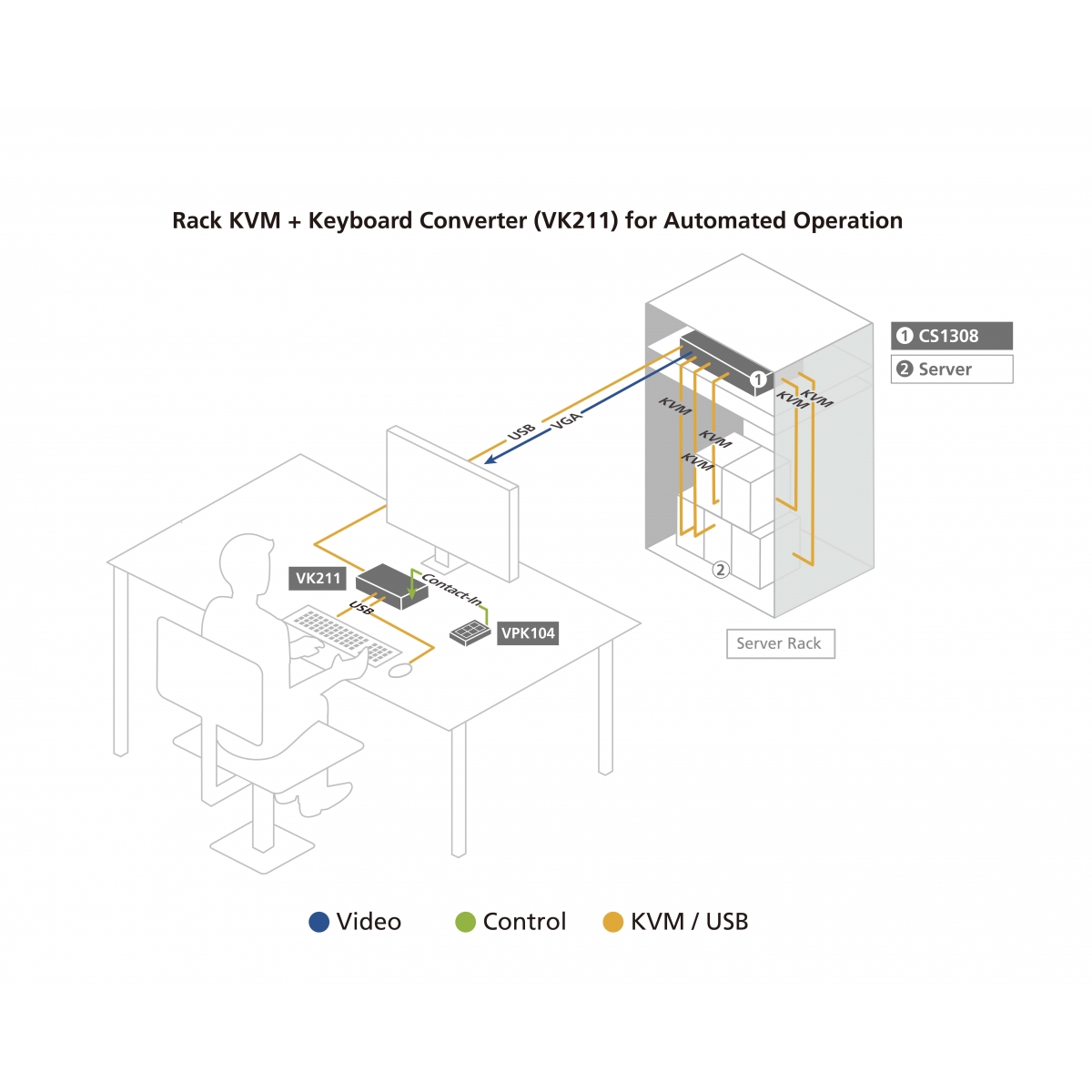

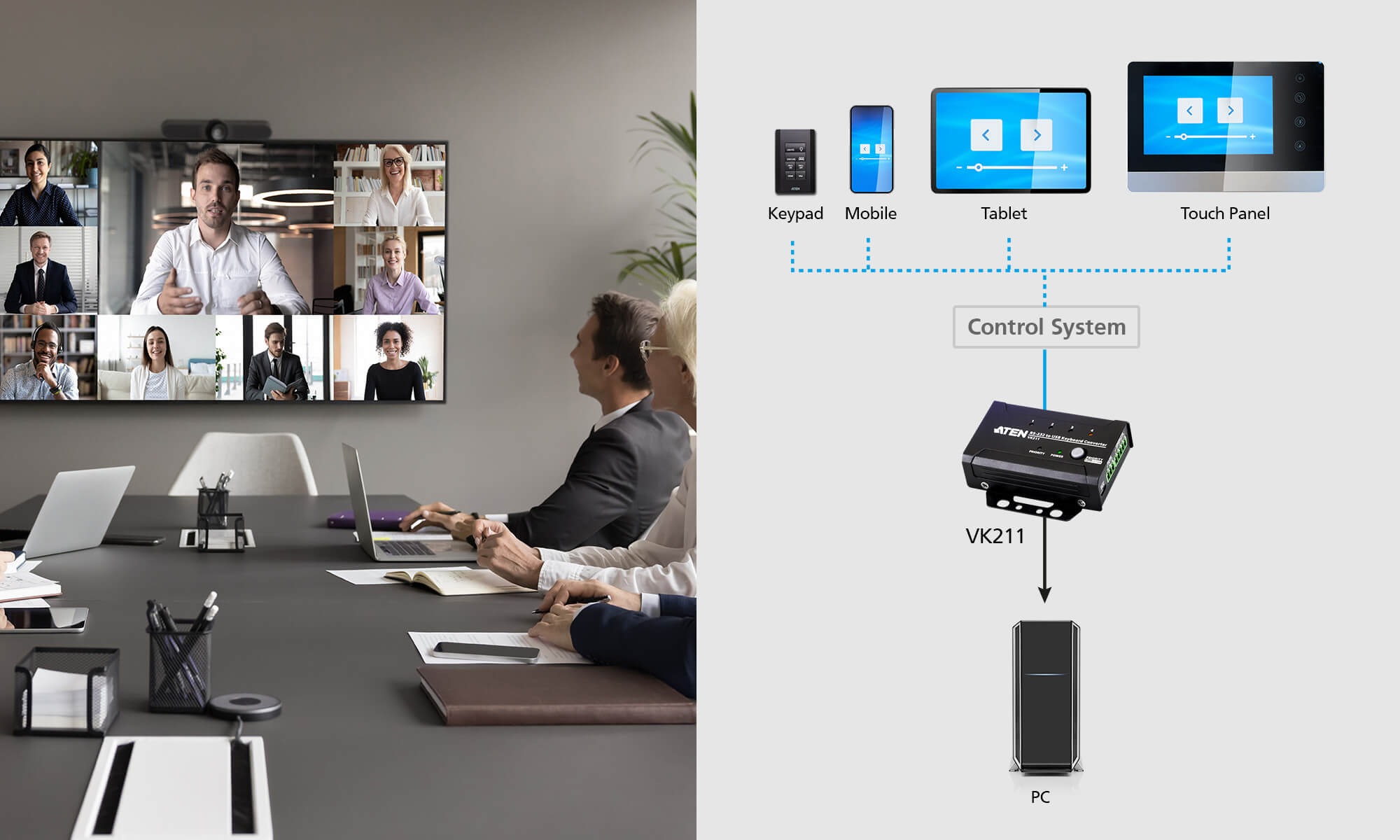

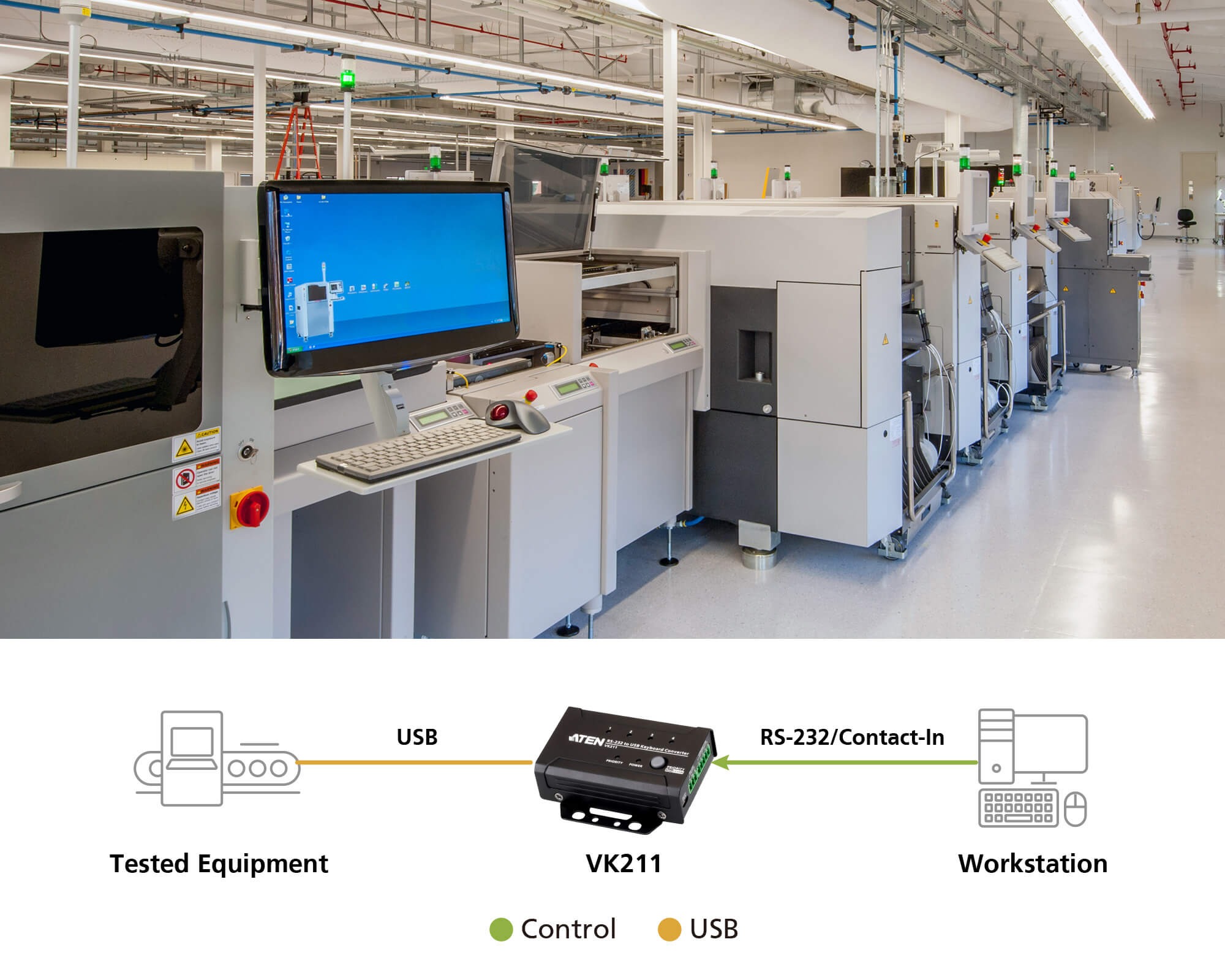

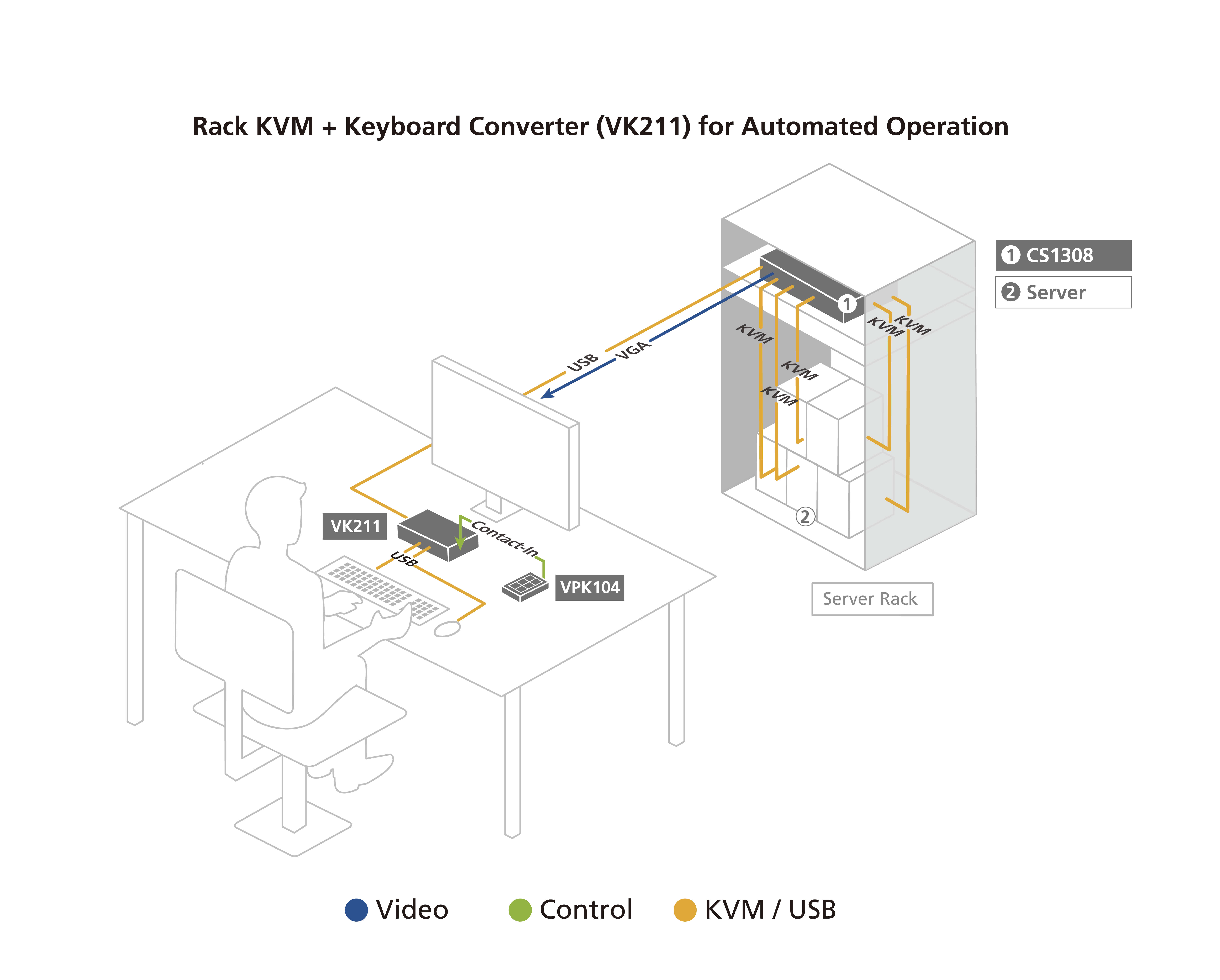

With the capabilities of emulating USB keyboard signals, the VK211 is perfect to provide RS-232 / Contact In interfaces for KVMs or any PC-based devices without remote control functionalities. Its compact size and non-power source design are suitable for applications such as factory production lines, control rooms, or any facility that requires automation with control system and remote secure operation without installing any software.
Connectors | |

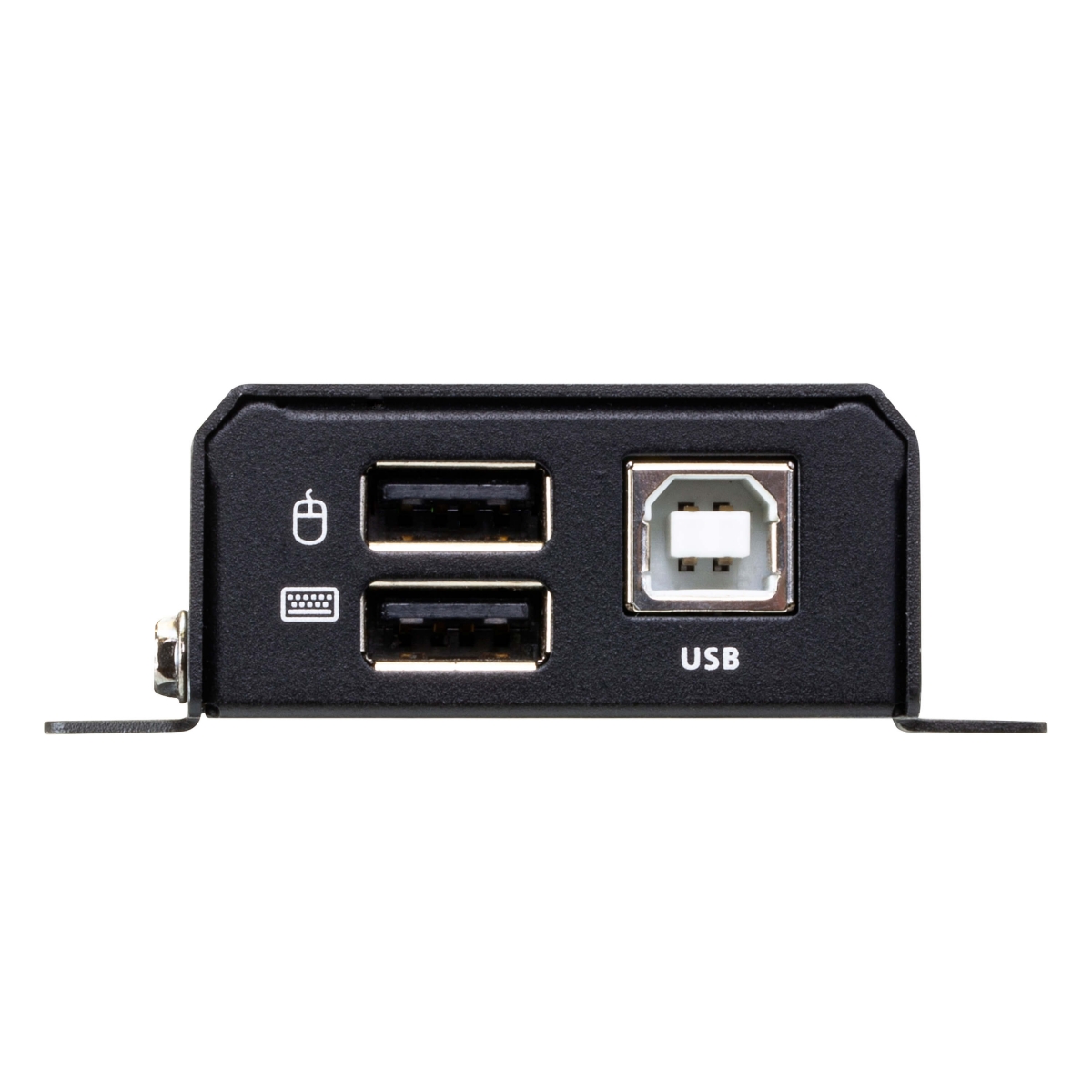

Console Ports | 2 x USB Type A Female |
Device Ports | 1 x USB Type B Female |
RS-232 | 1 x Bi-directional RS-232 port (1 x 3-Pole Terminal Block) Baud Rate: 19200 Data Bit: 8 Stop Bit: 1 Parity: None |
Contact In | 4 x Contact Closure Input ports (1 x 5-Pole Terminal Block) |
Power (Optional) | 1 x USB Micro B Female |

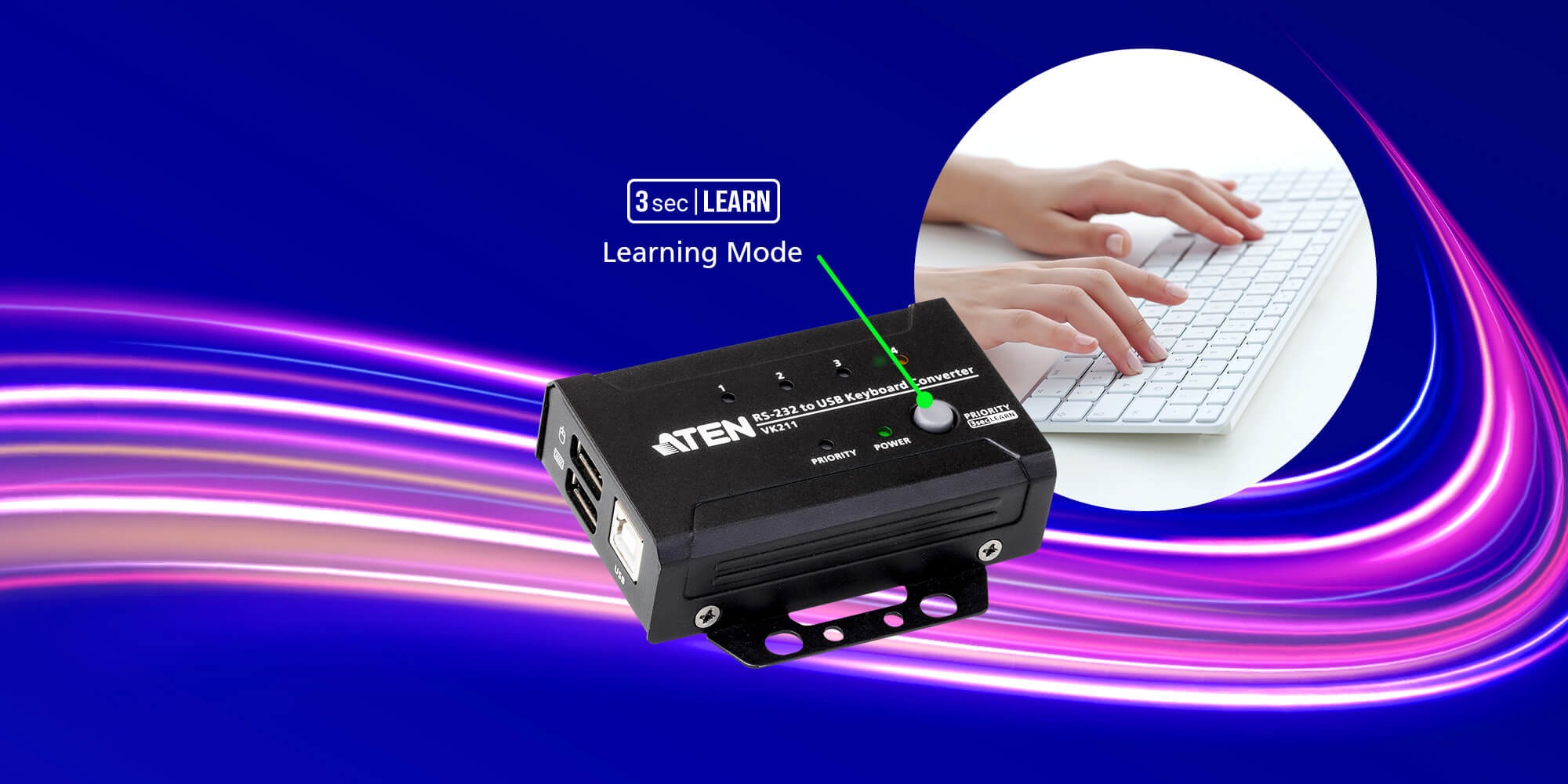

Priority Button | 1 x Pushbutton Toggle switch for remote control. Hold & press for 3 seconds to enter learning mode |
LEDs | |
Contact In | 4 (Green) |
Power | 1 (Green) |
Priority | 1 (Orange) |
Power Consumption | DC5V:0.69W:7BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
Environmental | |
Operating Temperature | 0-50°C |
Storage Temperature | -20-60°C |
Humidity | 0-80% RH, Non-condensing |
Physical Properties | |
Housing | Metal |
Weight | 0.15 kg ( 0.33 lb ) |
Dimensions (L x W x H) | 8.20 x 7.30 x 2.62 cm (3.23 x 2.87 x 1.03 in.) |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
