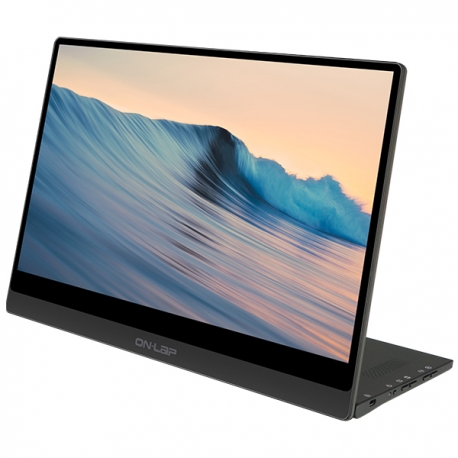

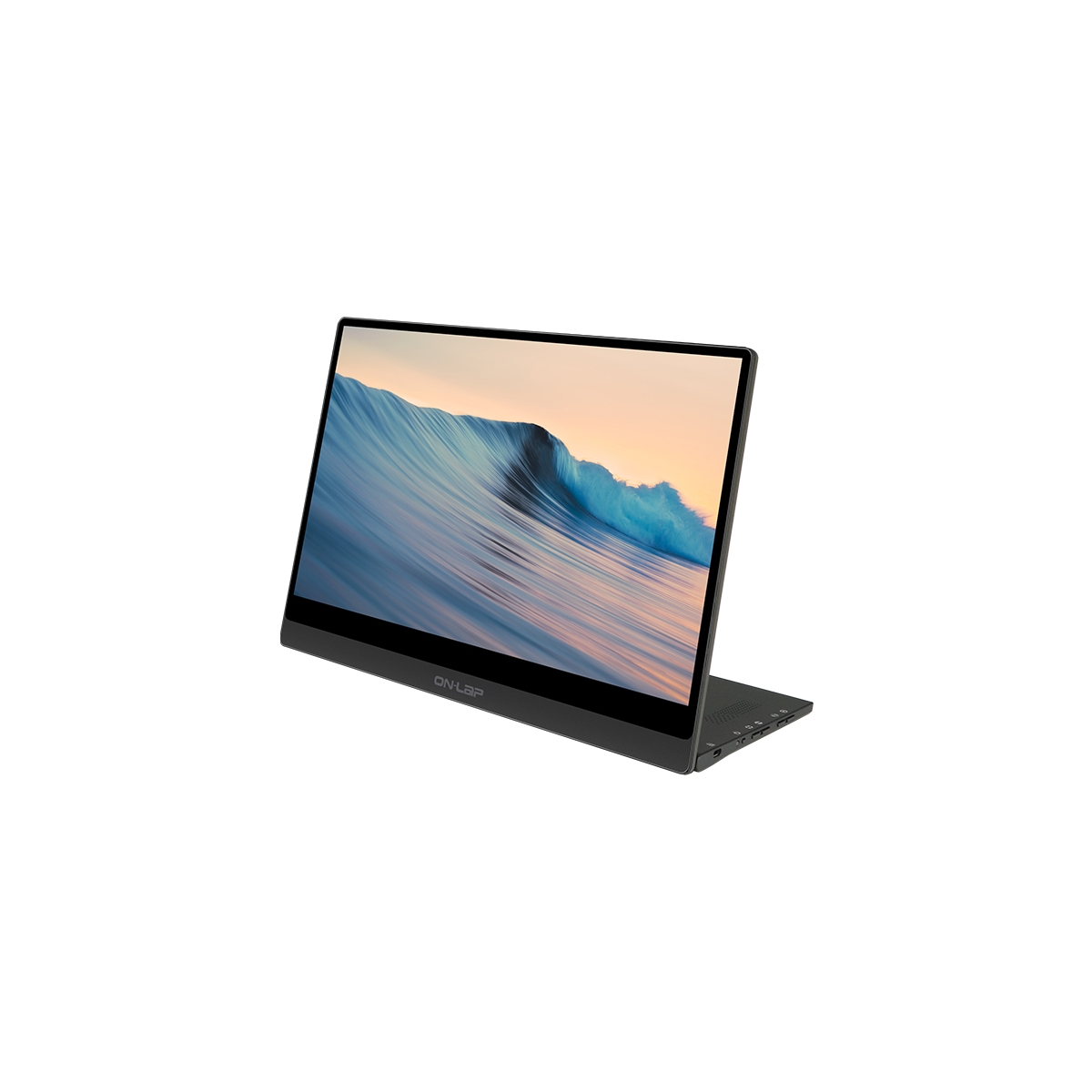

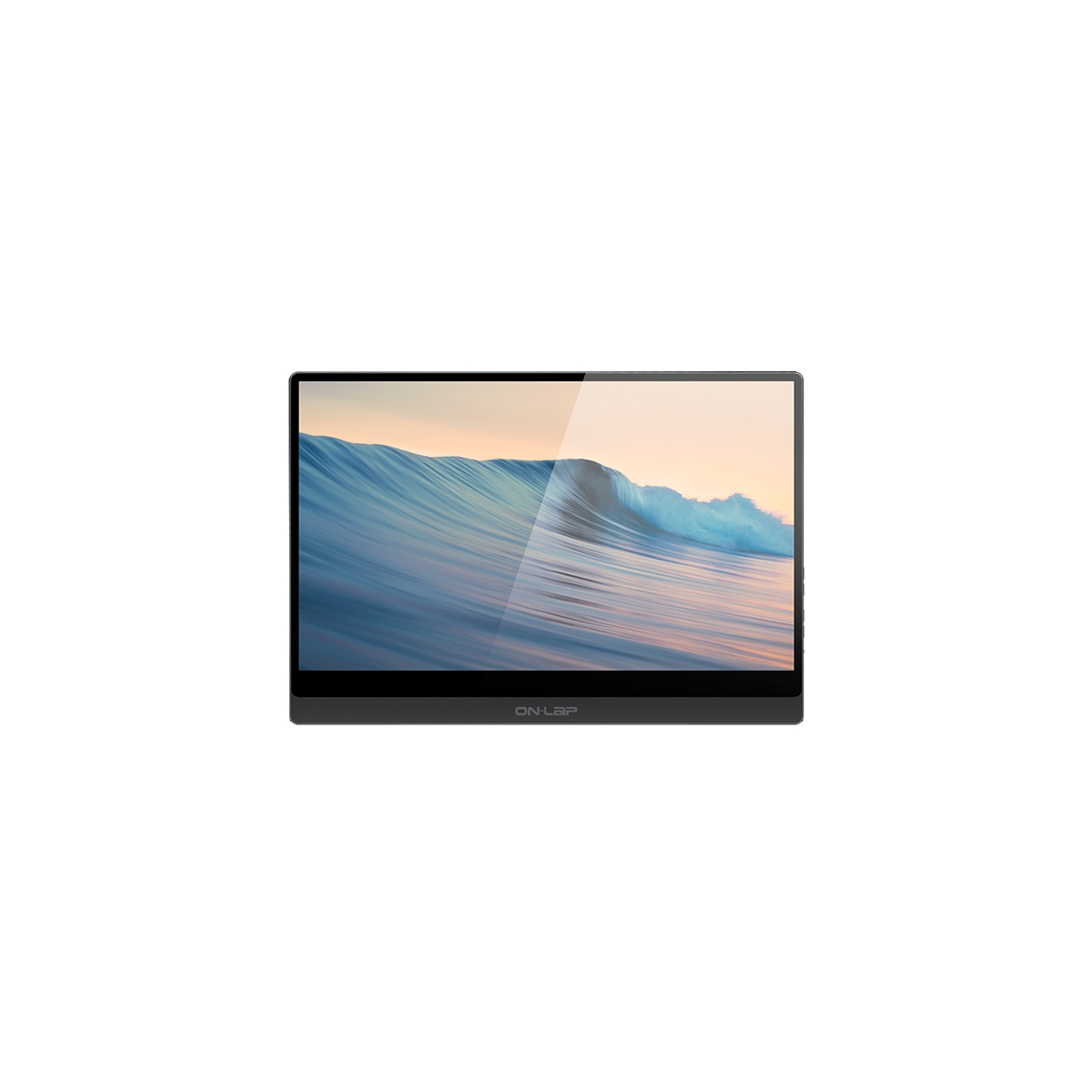

Capacitive Multi-Points Touch Monitor
M505T-R1
15.6 inch FHD 1080p Portable Touchscreen Monitor USB Type-C Input, HDMI Input/Output, DC-in Port, Daisy Chain Display for Conference, Factory, Industry, Gaming, Foldable Screen

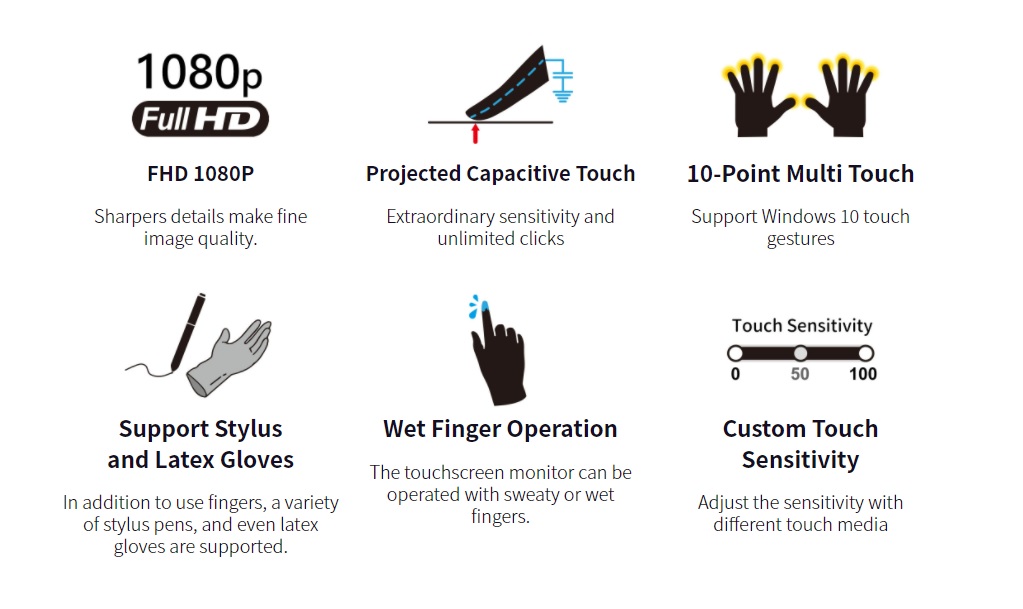

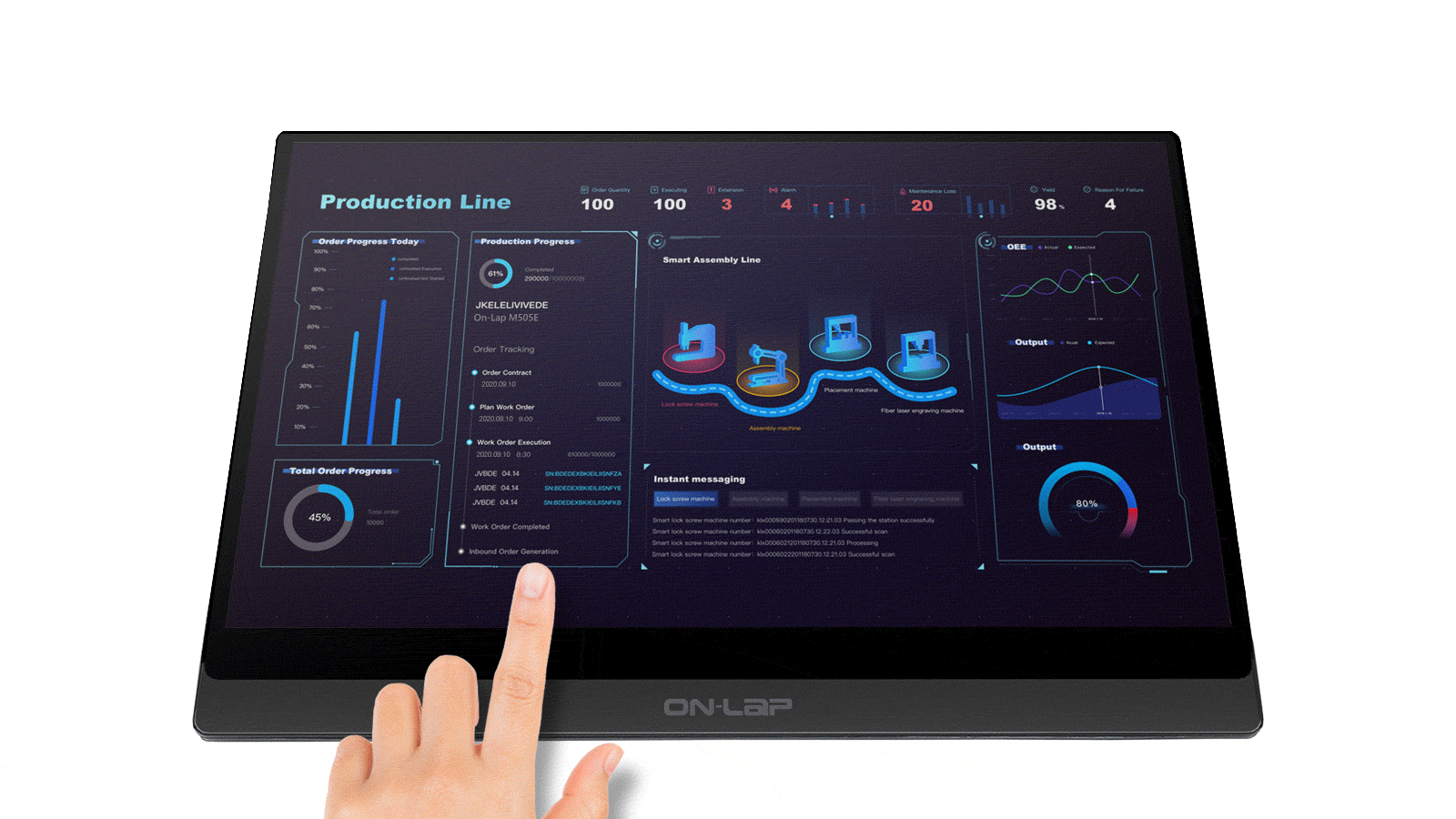

True-Flat, High Hardness Glass - Stunning & Durable

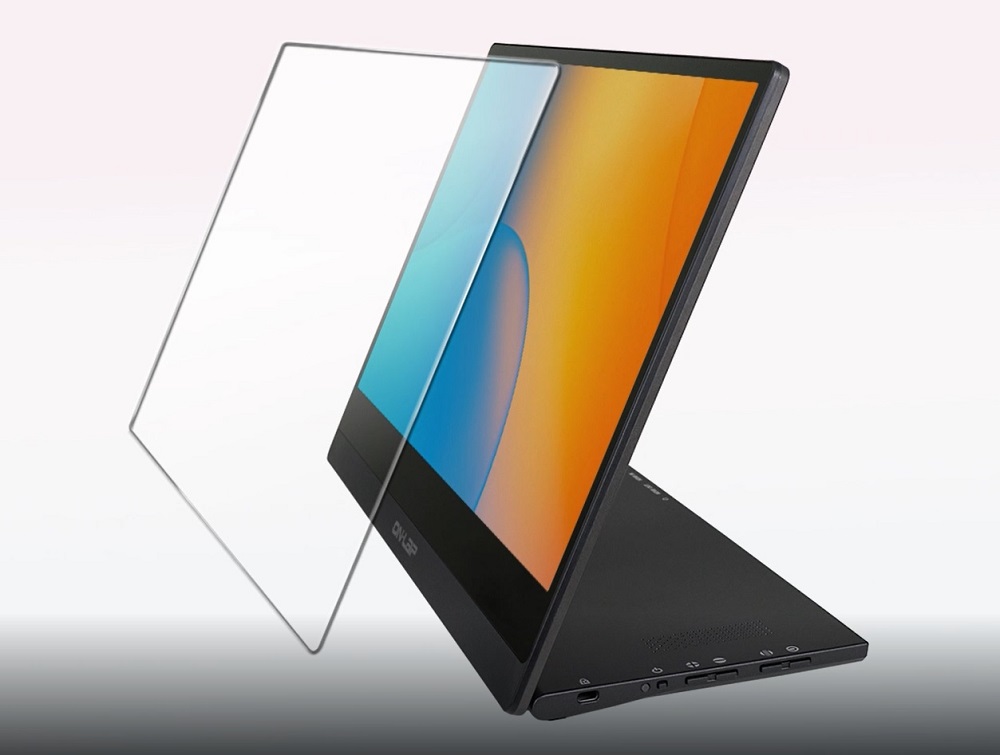

True-flat touch screen glass and frameless design makes smooth surface, which leads smooth flows when dragging and handwriting. Covered by 7H touch screen glass, with high hardness, scratch proof and wear resistance, the monitor is suitable for using it as digital signature panel, factory machine and POS machine which meets the needs of long-term operation in commercial or industrial environment.

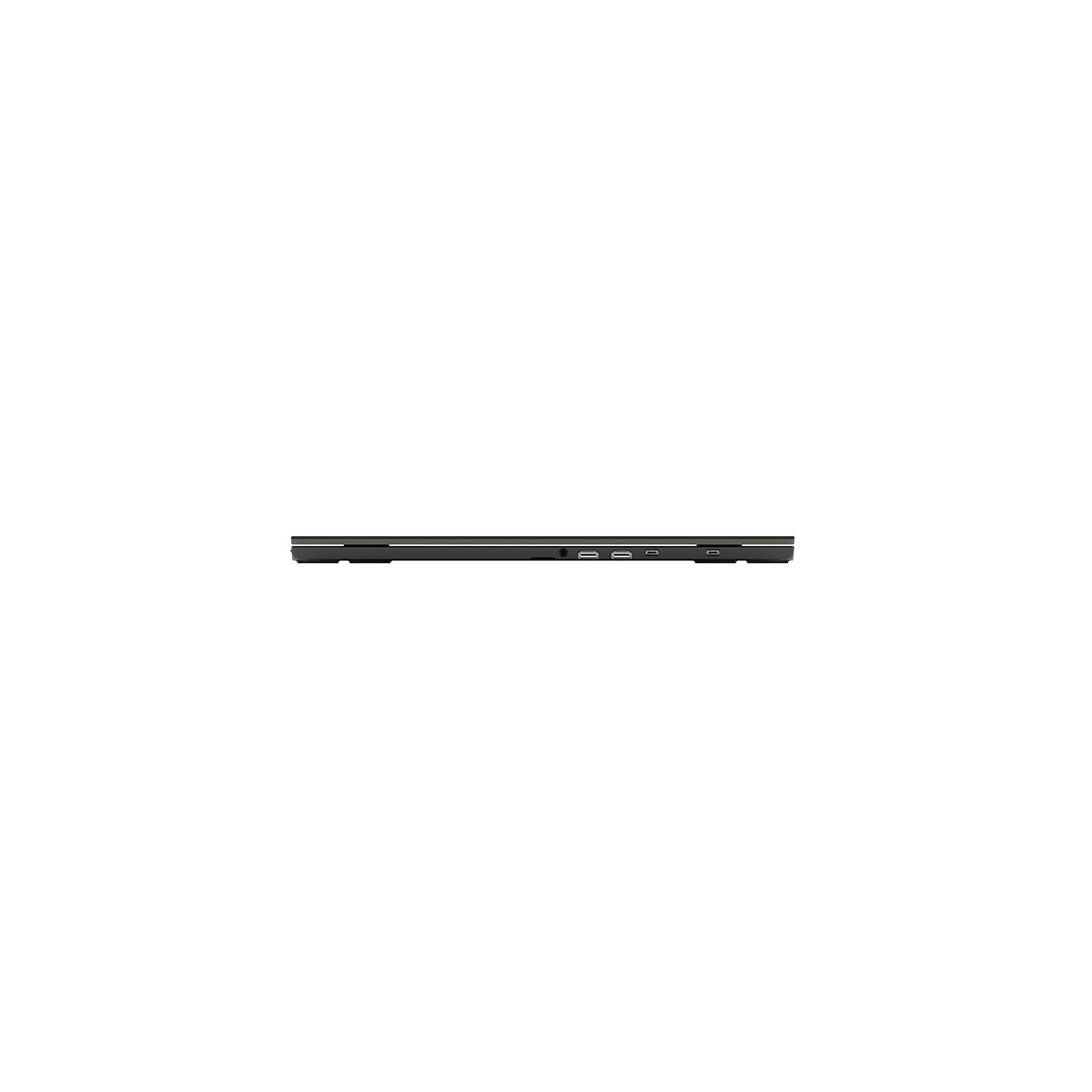

No Messy Wires, Cover up Cables at the Back

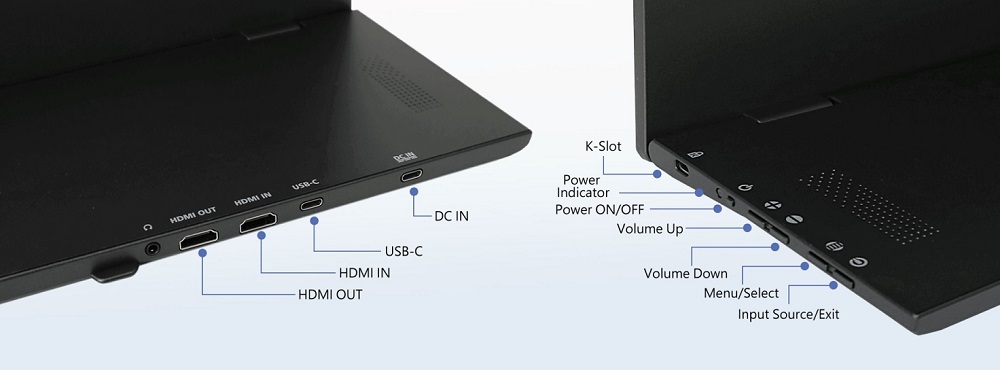

HDMI, USB Type-C and DC-IN ports are located on the I/O base, which can perfectly hide every wire in sight at the back of the display and leave the left and right sides of the monitor clear, keeping the desk tidy.

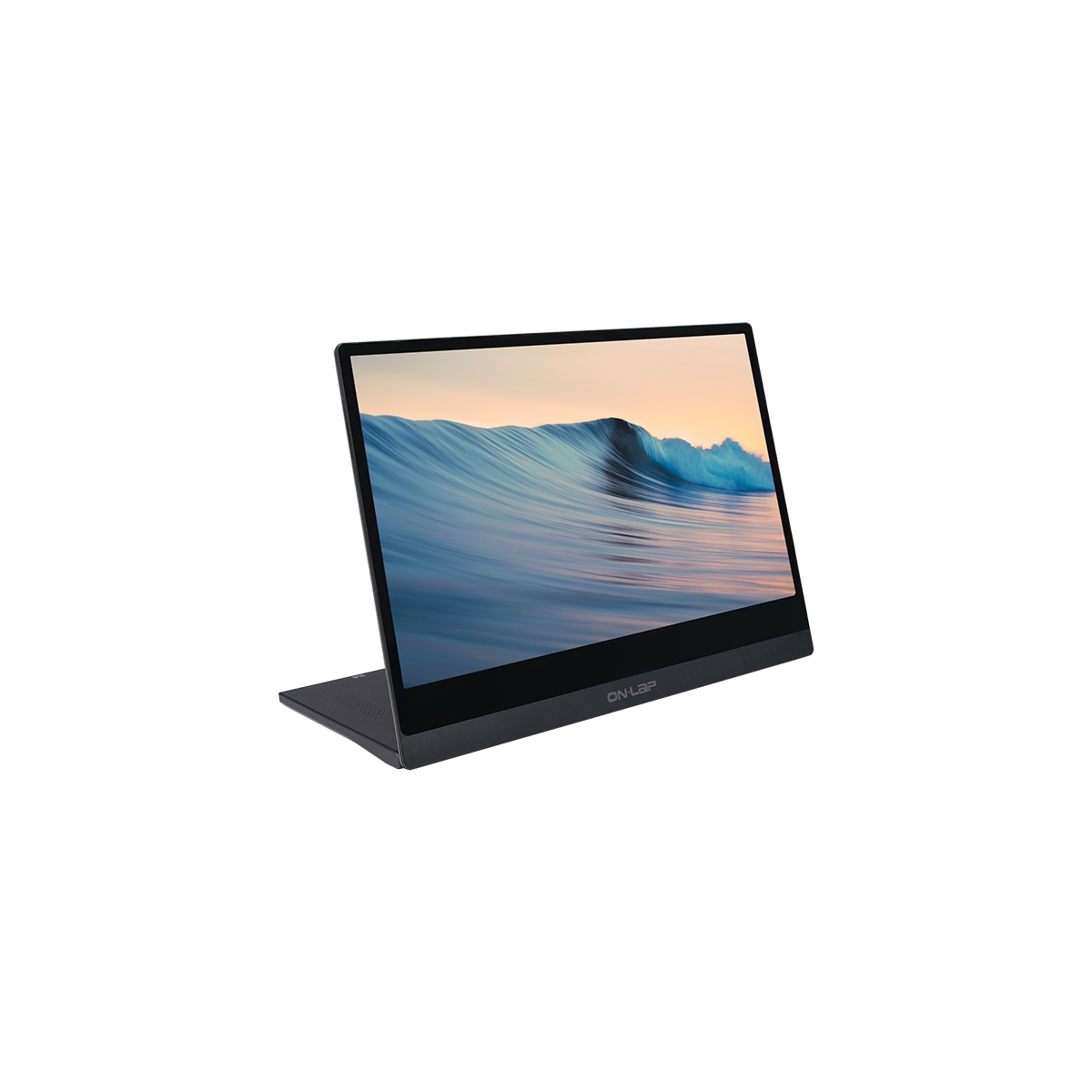

Powerful and Simple with Foldable Design

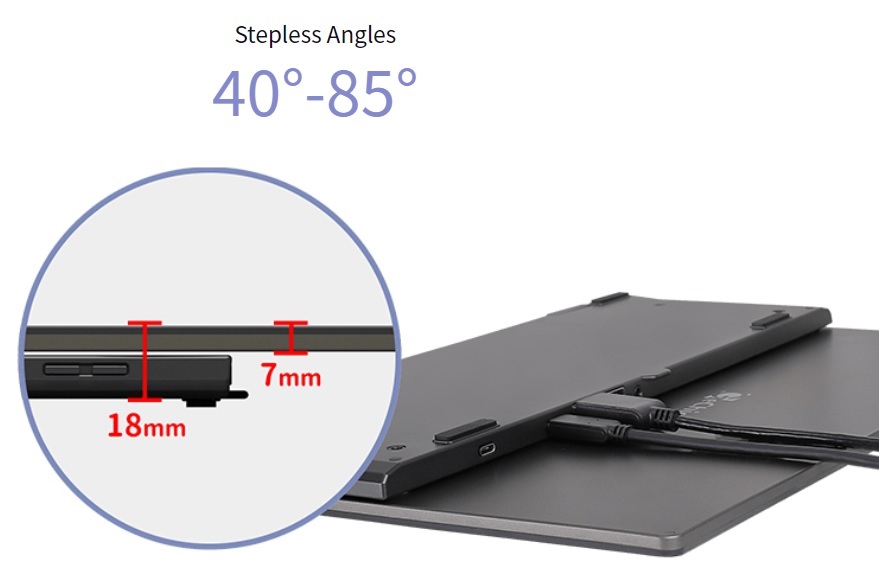

M505 series are foldable clamshell design that combines the screen and I/O docking base with hinges. It is easy to deploy M505 to stand firmly on the desk in one second. The hinges support from 40° to 85° stepless viewing angle adjustment, just as intuitive as operating a laptop.
Close the I/O base and insert the cable into the slot on the base along the back of the screen, so that the cable stays flat on the back of the screen without protruding from the base. The screen with cable connected is only 2cm thick, which simplifies the embedded solution.

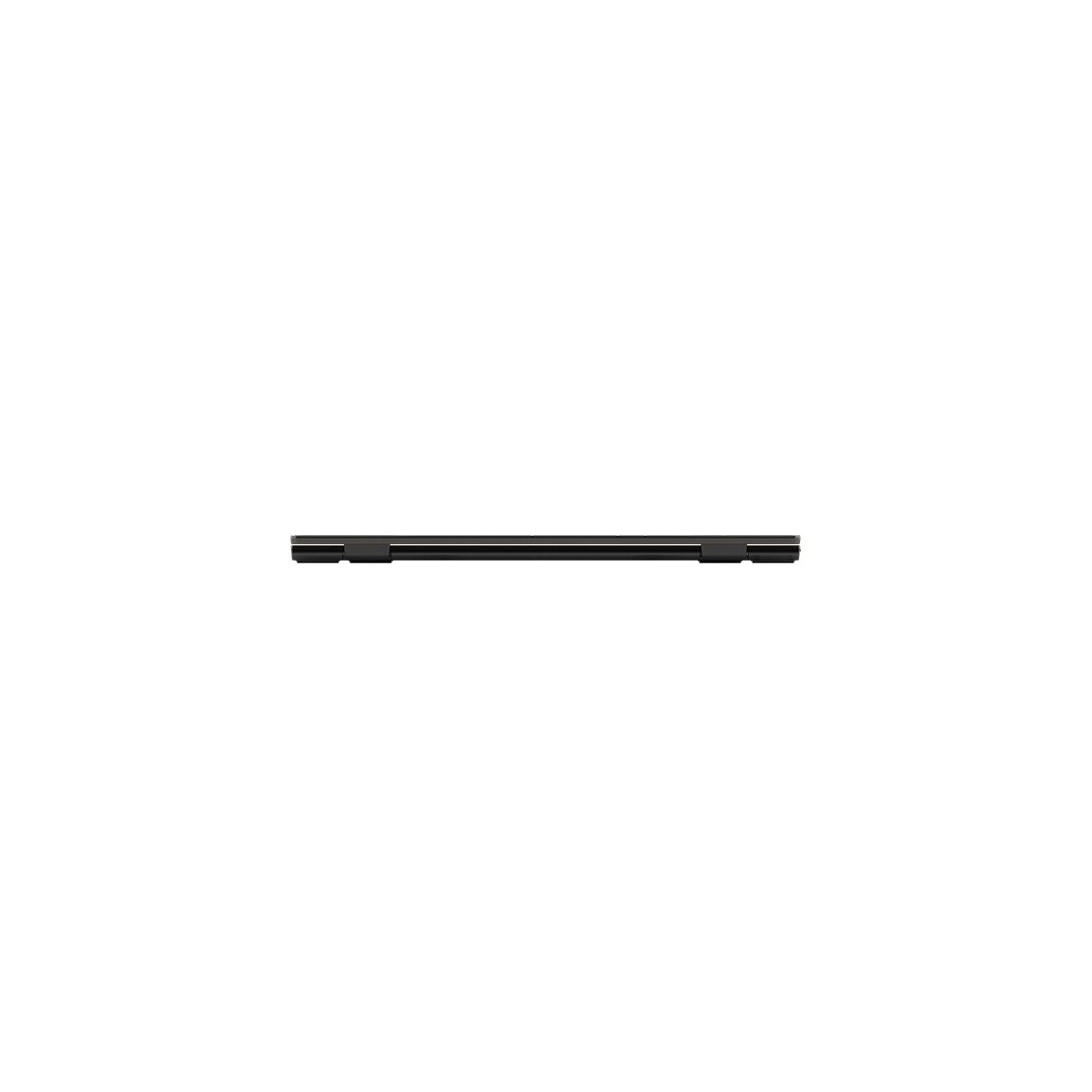

Make it Touchable! Flexibly Embedded in Self-Built Machine

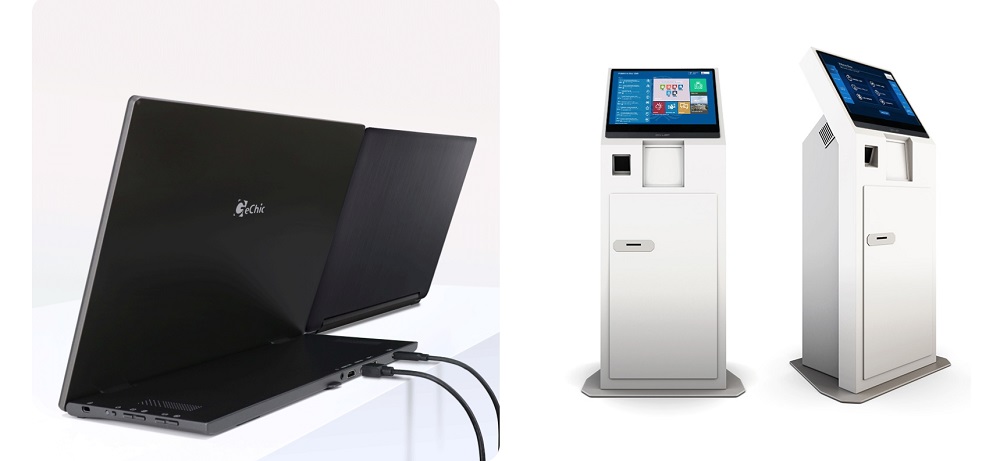

The monitor is still slim after folding the I/O base to the back of the monitor. Get rid of the thick screen and the M505 is just easier to be embedded into self-built machine or be mounted on the monitor arm. Also, the rear- I/O ports behind the monitor make cabling much easier.
Support VESA 100
Wall Mount & Monitor Arms

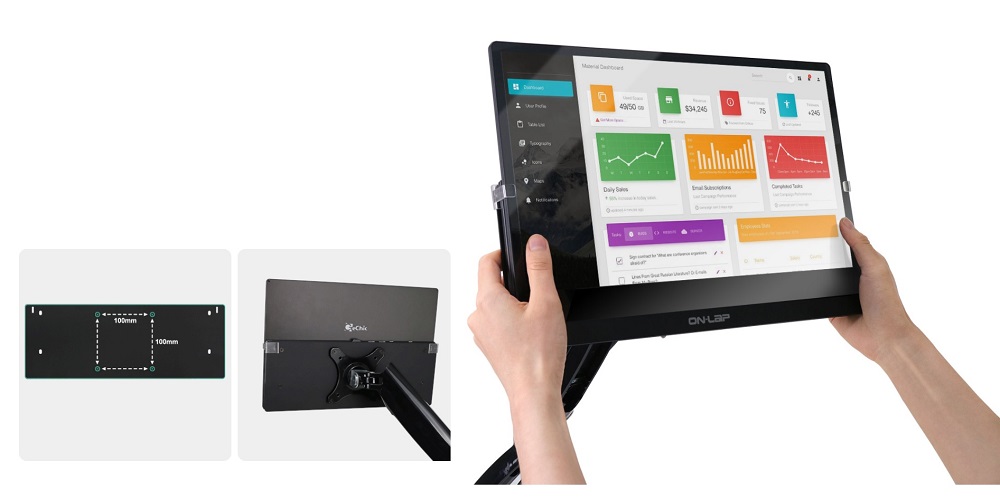

VESA 100 aluminum alloy bracket (optional ) for M505 series is a high-strength tray, made of aluminum alloy, which can be locked to VESA wall mounts, monitor arms/stand, and strengthen the monitor structure at the same time, using more safely while moving or turning. Provide flexible space configuration and angle adjustment functions.
USB Type-C DP Alt
One Cable for Audio and Video Signals

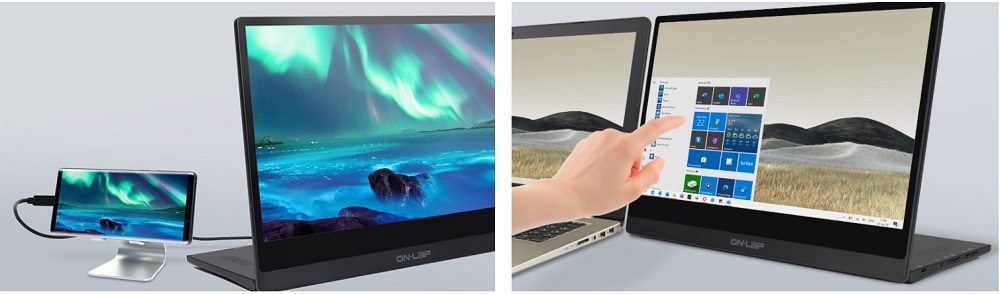

Equipped with a USB Type-C interface, the monitor can be easily connected to laptops, Intel® NCUs, Android smartphones, etc., and transmits power, video, audio, and touch signals through the USB-C port. Better interface, simpler wiring!
*Mac OS does not support external touch signals. When connected to Apple® MacBook series products, the M505T touch function cannot be used.
*Smartphone must support USB Type-C DP Alt mode when connected to M505T.
*Some smartphones/ laptops cannot output enough power to M505T. Please use 5V-2A power adapter for power supply.
HDMI IN & HDMI OUT
Dual Monitor at the Counter to Sync. Info.

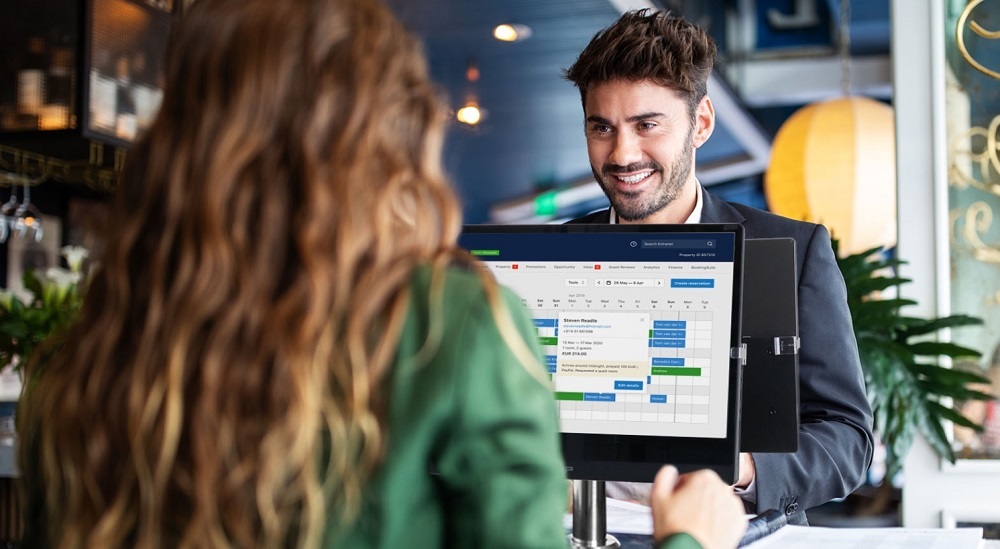

M505 series all support HDMI Loop Out function. Through the HDMI IN port to input the video and audio signal from desktop or laptop, then through the HDMI OUT port to duplicate the images to the second monitor. Just quick install the dual monitors at service counters such as ordering and banking. Staff can directly operate the monitor, and synchronize the screen with customers face to face comfortably viewing.
*The touch signal is transmitted through the USB interface. When multiple monitors are connected, only support to synchronize video and audio. The touch signals cannot be delivered through HDMI looping.
Digital Podium Makes a Simpler White Board

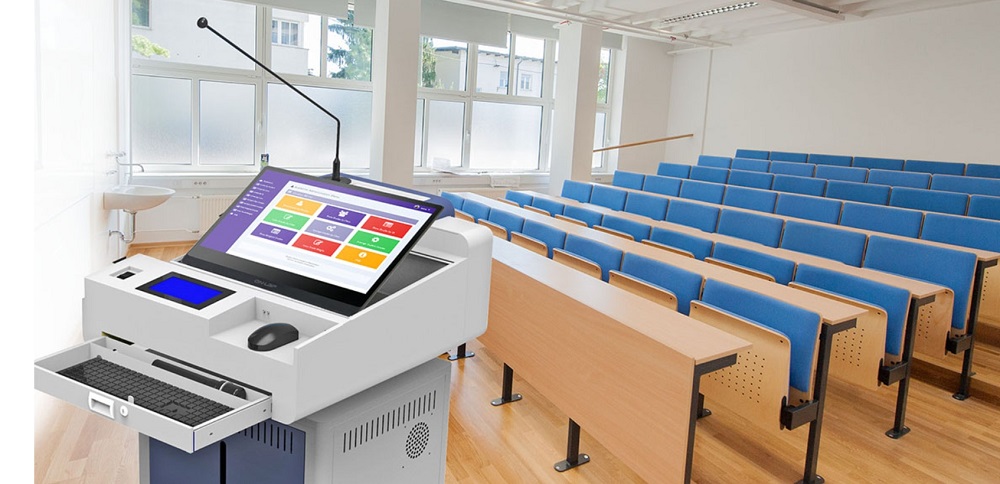

An embedded smart lectern can be done by connecting the laptop to the HDMI IN port on M505T touchscreen monitor, and the projector through the HDMI OUT port on the monitor. Use the touch monitor as an electronic whiteboard to write or mark the key points directly on the presentation slides while simultaneously projecting to the projector screen. The quality of teaching is then upgraded.
Foldable Protective Sleeve, Stable for Low Angle Touch

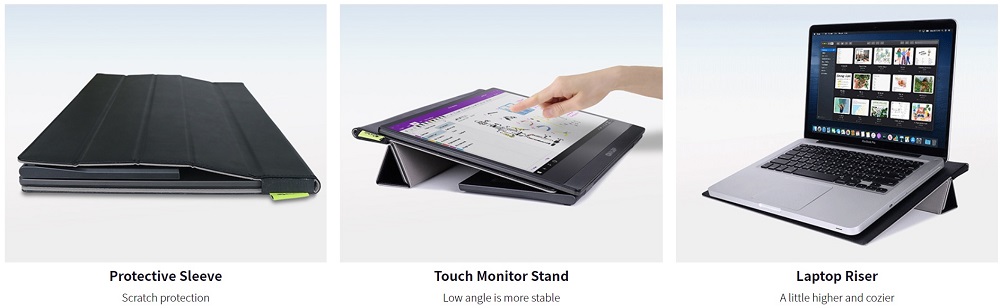

The optional foldable sleeve provides better protection when carrying the monitor. Also, folding the front cover to the other side can stably support the touch monitor at a low angle, which is suitable for touching while standing or placing on the counter for signature.
Play Two Player Game Face-to-Face, Get More Comfortable Game Space
Often colliding with each other while sitting side by side to race with friends?

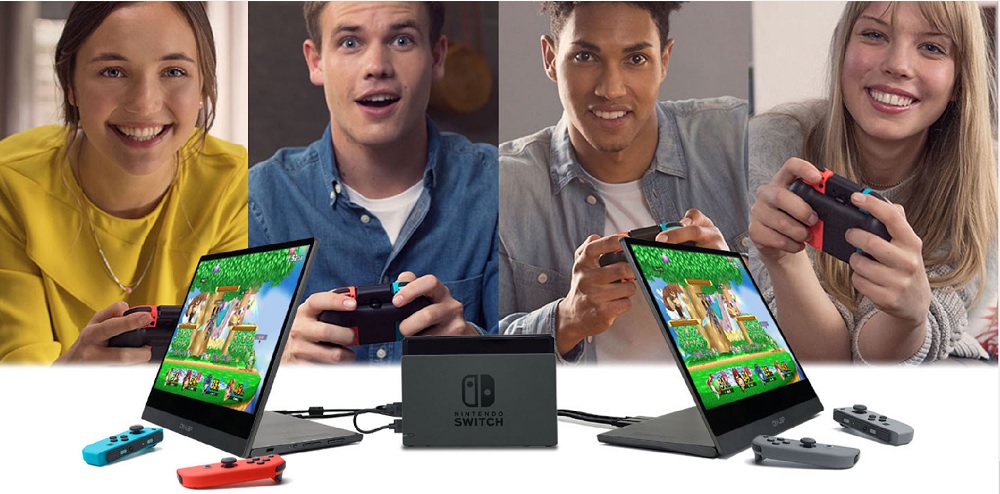

The HDMI IN and HDMI OUT ports on the monitor can connect two displays to one game console. Play games on dual monitors, and no more sitting side by side and enduring the constraint. Sitting face-to-face allows players to have more activity space!
Specification
| Panel | 15.6” (16:9) wide |
| Active Area | 344mm*194mm (WxH) |
| Pixel Pitch | 0.179mm (H) *0.179mm (V) |
| Resolution | 1920 x 1080 |
| Color Depth | 16.7M Colors |
| Brightness | 250 (cd/m²) (Typical) |
| Contrast | 700:1(Typical) |
| Viewing Angle | 170°(H)/170°(V)(CR>10) |
| Response Time (GTG) | 15(ms)(Typical) |
| Touchscreen | Projective capacitive Touch Glass |
| Screen Surface Hardness | ≧ 7H |
| Touch Input | Finger or stylus( Diameter of Touch Point ≧ 6.0mm) |
| Touch Points | 10 detections |
| Operation System | Windows 10 |
| HDMI Video Display | 1920x1080P(50Hz/59.94Hz/60Hz); 1280x720P(50Hz/59.94Hz/60Hz); 720x480P(59.94Hz/60Hz); 640x480P(59.94Hz/60Hz) |
| Supported Resolutions | 1920*1080(60Hz);1600*900(60Hz); 1440*900(60Hz); 1366*768(60Hz) 1280*1024(60Hz);1280*960(60Hz); 1280*800(60Hz);1280*768(60Hz); 1280*720(60Hz); 1024*768(60Hz) |
| Video Input | HDMI, USB Type-C(DP1.2)*1 |
| Video Output | HDMI-A*1 (HDMI LOOP: Up to 14 monitors) The number of monitor loop depends on different HDMI cable,HDMI Video signal and other variable factors.The actual units of the monitor loop may more or less than 14 pcs. |
| USB Output | No |
| HDCP Support | HDCP V1.1 Compliant |
| USB-C Power Delivery Support | No |
| Audio Output | Earphone jack (3.5mm mini jack) |
| Speaker | 1.5W(Max.) X2 |
| Power On(Max.) | ≦10W |
| Standby Mode | <0.5W |
| Power Off Mode | <0.5W |
| Rating Power | 5V---2.0A |
| Connectivity | HDMI-IN *1 HDMI-OUT *1 USB Type-C (DP1.2) *1 |
| Environment | Operating :0~50℃;Humidity:20~90%RH Storage:-20~60℃;Humidity:10~90%RH |
| Cabinet Colors | Front: Black Back: Black |
| Dimension(W*H*D) | Display top cover: 364mm*250mm*7.2mm I/O Base: 364mm*135mm*10.7mm |
| Weight | 1145g(monitor) |
| Accessories in Package | HDMI-A Video Cable(1.2m)*1 USB Type-C Video Cable(1.0m)*1 USB-A to USB-C Power and Touch Signal Cable(1.2m)*1 5V 2A Adapter*1 |
| Optional Accessories | M505 VESA 100 Aluminum Alloy Bracket M505T/I Folding Sleeve(15A3) USB Type-C Video Cable(2m) micro-HDMI to HDMI-A Video Cable(2.1m) mini-HDMI to HDMI-A Video Cable(2.1m) |
| Certification | BSMI, CE, FCC, RCM, VCCI, RoHS |
