11.6" T112C Anti-Fouling Touchscreen Monitor
The Top Choice for Human-Machine Interface Projects
Support Embedded | Wall-Mount | Desktop Installation
The small capacitive touchscreen monitor – T112C, with a body size smaller than A4, features both slim and compact aesthetic appearance and stable connectivity, is ideal for various kinds of touchscreen projects, small workstations, touch machines, etc. T112C touchscreen monitor only requires 1.2A ultra-low power consumption and can be turned on without a power socket when connecting to the USB-A port of laptops or industrial computer. Equipped with two sets of HDMI and USB touch input ports, T112 touch monitor can switch the video and touch signals from two computers any time, realizing a simple and powerful touch workstation easily!
Projected Capacitive Technology
Responsive & Smooth, Compatible with
Windows 11/Linux/Ubuntu/Raspberry Pi and Other Operating Systems
Equipped with capacitive touch panel, the monitor has excellent precision and speed. It transmits touch signals through the USB port, which is plug & play and supports Windows 11/10 ten-finger touch recognition with no drivers needed. It is also compatible with Linux, Ubuntu, Raspberry Pi OS and Chrome OS, providing diverse development environments more intuitive user interfaces, which is easy to use and highly compatible with various computers and industrial control equipment.
AF Anti-Fingerprint & 7H High Hardness Glass
Superb Durability! Long-Lasting Anti-Fingerprint Resistance
Say goodbye to the glass surfaces covered in fingerprints and oil stains! T112C touchscreen monitor is covered with 7H high hardness touch glass featuring scratch and wear resistance. The surface of the glass adopts AF anti-fingerprint, anti-fouling coating technology with "oleophobic and hydrophobic" properties, reducing the adhesion of fingerprints, oil stains, and water marks, and allowing the screen to remain a smooth and translucent glass surface, making touch operations not be easily affected due to dust and dirt and easily adapt to operating environments such as computer rooms and production lines.
Oleophobic and Hydrophobic
Utilize the lotus leaf effect (lotus effect) to increase the contact angle between water molecules and glass, making water vapor less likely to remain.
The coating can fill the pores on the glass surface and restore it to cleanliness with a gentle wipe.
6W Ultra-Low Power Consumption
Stable Long-Distance Connectivity
The T112C features a standard HDMI-A video interface and USB-A ports for power and touch signals, ensuring high compatibility with laptops and various devices. With a power requirement of only 5V 1.2A, this monitor can be powered directly through a computer's USB-A port- no need for an additional charger or being restricted by power outlet locations. Equipped with a 1.5-meter USB transmission cable that supports both power and touch signals, the T112C simplifies cabling. For long-distance setups, the monitor supports 5-meter USB power and touch signal cables for dual USB connections. This configuration ensures sufficient power, stable voltage, and seamless touchscreen operation throughout the day!
High Efficiency & Duo Energy! Two Sets of USB+HDMI Inputs
Freely Switching Between Dual PCs

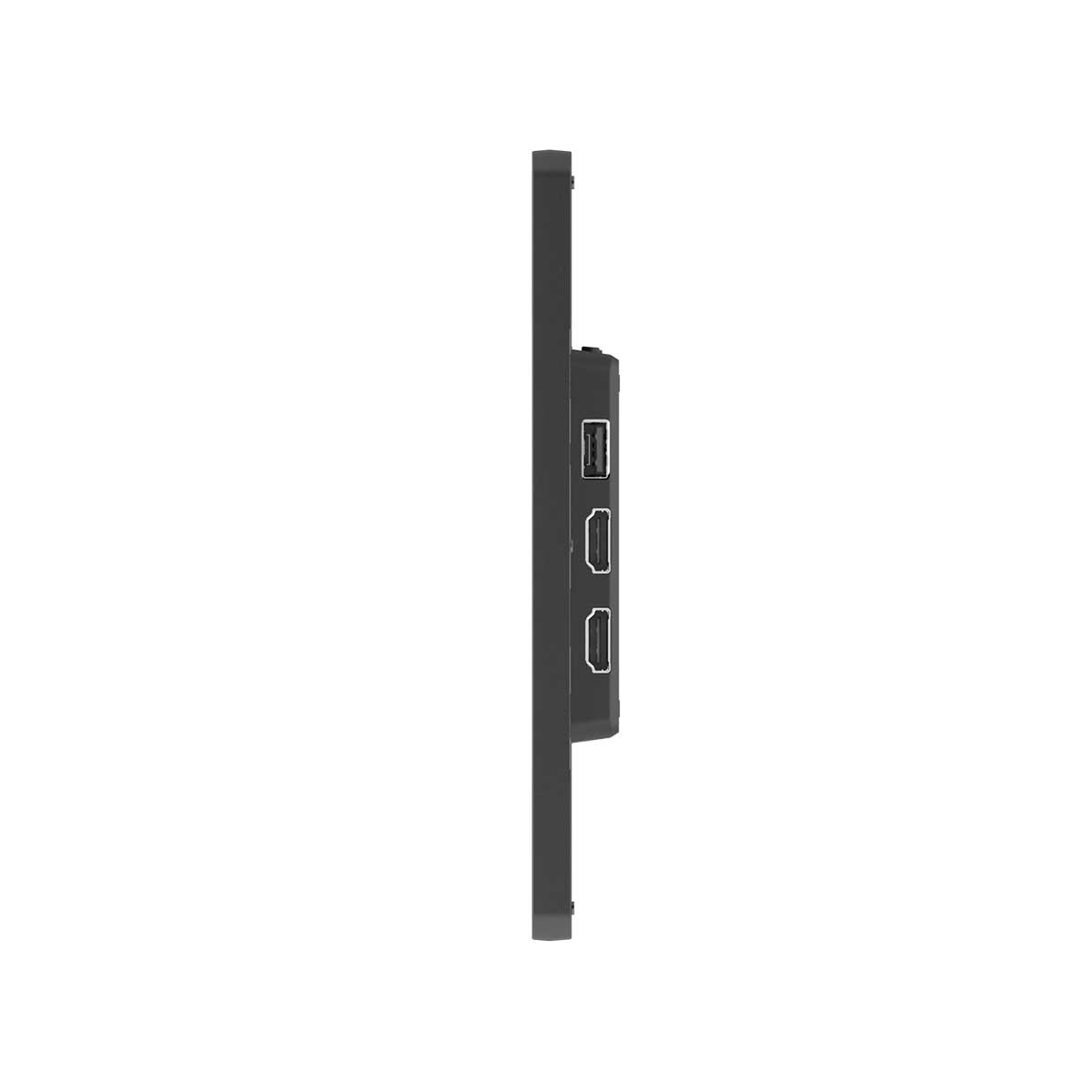

The ports are converged on the I/O block at the back of the monitor, including a standard HDMI-A port, which is suitable for universal commercial, industrial computers and laptops, etc. In view of the new generation computers keeping rolling out, the T1 series monitors adopt the USB-C interface, which support both Thunderbolt 3, Thunderbolt 4 audio and video signal input. The industry-leading interface can perfectly adapt to multiple devices.
1 to 2 Deployment, Efficient Management
When setting up a workstation, there are multiple computers needing to be controlled in turns. If configuring each computer with a set of keyboard, mouse, and screen, it will make the limited space more crowded and difficult to centralize management, which is more laborious. T112C touchscreen monitor can control two computers. Integrating touch signal input and video output, T112C touch monitor does not require a KVM switch or occupy network resources. Through connecting to HDMI and USB cable, you can stably operate two computers, which provides a simple and stable choice for small workstations and switching between dual-system platforms. Save a lot of construction and maintenance costs in one fell swoop!
Gloves/Wet Fingers/Stylus
Touch Like No Boundaries with Various Materials
Even with slightly wet and sweaty fingers, the screen can be directly operated. For more precise input or handwriting, it can be used smoothly with a stylus with a front conductive rubber or plastic disc larger than 6mm. Users wearing gloves can operate directly without taking off their gloves, which is particularly convenient.
True-Flat Touchscreen Glass
Slim & Simple, Perfect Aesthetic Techniques

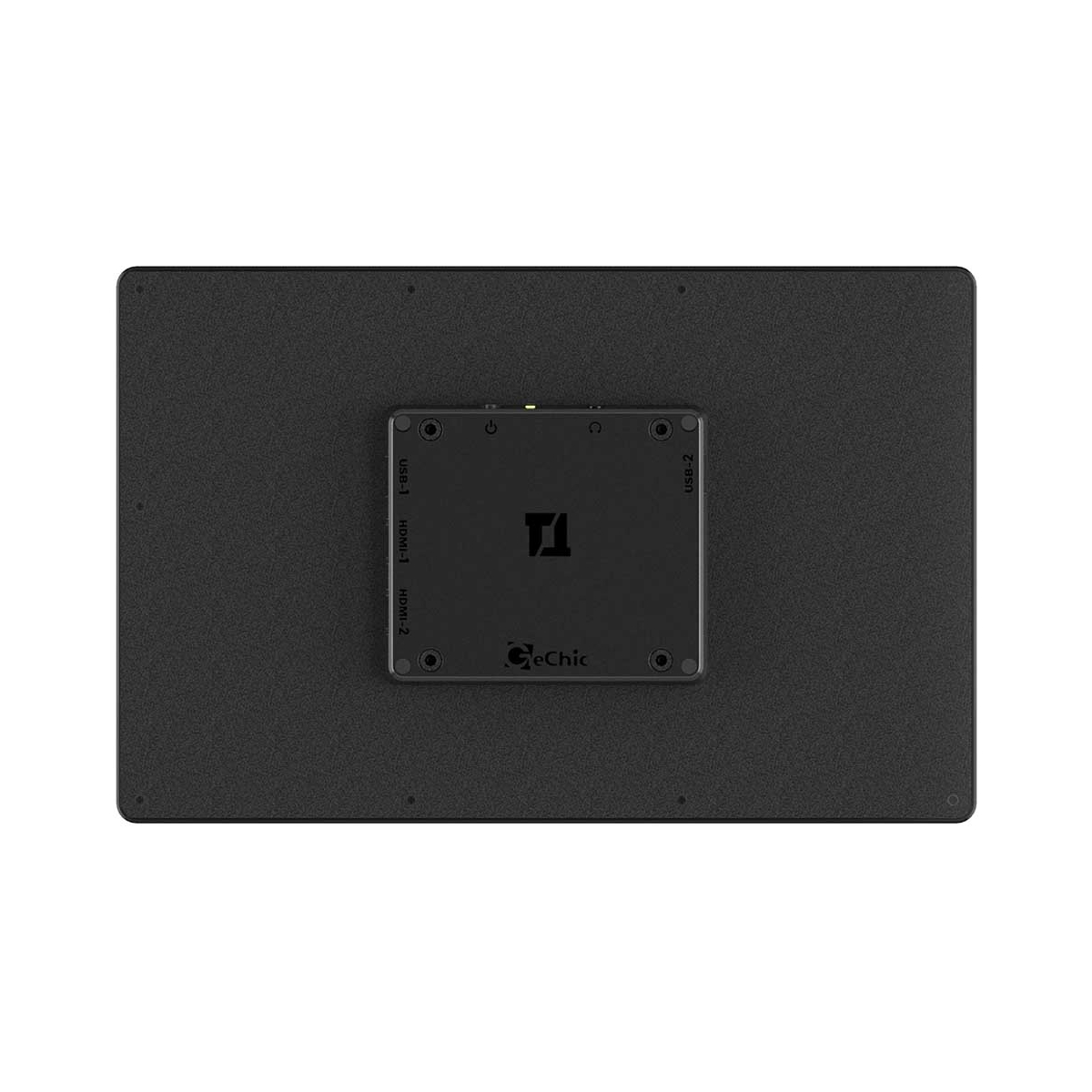

Subverting the appearance of traditional industrial embedded monitors, the front of the T112C touchscreen monitor is covered with full flat glass, and with 1cm narrow bezel design on the left, right, and top sides, which minimizes the volume for easy hardware integration; the back is made of lightweight, high-strength aluminum alloy backplate. The monitor artfully integrates the connection ports and VESA screw mounting holes into the rear I/O dock, perfectly hiding the wires, and maintain simple style and high strength at the same time.
Flexible & Stable VESA 75 Mount
To maximize the convenience of configuration, the T1 monitor includes VESA 75 screw holes in its compact and slim body, which allows the monitor to fit any space and meet the requirements of installing to machine and mount securely to any kinds of stands.
What in the Product Pack
Specifications
