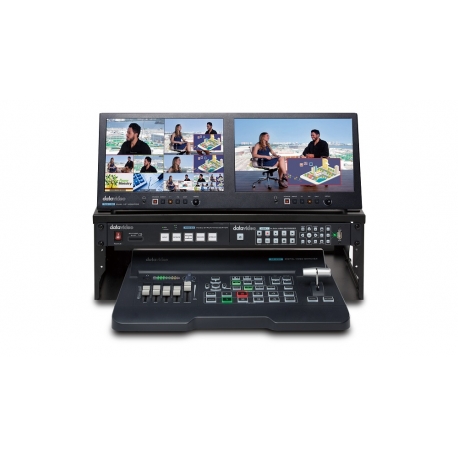

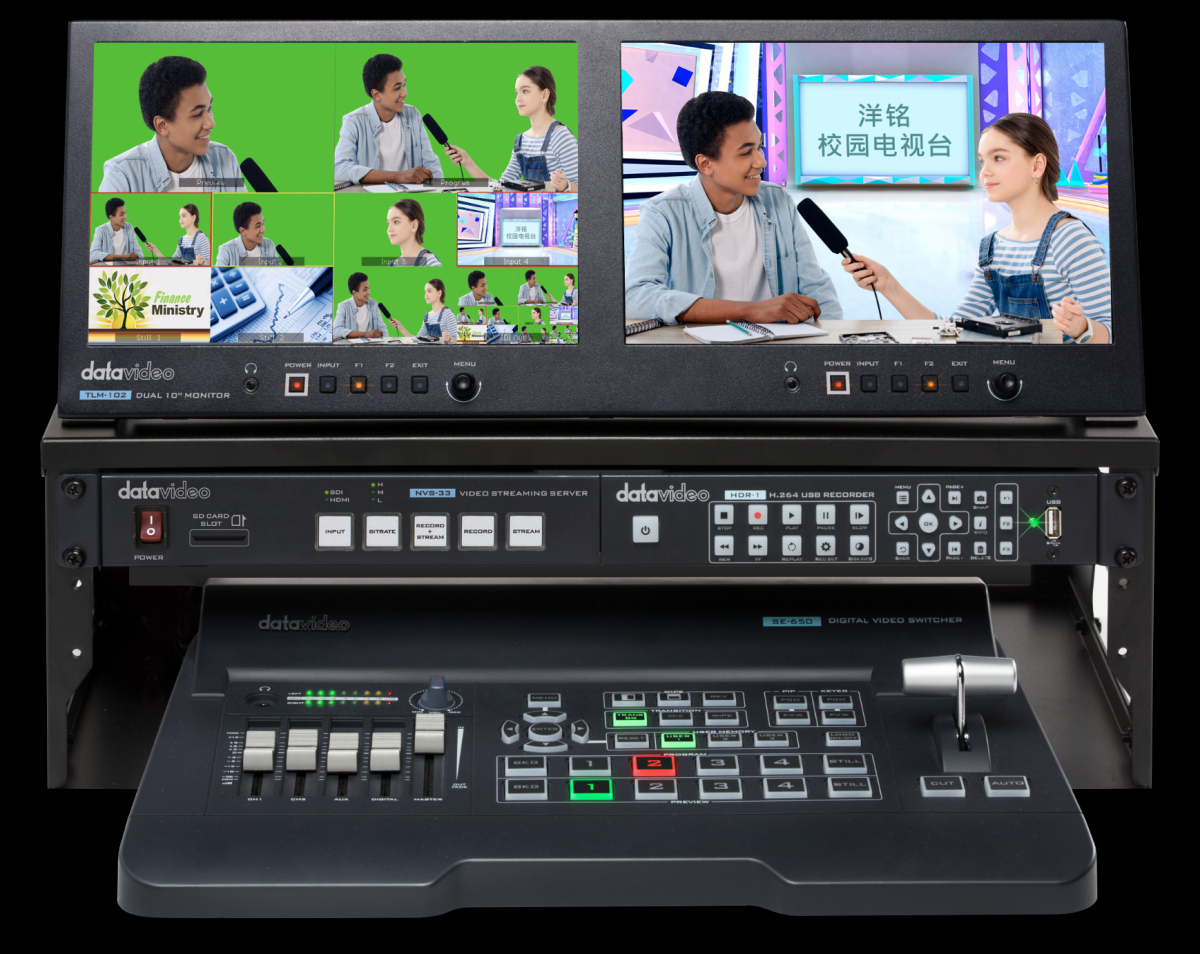

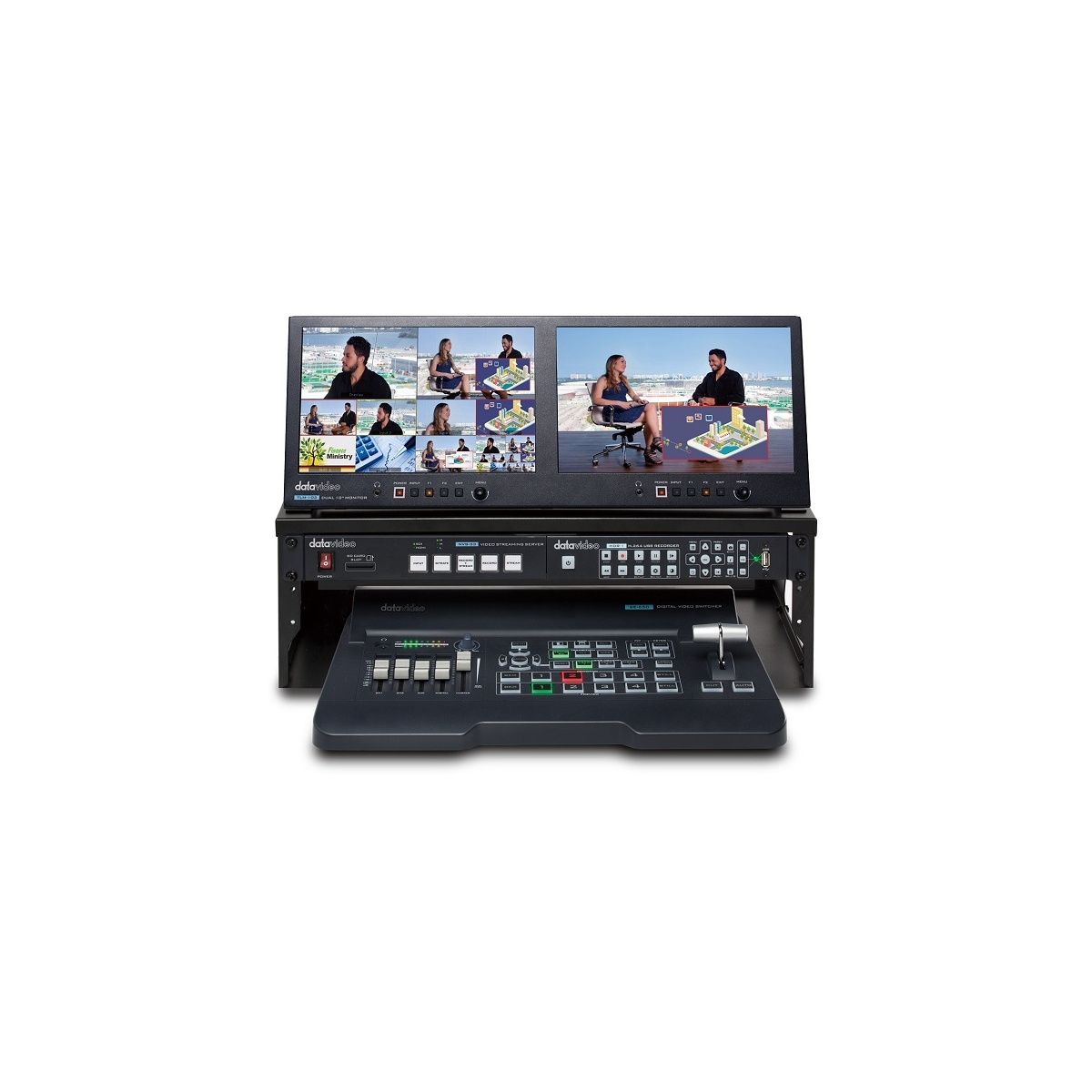

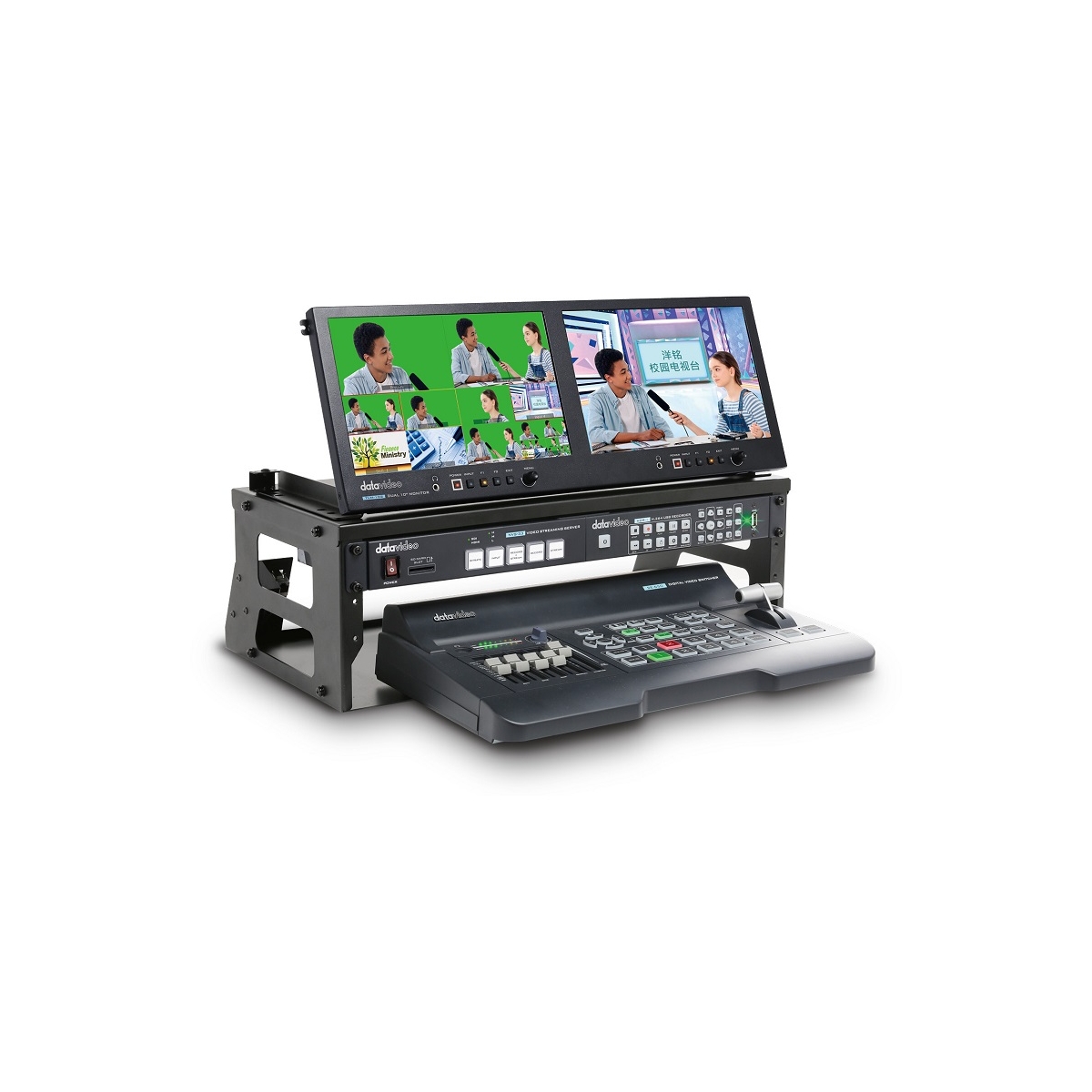

4 Channel HD Portable Video Production Studio
GO 650 Studio

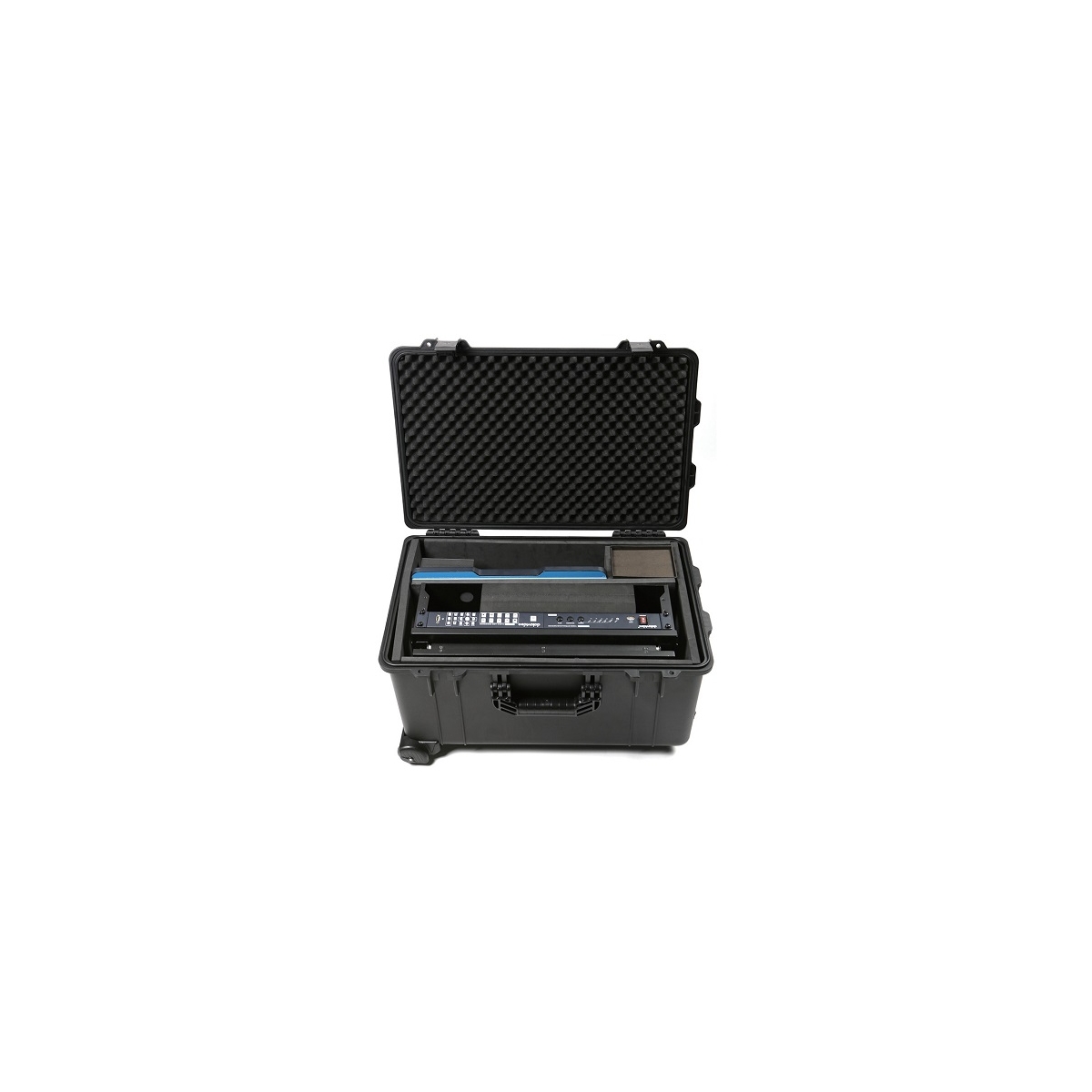

ชุด HD mobile studio ที่ประกอบไปด้วย 4 CH HD Switcher, Recorder, และ Hardware Streaming ในรูปแบบกระเป๋าลาก เคลื่อนย้ายไปใช้งานได้ทุกที่ทุกเวลา
Manual5 in 1 complete small-sized production solution
Supports 4 channel switching, streaming, recording, audio mixing and monitoring.
Broadcast-quality video
Create advanced video effects and enhance the quality of your video with features such as DSK and PIP with a dual chromakeyer.
Streaming to Facebook Live, YouTube, Twitch, and more
With its built-in H.264 web streaming encoder, you can stream your show to virtually any CDN like Facebook, YouTube, Twitch in no time. You can also use Datavideo's own DVS-200 streaming server software to send videos to multple destinations at the same time!
Built-in animations and backgrounds
Choose between a variety of pre-saved animated stinger transitions and virtual set backgrounds.

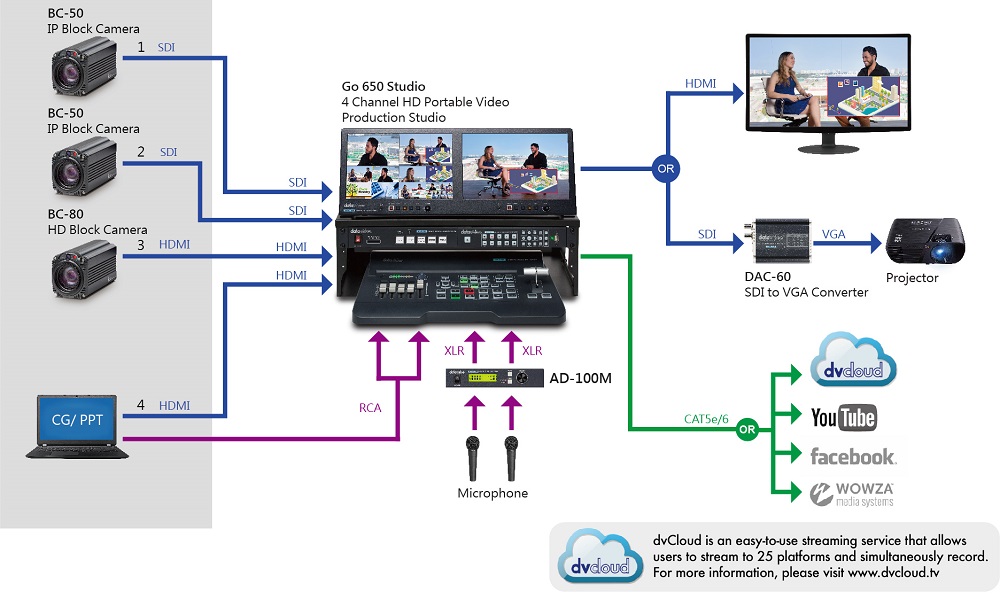

Diagram
Specifications
Switcher
|
Video Standard |
HD |
|
Video Format |
1080i50/59.94/60Hz 720p50/59.94/60Hz |
|
Video Processing |
SDI:4:2:2 HDMI:YUV4:2:2 10bit,RGB:4:4:4 |
|
Video Input |
2x HD-SDI 2x HDMI |
|
Video Output |
1x HDMI |
|
Audio Input |
1x Stereo RCA(L/R) |
|
Audio Output |
1x Stereo RCA(L/R) |
|
Embedded Audio Support |
Embedded 2-CH digital/ analogue audio |
|
Chromakey |
2 |
|
USK |
1x USK support Chroma Key & Linear/LumaKey |
|
DSK |
1 (Logo) |
|
Picture in Picture |
1 |
|
Logo Insertion |
1 |
|
Still Store |
500 |
|
Effects |
FTB,Cut,32 Wipe with border |
|
Tally Output |
1x D-sub 15pin,dual color |
|
Built-in Audio Mixer |
Yes |
|
Preview Display |
Dual10.1"LCD |
|
Special Features |
Stinger Effect |
Streaming
|
Streaming Encode |
H.264/AVC,Main/HighProfile |
|
Streaming Video Bitrate |
Record Only: Up to 16Mbps (1080p50/60) |
|
Streaming Video Rate Mode |
CBR |
|
Streaming Audio Mode |
Stereo/Mono |
|
Streaming Audio Bitrate |
Stereo:64~384Kbps |
|
Streaming Protocols |
TS over TCP/UDP (unicast & multicase) |
|
Network Interface |
1x RJ45 (10/100Mbps Ethernet) |
|
Streaming Recording File Format |
H.264 |
|
Streaming Storage |
SD Card |
Recording
|
Recording Storage Medium |
SD Card |
|
How to Retrieve Recorded Content |
Removable HardDrive, transfer data via USB2.0 |
|
Recording Storage File System |
NTFS,FAT |
|
Recorded FileFormat |
MP4 |
Others
|
Dimension (LxWxH) |
493x253x331(monitor'sup) 493 x 253 x 190 (monitor's down) |
|
Weight |
16kg |
|
Power |
DC12V,83W |
|
Operating Temp.Range |
0~40°C |
|
What's in the Box |
1x GO 650 Studio Product |
