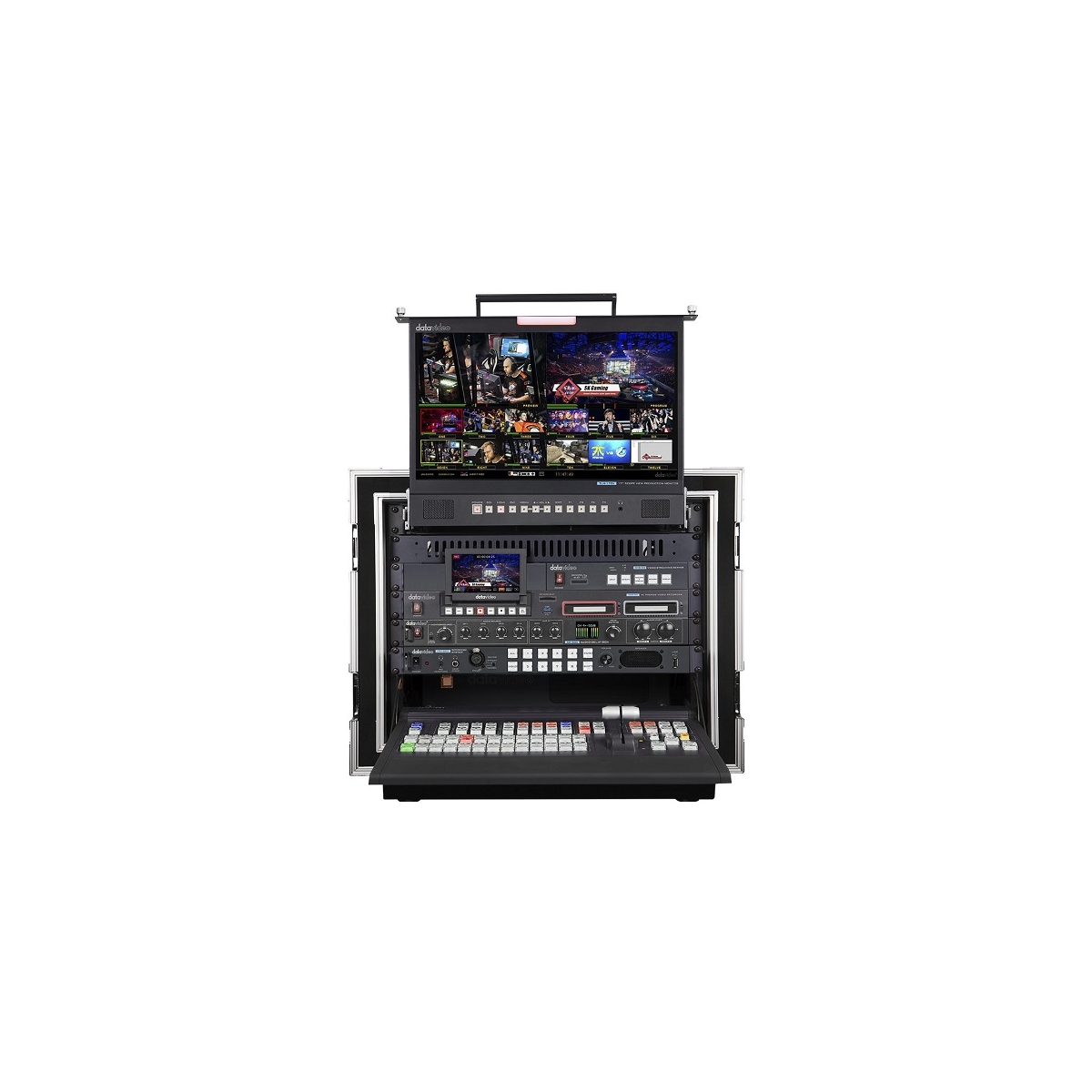

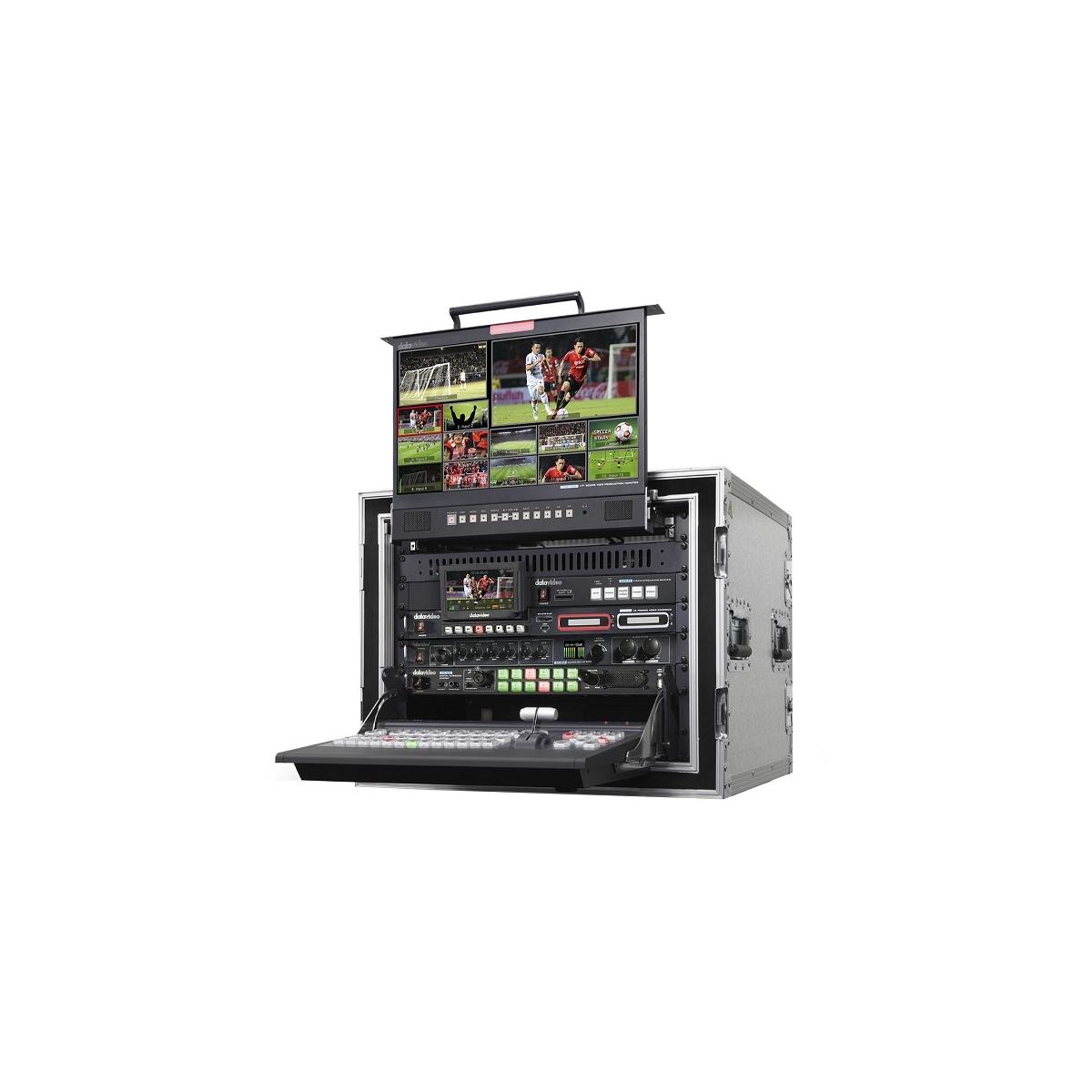

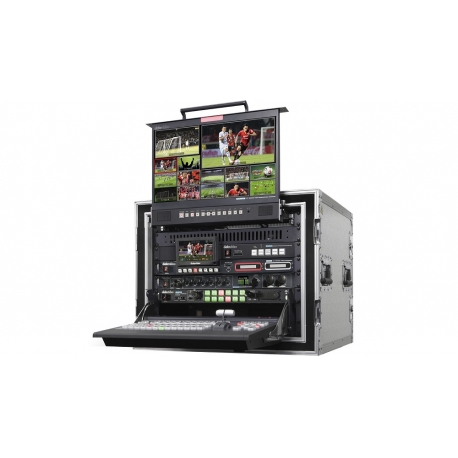

HD 12-Channel Mobile Video Studio
MS-3200

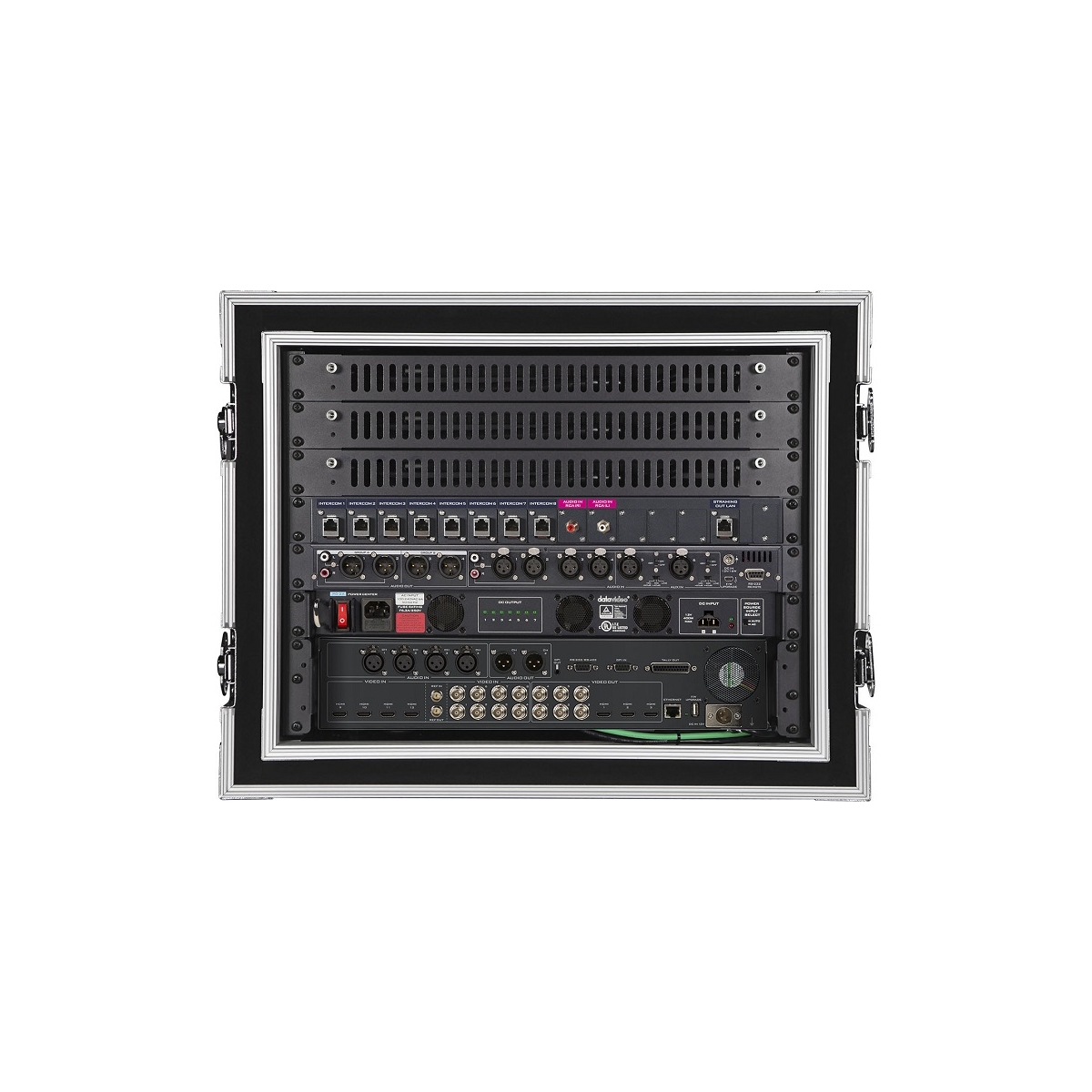

All-in-One Video Production Studio in Rugged Flyaway Case
Includes switcher, intercom, recorder, scope view monitor, and power supply.
Spec sheet

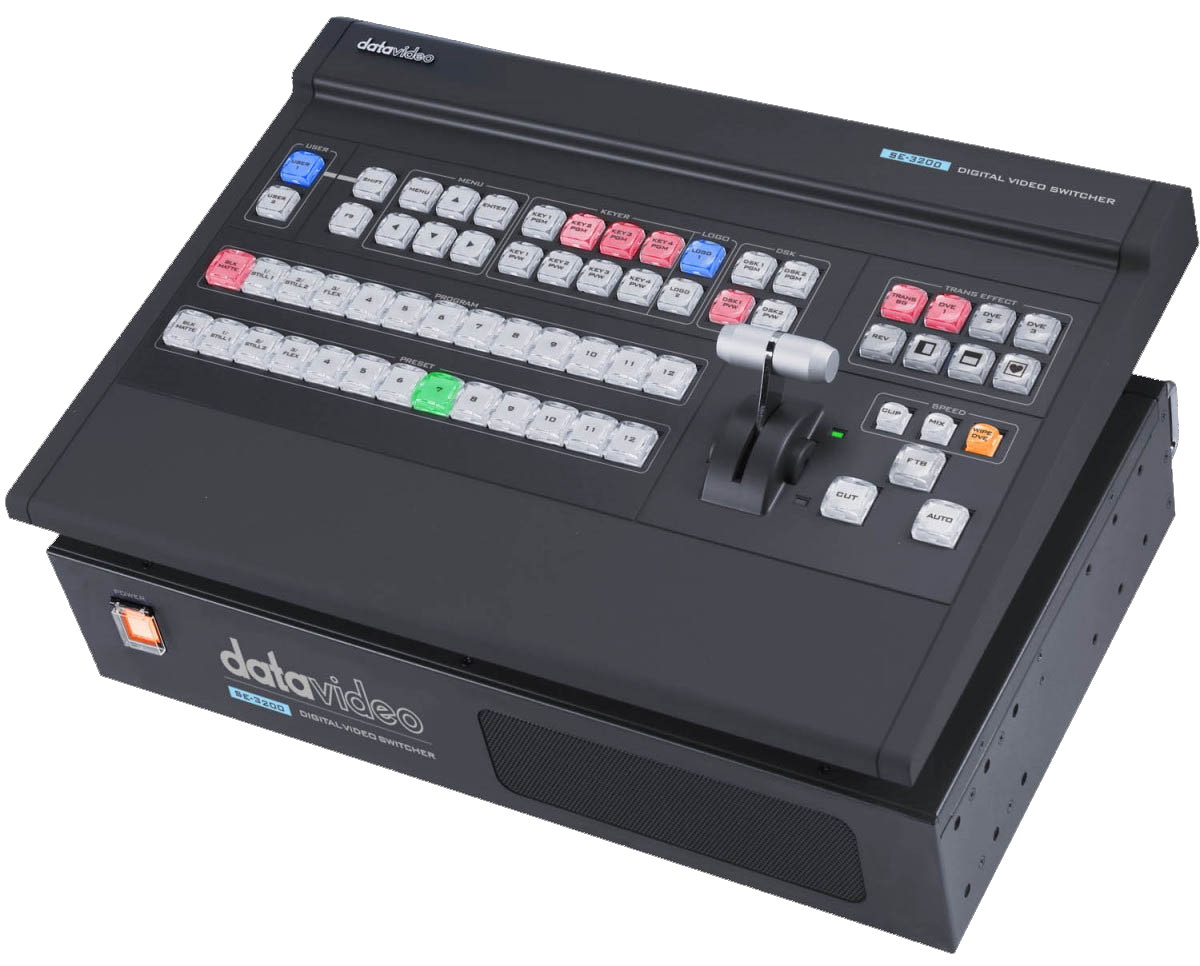

Completely Customizable 12 Inputs Full HD Production Switcher
The SE-3200 is Datavideo's top of the line switcher with full 1080p support on every input and output, and not only has this, but 3200 series also has a built-in input scaler, for up and down conversion on each available input.

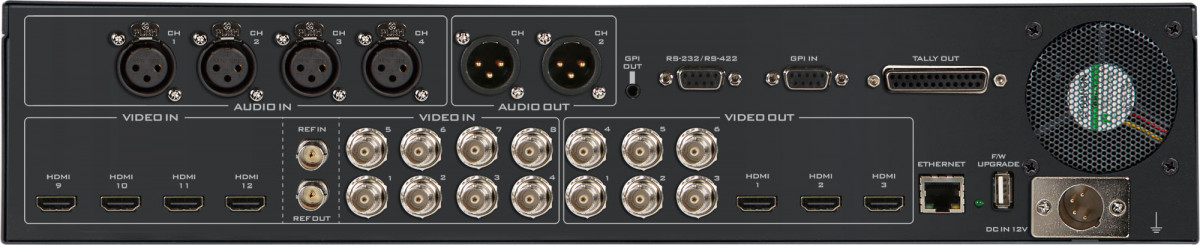

The SE-3200 is equipped with 12 inputs (8x SDI+4x HDMI) and 9 outputs (6x SDI+3x HDMI) to help you produce a sophisticated and professional live event.
Suitable for Large-Sized Productions
The SE-3200 supports up to 12 inputs in resolutions up to 1080p50/60, and it has a total of 9 outputs in HDMI and SDI.

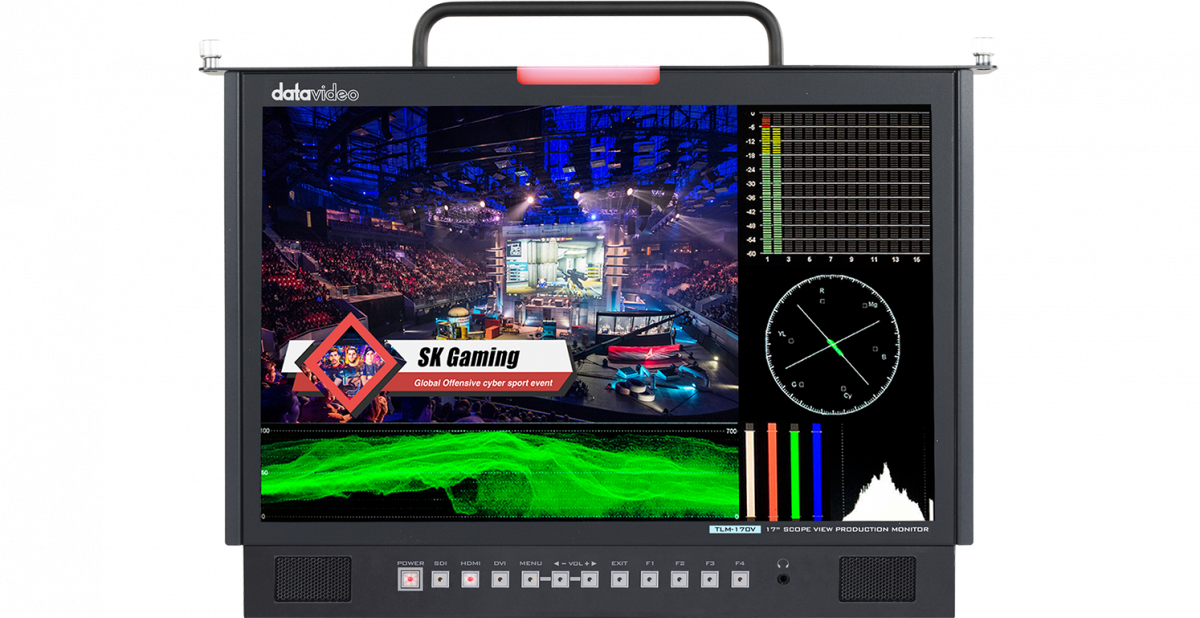

17.3'' Full HD Pull-Out Monitor
Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, check field.

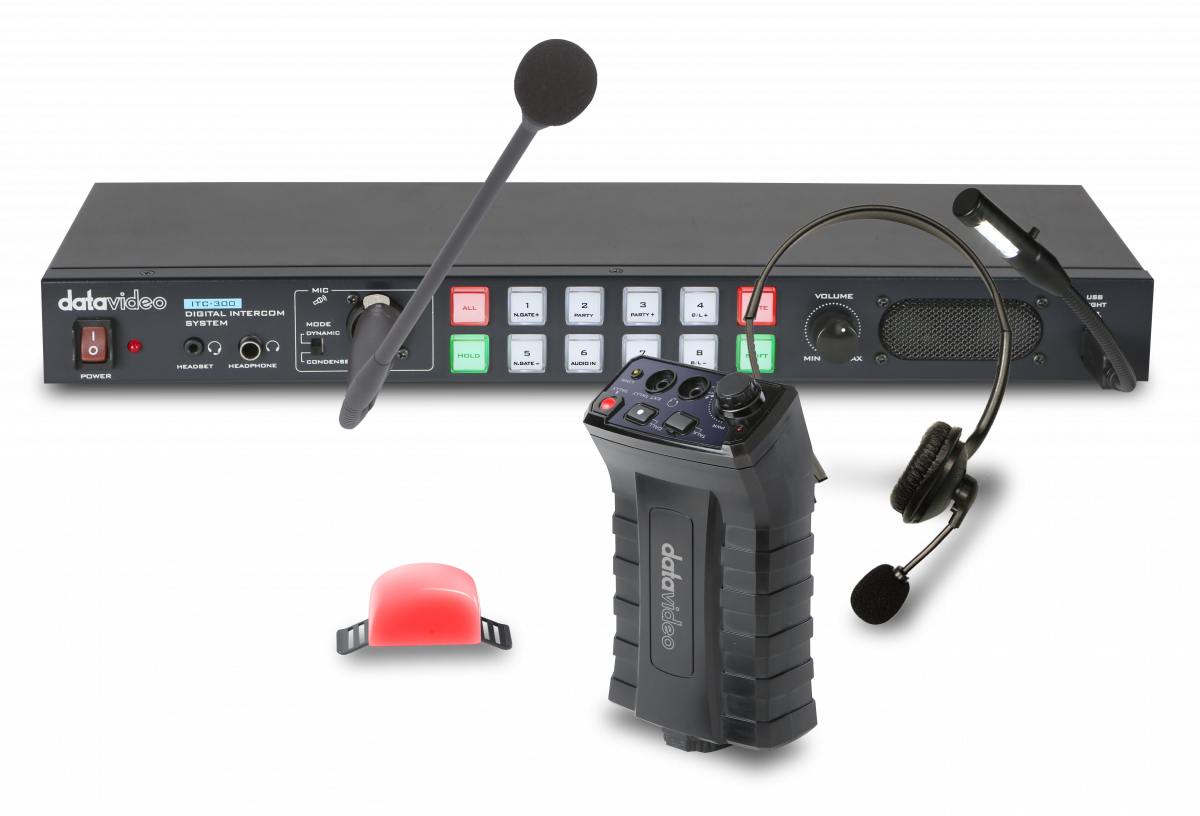

Intercom and Talkback Functionality
Single wired communication system, featuring power over Ethernet to 8 belt packs.
Free from noise.

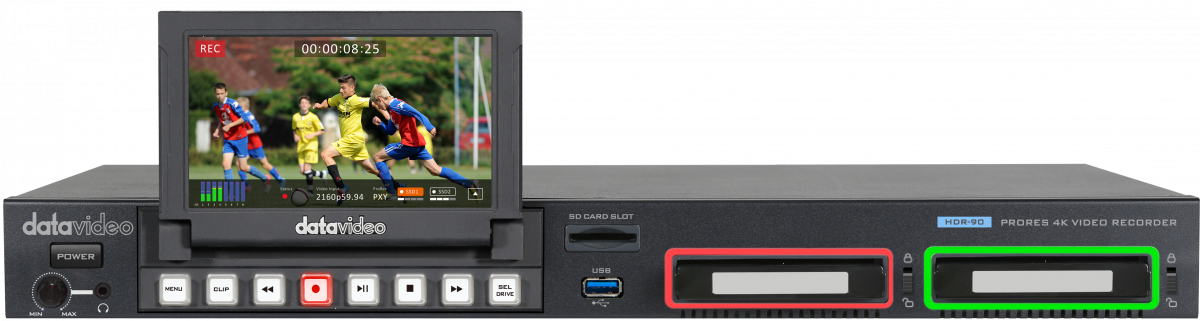

UHD 4K Recording and Compressed in 10-Bit 4:2:2 ProRes
Large 5" LCD Touch screen for operating and monitoring.
H.264 Streaming and Recording Simultaneously

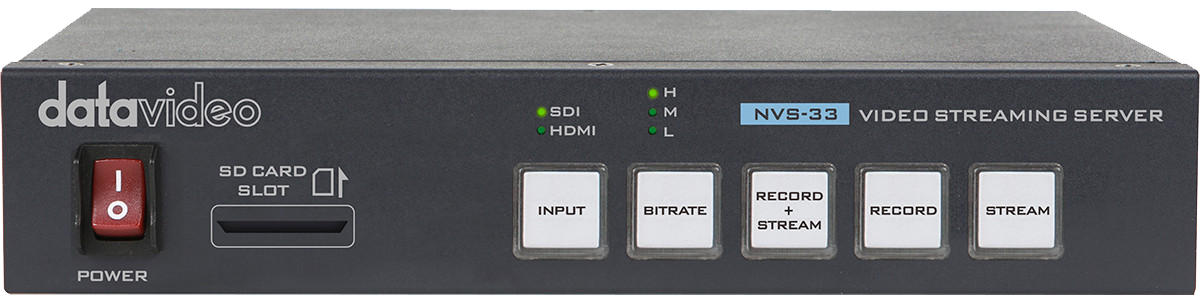

NVS-33 is a small, easy-to-use video streaming and recording equipment designed for professional video producers.
The encoder supports different bitrates for recording and streaming, allowing user live stream video to YouTube, Facebook and many other platforms.
Recording to SD Card with either NTFS and FAT file system to keep the continuous recording with a file size limit of 4GB.
Several Optional Accessories Available
Multiple accessories available including audio mixers, camera control, test & measurement tools and more.
Seamlessly Compatible with dvCloud
Get the most out of your streaming hardware using DVCloud. The MS-3200 is seamlessly compatible with Datavideo’s DVCloud service.
This subscription service give you the possibility of sending your stream to multiple destinations at the same time without having to have multiple hardware encoders.
You can also record your production on the DVCloud platform in h.264 format. After recording you can directly use this recording to upload it to your favourite content platform.
Direct SRT streaming to dvCloud prevents hickups and lag in your stream, especially when using slow or unreliable internet connections or when streaming large distances (for instance to the other side of the globe). Even if your destination does not support SRT you can still stream SRT to dvCloud and go to the destination in RTMP.
For more information on DVCloud, please visit the product page or sign up directly on www.dvcloud.tv

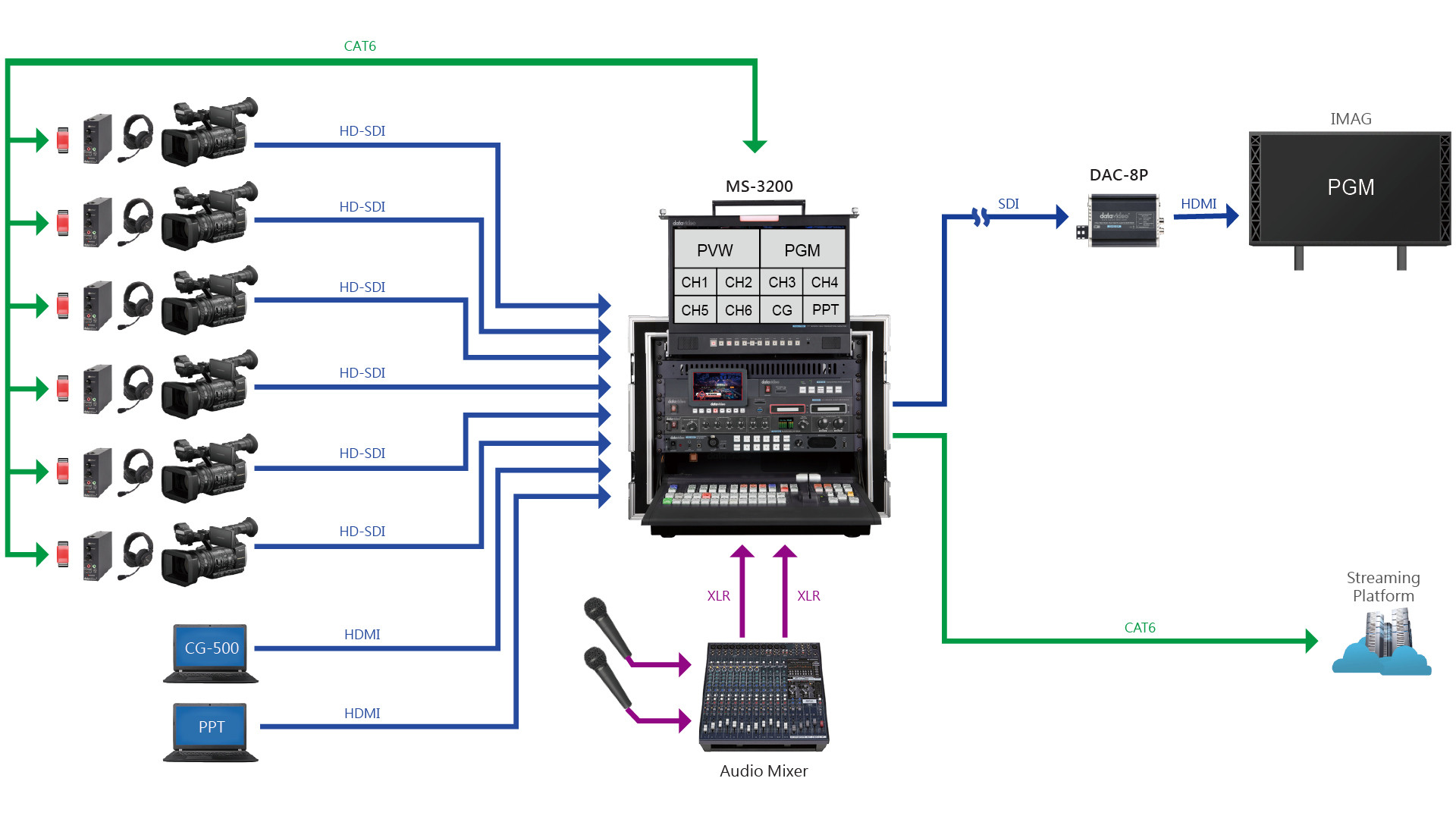

Diagram
Specifications
|
DigitalVideoSwitcher |
SE-3200 |
|
17.3" RackMountLCD |
TLM-170VMx1 |
|
Recorder |
HDR-90x1 |
|
Intercom/TallySystem |
ITC-300w/4BeltPack |
|
SDIVectorScope |
Built-inTLM-170VM |
|

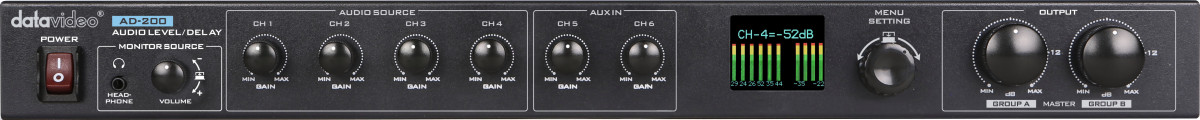

AudioMixer |
AD-200 |
|
PowerDistributor(8-way) |
PD-2A |
|
CameraPowerDistributor |
PD-6(optional) |
|
H.264VideoStreamingServer |
NVS-33 |
|
RackSystemIntegration |
8RUFlightCase |
|
Weight |
65kg |
|
OperatingTemp.Range |
0~40°C |
Package content
- 1 x MS-3200 product
- 4 x ITC-300SL Belt Pack
- 4 x Tally LED Indicator
- 4 x Headset with microphone
- 1 x Goose neck MIC
- 1 x USB LED light
- 4 x Ethernet Cable
- 4 x RJ-45 Protective Shield Set
- 4 x GPI Cable
- 1 x AC Power Cord
- 1 x Y type USB cable
- 5 x 120mm cable tie
- 10 x 200mm cable tie
- 1 x Y type 2 pin MOLEX cable
- 2 x 2.5" HDD enclosure
- 1 x SATA to USB Cable
- 10 x Screw M3*4mm
- 10 x Anti-vibration screw + M5*10 washer
- 2 x ISO screw 2*6mm
- 4 x Black Velcro 36cm
