KG6900T
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:
USB DVI KVM DigiProcessor
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก

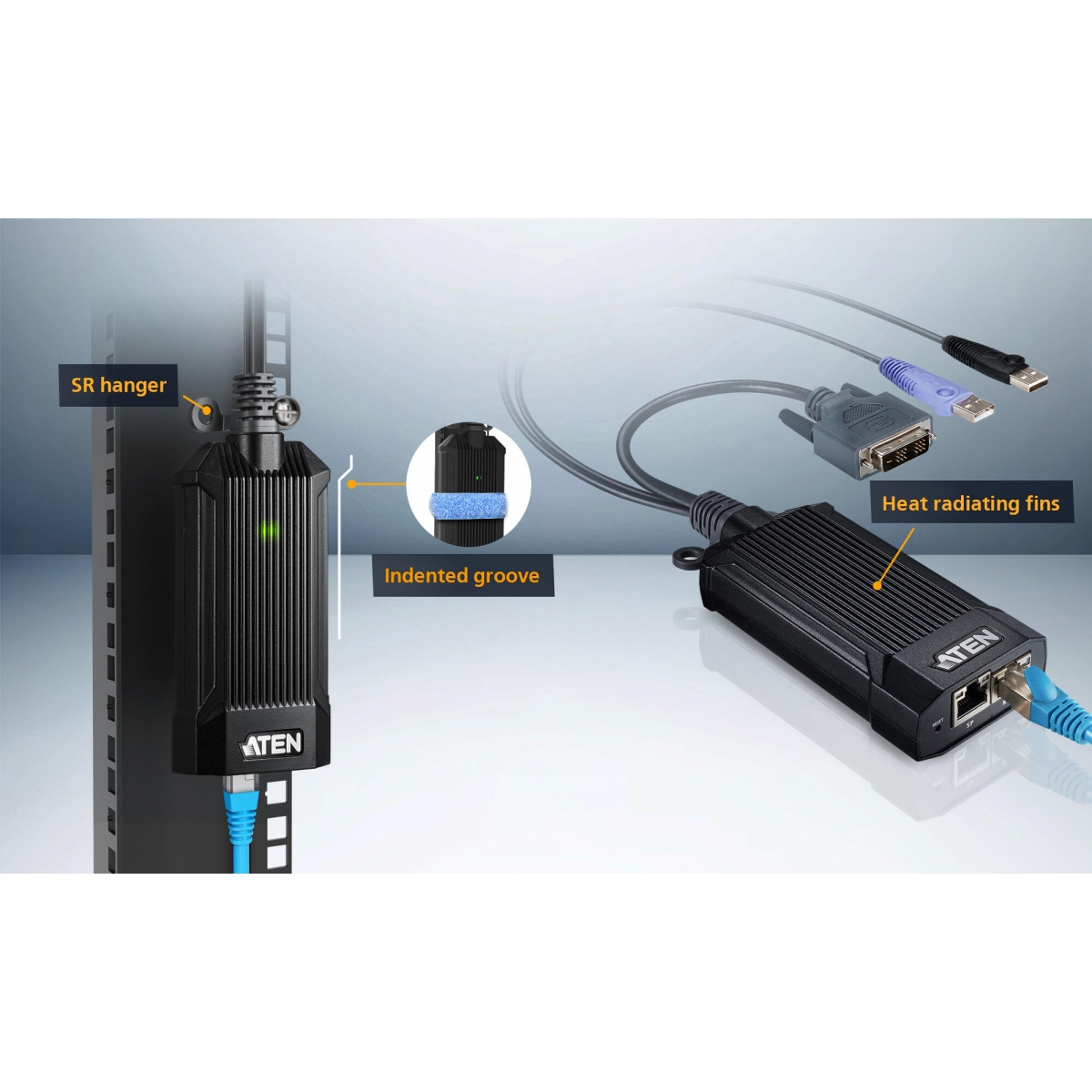

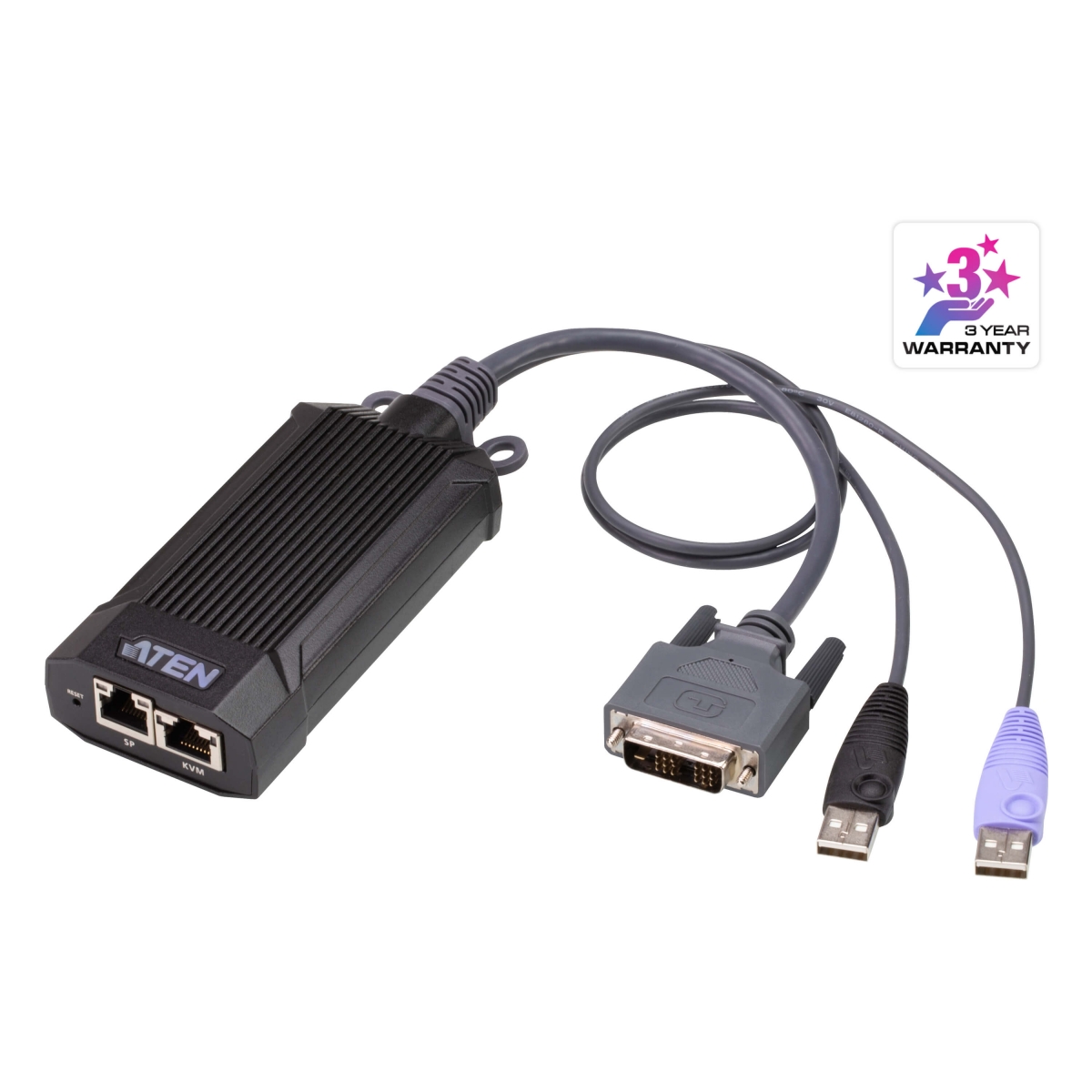

The KG6900T USB DVI KVM DigiProcessor can centrally connect from the KVM over IP OmniBus Gateway to the target computer. Its digital signal delivers superior signal compensation for greatly enhanced video quality up to 1920 x 1200 @ 60 Hz, 24-bit color depth and raises the data transfer rate faster than traditional KVM solutions. This plug and play KVM DigiProcessor is built with a powerful SoC that provides excellent video compression performance. Its zero-U and light weight design allows for an efficient and tidy installation, providing an ideal space-saving solution. The KVM DigiProcessor is perfectly suited to data center, server room, control room and high tech production line applications.
Note: The ATEN KVM DigiProcessor is only compatible with KG0016 / KG0032. Make sure the KG0016 / KG0032 and the KVM DigiProcessor are connected directly with each other and there is no network switch in between. The SP port on the ATEN DigiProcessor is reserved for future expansion
Connectors | |
Link | 1 x RJ-45 Female (KVM) 1 x RJ-45 Female (SP) (Reserved for future expansion) |
Computer | 2 x USB Type A Male 1 x DVI-D Male |
Switches | |
Reset | 1 x Semi-recessed Pushbutton |
LEDs | |
Link | 1 (Green)- On: Active / Blinking: Transmit/Receive) |
10/100/1000 Mbps | 1 (Off / Orange / Green) |
Power | 1 (Green) |
Power Consumption | DC5V:3.854W:18BTU |
Environmental | |
Operating Temperature | 0–40°C |
Storage Temperature | -20–60°C |
Humidity | 0–95% RH, Non-condensing |
Physical Properties | |
Housing | Aluminum Die-casting Housing |
Weight | 0.30 kg ( 0.66 lb ) |
Dimensions (L x W x H) | 12.20 x 5.80 x 2.58 cm (4.8 x 2.28 x 1.02 in.) |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
