1-port RS-232 & 1-port Parallel Low Profile PCI Express Multi-I/O Board
MIO6469AL

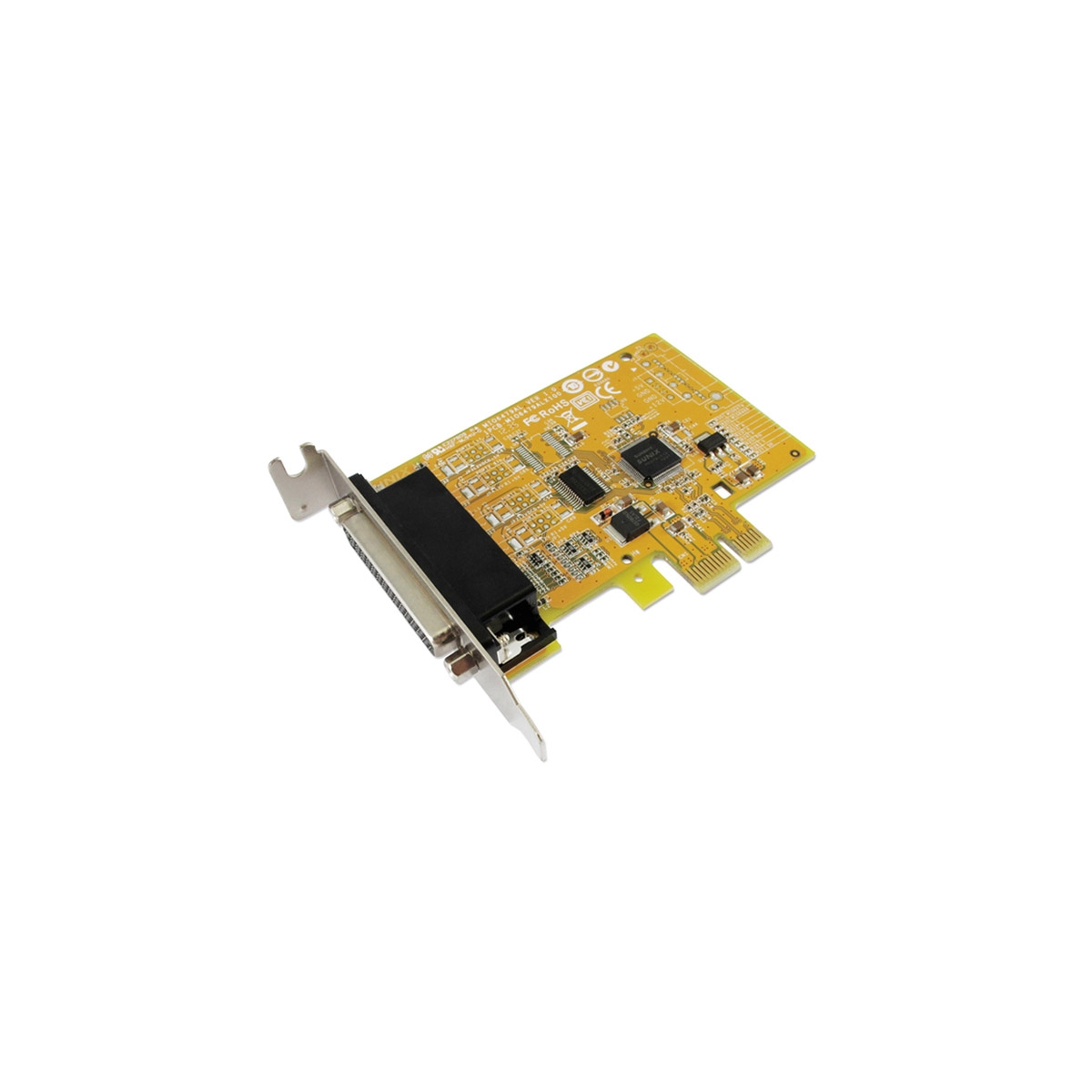

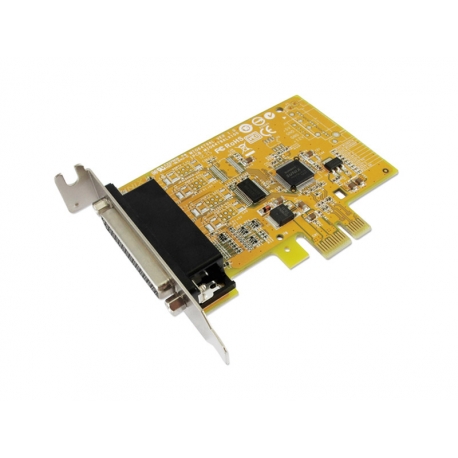

SUNIX MIO6469AL Multi I/O board, users can expand one RS-232 COM and one IEEE1284 LPT ports to their system, allowing them to use serial and parallel devices further.
รับประกัน 3 ปีเต็ม
Serial Card ที่ได้รับมาตรฐานและรองรับ OS มากที่สุด
Spec sheetIntroduction
The majority of today’s motherboards are not equipped with any RS-232 or Parallel port. With SUNIX MIO6469AL Multi I/O board, users can expand one RS-232 COM and one IEEE1284 LPT ports to their system, allowing them to use serial and parallel devices further. This board is compatible with PCI Express x1, x2, x4, x8 and x16 lane, allowing the board to be installed in virtually any slim size PC system with low profile bracket structure. SUNIX MIO6469AL built-in SUNIX high performance and realizable native PCI Express controller, and as well built with many of SUNIX advanced features and technologies, making it the advanced and high efficient solution for commercial and industrial automation application.
Features
- Expands 1-port RS-232 COM and 1-port IEEE1284 LPT on system.
- With high reliable SUNIX SUN2410 native PCI Express 16C950 UART and IEEE1284 controller.
- Designed to meet PCI Express Base Specification Revision 2.0.
- Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
- On-chip hardware auto flow control to guarantee no data loss.
- Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
- Support IEEE 1284-1994 parallel port standard.
* ECP(Enhance Capacity Port) / EPP(Enhance Parallel Port)
* SPP (Standard Parallel Port) / BPP (Bi-direction Parallel Port). - Plug-n-Play, I/O address and IRQ assigned by system.
- Low profile bracket design idea for slim or portable PC.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval. (
ข้อมูลเพิ่มเติม) - Support Microsoft Windows, Linux, and DOS.
Specifications
| General | |
| Interface | RS-232 and IEEE1284 |
| Controller | SUNIX SUN2410 (16C950 UART Compatible) |
| BUS | PCI Express Spec 2.0, Single-Lane (x1) |
| IRQ & IO | Assigned by System |
| Serial Communication | |
| Interface | RS-232 |
| No. of Port | 1-port |
| FIFO | 128byte Hardware |
| Signal | DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI |
| Baud rate | 50bps ~ 115.2Kbps |
| Stop bit | 1, 1.5, 2 |
| Parity | even, odd, none, mark, space |
| Flow Control | None, Xon/Xoff, RTS/CTS |
| Protection | ±15KV ESD protection for each signal Human Body Model (HBM) |
| ±15KV IEC1000-4-2 Air Gap Discharge | |
| ±8KV IEC1000-4-2 Contact Discharge | |
| PCB Connector | DB44 Female |
| Cable Connector | DB 9 Male |
| Parallel Communication | |
| Interface | IEEE1284 |
| No. of Port | 1-port |
| Mode | SPP / ECP / EPP / BPP |
| FIFO | 16byte Hardware |
| Speed | Maximum 1.8MBps |
| PCB Connector | DB44 Female |
| Cable Connector | DB25 Female |
| Driver Support | |
| Windows Client | XP / Vista / 7 / 8.x / 10 (X86/X64) |
| Windows Server | 2003 / 2008 / 2012 / 2016 (X64) |
| Windows Embedded | Windows XP Embedded / POSReady 2009 / POSReady / Embedded System 2009 |
| Linux | Linux 2.4.x / 2.6.x /3.x |
| DOS | DOS |
| Regulatory Approvals | |
| Hardware | CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B FCC Part 15 Class B, BSMI: CNS13438, RoHS |
| Software | Microsoft WHQL Windows |
| • Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64) | |
| • Windows Server: 2003 / 2008 / 2012 / 2016 (X64) | |
| Environment | |
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
| Dimension | |
| PCB Dimension | 92 x 69 mm |
| Bracket | Low Profile 80 mm |
| Bracket Space | 1 |
Note:
* LPT port does not support LPT Key Locker Parallel device.
* LPT port does not support legacy 278/378/3BC ISA address under Microsoft Windows nor Linux operation systems.
* ECP / EPP / SPP / BPP modes work under Windows, and Linux driver only supports SPP mode.
Accessories
Including Accessories
DB44 to 1-port DB9 Male & 1-port DB25 Female Connection Cable
- 40cm
- Part Number: 1WDB-44M04009D1A10
- 1 pcs
Download Driver
| Driver | SUN1999Driver V9.2.2.0(WHQL) |  |
| Version | V9.2.2.0 | |
| Update | 2021-01-05 09:27:46 | |
| Size | 9.4MB | |
| OS |
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise 2019 LTSC 32/64 bit
Windows 10 Enterprise 2016 LTSB 32/64 bit
Windows 10 S 32/64 bit
|
