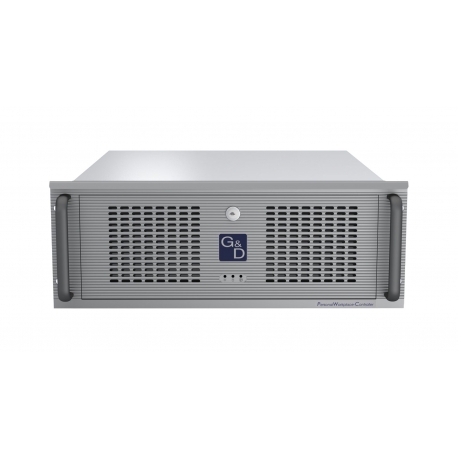

Pro Video : PersonalWorkplace-Controller
A4000025
- Multiview Video Controller
- รองรับ 26 HDMI In/5 Out (3 DP, 1 HDMI, 1 DVI)
- จัดวาง Layout ได้อิสระ
- ใส่ Text, รูปภาพ, ไฟล์วิดีโอ และ RTSP, NDI stream in ได้
- Save/Recall Preset ได้
- Redundant Power supply
รับประกัน 3 ปีเต็ม
Video
- Includes two output licenses for operation in standard or dynamic mode
- Can be expanded with additional output licenses
- Default mode (legacy mode)
- In legacy mode, a maximum of 8MP in 16:9 or 16:10 aspect ratio can be used on virtual or physical output devices with one license
- Any number of physical and/or virtual outputs can be operated as long as they are in the activated MP range.
- Example with an 8MP licence:
1 x 3840 × 2160 or 4 x 1920 × 1080
- Dynamic mode
- In dynamic mode, an 8 MP license is required for each connected monitor/display – regardless of the actual pixel grid used with the monitor/display. A virtual monitor and a mirrored display (mirror mode) also require an individual license.
- One of the advantages of the dynamic mode is that you can use each video output at full bandwidth.
- Instead of the pre-defined resolution (as in legacy mode), the “real” EDID resolutions of the connected monitors are used in this case.
- This way, you can also use modern resolutions such as 5120 × 1440, for example.
- Supported resolutions
- 5120 × 1440 (only in dynamic mode)
- 3840 × 2160
- 2560 × 1600
- 2560 × 1440
- 2048 × 2048 (only in dynamic mode)
- 1920 × 1200
- 1920 × 1080
- Further resolutions possible in dynamic mode
- Supported streaming protocols:
- RTSP
- RTSP HEVC
- WebRTC
- NDI
- YouTube
- Supports mirroring to show output on any display or device (output license required)
Signals

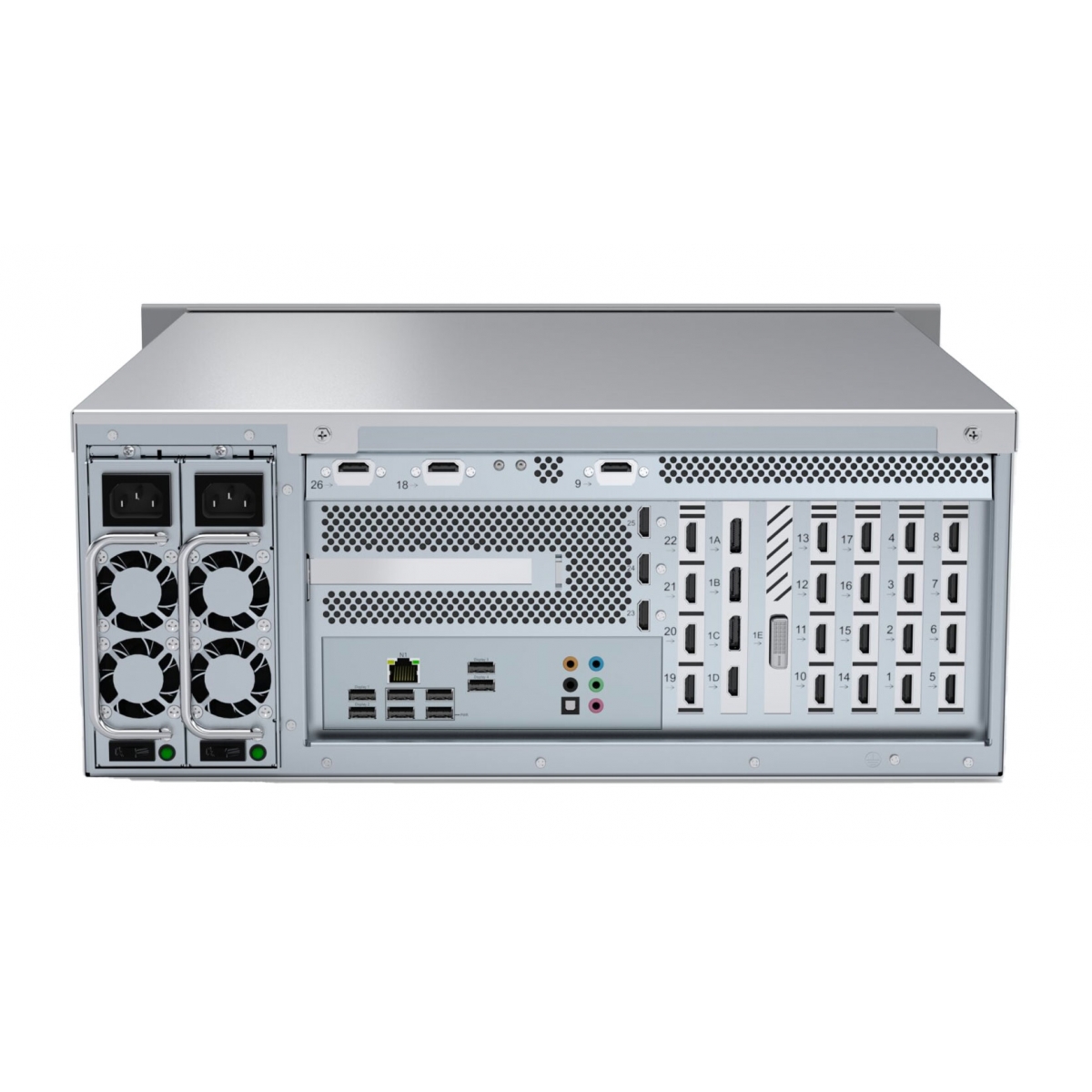

- 26 HDMI video inputs
- 5 video outputs
available video interfaces: 3 × DisplayPort 1.2, 1 × HDMI 2.0, 1 × DualLink DVI - Network connection
Device
- Internal power pack for main power supply
- Redundant power supply
Operation
- Configuration and administration via on-screen display or API remote control
- Layouts can be arranged flexibly and individually
- Different layouts can be saved and recalled
Operation features
- Freestyle Mode
Inputs can be overlapped, scaled and positioned freely - Swap Mode
The positions of the inputs can be exchanged among each other
Expansions
System expansion
- The system can be extended with additional output licenses
Technical Data
| General | Product group | KVM-Add-ons |
|---|---|---|
| Number of sources | 26 |
| Input options | USB mouse | yes |
|---|---|---|
| USB keyboard | yes |
| Video input | Format | HDMI 2.0 Singlelink DVI |
|---|---|---|
| Pixel rate | 16 MPixel/s to 550 MPixel/s 16 MPixel/s to 300 MPixel/s 16 MPixel/s to 165 MPixel/s |
|
| Examplary resolutions | 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) Refers to input 9 and 18 as well as 19, 20, 21, 22, 23. Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. Refers to input 5, 6, 7, 8 and 14, 15, 16, 17 as well as 24, 25, 26. Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. |
| Video output | Format | HDMI 2.0 DisplayPort 1.2 DualLink DVI |
|---|---|---|
| Pixel rate | up to 600 MPixel/s up to 330 MPixel/s |
|
| Examplary resolutions | 4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. |
| Network | Medium | CAT5 CAT6 CAT7 |
|---|---|---|
| Data rate | 1 GBit/s 100 MBit/s 10 MBit/s |
| Maintenance | Update via | WebIF (Network) |
|---|
| Housing | Material | Steel sheet |
|---|---|---|
| Width | 483 mm | |
| Height | 177 mm | |
| Depth | 450 mm | |
| IP protection class | IP20 |
| Operating conditions | Operating temperature | 5 °C to 40 °C |
|---|---|---|
| Operating air humidity | 10 % to 80 %, non-condensing | |
| Area of application | Interior | |
| Maximum operating altitude | 3000m above sea level | |
| Storage temperature | -20 °C to 70 °C | |
| Storage air humidity | 10 % to 95 %, non-condensing | |
| MTBF | 35900 h at 25°C | |
| Conformities | UL 62368-1 Waste electrical equipment disposal WEEE 2012/19/EU FCC CFR 47 part 15 subpart B cl. A EN62368 - Safety Low Voltage Directive 2014/35/EU EN55024 EMC immunity EN55032 (CISPR 32) - EMC emission EN61000-3-2 - EMC current harmonics EN61000-3-3 - EMC Flicker EMC Directive 2014/30/EU EN61000-6-2 - EMC extended immunity industry |
| Power supply 1 | Input voltage | 90-264 VAC |
|---|---|---|
| Input frequency | 47-63 Hz | |
| Current consumption | 5-2.5 A |
| Power supply 2 | Input voltage | 90-264 VAC |
|---|---|---|
| Input frequency | 47-63 Hz | |
| Current consumption | 5-2.5 A |
