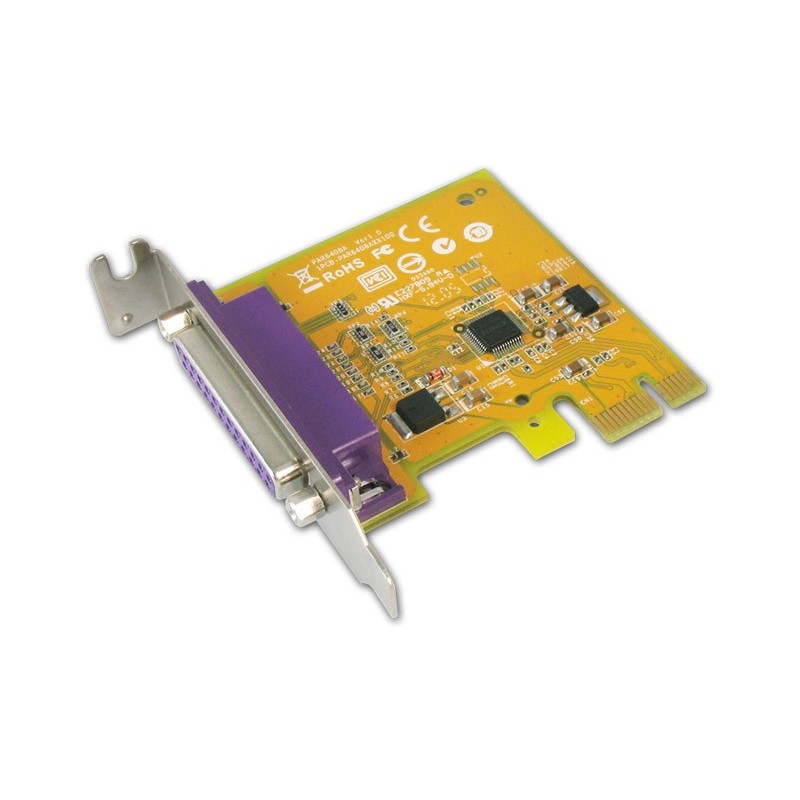

1-port IEEE1284 Parallel PCI Express Low Profile Board
PAR6408AL
การ์ดเพิ่มพอร์ต Parallel 1 port ติดตั้งกับเครื่อง PC ทางช่อง PCI Express Slot รองรับทั้ง Windows, Linux และ Dos
รับประกัน 3 ปีเต็ม
Spec SheetSUNIX PAR6408AL IEEE1284 Parallel communication board meets the PCI Express Base Specification Revision 2.0. It is compatible with PCI Express x1, x2, x4, x8 and x16 lane bus, allowing it to be installed in any slim size PC-based system with low Profile bracket structure. With SUNIX PAR6408AL IEEE1284 Parallel board, users can expand single parallel LPT port to their system to use parallel devices further. It is ideal for printers, IC programmers, ZIP Drives, or other Parallel devices*. SUNIX PAR6408AL built-in SUNIX high performance and realizable native PCI Express controller, and as well built with many of SUNIX advanced features and technologies, making it the advanced and high efficient solution for commercial and industrial automation application.
Features
- Expands single IEEE1284 Parallel LPT port on system.
- High reliable SUNIX SUN2212 native PCI Express IEEE1284 controller on-board.
- Designed to meet PCI Express Base Specification Revision 2.0.
- Full single-lane (or x1) PCI Express throughput.
- Support IEEE 1284-1994 parallel port standard
* ECP (Enhance Capacity Port) / EPP (Enhance Parallel Port)
* SPP(Standard Parallel Port) / BPP (Bi-direction Parallel Port). - Plug-n-Play, I/O address and IRQ assigned by system.
- Low profile bracket design idea for slim or portable PC.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
- Support Microsoft Windows, Linux, and DOS.
Specifications
General
| Interface | IEEE1284 |
| Controller | SUNIX SUN2212 |
| BUS | PCI Express Spec 2.0, Single-Lane (x1) |
| IRQ & IO | Assigned by System |
Parallel Communication
| Interface | IEEE1284 |
| No. of Port | 1-port |
| FIFO | 16byte Hardware |
| Mode | SPP / ECP / EPP / BPP |
| Speed | Maximum 1.8MBps |
| PCB Connector | DB25 Female |
Driver Support
| Windows Client | XP / Vista / 7 / 8.x / 10 (X86/X64) |
| Windows Server | 2003 / 2008 / 2012 / 2016 (X64) |
| Windows Embedded | XP Embedded / POSReady 2009 / POSReady / Embedded System 2009 |
| Linux | Linux 2.x / 3.x / 4.x / 5.3 |
| DOS | DOS |
| *UNIX | FreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris |
| *IBM OS/2 | WARP 3/WARP 4 |
| "*" marked as a project supported operating system. Please contact us if you have any further need. | |
Regulatory Approvals
| Hardware | CE, FCC, VCCI, BSMI |
| Software | Microsoft WHQL Windows • Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64) • Windows Server: 2003 / 2008 / 2012 / 2016 (X64) |
Environment
| Operation Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% RH |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
Dimension
| PCB Dimension | 65 x 69 mm |
| Bracket | Low Profile 80 mm |
| Bracket Space | 1 |
Note:
* LPT port does not support LPT Key Locker Parallel device.
* LPT port does not support legacy 278/378/3BC ISA address under Microsoft Windows nor Linux operation systems.
* ECP / EPP / SPP / BPP modes work under Windows, and Linux driver only supports SPP mode.
Download Driver
| Driver | SUN1999Driver V9.2.2.0(WHQL) |  |
| Version | V9.2.2.0 | |
| Update | 2021-01-05 09:27:46 | |
| Size | 9.4MB | |
| OS |
Windows 10 20H2 (20H2) 32/64 bit
Windows 10 20H1 (2004) 32/64 bit
Windows 10 19H2 (1909) 32/64 bit
Windows 10 19H1 (1903) 32/64 bit
Windows 10 RS5 (1809) 32/64 bit
Windows 10 RS4 (1803) 32/64 bit
Windows 10 RS3 (1709) 32/64 bit
Windows 10 RS2 (1703) 32/64 bit
Windows 10 RS1 (1607) 32/64 bit
Windows Server 2019 64bit
Windows Server 2016 64bit
Windows 10 Enterprise 2019 LTSC 32/64 bit
Windows 10 Enterprise 2016 LTSB 32/64 bit
Windows 10 S 32/64 bit
|
