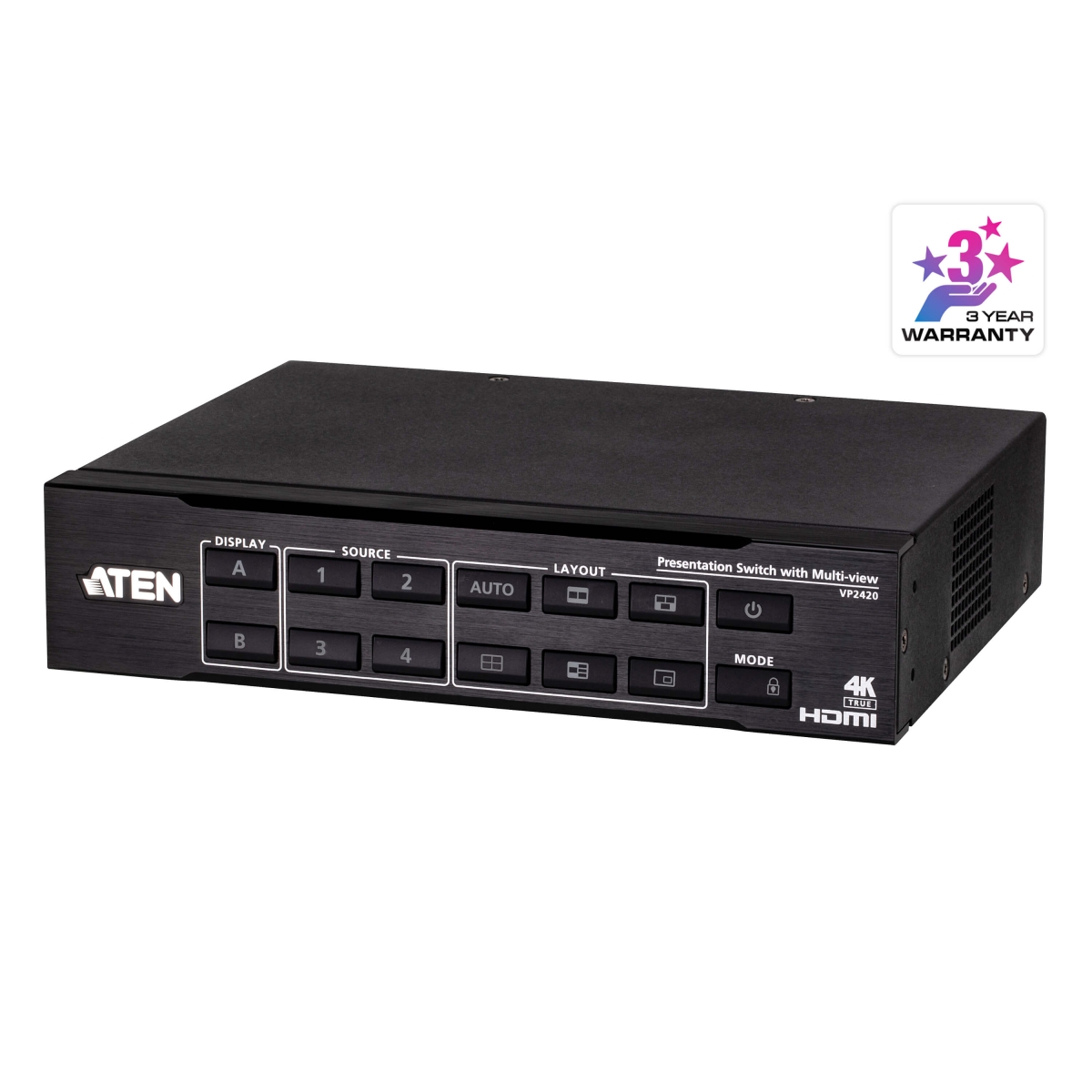

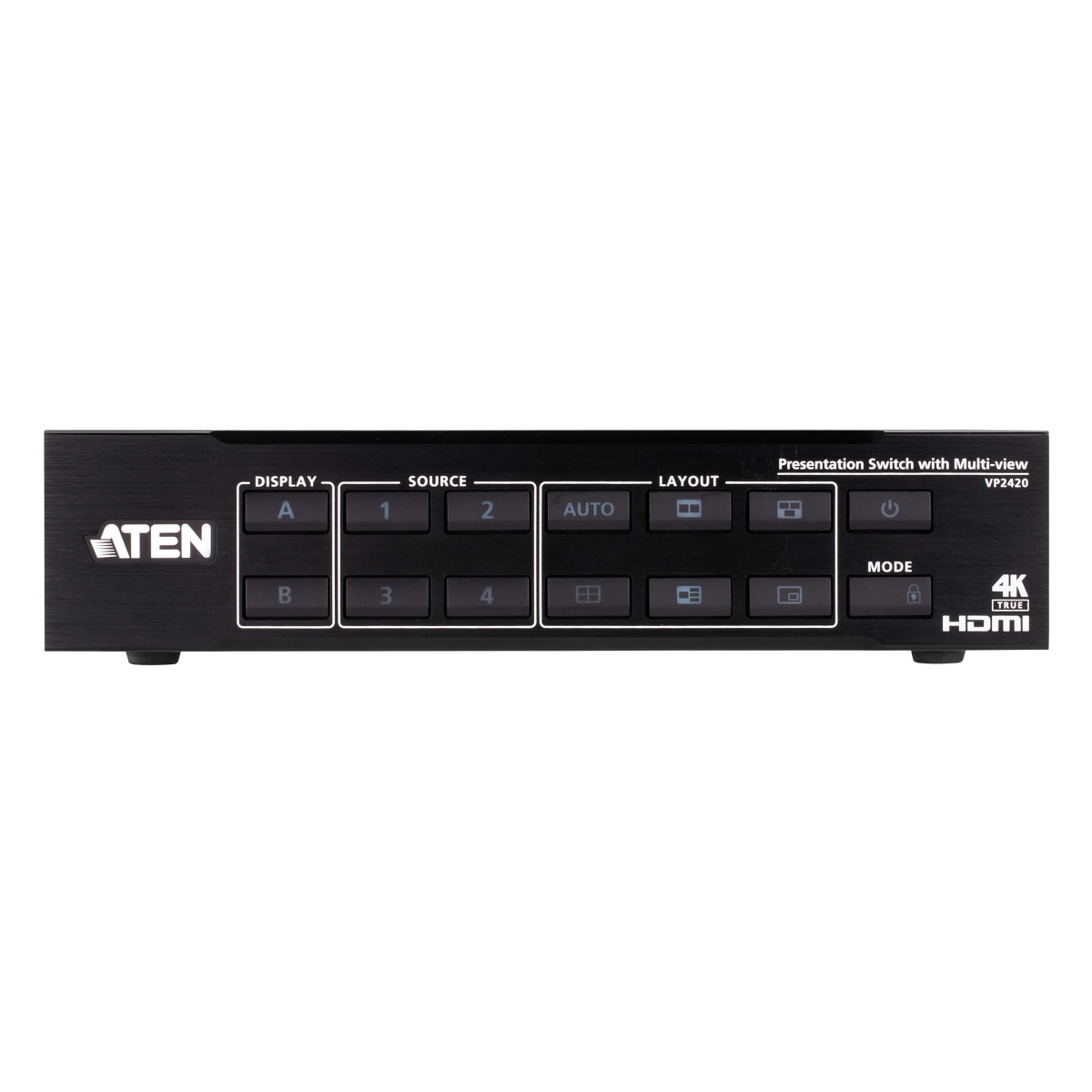

4 x 2 True 4K HDMI Presentation Switch with Multi View
VP2420
- รองรับการแสดงภาพแบบ multi-view (full screen, PiP, PbP, triple/quad multi-view), Matrix/Mirror display modes)
- รองรับการสลับภาพแบบ Auto switch และ manual
- รองรับ audio embedding และ de-embedding
- รองรับการสลับภาพแบบ Fast switching
- มาพร้อม 4K scaler อัพความละเอียดได้สูงสุดถึง True 4K
รับประกัน 3 ปีเต็ม
Spec sheet
Experience seamless collaboration and efficient decision-making with the ATEN VP2420 Presentation Switch, 4x2 True 4K HDMI Presentation Switch with Multi View. It delivers a stunning viewing experience across mixed resolution displays and ensures smooth switching between two screens with multiple sources. With multi-view functionality, it enables comprehensive data presentation, allowing participants to workshop ideas and compare information on a single screen. Its smart layout adjustment maintains a seamless flow as sources connect or disconnect, keeping meetings smooth and uninterrupted. The VP2420 supports versatile audio setups with options for audio embedding or separate extraction. Whether used standalone or integrated with control systems, it offers easy source control and future scalability with up to 4 presentation switches cascaded, making every presentation captivating, smooth, and efficient.

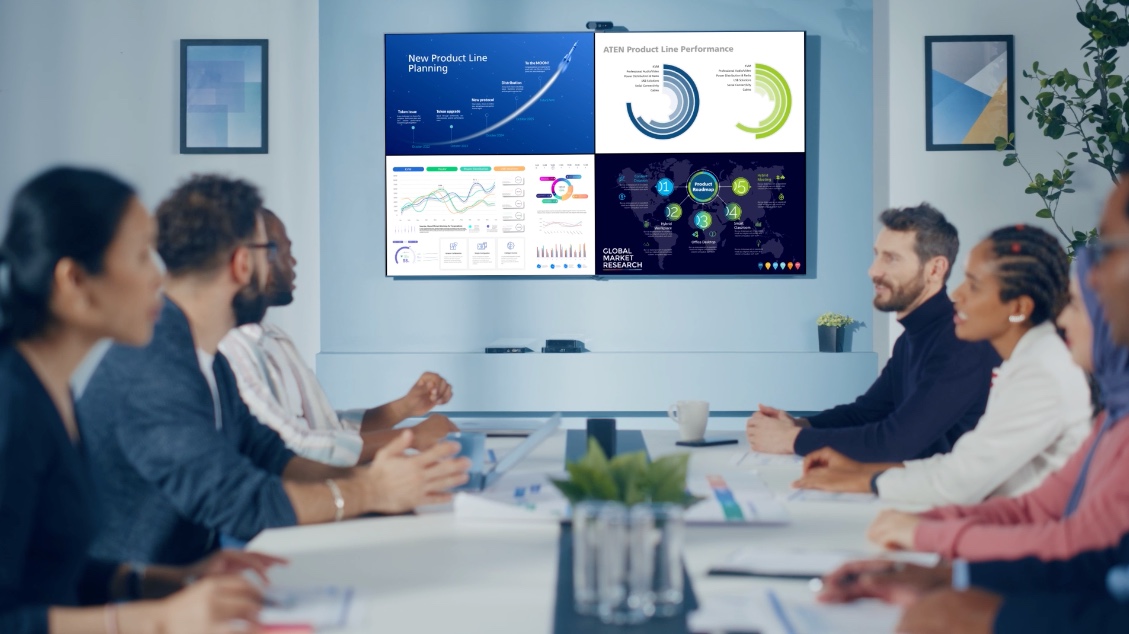

Multi-View Display with Automatic Layout Adaptation
Elevate your team collaboration and discussion with the VP2420, capable of displaying up to four video content sources on a single screen. This versatile setup facilitates side-by-side data comparison and the exchange of ideas among multiple participants, enhancing effective teamwork and decision-making. New video sources can be integrated into the existing layout anytime for a smooth and dynamic display experience.
Visual Excellence with True 4K Clarity and Advanced Scaler

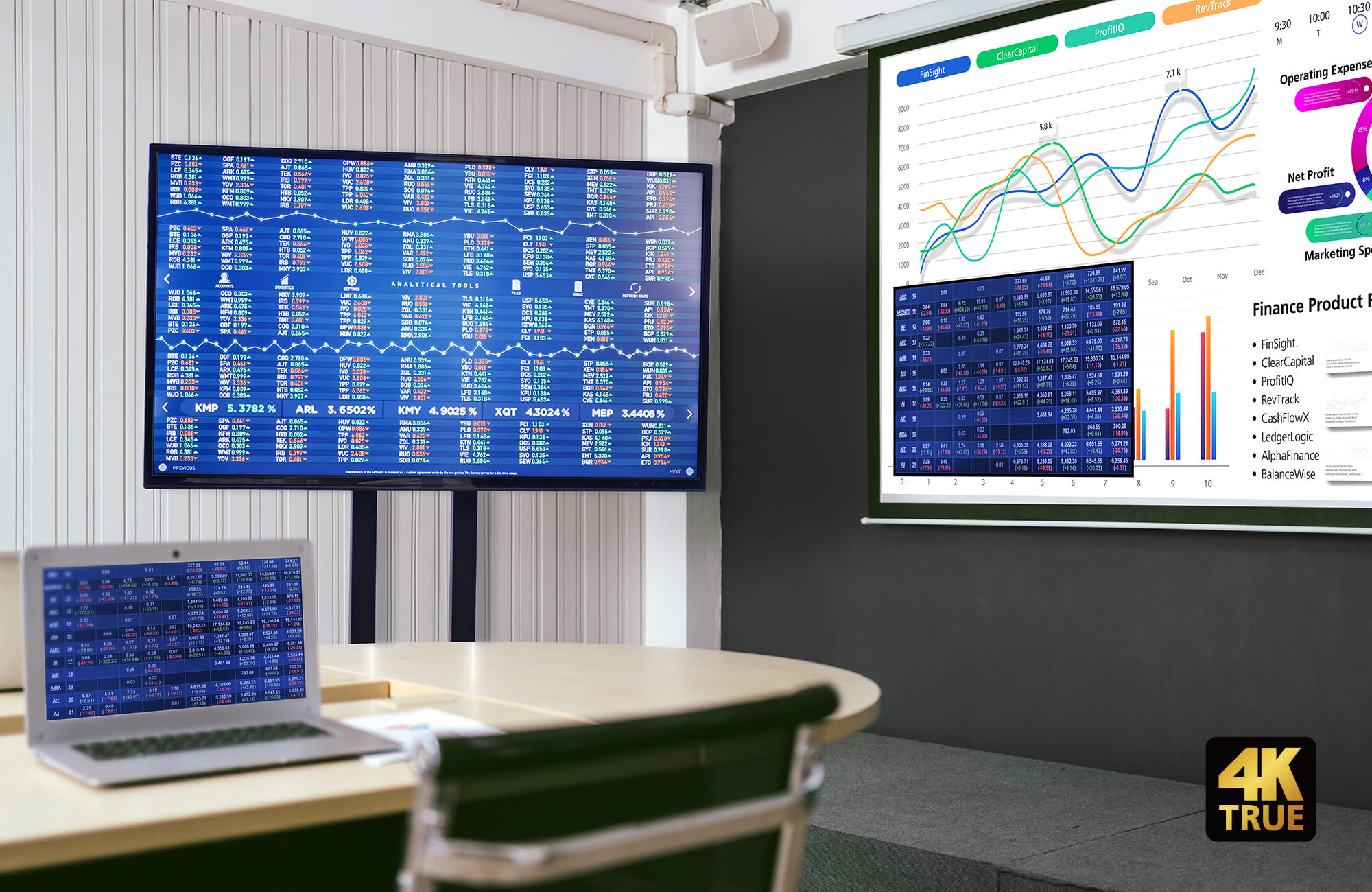

Experience stunning True 4K/60 resolution with the VP2420, delivering exquisite details and intricate visuals for an unparalleled viewing experience. Its advanced scaler seamlessly handles most-common input resolution up to True 4K or downscales to 1080p, offering a smooth and simultaneous display of mixed-resolution sources.

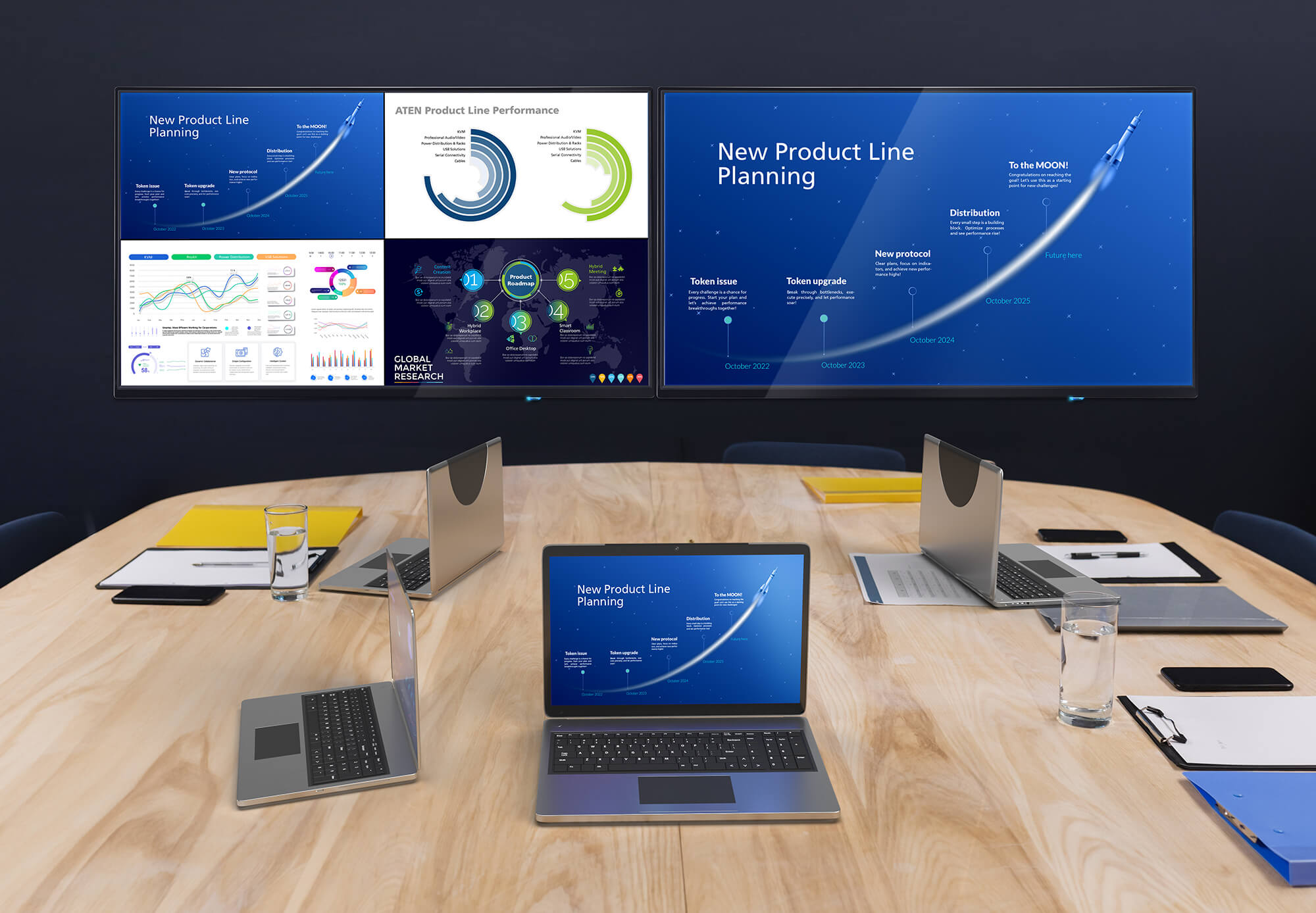

Unlock Perspectives with Matrix Output on 2 Displays
Beyond merely splitting sources across two screens, the VP2420 features two independent displays: one capable of handling up to four sources at once, and the other highlighting the content for disucssion. This setup provides a comprehensive view, ensuring focused and efficient discussions that accelerate the decision-making process.
Six Preset Rapid Multi-View Layouts

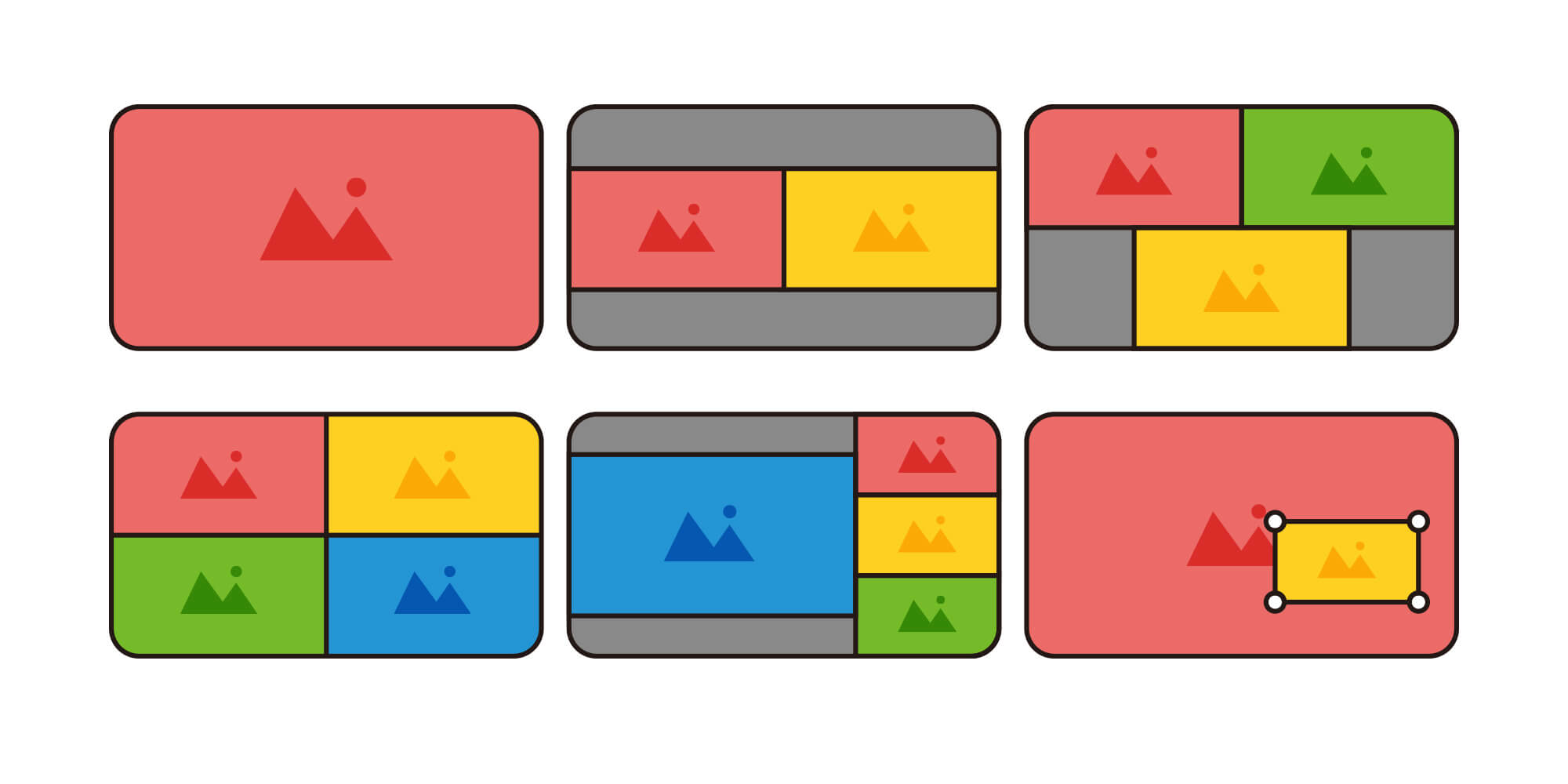

The VP2420 allows video content to be flexibly presented in six different multi-view layouts. It offers options such as quad, triple, picture-in-picture (PiP), picture-by-picture (PbP), and full screen, all of which can switch seamlessly within one second. This provides a dynamic and efficient display, meeting any presentation need.
Audio Flexibility with Embedding and De-embedding Function

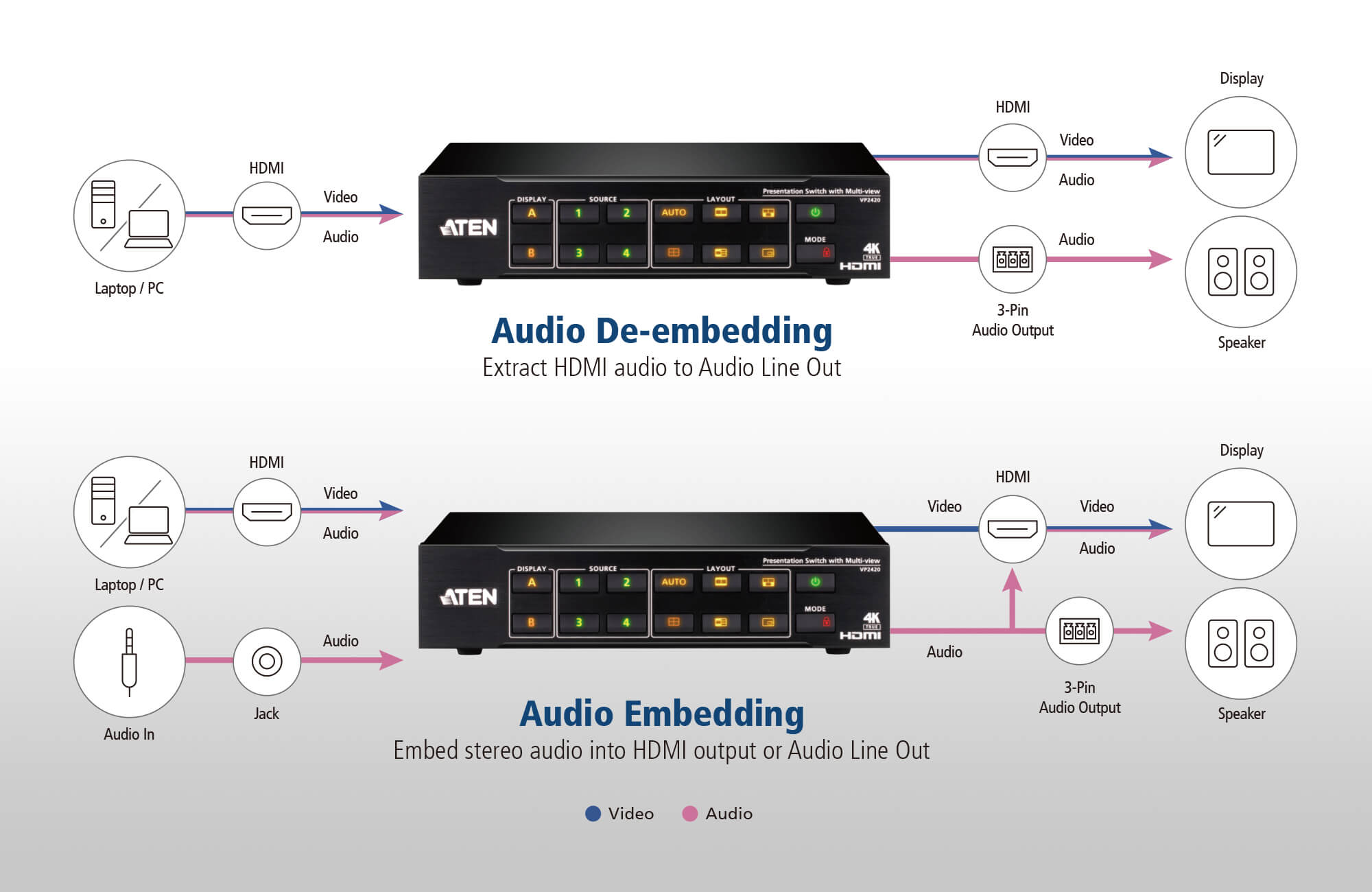

The VP2420 enhances presentations with flexible audio options, allowing for separate audio track integration into video content (embedding) or extraction (de-embedding) of audio from the video signal for independent processing through amplifiers or speakers.

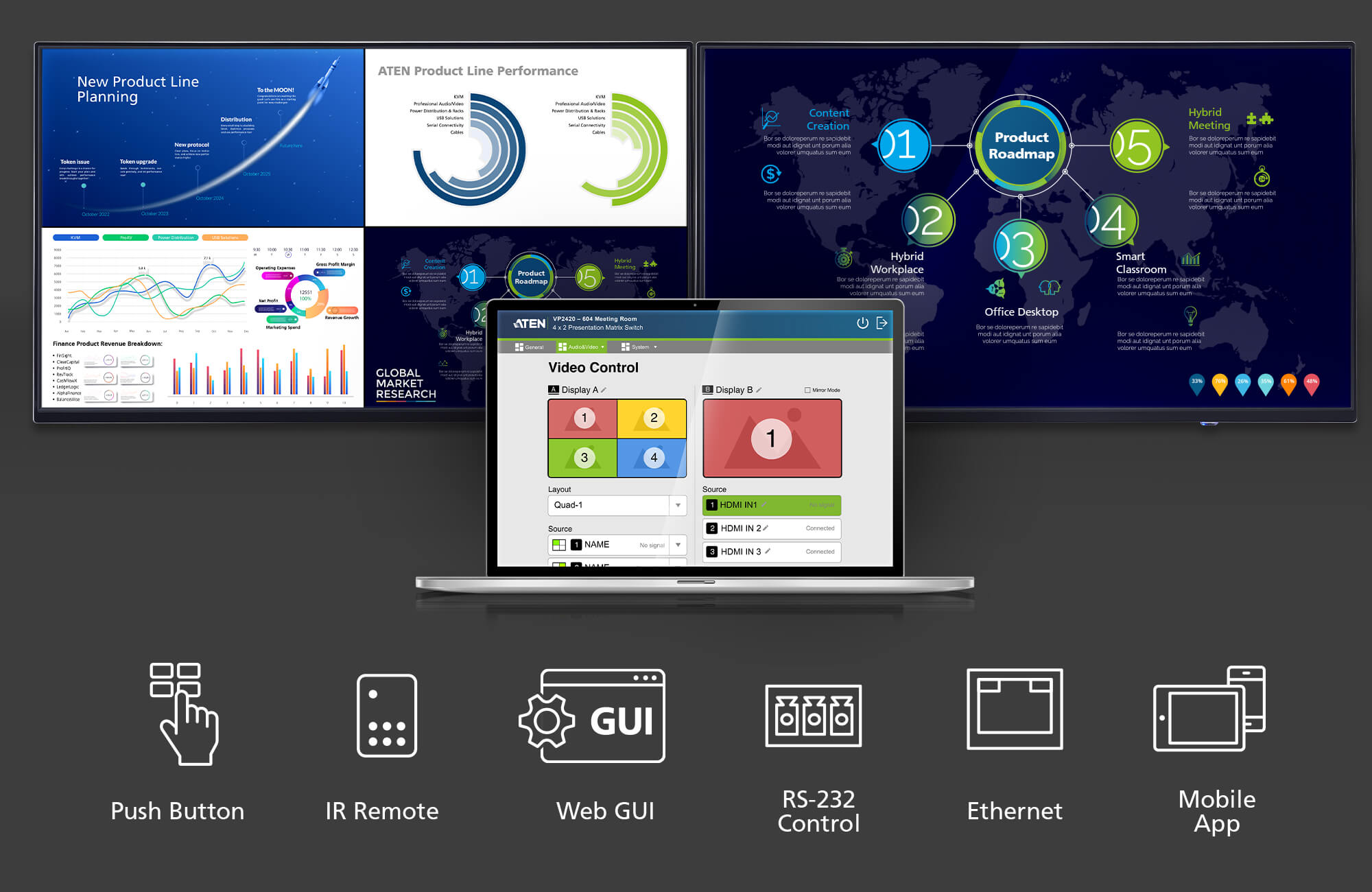

Multiple Methods for Streamlined Presentation Management
Managing presentations with the VP2420 is effortless, offering a wide range of control options such as front panel, push buttons, IR controllers, web GUI, mobile app, RS-232, and Ethernet. Integration with control systems further enhances control, providing a comprehensive and streamlined presentation experience.

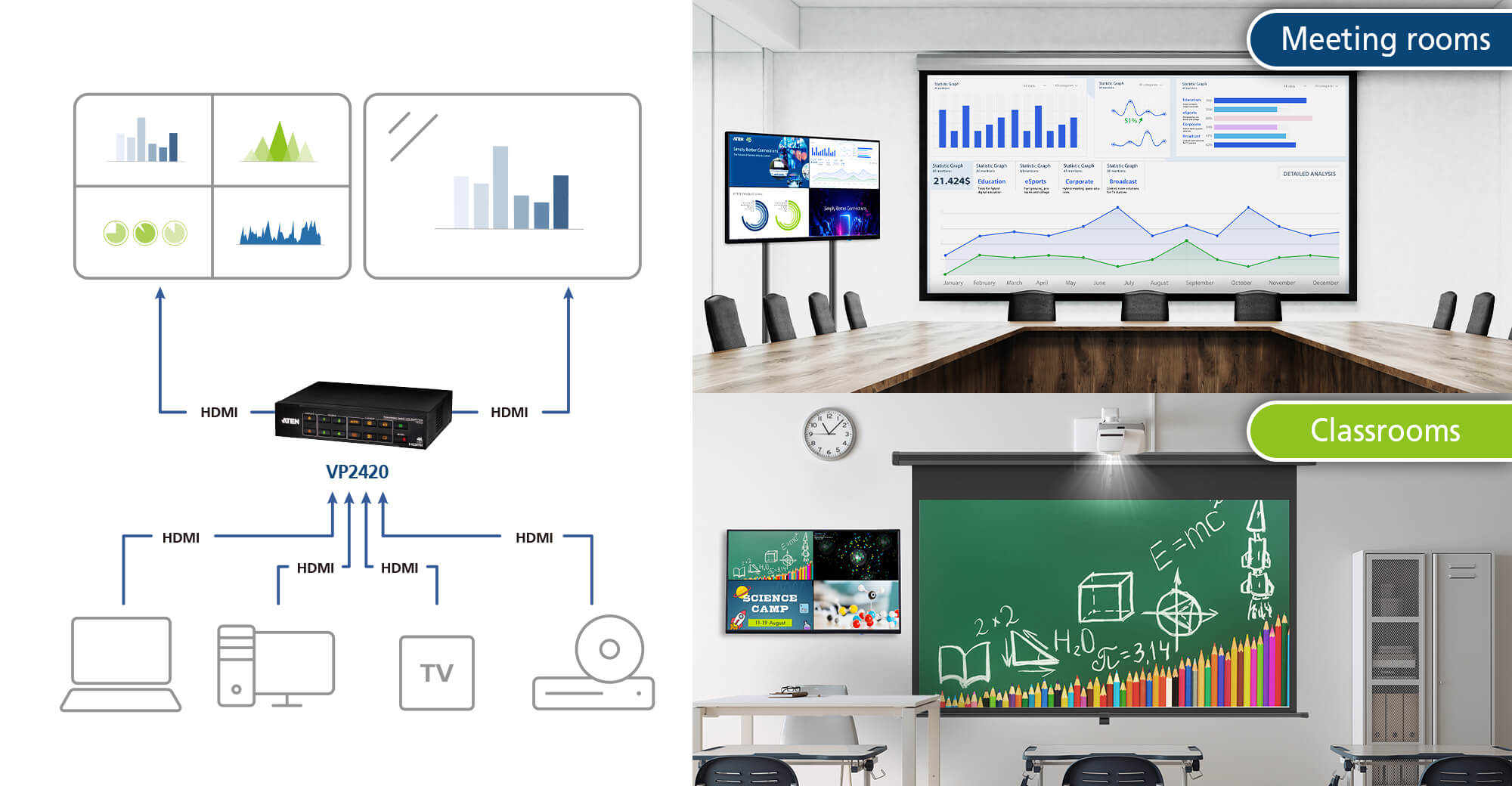

Perfect for Meeting Spaces and Classrooms
The VP2420 is perfectly suited for use in huddle rooms, medium-sized meeting rooms, and classrooms to deliver collaborative presentations or training courses through a dynamic viewing experience.
Features
- Seamless AV Matrix Switching
- รองรับ 4 x HDMI inputs และ 2 x HDMI outputs
- รองรับการแสดงภาพแบบ Multi-view (full screen, PiP, PbP, triple/quad multi-view), Matrix/Mirror display modes, และ Auto/Manual layout modes
- รองรับ audio embedding และ de-embedding
- รองรับการสลับภาพแบบ Fast switch
- รองรับ Auto switching – สลับภาพไปแหล่งสัญญาณล่าสุดที่ถูกเชื่อมต่ออัตโนมัติ
- Visually Stunning True 4K Outputs
- รองรับความละเียดสูงสุด 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) และ 4K HDR
- มาพร้อม True 4K scaler – รองรับการอัพสัญญาณภาพความละเอียดสูงสุด True 4K
- EDID Expert™– automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across connected devices
- รองรับ HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
- The Ultimate Flexibility in Streamlining Operation
- รองรับการควบคุมอุปกรณ์ผ่าน ปุ่มกดหน้า, RS-232, IR, Telnet, Web GUI, และ ATEN Video Presentation Control mobile app
- รองรับ Consumer Electronics Control (CEC)
- รองรับการต่อพ่วง VP2420 สูงสุด 4 ตัว – ทำให้แสดงภาพได้สูงสุด 16 สัญญาณใน 1 หน้าจอ
- Long distance transmission – ต่อสายสัญญาณภาพได้ไกลถึง 5m ผ่าสาย High Speed HDMI cable
- รองรับ stand-by mode สำหรับการประหยัดพลังงาน และ กลับมาพร้อมใช้งานอย่างรวด
- Rack-mountable
- ตัวเคสเป็นโลหะทั้งหมด มีความทนทานต่อการใช้งานในสภาพแวดล้อมที่รุนแรง

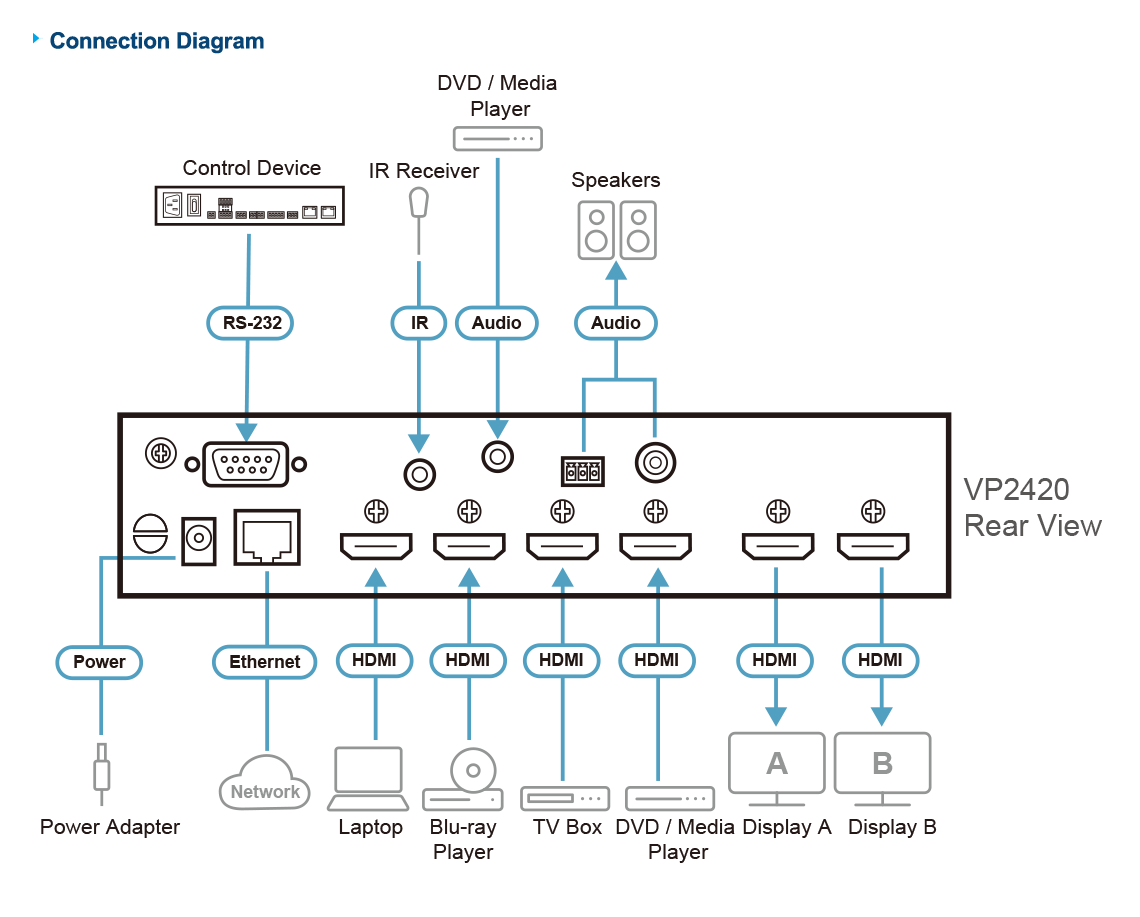

Diagram
.png)
Specifications
| Video Input | |
| Interfaces | 4 x HDMI Type A female (Black) |
| Max. Distance | HDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m |
| Video Output | |
| Interfaces | 2 x HDMI Type A female (Black) |
| Max. Distance | HDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m |
| Video | |
| Max. Resolution | HDMI: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
| Compliance | HDMI (3D, Deep Color, 4K); 4K HDR HDCP 2.2 Compatible; Consumer Electronics Control (CEC) |
| Audio | |

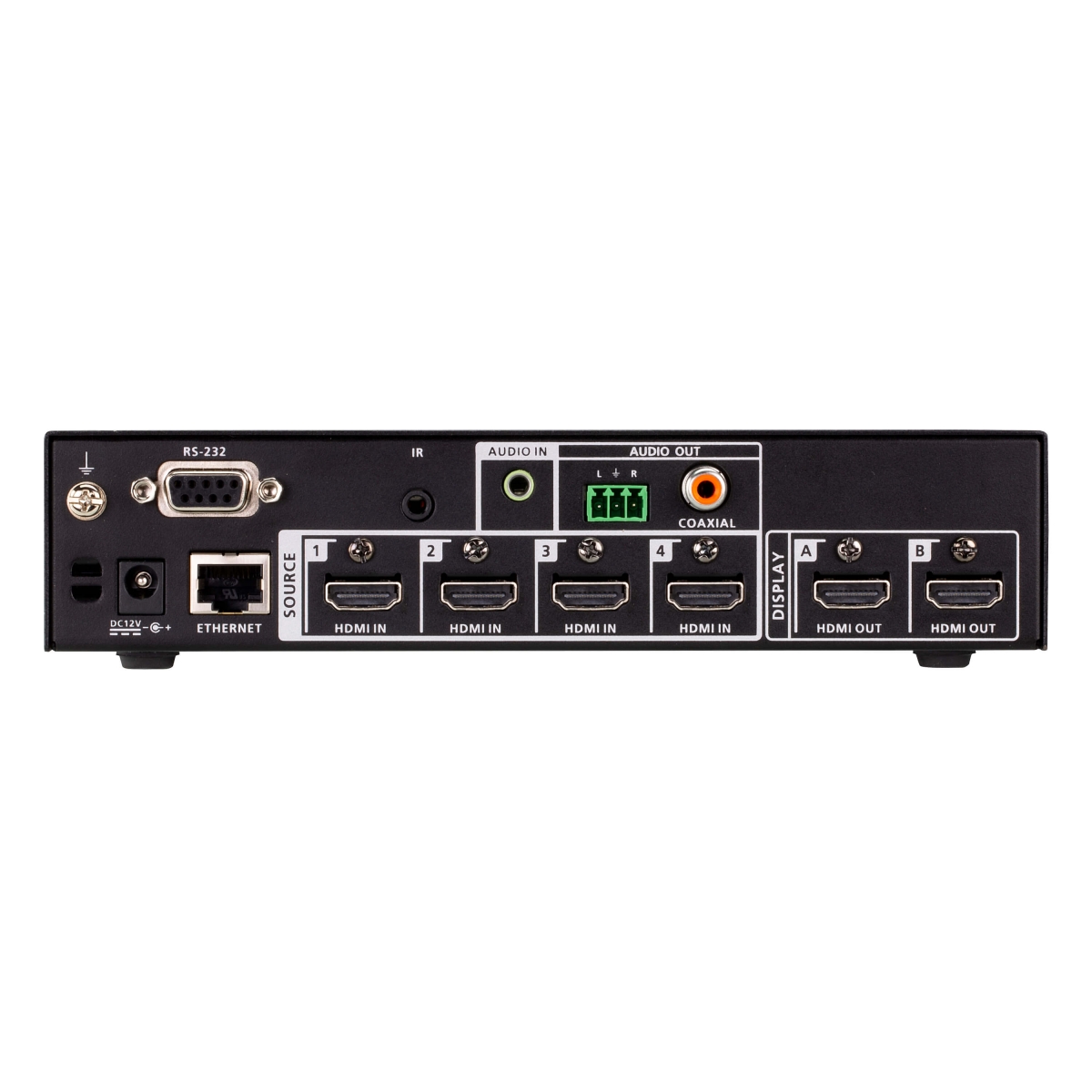

| Input | Stereo Audio (HDMI): 1 x mini stereo Jack female (Green) |
| Output | Line Out (Unbalanced): 1 x Captive Screw Connector, 3-pole (PCM 2CH) Digital Audio: 1 x Coaxial (LPCM 2CH, Dolby Digital, DTS) |
| Control | |
| RS-232 | 1x DB-9 Female (Black); VP device control & configuration |
| IR | 1 x Mini Stereo Jack Female (Black) |
| Ethernet | 1 x RJ-45 Female (Silver) |
| Switches | |
| Power | 1 x Pushbutton (LED: Green / Orange) |
| Video Input Port Selection | 4 x Pushbutton (LED: Green) |
| Video Output Port Selection | 2 x Pushbutton (LED: Orange) |
| Multi-View Mode | Layout: 6 x Pushbutton (Full Screen, PiP, PbP, Triple/ Quad multi-view) |
| Selection | Mute: 1 x Pushbutton Mode / Unlock: 1 x Pushbutton |
| EDID Settings | EDID Mode: ATEN Default / Display A / Remix |
| Connectors | |
| Power | 1 x DC Jack (Black) |
| Power Consumption | DC12V:17.1W:80BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | |
| Operating Temperature | 0-40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 1.08 kg ( 2.38 lb ) |
| Dimensions (L x W x H) | 20.00 x 16.05 x 4.40 cm (7.87 x 6.32 x 1.73 in.) |
| Carton Lot | 3 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Display A (Scaler Mode) Output Resolutions |
640x480 @ 60 Hz |
| 720x576 @50 Hz | |
| 1280x720 @ 50/60 Hz | |
| 1920x1080 @ 30/50/60 Hz | |
| 3840x2160 @ 24/25/30/50/60 Hz YUV422 12BIT | |
| 3840x2160 @ 24/25/30/50/60 Hz | |
| 3840x2160 @ 50/60 Hz YUV420 | |
| 3840x2160 @ 60 Hz YUV444 | |
| 4096x2160 @ 24/25/30/50/60 Hz YUV422 12BIT | |
| 4096x2160 @ 24/25/30/50/60 Hz | |
| 4096x2160 @ 50/60 Hz YUV420 |
| Display B (Bypass Mode) Input / Output Resolutions |
640x480 @ 60/72/75 Hz | 1080p60 (Native) |
| 800x600 @ 56/60/72/75 Hz | 480p60 (4:3) / (16:9) | |
| 1024x768 @ 60/70/75 Hz | 576p50 (4:3) / (16:9) | |
| 1280x800 @ 60 Hz | 640x480 | |
| 1280x1024 @ 60/75 Hz | 720p50/60 | |
| 1400x1050 @ 60 Hz | 1080p24/25/30/50 | |
| 1440x900 @ 60 Hz | 1080i50/60 | |
| 1600x1200 @ 60 Hz | 3840x2160p24/25/30/50/60 | |
| 1680x1050 @ 60 Hz | 4096x2160p24/25/30/50/60 | |
| 1920x1080 @ 60/120 Hz | 3840x2160p50/60 (4:2:0) | |
| 1920x1200 @ 60 Hz CVT(RB) / (RB) | 4096x2160p50/60 (4:2:0) |
Package content
- 1x VP2420 4 x 2 True 4K HDMI Presentation Switch with Multi View
- 1x IR receiver
- 1x IR remote control
- 1x rack mount kit
- 1x 3-pole terminal block
- 1x power adapter and power cord
- 1x user instructions
