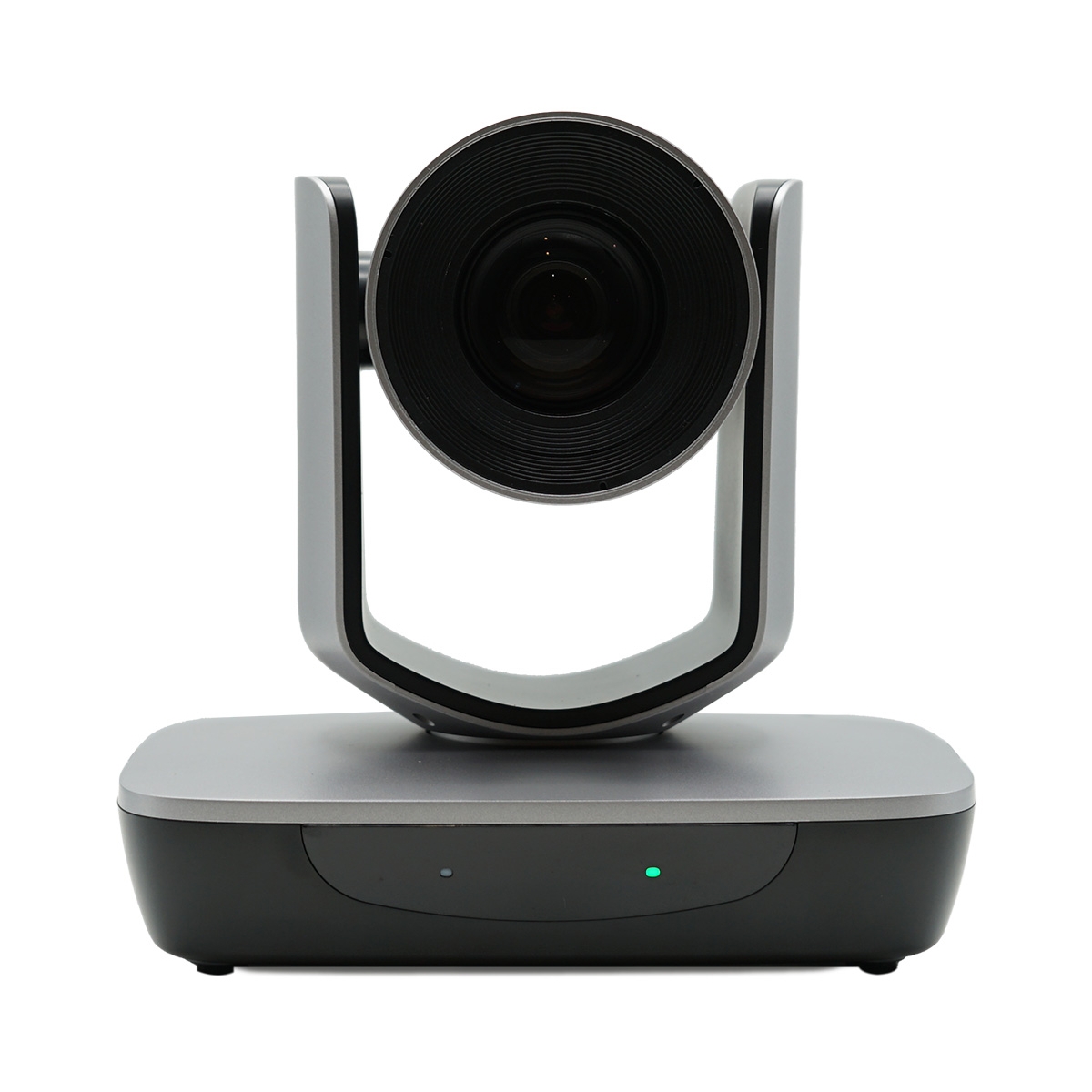

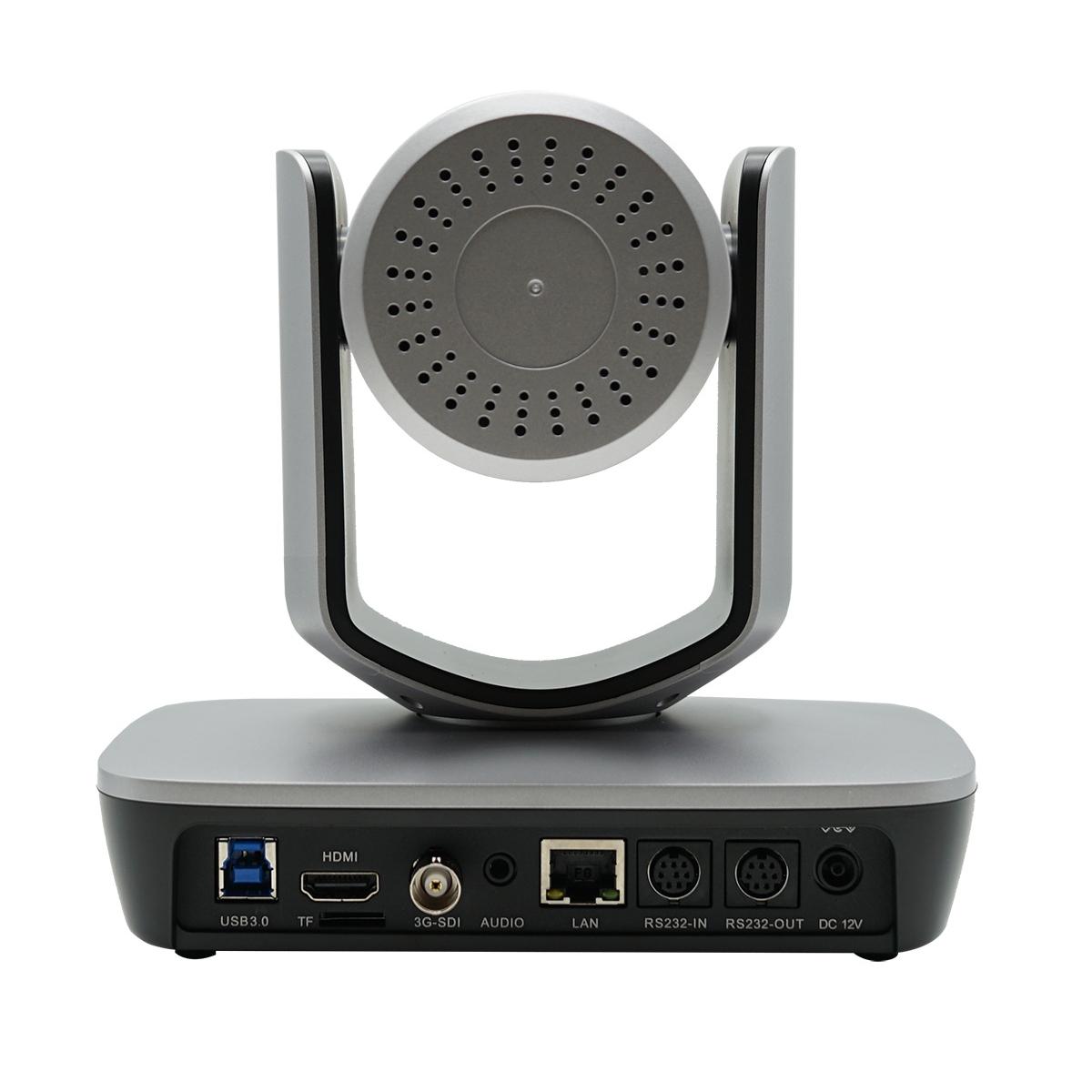

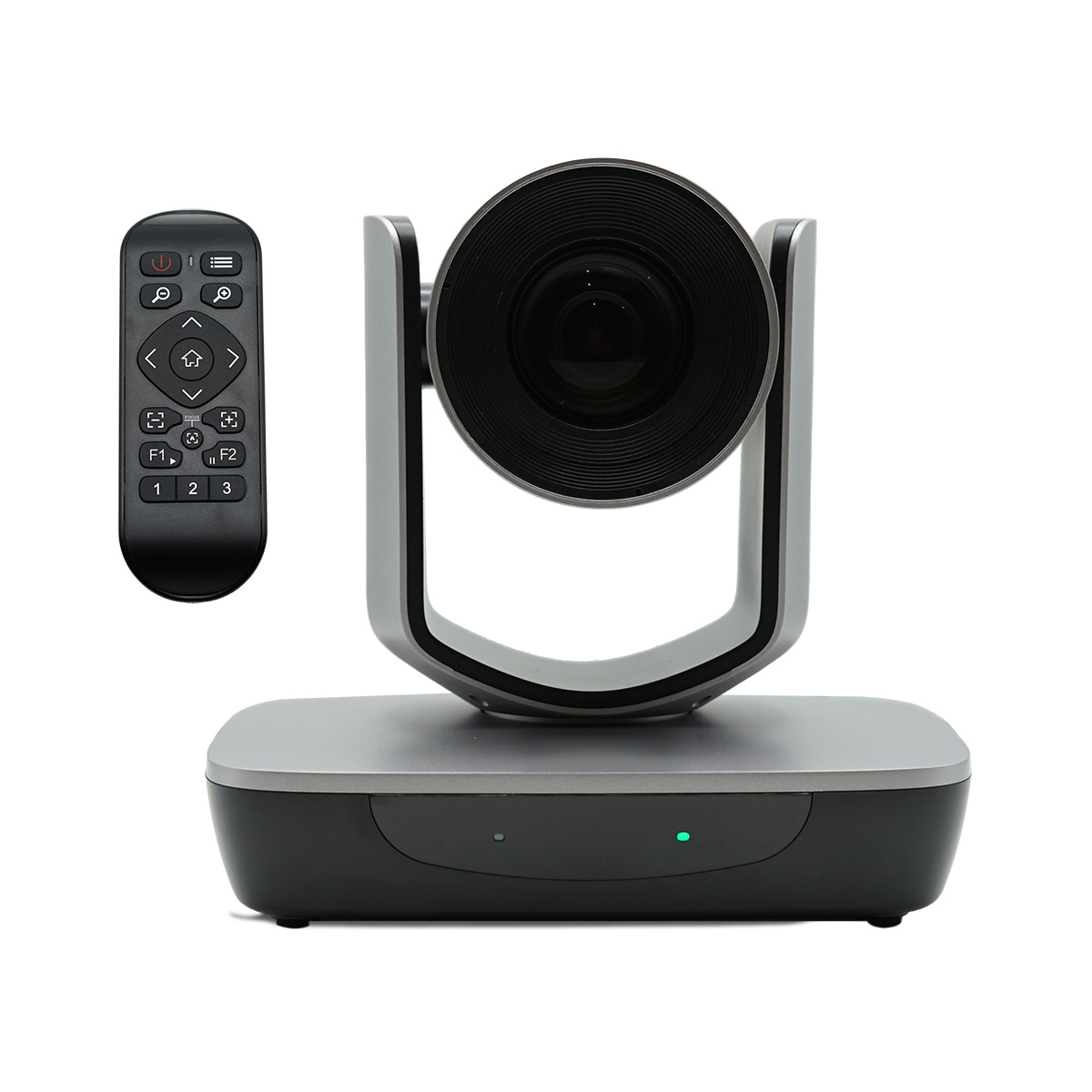

20X Optical Zoom PTZ Video Conference Camera with HDMI, SDI, USB3.0, LAN
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก
Camera CMS software for Windows
Items | |
Image Sensor | 1/2.8" CMOS, 2megapixel |
Focal Lens | f=4.7mm ~ 94mm |
Iris | F1.6 ~ F3.5 |
Optical Zoom | 20x |
Digital Zoom | 16x |
Field Of View | 59.5° - 2.9° |
Focus System | Auto, Manual, PTZ Trigger, One Push Trigger |
Exposure Control | Auto, Manual, Shutter Priority, Iris Priority, Bright Priority |
Min. Illumination | 1.0Lux @ (F1.6, AGC ON) |
Shutter Speed | 1/50s ~1/10,000s |
Gain | Auto /Manual |
White Balance | Auto, One Push, Manual, ATW, Static Color Temperature |
Wide Dynamic | Yes |
Back Light Compensation | Yes |
S/N | ≥50dB |
Menu | Yes |
PTZ | |
Pan Angle | -170°~+170° |
Tilt Angle | -30°~+90° |
Pan Speed | 0.1°~120°/S |
Tilt Speed | 0.1°~90°/S |
Preset Number | 64 |
Image Flip | Support |
3G-SDI | |
Video Format | 1080P60/P50/P30/P25, 720P60/P50 |
HDMI | |
Video Format | 1080P60/P50/P30/P25, 720P60/P50 |
NETWORK | |
Network Interface | 1×10M/100M RJ45 |
Image Compression | H.265, H.264 |
Audio Compression | AAC |
Protocols | ONVIF, RTSP, RTMP, SRT, TCP, UDP |
Video Output Format | Max 1080P60 |
Support Multiple Dual streams | |
USB | 1×USB 3.0 |
Support UVC1.1 | |
Video Format Support YUY2/H.264/H.265/MJPEG | |
Video resolution:1080P30/P25,720P30/P25,360P30/P25 | |
UAC Audio Format PCM | |
Protocols | VISCA (support daisy chain) / PELCO-P / PELCO-D |
Audio Input | 1×LINE IN 3.5mm |
Control Interface | 1 channel RS-232 IN, 1 channel RS-232OUT/RS485 |
Storage Interface | MAX 256G |
Power | DC12V |
Power Consumption | <15W |
Operating Temperature | 0°C~+40°C |
Storage Temperature | -20°C~+40°C |
Dimensions (W×H×D) | 176mmx137mmx171mm |
Weight | ≤1.2kg |
